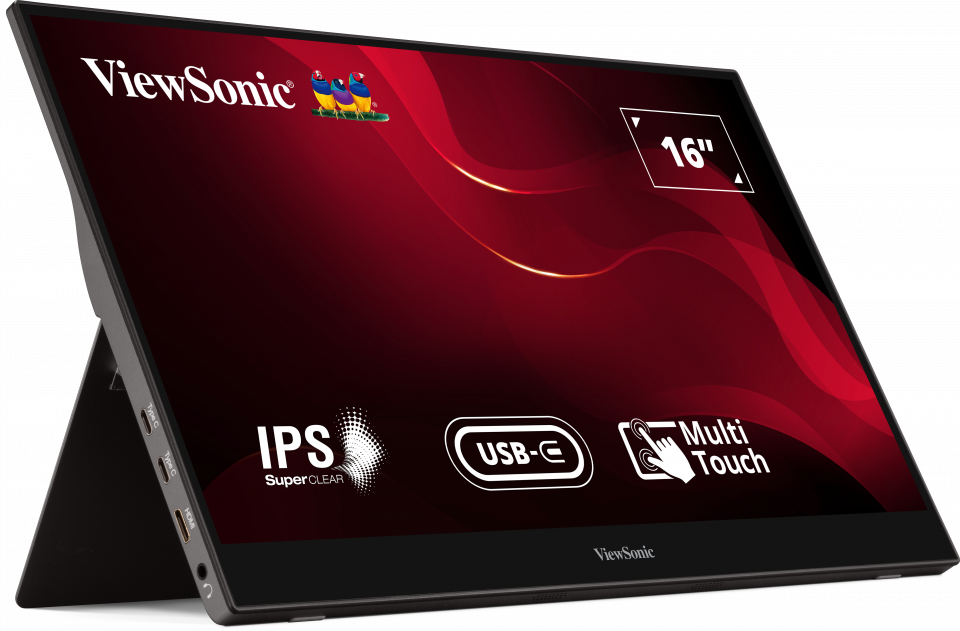

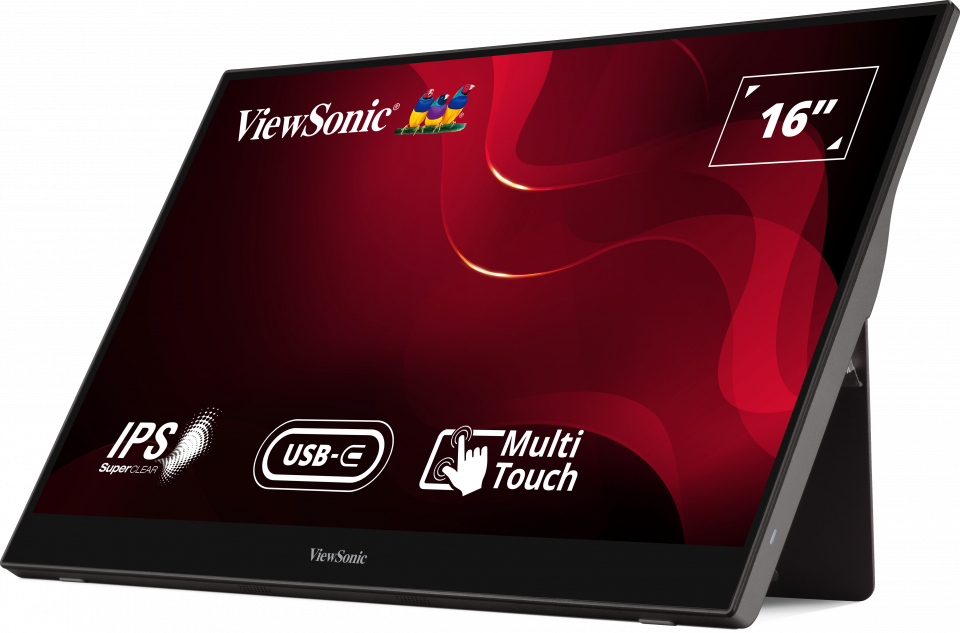

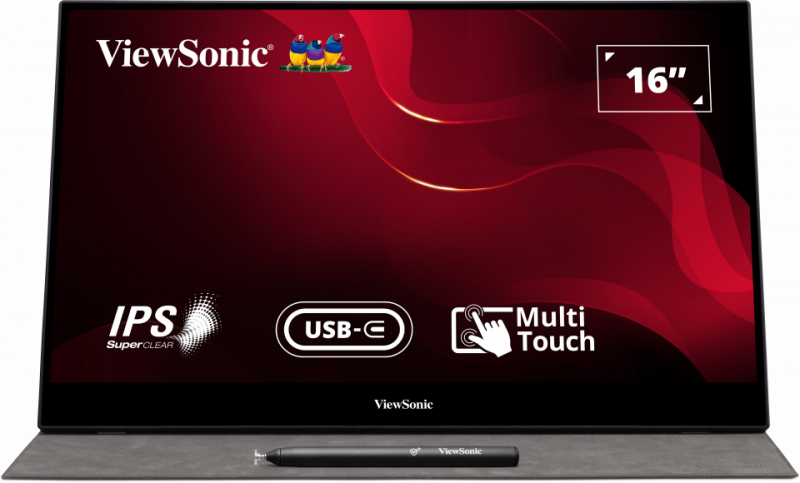

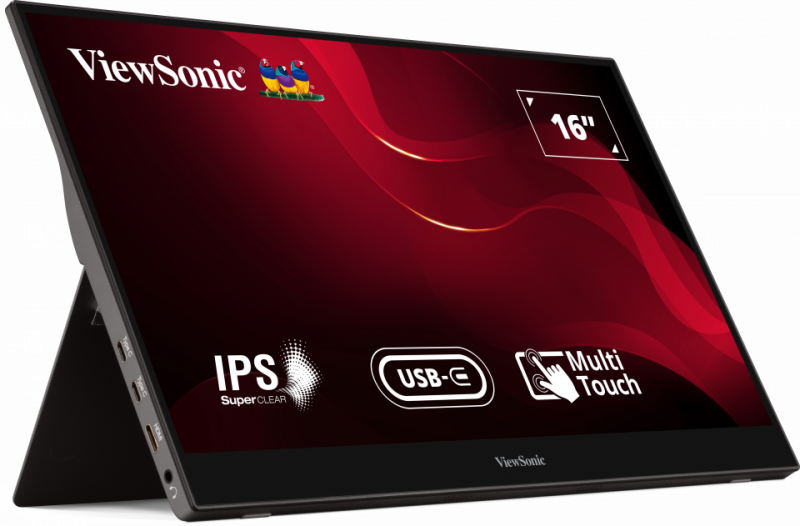

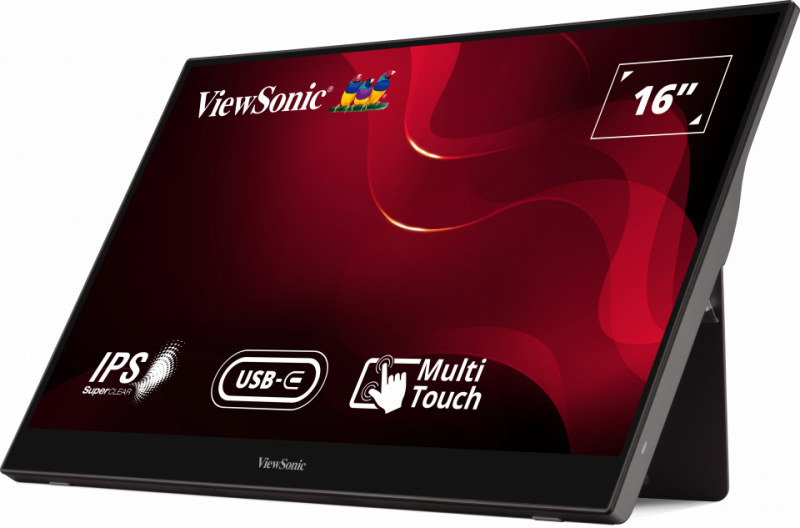

TD1655

16” USB-C Multi-Touch Portable Monitor

  • Compact, lightweight, and portable
  • 10-point multitouch technology for a more intuitive screen control
  • USB-C one-cable solution for multimedia transfer, touch signal transmission, and power charging
  • Flexible display setup – work at any angle
  • Elegant, durable metallic design with a foldable stand
Sales Enquiry

OVERVIEW

The ViewSonic TD1655 is a portable 16” Full HD touch monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual, power, and touch signal transmission. The adjustable wide stand and pivot-able display will support your working angles. With the anti-slip cover, metal case, aluminum stand, and 6H hardness screen, reliability is embodied in the design.

Extend your content from mobile devices

Extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode.

*To connect on iPhone or iPad with a lightning port, you will require to purchase a Lightning Digital AV Adapter from apple.com and connect via a HDMI to mini HDMI cable**.
**The HDMI to mini HDMI cable is included in the box.
***Full-featured USB-C connector implements Video, Audio, USB touch data transmission and power delivery.
Anywhere with Laptops, Tablets, and Phones
Extend your content from mobile devices 1

Audiovisual Extension while Power Charging

Broadcast your built-in Type C mobile device’s multimedia onto a bigger screen and charge (up to 60W) over one cable while powering from an external power bank/outlet over the other USB Type C cable.

*Power Charging:
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.

2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.
Flexible Setup with 2 x USB Type C
Audiovisual Extension while Power Charging 1

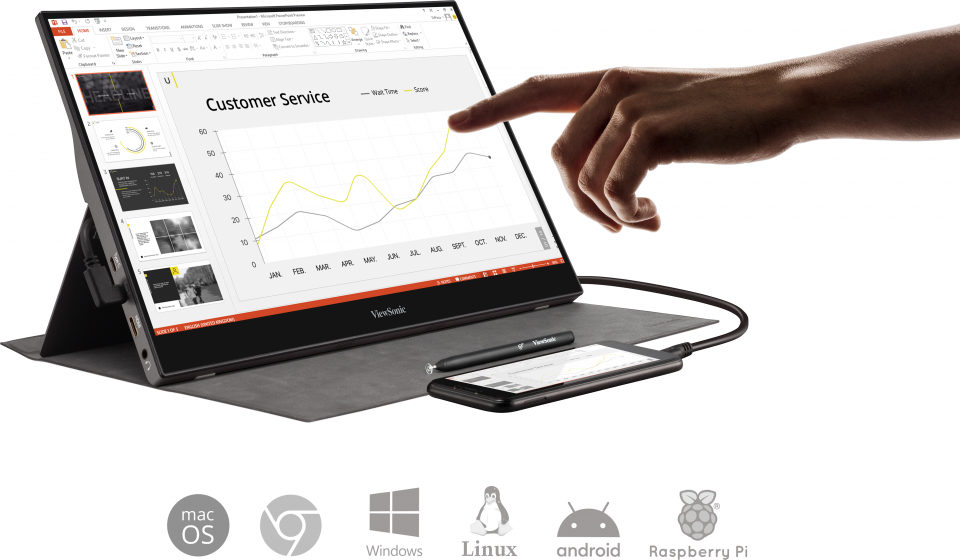

Touch Feedback Control

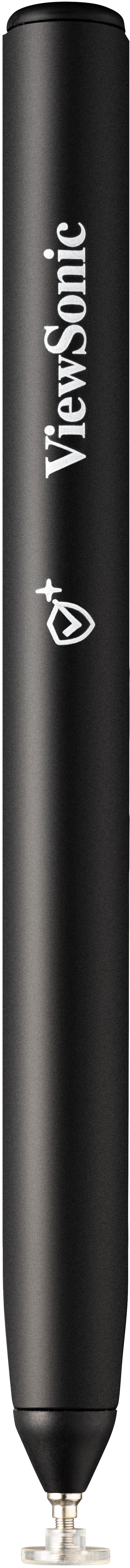

Control in a large screen with touch gives more intuitive and efficient reactions. The attached magnetic touch pen allows you to draw and write notes without leaving fingerprints.

*Touch feedback control does not apply to iOS & iPadOS devices.
*Please download vTouch software to enable touch feedback on MacOS.
*Please check if the connectivity on your mobile device supports USB touch signal transmission to enable touch feedback control to our monitor.
*Do not remove the plastic disc from the tip of the pen as it is instrumental to touch accuracy functionality.
10-Point Fingertip/Touch Pen
Touch Feedback Control 1

Portable Size for Work & Fun

Larger, 16” display than most common laptops and weighing less than 1 kg. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.
16” Display, 1 KG, 1 CM
Portable Size for Work & Fun 1

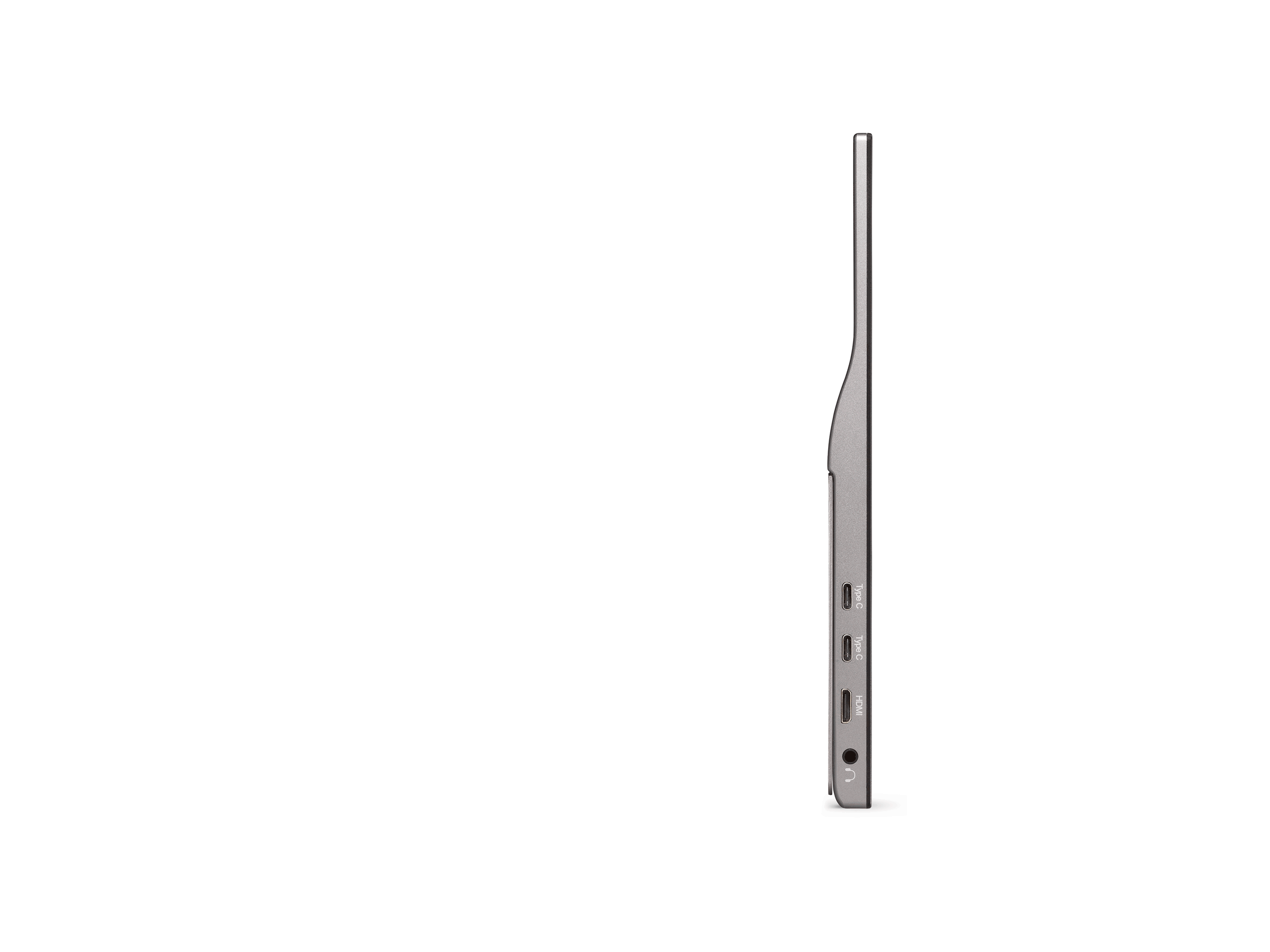

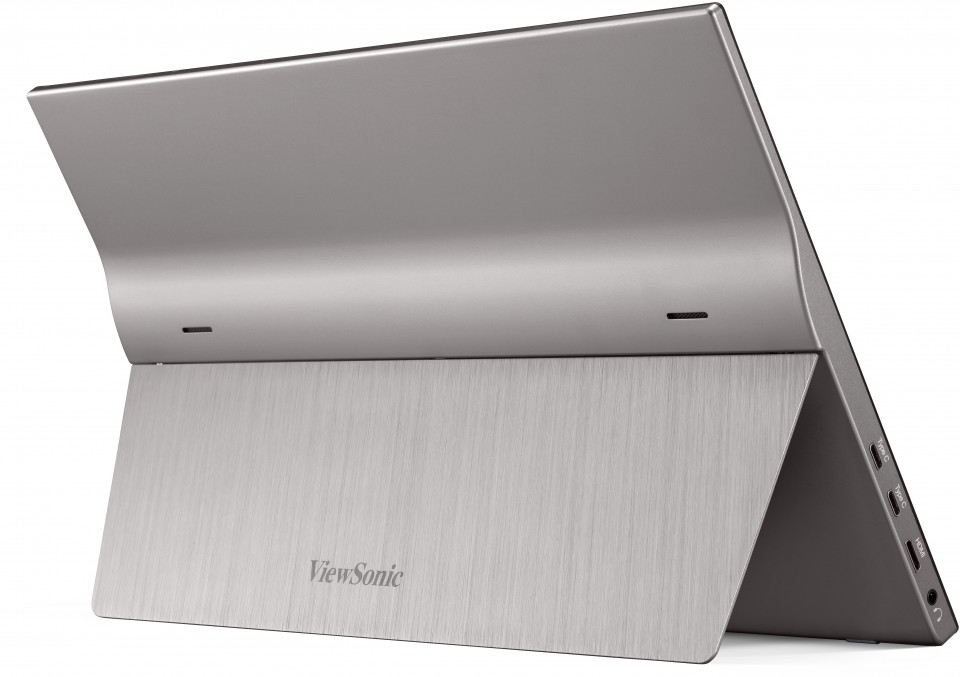

Working in Your Preferred Angles

View in a wide range of angles by adjusting the attached stand.
Up to 60 Degree Tilt
Working in Your Preferred Angles 1

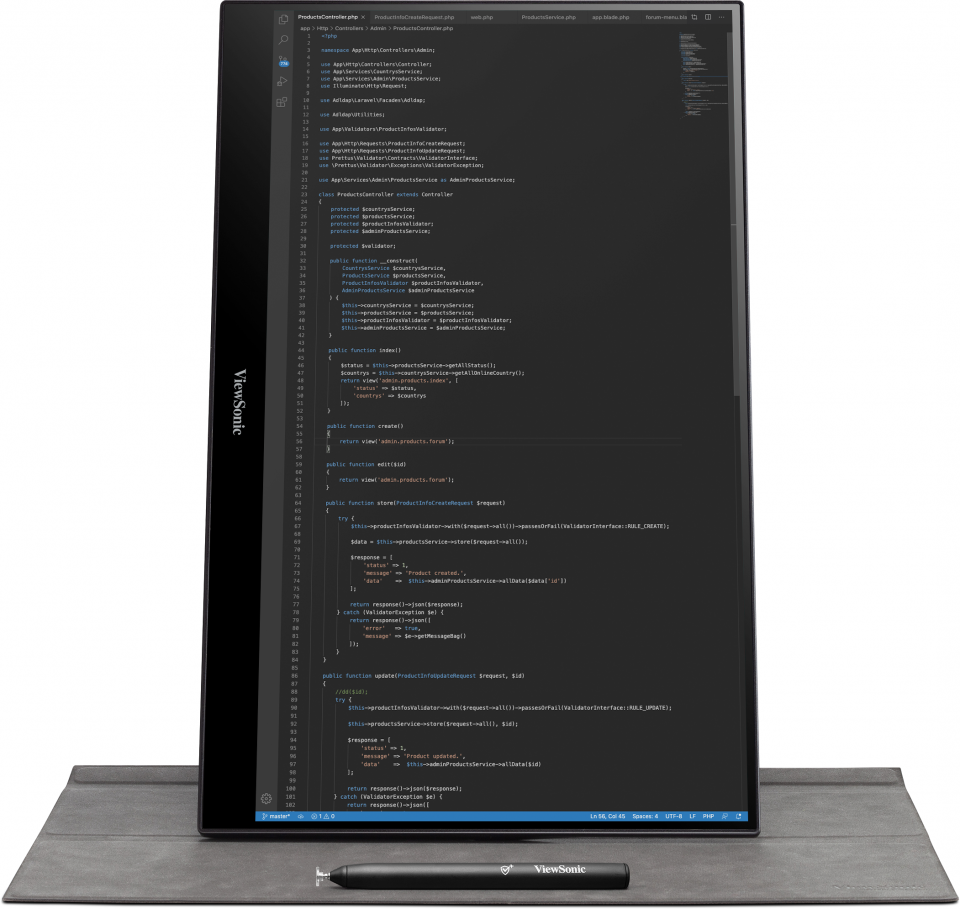

Supports Vertical Layout

Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.
Pivot-able Display
Supports Vertical Layout 1

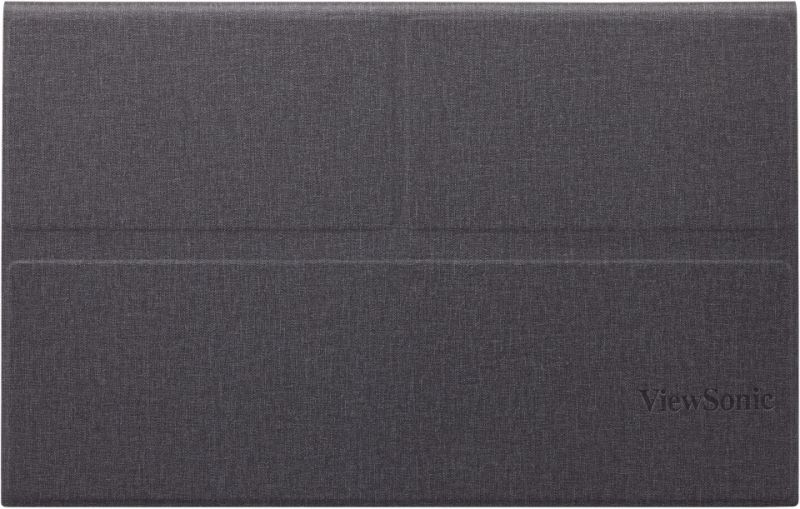

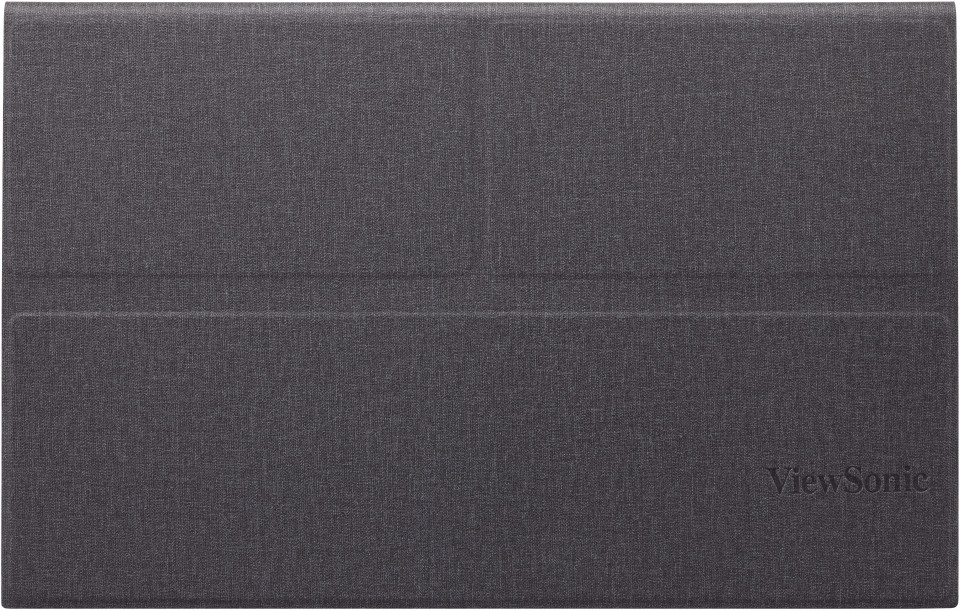

Magnetic Cover and Mat

Avoid damage during carry, the detachable magnetic cover is easy to put on. Used as a mat, its anti-slip surface prevents the monitor from sliding away.
Anti-slip Cover
Magnetic Cover and Mat 1

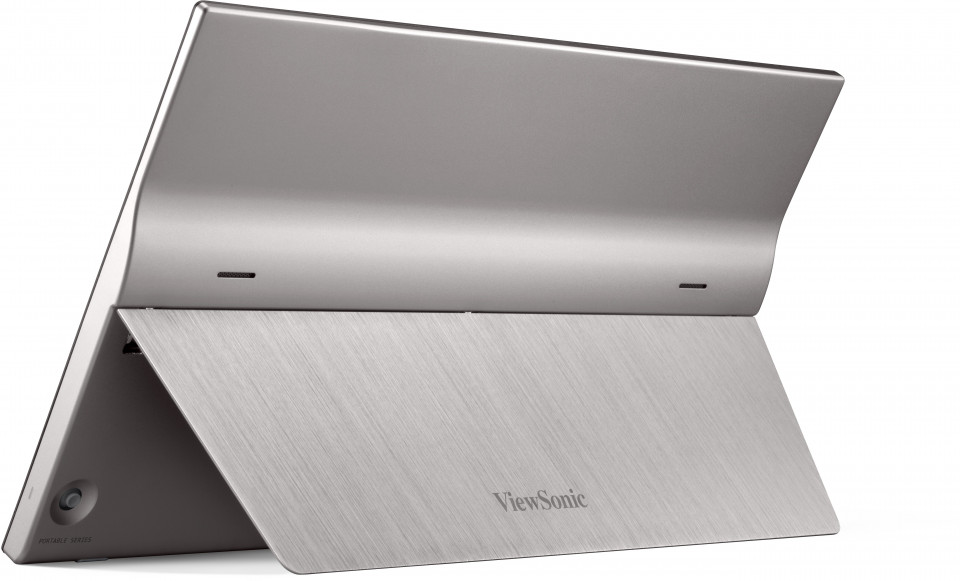

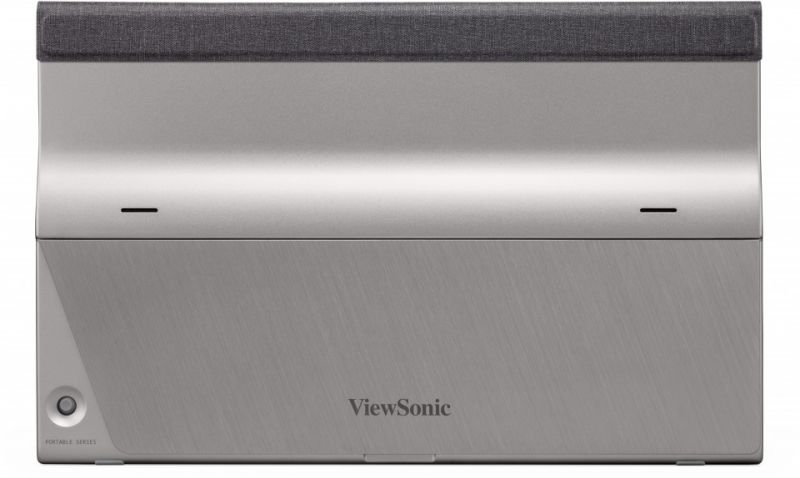

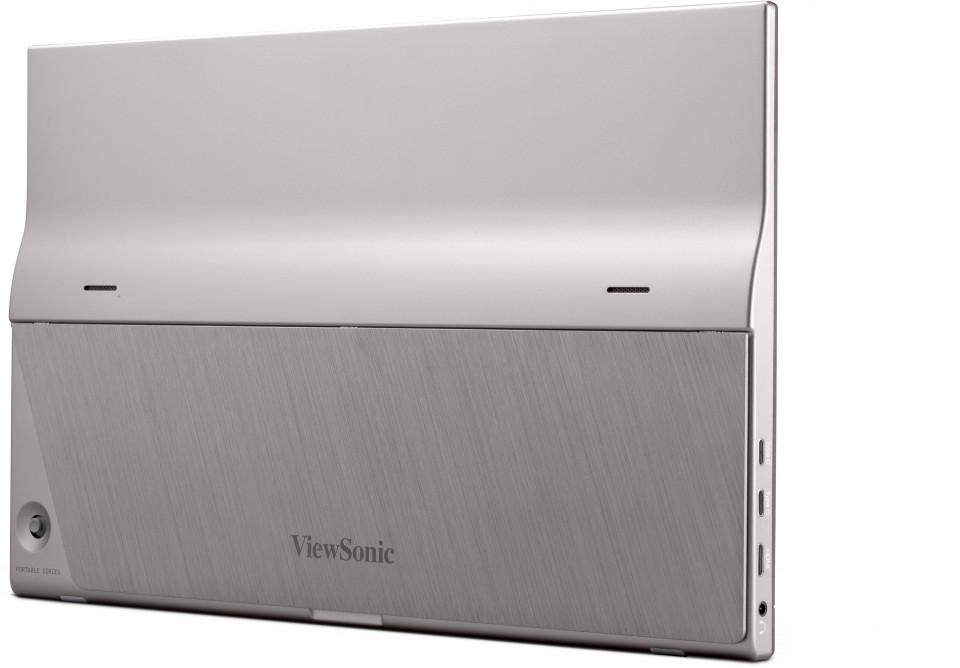

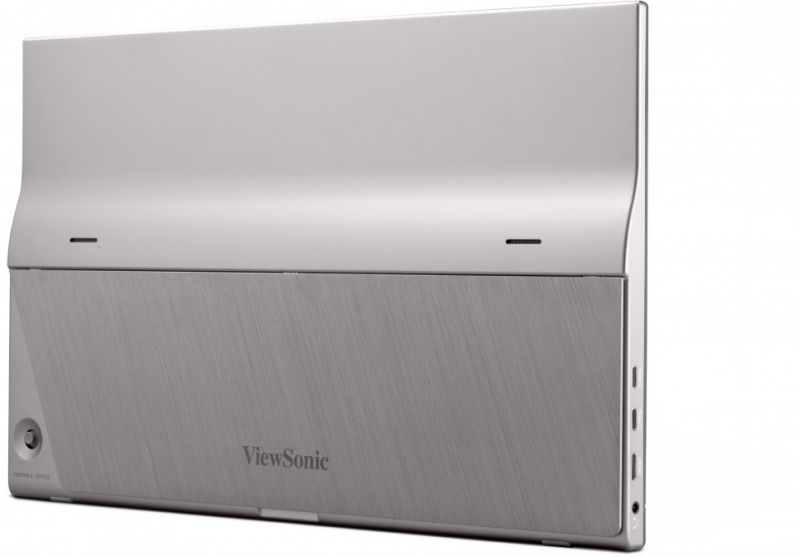

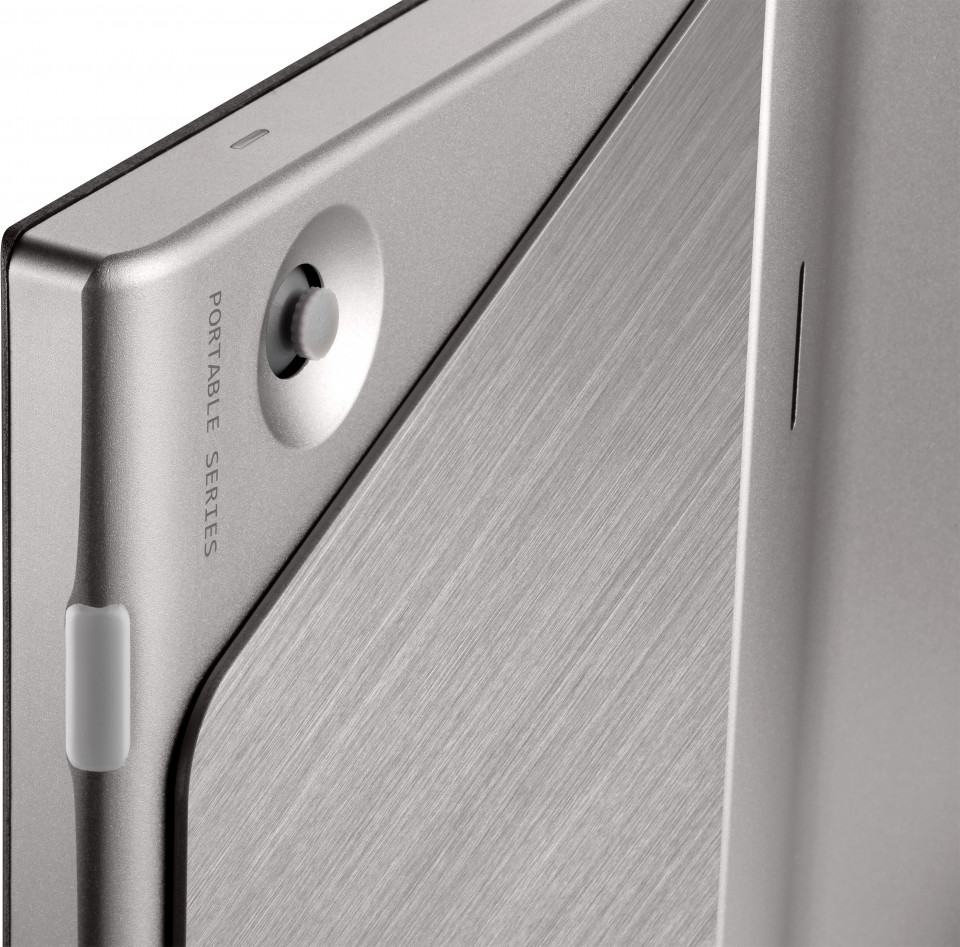

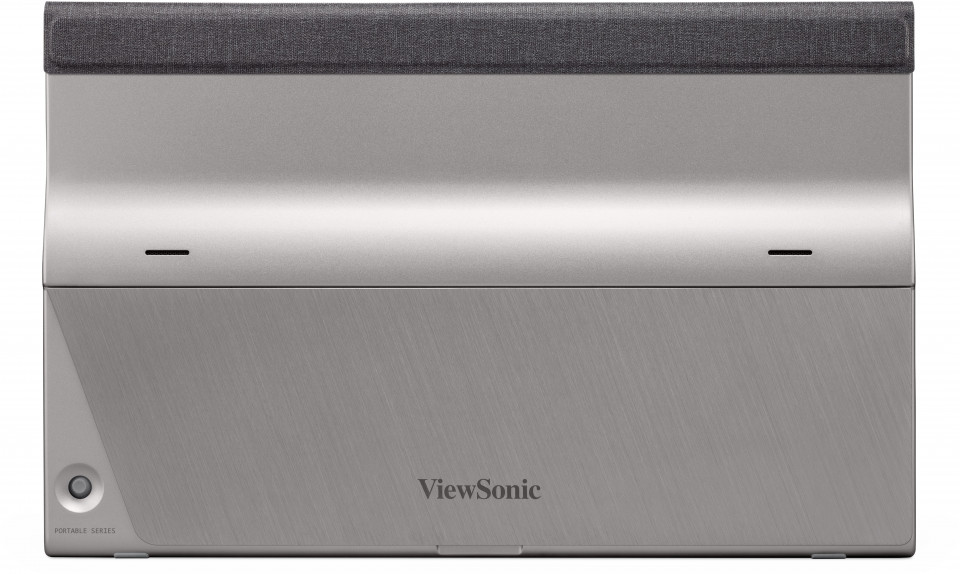

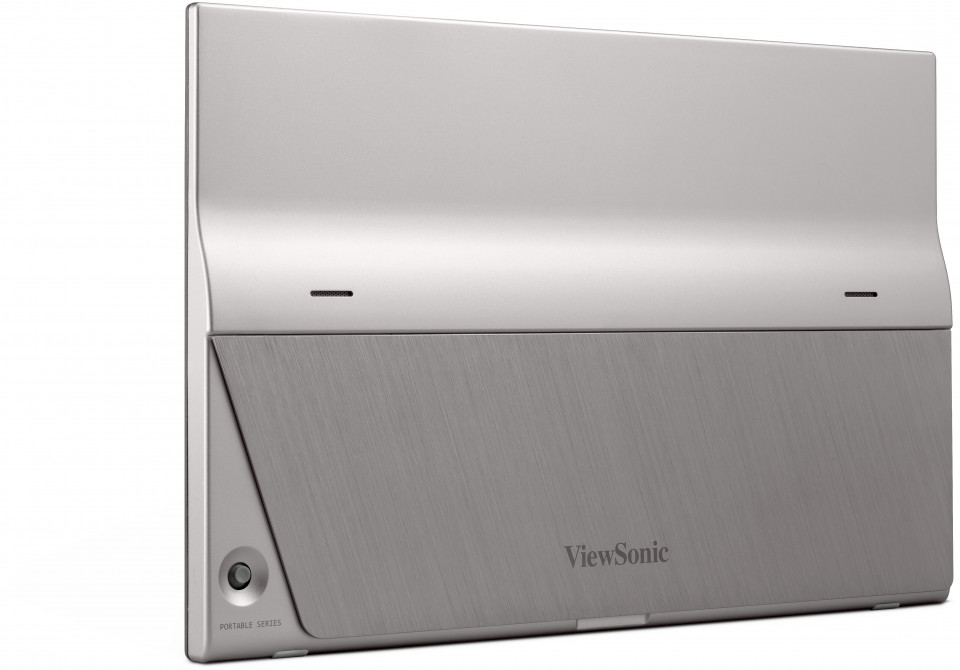

Robust One-piece Design

With the metal case and endurable hinge, the fold-able aluminum stand makes the whole monitor a one-piece design.
Metal Case & Aluminum Stand
Robust One-piece Design 1

Anti-scratch Touch Screen

Built-in 6H hardness screen, it’s resistant to surface damage, even if accidently scratched by your keys.
6H Hardness Screen
Anti-scratch Touch Screen 1

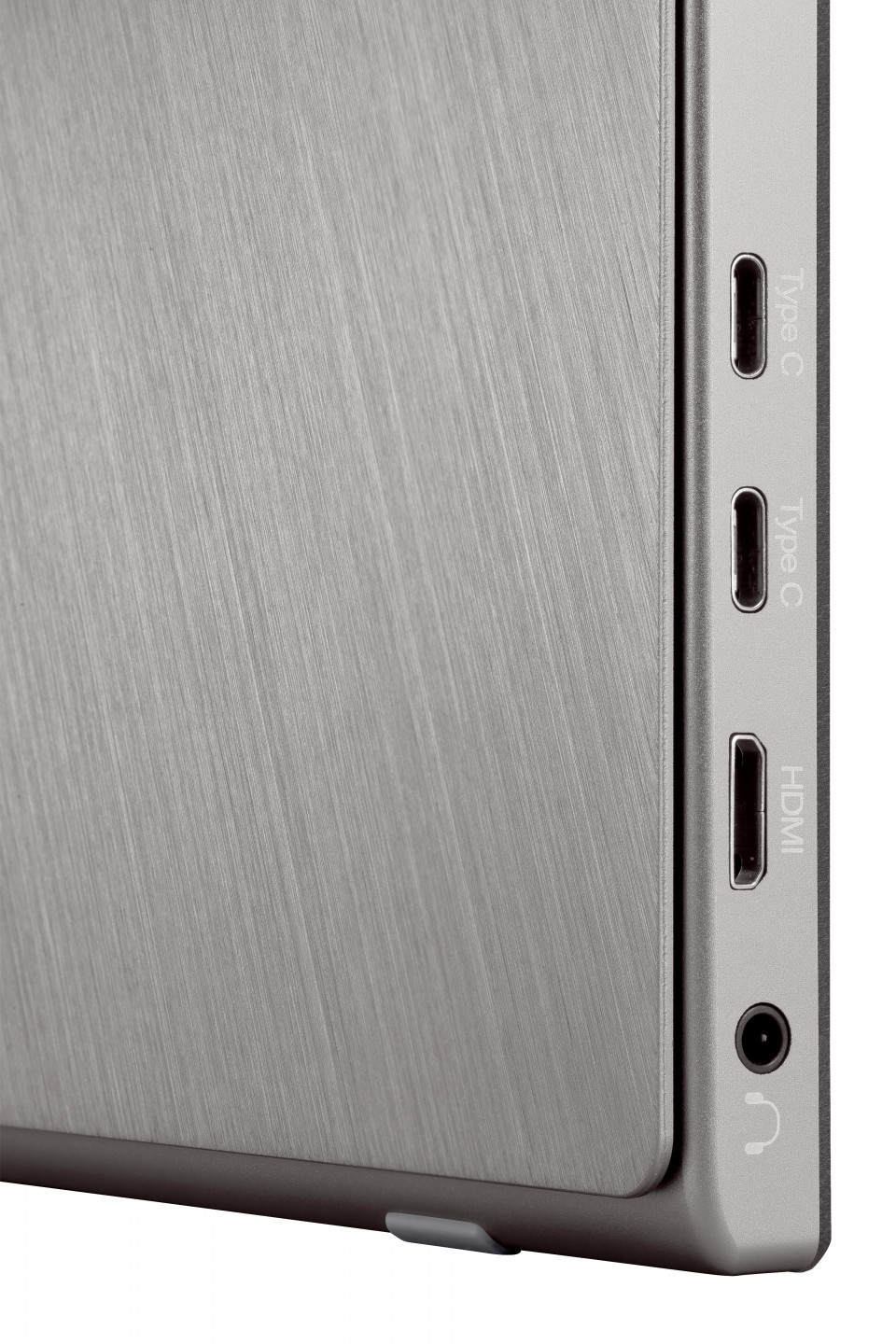

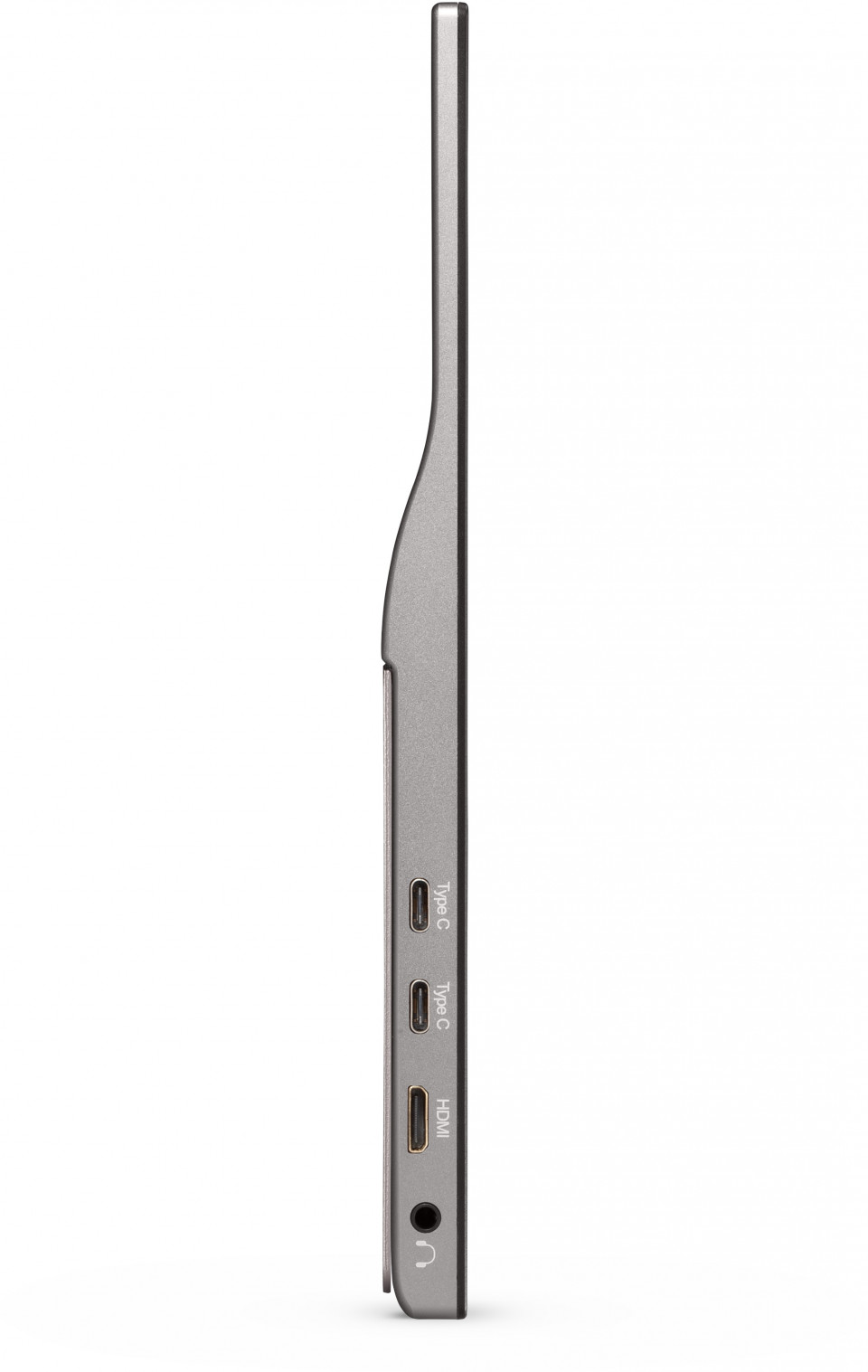

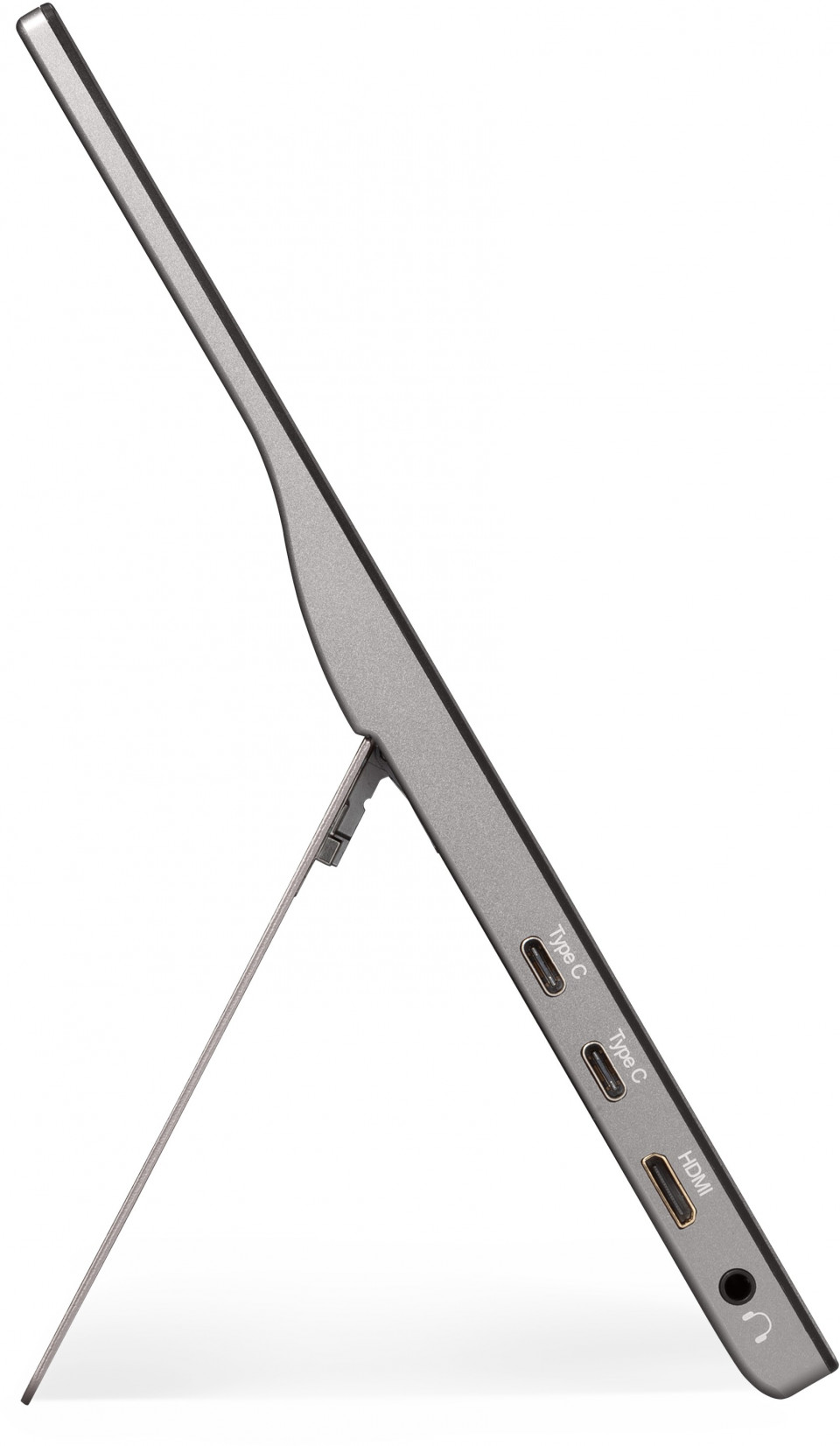

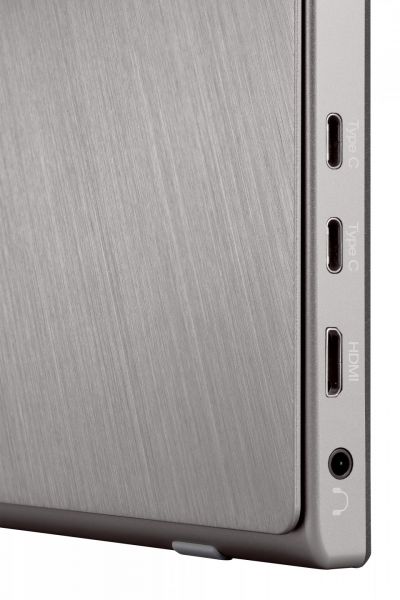

Dimensions & I/O Ports

  1. USB Type C x2
  2. Mini HDMI
  3. Audio Out
  4. Joy Key

SPECIFICATIONS


  • Display
    Display Size (in.): 16
    Viewable Area (in.): 15.6
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 800:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 262K
    Color Space Support: 6 bit true
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 6.5ms
    Response Time (GTG w/OD): 6.599ms
    Response Time (Typical Tr+Tf): 30ms
    Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
    Backlight Life (Hours): 15000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Color Gamut: NTSC: 45% size (Typ)
    sRGB: 64% size (Typ)
    Pixel Size: 0.179 mm (H) x 0.179 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H)
    Cover Glass Thickness: 0.8mm
  • Compatibility
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • Connector
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 (60W power charger)
    3.5mm Audio Out: 1
    Mini HDMI: 1
    Power in: USB Type C (with video & data)
