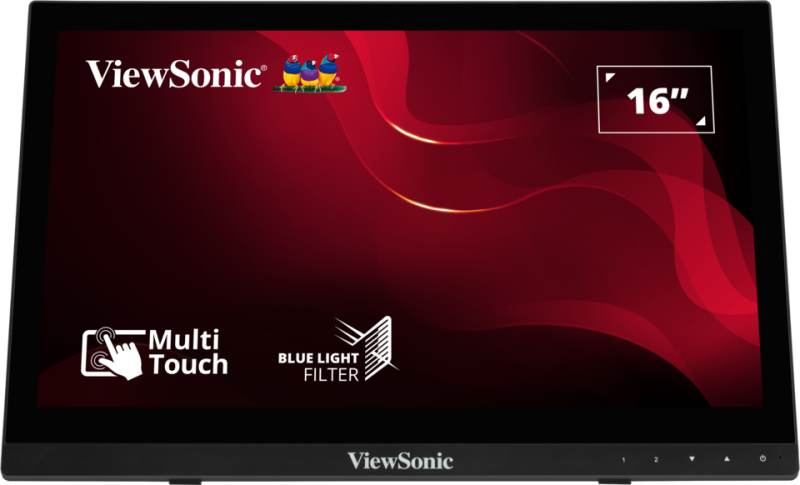

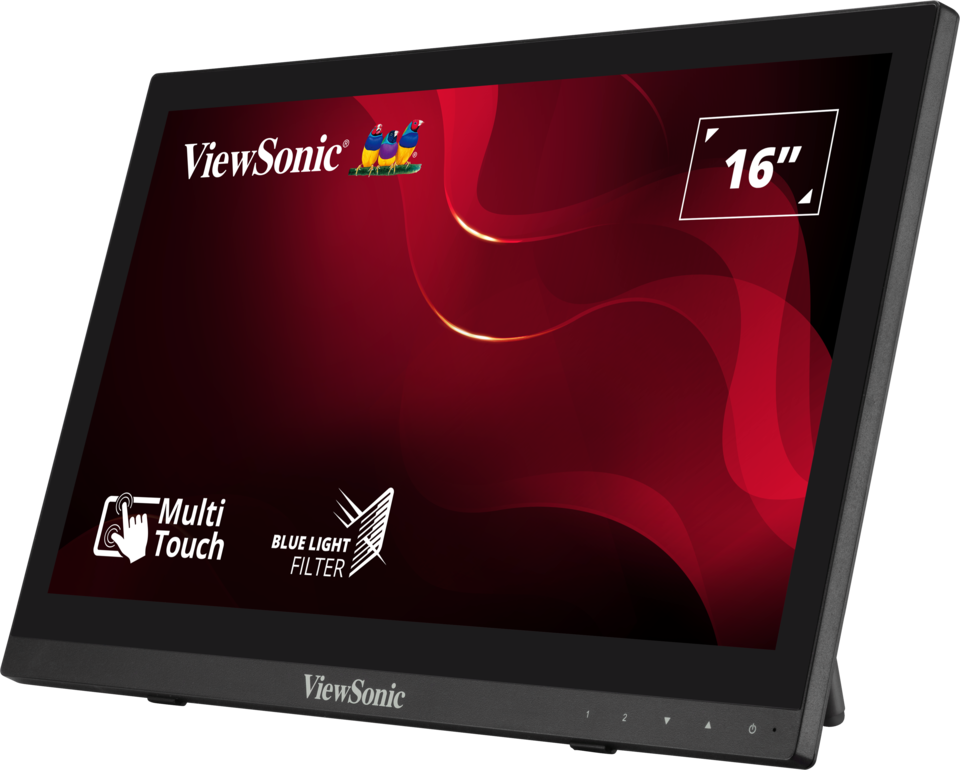

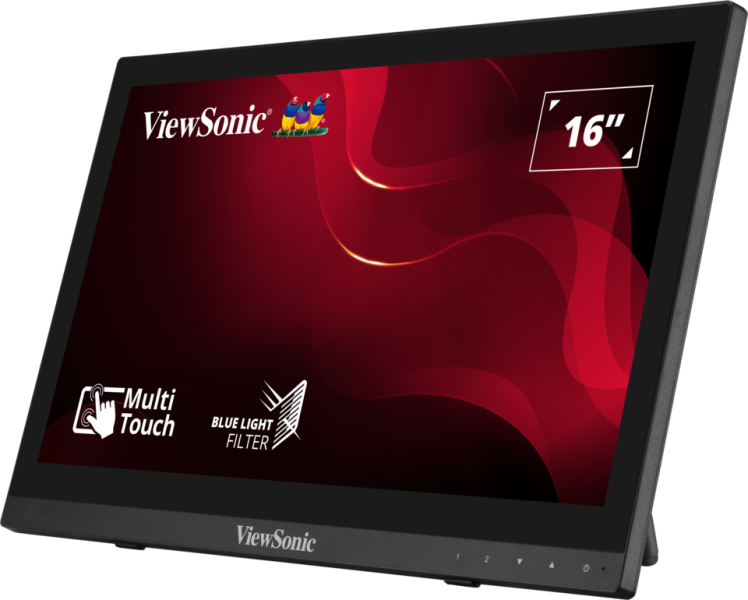

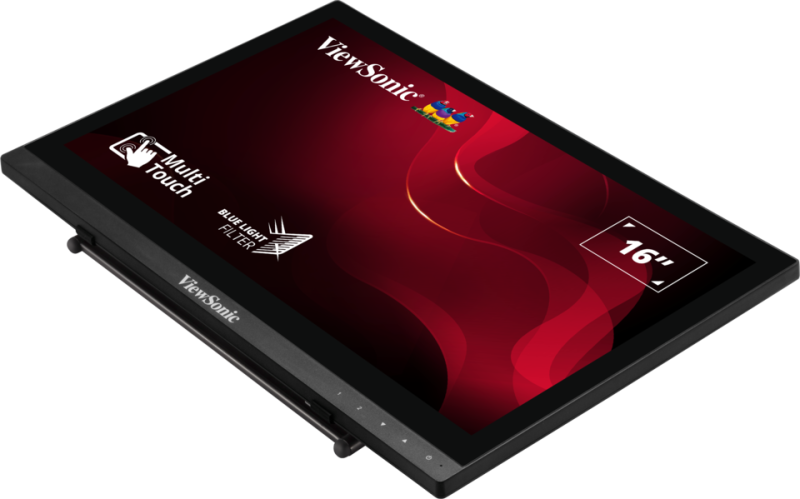

TD1630-3

16" 10-point Touch Screen Monitor

  • HD 768p Resolution
  • 10-point projected capacitive touch
  • HDMI and VGA inputs
  • Dual integrated speakers
  • Durable, Scratch-resistant Screen
Sales Enquiry

OVERVIEW

With advanced ergonomics, the display can tilt or lay flat to give users maximum comfort. TD1630-3 delivers touchscreen versatility, offering fantastic flexibility for retail or business settings. ViewSonic TD1630-3 is a 16” (15.6” viewable) display with 10-point multi-touch functionality, while VGA and HDMI inputs provide flexible connectivity. Adding to a list of versatilities, the display is compatible with a wide range of operating systems, including Windows 10 and Linux versions.* Along with the dual integrated speakers, this intuitive touchscreen delivers a highly accurate, ultra-responsive touch experience that is ideal for interactivity in retail or business settings. *Supports Windows 7/8/10, Linux Kernel 4.X/3.X

10-Point Projected Capacitive Touch

Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
10-point Multi-touch

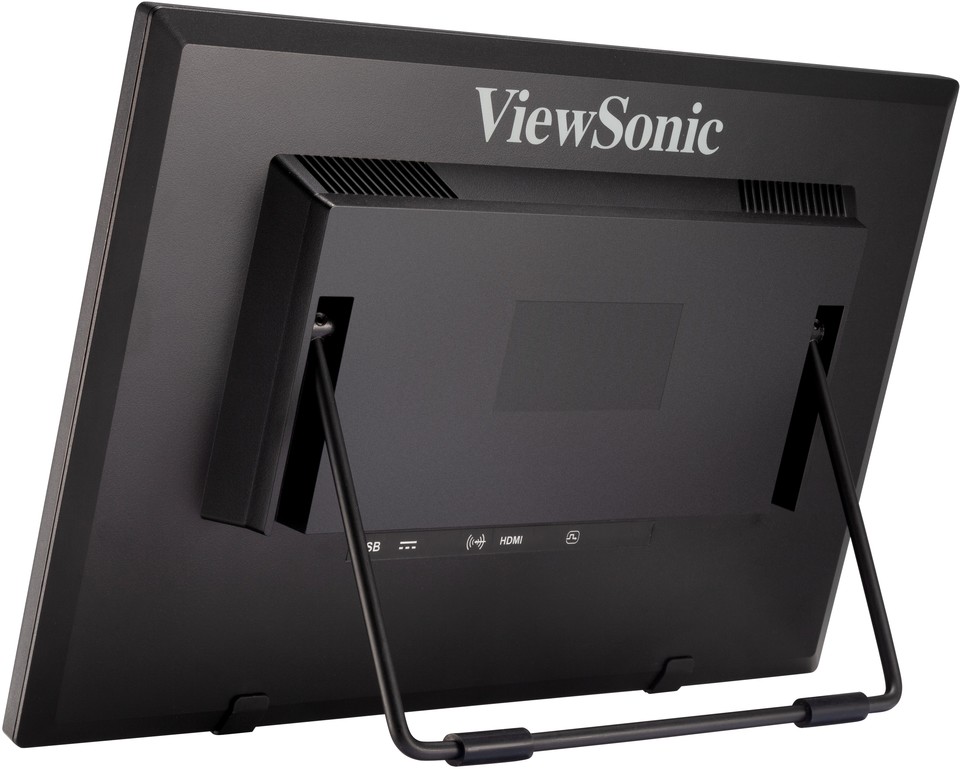

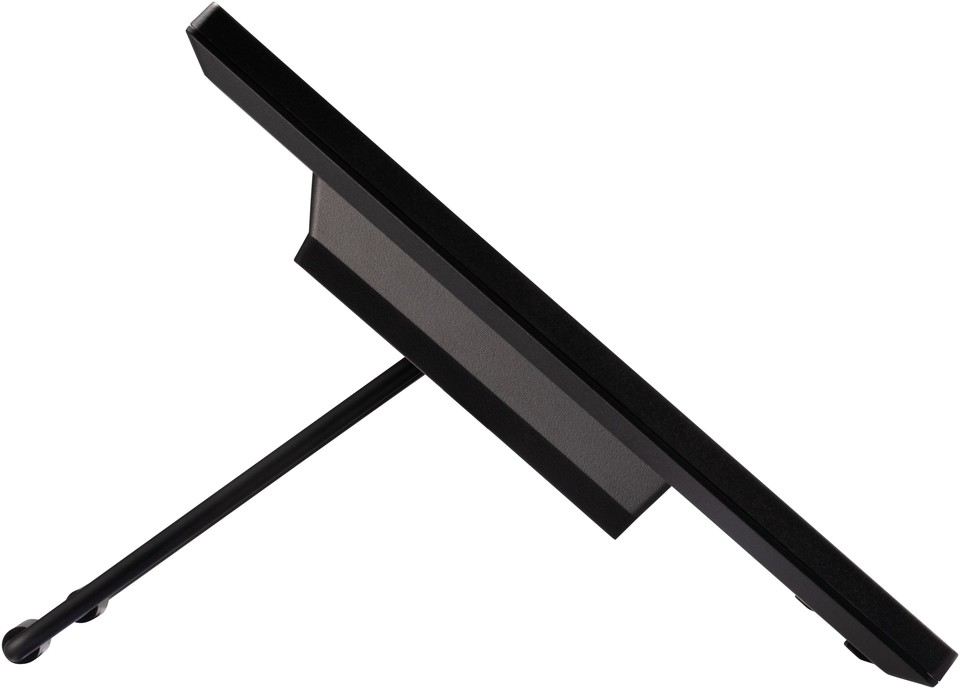

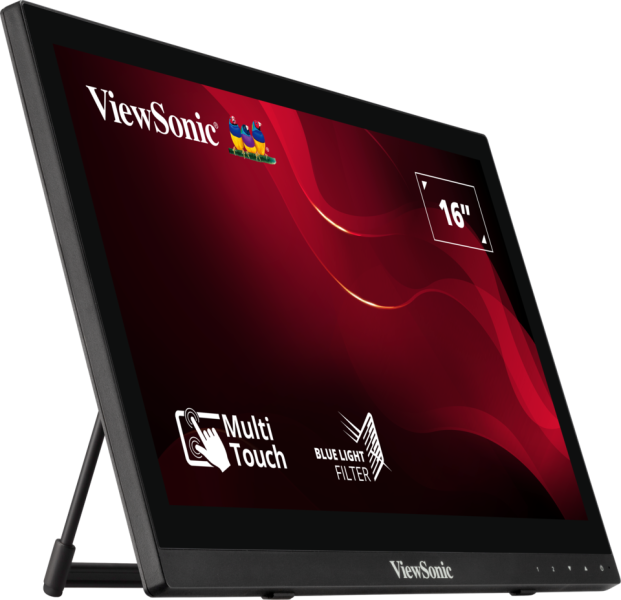

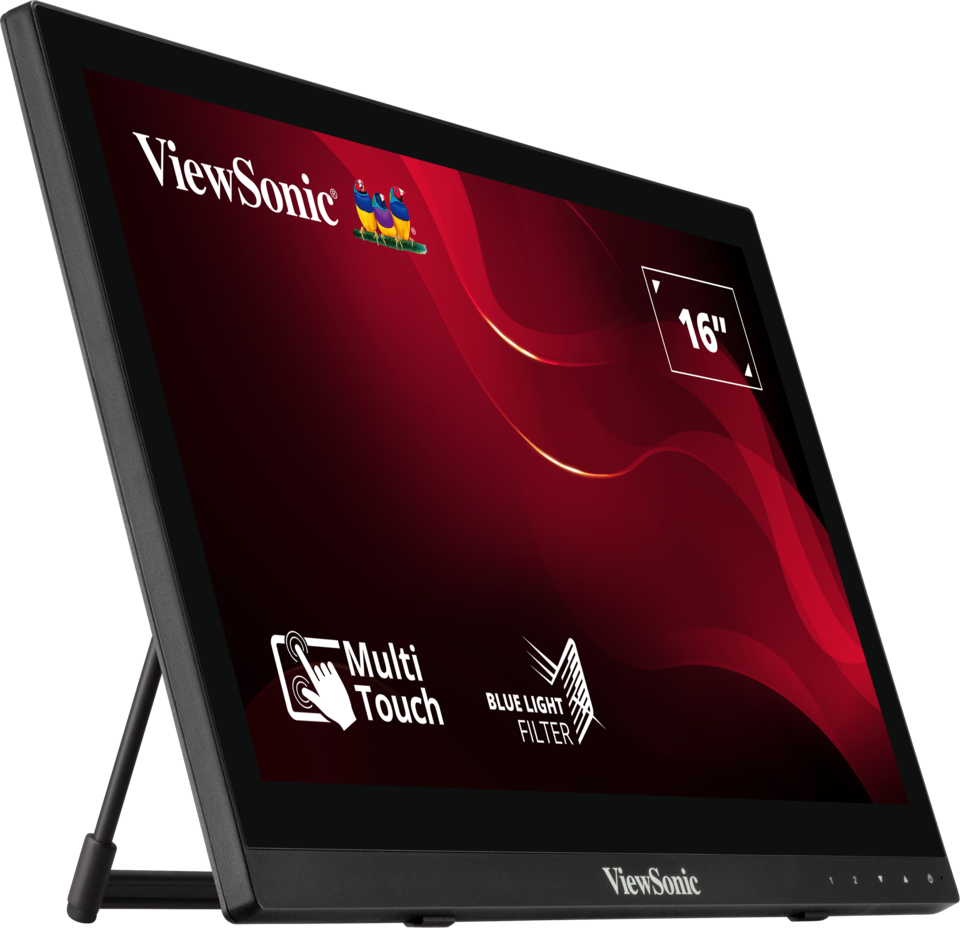

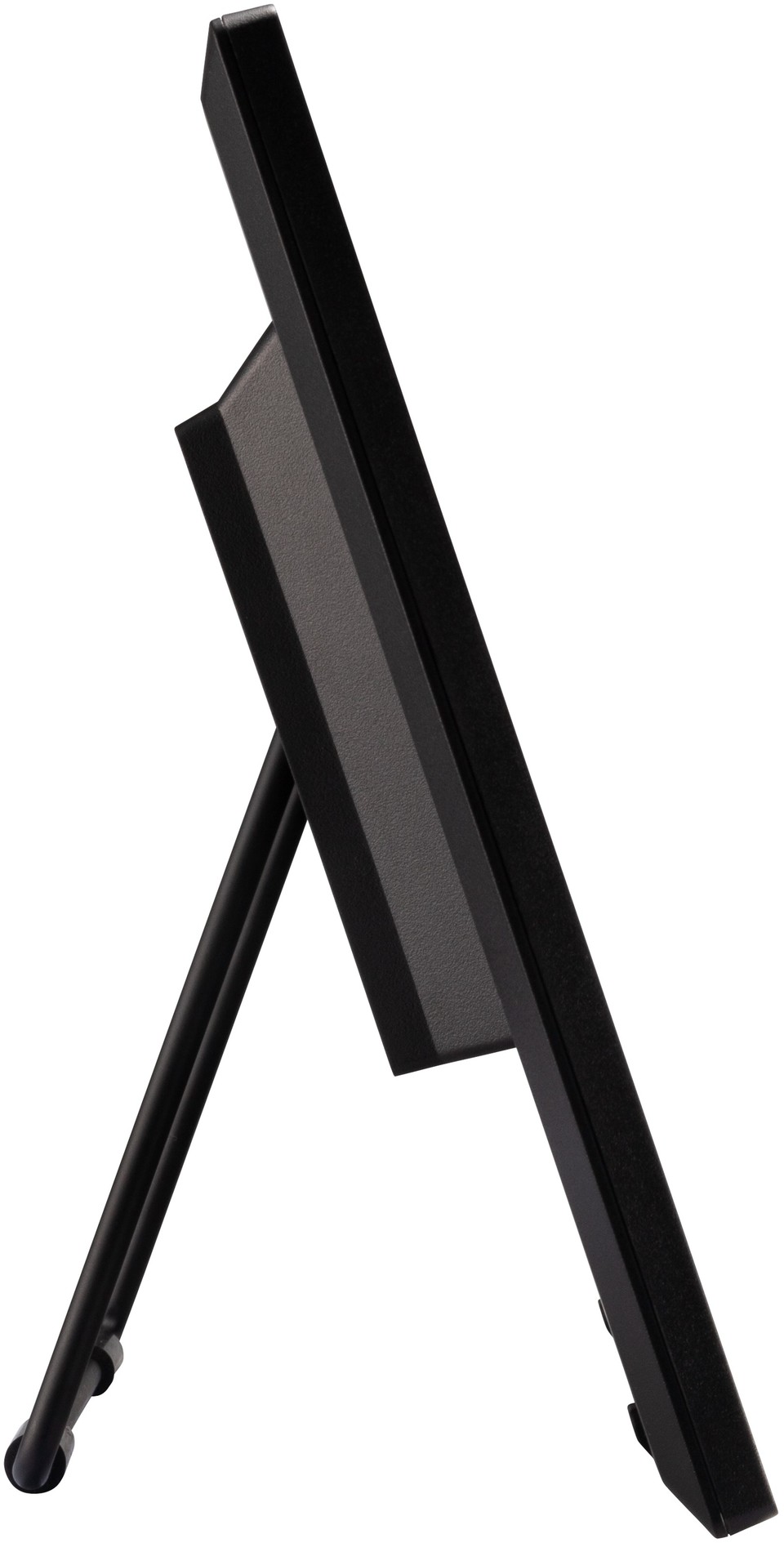

Advanced ergonomic stand design

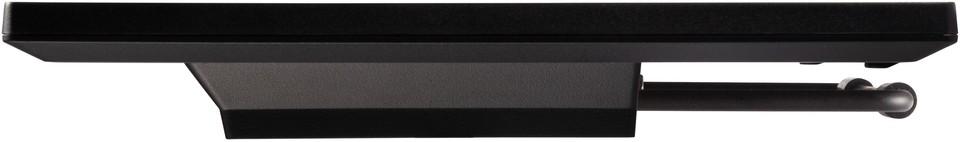

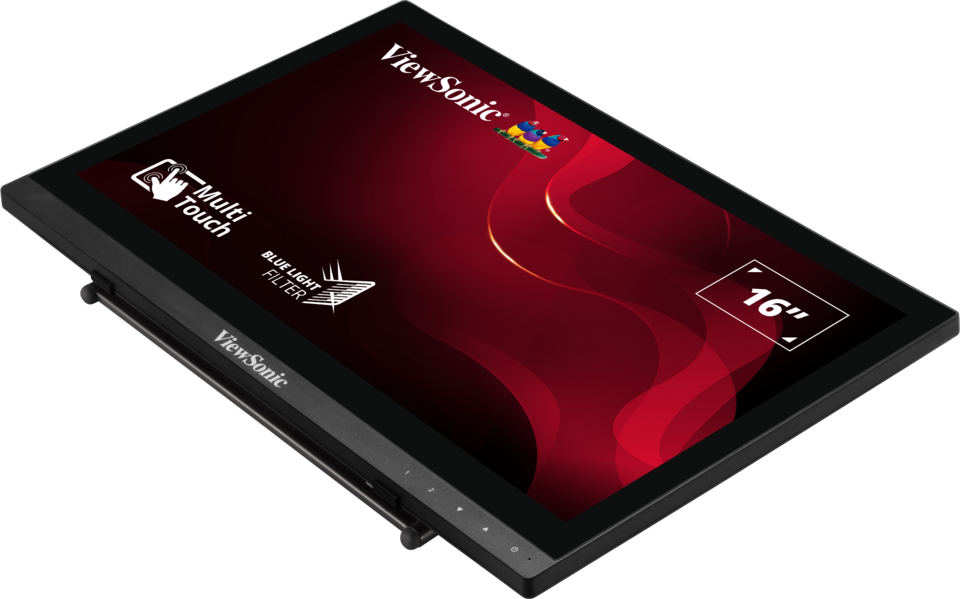

A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.
Ergonomic stand

Versatile Connectivity

HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
HDMI, VGA

Cross-platform compatibility

Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions.
*Supports Windows 7/8/10, Linux Kernel 4.X/3.X
Windows 10, Linux

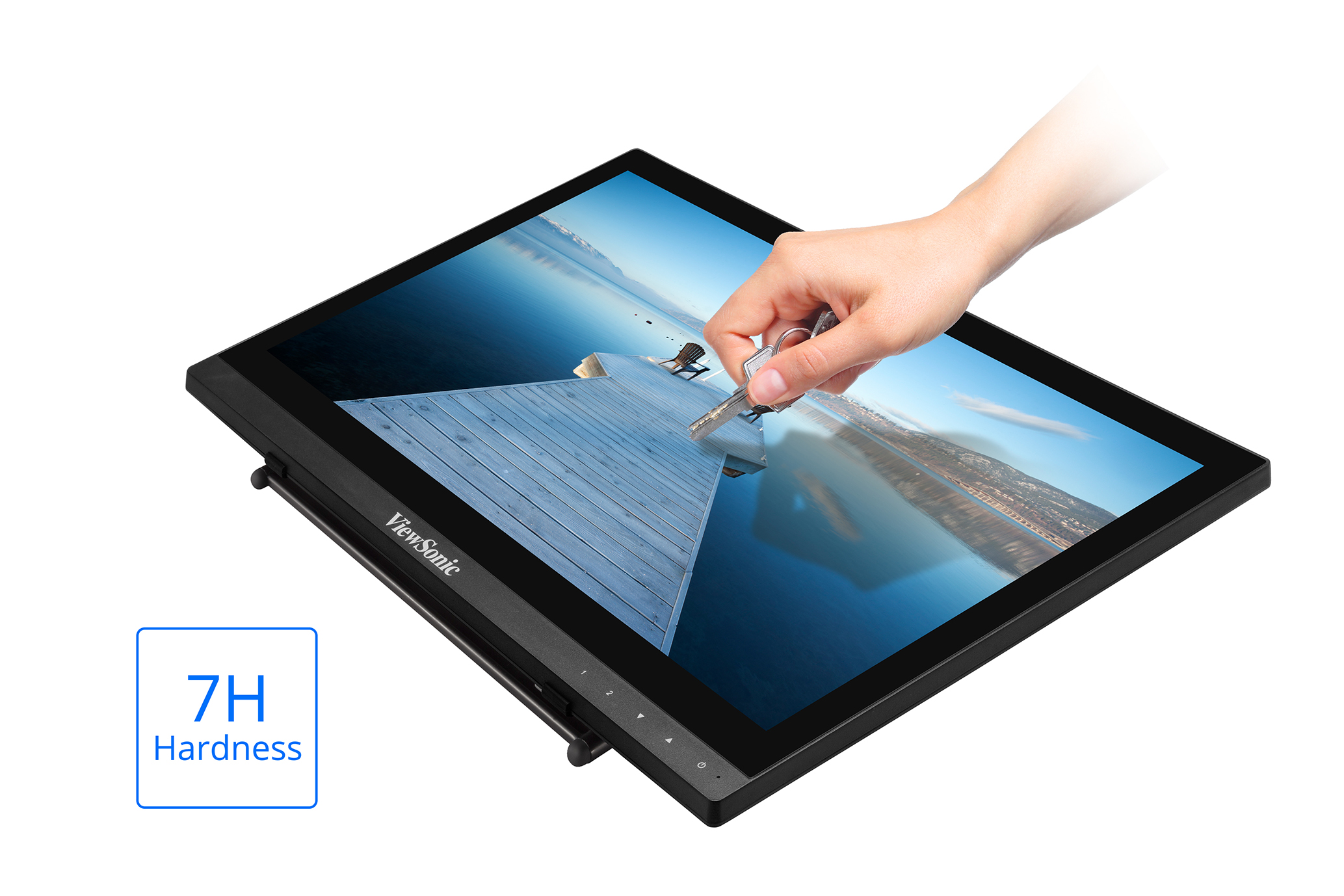

Durable, Scratch-resistant Screen

This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.
7H Hardness

Dual integrated speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Dual integrated speakers

Enhanced Viewing Comfort

Blue Light Filter help to eliminate eye strain from extended viewing periods.
Blue light filter

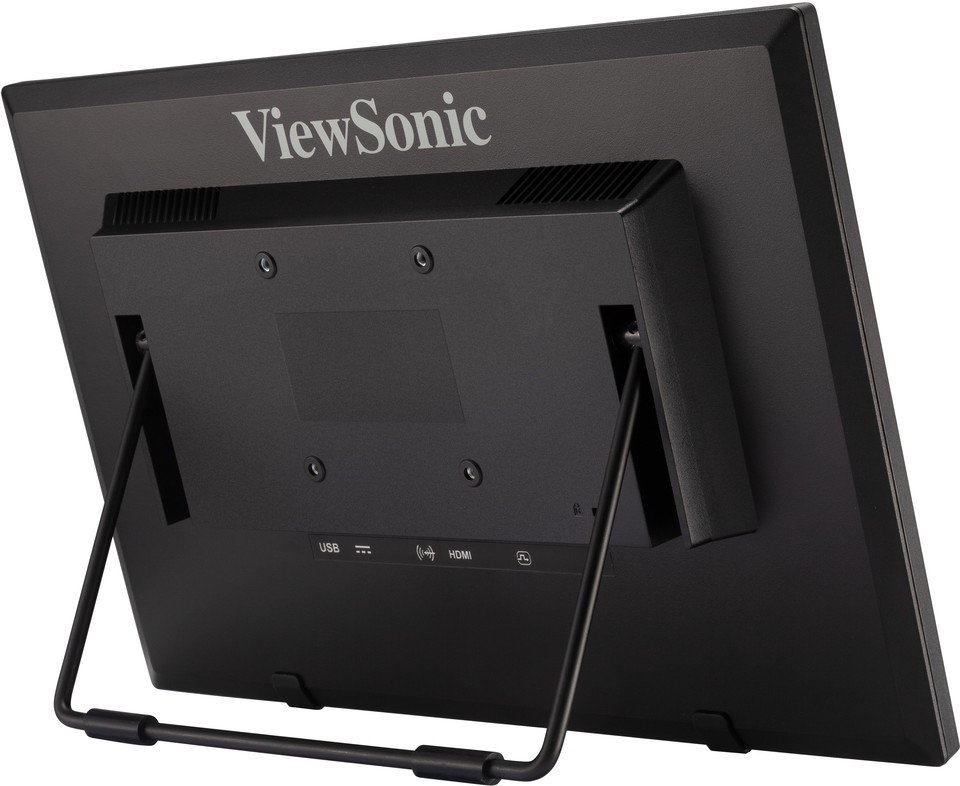

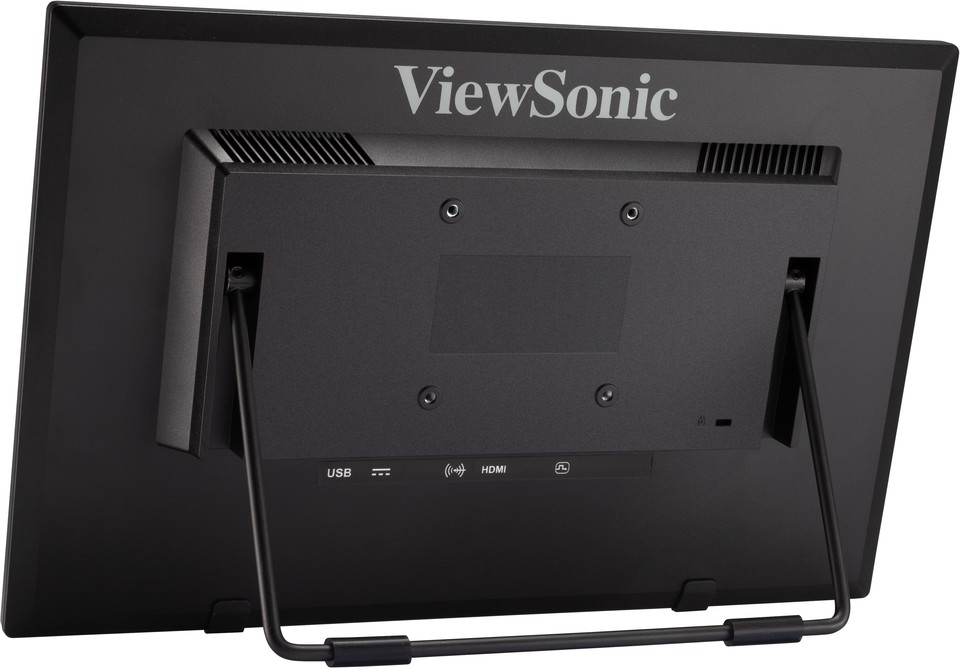

VESA-compatible mount

Conveniently mount the monitor to your liking by utilizing VESA compatible mount design.
75mm x 75mm

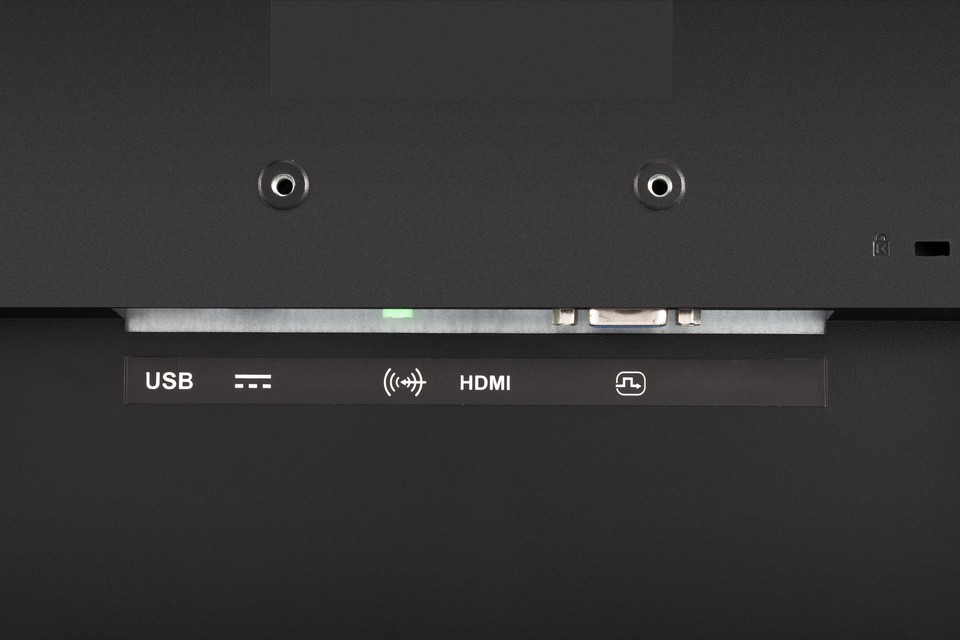

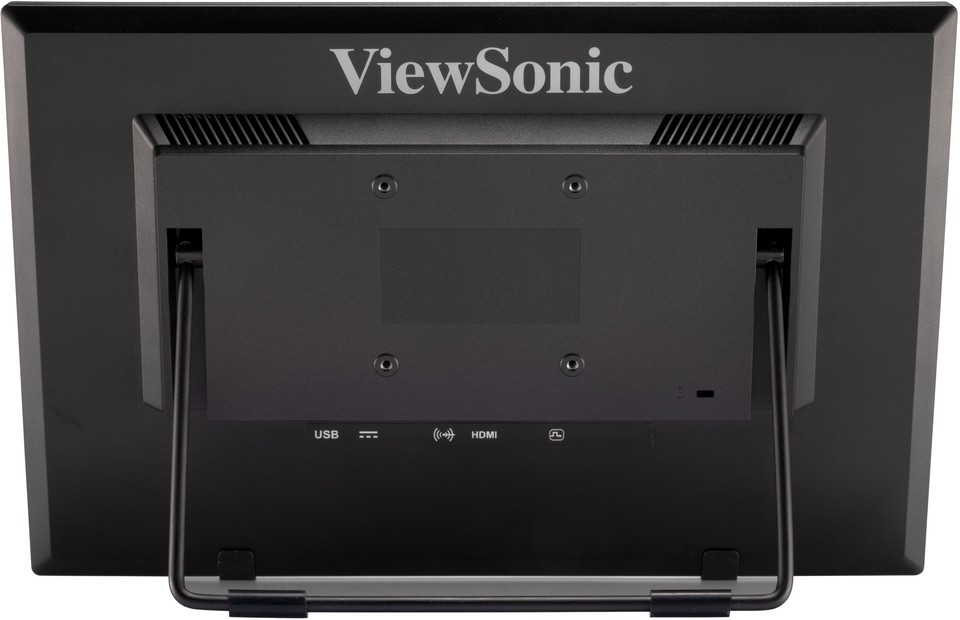

  1. Internal Speakers
  2. USB
  3. DC In
  4. VESA Compatible(Wall Mount 75x75mm)
  5. VGA
  6. HDMI
  7. Earphone

SPECIFICATIONS


  • Display
    Display Size (in.): 16
    Viewable Area (in.): 15.6
    Panel Type: TN Technology
    Resolution: 1366 x 768
    Resolution Type: WXGA (Wide XGA)
    Static Contrast Ratio: 500:1 (typ)
    Dynamic Contrast Ratio: 10M:1
    Light Source: LED
    Brightness: 190 cd/m² (typ)
    Colors: 262K
    Color Space Support: 6 bit true
    Aspect Ratio: 16:9
    Response Time (Typical Tr+Tf): 12ms
    Viewing Angles: 90º horizontal, 60º vertical
    Backlight Life (Hours): 15000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Color Gamut: NTSC: 45% size (Typ)
    sRGB: 67% size (Typ)
    Pixel Size: 0.252 mm (H) x 0.252 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 0.83mm
  • Compatibility
    PC Resolution (max): 1366x768
    Mac® Resolution (max): 1366x768
    PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
    Mac® Resolution (min): 1366x768
  • Connector
    VGA: 1
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    HDMI 1.4: 1
    Power in: DC Socket (Center Positive)
