XG3202-C
Features
Specifications
Downloads

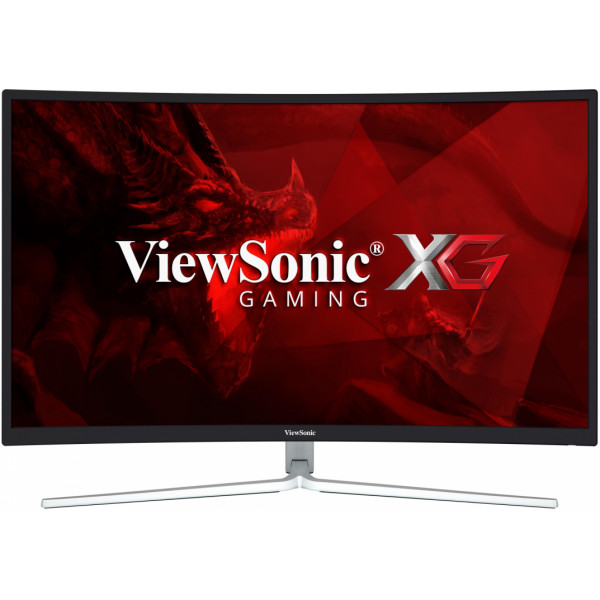

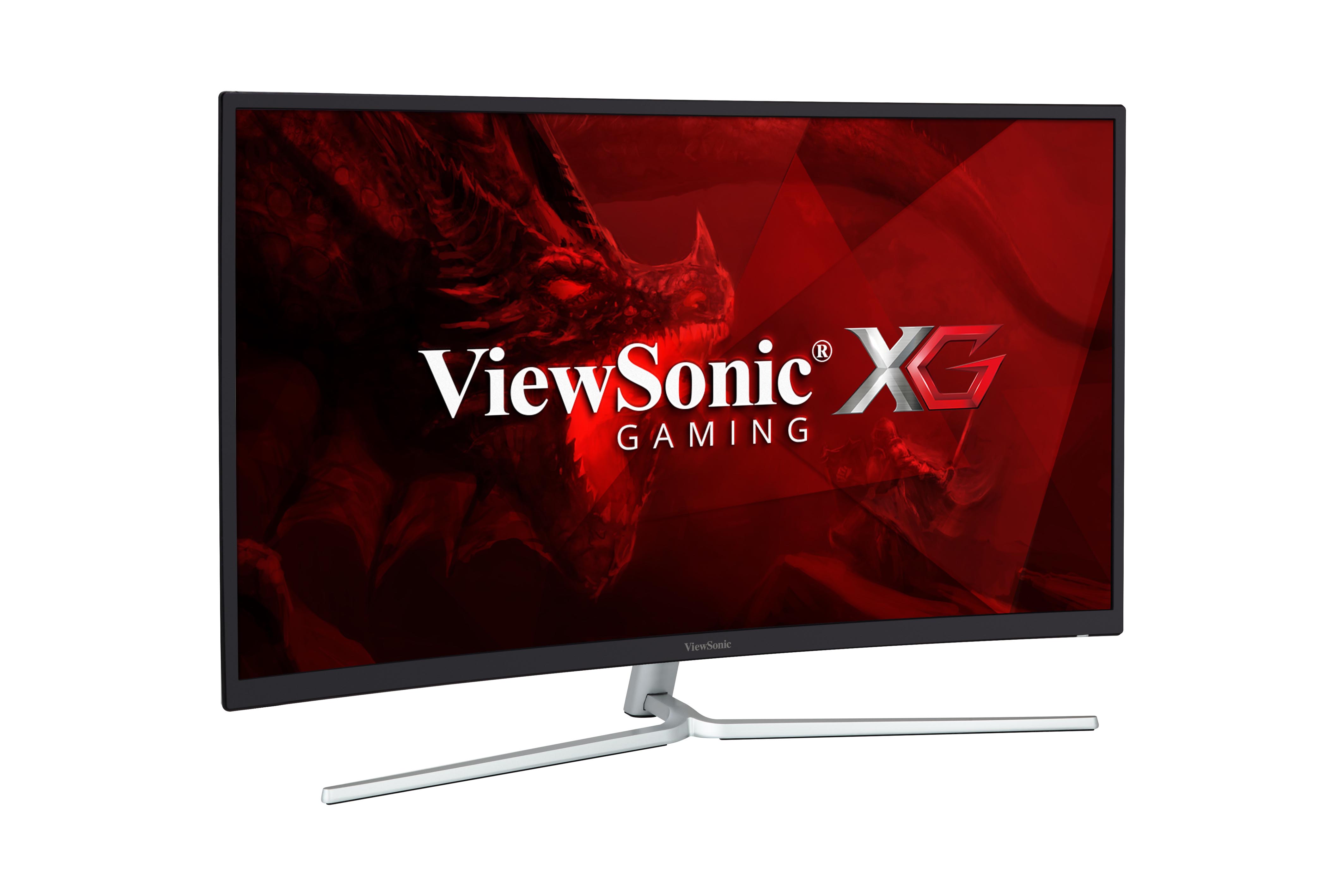

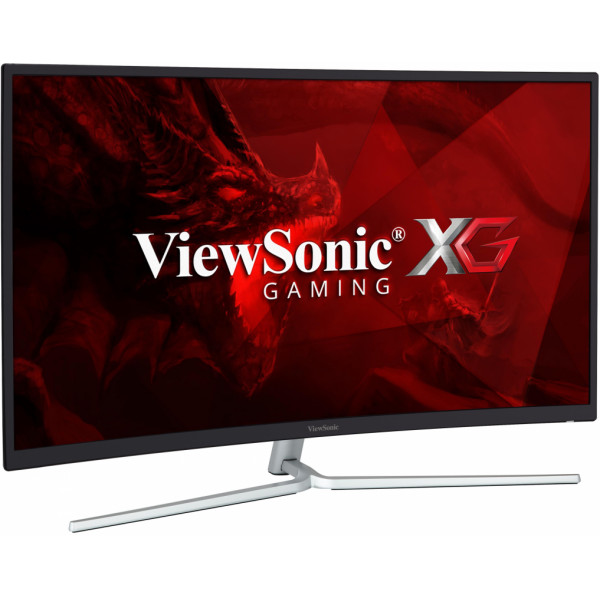

XG3202-C
32" Curved Gaming Monitor
144Hz refresh rate
AMD FreeSync™ technology
Low input lag
SuperClear® technology
Game Mode
Sales Enquiry
gallery
GALLERY
Learn more
OVERVIEW
The ViewSonic
®
XG3202-C is a 32" (31.5" viewable) 144Hz gaming monitor, featuring 1800R curvature to deliver wide field of view and smooth image performance. Compatible with Free-Sync Technology, this monitor’s variable refresh rate capabilities virtually eliminate screen tearing and stuttering for unbelievably fluid gameplay during fast-paced action sequences. This monitor features a 1080p SuperClear
®
VA panel for enhanced color accuracy and greater viewing angles. Low input lag provides smooth screen performance even in the most graphic-intense sequences. For a game-winning competitive edge, a Game Mode feature optimizes visuals for FPS, RTS and MOBA, let you enjoy better color performance of the game play.

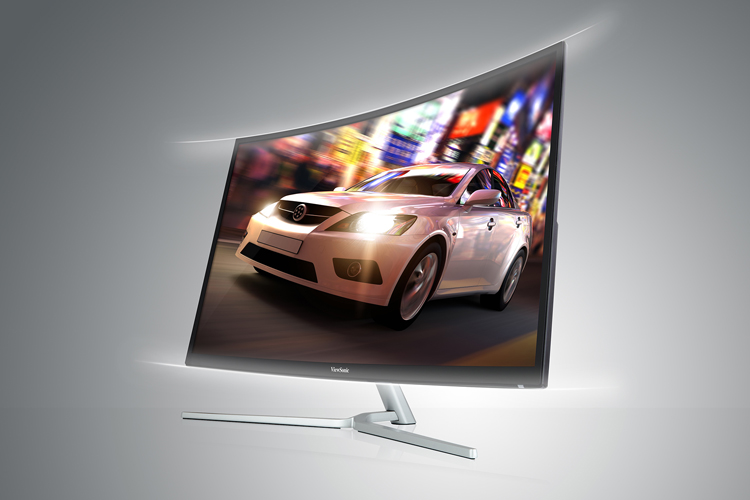

Immersive Viewing Experience with Curved Screen
Featuring 1800R curvature of the screen, the monitor provides a truly immersive viewing experience that lets you enjoy big and stunning panoramic views while you play racing, FPS, and games with wide scenery.
144Hz Refresh Rate
With a swift 144Hz refresh rate, this monitor delivers greater visual fluidity and awesome graphics no matter how quickly the in-game action unfolds. Say goodbye to annoying tracers and motion blur, and up your A-game with the smoothest visuals possible.
AMD FreeSync™ Technology
Leveraging VESA Adaptive-Sync connectivity, this monitor is equipped with AMD FreeSync™ technology that seamlessly synchronizes the frame rate output between your graphics card and monitor. This dynamic refresh rate effectively eliminates image tearing, stuttering, and jerkiness for smooth gameplay.
Low Input Lag
When the action on the battlefield gets intense, you need a monitor that can process every command from the keyboard, mouse, or controller as soon as they occur. With a built-in process reducer, this monitor does just that – decreasing the delay between all inputs, and allowing you to react in real time against any competitor.
SuperClear VA Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear VA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Customizable Game Mode Settings
A Game Mode hotkey opens pre-calibrated settings that deliver the best blend of color and technology for specific gaming scenarios. In addition, three customizable “CUSTOM” settings provide individual user preferences for specific games.

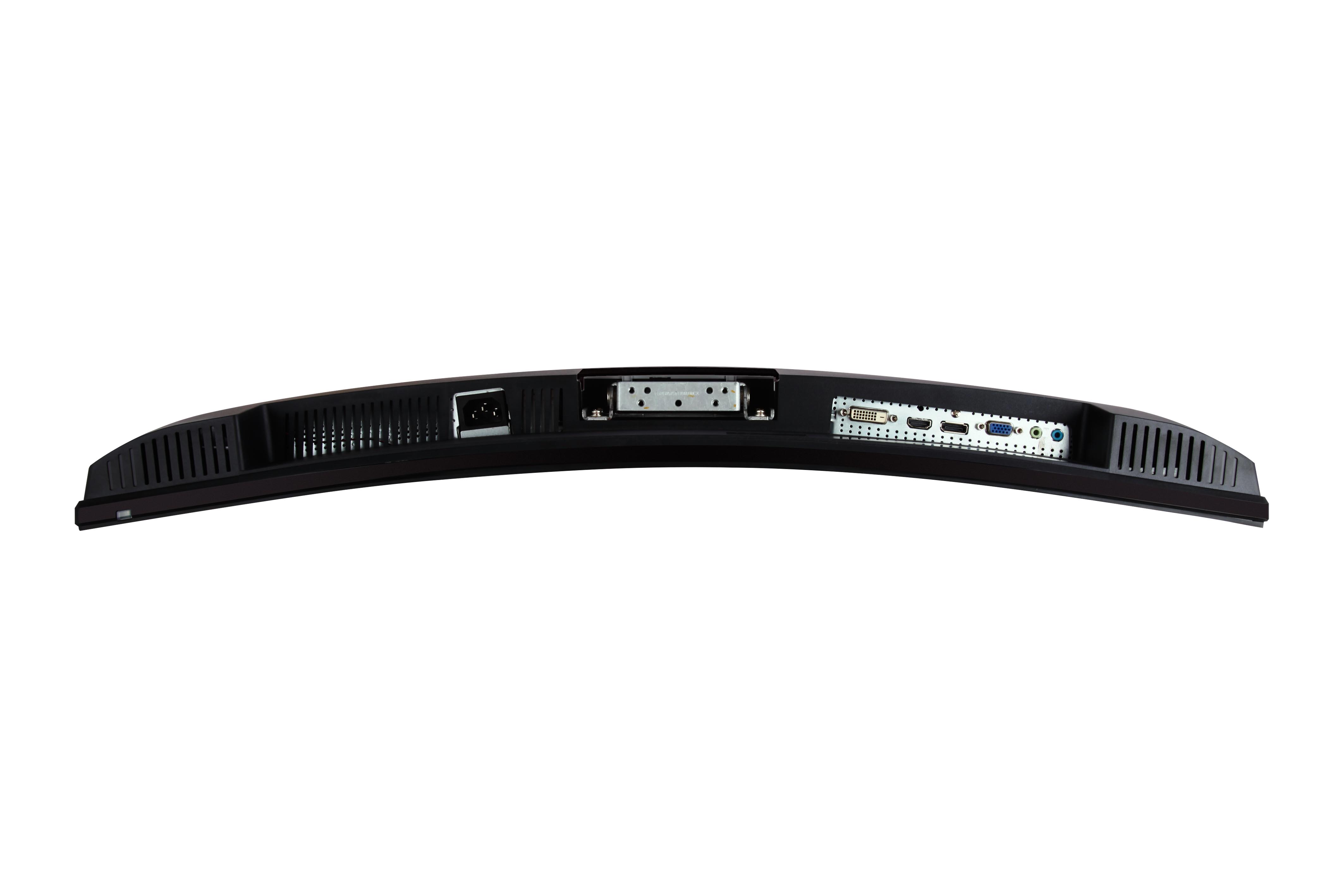

Versatile Connectivity
DisplayPort and HDMI inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.
Enhanced Viewing Comfort
Sometimes gaming can be a marathon. With Flicker-Free technology and a Blue Light Filter, this monitor helps to eliminate eyestrain that comes with extended viewing periods – meaning you can outlast and out-game your opponents just as their eyes begin to fail them.
Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
SPECIFICATIONS
Display
Display Size (in.):
32
Viewable Area (in.):
31.5
Panel Type:
VA Technology
Resolution:
1920 x 1080
Resolution Type:
FHD (Full HD)
Static Contrast Ratio:
3,000:1 (typ)
Dynamic Contrast Ratio:
120M:1
Light Source:
LED
Brightness:
300 cd/m² (typ)
Colors:
16.7M
Color Space Support:
8 bit (6 bit + FRC)
Aspect Ratio:
16:9
Response Time (Typical GTG):
6ms
Viewing Angles:
178º horizontal, 178º vertical
Backlight Life (Hours):
30000 Hrs (Min)
Curvature:
1800R
Refresh Rate (Hz):
144
Variable Refresh Rate Technology:
FreeSync Premium
Low Blue Light:
Software solution
Flicker-Free:
Yes
Color Gamut:
NTSC: 72% size (Typ)
sRGB: 100% size (Typ)
Pixel Size:
0.364 mm (H) x 0.364 mm (V)
Surface Treatment:
Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max):
1920x1080
Mac® Resolution (max):
1920x1080
PC Operating System:
Windows 10 certified; macOS tested
Mac® Resolution (min):
1920x1080

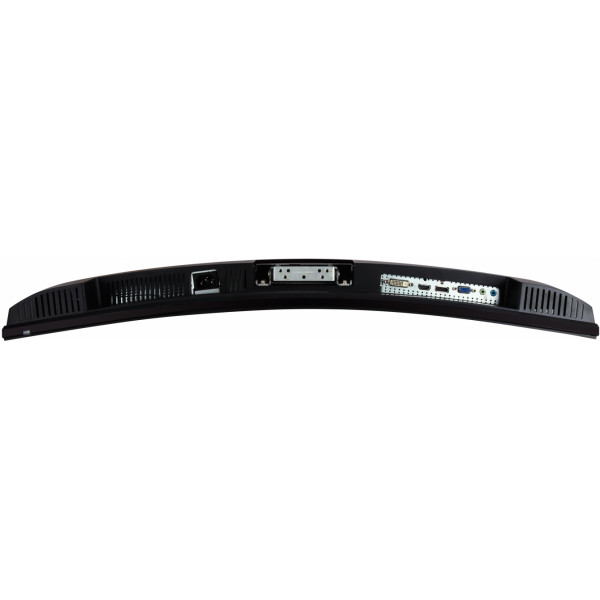

Connector
VGA:
1
USB 2.0 Type A:
1
3.5mm Audio In:
1
3.5mm Audio Out:
1
HDMI 1.4:
1
DisplayPort:
1
DVI-D (Dual Link):
1
Power in:
3-pin Socket (IEC C14 / CEE22)
Audio
Internal Speakers:
2Watts x2
Power
Eco Mode (Conserve):
32W
Eco Mode (optimized):
38W
Consumption (typical):
45W
Consumption (max):
50W
Voltage:
AC 100-240V
Stand-by:
0.5W
Power Supply:
Internal Power Supply
Additional Hardware
Kensington Lock Slot:
1
Controls
Physical Controls:
Up, Right, Down, Left, Power
On Screen Display:
Input Select, Audio Adjust, View Mode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature:
32°F to 104°F (0°C to 40°C)
Humidity (non-condensing):
20% to 90%

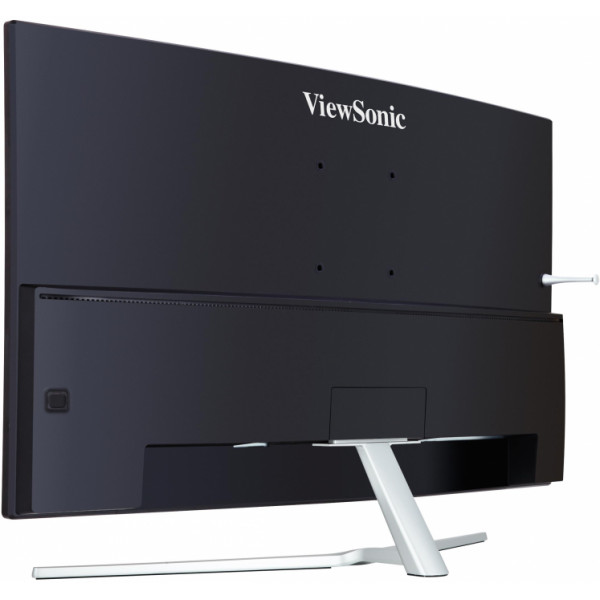

Wall Mount
VESA Compatible:
100 x 100 mm
Input Signal
Frequency Horizontal:
RGB Analog: 24 ~ 82KHz, DVI-D: 30 ~ 160KHz, HDMI (v1.4): 15 ~ 140KHz, DisplayPort (v1.2): 15 ~ 160KHz
Frequency Vertical:
RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 145Hz, HDMI (v1.4): 24 ~ 138Hz, DisplayPort (v1.2): 50 ~ 145Hz
Video Input
Digital Sync:
TMDS - DVI-D, TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync:
Separate/Composite/SOG - RGB Analog
Ergonomics
Tilt (Forward/Back):
-5º / 13º
Weight (imperial)
Net (lbs):
17.9
Net Without Stand (lbs):
16
Gross (lbs):
25.8
Weight (metric)
Net (kg):
8.1
Net Without Stand (kg):
7.3
Gross (kg):
11.7
Dimensions (imperial) (wxhxd)
Packaging (in.):
33 x 23.7 x 11.1
Physical (in.):
28.4 x 19.5 x 9.1
Physical Without Stand (in.):
28.4 x 17 x 3.7
Dimensions (metric) (wxhxd)
Packaging (mm):
837 x 602 x 282
Physical (mm):
721 x 495 x 230
Physical Without Stand (mm):
721 x 433 x 95
General
Regulations:
REACH, WEEE, China RoHS, China Energy Label
PACKAGE CONTENTS:
XG3202-C x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal:
Please dispose of in accordance with local, state or federal laws.
Warranty:
*Warranty offered may differ from market to market
