OVERVIEW

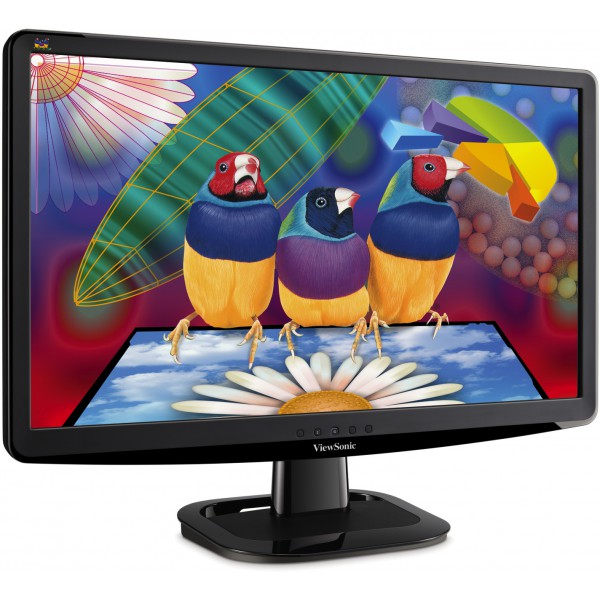

ViewSonic’s 23” VX2336s-LED breaks the boundaries of traditional displays. With our exclusive SuperClear™ technology, VX2336s-LED delivers 178-degree ultra-wide viewing angles with consistent brightness levels and excellent color performance. Enjoy expansive screen real estate with the wide 16 : 9 ratio, ideal for multitasking and multi-window applications. Full HD 1080p video resolution provides a premium viewing experience for video editing, designing and watching, while ultrahigh 20,000,000 : 1 smart dynamic contrast ratio significantly improves the color and grayscale range for sharp, true-to-life images. The environmentally friendly LED display also features a three-phase ECO Mode design that saves energy, saves money and extends the display’s lifetime while offering an amazing visual experience.

SuperClear™ wide viewing angles

Get the best view wherever you are. ViewSonic’s new SuperClear™ technology delivers 178-degree vertical and horizontal viewing angles. Experience accurate, vivid colors and consistent brightness levels whether you’re looking at the screen from above, below, the front or the side.

IPS Panel Technology

IPS stands for “In Plane Switching”. It is widely regarded as the best LCD Technology offering superior image quality, color display and viewing angles. For that reason, it is professional for medical facilities, scientific design, digital visual art, video production, architecture and any application where true color and total screen viewing is essential.

Stunning Full HD 1080p

VX2336s-LED features Full HD 1080p resolution for incredible, pixel-by-pixel image performance. You’ll experience amazing clarity and detail whether you’re working, gaming or enjoying the latest video entertainment.

Ultrahigh 20,000,000 : 1 dynamic contrast ratio

Dynamic contrast ratio automatically detects the brightness of an image and adjusts the LED backlight in response. It maximizes the greyscale and color range and boosts contrast ratio to an ultrahigh 20,000,000 : 1, resulting in rich, vibrant photos and videos.

LED Backlighting

LED backlights enhance display performance by delivering an outstanding color gamut and contrast ratio to create remarkably refined images. LEDs also provide energy savings and slimmer displays for an all-new visual experience.

Three-phase ECO Mode

Three-phase ECO Mode automatically adjusts display brightness according to the environment. You can also manually choose from three brightness levels to save energy and extend the display’s lifetime.

SPECIFICATIONS


  • LCD
    Type: 23" Wide
    Display Area: 23 inch
    Optimum Resolution: 1920x1080
    Contrast Ratio: 1000:1 (typical), 20,000,000 : 1 (DCR)
    Brightness: 250 cd/m2 (typ)
    Viewing Angles: 178° (H), 178° (V)
    Response Time: 6ms (GTGbw fastest), 14ms (GTGbw typical)
    Panel Surface: Anti-Glare type, Hardness 3H
  • Video Input
    Analog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
    Frequency: Fh: 24-83KHz; Fv: 50-76Hz
    Sync: Separate Sync
  • Compatibility
    PC: VGA up to 1920 x 1080 (Non Interlaced)
    Mac: Power MAC (up to 1920 x 1080 )
