VA2403-h
Features
Specifications
Downloads

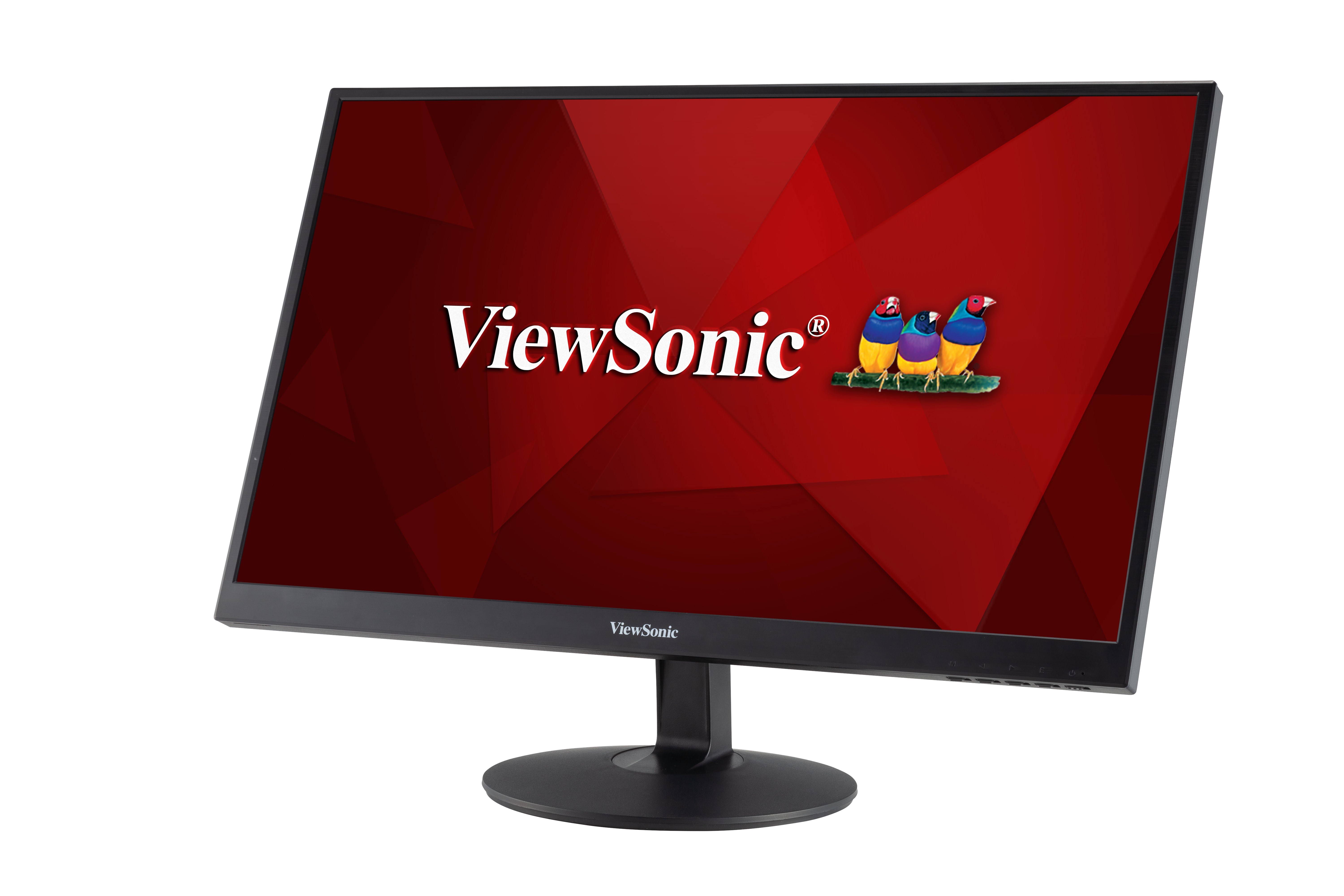

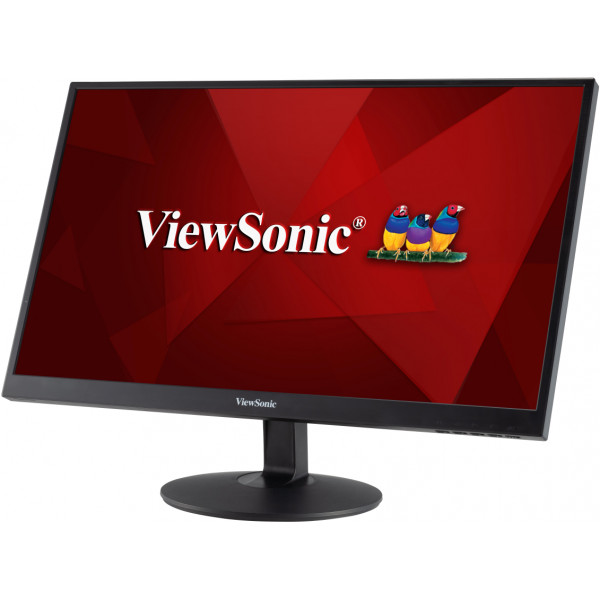

VA2403-h
24" 1080p Home and Office Monitor
SuperClear® technology
Narrow bezel
HDMI and VGA inputs
ViewMode technology
Flicker-Free and Blue Light Filter
Sales Enquiry
gallery
GALLERY
OVERVIEW
The ViewSonic® VA2403-h is a Full HD monitor with SuperClear® technology and flexible connectivity for use at home or in the office. With SuperClear® technology and Full HD resolution, images are clear and detailed from a wide range of viewing angles. The monitor includes HDMI and VGA inputs, giving you the flexibility to connect to a variety of devices. The VA2403-h’s narrow bezel design delivers a seamless viewing experience and comes equipped with Eye Care technology to help eliminate eyestrain caused by extended viewing periods. In addition, ViewSonic’s exclusive ViewMode™ feature offers a selection of presets to deliver optimised screen performance for various applications. Lastly, with an LED backlight and energy-saving Eco mode, the VA2403-h is ideal for the environmentally conscious.
SuperClear® Technology
Enjoy rich, vivid colour with consistent levels of brightness from any vantage point. With SuperClear® VA panel technology, the VA2403-h monitor delivers consistent image quality from every angle.
178°/178°

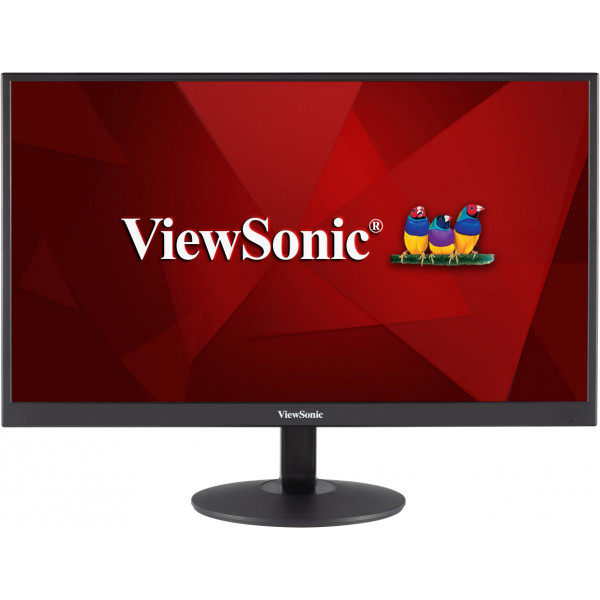

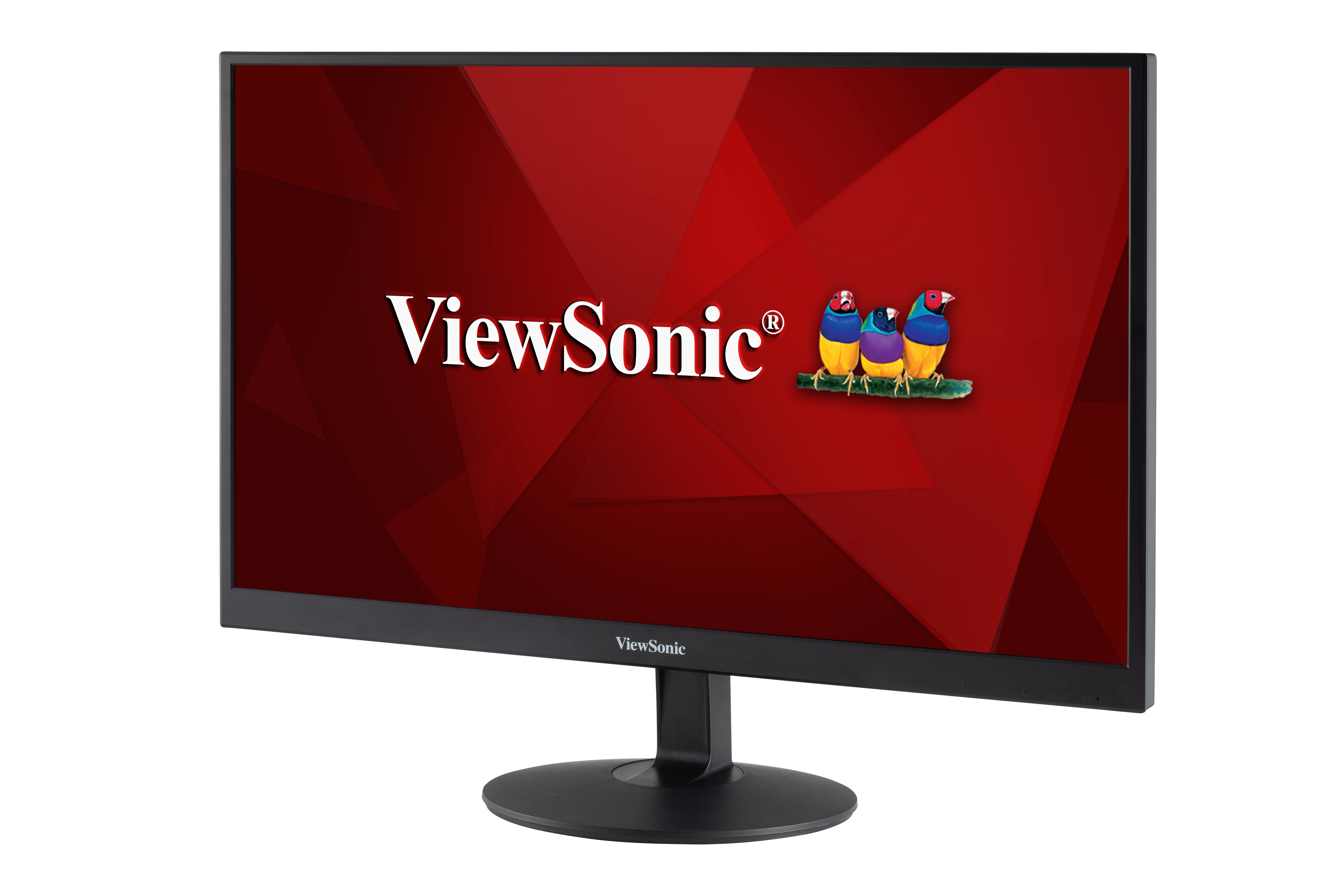

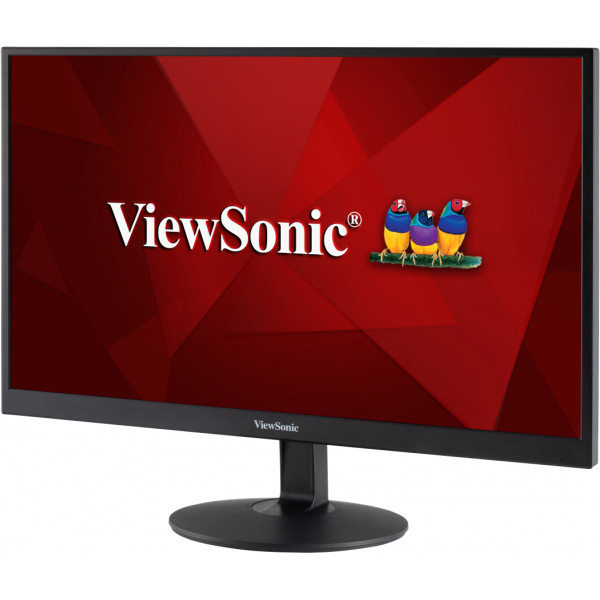

Narrow Bezel Design for Seamless Viewing
With 10mm narrow bezel design, the monitor delivers a clean and seamless outlook when used in a multi-monitor setup.
10mm
Narrow Bezel Design
Flexible Connectivity
HDMI and VGA inputs grant you the freedom to connect your monitor to a wide range of devices.
HDMI
VGA
Full HD 1080p
The VA2403-h features Full HD 1920x1080 resolution for exceptionally clear pixel-by-pixel image performance. Experience amazing clarity and detail whether you are working, gaming, or enjoying the latest entertainment.
Full HD 1080p
Optimal Settings with ViewMode
ViewSonic’s ViewMode includes optimised settings such as “Game,” “Movie,” “Web,” “Text,” “Mono”, and “Mac”. Each setting offers enhancement to gamma curve, colour temperature, contrast and brightness to deliver the optimal viewing experience for your every need.
Game
Movie
Web
Text
Mono
Mac
Comfort in Viewing
Eye Care technology helps eliminate eyestrain from extended viewing periods with Flicker-Free and Blue Light Filter.
Flicker-Free & Blue Light Filter
Low Energy Consumption
The VA2403-h’s energy-saving Eco mode conserves energy without sacrificing the monitor’s stunning screen performance.
Eco Mode

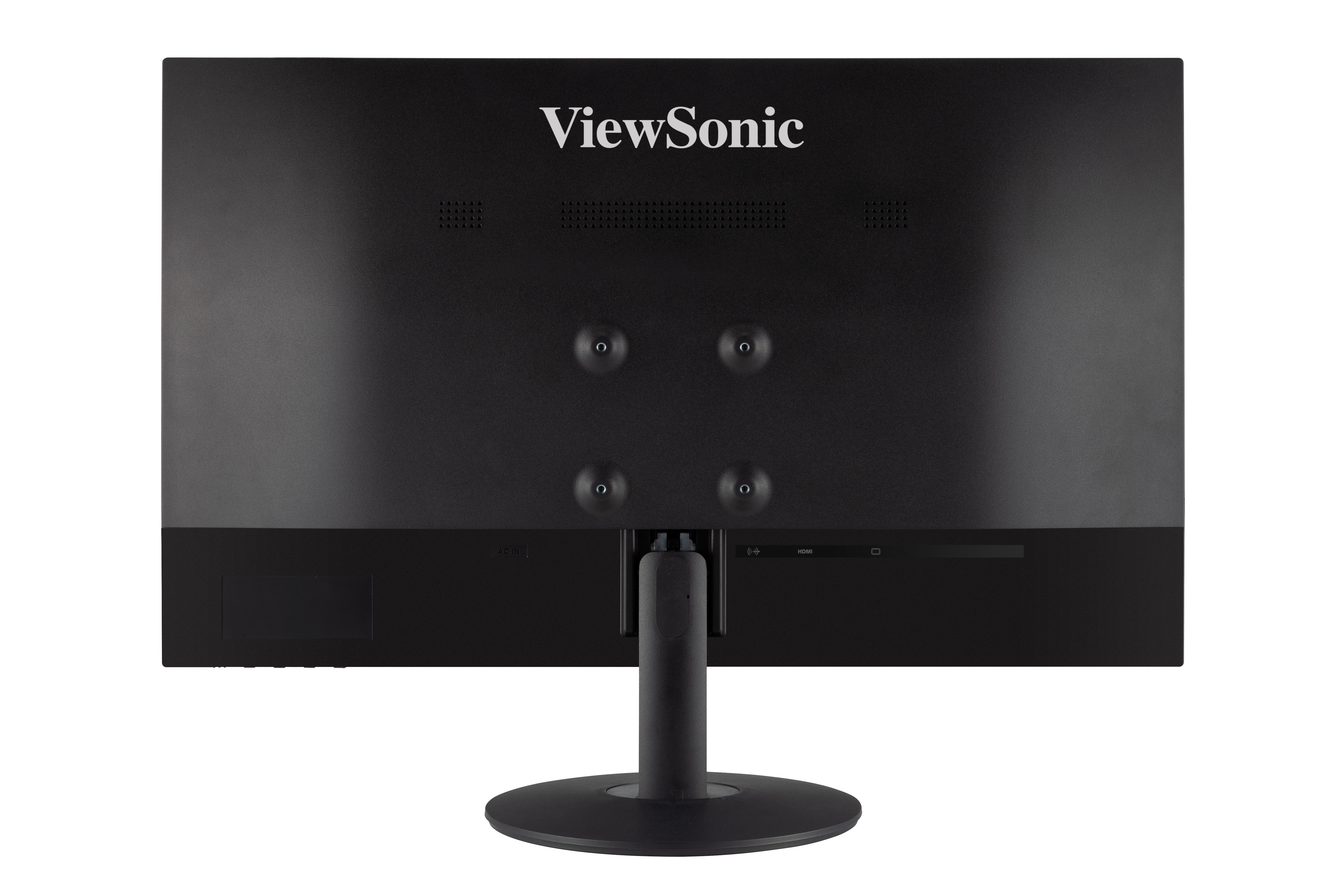

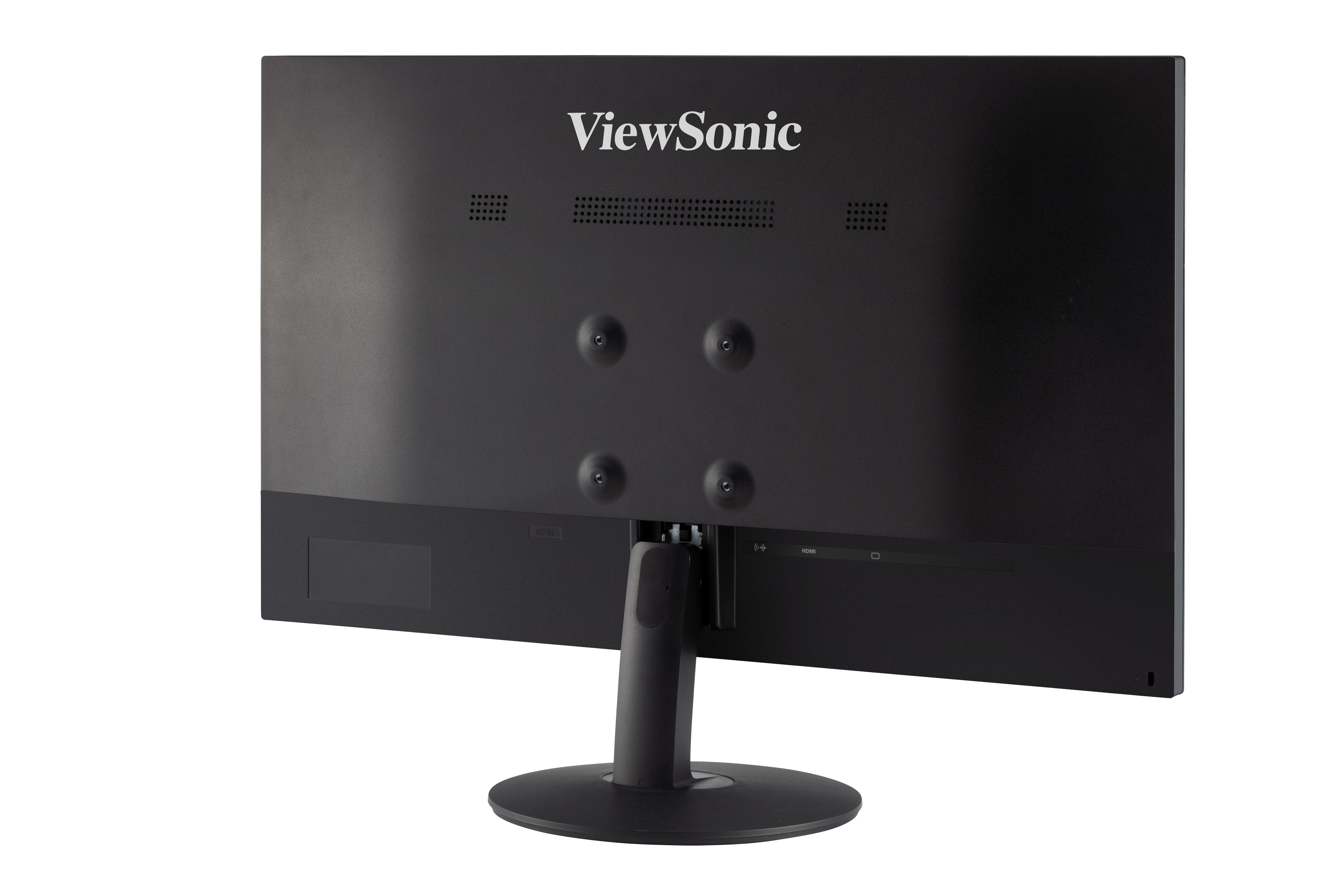

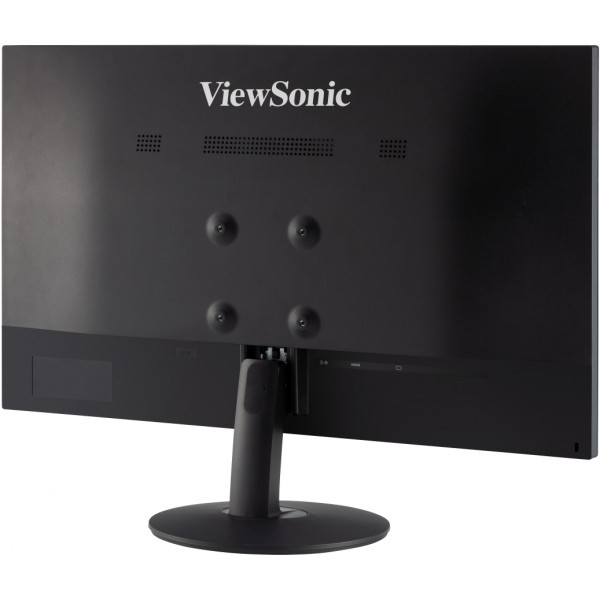

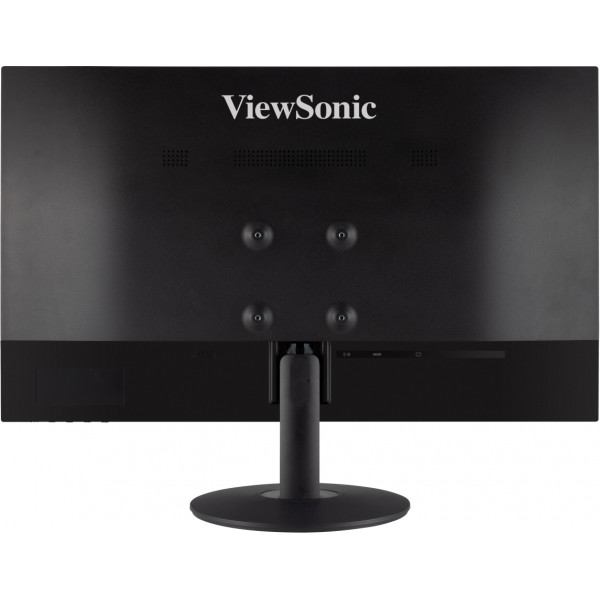

VESA Compatible
Conveniently mount the monitor to your preference by utilising the 75mm x 75mm VESA-compatible mount design.
75mm x 75mm

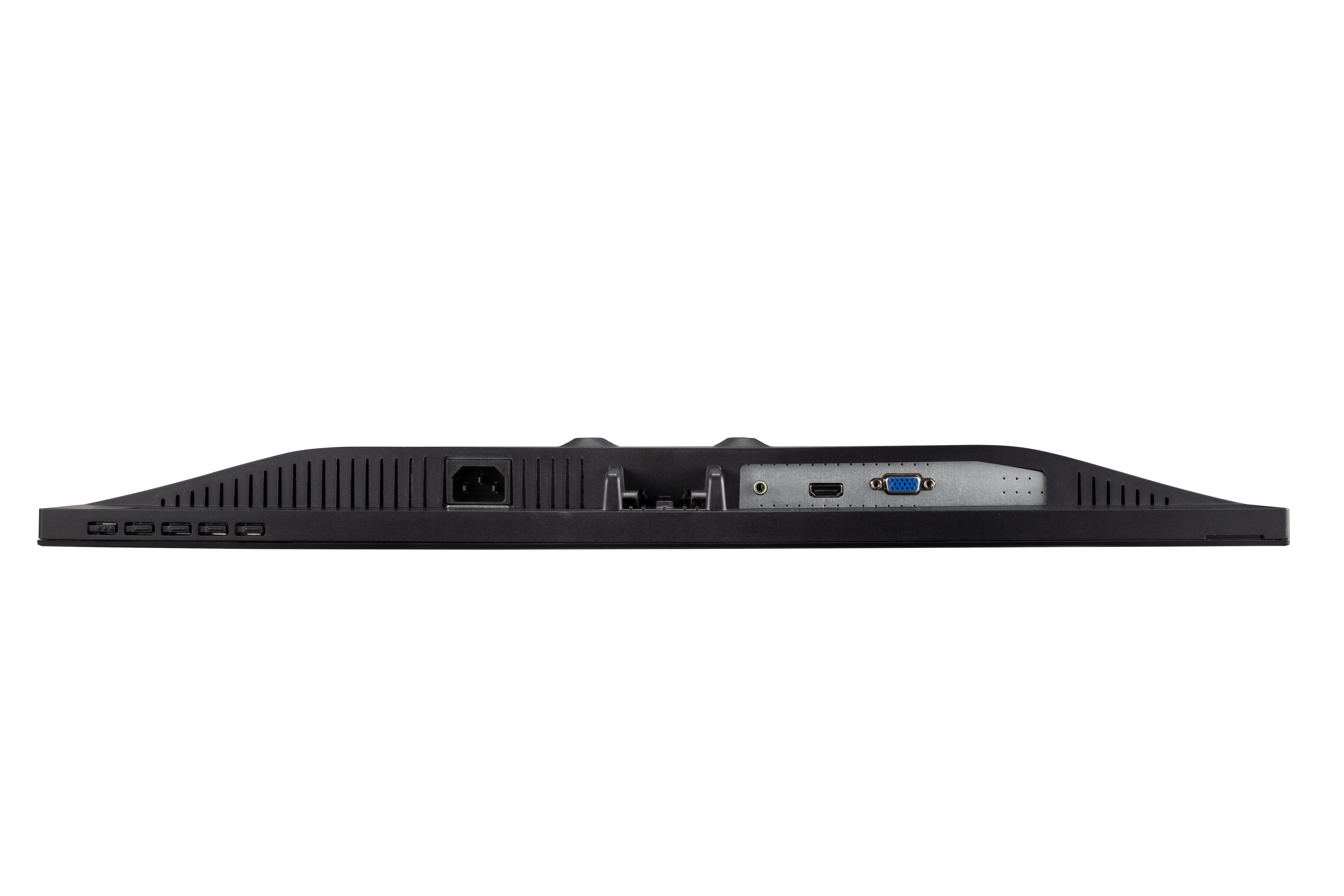

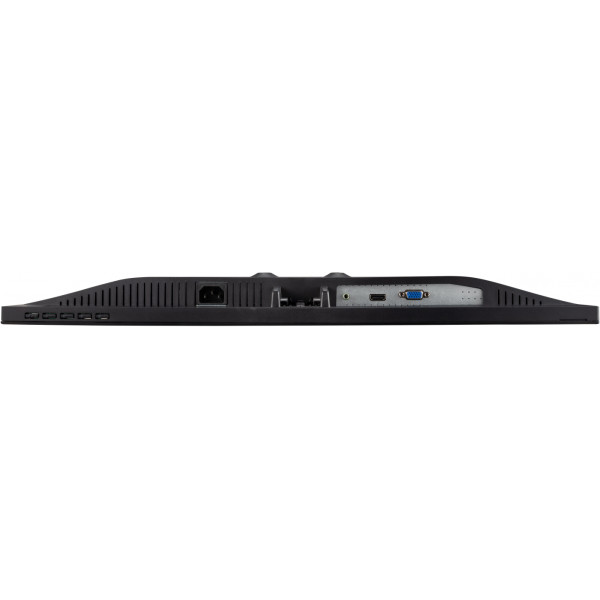

Menu Controls
AC Power In
Audio Out
HDMI
VGA
SPECIFICATIONS
Display
Display Size (in.):
24
Viewable Area (in.):
23.6
Panel Type:
VA Technology
Resolution:
1920 x 1080
Resolution Type:
FHD (Full HD)
Static Contrast Ratio:
3,000:1 (typ)
Dynamic Contrast Ratio:
50M:1
Light Source:
LED
Brightness:
250 cd/m² (typ)
Colors:
16.7M
Color Space Support:
8 bit (6 bit + FRC)
Aspect Ratio:
16:9
Response Time (Typical GTG):
5ms
Viewing Angles:
178º horizontal, 178º vertical
Backlight Life (Hours):
30000 Hrs (Min)
Curvature:
Flat
Refresh Rate (Hz):
60
Low Blue Light:
Software solution
Flicker-Free:
Yes
Color Gamut:
NTSC: 72% size (Typ)
Pixel Size:
0.272 mm (H) x 0.272 mm (V)
Surface Treatment:
Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max):
1920x1080
Mac® Resolution (max):
1920x1080
PC Operating System:
Windows 7/8/8.1/10 certified; macOS tested
Mac® Resolution (min):
1920x1080
Connector
VGA:
1
3.5mm Audio Out:
1
HDMI 1.4:
1
Power in:
3-pin Socket (IEC C14 / CEE22)
Power
Eco Mode (Conserve):
19W
Eco Mode (optimized):
21W
Consumption (typical):
22W
Consumption (max):
23W
Voltage:
AC 100-240V
Stand-by:
0.3W
Power Supply:
Internal Power Supply
Additional Hardware
Kensington Lock Slot:
1
Controls
Physical Controls:
M, Left, Right, E, Power
On Screen Display:
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature:
32°F to 104°F (0°C to 40°C)
Humidity (non-condensing):
20% to 90%
Wall Mount
VESA Compatible:
75 x 75 mm
Input Signal
Frequency Horizontal:
RGB Analog: 24 ~ 83KHz, HDMI (v1.4): 15 ~ 83KHz
Frequency Vertical:
RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz
Video Input
Digital Sync:
TMDS - HDMI (v1.4)
Analog Sync:
Separate - RGB Analog

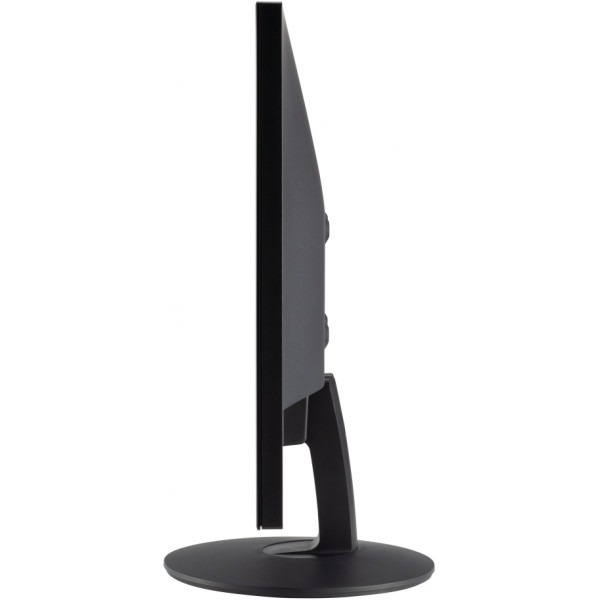

Ergonomics

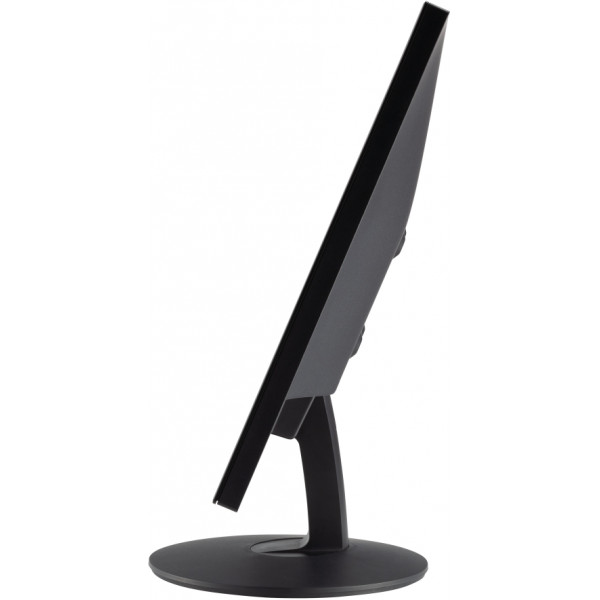

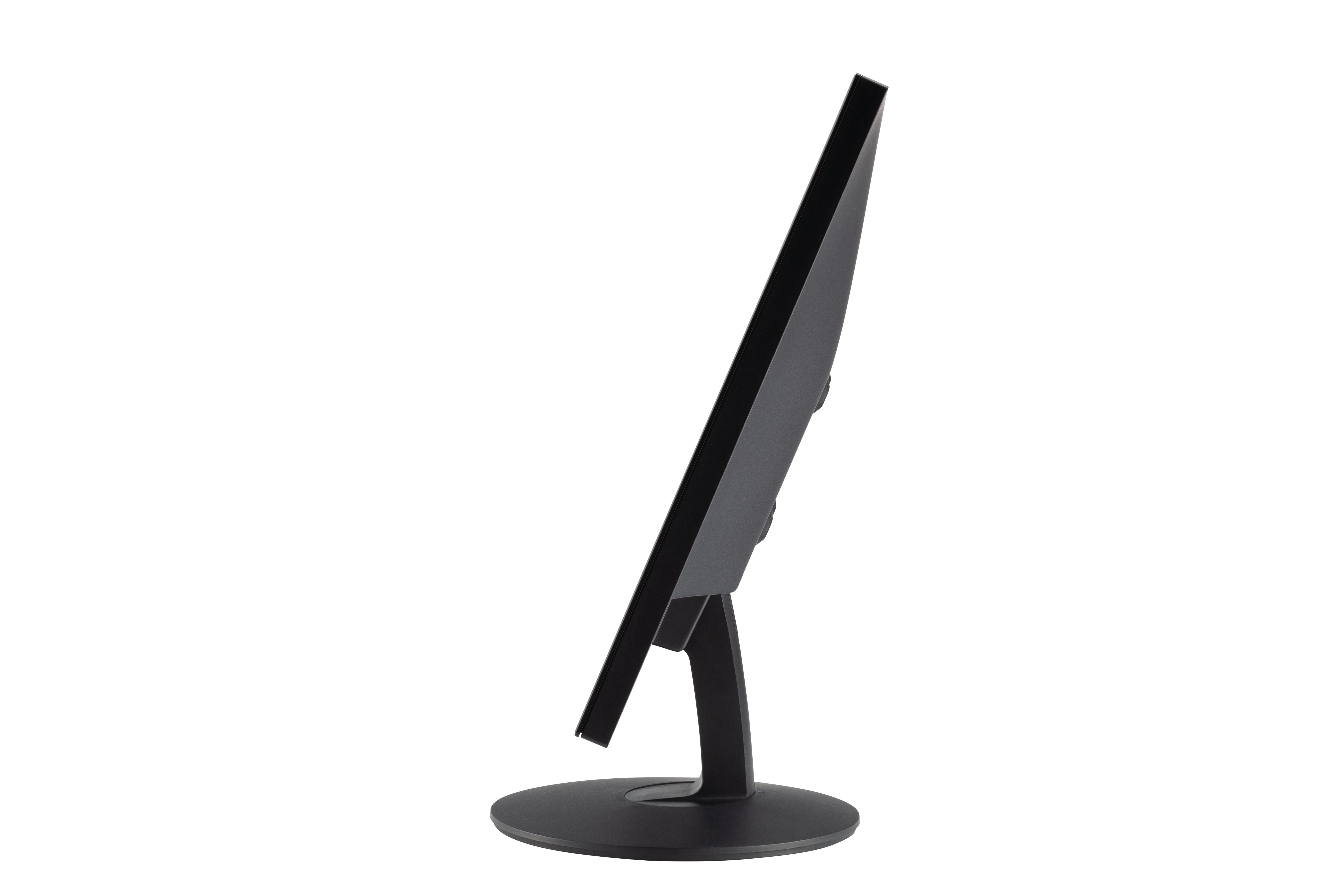

Tilt (Forward/Back):
-5º / 22º
Weight (imperial)
Net (lbs):
7.1
Net Without Stand (lbs):
6.4
Gross (lbs):
9.9
Weight (metric)
Net (kg):
3.2
Net Without Stand (kg):
2.9
Gross (kg):
4.5
Dimensions (imperial) (wxhxd)
Packaging (in.):
24.2 x 16.9 x 4.8
Physical (in.):
21.4 x 16 x 7.8
Physical Without Stand (in.):
21.4 x 12.9 x 1.9
Dimensions (metric) (wxhxd)
Packaging (mm):
614 x 430 x 121
Physical (mm):
544 x 407 x 199
Physical Without Stand (mm):
544 x 328 x 49
General
Regulations:
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 7.0, EAC, UkrSEPRO, BSMI
PACKAGE CONTENTS:
VA2403-H x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal:
Please dispose of in accordance with local, state or federal laws.
Warranty:
*Warranty offered may differ from market to market
