OVERVIEW

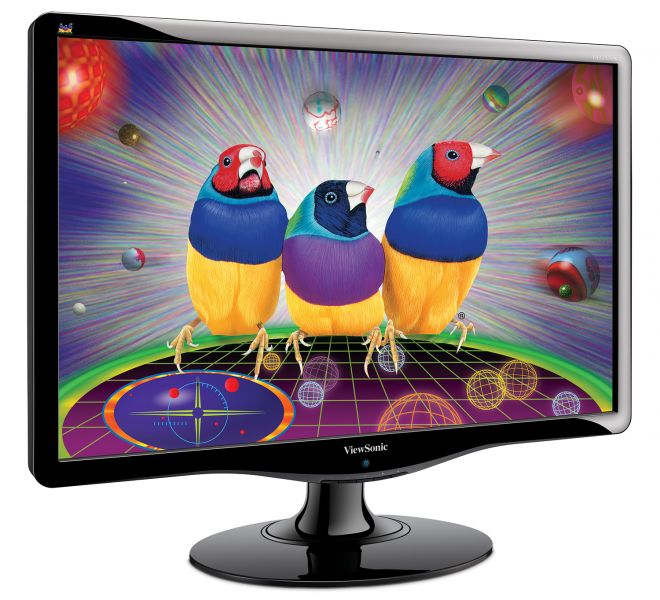

ViewSonic’s 22-inch VA2232w-LED displays are new members of the VA series; with a native 1680 x 1050 resolution and sRGB color calibration function, the two models present exquisite picture quality and an immersive viewing experience. Along with an impressive 10,000,000:1 dynamic contrast ratio, the VA2232w-LED automatically detect and adjust dark and bright levels to greatly enhance grayscale and color contrast performance. Save energy and money with ViewSonic’s ECO Mode solution which reduces power consumption and extends backlight life. The VA2232w-LED provide great value concerning viewing performance and are excellent solutions for home and business.

Comfortable viewing quality

A 1680 x 1050 video resolution supports premium viewing quality through a 16:10 ratio flat screen. Enjoy spectacular widescreen presentations with vivid, clear images in your home or office without experiencing eye fatigue. Enjoy the advantages of multiwindow computing while working, designing, or gaming.

Impressive 10,000,000:1 dynamic contrast ratio

Dynamic contrast ratio automatically detects the brightness of an image and adjusts the display’s backlighting in response. It maximizes the grayscale as well as color range and boosts contrast ratio to an ultrahigh 10,000,000:1 resulting in rich, vibrant visuals.

LED backlighting

LED backlighting enhances display performance, delivering an outstanding color range and contrast ratio for remarkably detailed images. The LED backlighting further conserves energy, up to 25% more energy is saved compared with conventional displays and LED backlighting allows for a slimmer panel profile making for the most pleasing entertainment experience.

Energy savings with ECO-Mode

ViewSonic’s proprietary ECO mode function comes standard with all LED displays. Select from the “Optimize (75%)” or “Conserve (60%)” options to reduce display brightness and save up to 40% energy. Especially under low ambient light conditions, adjusting the brightness will improve visibility and reduce eye fatigue. It will also prolong the display’s lamp life, helping you save money and practice eco-friendliness.

sRGB color calibration defines the truest color

Accurate and consistent color performance is essential for professionals in graphic design, video editing and other environments. The built-in sRGB color space enables simple and precise calibration to deliver images in their truest colors.

SPECIFICATIONS


  • LCD
    Type: 22" wide
    Display Area: 22 inch
    Optimum Resolution: 1680x1050
    Contrast Ratio: 1,000:1 (typical), 10,000,000:1 (DCR)
    Brightness: 250 cd/m2 (typ)
    Viewing Angles: 170° / 160° (typ.)
    Response Time: 5ms
    Panel Surface: Anti-glare type, 3H hardness
    Light Source: 40,000 hours (min.)
  • Video Input
    Analog: RGB analog (75 Ω, 0.7 / 1.0 Vp-p)
    Digital: DVI (TMDS, 100 ohms)
    Frequency: Fh: 24-82KHz; Fv: 50-75Hz
    Sync: Separate sync
  • Compatibility
    PC: VGA up to 1680 x 1050 (non-interlaced)
    Mac: Power MAC (up to 1680 x 1050)
