VA1630-A-2
특점
스펙
다운로드
VA1630-A-2
16" 1366x768 Home and Office Monitor
16:9 aspect ratio
50M:1 dynamic contrast ratio
VGA input for flexible connectivity
Blue Light Filter
VESA mountable
구매 문의
갤러리
갤러리
개요

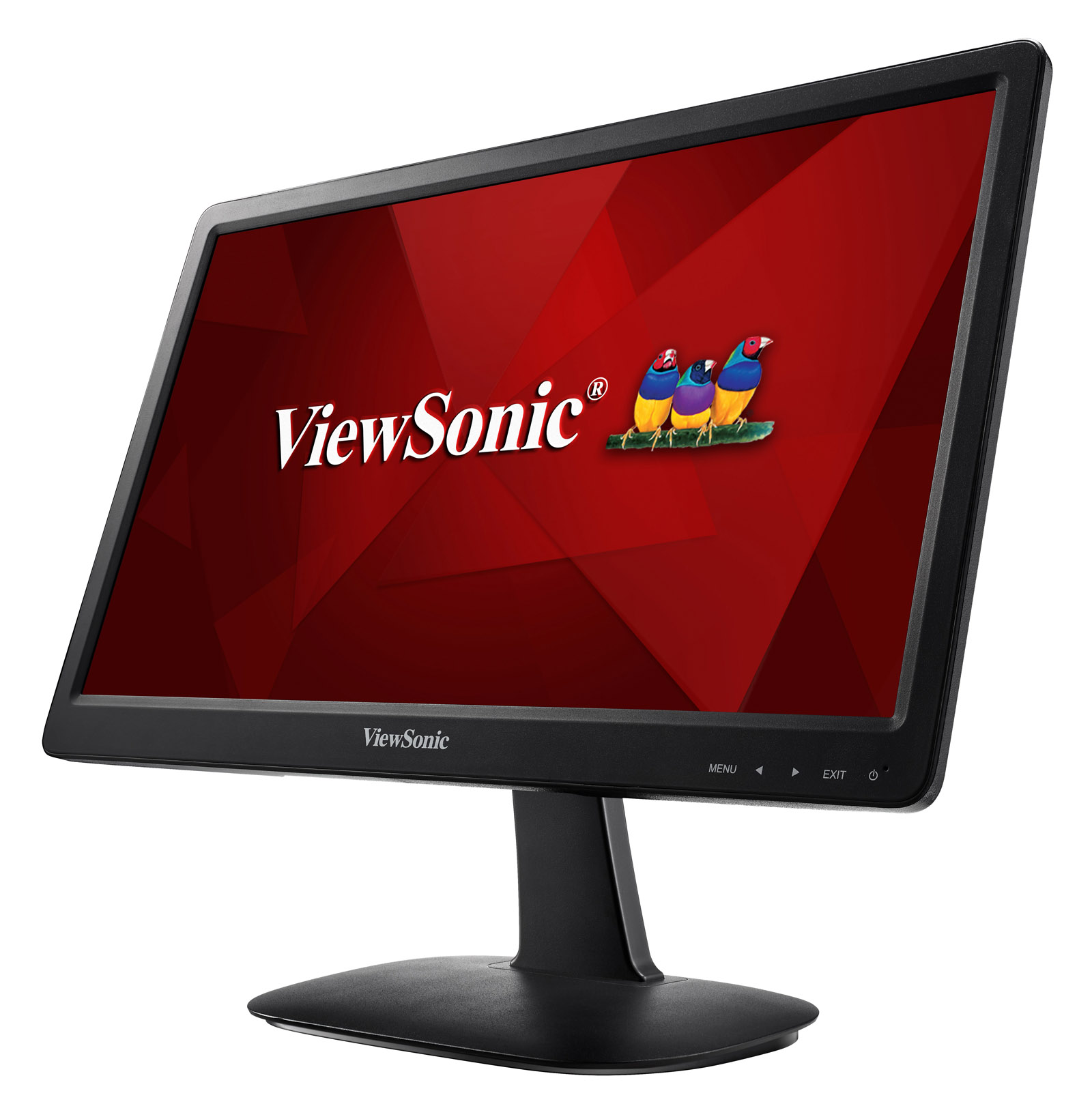

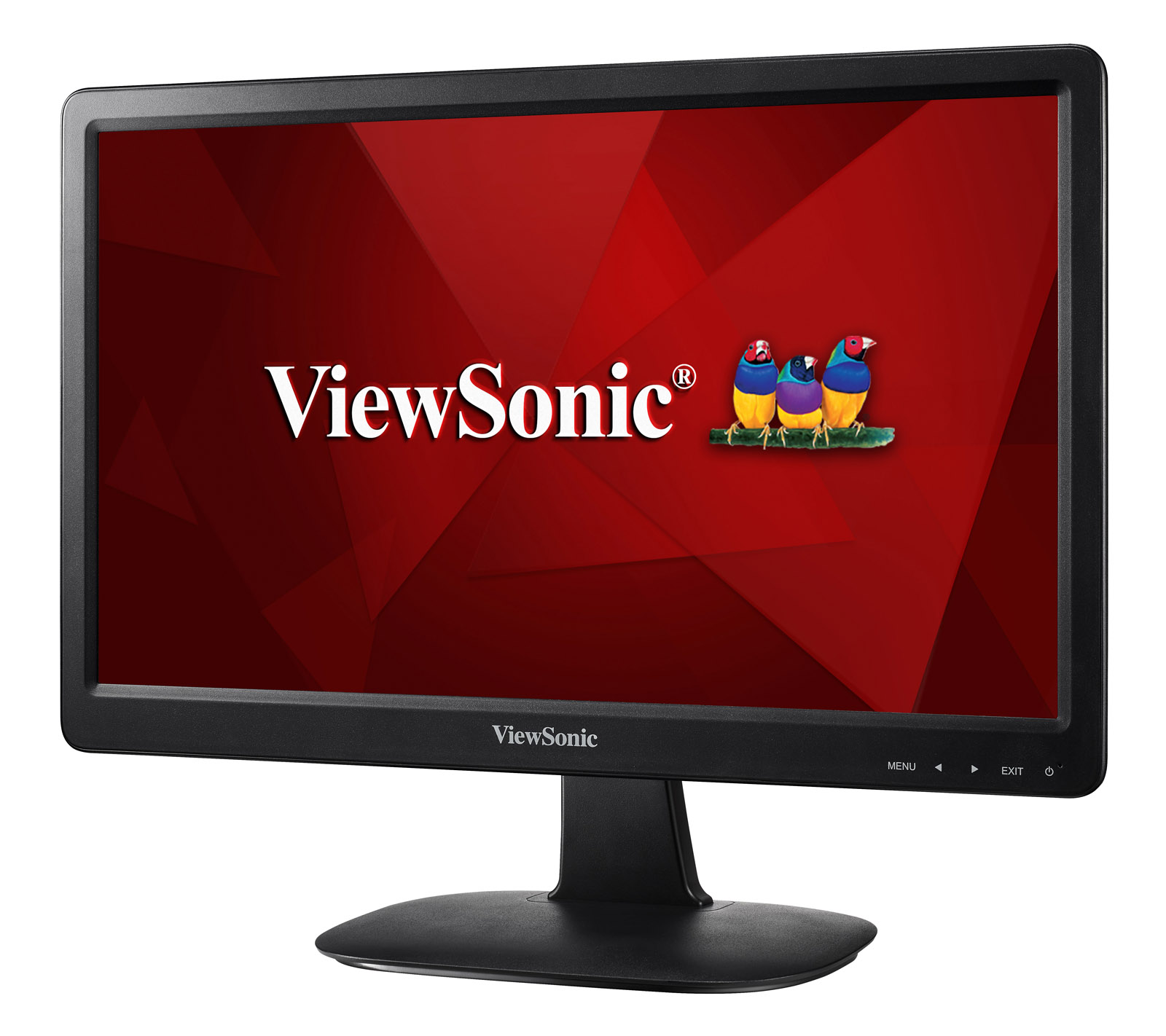

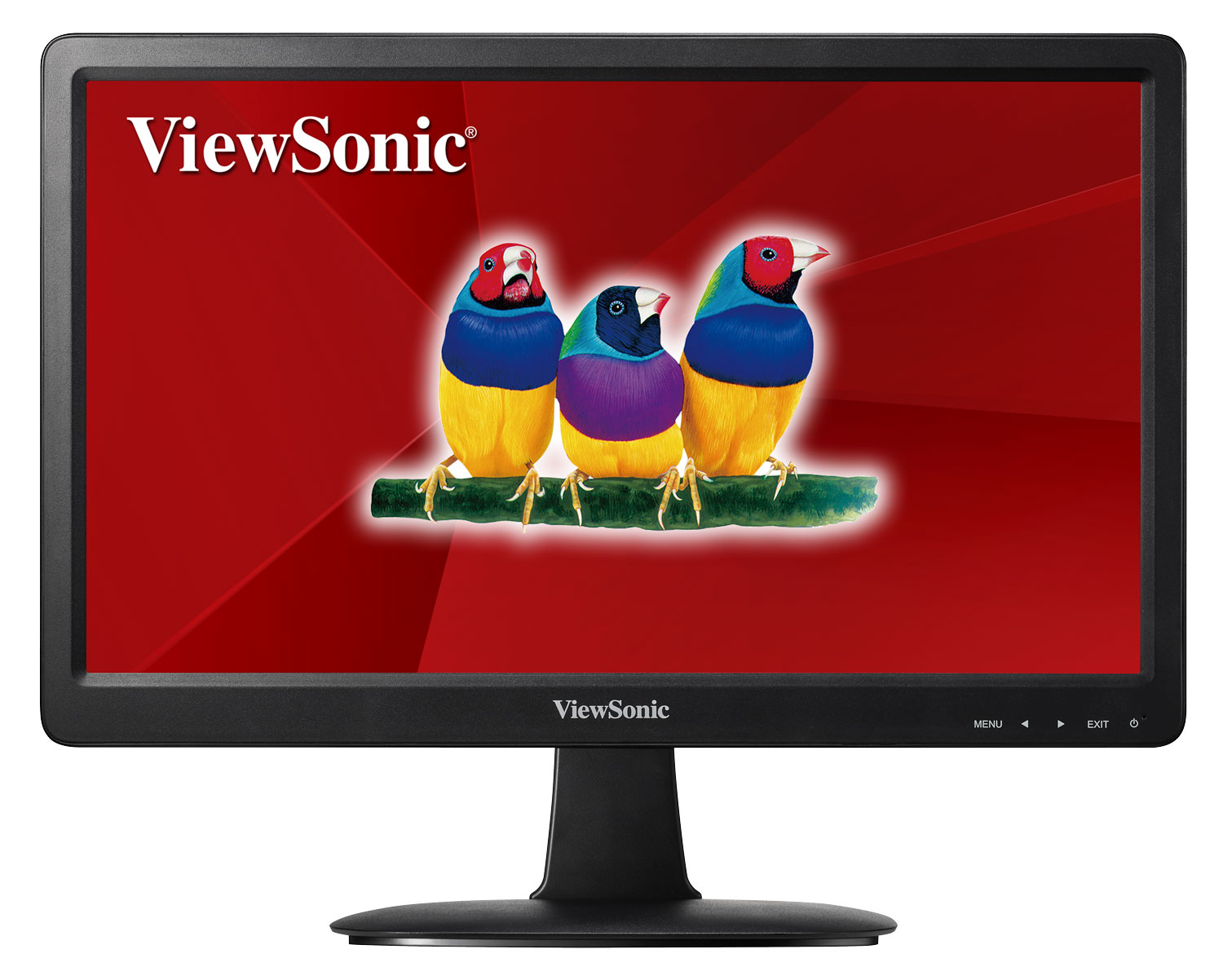

The ViewSonic VA1630-A-2 is a 16” (15.6” Viewable) 16:9 widescreen LED monitor with a native resolution of 1366 x 768, a 50M:1 Dynamic Contrast Ratio, and VGA input. VA1630-A-2’s Blue Light Filter eye care technologies help to eliminate eye strain from extended viewing periods for a comfortable overall viewing experience. The monitor’s VGA input allows it to serve as either a primary or secondary display for your office or at home for casual web surfing. The ViewSonic VA1630-A-2 combines great features with long-term dependability to provide a worthy investment for your viewing needs.

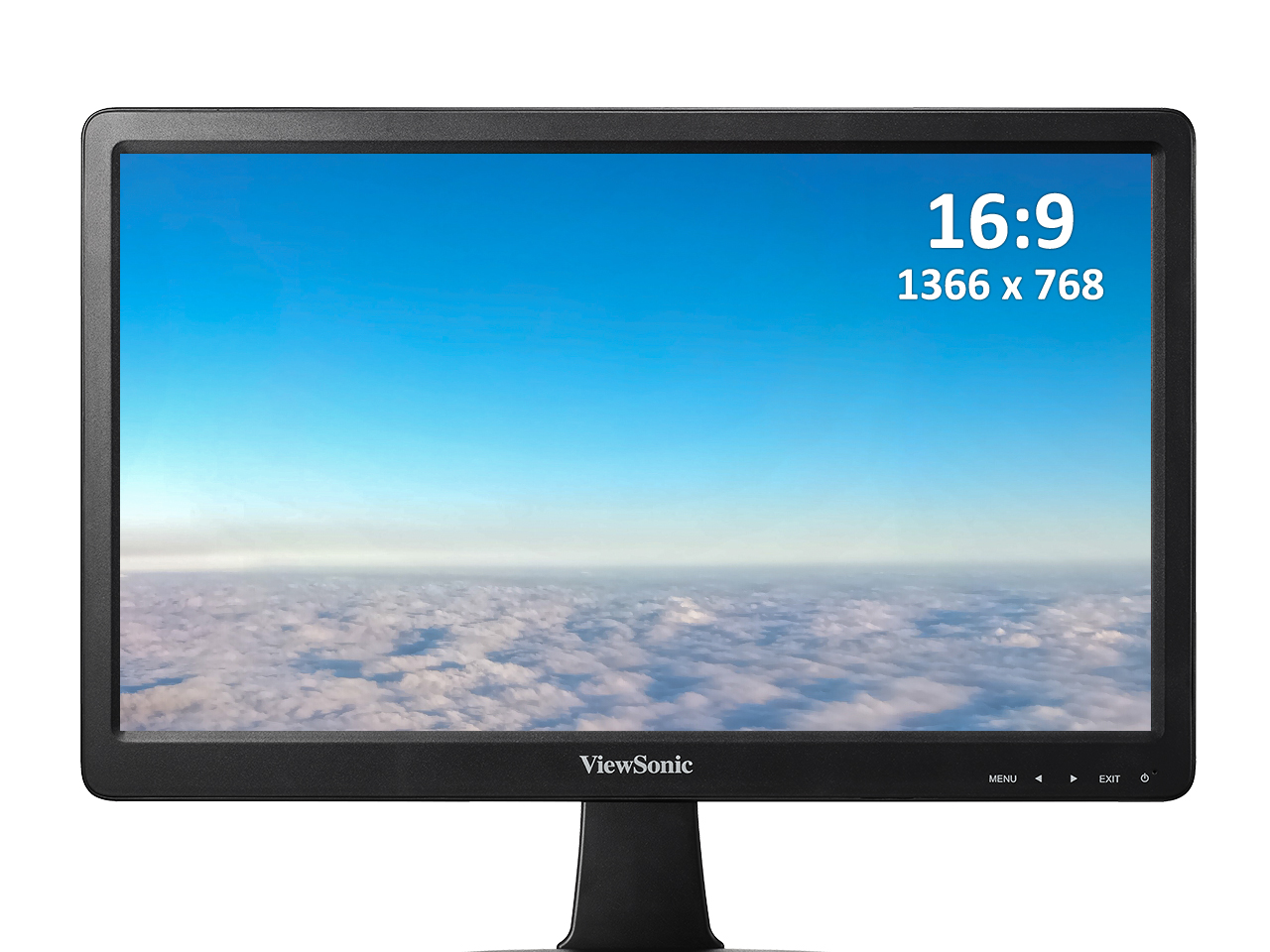

16:9 Widescreen Optimized for HD Content
VA1630-A-2 is designed for multitasking and improving productivity with a 16:9 aspect ratio and a resolution of 1366 x 768, making it a good fit both at home and in the office.
16:9
Widescreen
Rich Colour and Detail
With an outstanding Dynamic Contrast Ratio of 50,000,000:1, VA1630-A-2 adds depth to the relationship between the darkest and brightest parts of an image, resulting in incredible looking on-screen images with rich colour and detail.
Dynamic Contrast Ratio
50,000,000:1

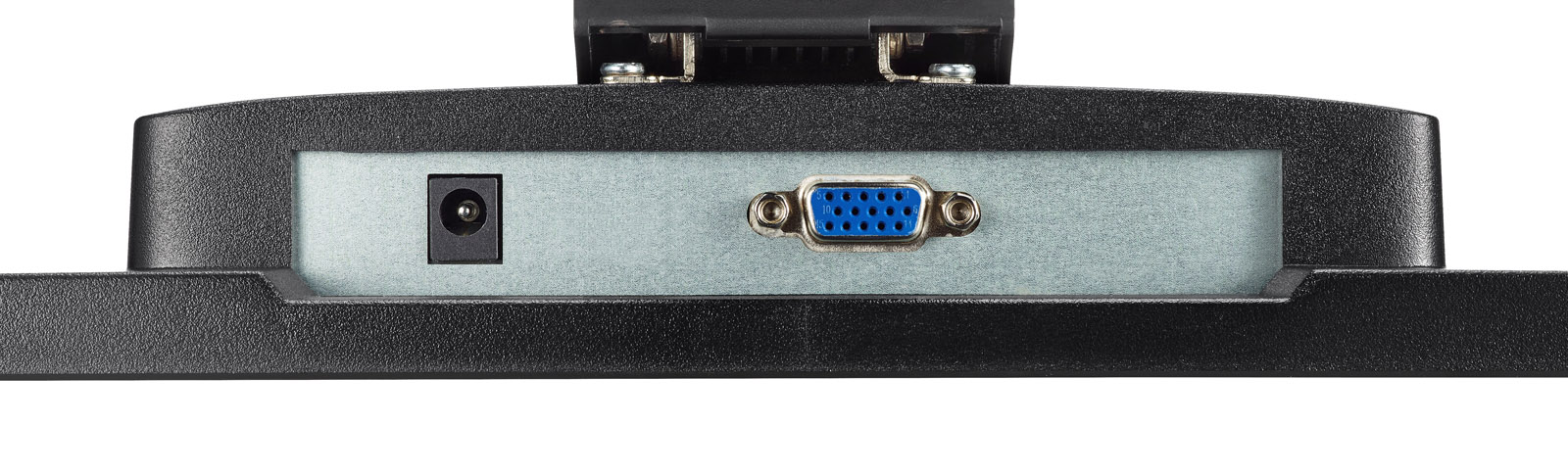

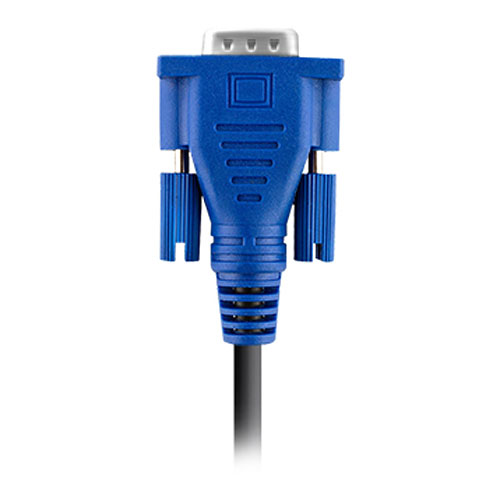

Flexible Connectivity
VGA input gives you more flexible to connect your monitor to a wide range of devices.
VGA
Comfortable Viewing
Blue Light Filter technologies eliminate eye strain caused by periods of extended viewing.
Blue light filter

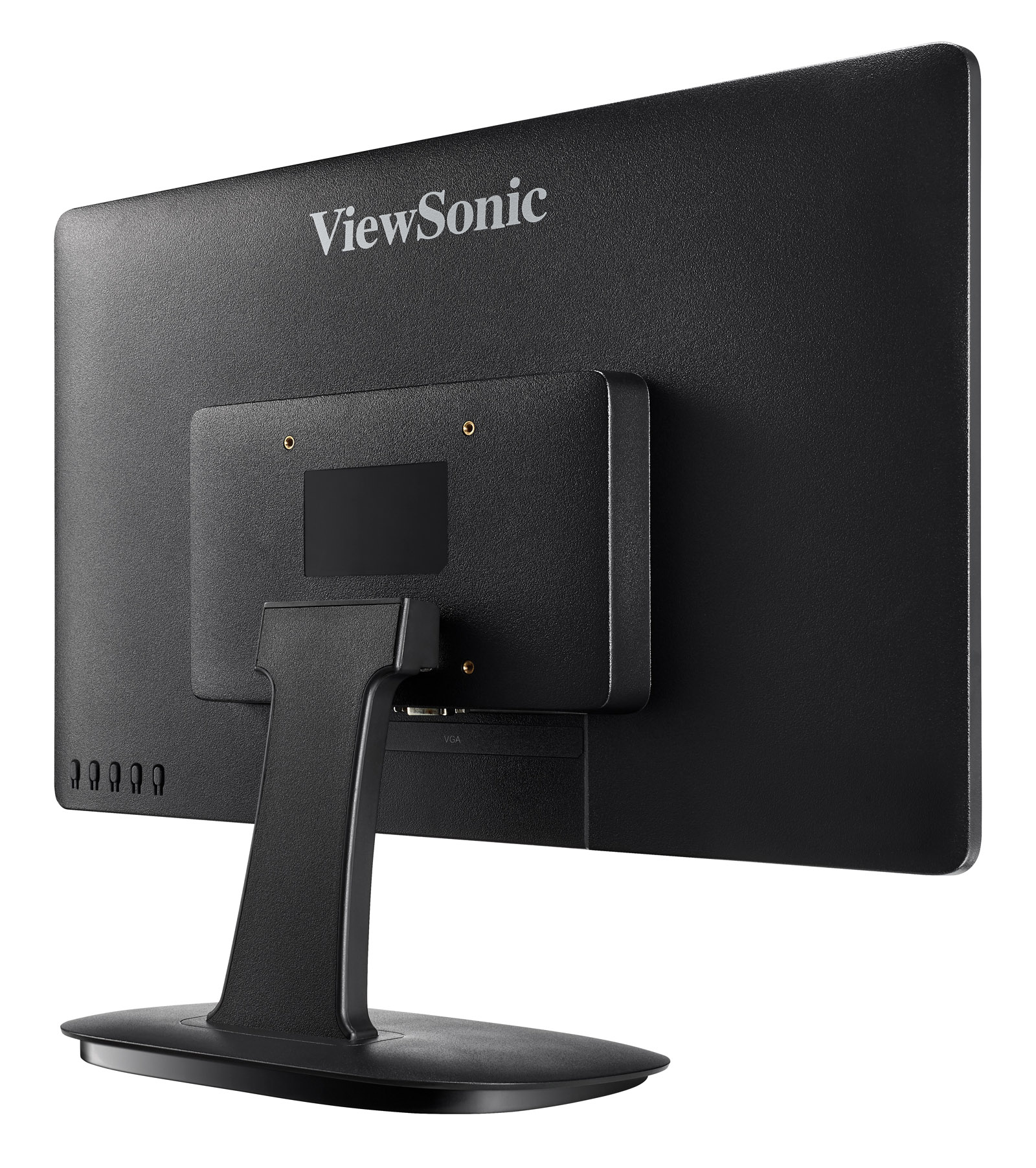

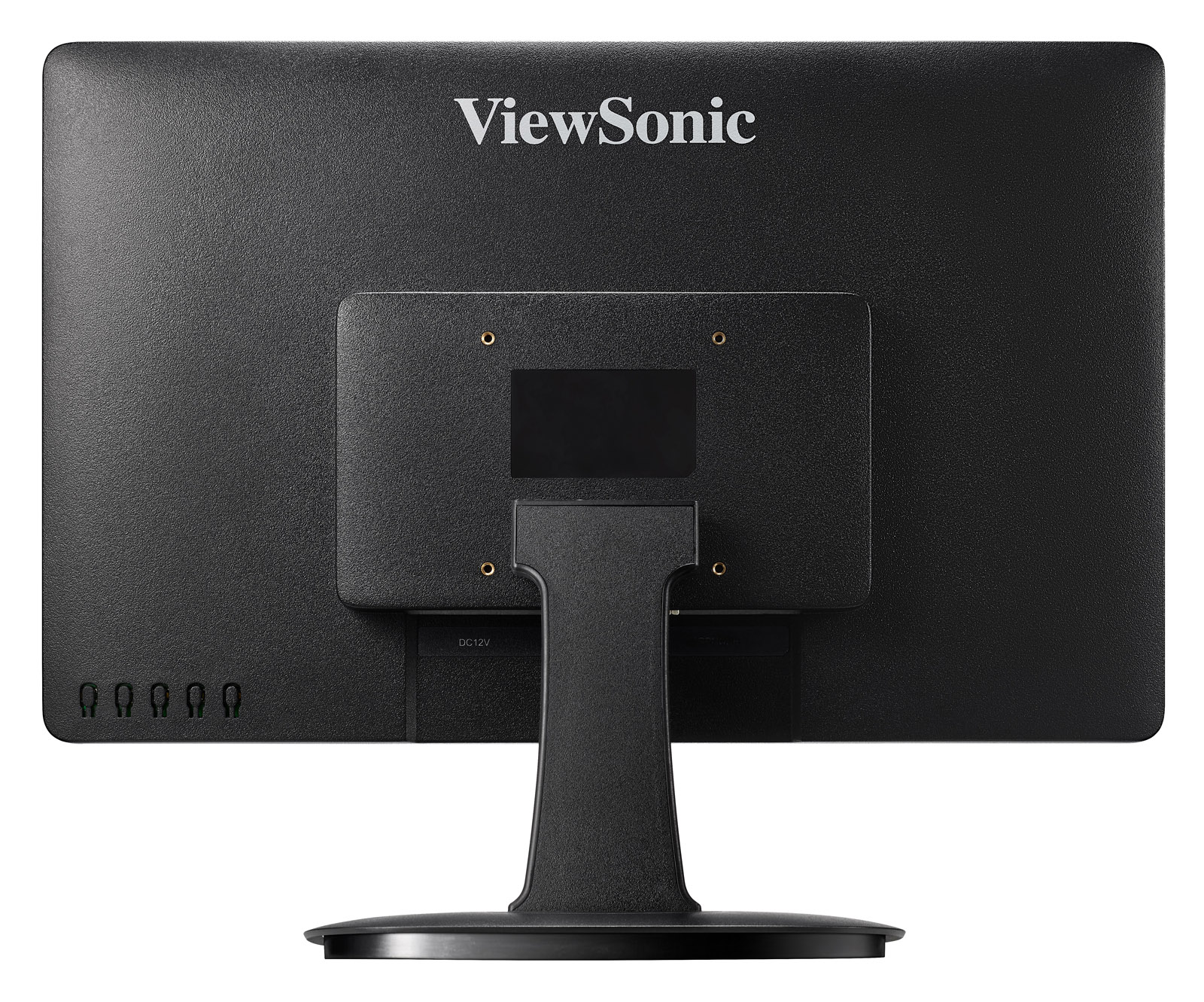

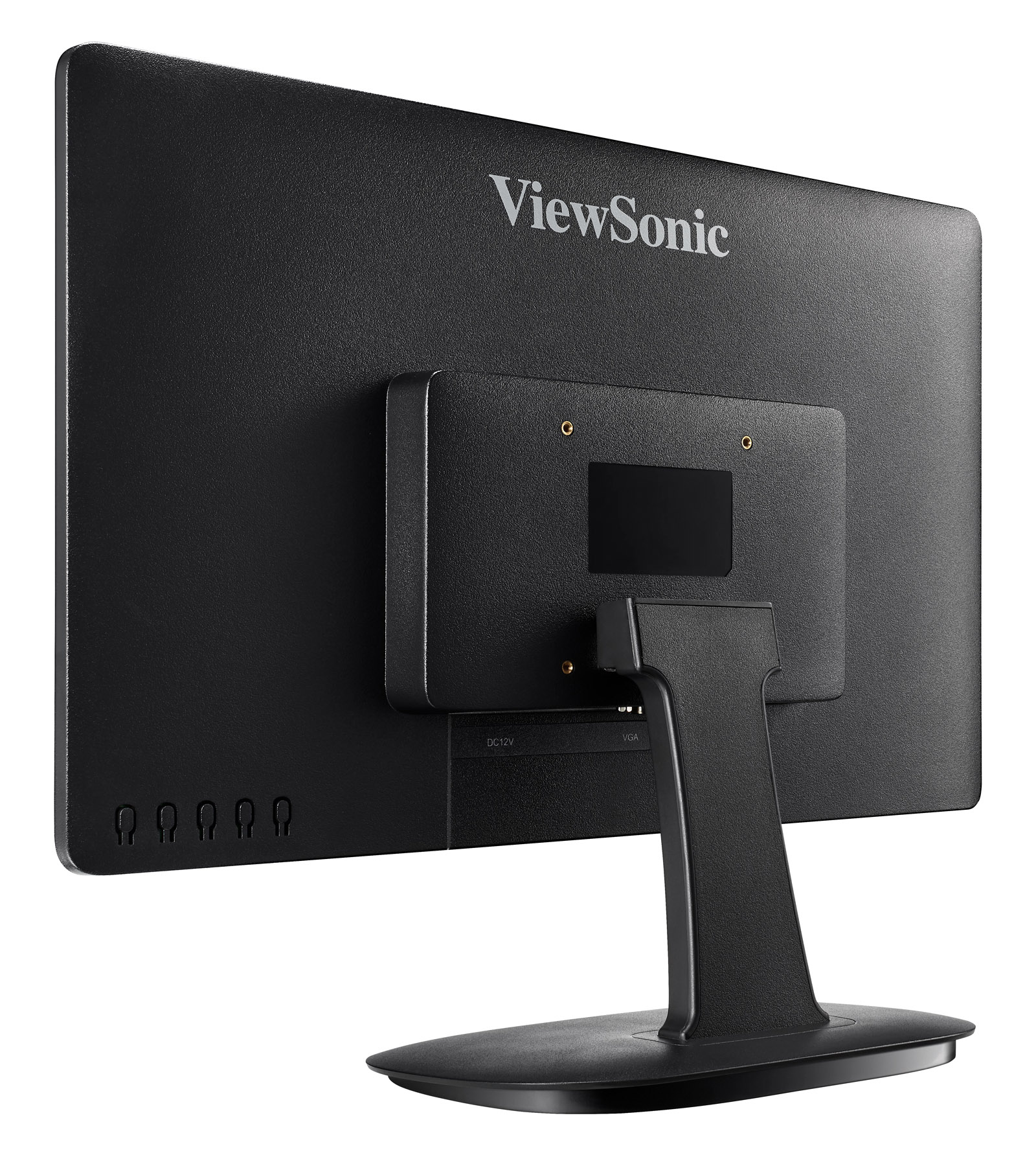

VESA-Compatibility
Conveniently mount the monitor to your preference by utilizing the 75mm x 75mm VESA-compatible mount design.
스펙
Display
Display Size (in.):
16
Viewable Area (in.):
15.6
Panel Type:
TN Technology
Resolution:
1366 x 768
Resolution Type:
WXGA (Wide XGA)
Static Contrast Ratio:
400:1 (typ)
Dynamic Contrast Ratio:
5M:1
Light Source:
LED
Brightness:
220 cd/m² (typ)
Colors:
262K
Color Space Support:
6 bit true
Aspect Ratio:
16:9
Response Time (Typical Tr+Tf):
8ms
Viewing Angles:
90º horizontal, 50º vertical
Backlight Life (Hours):
15000 Hrs (Min)
Curvature:
Flat
Refresh Rate (Hz):
60
Low Blue Light:
Software solution
Color Gamut:
NTSC: 45% size (Typ)
Pixel Size:
0.252 mm (H) x 0.252 mm (V)
Surface Treatment:
Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max):
1366x768
Mac® Resolution (max):
1366x768
PC Operating System:
Windows 10 tested
Mac® Resolution (min):
1366x768
Connector
VGA:
1
Power in:
DC Socket (Center Positive)
Power
Consumption (typical):
5W
Consumption (max):
6W
Voltage:
AC 90-270V
Stand-by:
0.5W
Power Supply:
External Power Adaptor
Controls
Physical Controls:
Menu, Left, Right, Exit, Power
On Screen Display:
Picture, Display, Advance Color
Operating Conditions
Temperature:
32°F to 104°F (0°C to 40°C)
Humidity (non-condensing):
20% to 90%
Wall Mount
VESA Compatible:
Customized, 75 x 75 mm
Input Signal
Frequency Horizontal:
30 ~ 80KHz
Frequency Vertical:
58 ~ 62Hz
Video Input
Analog Sync:
Separate - RGB Analog

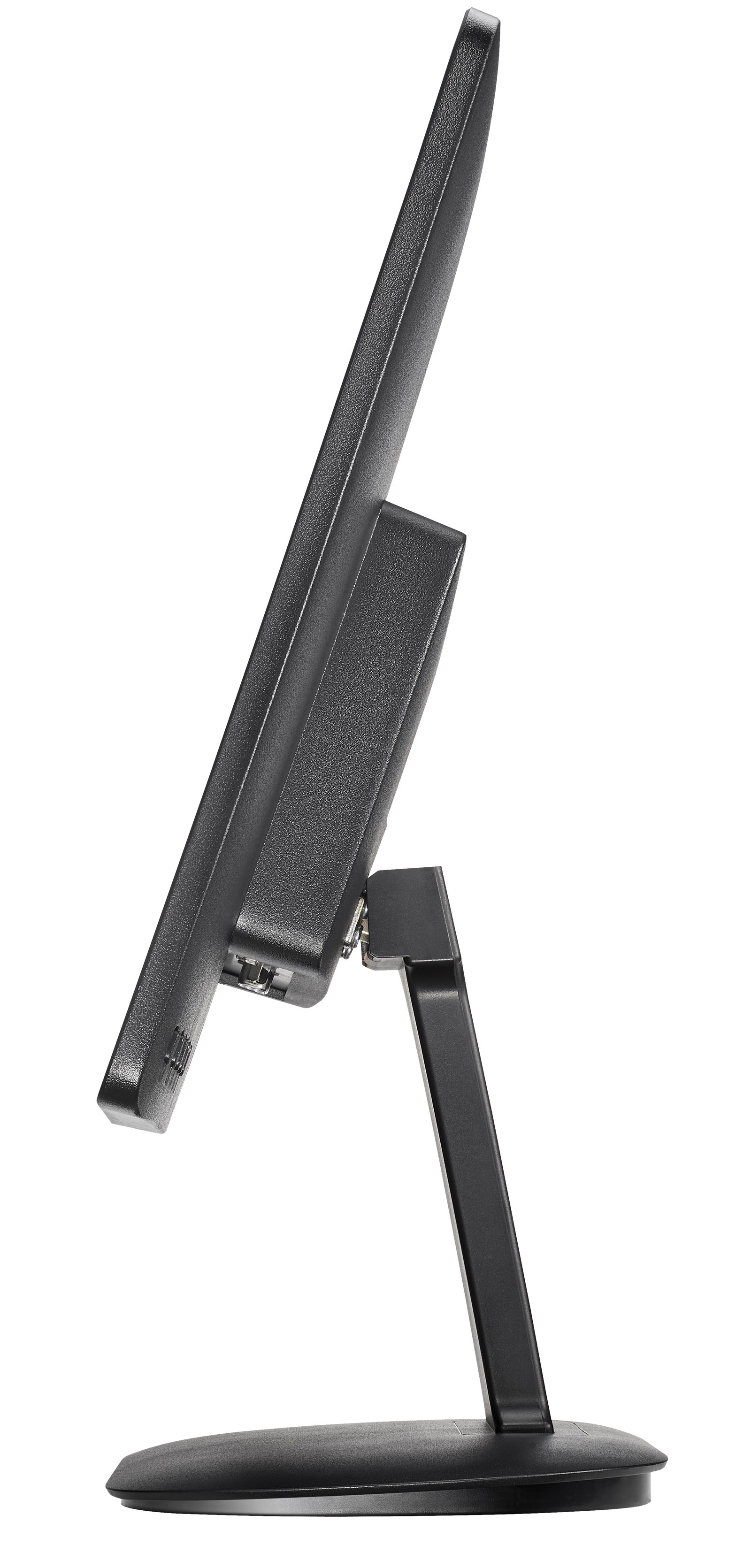

Ergonomics
Tilt (Forward/Back):
-5º / 15º
Weight (imperial)
Net (lbs):
2.4
Net Without Stand (lbs):
1.8
Gross (lbs):
4.2
Weight (metric)
Net (kg):
1.1
Net Without Stand (kg):
0.8
Gross (kg):
1.9

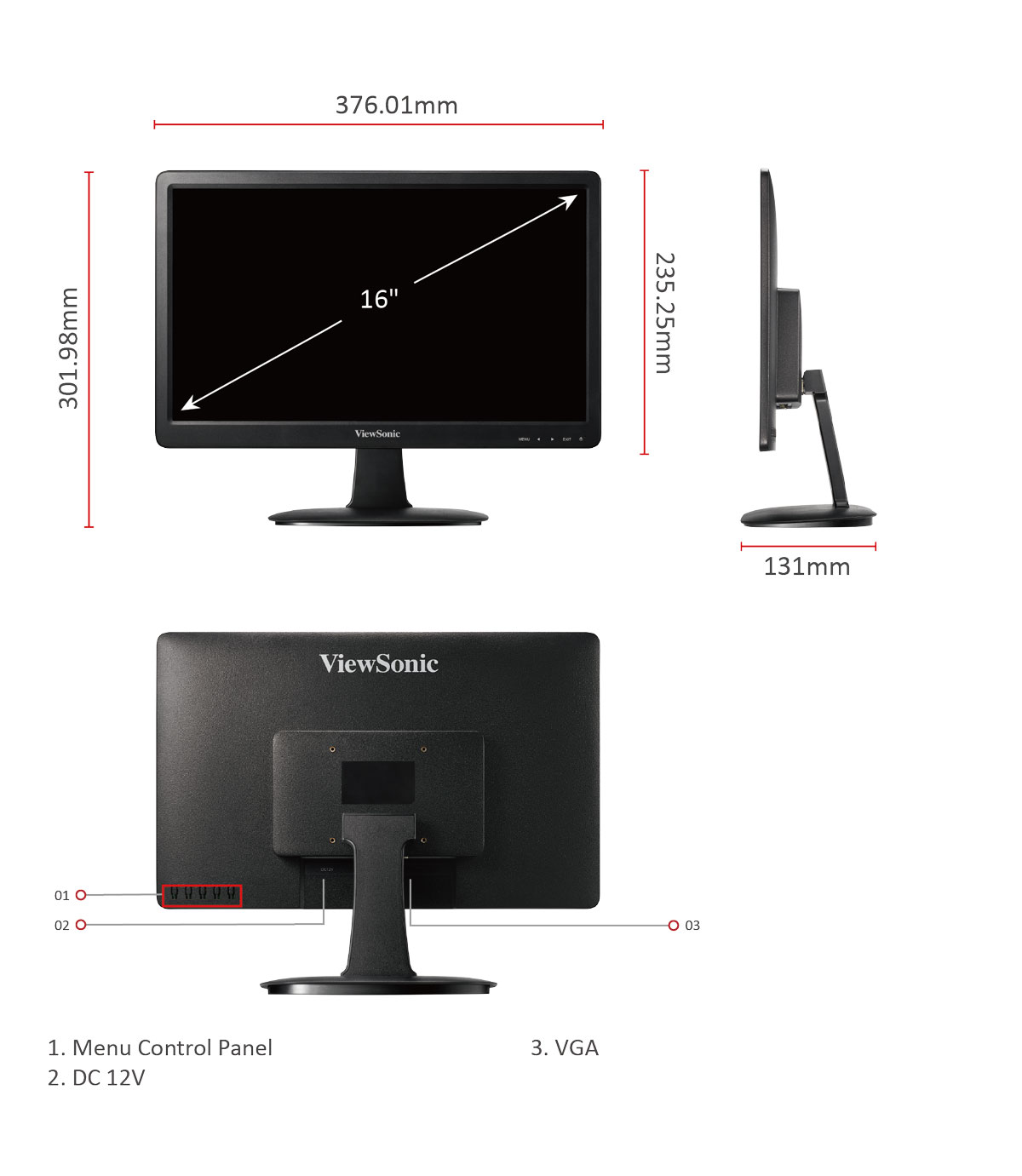

Dimensions (imperial) (wxhxd)
Packaging (in.):
16.7 x 13.6 x 4.1
Physical (in.):
14.8 x 11.9 x 5.2
Physical Without Stand (in.):
14.8 x 9.3 x 1.5
Dimensions (metric) (wxhxd)
Packaging (mm):
425 x 345 x 105
Physical (mm):
376 x 302 x 131
Physical Without Stand (mm):
376 x 235 x 38
General
Regulations:
BIS
PACKAGE CONTENTS:
VA1630-A-2 x1, VGA Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal:
Please dispose of in accordance with local, state or federal laws.
Warranty:
*Warranty offered may differ from market to market
전체 스펙 보기
지원 & 다운로드
데이터 시트
VA1630-A-2 데이터 시트
유저 가이드
VA1630-A-2 User Guide (English)
Driver & Software
Standard Monitor Driver Signed Windows 10 x64
Standard Monitor Driver Signed Windows 10 x86
Standard Monitor Driver Signed Windows 7
Standard Monitor Driver Signed Windows 7 x64
Standard Monitor Driver Signed Windows 8 x64
Standard Monitor Driver Signed Windows 8 x86
Standard Monitor Driver Unsigned Windows
Standard Monitor Driver Unsigned Windows x64
×
