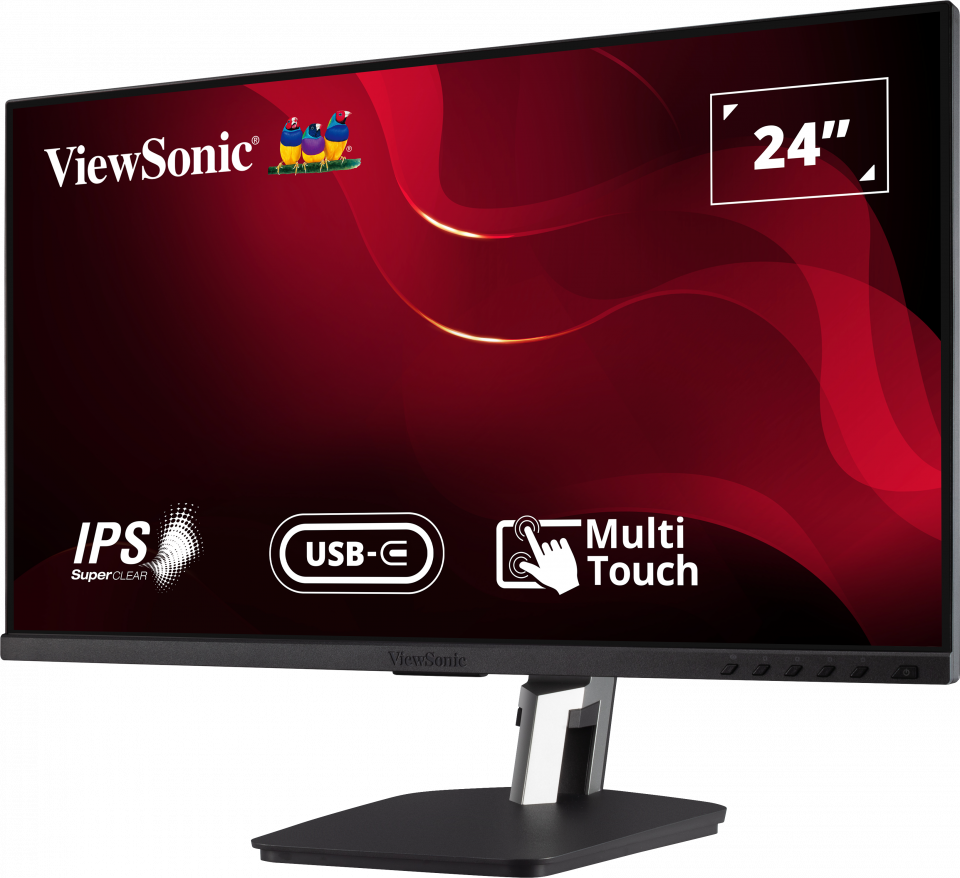

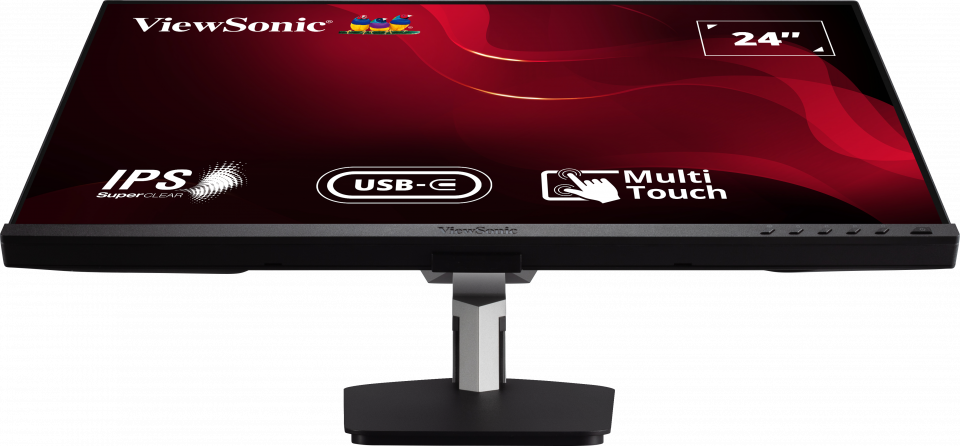

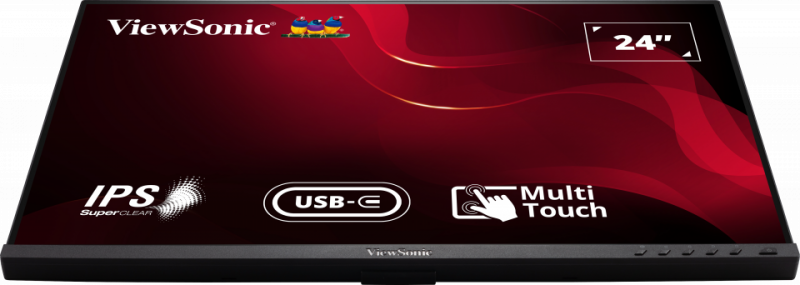

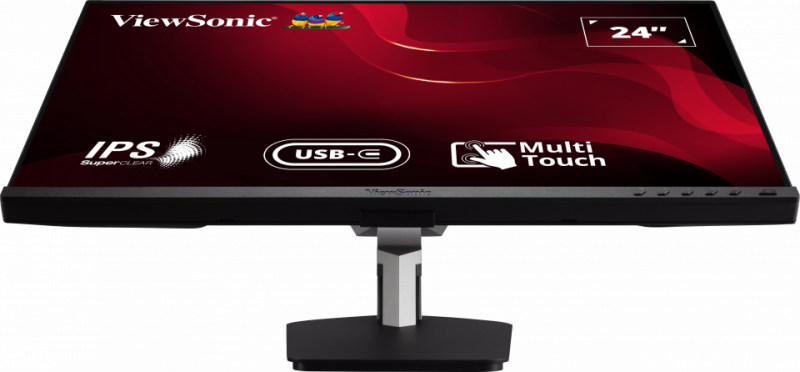

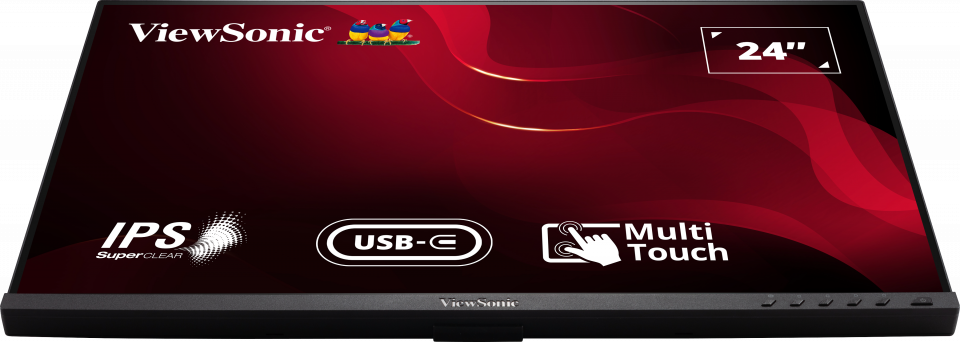

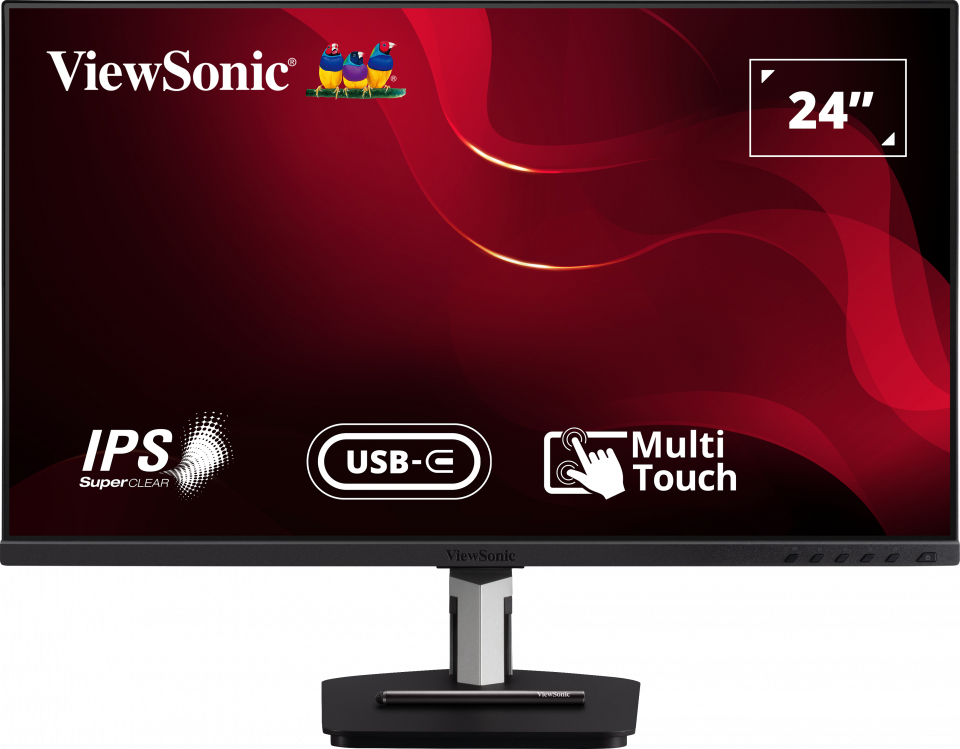

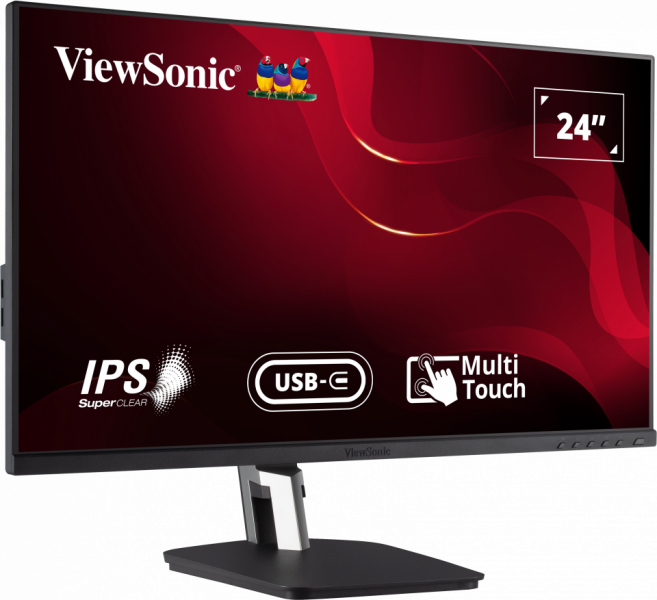

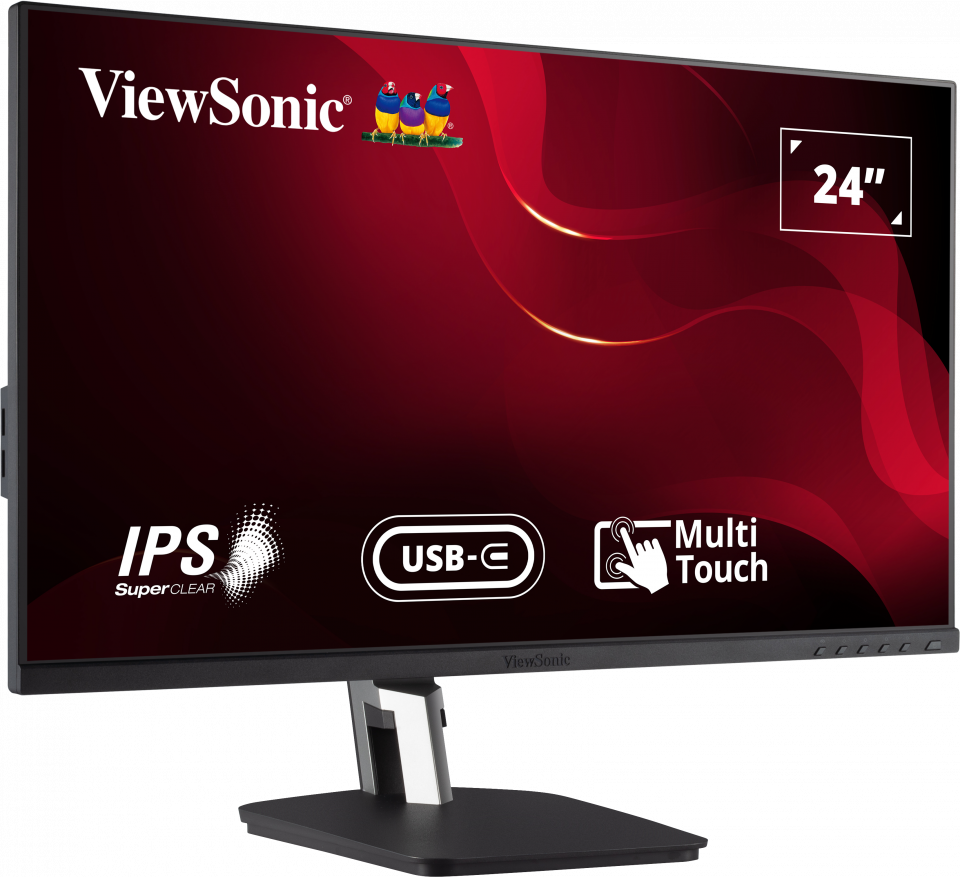

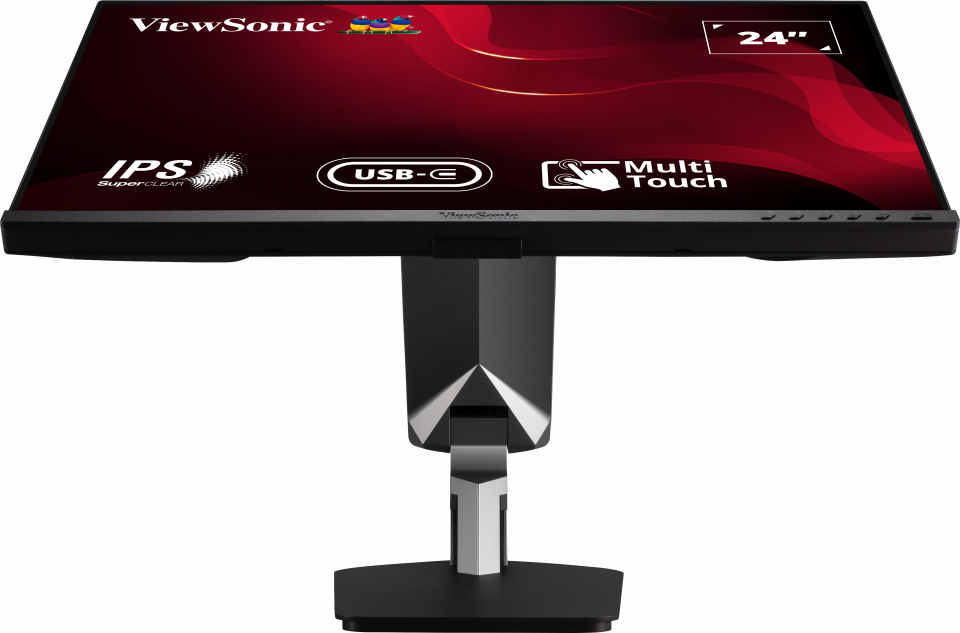

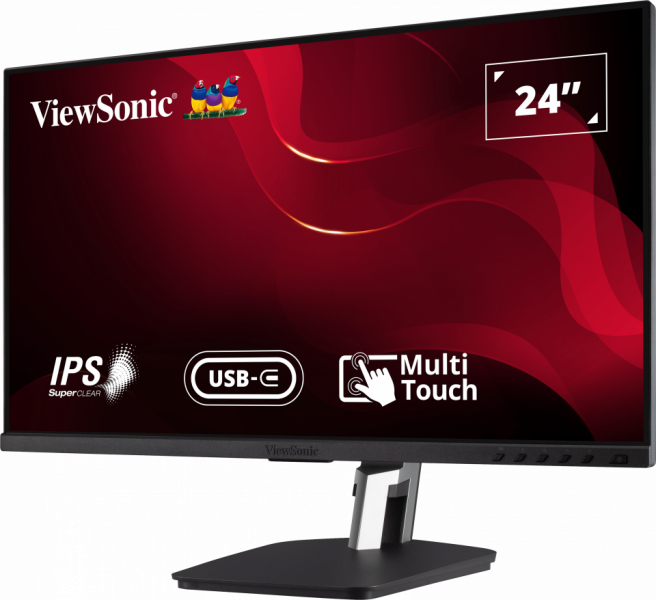

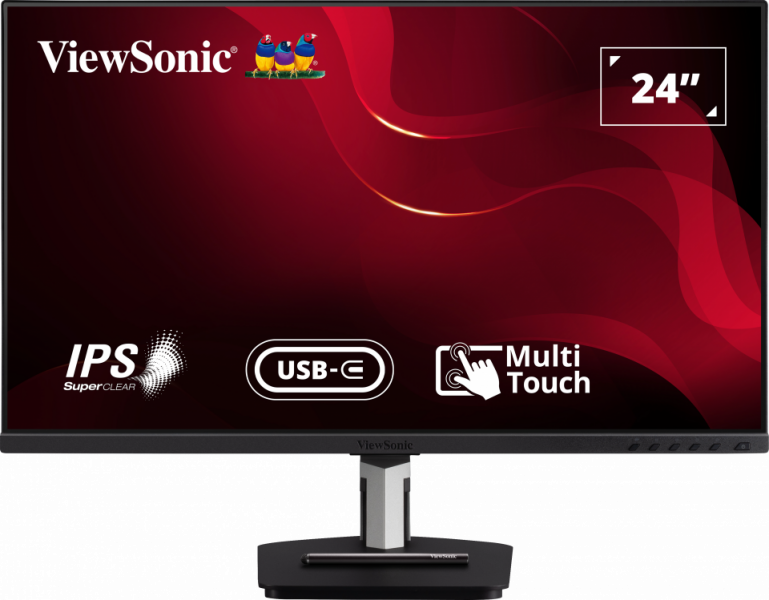

TD2455

24” In-Cell Touch Monitor with USB Type-C Input and Advanced Ergonomics

  • Versatile touch applications
  • Efficient multitasking
  • Touch annotation for presentations
  • Accurate yet smooth touch experience
  • Comfortable working angles & quickly start your work
  • Touch support with Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi
Sales Enquiry

OVERVIEW

With responsive in-cell touch technology and an advanced ergonomic design, the ViewSonic® TD2455 touch monitor delivers hands-on control for more productive workspaces and collaborative classrooms. With high-performance in-cell touch technology, this 24” (23.8” viewable) Full HD display provides smooth and responsive touch tracking, along with amazing screen performance, within a sleek and bezel-less design. USB Type-C connectivity offers a single-cable plug-and-play solution for laptops, while DisplayPort output enables easy screen mirroring or extended desktops ideal for office productivity and podium touch applications such as conference rooms or classrooms. A magnetic stylus pen lets you write or draw on screen, and easily attaches to the display stand for secure storage. So whether used on its own on office desktops, as a presentation station in corporate meeting spaces, or as a front-of-classroom interactive teaching hub, the TD2455 helps to boost efficiency and productivity.*Some laptops may need to enter BIOS mode and change the power management setting to “tap-to-wake”.

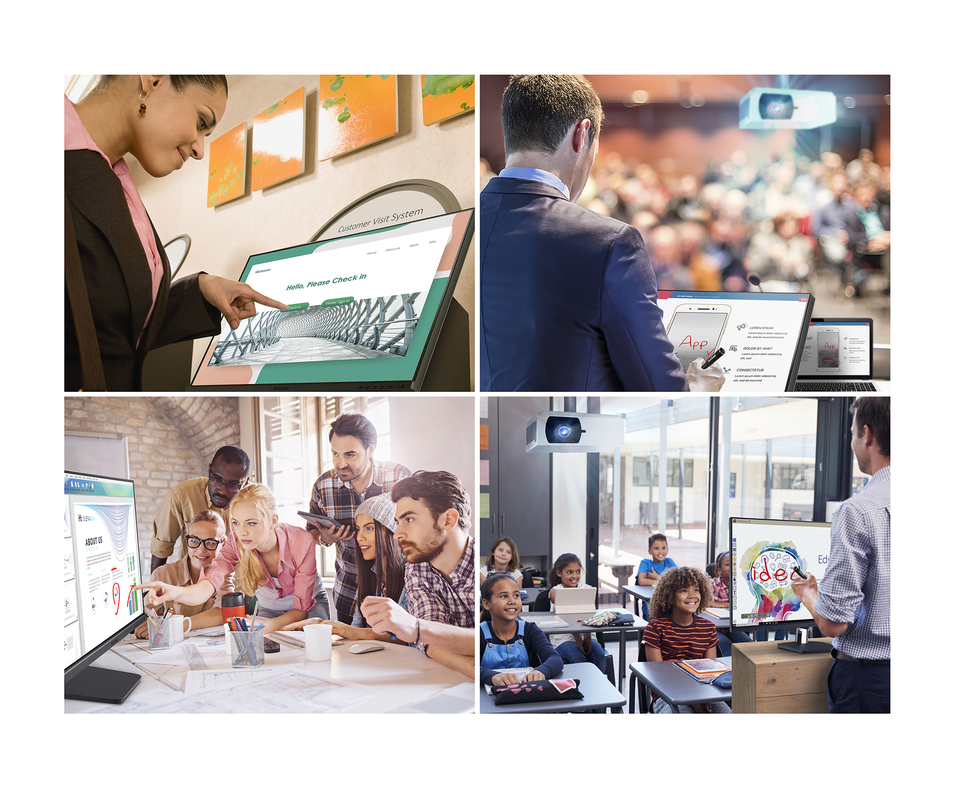

Versatile Touch Applications

Whether used as a check-in kiosk at reception, as a collaboration station with co-workers and colleagues at the office, or as a touch podium for front-facing teaching, this sleek and slim touch display seamlessly integrates into your workflow for boosted efficiency and productivity.
Agile yet Scalable Touch Display
Versatile Touch Applications 1

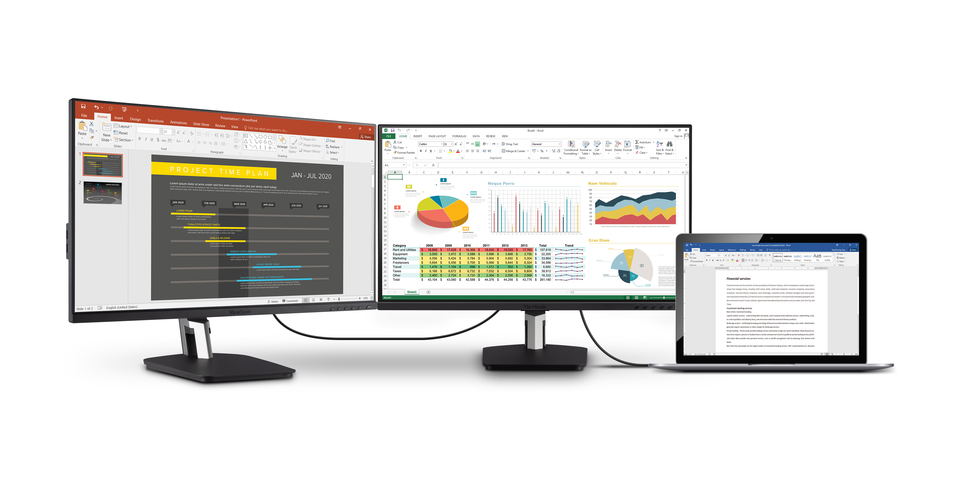

Efficient Multitasking

With advanced DisplayPort Multi-Stream technology and support for up to 4-screen daisy chaining*, this display can transform into the ultimate touch screen workstation – in mirror and extended modes – for increased productivity. *up to 4 with a PC; up to 3 with a laptop
DisplayPort Multi-Stream Transport (MST)
Efficient Multitasking 1

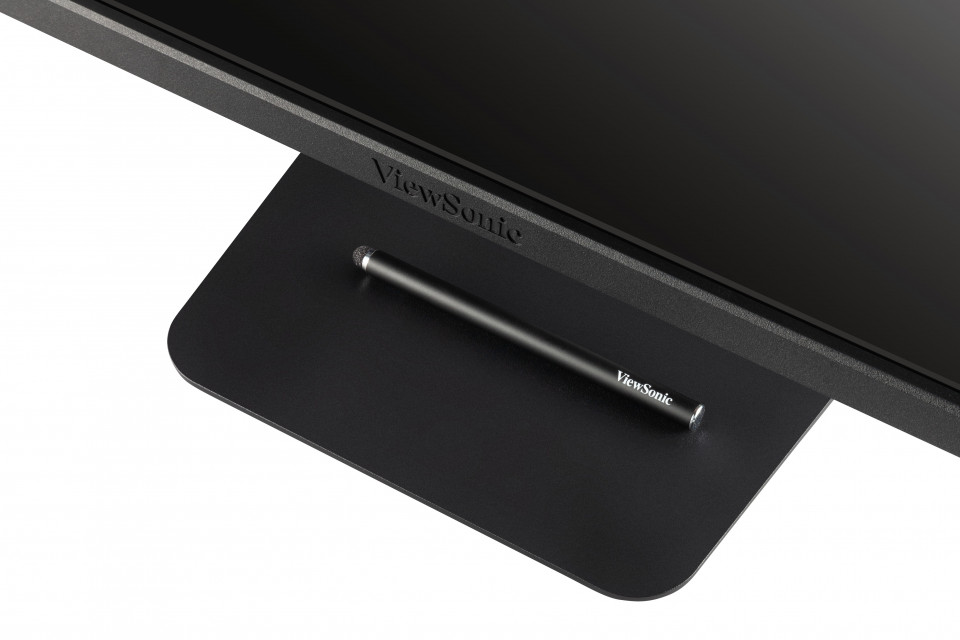

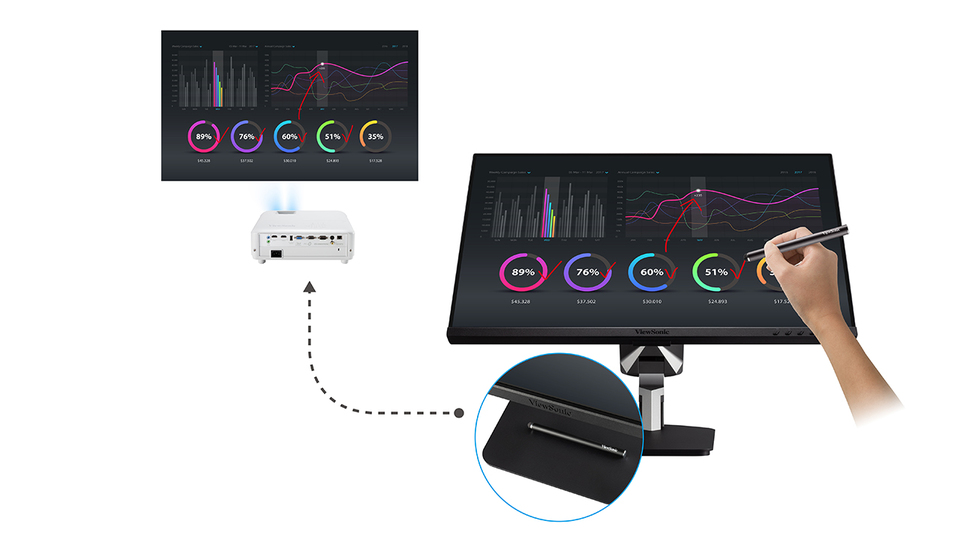

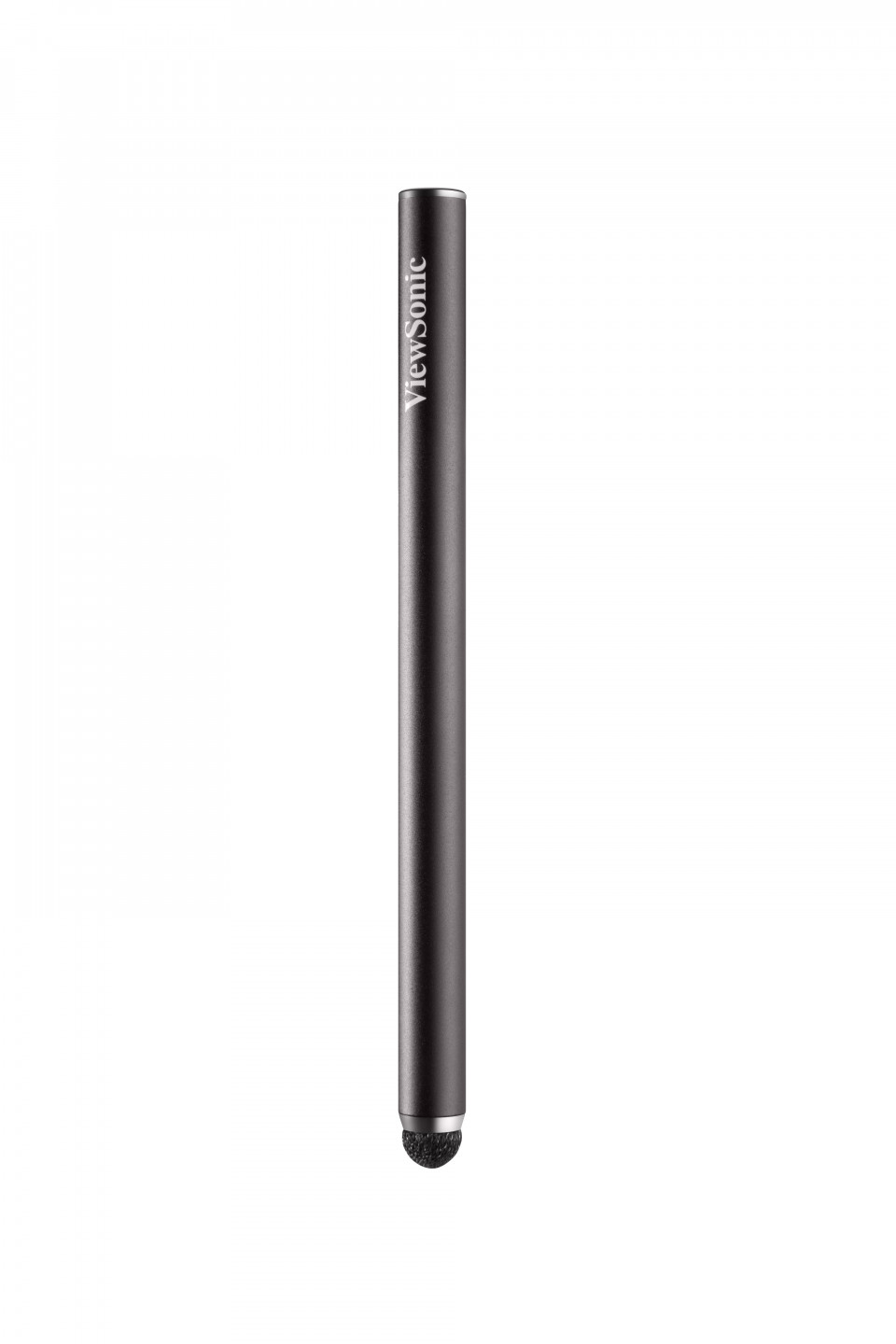

Touch Annotation for Presentations

An included stylus pen easily attaches to the magnetic base of the display, and allows you to draw, write notes, or perform other detailed tasks that require more accuracy than your fingertips alone. The pen is especially useful during presentations when the TD2455 is attached to a projector.
Fine Writing Stylus
Touch Annotation for Presentations 1

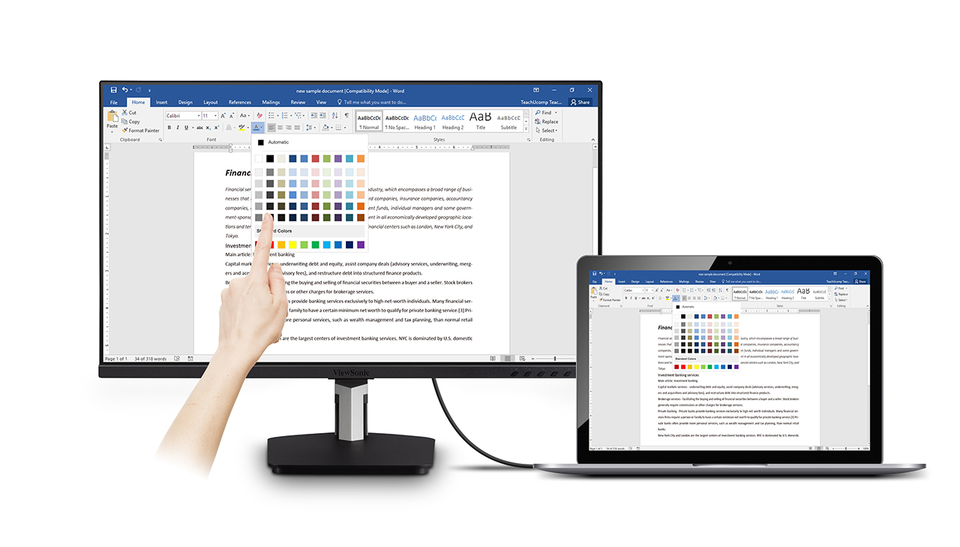

Accurate yet Smooth Touch Experience

Powered by in-cell touch technology, the TD2455 offers sensitive yet smooth touch response for detailed content editing with fingertips or the touch pen.
10-Point In-Cell Projected Capacitive (PCAP) Touch Technology
Accurate yet Smooth Touch Experience 1

Quickly Start Your Work

The latest USB Type-C input transforms this display into a powerful hub by enabling easy connectivity to PC, laptop, and Chrome systems. In addition, it delivers charging power, video, and audio over a single cable.
USB Type-C
Quickly Start Your Work 1

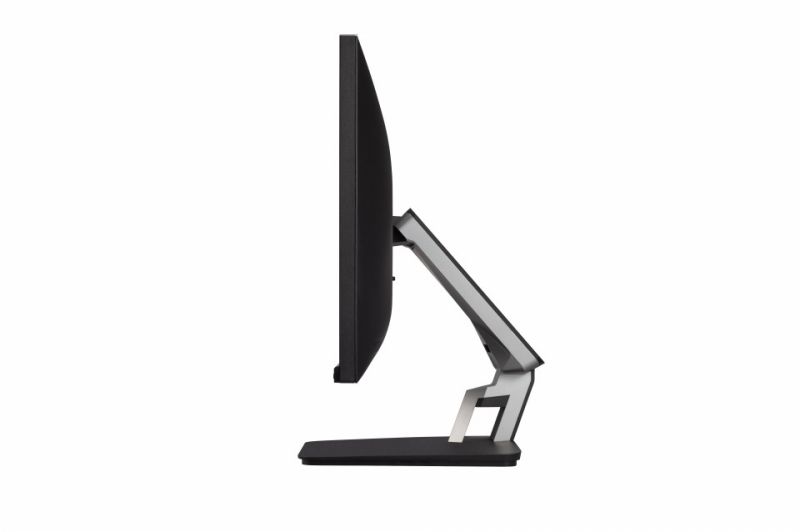

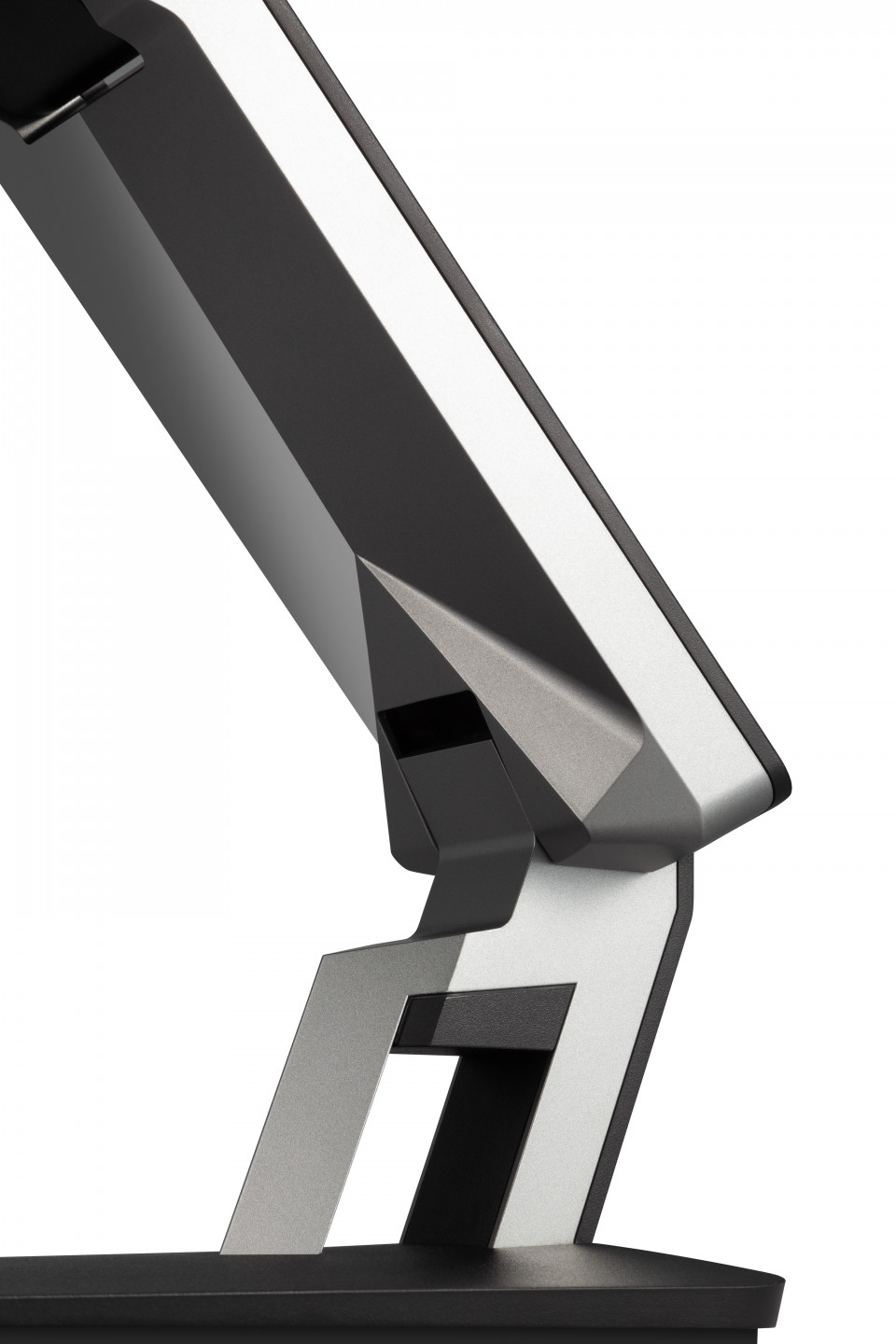

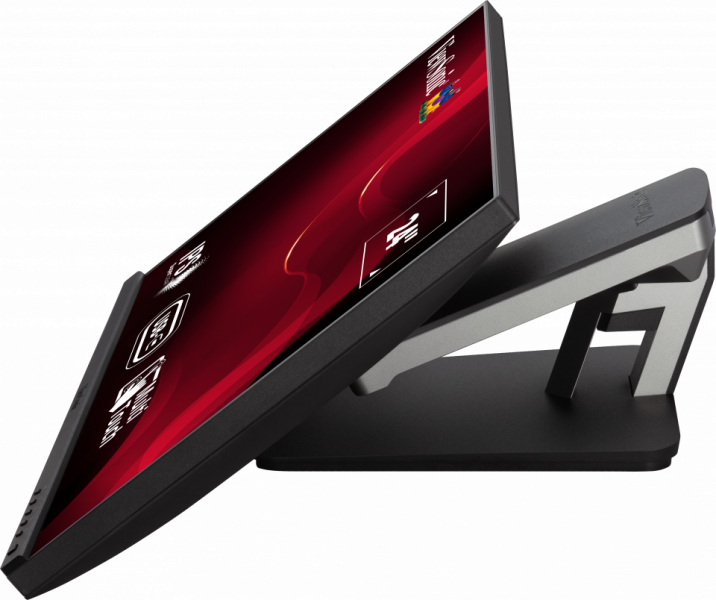

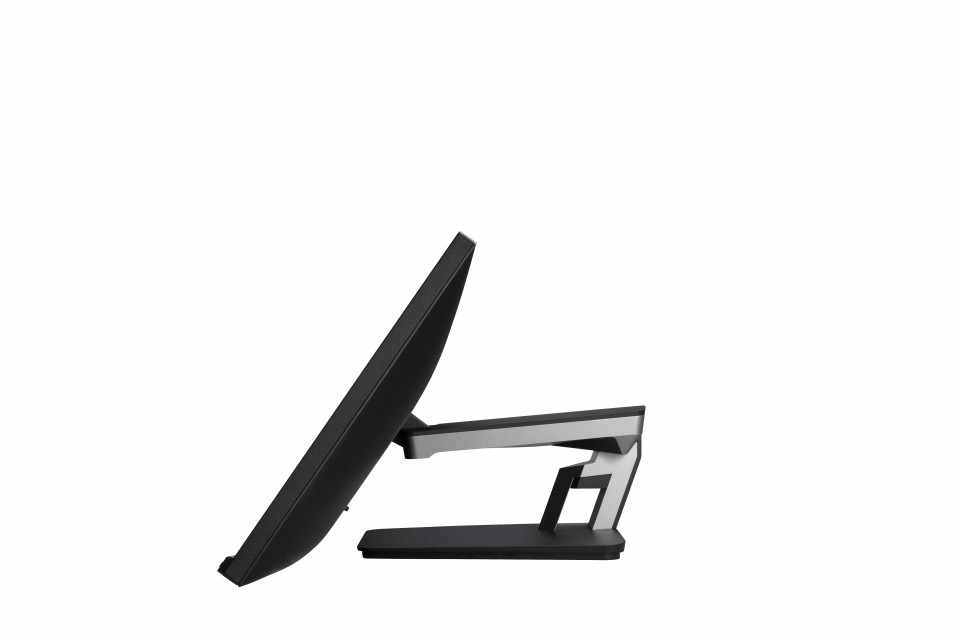

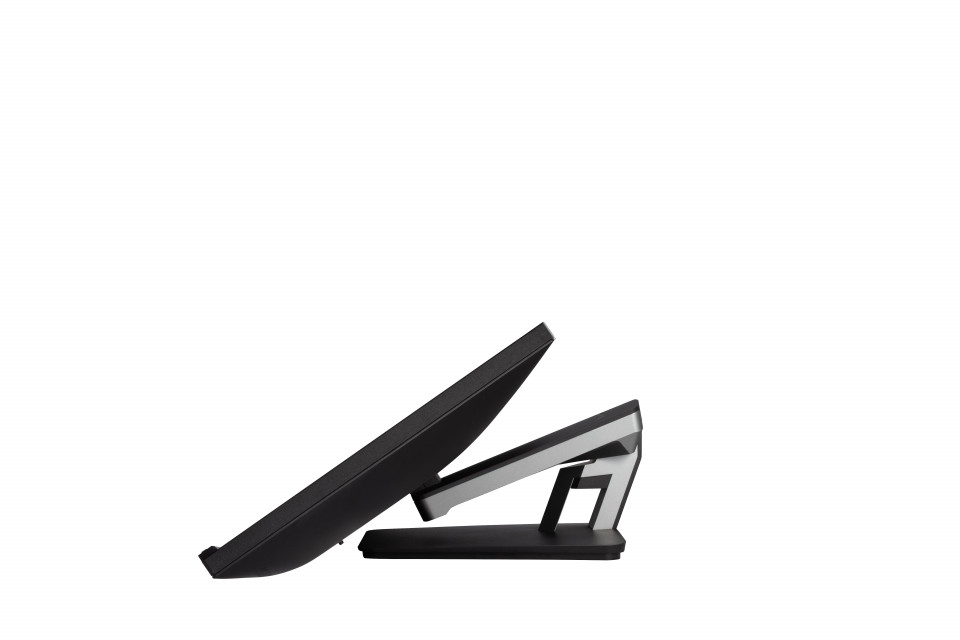

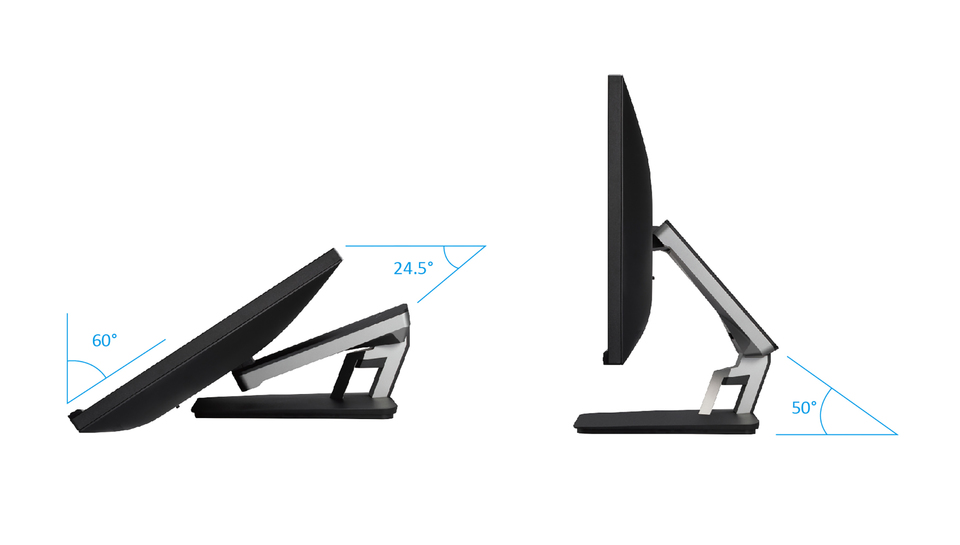

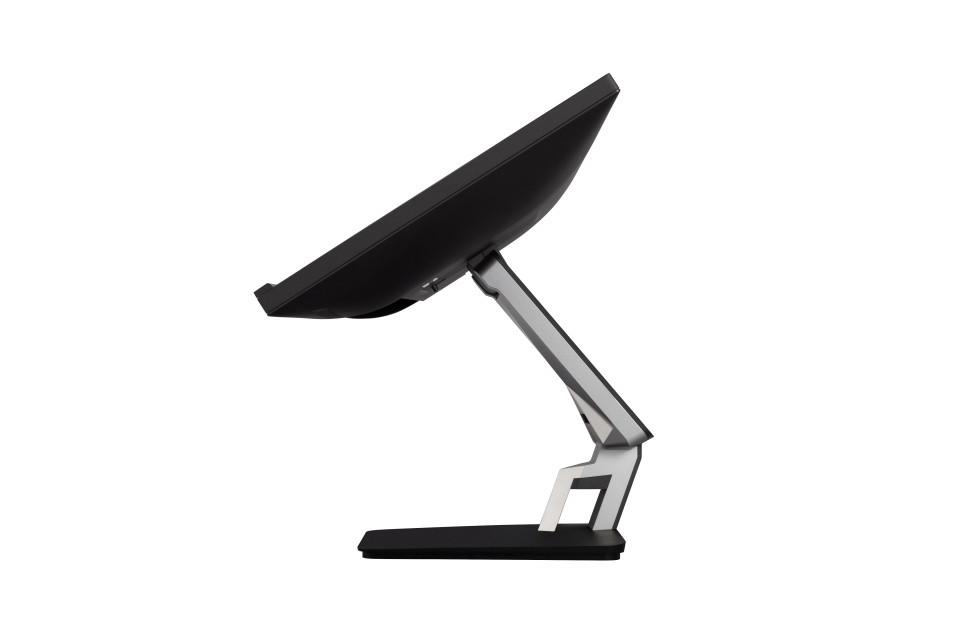

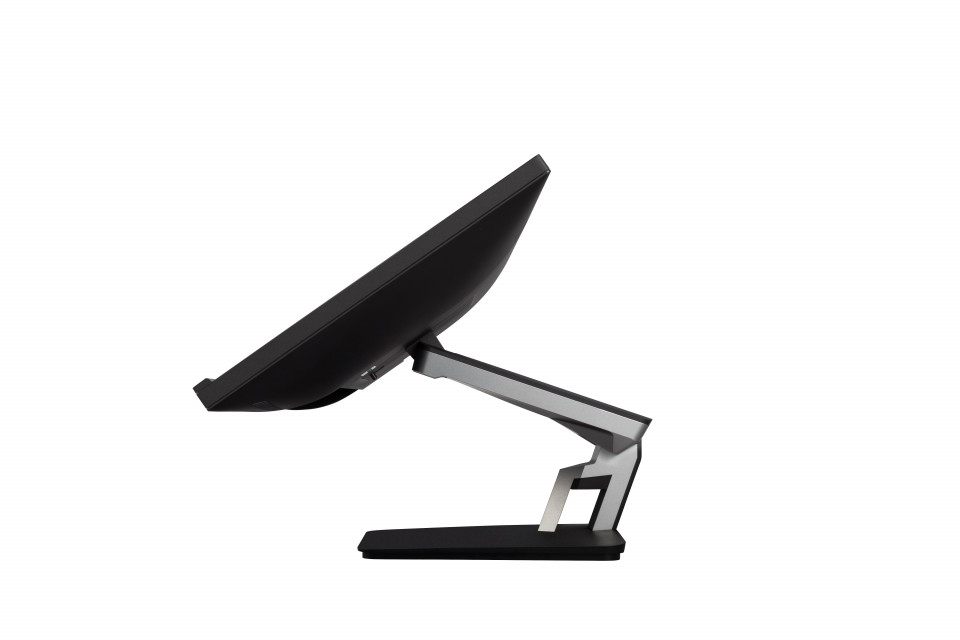

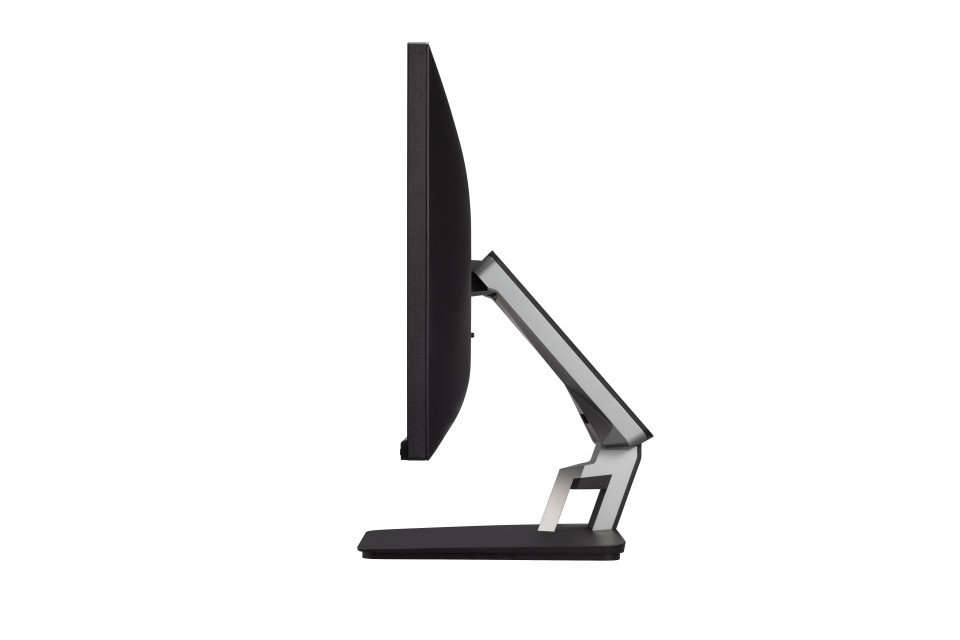

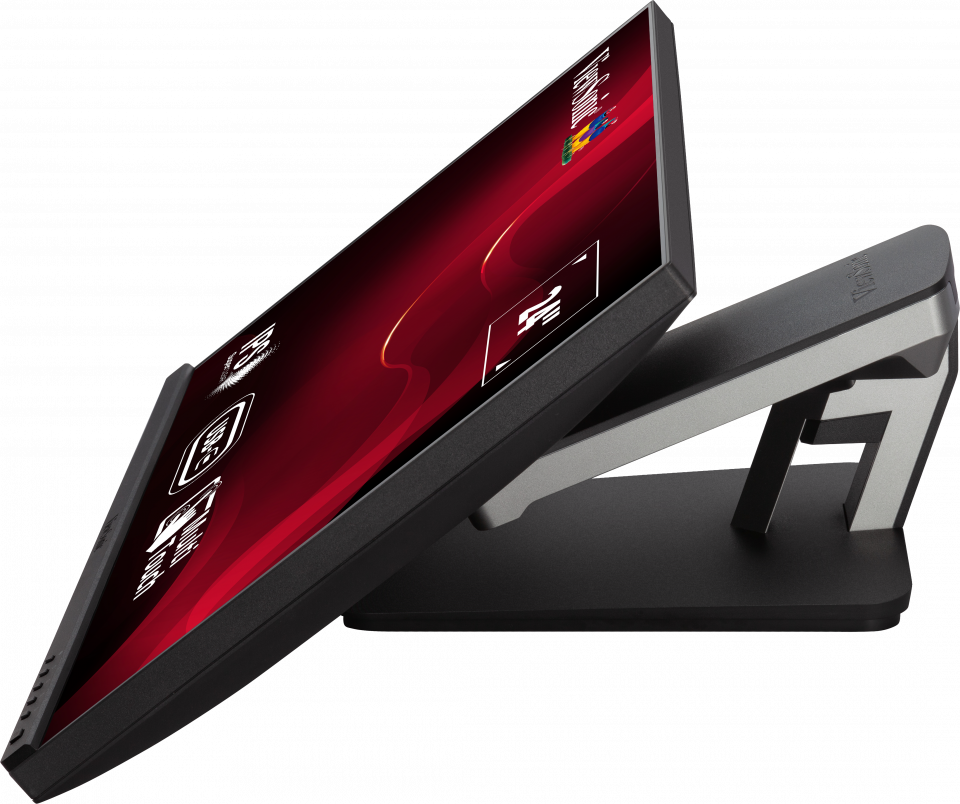

Comfortable Working Angles

Designed with an ergonomically advanced dual-hinge stand, this display can be tilted and adjusted to deliver a more comfortable user experience.
Ergonomic Dual-Hinge Design
Comfortable Working Angles 1

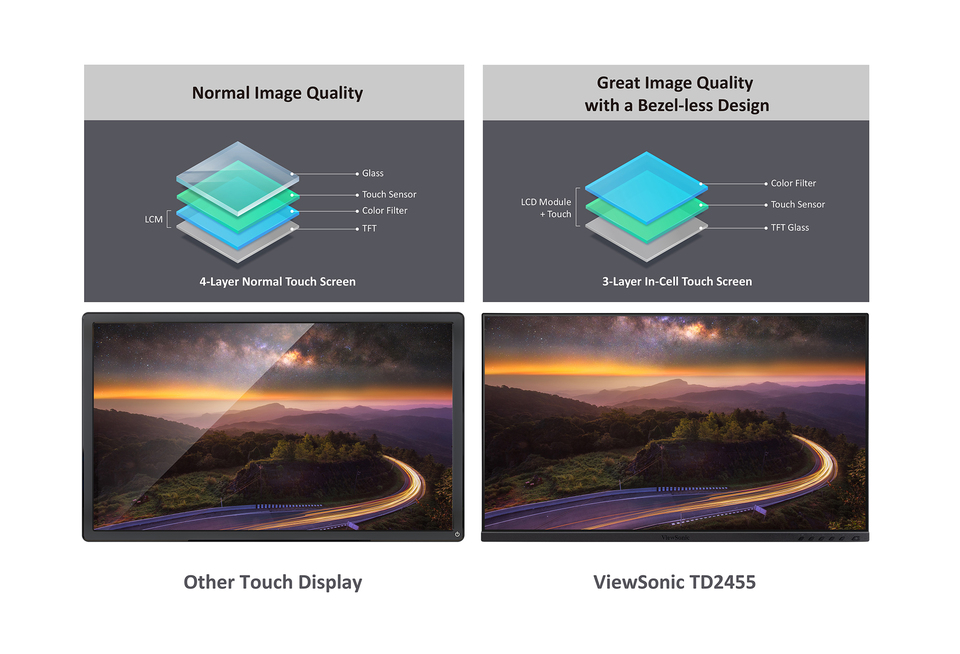

Incredible Images, Sleek Design

With high-performance in-cell touch technology, this display provides smooth and responsive touch tracking, along with amazing screen performance, within a sleek and bezel-less design.
In-Cell Projected Capacitive (PCAP) Touch Technology
Incredible Images, Sleek Design 1

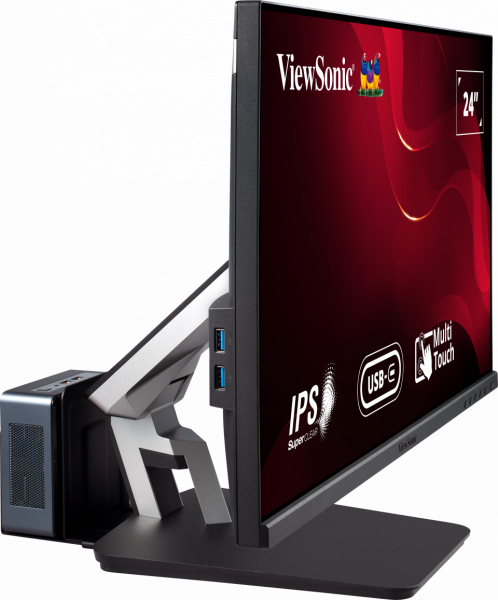

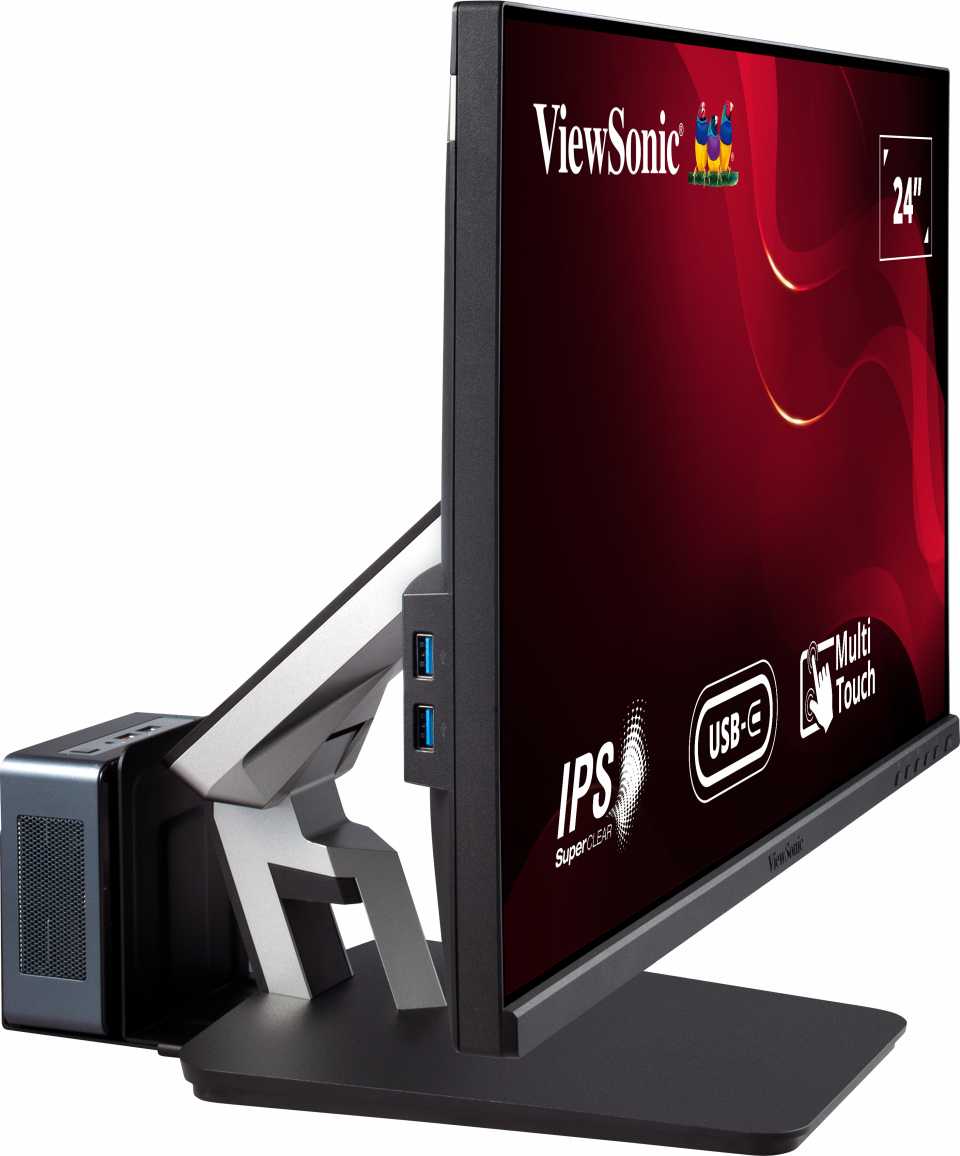

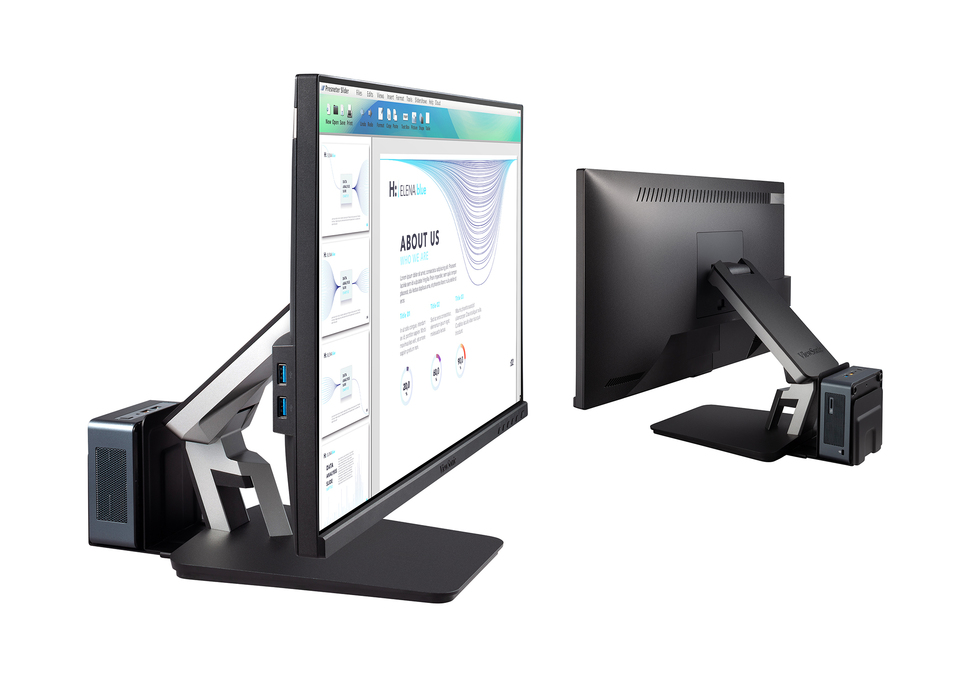

Minimal Design Concept

The ergonomic stand features an integrated client mount for quick installation of optional mini PC mount on the back of the display. Cable management features also keep your workspace neat.
Optional Mini PC Mount
Minimal Design Concept 1

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

*Learn more about multi touch for macOS
Operating System Support 1

Certified Environmental Sustainability

The TD2455 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.
Energy Star & EPEAT
Certified Environmental Sustainability 1

Eye ProTech for Comfortable Viewing

Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing.
Flicker-Free & Blue Light Filter
Eye ProTech for Comfortable Viewing 1
Eye ProTech for Comfortable Viewing 2

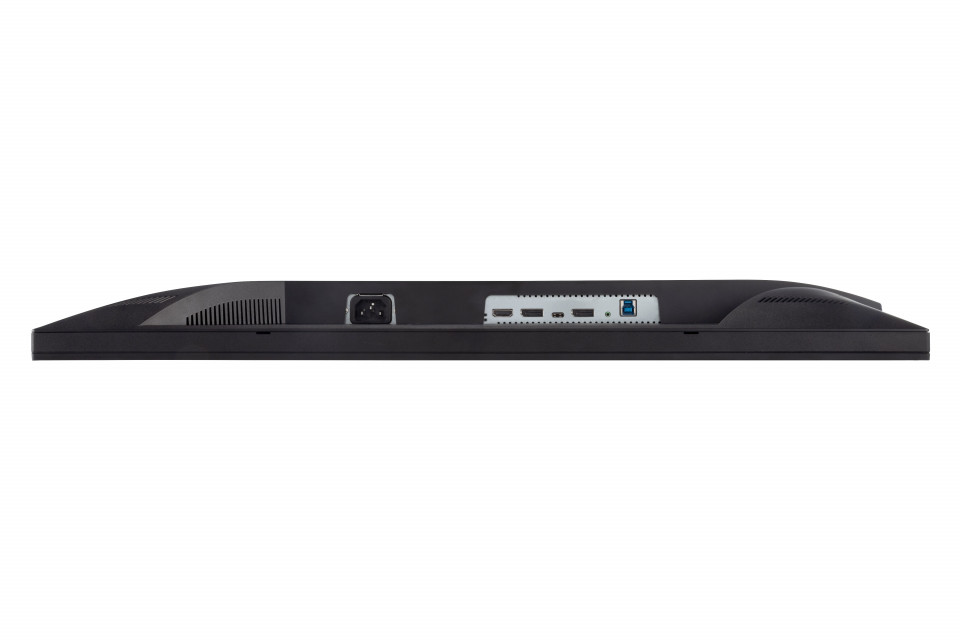

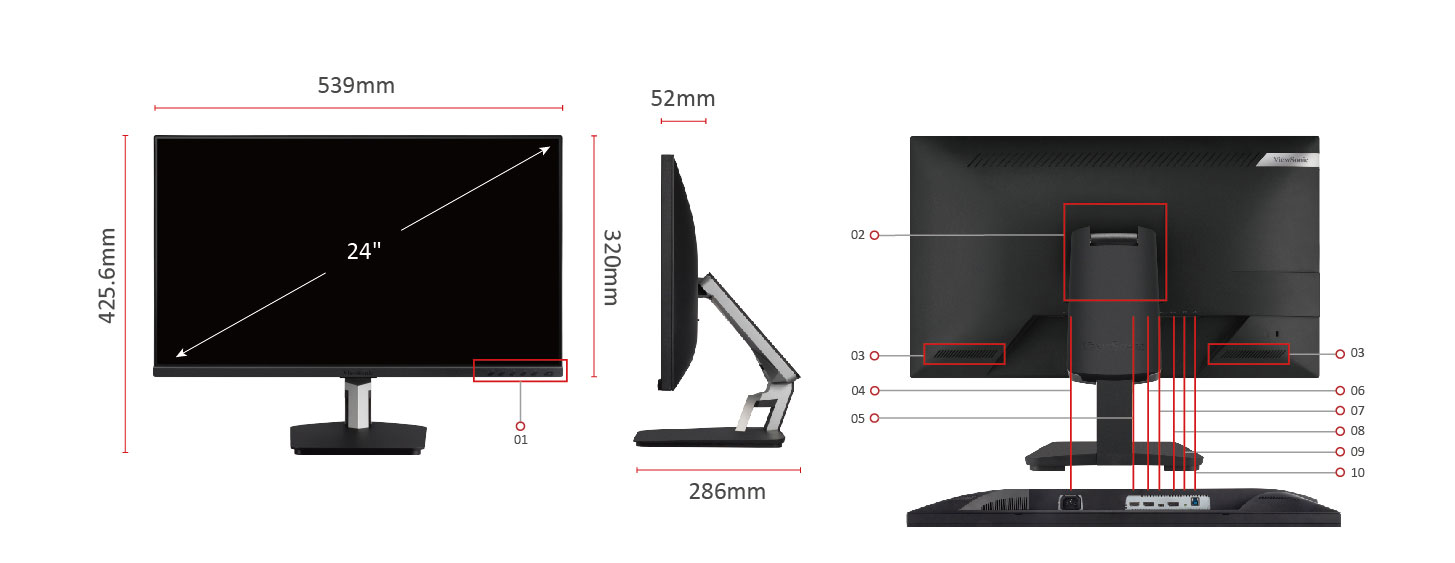

Dimensions & I/O Ports

  1. Menu Controls
  2. VESA Compatible
    (Wall Mount 100x100mm)
  3. Internal Speakers
  4. AC IN
  5. HDMI
  6. DP IN
  7. USB Type C
  8. DP OUT
    (Output/MST daisy chain)
  9. Audio Out
  10. USB up stream

SPECIFICATIONS


  • Display
    Display Size (in.): 24
    Viewable Area (in.): 23.8
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 6ms
    Response Time (GTG w/OD): 6ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    Pixel Size: 0.275 mm (H) x 0.275 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • Compatibility
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • Connector
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    DisplayPort: 1
    DisplayPort Out: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
