OVERVIEW

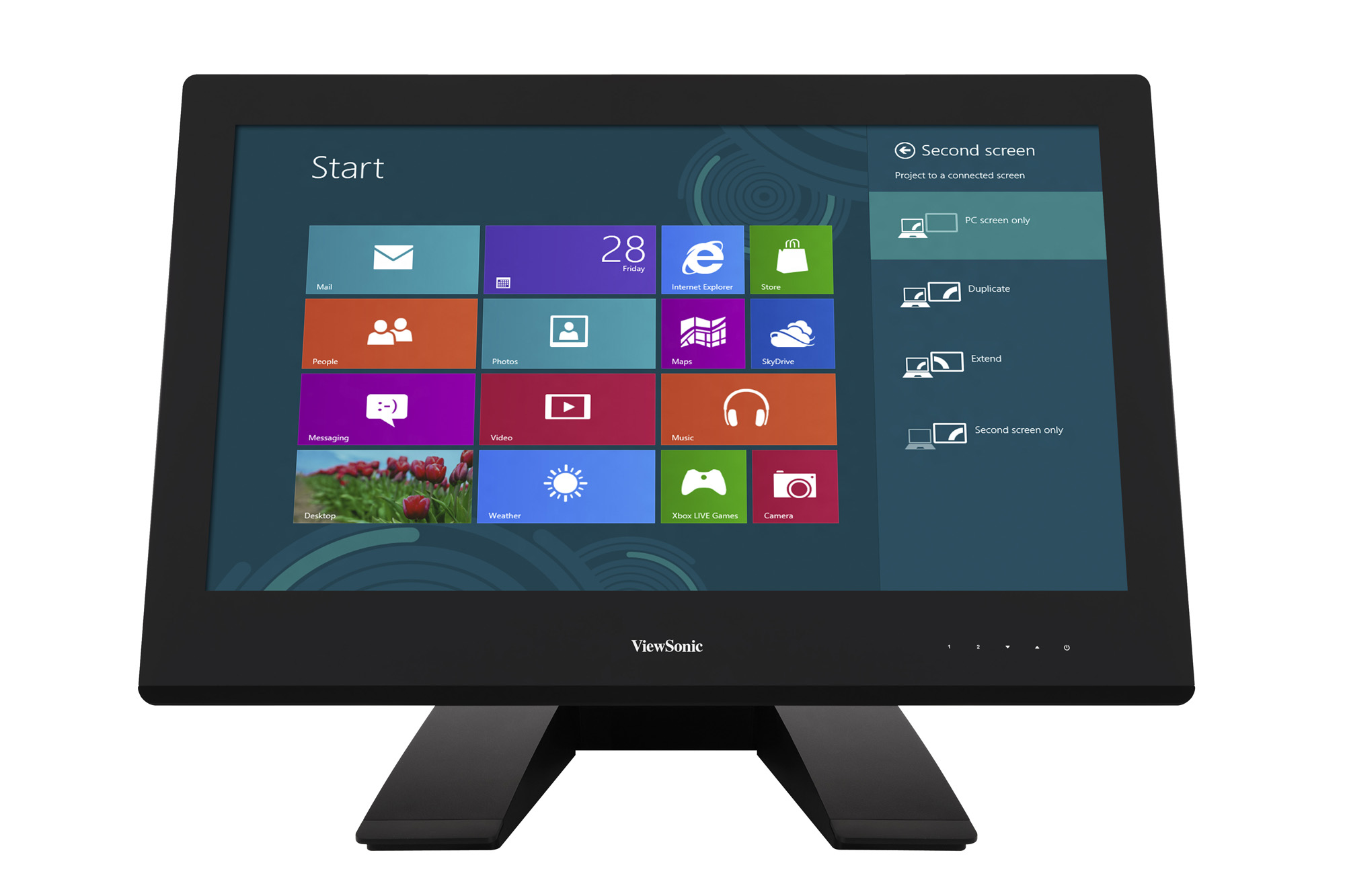

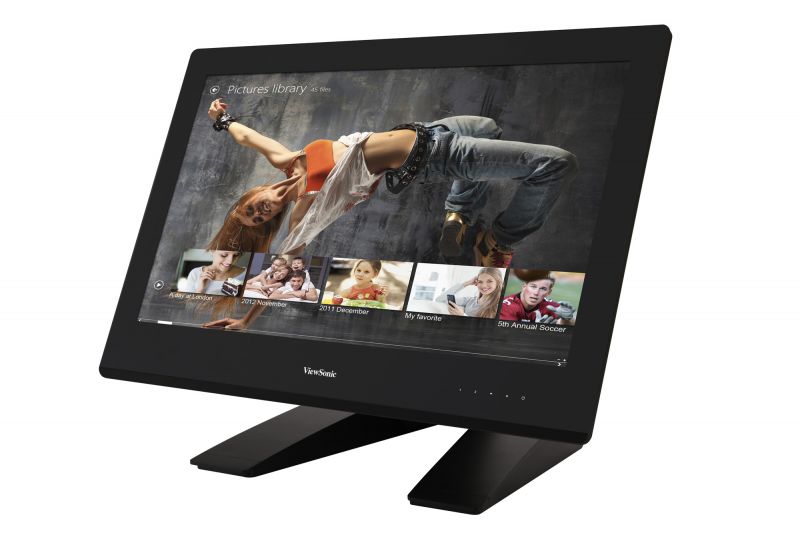

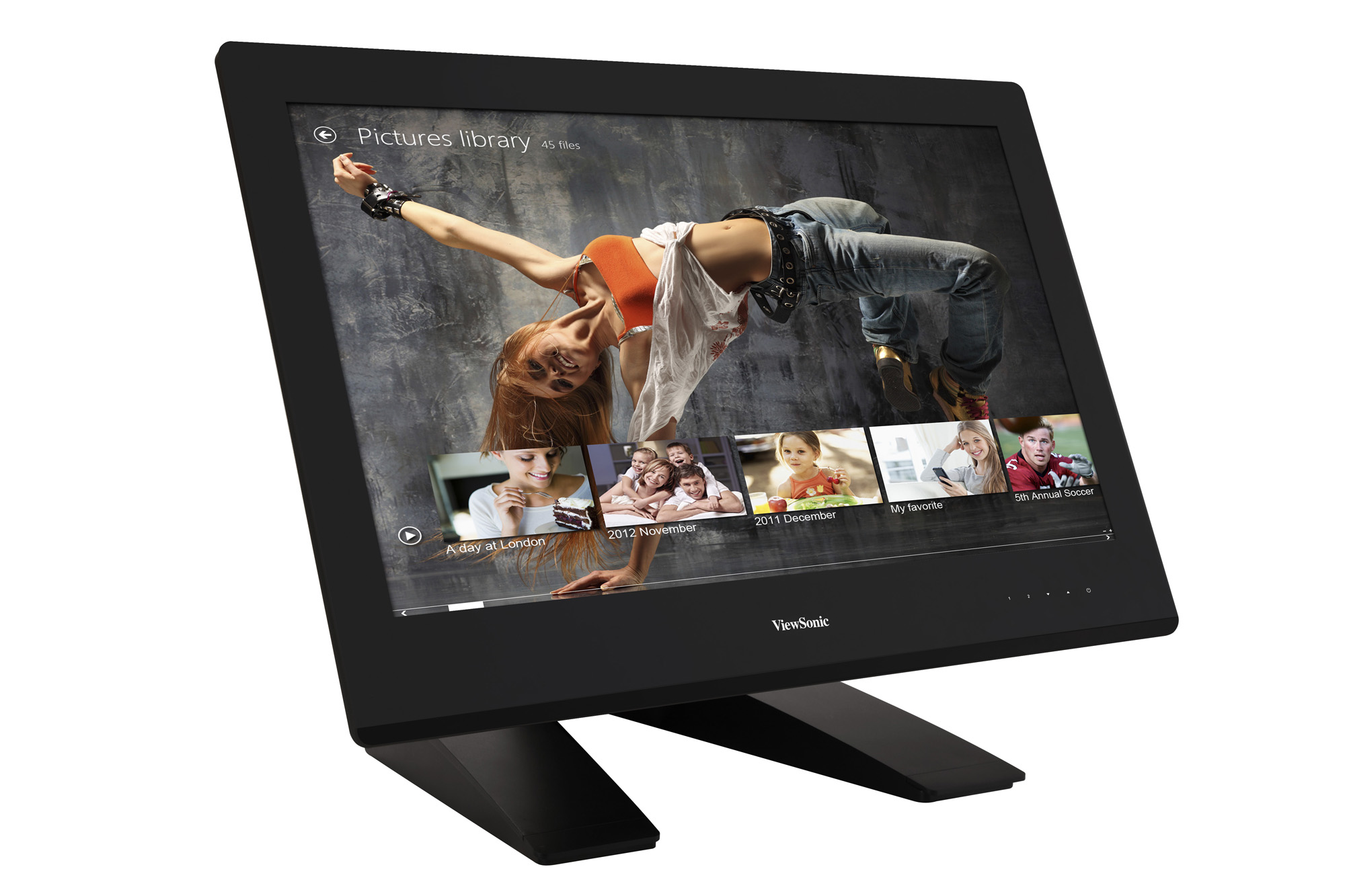

Exceptional interactivity comes standard in the ViewSonic ® TD2340 10-point multi-touch IPS monitor. 1920x1080 Full HD resolution with projected capacitive touch technology delivers seamless and accurate touch experience. Stunning color performance with IPS technology and 20,000,000:1 MEGA Dynamic Contrast Ratio. Integrated speakers with SRS Premium Sound® complete the multimedia package. DisplayPort®, HDMI, VGA inputs provide flexible and convenient connectivity. Dual hinge stand design ensures outstanding ergonomic comfort and productivity. Even VESA mountable design for additional convenience. The TD2340 is fully USB HID compliant and is the gateway to the new world of interactivity.

The New World of Interactivity

With the 10-point projected capacitive touch technology, TD2340 delivers lighting fast, responsiveness to deliver the best multi-touch experience possible. TD2340 allows anyone to enjoy the best of the interactivity.

Comfort and Productivity Come Standard

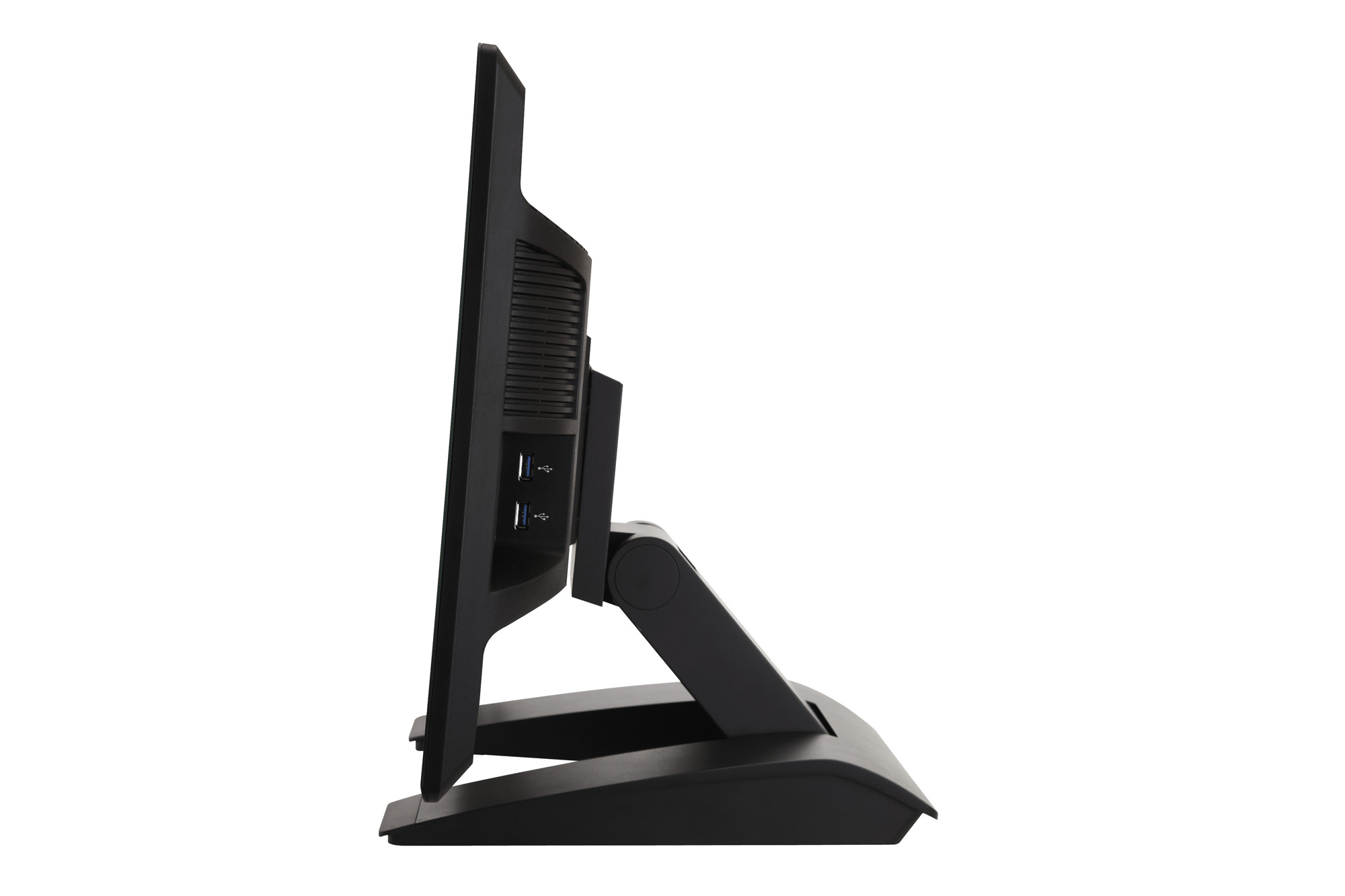

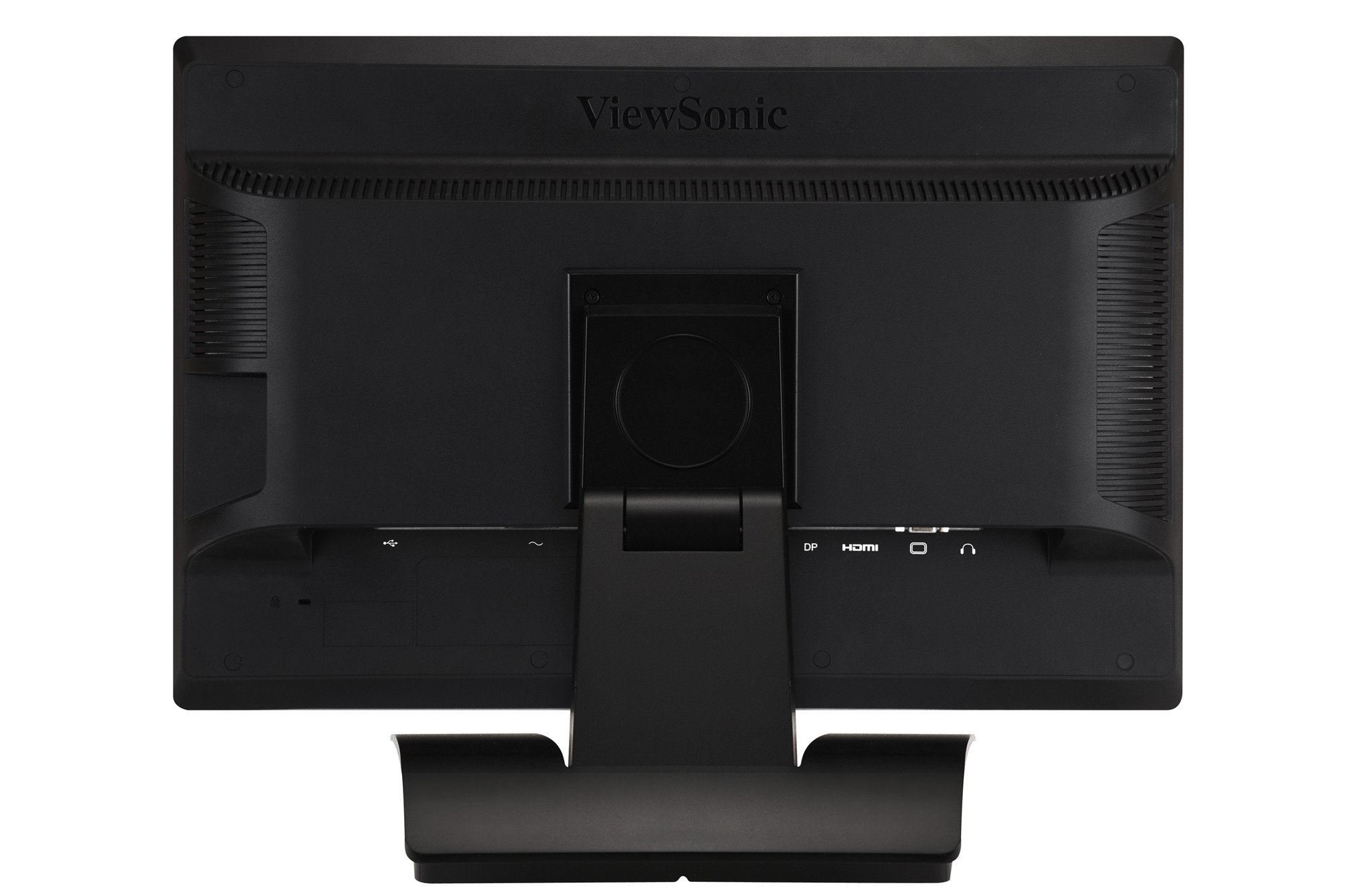

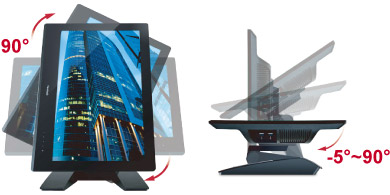

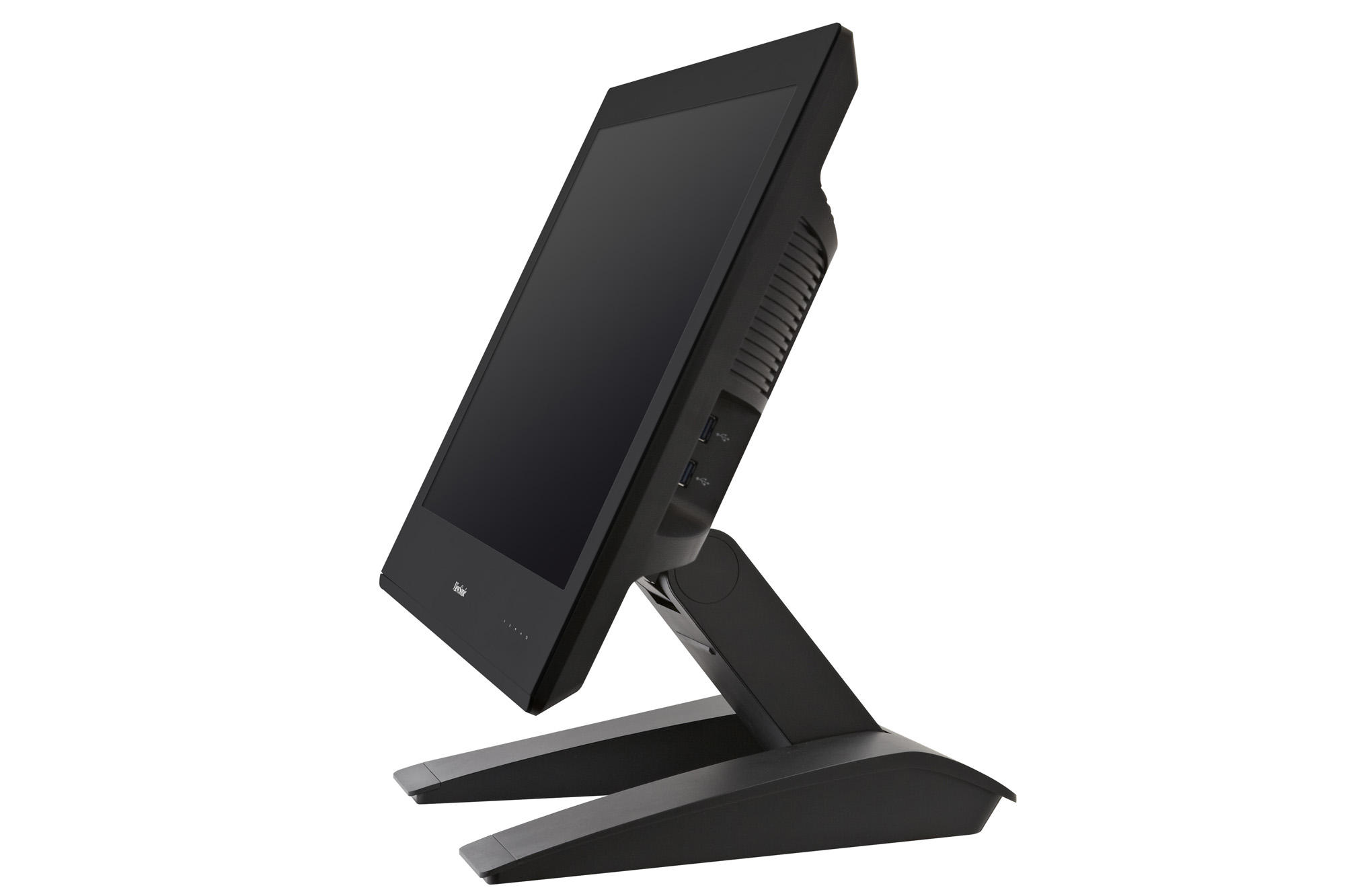

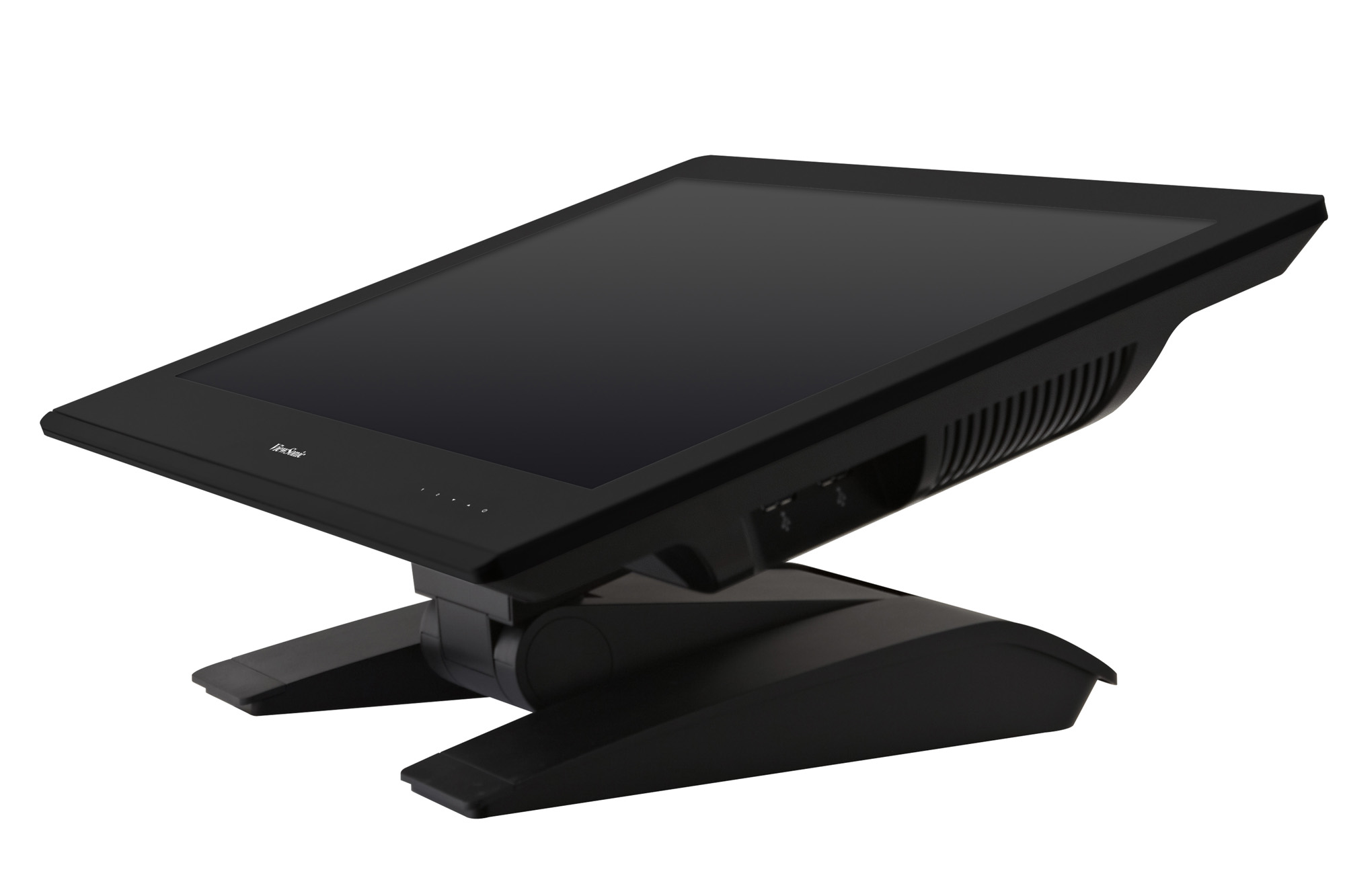

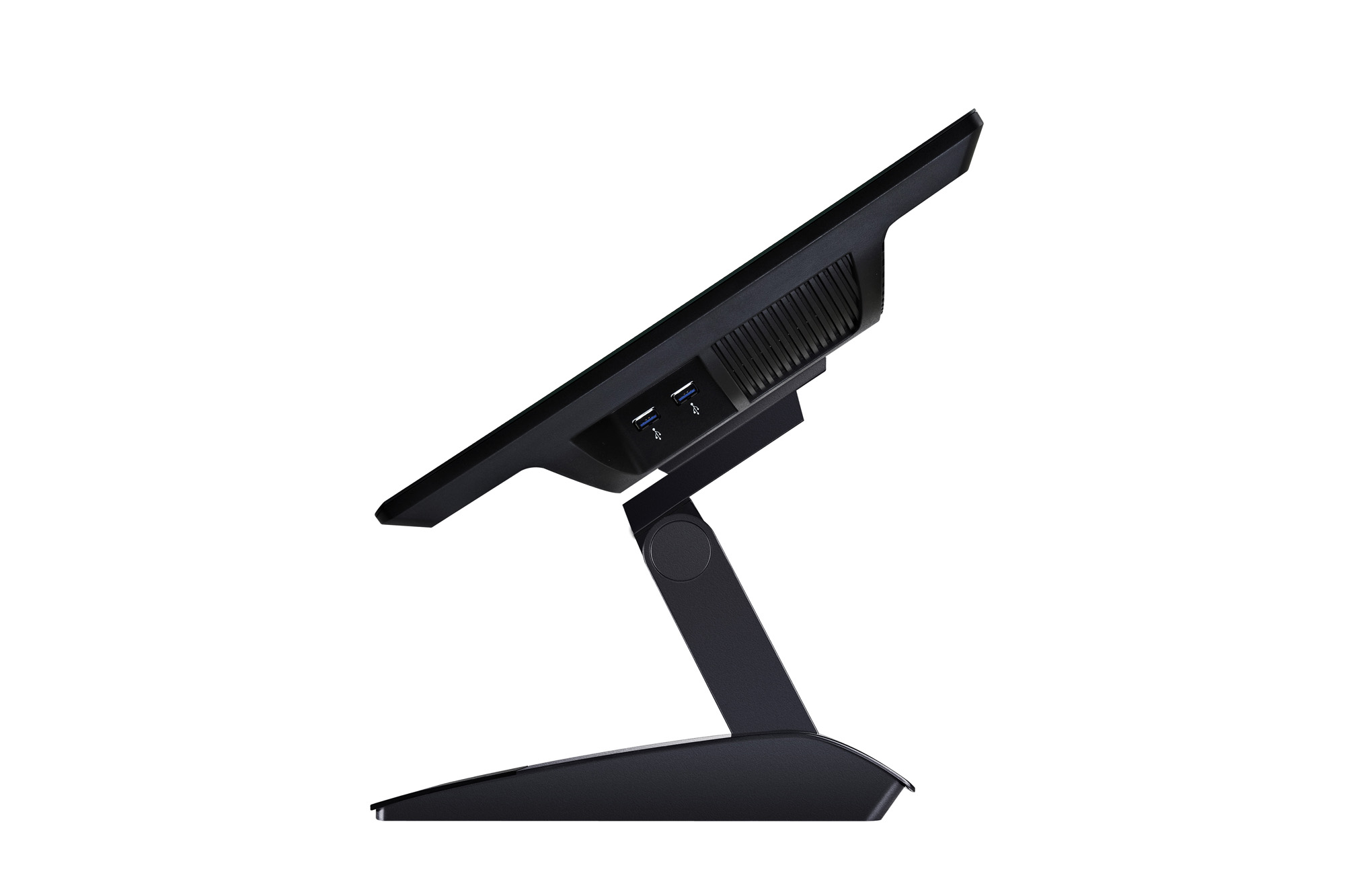

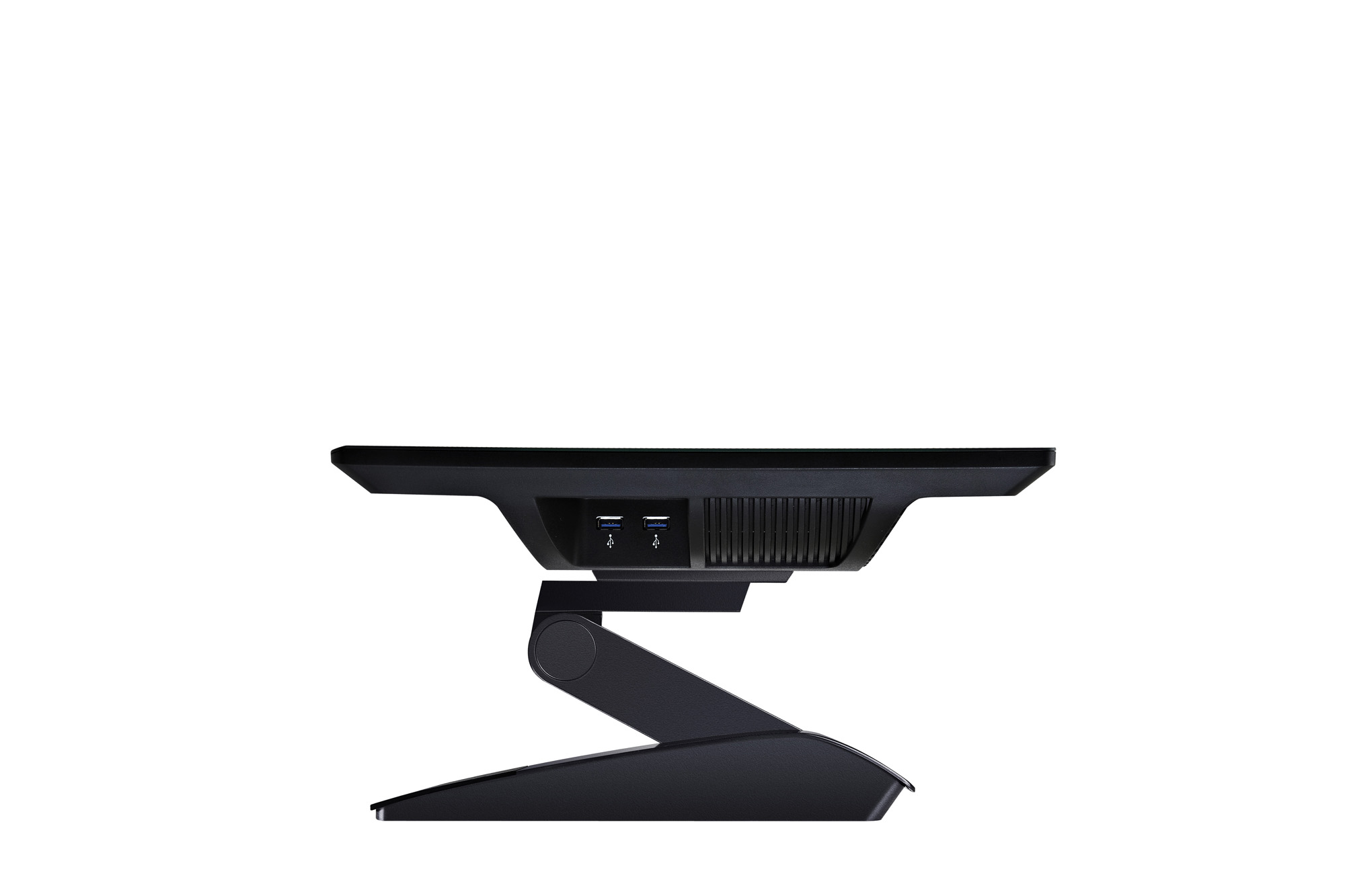

The advanced ergonomic dual hinge stand makes the TD2340 the most flexible 10-point touch monitor in the market. Users can adjust the height, pivot or even lay the monitor flat, tailoring the touch experience to their preference. The TD2340 also comes with a VESA mountable design that allows for wall or display arm mounting options.

Flexible Connectivity

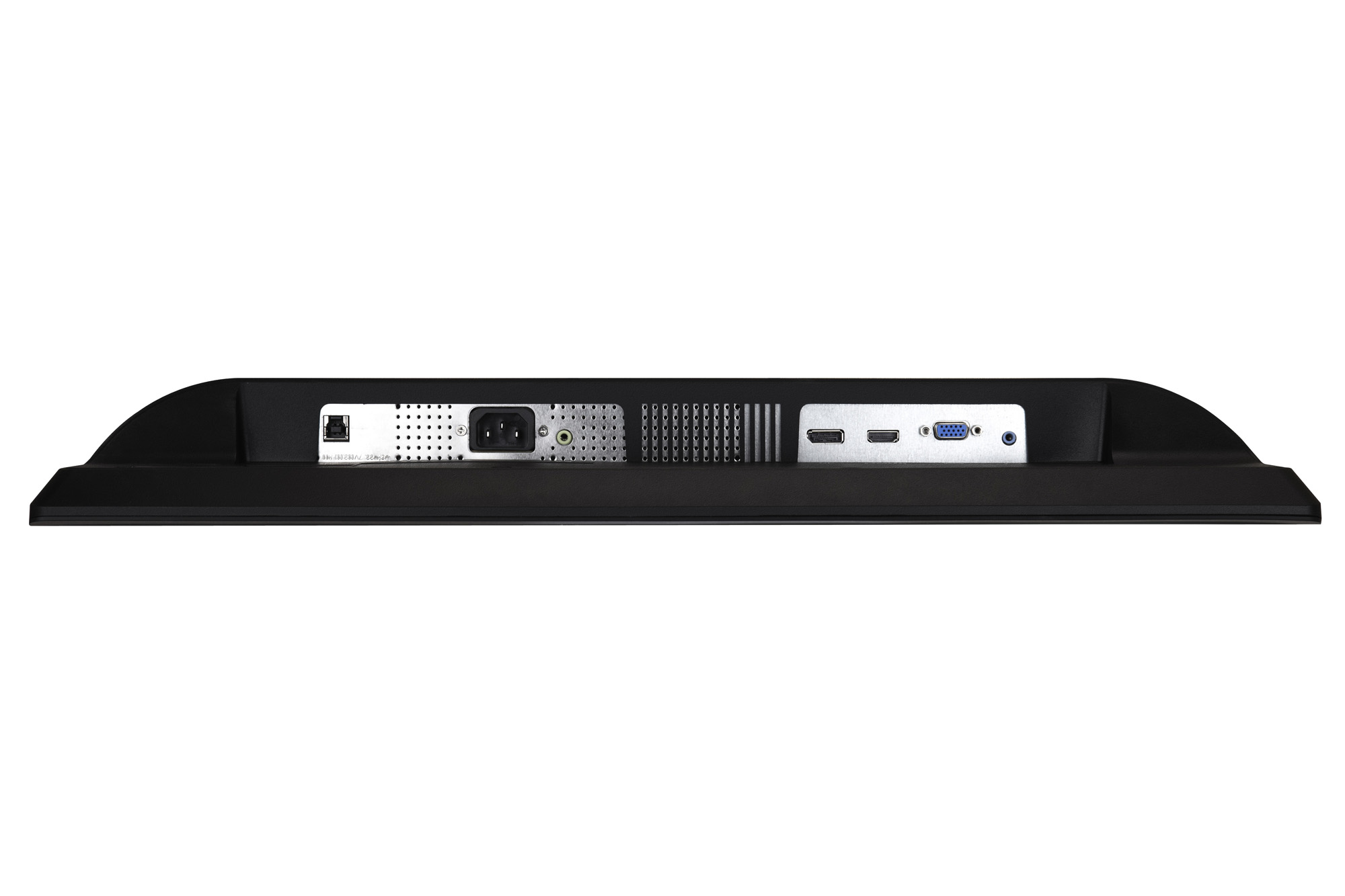

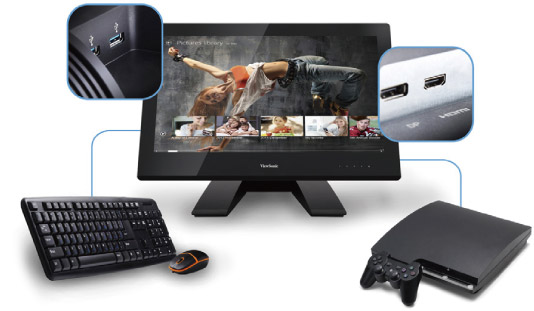

ViewSonic has built in all the connectivity users need. The TD2340 comes with advanced DisplayPort and HDMI connectivity, VGA is also provided for more traditional applications. 2 USB ports provide additional options to connect peripherals.

Stunning Color Performance

Equipped with IPS technology panel, a 1920x1080 Full HD resolution and a 20,000,000:1 MEGA Dynamic Contrast Ratio, brilliant color performance is guaranteed. IPS technology allows super wide viewing angel and delivers accurate color reproduction. With the stunning 23" screen, TD2340 users will enjoy entertainment like never before.

ENERGY STAR® and EPEAT Gold Certified

The TD2340 is environmentally sound with energy-saving LED backlight and Eco-mode. You can save up to 40%* in your energy cost comparing to a regular 22" monitor.

SPECIFICATIONS


  • LCD
    Type: 23" Wide Color TFT Active Matrix LED
    Display Area: 23 inch
    Optimum Resolution: 1920x1080
    Contrast Ratio: 1000:1 (typical), 20,000,000:1 (DCR)
    Brightness: 200 cd/m2 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Response Time: 5ms(OD)
    Panel Surface: Hard-coating (7H)
    Light Source: 30,000 hours (min.)
  • Video Input
    Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
    Digital: HDMI 1.4 / DisplayPort
    Frequency: Fh: 24-83KHz; Fv: 50-76Hz
    Sync: Separate Sync / Composite Sync / SOG
  • Compatibility
    PC: PC compatibles (VGA up to 1920 x 1080 Non-Interlaced)
    Mac: Power Mac (up to 1920 x 1080) (Touch function not compatible)
