OVERVIEW

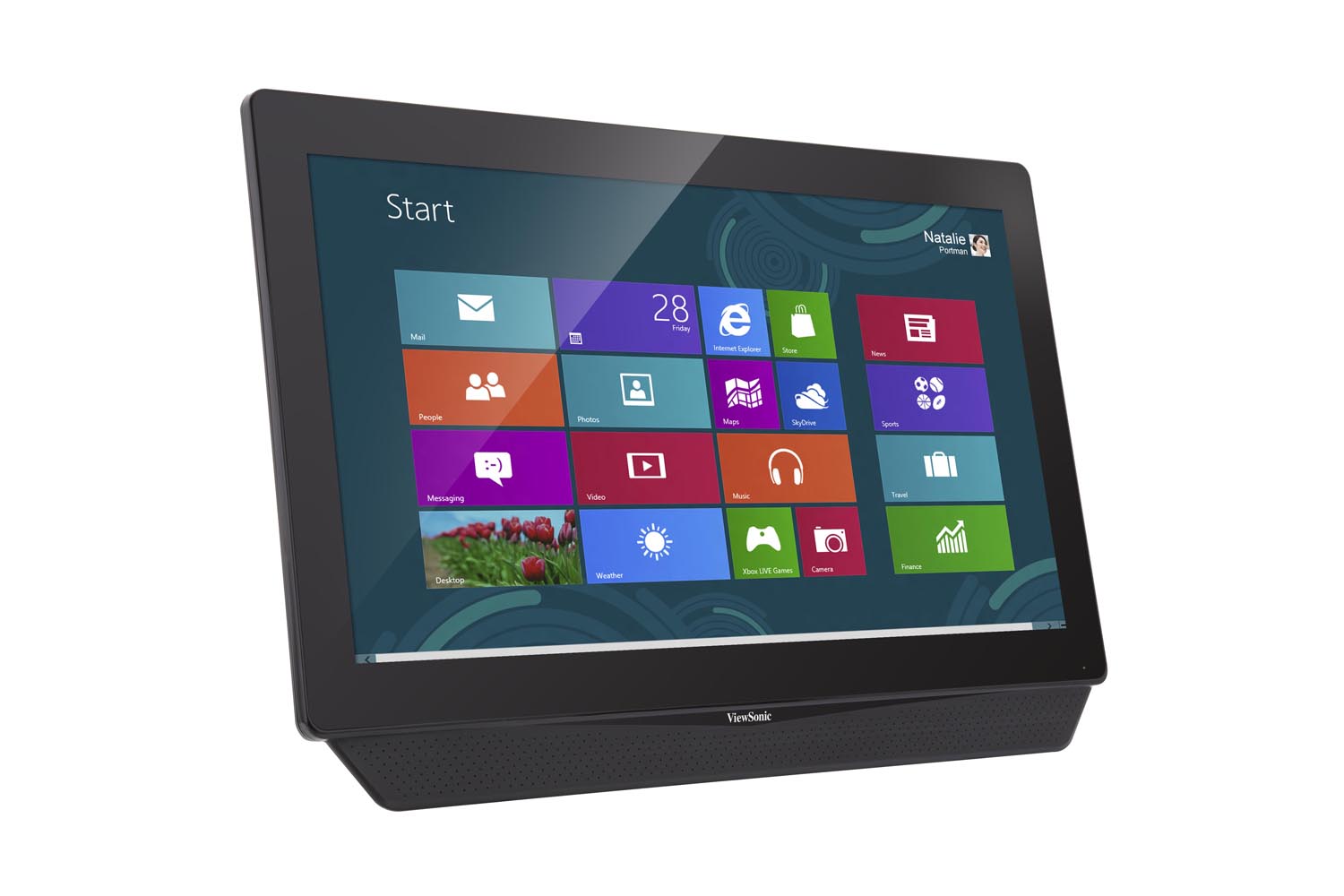

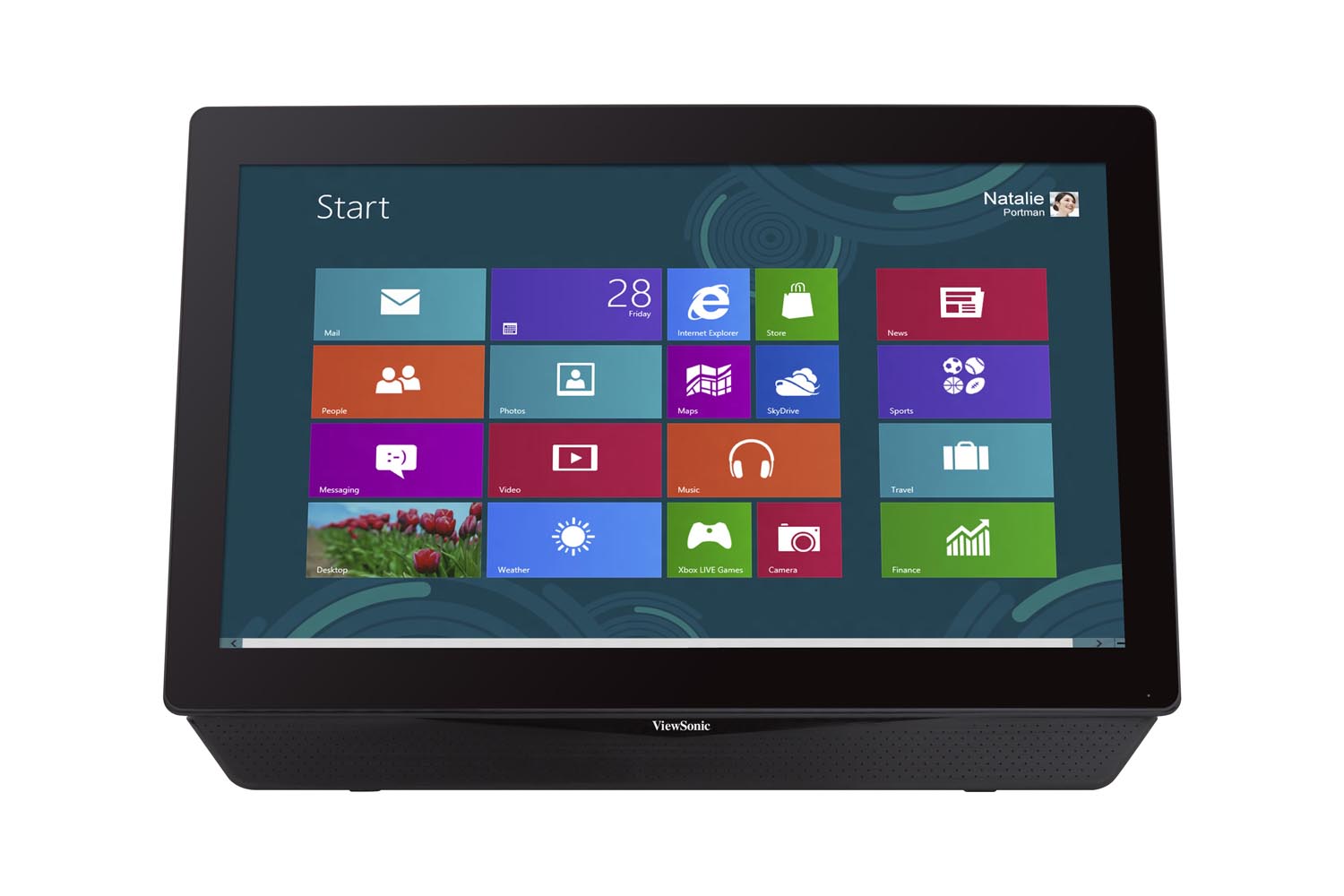

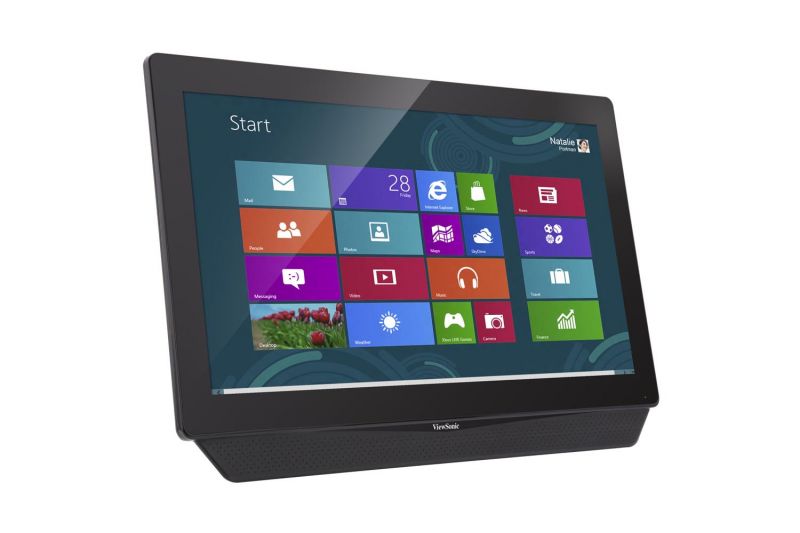

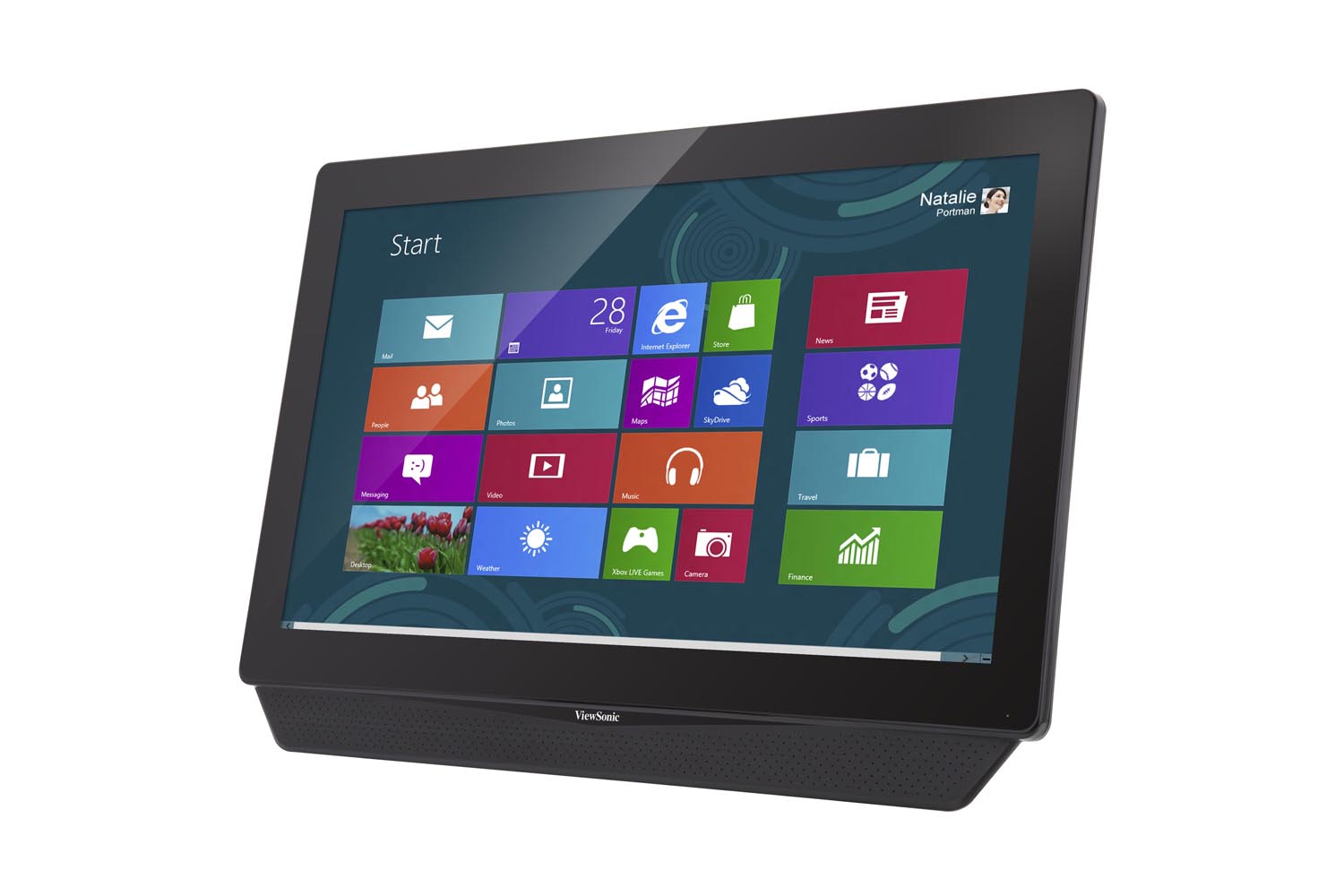

The ViewSonic TD2335S delivers great value and performance within a 23” LED touch display. The TD2335S features projected capacitive 10-point multi-touch technology and Windows® 8 certification for a smoother touch experience and access to popular and customizable apps. With its elegant edge-to-edge hardened-glass design, Full HD 1080p resolution, and SuperClear® image enhancement wide-viewing technology, the TD2335S delivers sharp and crisp image performance at any angle. Dual integrated D-sub/DVI inputs create greater connectivity options, while an energy-efficient Eco-mode saves up to 35% in energy costs. Designed for a wide range of settings, the ergonomic bookstand design offers a sturdy base for multiple users to experience interactive applications from a variety of angles. The TD2335S is also ideal for touch-panel kiosk displays in educational, business, and commercial settings.

Projected Capacitive 10-Point Touch

Projected Capacitive is one of the leading touch technologies available and is widely utilized by mobile devices such as smartphones and tablets. With its 10-point multi-touch technology and a durable, scratch-resistant surface, the TD2335S offers a highly accurate and ultra-responsive touch experience—whether for web browsing, gaming, typing, or applications execution.

Windows® 8 Compatible with access to your favorite apps

ViewSonic’s TD2335S is compatible with Windows® 8, allowing you to use it for MS Office Suite applications, surfing the internet, and multimedia entertainment. And by accessing the Windows® Store, you can download a variety of fun and useful games, as well as apps for social networking, online chatting, and more.

Stunning images in Full HD 1080p

ViewSonic’s TD2335S features Full HD 1080p resolution for incredible pixel-by-pixel image performance. You will experience amazing clarity and detail whether you are working, gaming, or enjoying the latest in multimedia entertainment.

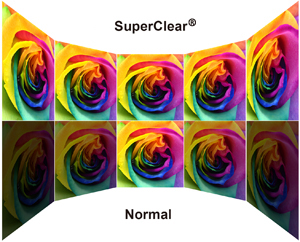

SuperClear® Image Enhancement Technology with wide viewing angles

SuperClear® Image Enhancement Technology delivers the best color performance and extends display viewing angles to 178 degrees both horizontally and vertically. You can now experience accurate and vivid colors with consistent levels of brightness from all angles—whether looking at the screen from above, below, the front, or the side—with no color distortion or decay.

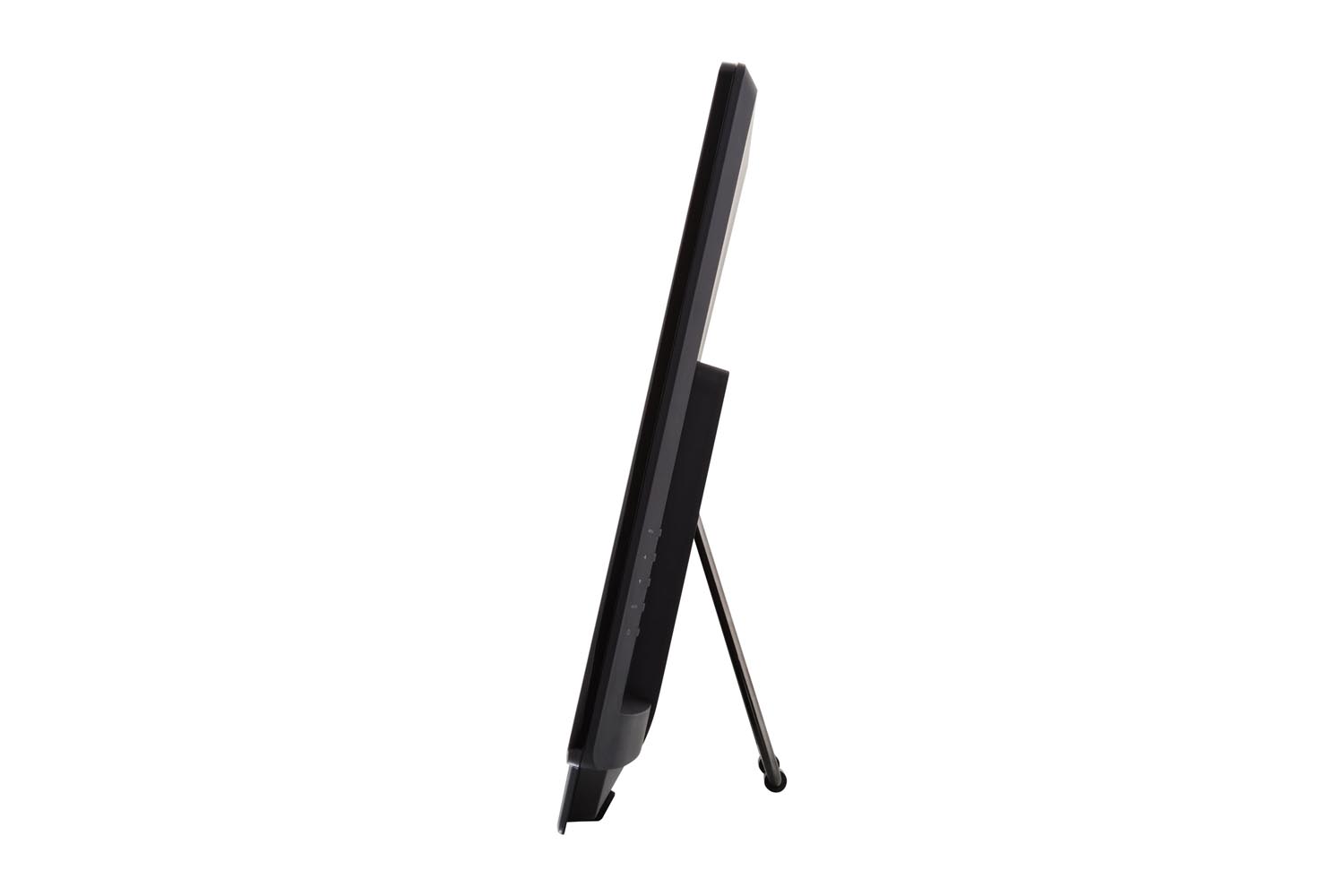

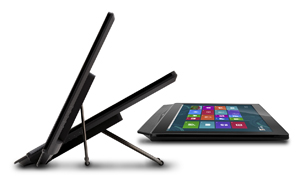

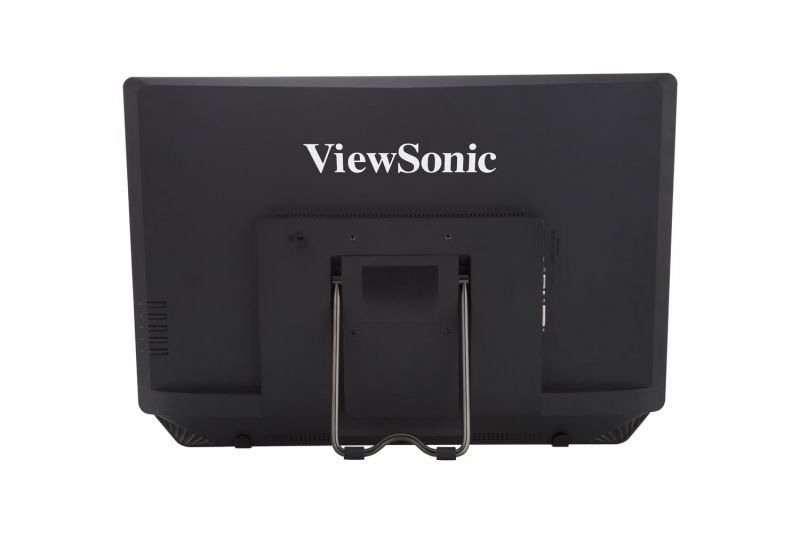

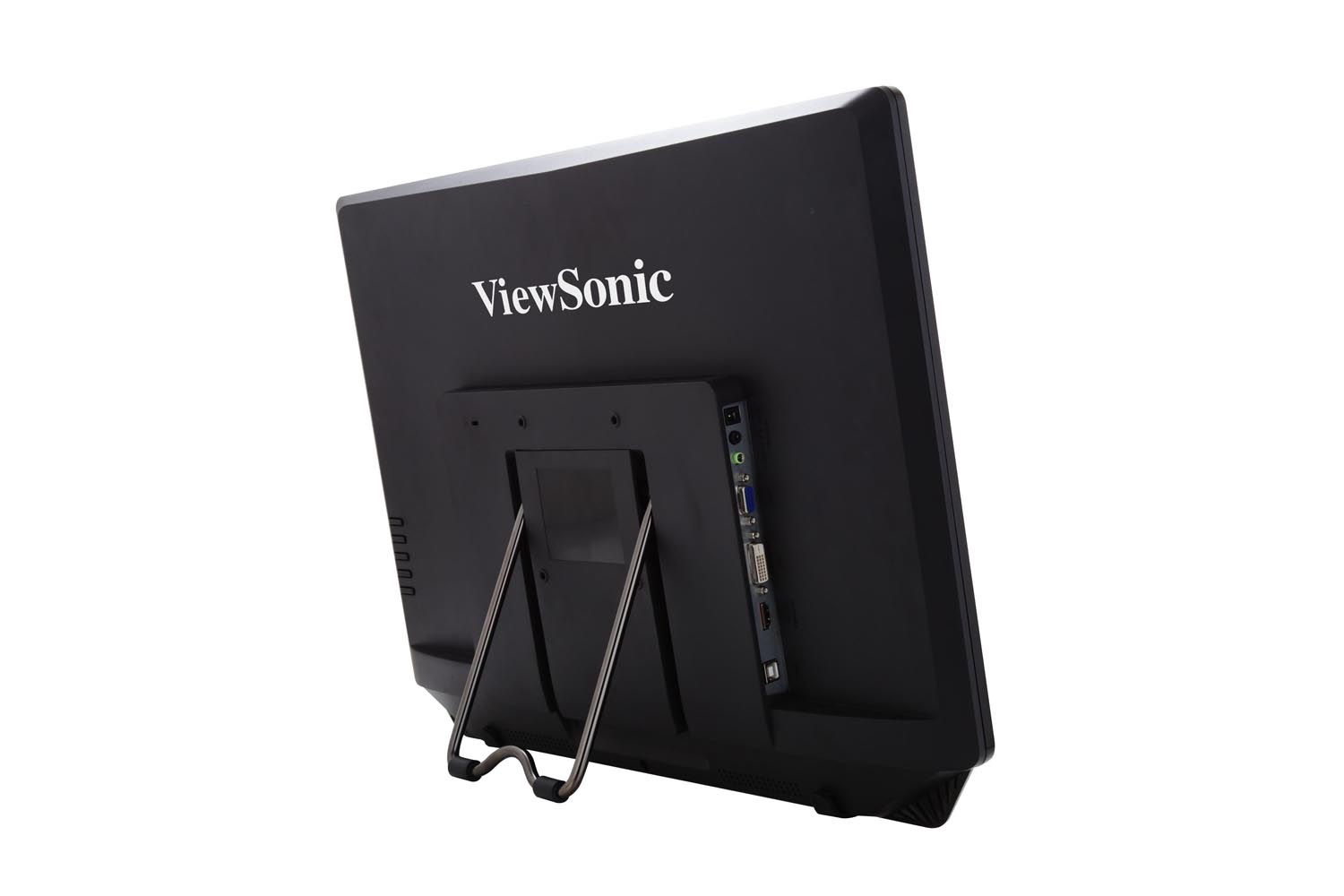

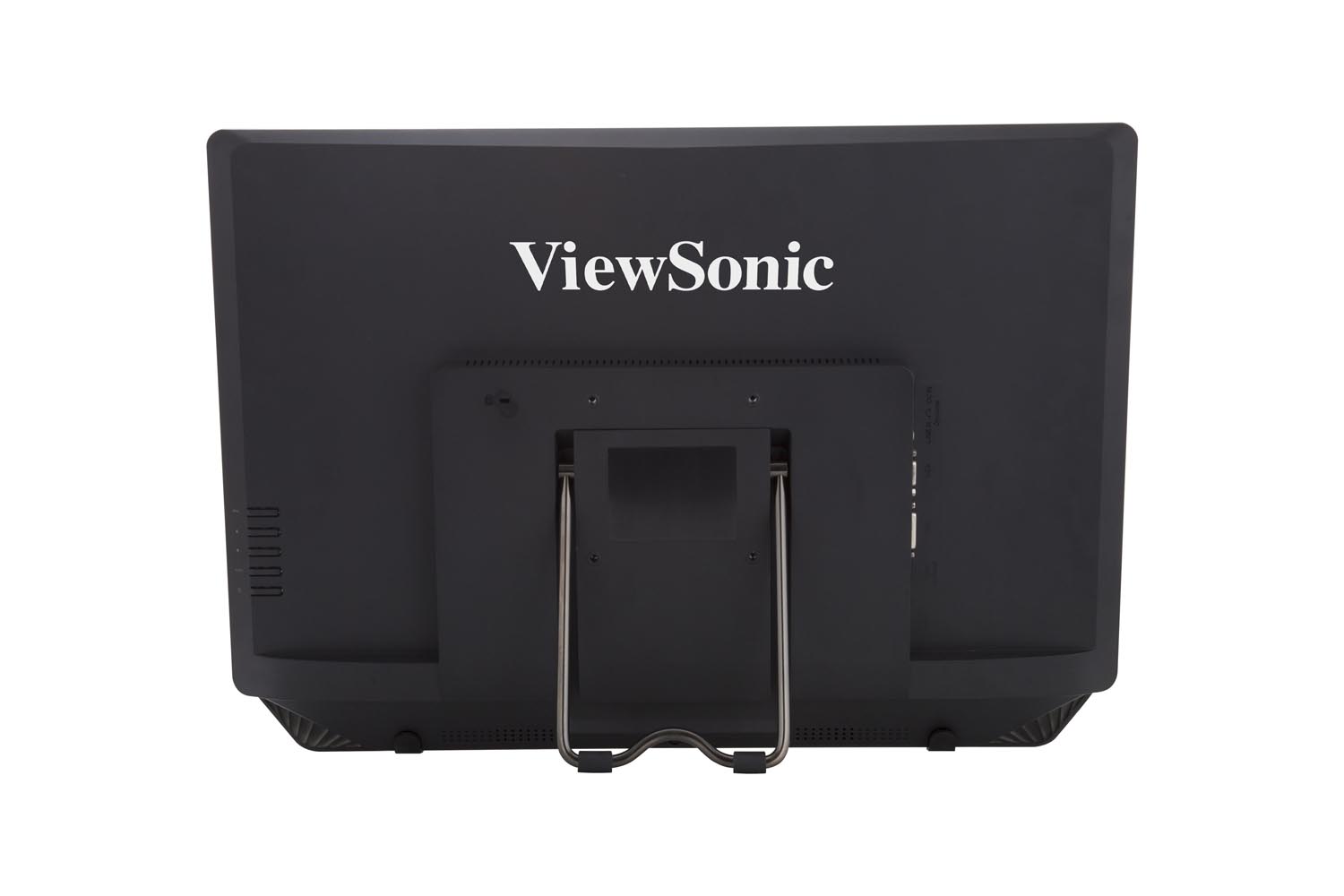

Flexible, Comfortable and Sturdy Bookstand Design

The bookstand design of the TD2335S allows the screen to be tilted and adjusted from 15 to 60 degrees, or rest flat on a desk or table. This makes it well suited to a variety of user scenarios in the home, school, or office. The display base is so stable that the screen won’t shake when you touch it, allowing for more accurate operation.

Energy-Saving LED Backlight with a long lifespan

The TD2335S utilizes an energy-saving LED backlight that consumes 35% less power than conventional CCFL backlight displays, and has an extended lifespan of up to 30,000 hours. This provides for a lower overall cost of ownership, along with a higher ROI, making this display a great long-term investment.

Eco-mode conserves more energy and cuts costs

ViewSonic’s proprietary Eco-mode energy-saving feature is built into all LED displays, offering "Optimize (75%)" or "Conserve (50%)" settings that save up to 25% in electricity costs. In low ambient light, Eco-mode adjusts brightness and improves visibility, while reducing eye fatigue. With Eco-mode, the lifespan of the LED backlighting is also greatly increased.

7H scratch-resistant surface hardness on edge-to-edge glass

The TD2335S touch display is constructed with an edge-to-edge protective glass faceplate with 7H hardness. This provides increased scratch-protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as kiosks, educational settings, or other public environments.

SPECIFICATIONS


  • LCD
    Type: 23" Color active matrix
    Display Area: 23 inch
    Optimum Resolution: 1920x1080
    Contrast Ratio: 3000:1, 20,000,000:1 (DCR)
    Brightness: 250 cd/m2 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Response Time: 12ms(Typ.)
    Panel Surface: 7H
    Light Source: 30,000 hrs (Min)
    Colors: 16.7 M (6-bits + Adv FRC)

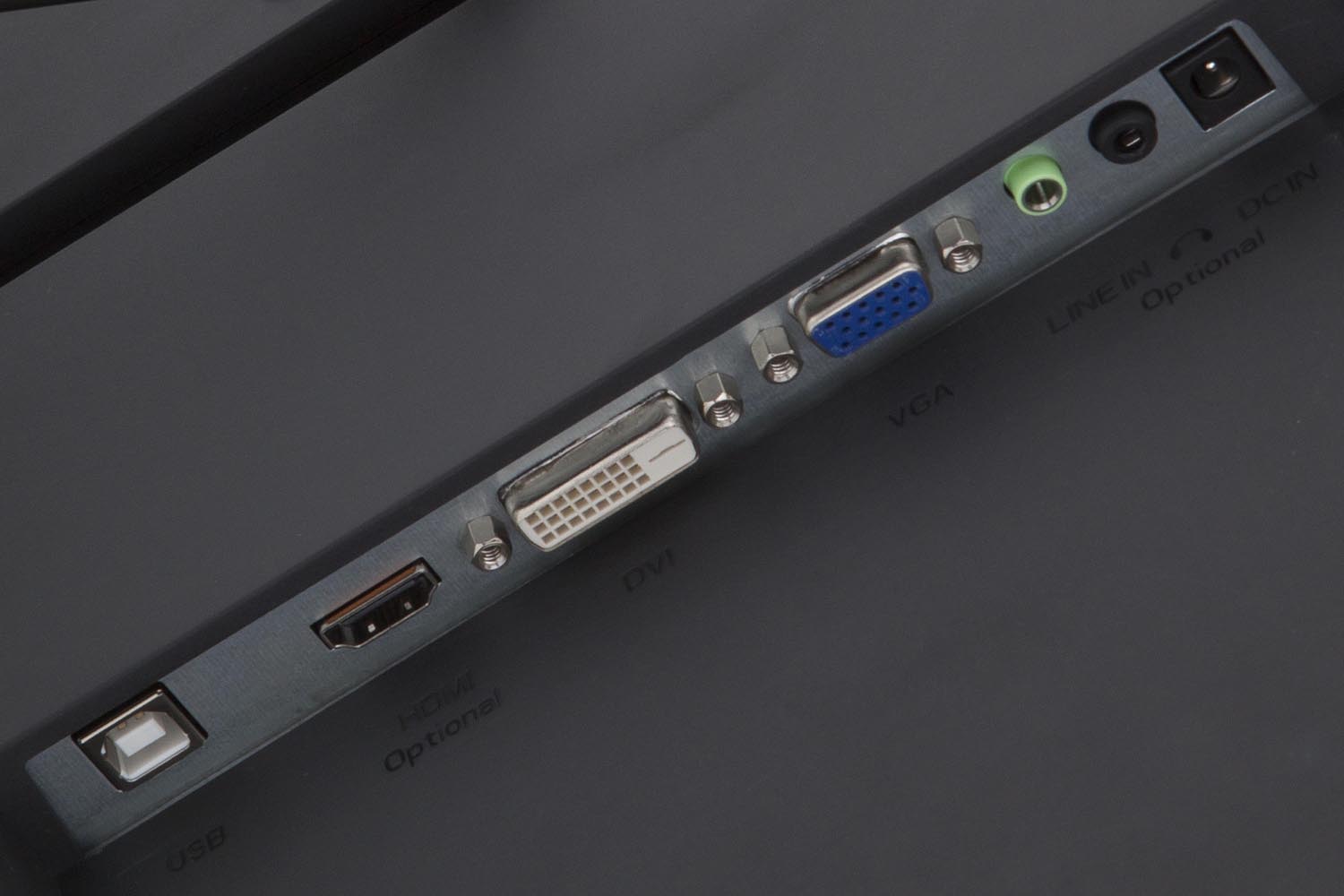

  • Video Input
    Analog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
    Digital: DVI-D (TMDS, 100ohms)
    Frequency: Fh: 24-82KHz; Fv: 50-75Hz
    Sync: Separate Sync Composite Sync Sync on Green
  • Compatibility
    PC: PC Compatibles (VGA up to 1920x1080 Non-Interlaced)
    Mac: Power Mac (up to 1920x1080 ) (Touch function not compatible)
