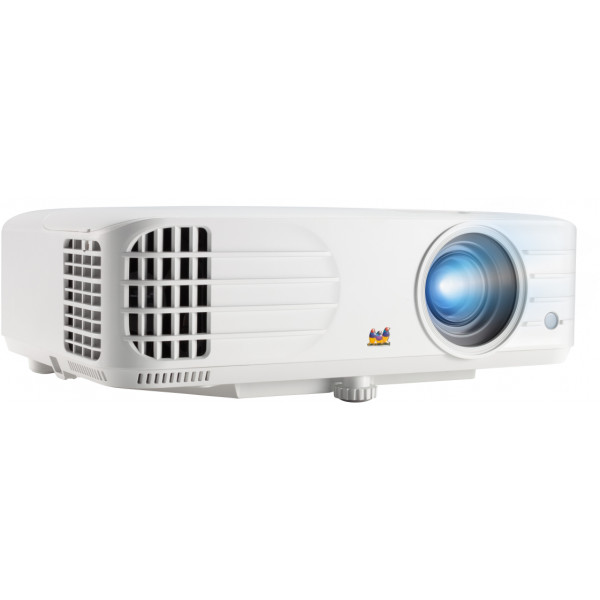

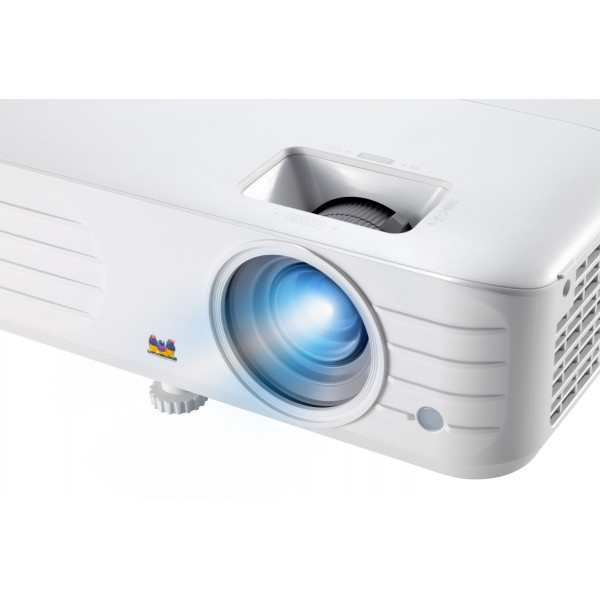

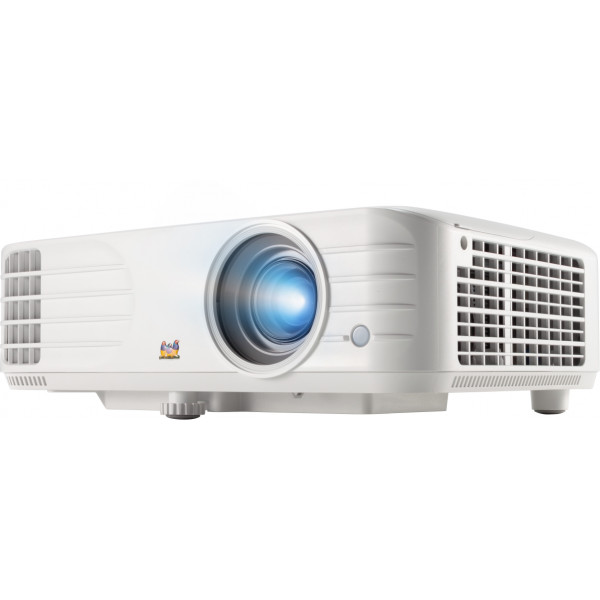

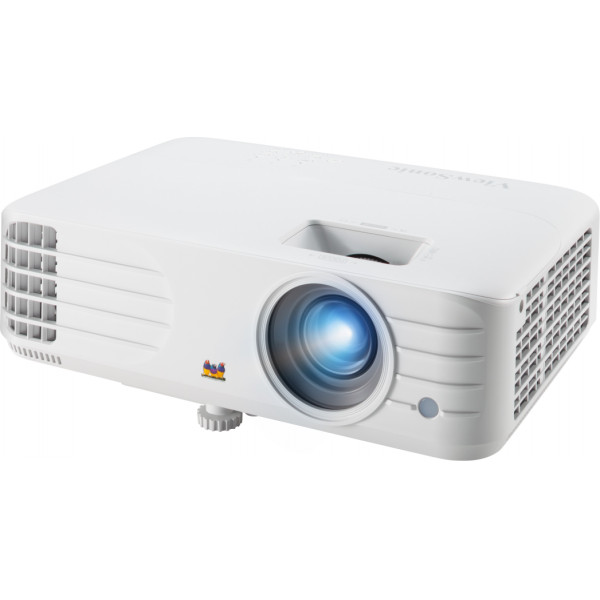

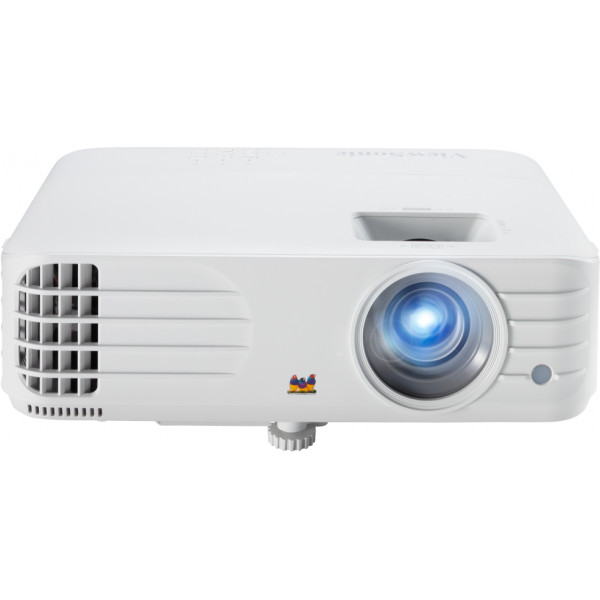

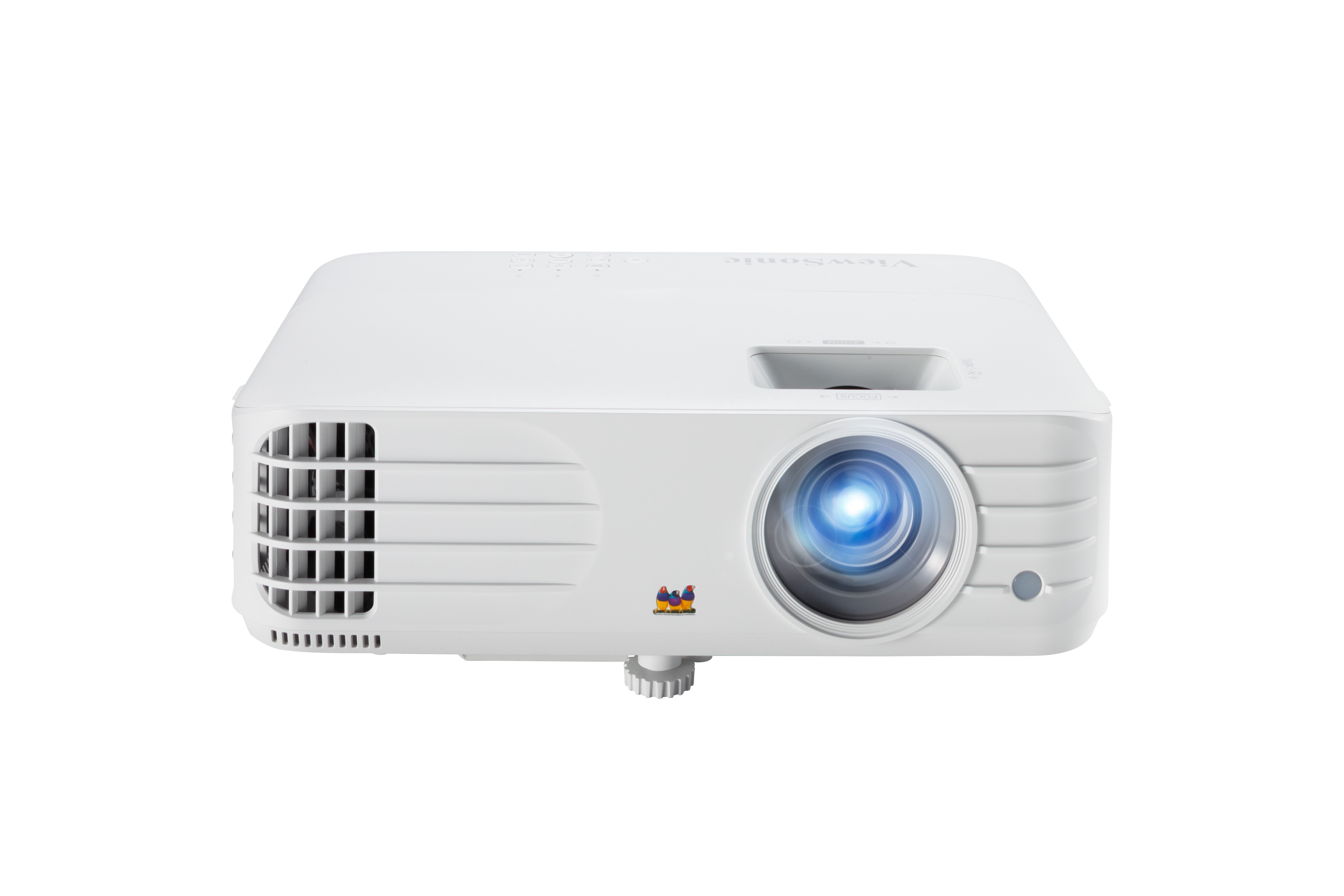

PG701WU

3,500 Lumens WUXGA Business Projector

  • SuperColor™ technology
  • SuperEco+ Mode
  • Customised user modes
  • Projector software update
  • Dual HDMI inputs and USB power supply
구매 문의

개요

The ViewSonic PG701WU is a high brightness WUXGA projector with 1920 x 1200 resolution and a 16:10 aspect ratio. 3,500 ANSI lumens of brightness allows the PG701WU to project images in full depth and detail, even in brightly lit medium-sized spaces, such as meeting rooms or classrooms. The new SuperEco+ mode extends the projector’s lamp life up to 20,000 hours, effectively reducing lamp replacement and maintenance costs. In addition, the dual HDMI ports allow you to flexibly connect to your laptop, PC, and other high definition devices for presentation files or multimedia applications. Lastly, the USB Type A with power supply provides connectivity to a USB dongle for wireless presentations.

Impressive Visual Performance

Bright and Clear Images Anywhere

3,500 ANSI Lumens of brightness guarantee bright and clear images in any environment, including meeting rooms or classrooms with high levels of ambient light.
3,500 ANSI Lumens

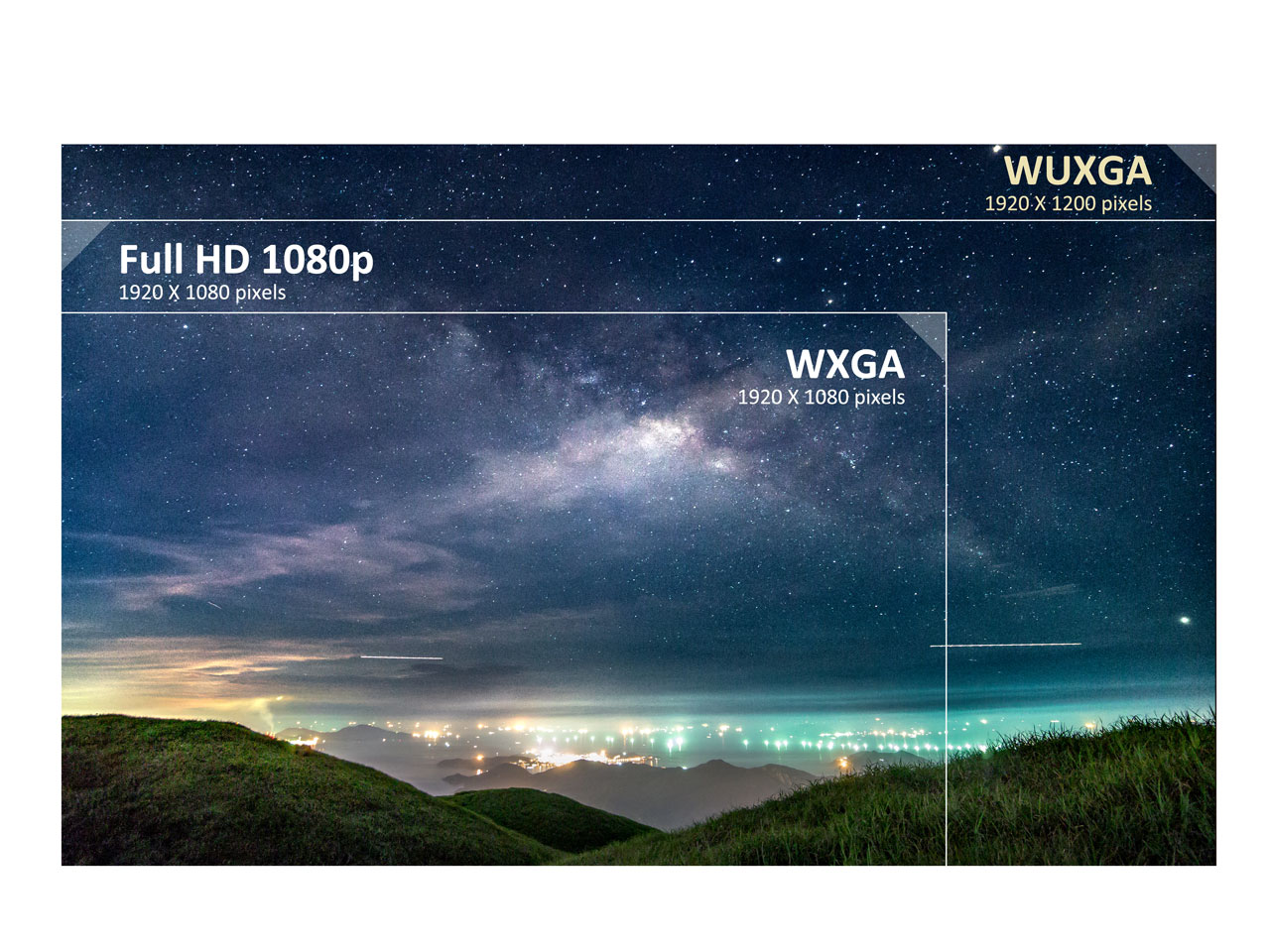

WUXGA resolution for Subtle Details

With WUXGA (1920 x 1200) native resolution in 16:10 aspect ratio, this projector delivers more information displayed with ultra-sharp image details.
WUXGA resolution
1920 x 1200

Vivid Colour Performance

ViewSonic’s proprietary SuperColor™ technology displays a wide colour range, ensuring that users enjoy a true-to-life colour performance in both bright and dark environments without sacrificing image quality.
SuperColor™ technology

Low Total Cost of Ownership

SuperEco+ Mode

With the latest technology to enhance lamp life, the SuperEco+ mode greatly extends the durability of the PX701HD from 15,000 hours to 20,000 hours of use with a signal input.
SuperEco+ Mode: when the projector has not received an input signal for 5 minutes, the projected images are dimmed by 40%, extending the lamp’s lifespan to 20,000 hours on average for reliable long-term usage.
20,000 Hours of Use

Ease of use

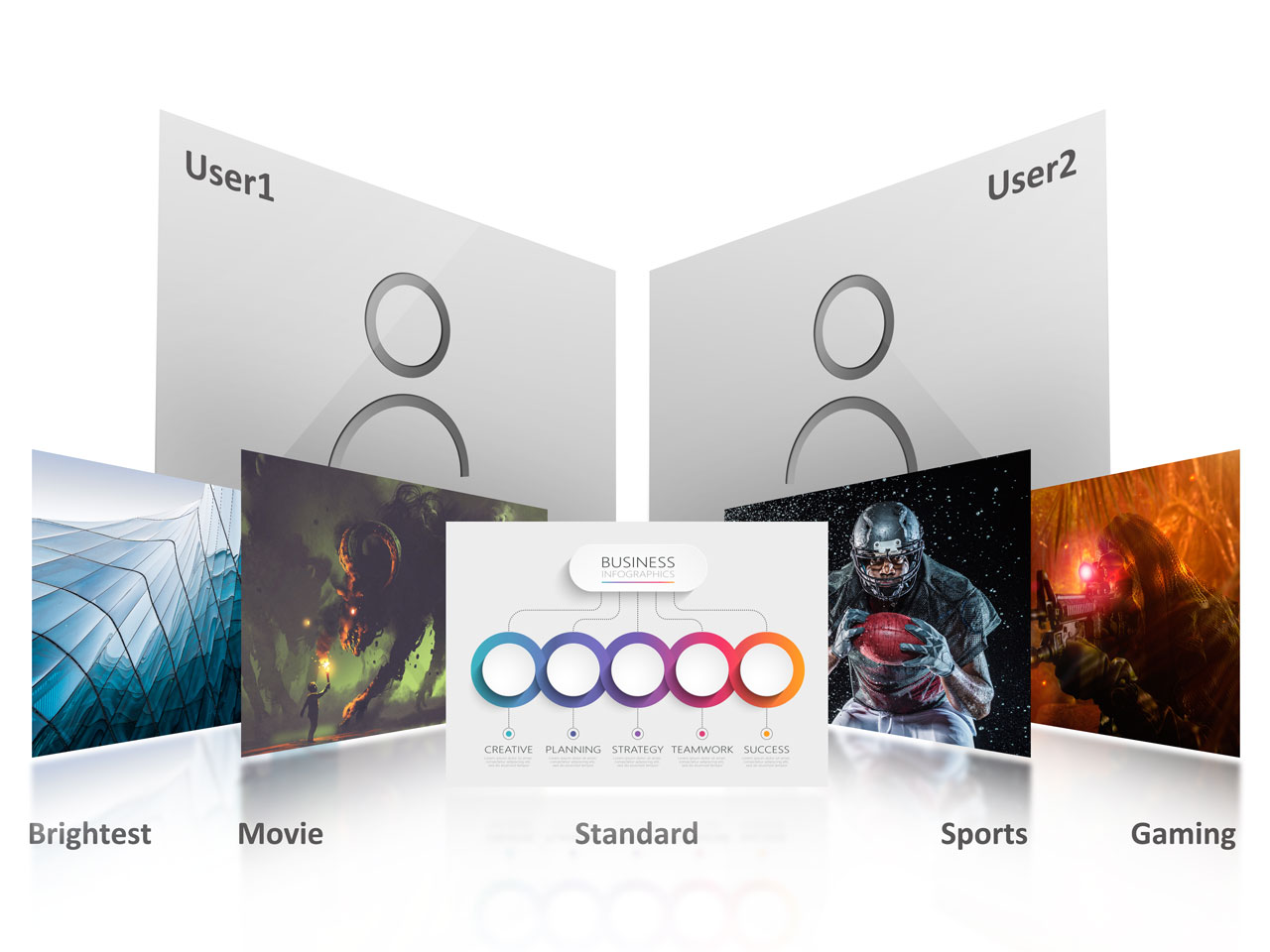

Customised User Modes for Your Colour Preference

Aside from ViewSonic’s default picture mode, two extra user modes were added to ensure that the users can save their preferred settings with up to a total of 7 colour modes.
Customised User Modes

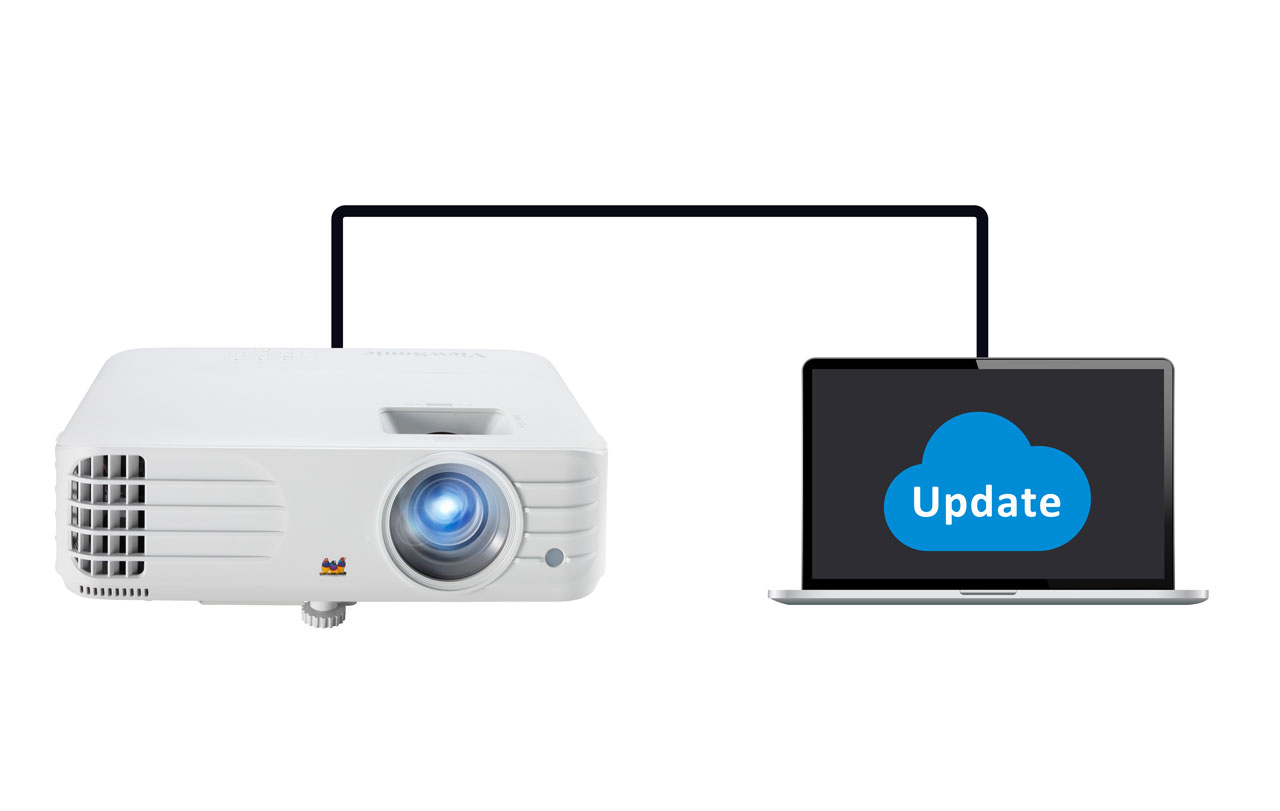

A Simpler Way to Update Projector Software

ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service center for software updates.
Projector Software Update

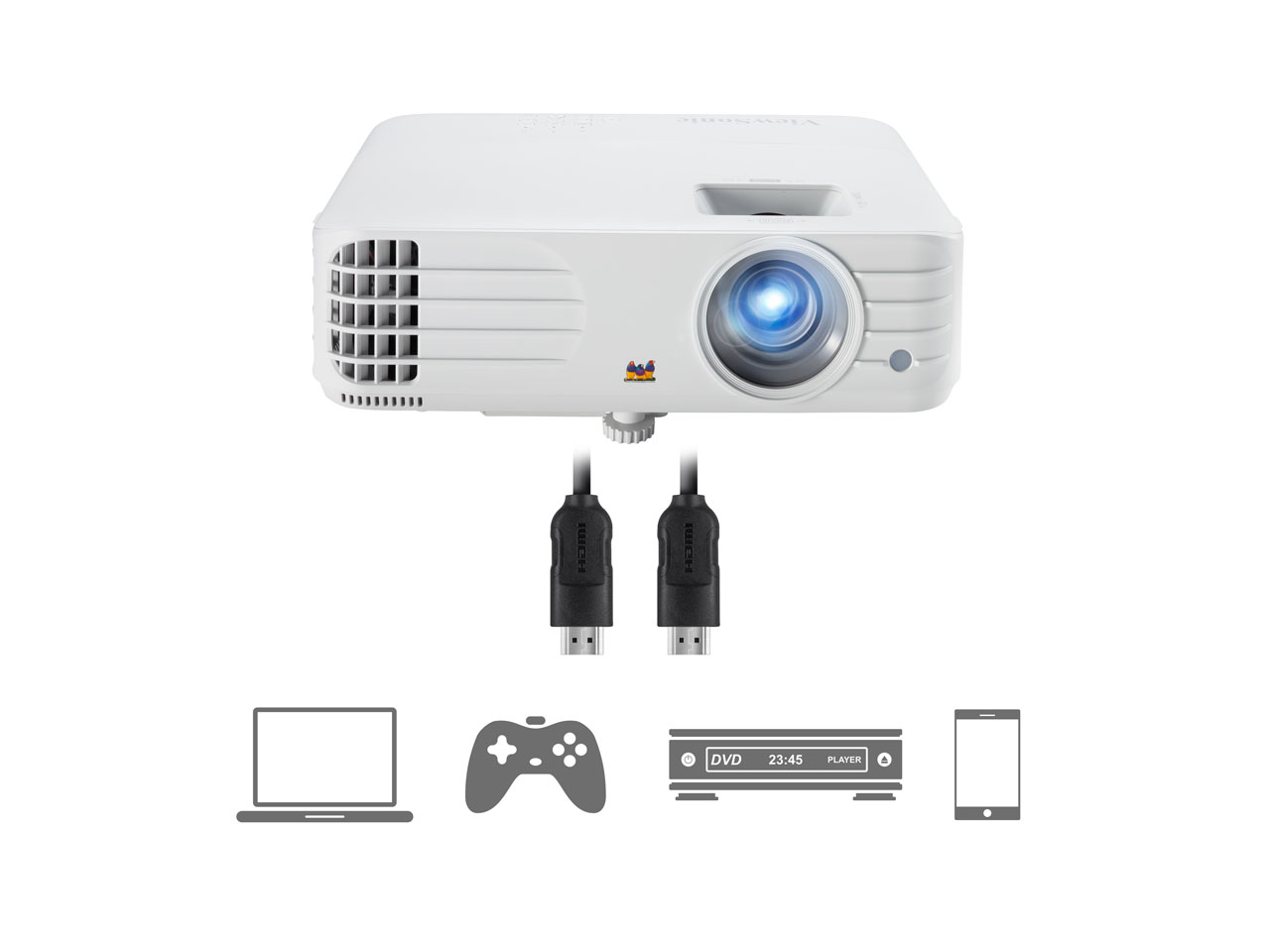

Extensive Connectivity

Dual HDMI ports provide enough connectivity to support any of your HDMI multimedia devices, delivering a big screen experience for any occasion.
Dual HDMI

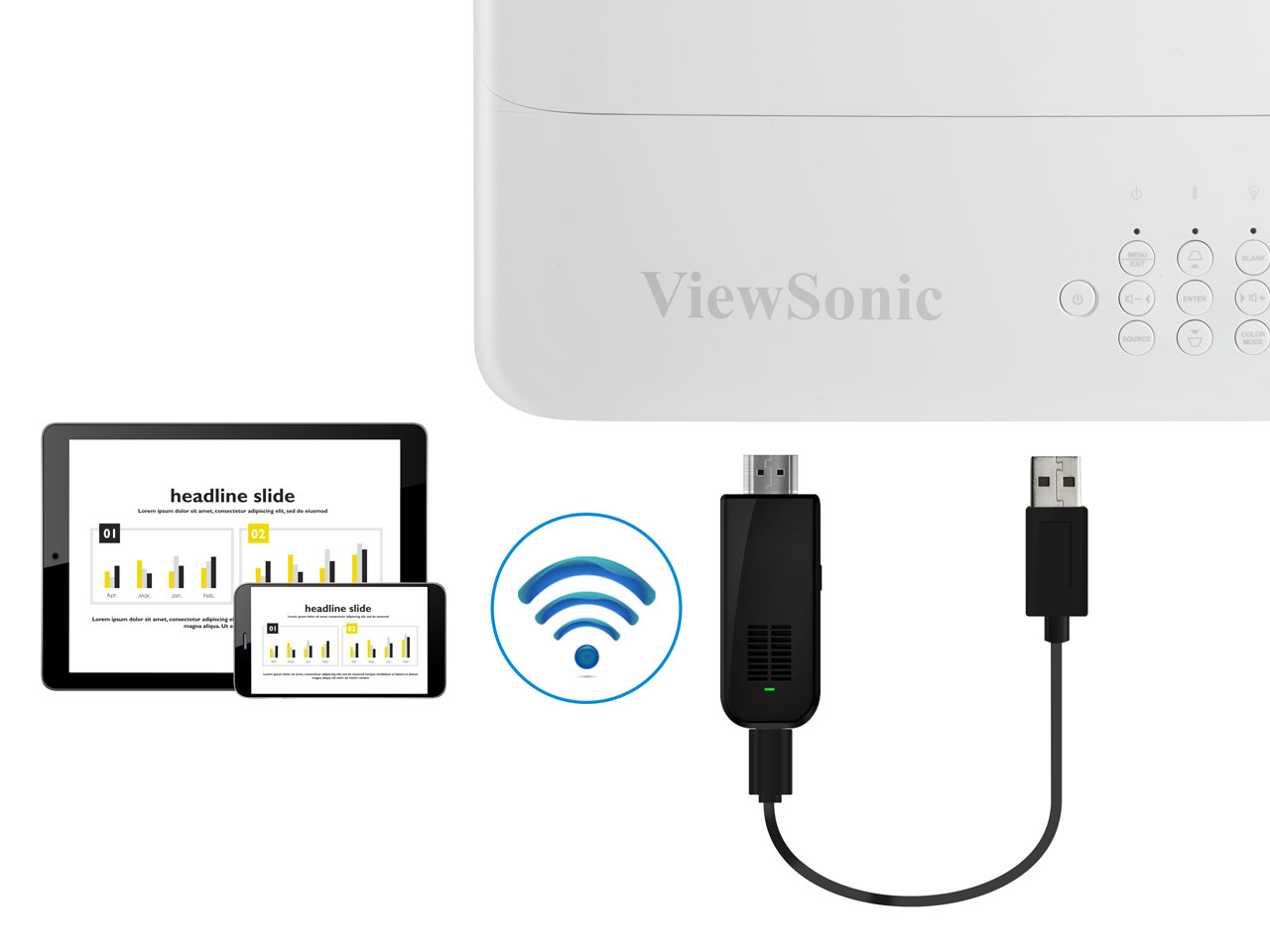

Integrated Power Source

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your favorite multimedia content.
USB Power Supply

Reduced Energy Consumption

When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.
Auto Power Off

Reminder for Time Management

The Presenter Timer is an embedded on-screen timer and a great time management tool for helping presentations run on schedule.
Presentation Timer

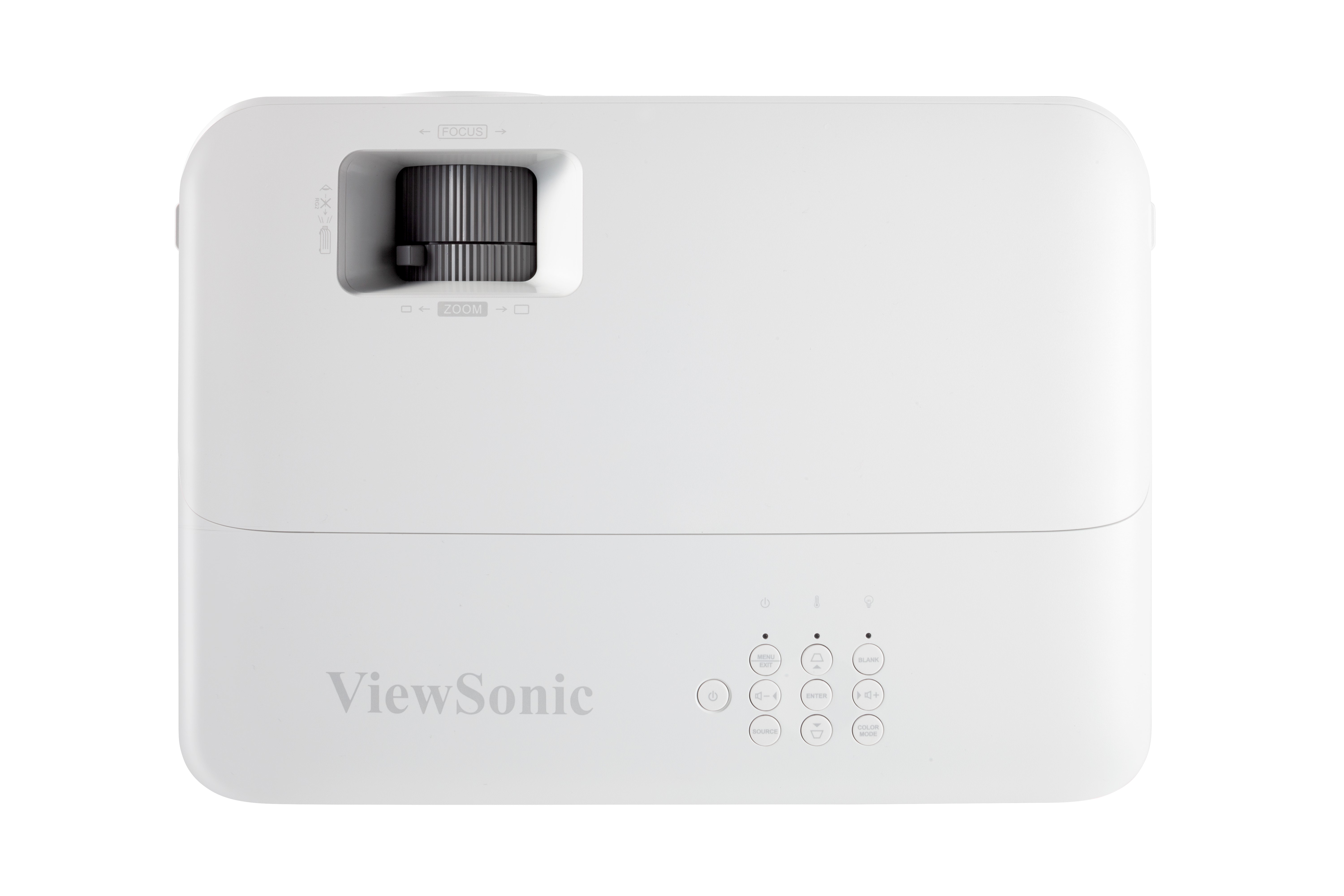

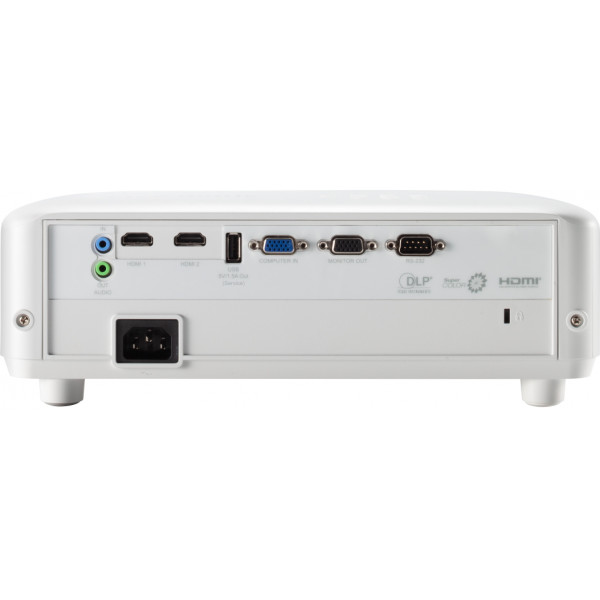

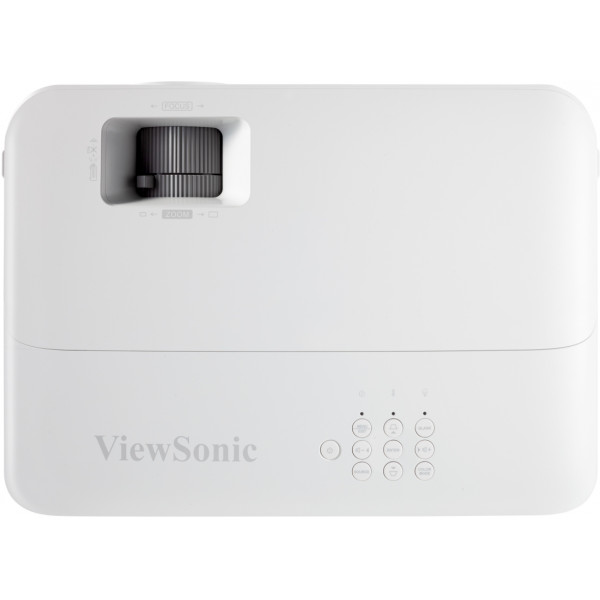

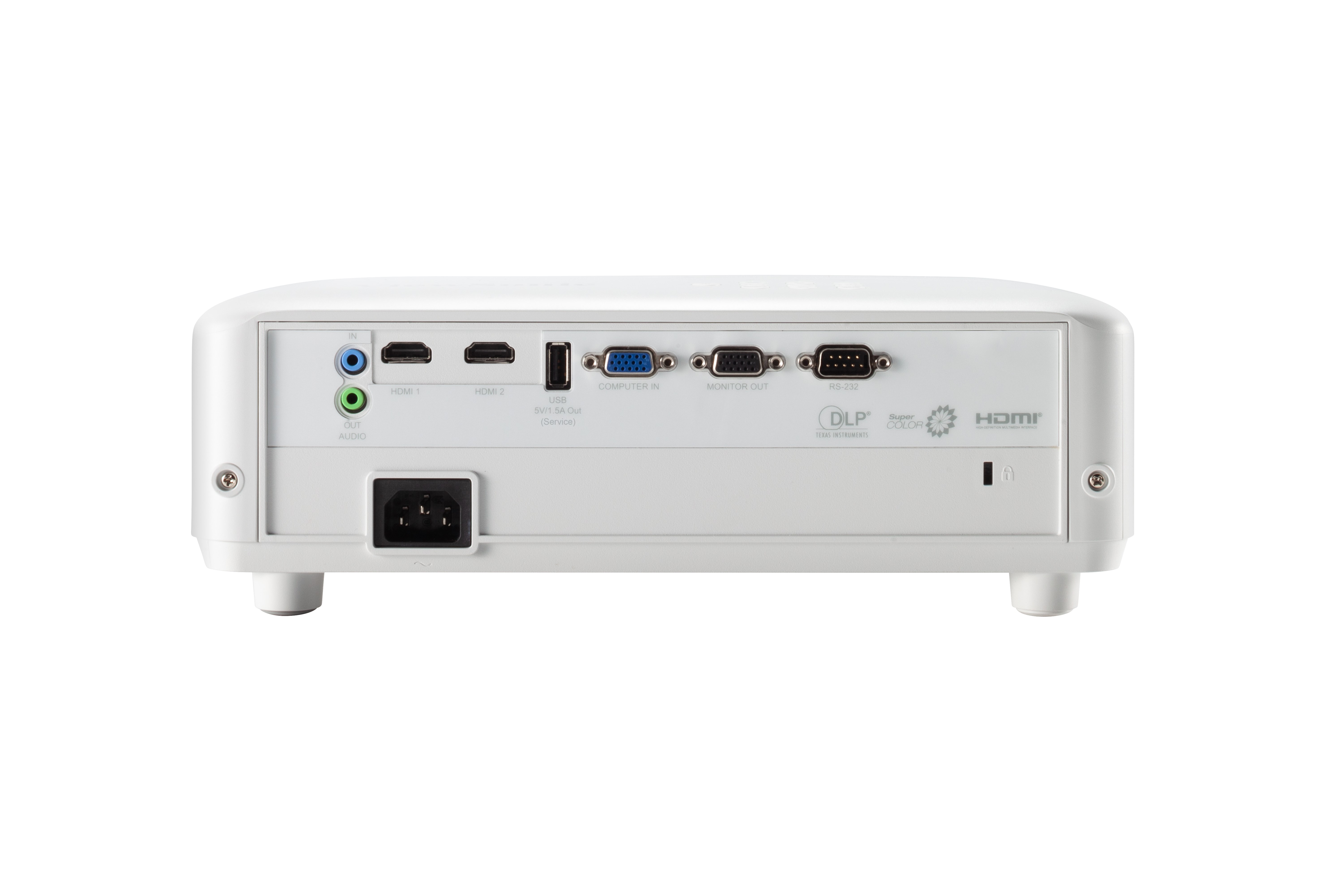

Exterior & Rear I/O Connectors

  1. Keypad
  2. LED indicator
  3. Power Key
  4. Zoom/Focus
  5. Front IR
  6. Projection Lens
  7. Audio in/out
  8. Dual HDMI
  9. USB Type A
  10. Computer In
  11. Monitor Out
  12. RS232
  13. Kensington® Lock Slot

스펙


  • Specification
    Projection System: 0.48" WUXGA
    Native Resolution: 1920x1200
    Brightness: 3500 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 12000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 20000
    Lamp Watt: 203W
    Lens: F=2.0~2.05, f=15.843-17.445mm
    Projection Offset: 100%+/-6%
    Throw Ratio: 1.5-1.65
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.97m-10.67m
    (100"@3.23m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco) : 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • Input
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • Output
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/1.5A)
