LDM135-151

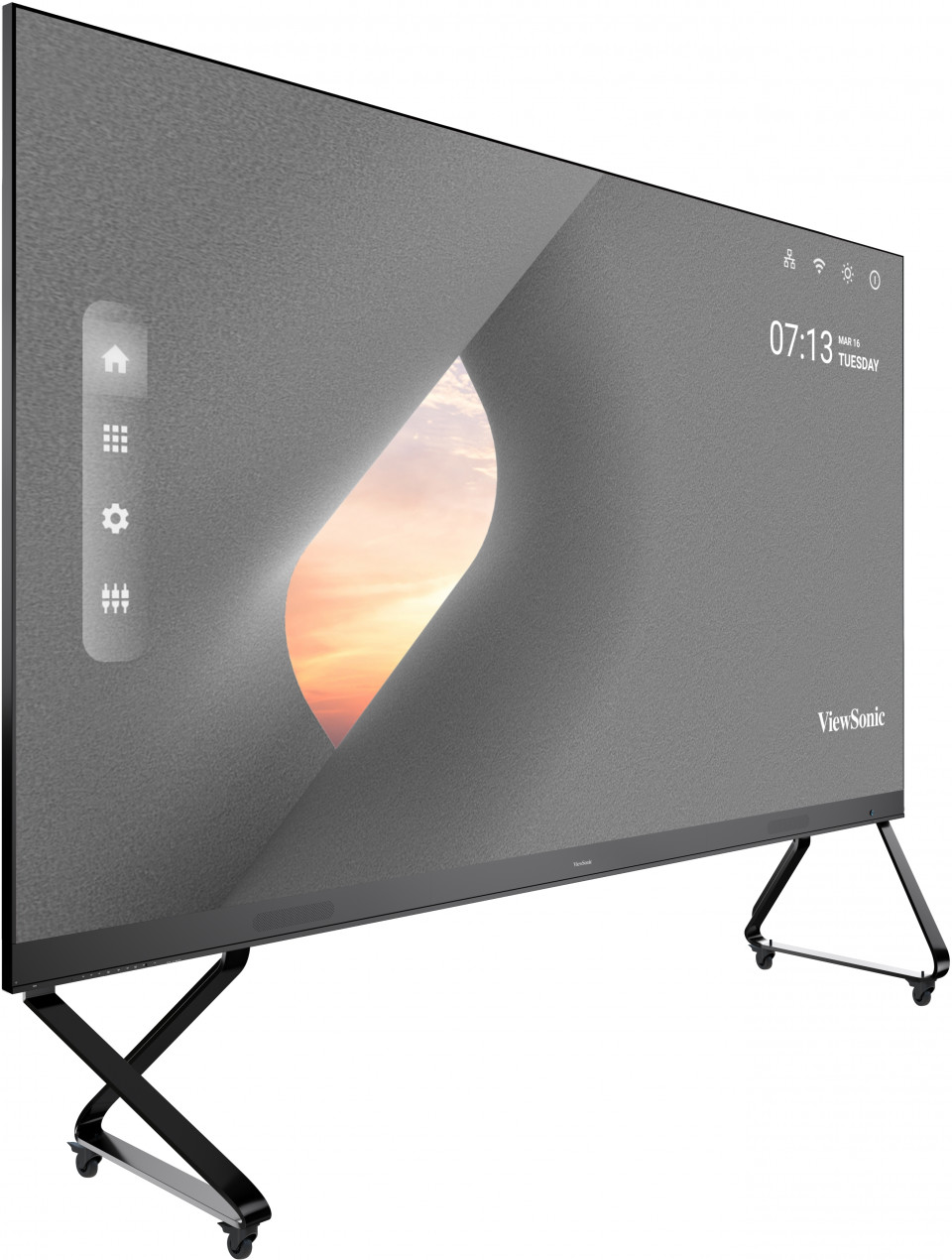

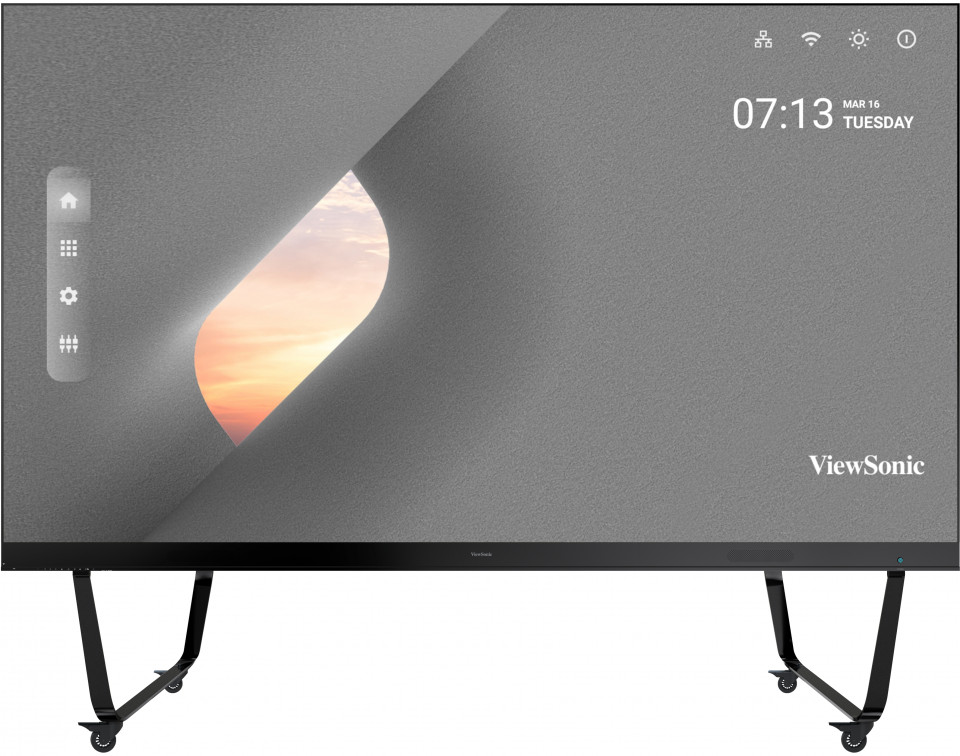

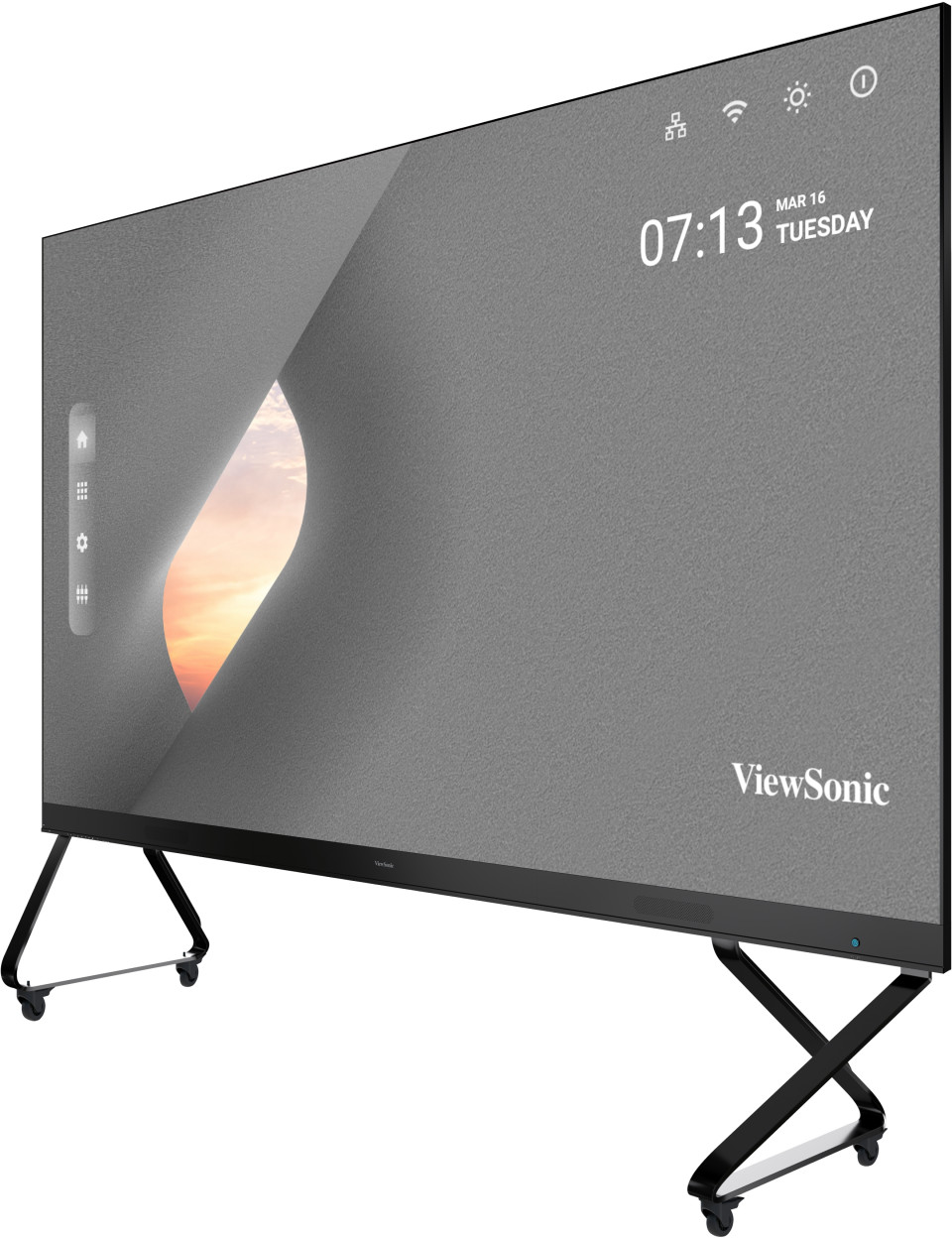

135” All-in-One Direct View LED Display

  • Impressively large, yet seamless view
  • All-in-One design without complicated setup
  • Easy delivery, installation, and maintenance
  • Engaging front-facing presentation solution
  • Flexible wireless content sharing solution
Sales Enquiry

OVERVIEW

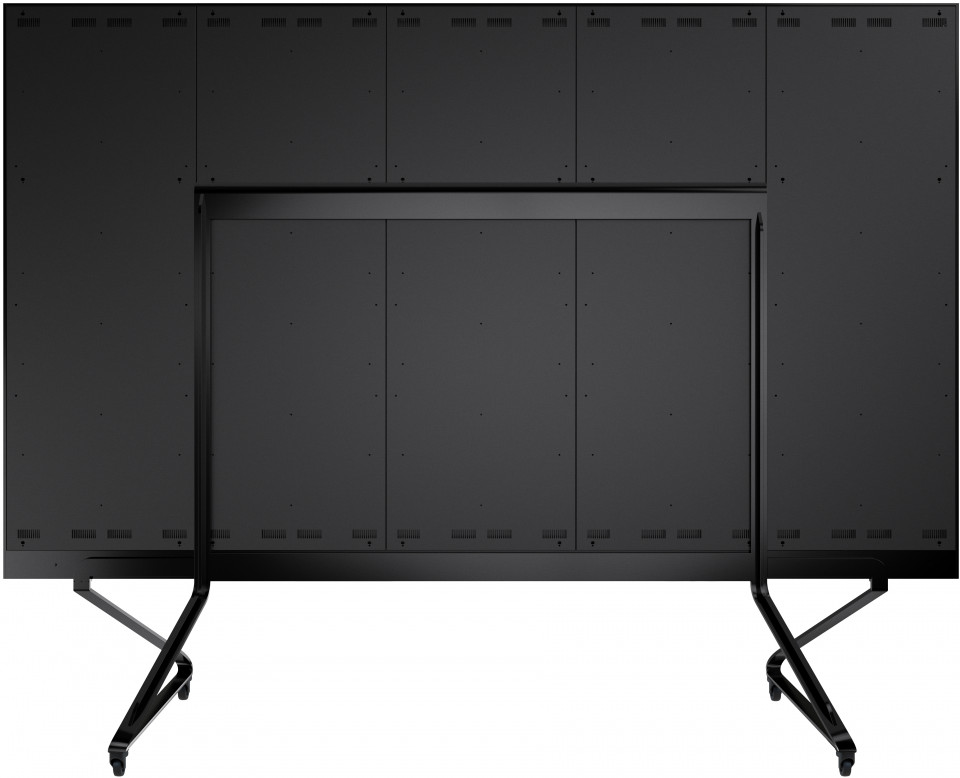

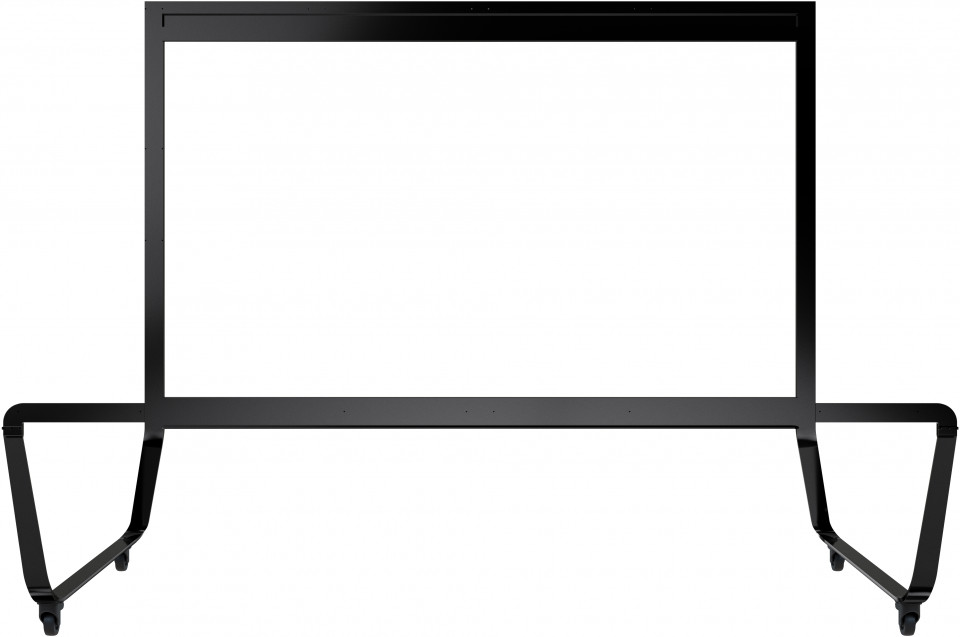

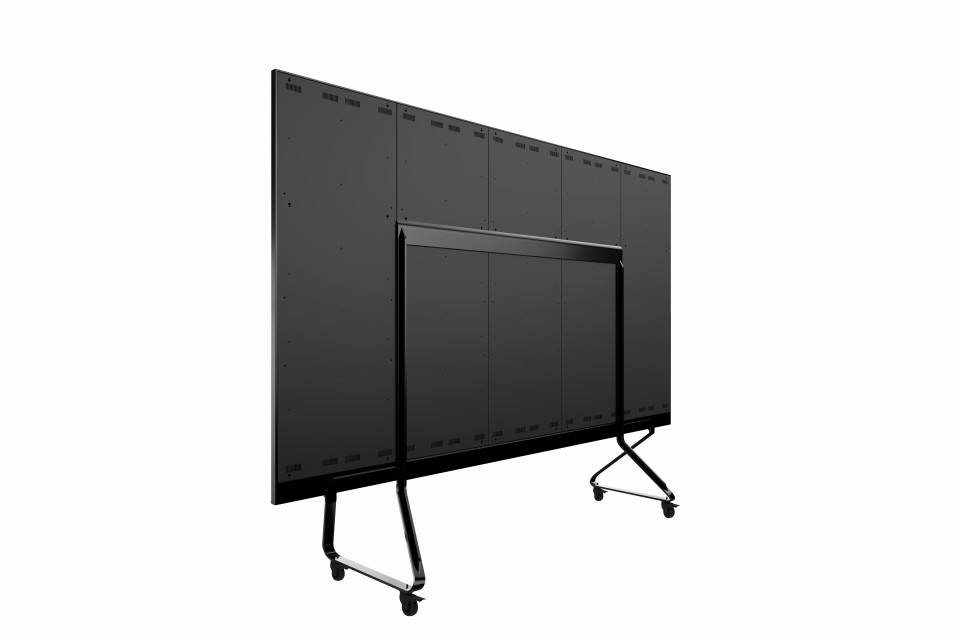

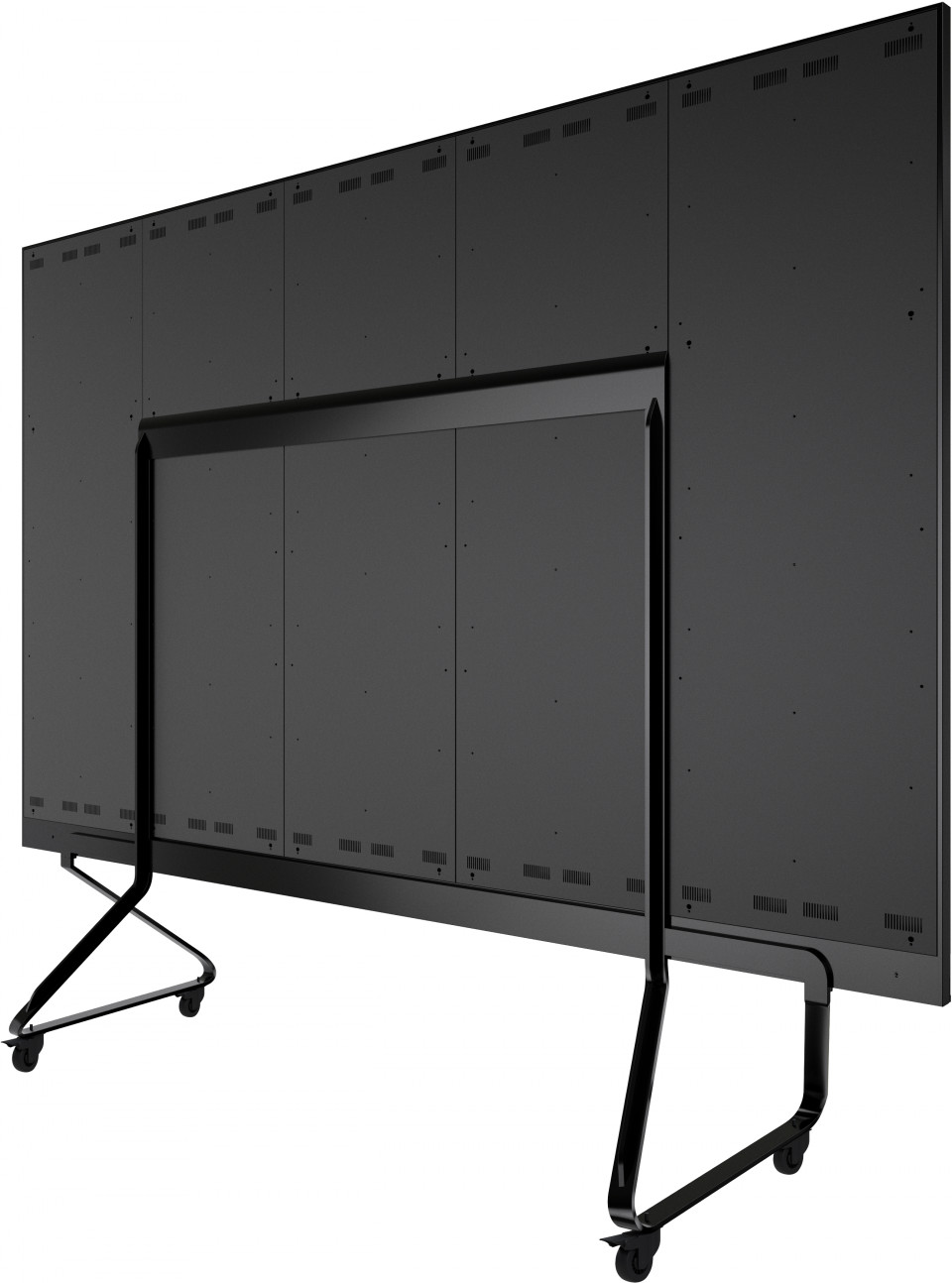

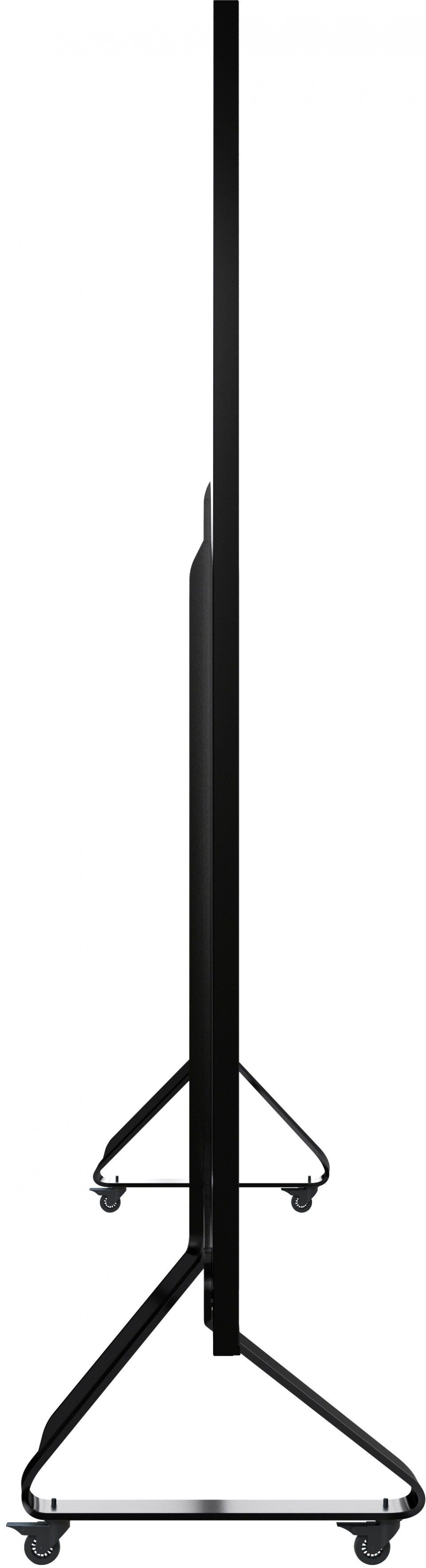

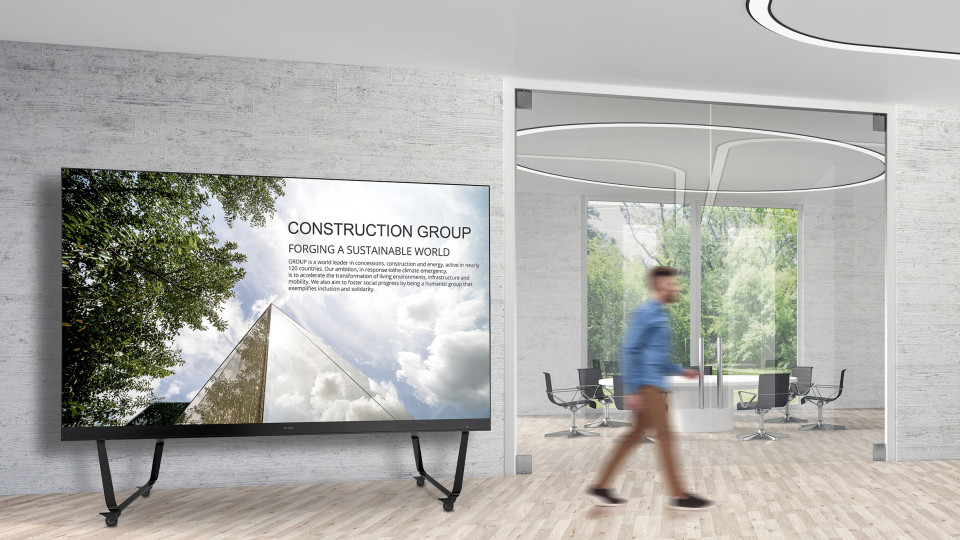

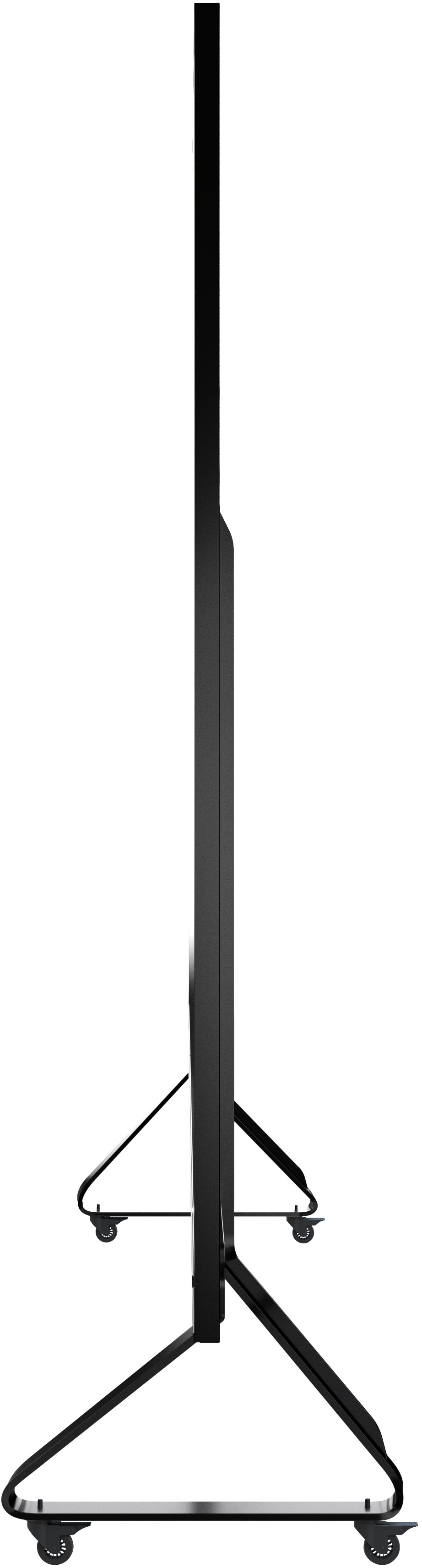

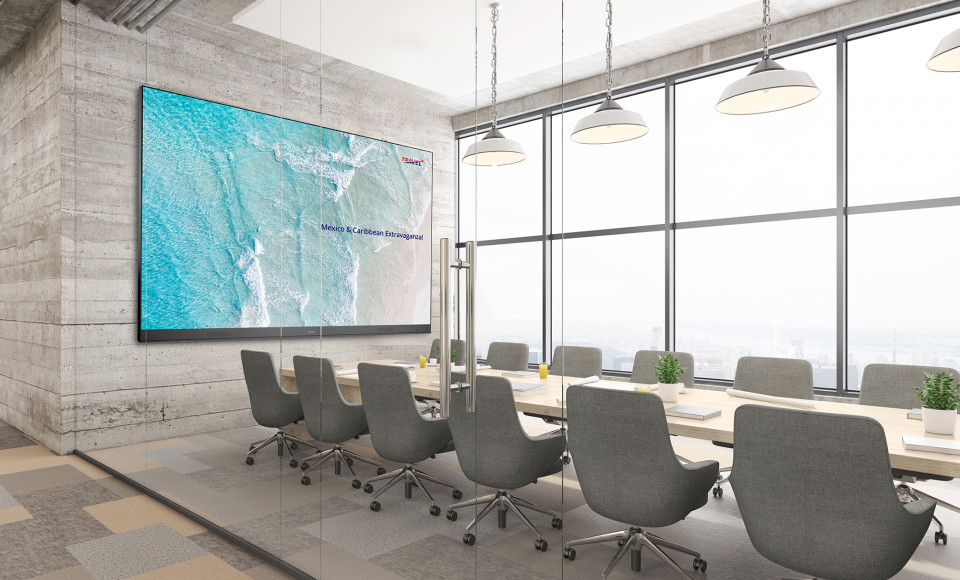

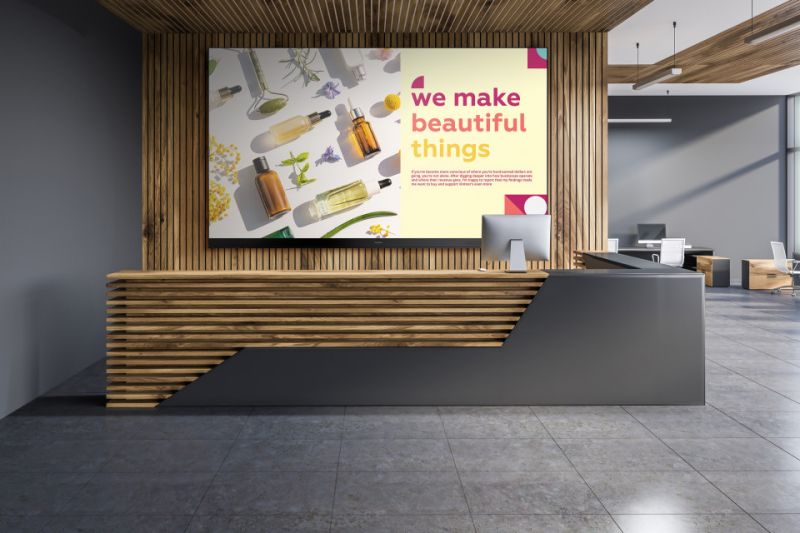

The ViewSonic® LDM135-151 is an innovative 135” All-in-One Direct View LED display that complements the design of high-end, enterprise conference rooms and lobbies. With 120% Rec. 709 wide color gamut, millions of mounted tiny LEDs for direct image production, and an ultra-slim 35 mm thickness & bezel-free seamless design, the LDM135-151 offers greater color, brightness, and contrast performance, giving viewers a magnificent visual impact, whether hanging on the wall or aluminum alloy floor stand. The All-in-One large screen display boasts easy delivery, installation, and maintenance with front-assembly modular design. The built-in screen sharing software enables multiple meeting presenters to cast out content wirelessly, whether using laptops, phones, or tablets. Compatible with AV control systems, the ViewSonic® LDM135-151 enables IT personnel to remotely setup and configure.

All-in-One Design without Complicated Setup

Free yourself from a complicated setup of power supplies, control systems, stitching machines, etc. - all you need to do is turn on the display.
All-in-One Design without Complicated Setup 1

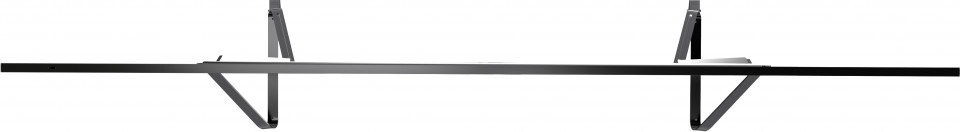

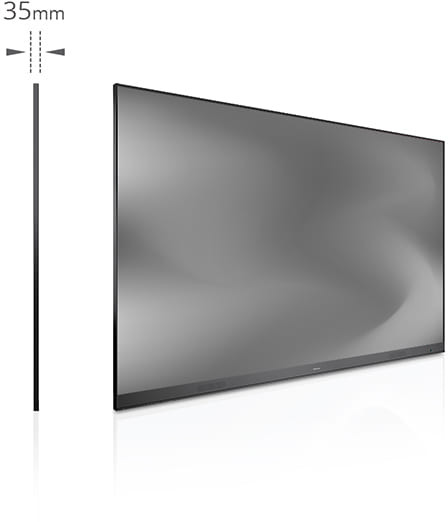

Seamless Design with Ultra-slim 35 mm Thickness & 10 mm Frameless Edge

With a huge 135” screen, larger than nine 46-inch LCD displays combined, this display seamlessly delivers content without stitching bezels for a more immersive visual experience.
Seamless Design with Ultra-slim 35 mm Thickness & 10 mm Frameless Edge 1

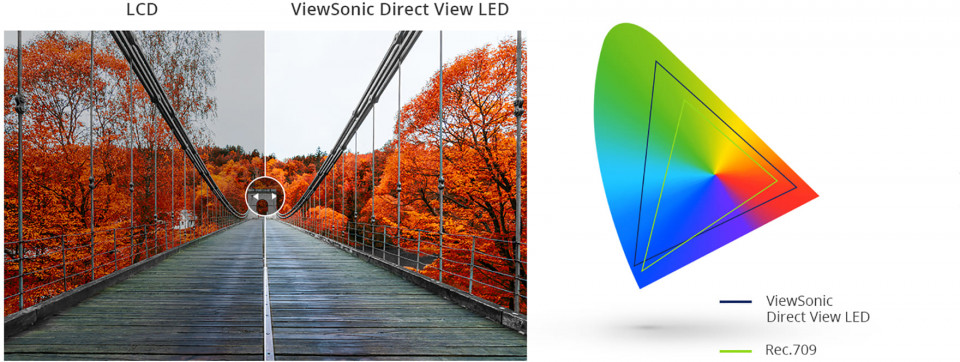

120% Rec. 709 Wide Color Gamut

ViewSonic’s proprietary Cinema SuperColor+ Technology features an exclusive wider color gamut that delivers lifelike colors. An ultra-fast 3,840 Hz refresh rate, 1.5 mm fine pixel pitch, slim profile, and greater contrast ratio also help to deliver smooth, stunning images.
120% Rec. 709 Wide Color Gamut 1

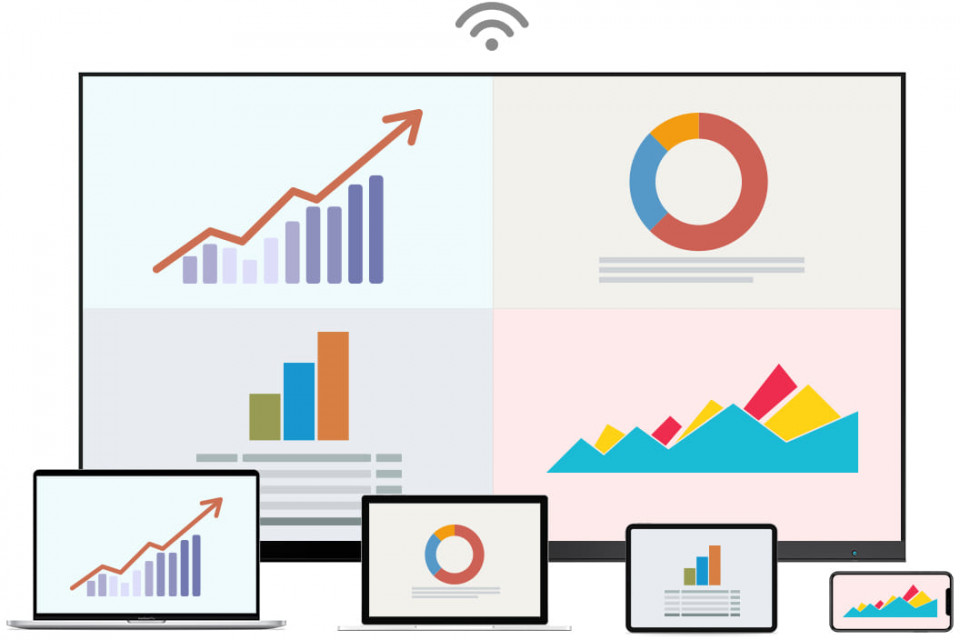

Wireless Content Sharing Solution across Devices

The pre-installed ViewBoard® Cast enables content to be streamed from mobile devices onto the display over wireless or wired networks, whether one-to-one, or many-to-one.
Wireless Content Sharing Solution across Devices 1

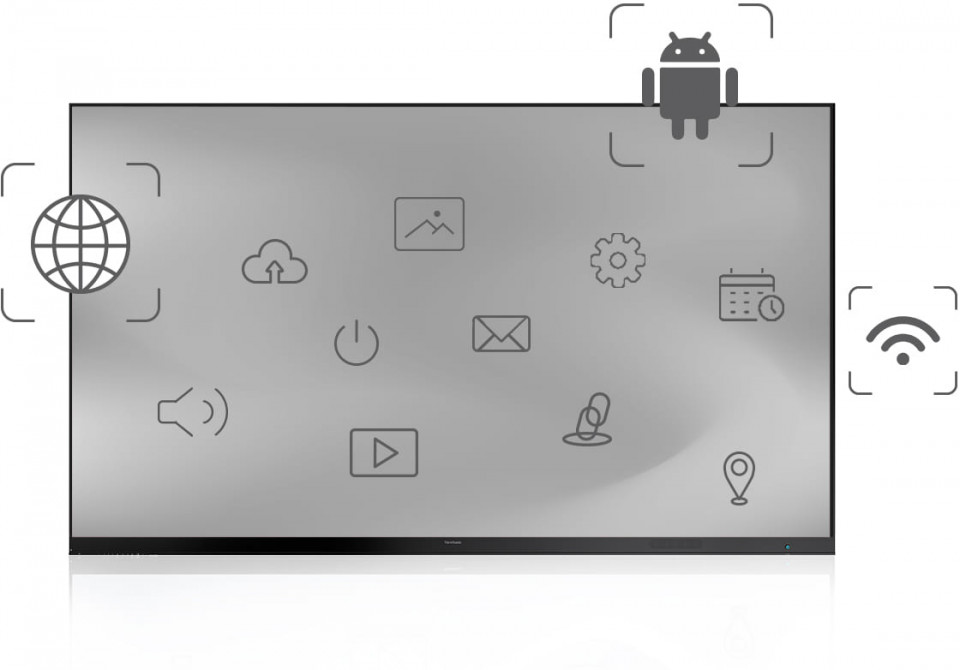

Multitasking with Embedded System & Wi-Fi

With built-in OS and 2.4G/5G Hz Wi-Fi, users can easily work in a familiar PC environment for app installation, web browsing, multimedia play, wireless device connection, etc.
Multitasking with Embedded System & Wi-Fi 1

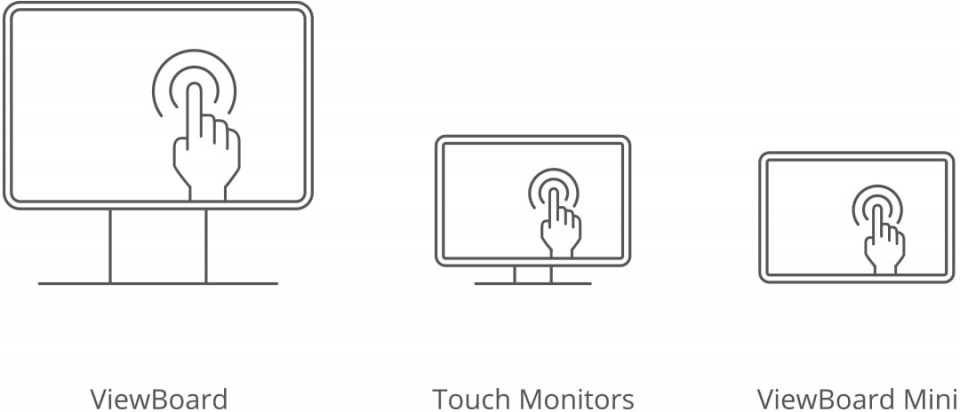

Front-Facing Presentation Solution with ViewSonic Touch Displays

When combined with ViewSonic touch displays*, it allows the presenter to face the audience while annotating on slides – all done without turning their back to the audience. Not only that, it allows the presenter to be in full control of the presentation, creating interaction and eye contact with the audience for total engagement.

*ViewBoard, touch monitors, and ViewBoard mini
Front-Facing Presentation Solution with ViewSonic Touch Displays 1

Modular Design for Easy Installation
2 people, 2 hours

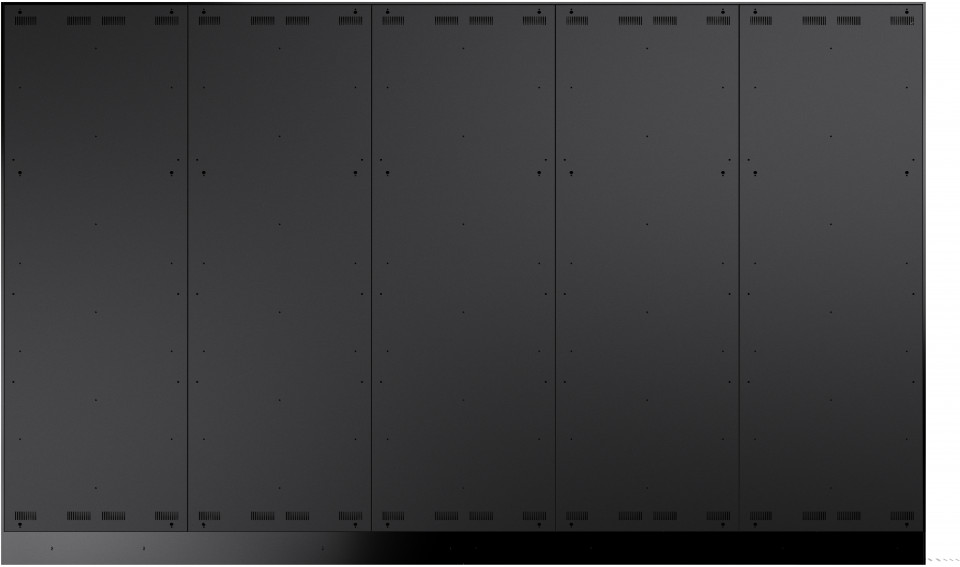

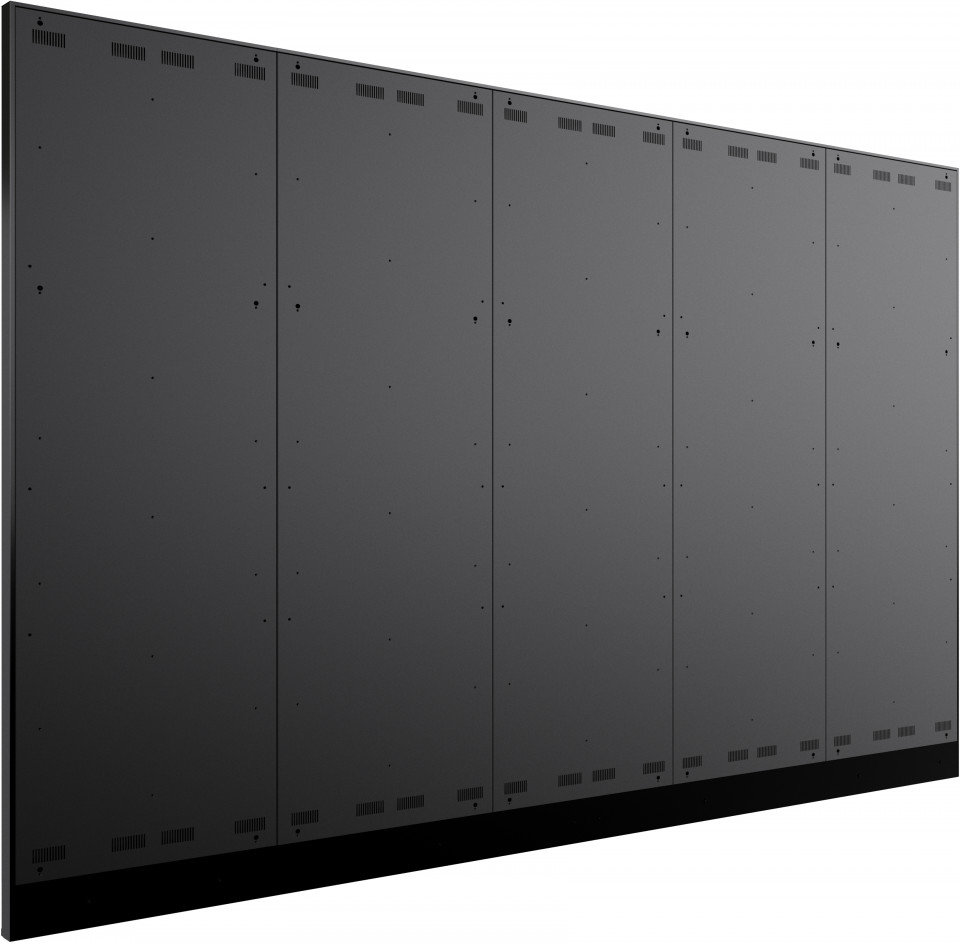

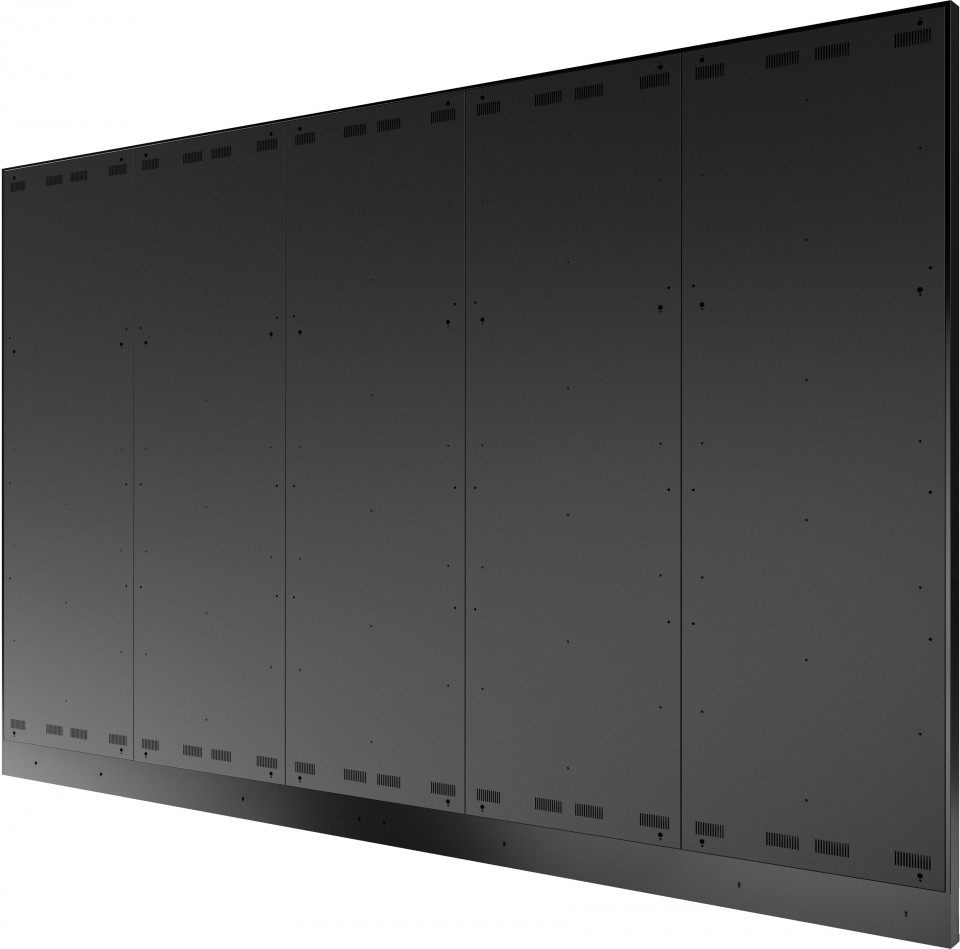

Composed of five cabinets and multiple LED modules. When installed, each individual module auto-configures and calibrates its location and setting values within the display.
Modular Design for Easy Installation - 2 people, 2 hours 1

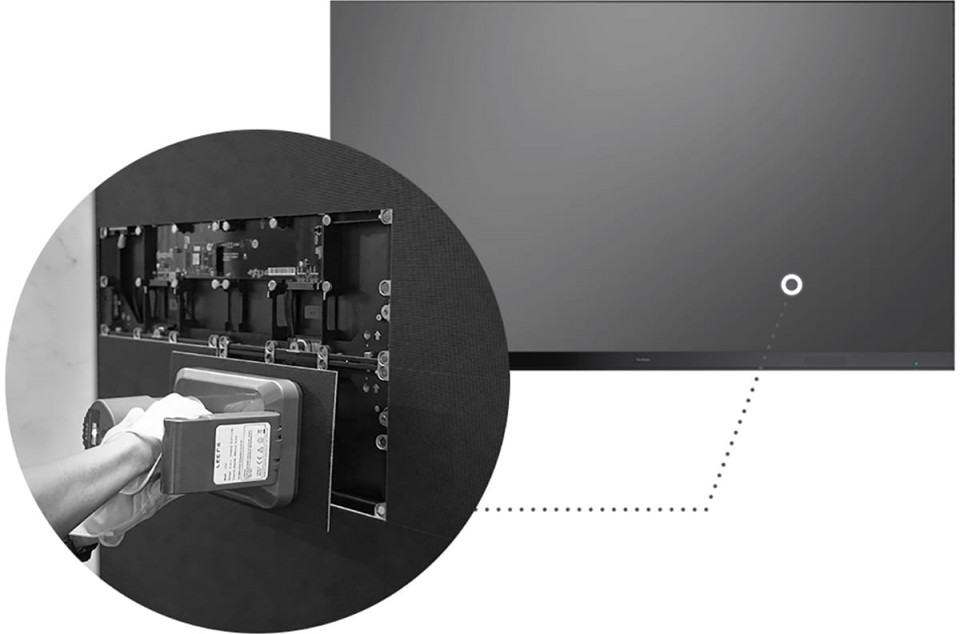

Full Front Maintenance
Electric vacuum suction tool

Instead of moving an entire set of displays around for maintenance, the hot-swappable front LED modules allow users to change any defective piece. With the electric vacuum suction tool, even an ordinary person can complete the exchange.
Full Front Maintenance - Electric vacuum suction tool 1

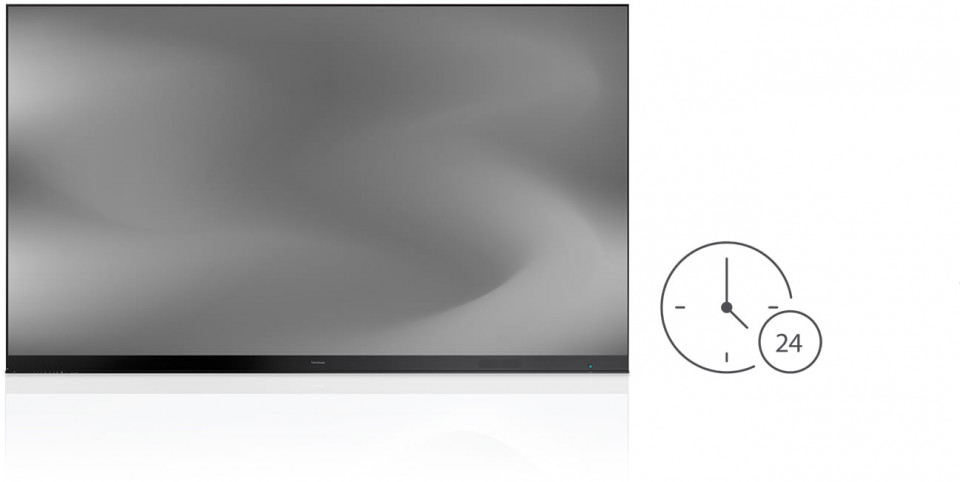

Reliable Operation 24/7

Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week.
Reliable Operation 24/7 1

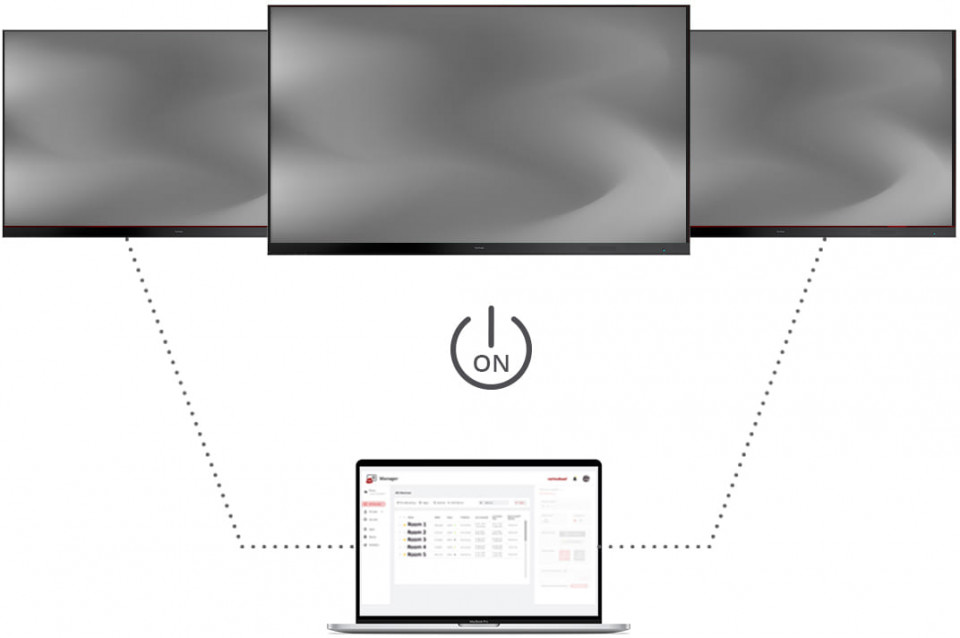

AV Control System Compatible

This display is Crestron, Extron, AMX and myViewBoard Manager compatible, providing easy and efficient management of multiple-display configurations from a PC via LAN connectivity.
AV Control System Compatible 1
  1. RS-232
  2. Ambient Light Sensor
  3. USB 2.0 (5V/0.5A)
  4. USB 3.0 (5V/1A)
  5. HDMI Out
  6. HDMI In
  7. Audio Out
  8. USB-B (Service)
  9. IR Receiver
  10. LAN
  11. Menu Control: Stand-by
  12. Menu Control: Input Select
  13. Menu Control: Brightness
  14. Speakers

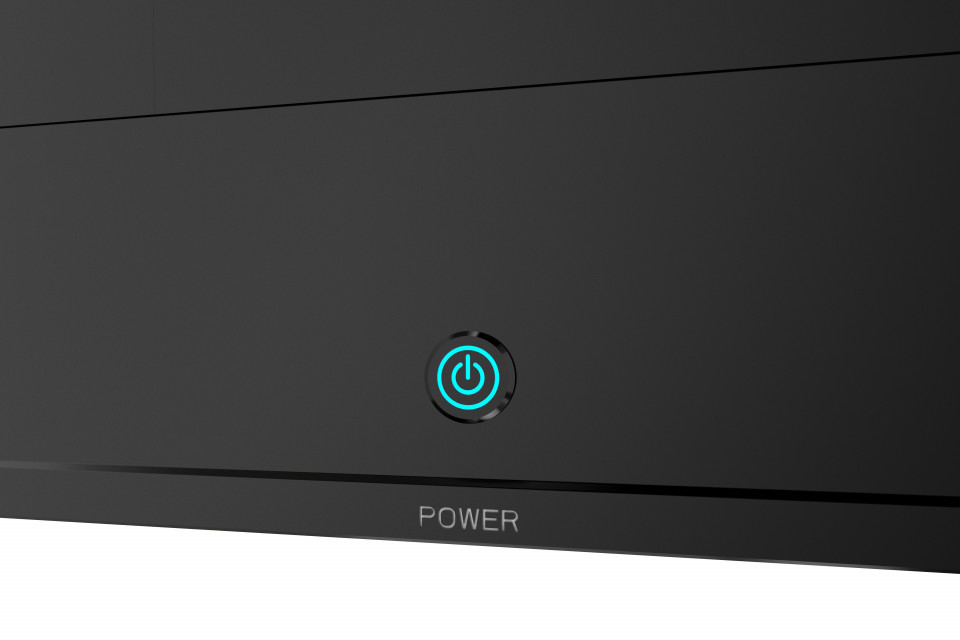

  15. Power Button

SPECIFICATIONS


  • Specification
    Screen Size: 135"
    Display Area (mm): 3000 (H) x 1687.5(V)
    Native Resolution: 1920x1080
    Panel Technology: Direct view LED
    Bonding Wire: Copper
    Pixel Pitch (mm): 1.56
    Refresh Rate: 3840Hz
    Brightness (max.): 600 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    Orientation: Landscape
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    Local Storage: Total 32GB (26GB available storage)
    Resolution Support: HDMI(640 x 480) to 1080p(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 31K-94kHz
    Vertical Scan Rate: 56-85Hz
  • Input
    HDMI: x2(HDMI 1.4, HDCP 1.4)
    USB Type A: x3(USB3.0 x1, USB2.0 x2)
    RJ45 Input (Internet): x1
    Wi-Fi Input: 2.4G/5G Hz
  • Output
    HDMI out: x1(HDMI 1.4, HDCP 1.4)
    Speaker: 5W*2
    Audio out (3.5mm): x1
    USB Type A (Power): Shared with USB input(5V/1A x1, 5V/0.5A x2)
