OVERVIEW

The ViewSonic® CDP5562-L is a 55" high-performance, professional-grade commercial LED display with 700- nit brightness. Durable and reliable, this display solution can be operated 24 hours a day, 7 days a week, and is designed for environments where high brightness is required. Featuring a 15.8mm narrow-bezel design, Full HD 1080p resolution, SuperClear™ image enhancement technology with wide viewing angles, and dual built-in 10W stereo speakers, it delivers a superb multimedia messaging experience. Outputs include an integrated DVI port, and RS232 output with IR pass-through to support up to 5x5 daisy-chained displays for easy-to-manage video walls. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr and CVBS inputs for flexible, one-time installation of a diverse range of high-definition devices. Delivering timely, customized messaging is easy with the content scheduling feature, making the CDP5562-L ideal for sharing public information in high-traffic transportation, hospitality, commercial, and education venues.

Narrow Bezel Optimized for Video Walls

The ViewSonic CDP5562-L commercial display features a 15.8mm narrow bezel design. This sleek, narrow bezel maximizes impactful visual messaging for passersby, making the CDP5562-L the perfect choice for digital signage wall installations.

24/7 Continuous Operation, 50,000*-Hour Lifespan

Featuring a lifespan of up to 50,000 hours, the CDP5562-L commercial display is designed for reliable, continuous 24/7 use.

Full HD 1080p and 700 Nits Brightness

The CDP5562-L displays content in Full HD 1920x1080 resolution with 700- nit high brightness to deliver superior pixel-by-pixel true-color performance. At this resolution and brightness, experience a more realistic viewing experience with crystal-clear, high-definition multimedia messaging.

Efficient, User-Friendly Content Scheduling & Settings

The CDP5562-L provides an efficient, user-friendly scheduling interface via the on-screen display (OSD). Display setup features include time and date scheduling, repeat and shuffle settings, as well as content source settings for various inputs.

5x5 Daisy-Chain Support

With integrated DVI output, the CDP5562-L supports up to a 5x5 daisy-chain setup for multi-display installations. In addition, 1080p signal transmission is supported in daisy-chain configurations.

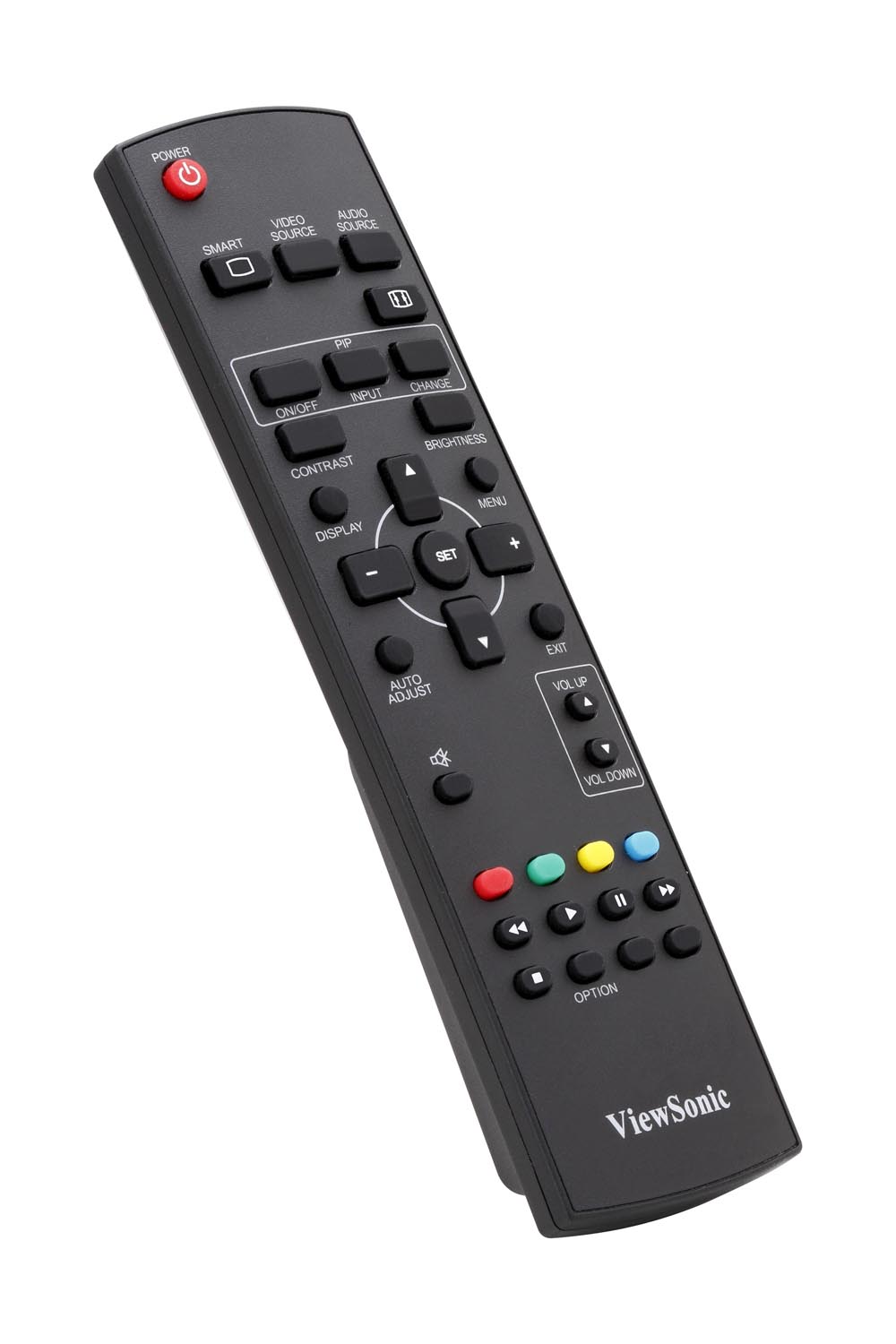

RS232 In/Out with IR Pass-Through for Easy Management

RS232 input and output connectivity, along with IR pass-through functionality, provides for the easy and efficient management of multipledisplay configurations from a single remote control. By using the RS232 output, daisy-chained configurations can be managed via a primary CDP5562-L display.

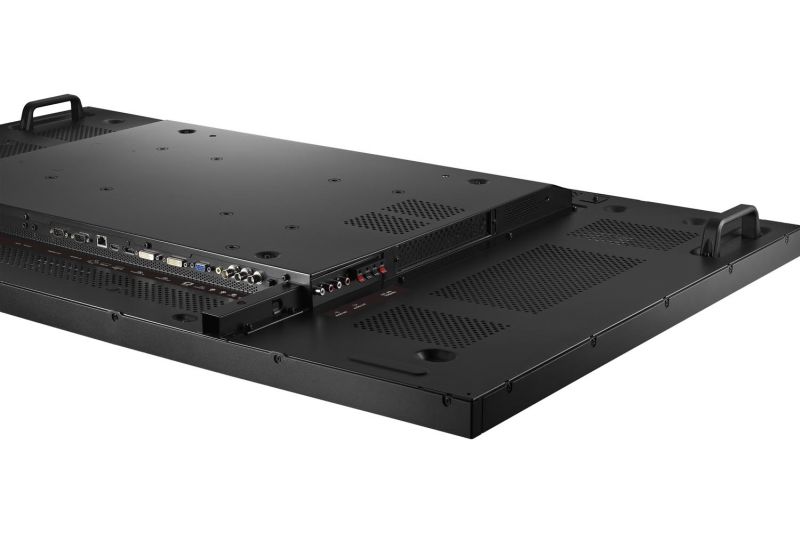

Versatile Inputs and One-Time Configuration Settings

With a versatile selection of inputs, including HDMI, DVI, DisplayPort, CVBS, YPbPr (YCbCr) and VGA, the CDP5562-L enables you to easily connect and use a variety of digital equipment. Best of all, the one-time display installation and setup feature means your preferred source settings are never lost.

SPECIFICATIONS


  • Display
    Panel Size: 55"
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 1209.6(H) x 680.4 (V) (55” diagonal)
    Aspect Ratio: 16:9
    Native Resolution: 1920 x 1080
    Colors: 1.07 Billion
    Brightness: 700 nits (typ.)
    Contrast Ratio: 1300:1 Typ.
    Response Time: 12ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours Typ.
    Surface Treatment: Hard coating (3H)
    Orientation: Landscape / Portrait
  • INPUT
    HDMI: x1
    RGB / VGA: x1
    DisplayPort: x1
    DVI: x1
    Audio: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R)
    CVBS: x1
    YPbPr: x1
    RS232: x 1
    IR Pass Thru: x1
