OVERVIEW

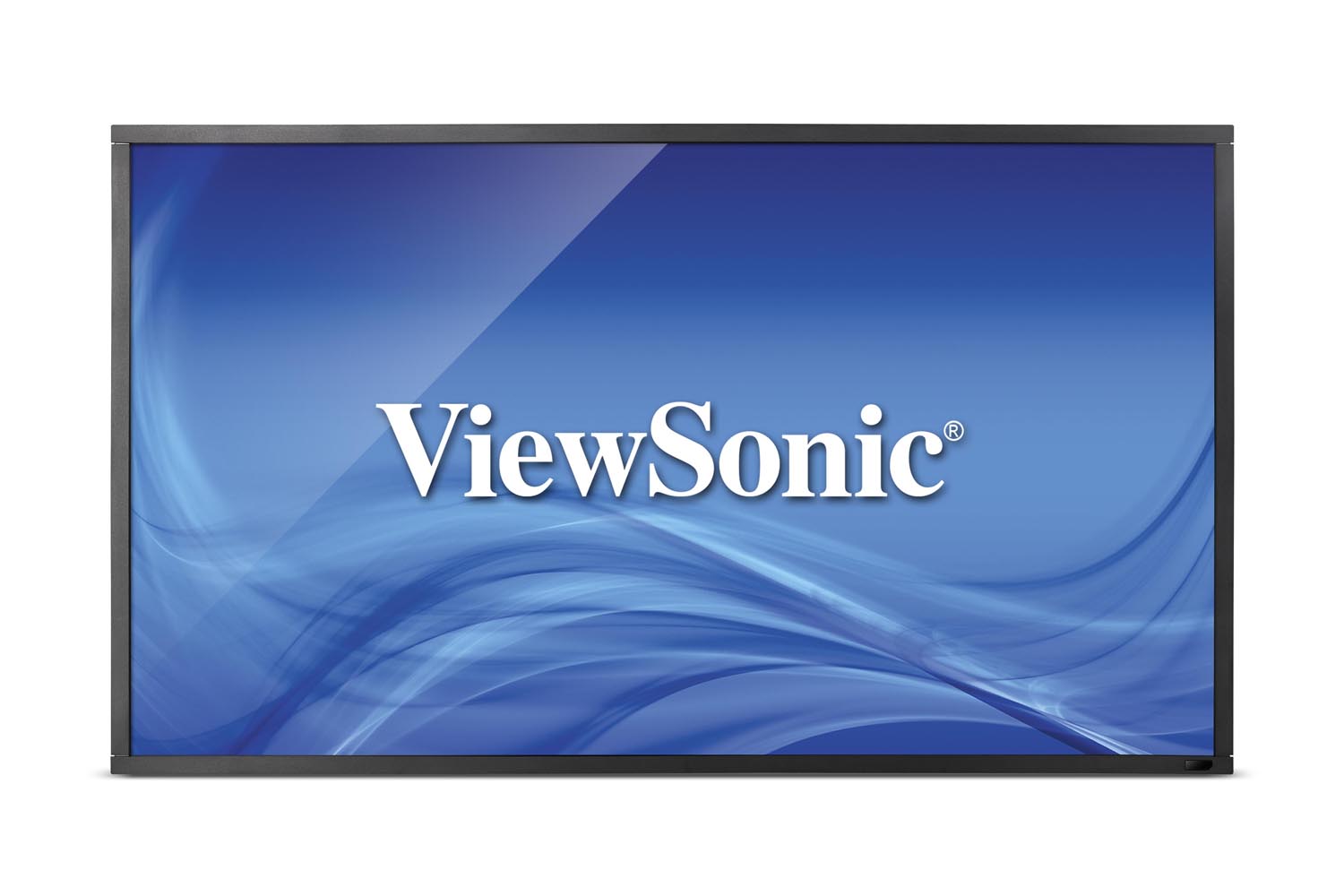

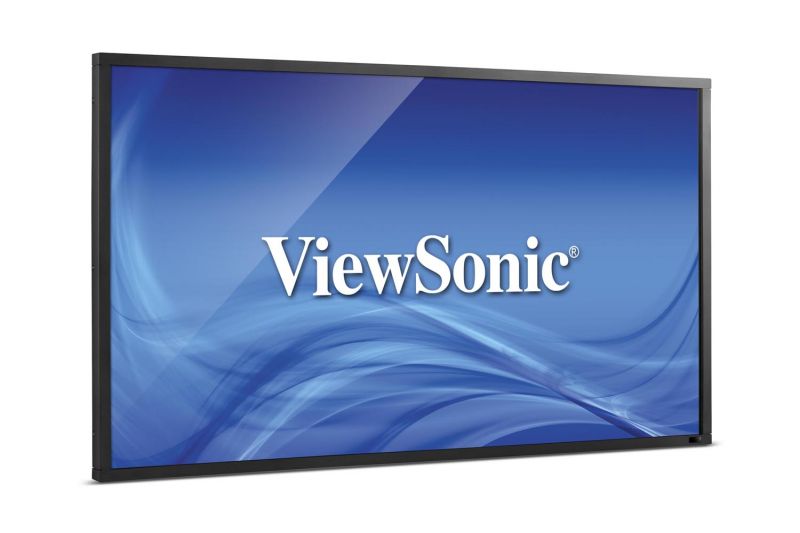

The ViewSonic CDP4262-L is a 42’’ high-performance, professional-grade commercial LED display with 700-nit brightness. Durable and reliable, this display solution can be operated 24 hours a day, 7 days a week, and is designed for environments where high brightness is required. Featuring a 15.8mm narrow-bezel design, Full HD 1080p resolution, SuperClear® image enhancement technology with wide viewing angles, and dual built-in 10W stereo speakers, it delivers a superb multimedia messaging experience. Outputs include an integrated DVI port, and RS232 output with IR pass-through to support up to 5x5 daisy-chained displays for easy-to-manage video walls. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr and CVBS inputs for flexible, one-time installation of a diverse range of high-definition devices. Delivering timely, customized messaging is easy with the CDP5562-L’s content scheduling feature, making it the ideal device for sharing public information in high-traffic transportation, hospitality, commercial, and education venues.

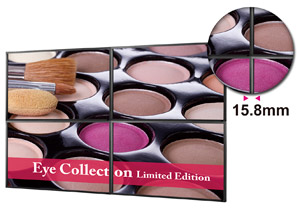

Narrow Bezel Optimized for Video Walls

ViewSonic’ViewSonic’s CDP4262-L commercial display features a 15.8mm narrow bezel design. This sleek, narrow bezel maximizes impactful visual messaging for passersby, making the CDP4262-L the perfect choice for digital signage wall installations.

700-Nit High Brightness for Excellent Color Performance in Bright Environments

With a 700-nit high brightness panel, the CDP4262-L delivers stunning color performance even in bright environments. Designed for semi-outdoor digital signage applications, it delivers the resolution and brightness needed for greater multimedia impact.

Energy-Saving LED Backlight, Energy Star 6.0 Certified

Energy Star 6.0 certified, the CDP4262-L utilizes an energy-saving LED backlight and consumes 35% less power than conventional CCFL backlight displays. This provides for a lower overall cost of ownership, along with a higher ROI, making it a great long-term investment.

24/7 Continuous Operation, 50,000-Hour Lifespan

Featuring a lifespan of up to 50,000 hours, the professional-grade CDP4262-L commercial display is designed for reliable, continuous 24/7 use. The CDP4262-L also includes heat monitoring protection and a screen saver feature for added reliability and durability.


Full HD 1080p for superior pixel performance

ViewSonic’s CDP4262-L display features Full HD 1920x1080 resolution to deliver superior pixel-by-pixel performance for a more realistic viewing experience. At this resolution you’ll experience greater image clarity and detail—qualities that will bring high-definition TV programs, HD movies and other multimedia content to life.

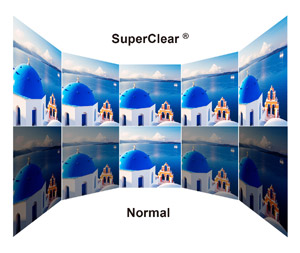

SuperClear® technology with wide viewing angles

SuperClear® image enhance technology delivers 178-degrees of vertical and horizontal viewing angles. Target audiences will experience accurate, vivid colors, and consistent brightness levels whether looking at the screen from above, below, the front, or the side—with no distortion or decay.


Efficient, User-Friendly Content Scheduling & Settings

The ViewSonic CDP4262-L commercial display provides an efficient, user-friendly scheduling interface via the on-screen display (OSD). Setup features include time and date scheduling, repeat and shuffle settings, as well as content source settings for various inputs. The CDP4262-L also features an internal clock with 7-day scheduler, and PIP/POP (picture in picture) functionality.

5x5 Daisy-Chain Support

With a DVI daisy-chain output, the CDP4262-L can support daisy-chain setups of up to 5x5-display installations to maximize impactful messages. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced. In addition, 1080p signal transmission is supported in daisy-chain configurations.

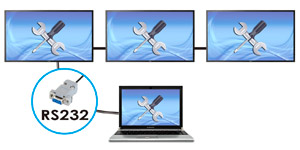

RS232 Input and output for easier Management

RS232 in/out provides users with an easier maintenance solution for multi-display digital signage configurations. Now all maintenance can be done from one PC/ Notebook, allowing for the efficient updating of settings to all displays via the primary CDP4262-L display.

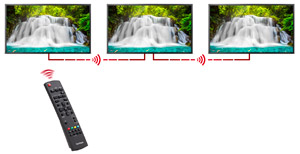

IR pass-through from one controller to multiple displays

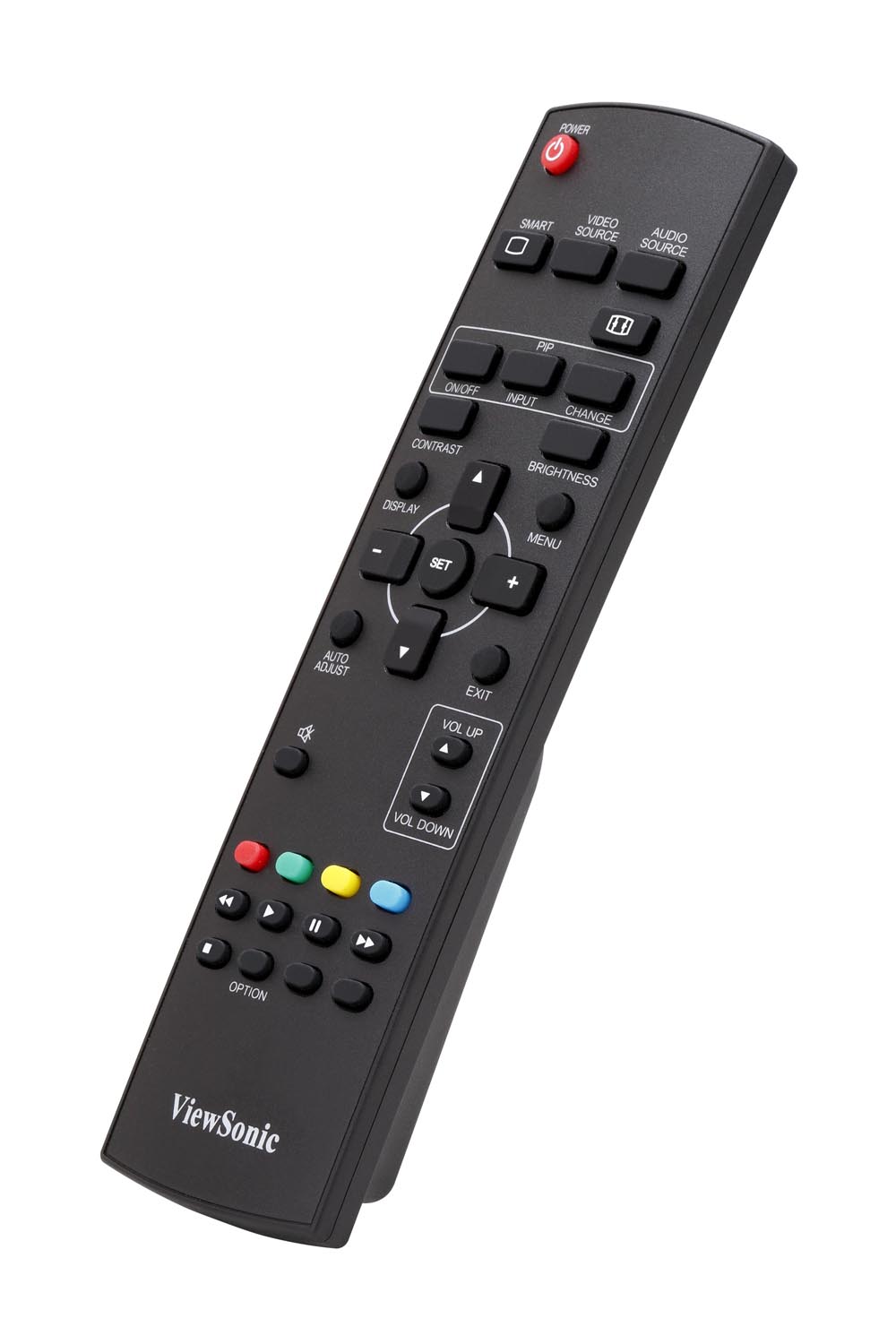

Using the IR pass-through function, you can now create an infrared control chain where one controller is able to adjust the settings on multi-display video walls. By using a single remote controller, you can save time when optimizing your CDP4262-L displays with your latest campaign messaging.

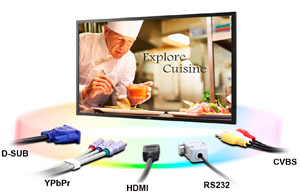

Versatile Inputs and One-Time Configuration Settings

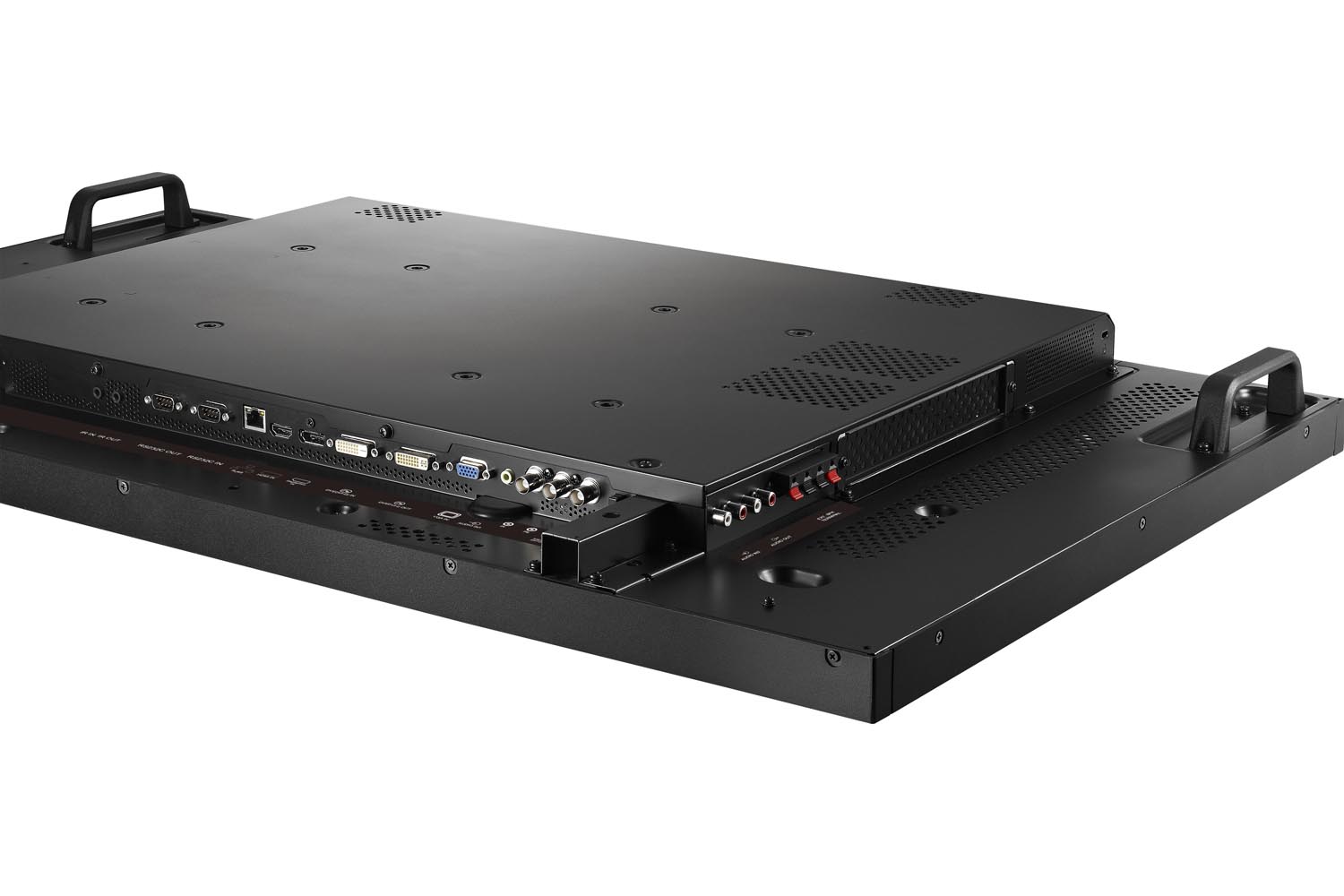

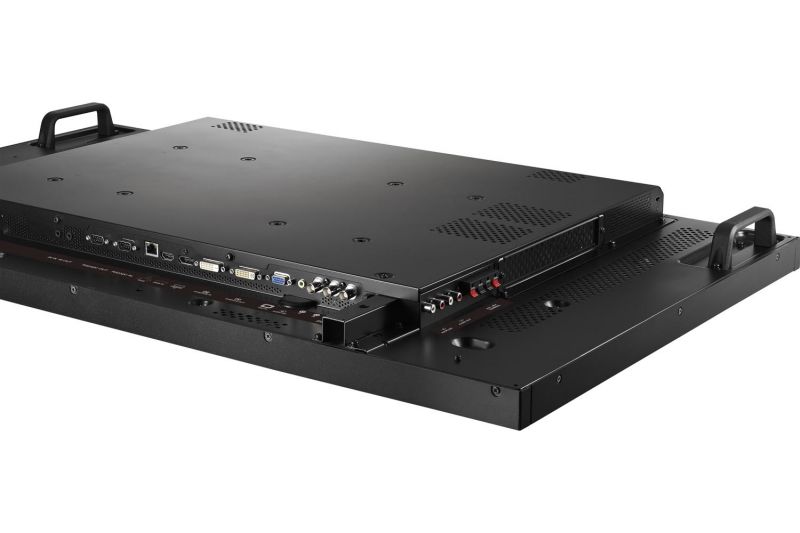

With a versatile selection of inputs, including HDMI, DVI, DisplayPort, CVBS, YPbPr (YCbCr) and VGA, the CDP4262-L commercial display enables you to easily connect and use a variety of digital equipment. Best of all, the one-time display installation and setup feature means your preferred source settings are never lost.

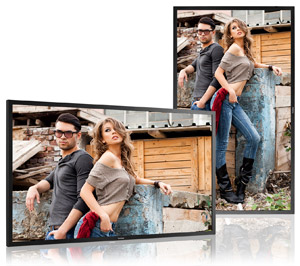

Portrait or Landscape Mountable

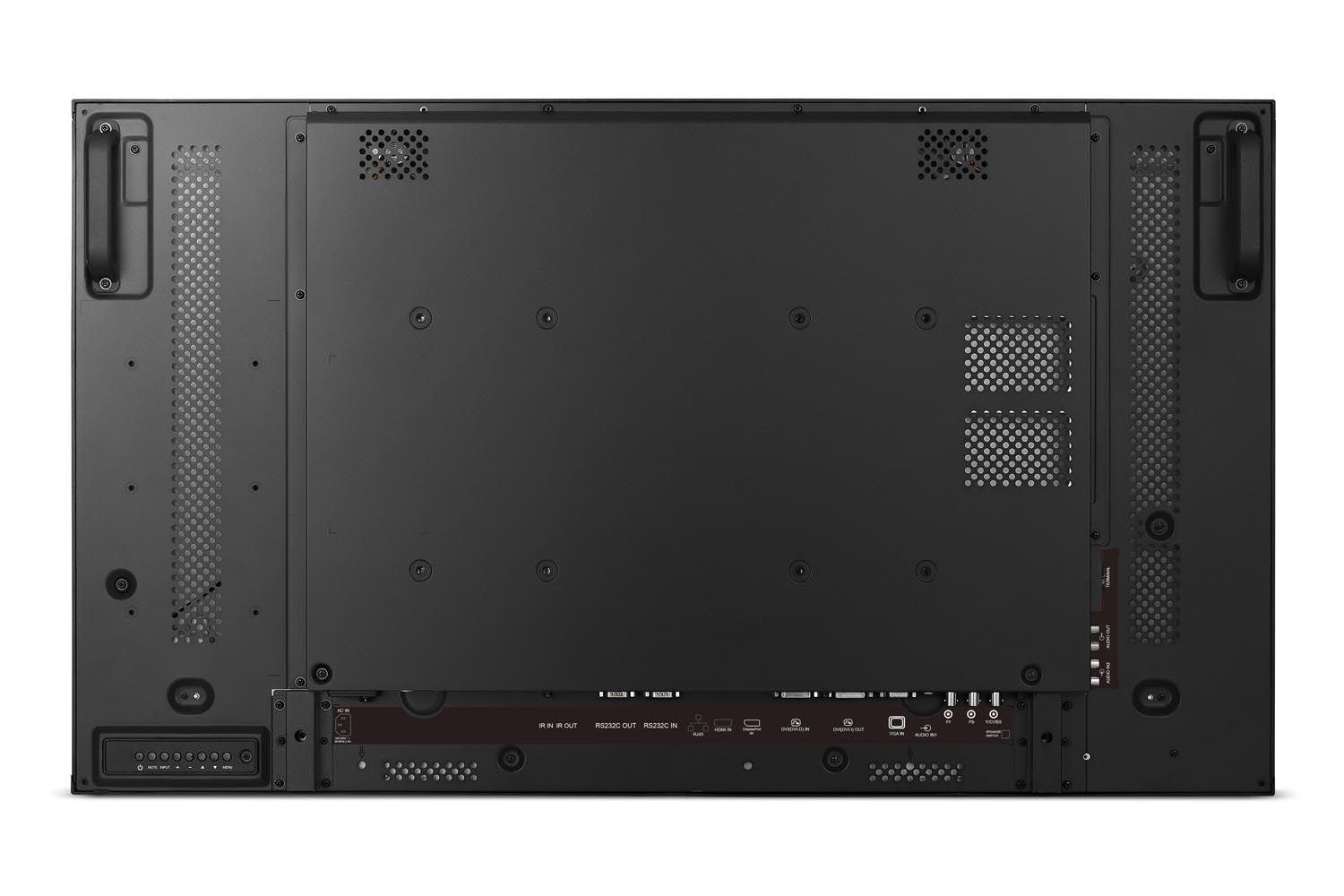

The CDP4262-L is VESA-compliant (400x400mm) and can be mounted in either portrait or landscape orientation for greater display flexibility in a variety of settings.

Dual Stereo Speakers for Crystal-Clear Sound

With a pair of integrated 10W speakers, the CDP4262-L combines eye-catching multimedia content with high-quality sound effects—creating a lasting audio-visual impression on your target audience or demographic.

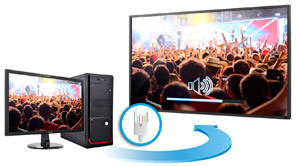

LAN control for Remote Content and Display Settings

The CDP4262-L has an integrated RJ45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can also remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.

SPECIFICATIONS


  • Display
    Panel Size: 42"
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 930.24(H) x 523.26 (V) (42” diagonal)
    Aspect Ratio: 16:9
    Native Resolution: 1920 x 1080
    Colors: 1.07 Billion
    Brightness: 700 nits (typ.)
    Contrast Ratio: 1300:1 Typ.
    Response Time: 12ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours Typ.
    Surface Treatment: Hard coating (3H)
    Orientation: Landscape / Portrait
  • INPUT
    HDMI: x1
    RGB / VGA: x1
    DisplayPort: x1
    DVI: x1
    Audio: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R)
    CVBS: x1
    YPbPr: x1
    RS232: x 1
    IR Pass Thru: x1
