OVERVIEW

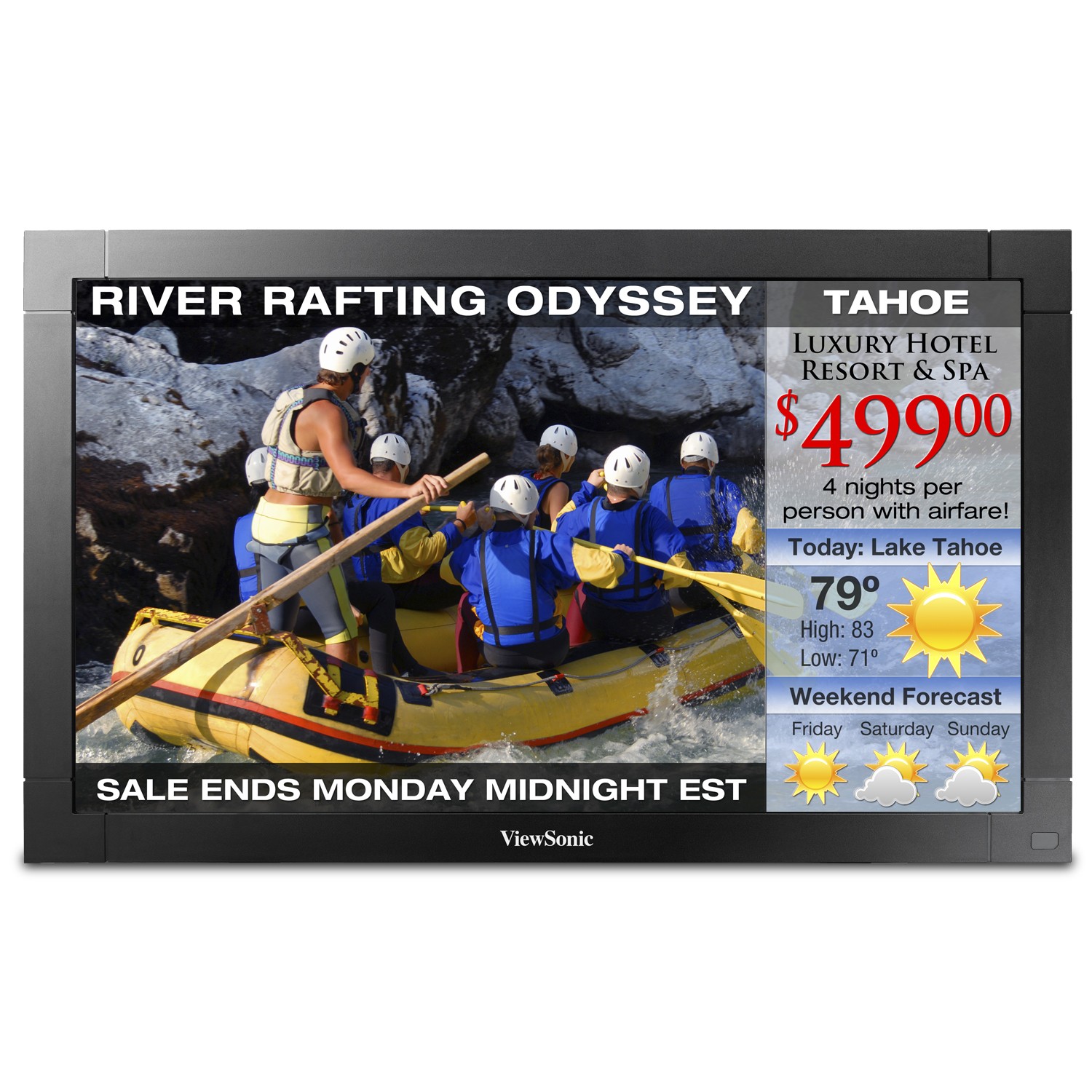

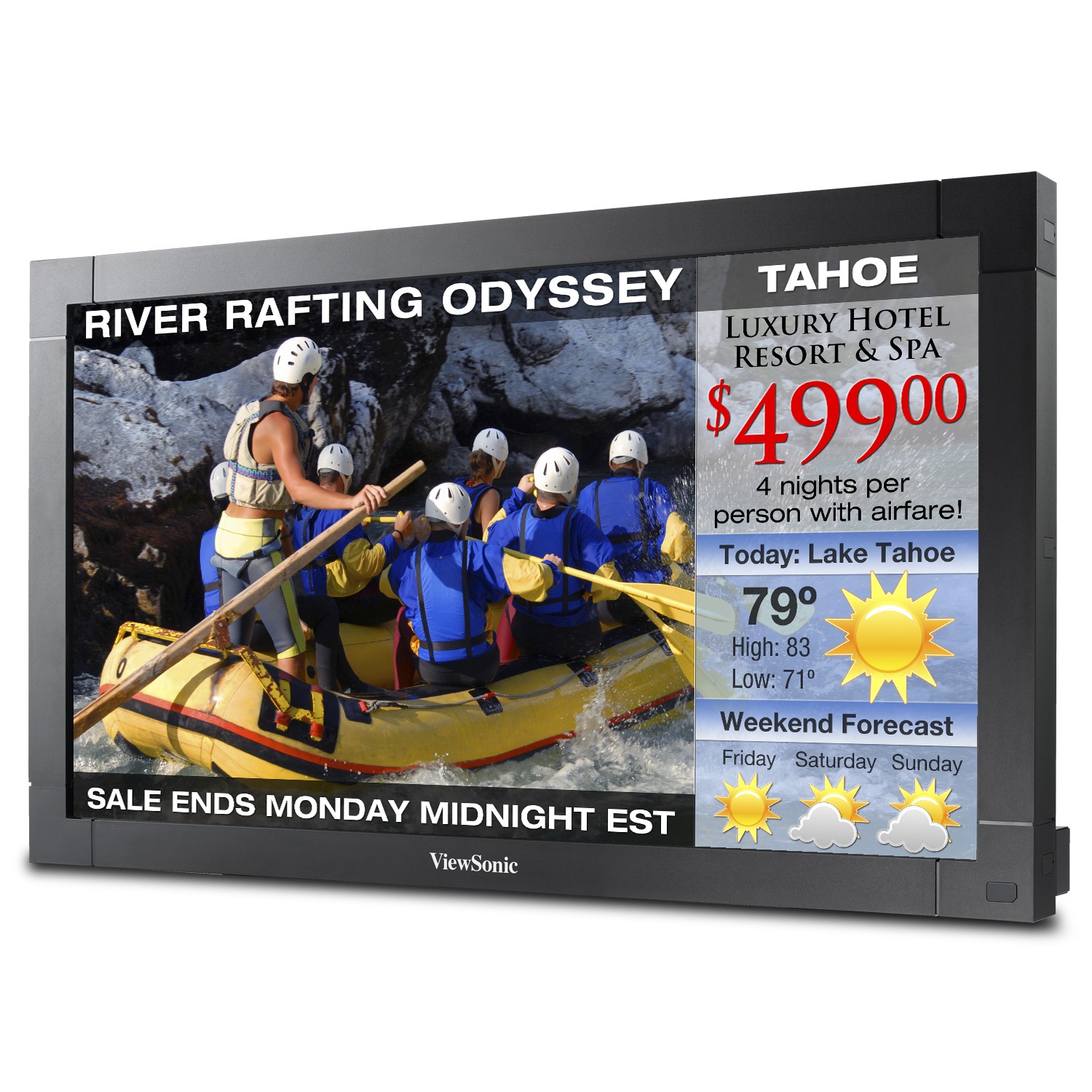

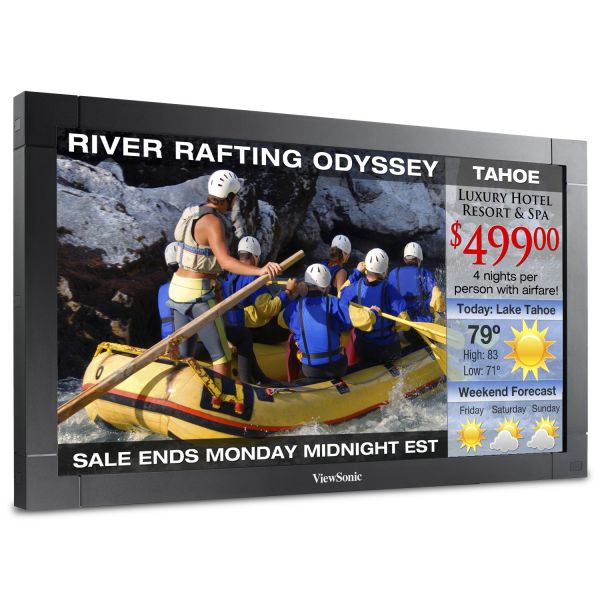

The ViewSonic® CDP3235 HD commercial display is the perfect solution for applications requiring a 32" commercial display capable of a duty cycle of 24/7 operation. The CDP3235 HD commercial display features a 1366x768 HD panel with 3000:1 contrast ratio. Additional features include versatile inputs – HDMI, DVI, VGA, S-video and composite, component video and built-in 10W x 2 speakers. The CDP3235 will support up to a 5x5 display video wall with internal clock and scheduler. RS-232 daisy chain capability and a RJ45 connection for LAN remote control are also provided.

Production Description

Features

  • 32” (31.5”) HD 1366X768 resolution panel
  • Designed for 24/7 applications
  • Built in 5x5 video wall support

SPECIFICATIONS


  • LCD
    Type: 32" (31.5" viewable) color TFT active matrix, wide LCD
    Display Area: 27.5" horizontal x 15.4" vertical; 31.5" diagonal
    Optimum Resolution: 1366x768, 530mm dot pitch
    Contrast Ratio: 3000:1 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Response Time: 6.5 ms
    Light Source: Long life, 50,000 hrs. (typ)
    Brightness: 450 cd/m2 (typ)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
  • INPUT

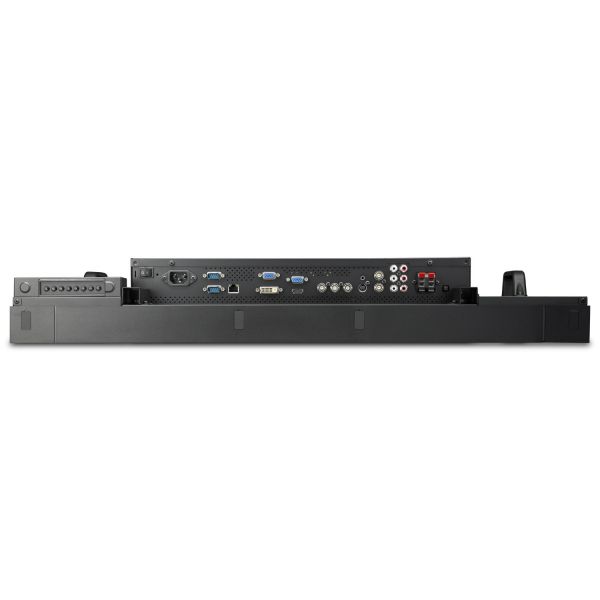

    Video Input: HDMI, DVI, component, VGA, S-Video, composite
    Control Input/Output: RS-232/RJ45
  • AUDIO
    Speakers: Internal 10-watt (x2)
