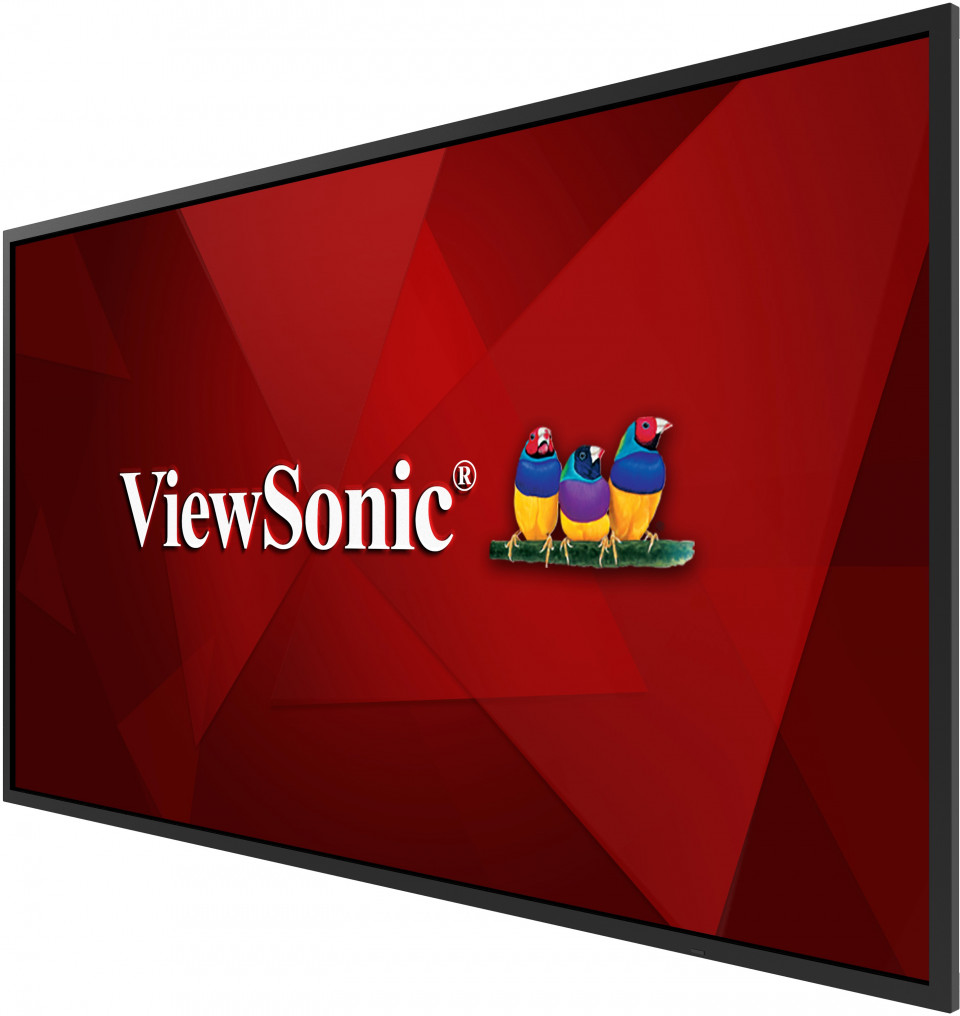

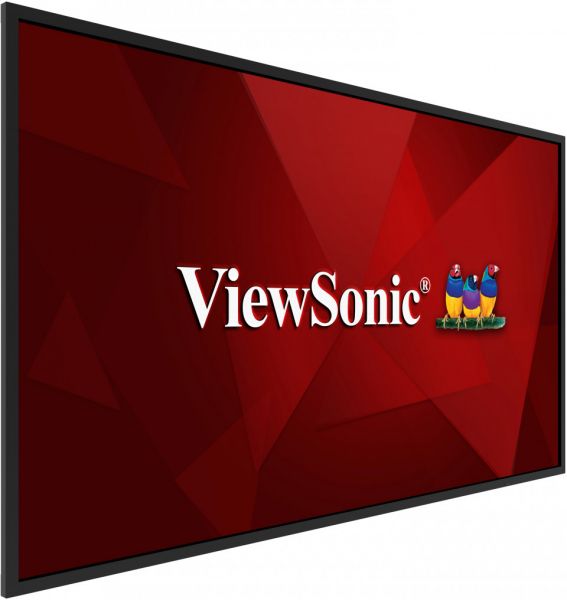

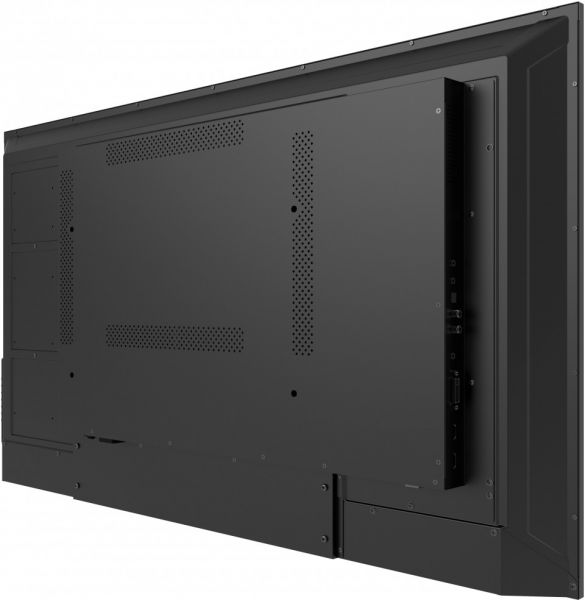

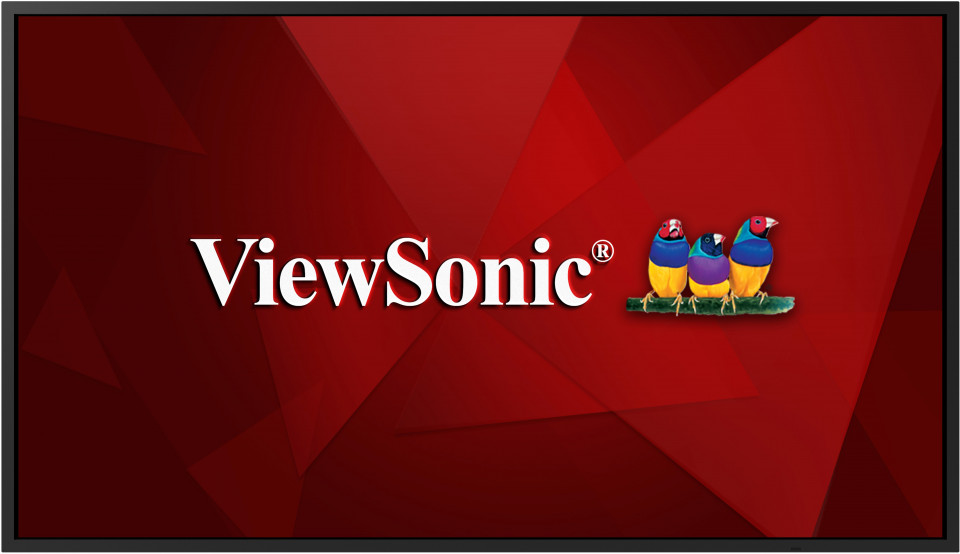

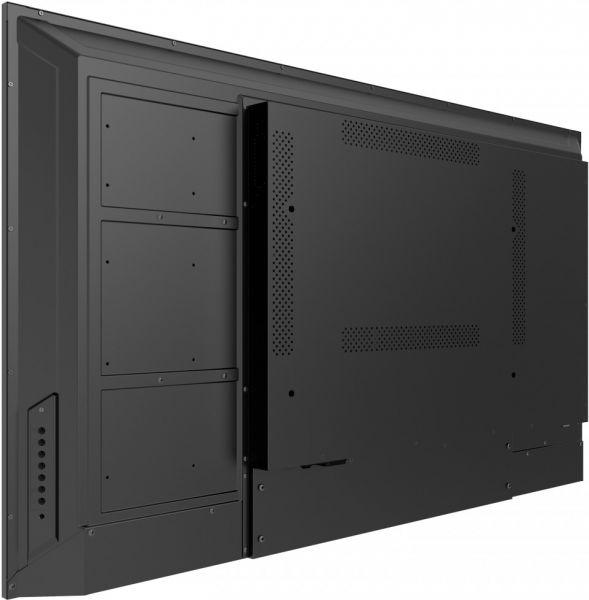

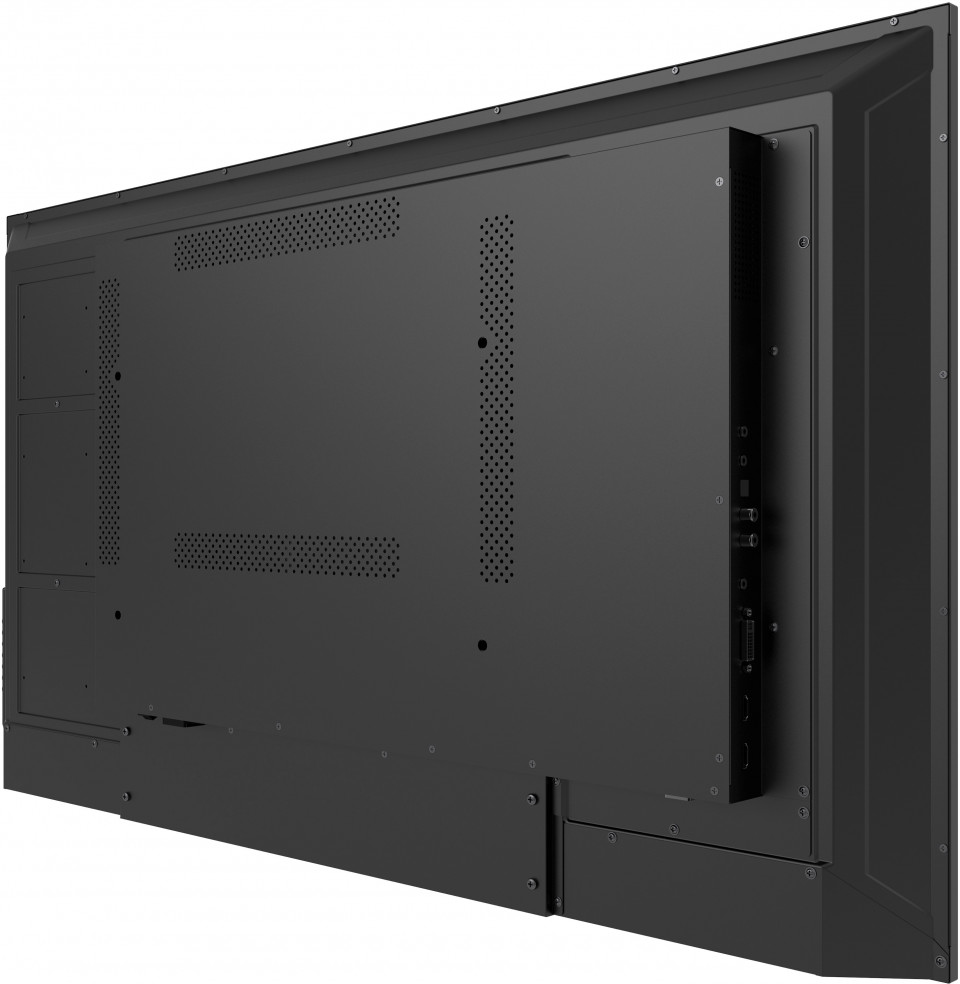

CDE5520

55" 4K Ultra HD Commercial Display

  • Slim, even bezel and chassis
  • USB playback photos, music & video
  • Easy multi-screen setups
  • Remote configuration and content management
  • Multiple HDMI devices control
  • Wireless content sharing across devices
Sales Enquiry

OVERVIEW

The ViewSonic® CDE5520 is a 55’’ commercial display with a slim, even bezel, offering the combination of cost-efficiency and ease of installation for corporate, retail and hospitality environments. This reliable commercial display is equipped with a quad-core processor, internal memory, and dual 10W speakers, allowing constant multimedia play from internal storage or a USB flash drive. Supporting a USB-programmable hospitality setting, remote configuration, and content management systems, each display will have the same customized default and content in the same hotel or shop. Versatile connectivity options include 2 HDMI-IN ports, RS232 input, SPDIF output etc. Allowing 1080p content to be streamed from mobile devices, ViewSonic® CDE5520 is also suitable for meeting application.

Slim, Even Bezel and Chassis

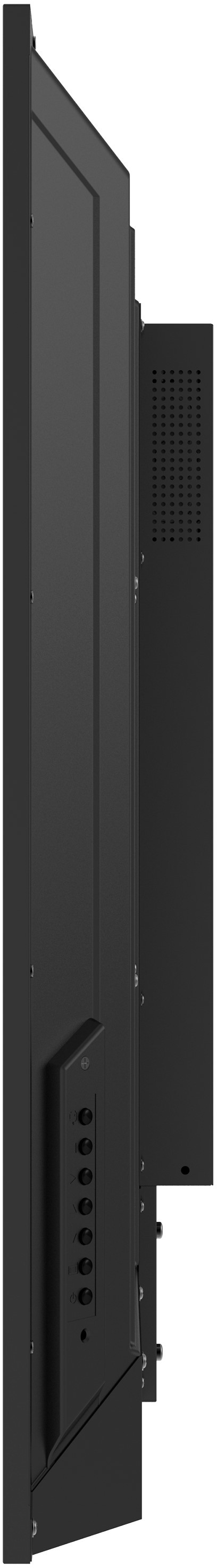

With a bezel width of only 1.3 cm, this commercial display delivers stunning images in a thin chassis.
1.3 cm bezel

USB Playback Photos, Music & Video

A powerful multi-core media player enables photo, music and video playback in seconds using just a USB connection.
Integrated USB multimedia player

Easy Multi-Screen Setups

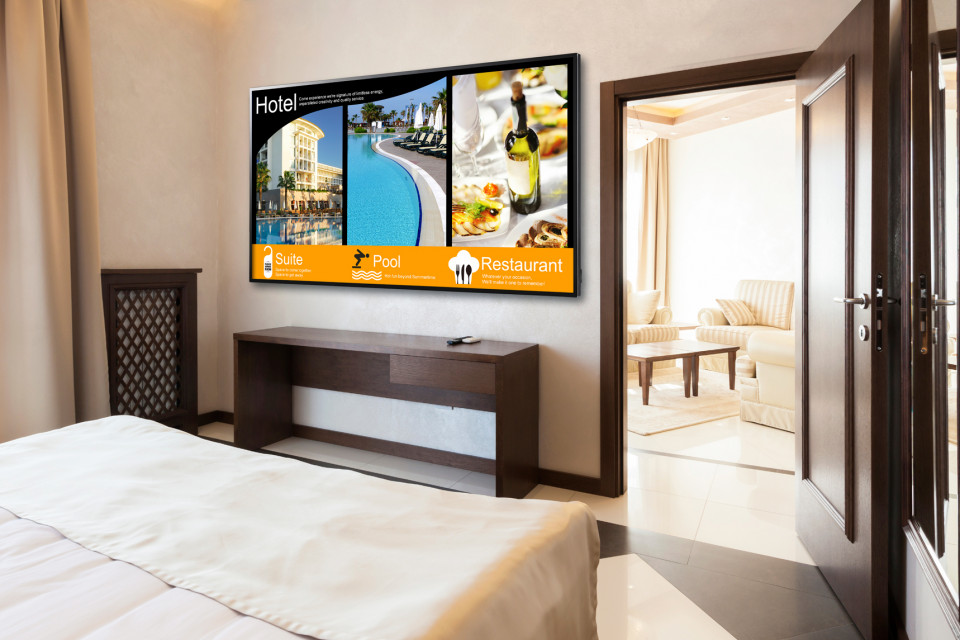

This display is great for multi-screen setups in hotels, restaurants, sports bars, or retail outlets that require duplicated setup and customizable presets. With a USB-programmable hospitality setting, each display will have the same customized channel default, audio level, front-panel lockout, and auto power-up settings.
Hospitality Mode

Intranet/Internet-Based Settings & Content Management

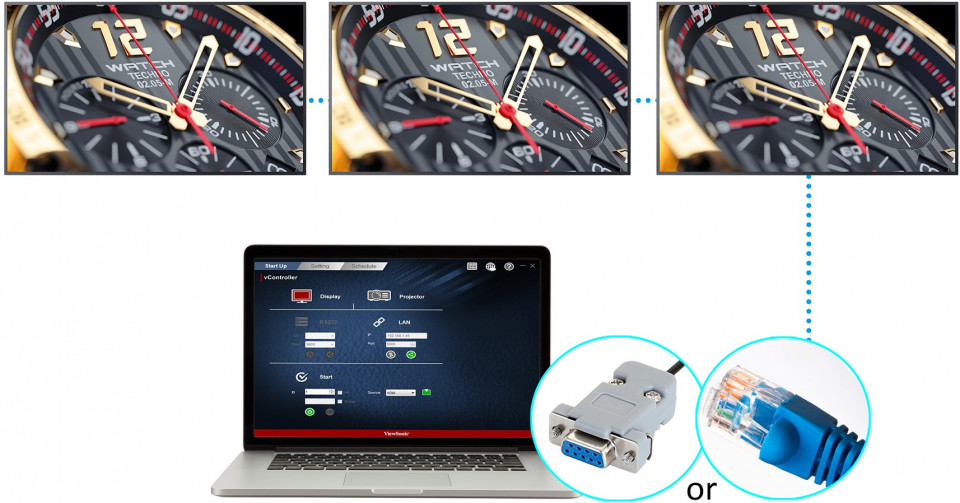

vController™ software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN. The compatible software SureMDM and Revel Digital allows you to transfer multimedia content onto the display from virtually any device and any location.
vController, SureMDM, Revel Digital

Multiple HDMI Devices Control

With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display’s remote controller.
HDMI CEC local control

ViewBoard® Cast Content Sharing Software

ViewBoard® Cast is a content sharing app for mobile devices* that enables 1080p content to be streamed from a user’s device onto ViewBoard® wirelessly or over a cable network. *Chrome, Android, Windows, Mac OS, and iOS compliant
Across devices with the app

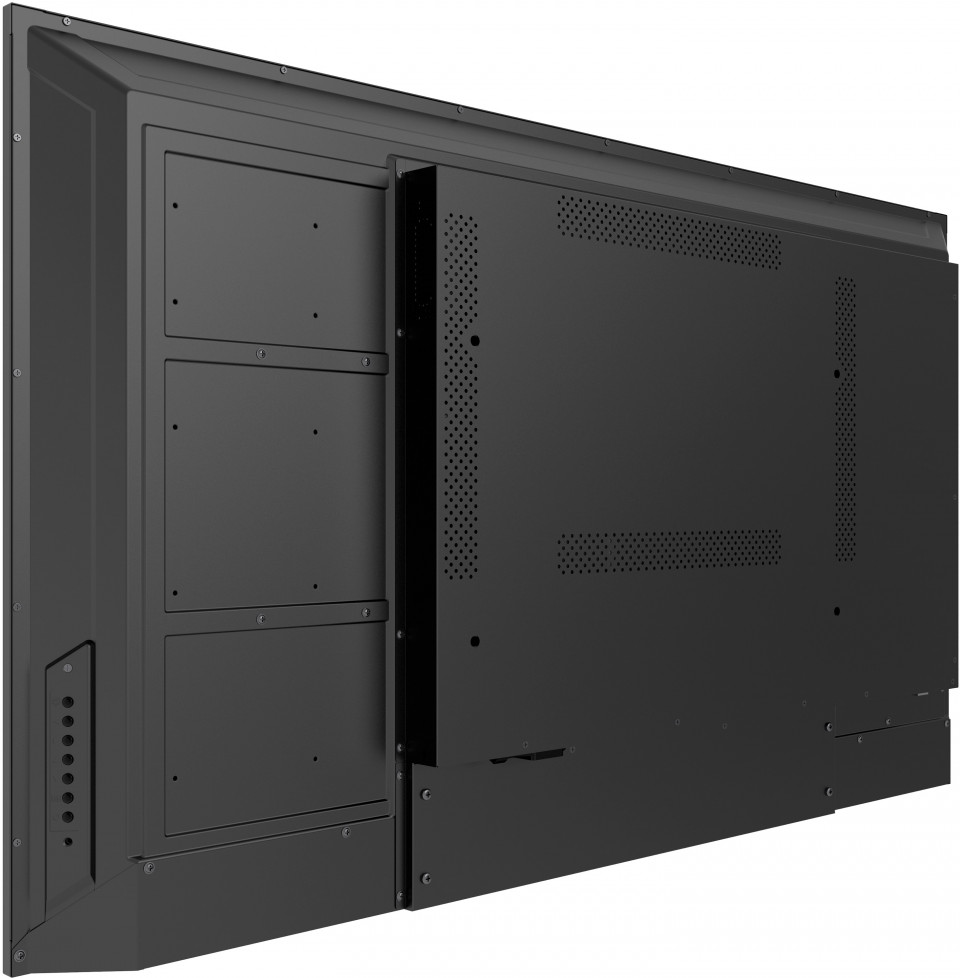

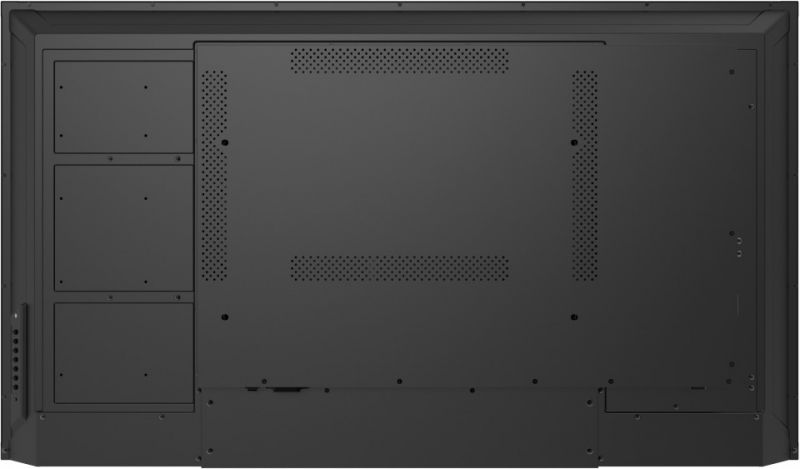

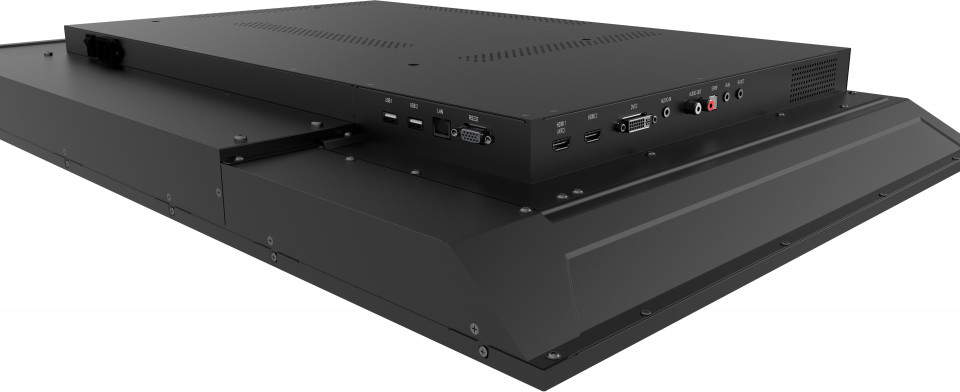

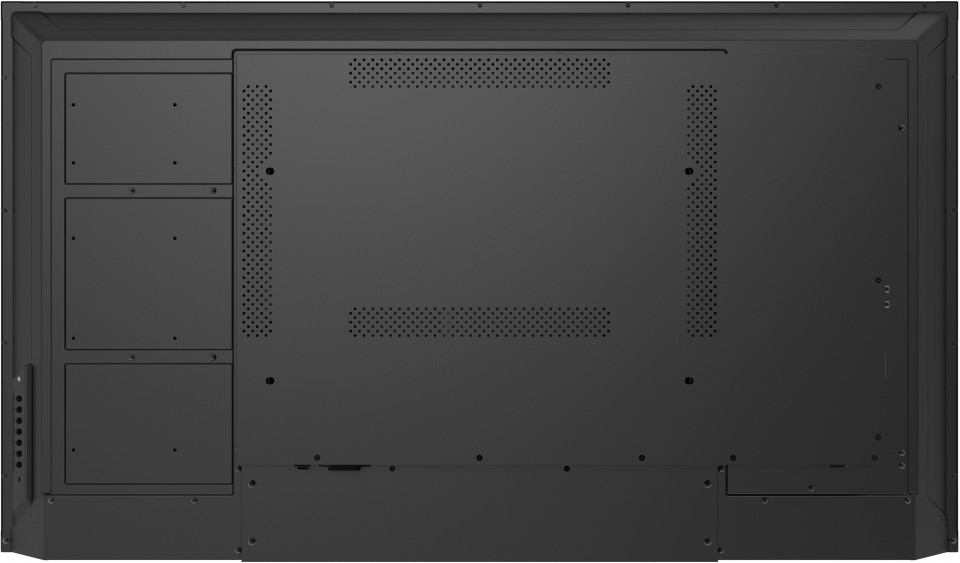

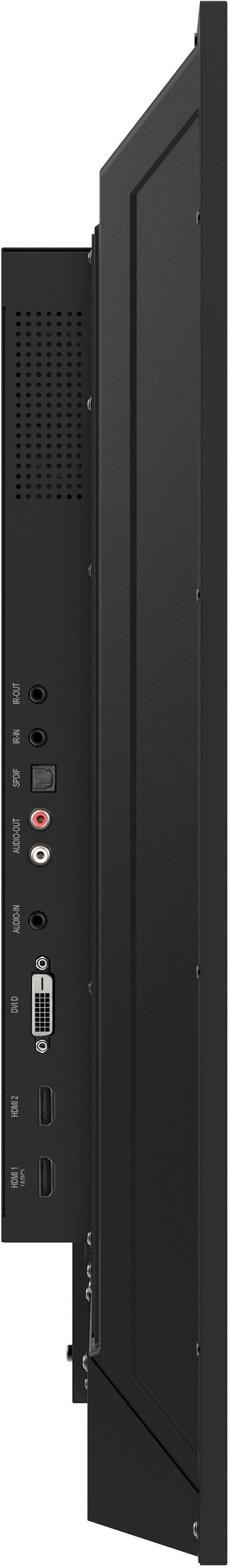

Dimensions & I/O Ports

  1. Internal Speakers
  2. VESA® Compatible Wall Mount 400x400mm
  3. Menu Controls
  4. Power Switch
  5. AC In
  6. IR In/Out
  7. SPDIF
  8. Audio In/Out
  9. DVI-D In
  10. HDMI 2.0 In(x2)
  11. RS232 In
  12. LAN
  13. USB 2.0 Type A(x2)

SPECIFICATIONS


  • Display
    Panel Size: 55"
    Type/ Tech: "TFT LCD Module. IPS type, DLED backlight"
    Display Area (mm): 1209.6 (H) x 680.4 (V) (55” diagonal)
    Native Resolution: 3840 x 2160
    Aspect Ratio: 16:9
    Colors: 1.07B colors
    Brightness: 400 nits (typ.)
    Contrast Ratio: 1200:1 Typ.
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours Min
    Surface Treatment: Anti-Glare, 2H, Haze 3%
    Bezel: Slim
    Orientation: Landscape
  • INPUT
    HDMI: x2
    DVI: x1
    Audio: x1 (3.5mm)
    RS-232: x1
    IR Pass Thru: x1
  • OUTPUT
    Audio: x1 (RCA)
    SPDIF: x1 (Fiber)
    IR Pass Thru: x1
