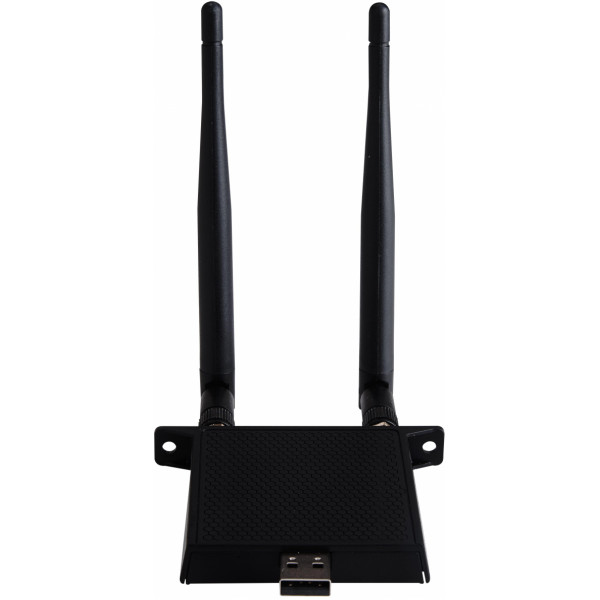

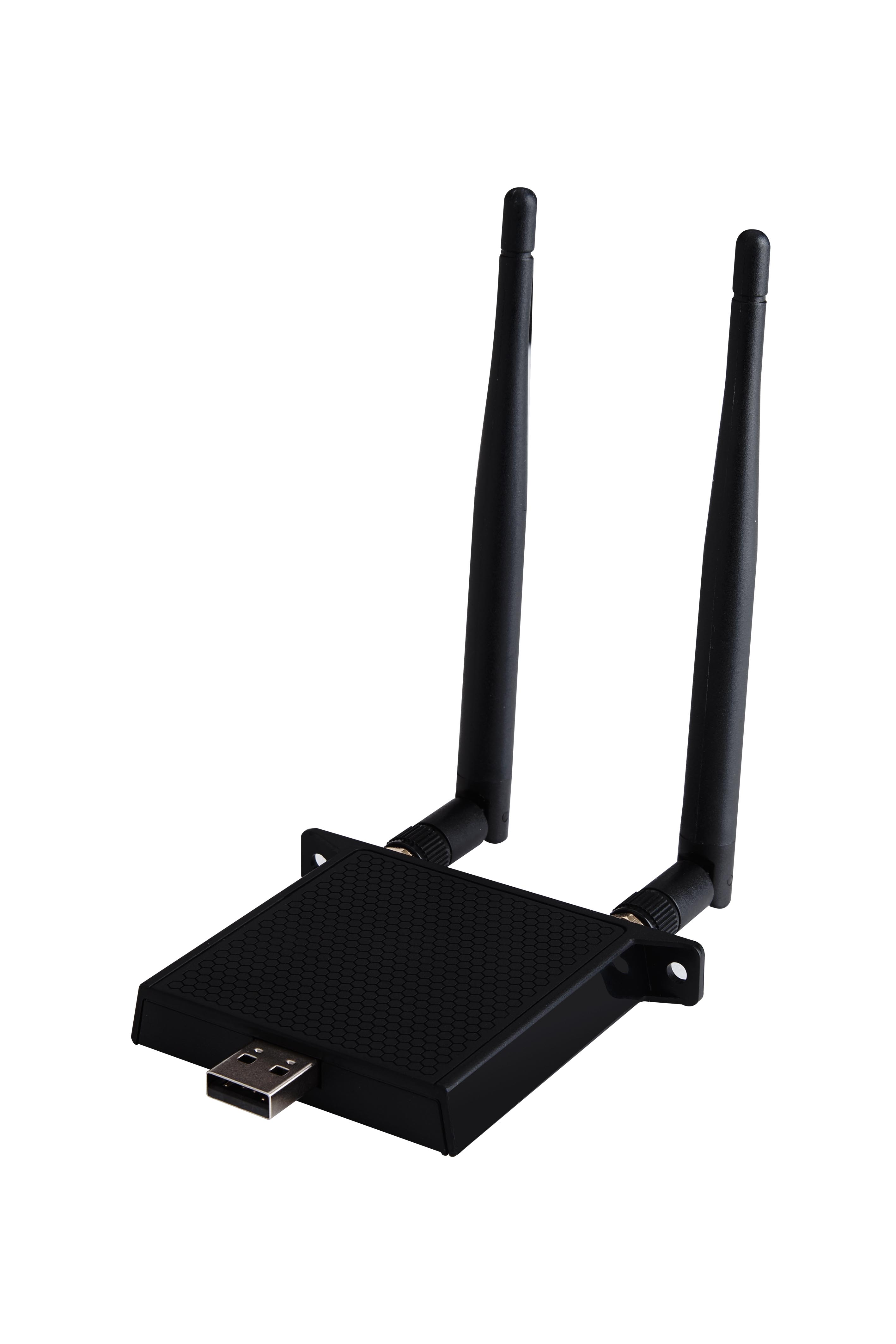

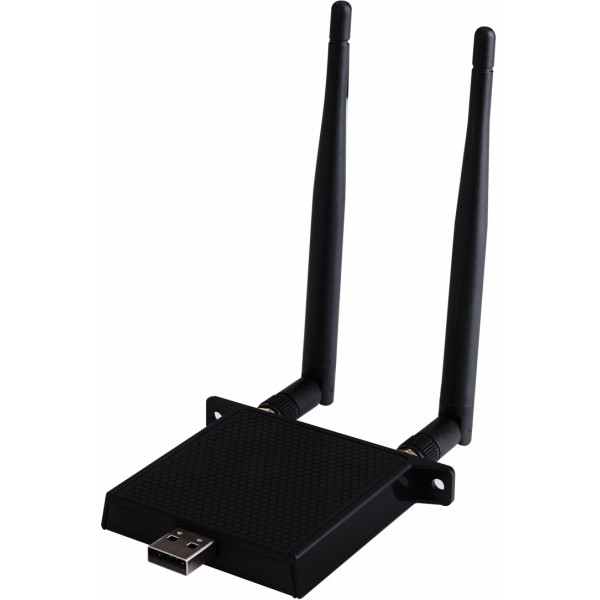

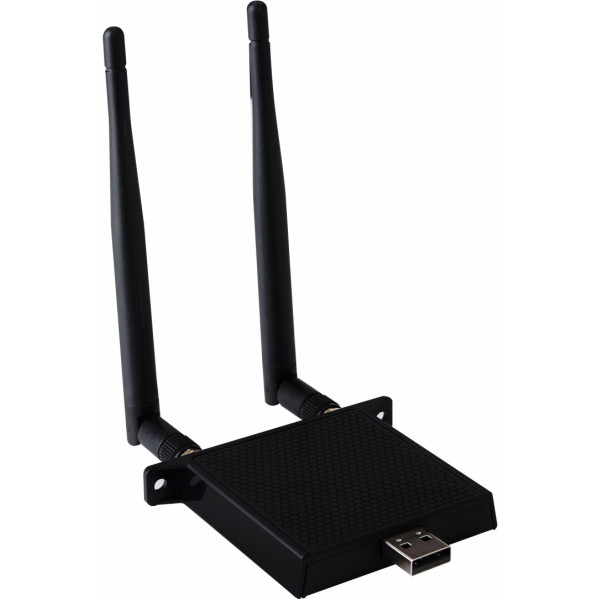

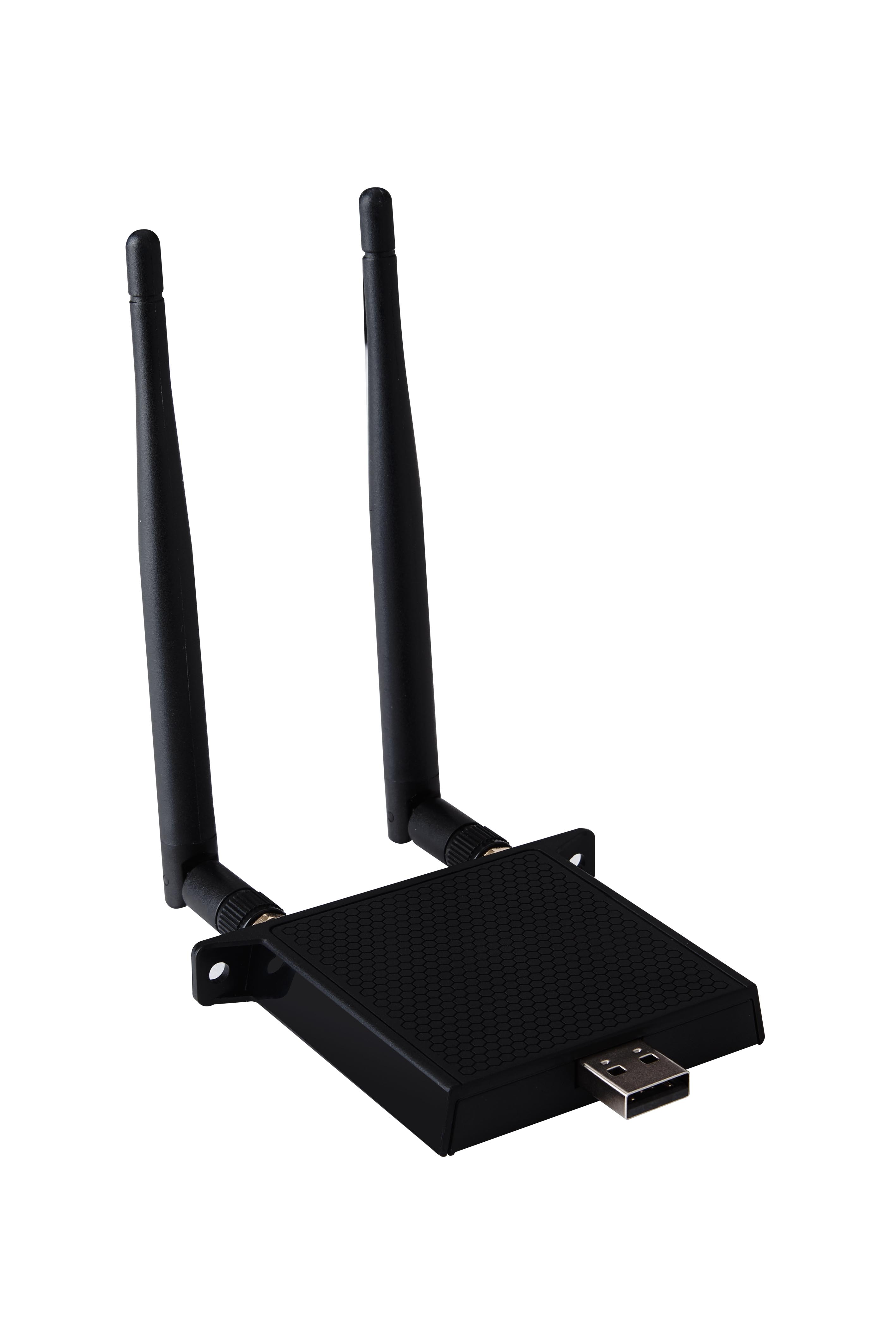

LB-WIFI-001
Dual Band Wireless Module for ViewBoard® IFP50 Series and IFP70(86”, 65”) series and CDE20 series(65”~86”)
개요
The ViewSonic LB-WIFI-001 wireless module delivers fast wireless internet connection for ViewSonic ViewBoard® interactive displays - IFP50 series and IFP70(86”, 65”) series and CDE20 series(65”~86”). It supports dual frequency 2.4GHz and 5.0GHz bandwidth, along with the newest 802.11AC standard to provide up to 433Mbps transmission.Dual Band Wireless Support
2.4GHz and 5GHz, smooth playback
This device offers a 2.4GHz and 5GHz dual band wireless transmission that smoothly streams multimedia content such as videos and images, without any delays. The 2.4GHz frequency is perfect for web browsing and presentations, while the wider bandwidth of 5GHz is perfect for streaming high-quality videos and games.
Faster Wi-Fi
802.11AC wireless network
Wireless 802.11 AC delivers incredibly fast Wi-Fi performance with internet speeds of up to several gigabits per second.
스펙
- 코어CPU: Realtek RTL8821AU-VS
- 보관소인터페이스: USB 2.0
- 무선 / 블루투스Wifi Standard: 802.11 a/b/g/n/ac,
2.4G & 5G(5150MHz-5250MHz & 5725MHz-5825MHz), Up to 433.5Mbps
Bluetooth: Support 2.1/3.0/4.0 BLE
- 힘전압: 5V DC
소비.: < 2.5W - OPERATING CONDITIONS온도(θ C): 32°F to 104°F (0°C to 40°C)
습도: 10% ~ 90% non-condensing - DIMENSIONS 물리적(인치/mm): 3.90x0.43x3.03 in / 99x11x77mm
포장(inch/mm): 3.54x0.63x6.18 in / 90x16x157mm - WEIGHT순(lb/kg): 0.07lb / 30g
총중량(파운드/kg): 0.18lb / 80g - REGULATIONSFCC, FCC ID, IC ID, CE, RCM
- 패키지 내용물1. LB-WIFI-001
2. QSG - UPC 코드76690791011 7
