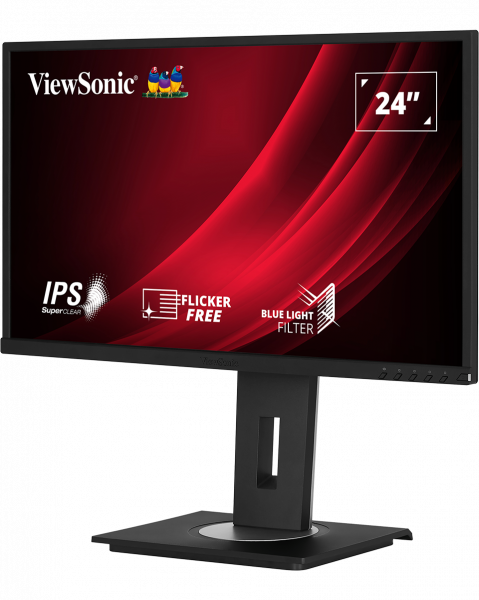

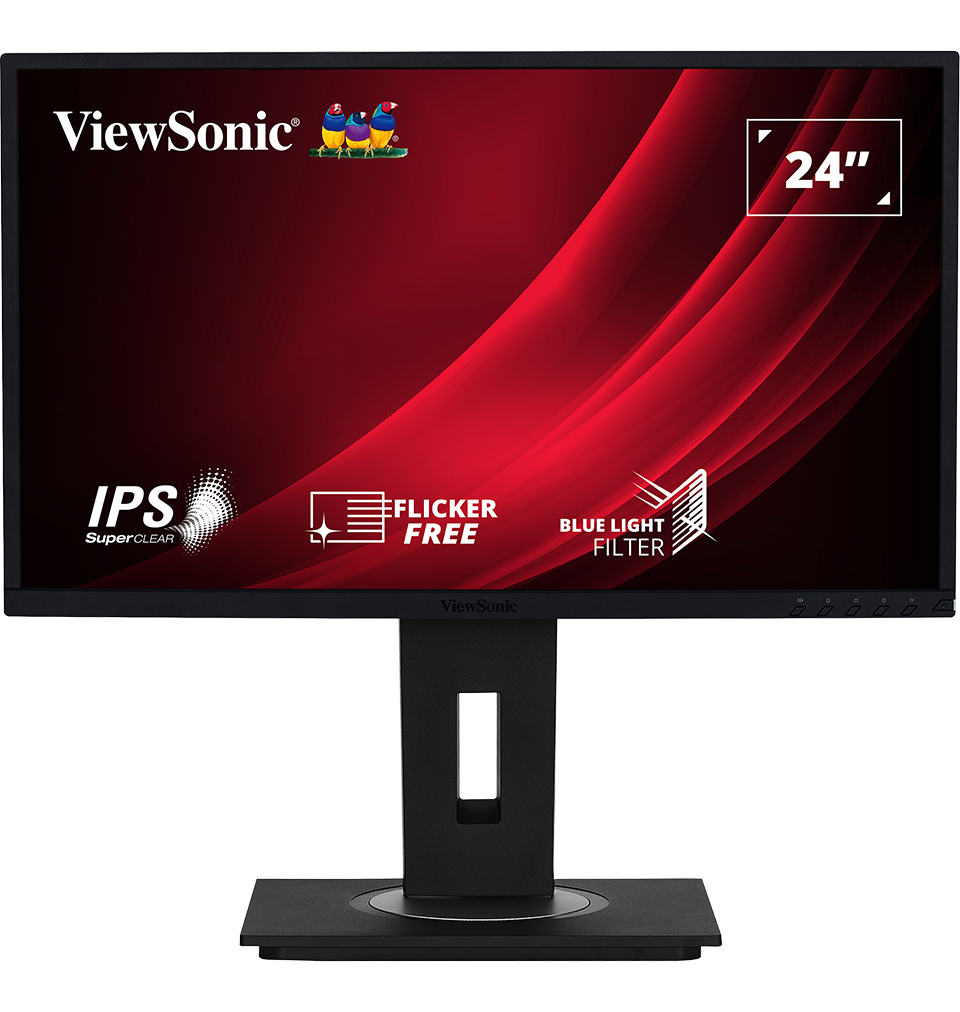

VG2448
エルゴノミクスデザイン採用 23.8型 IPSパネル フルHD 液晶ディスプレイ
- SuperClear® IPSパネル
- 快適さを追求したコンフォートモデル
- 40°のチルト角度・高さ調整機能

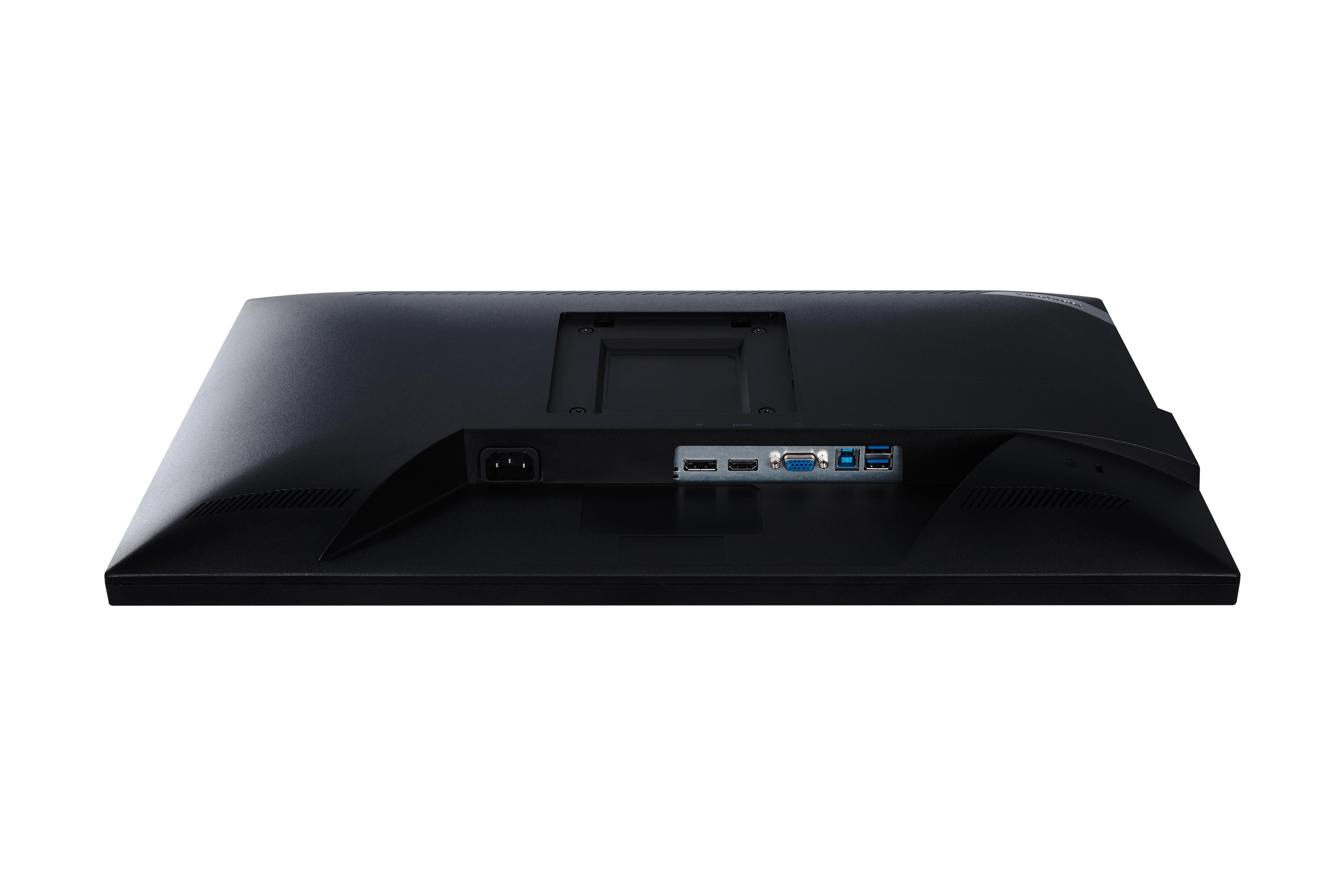

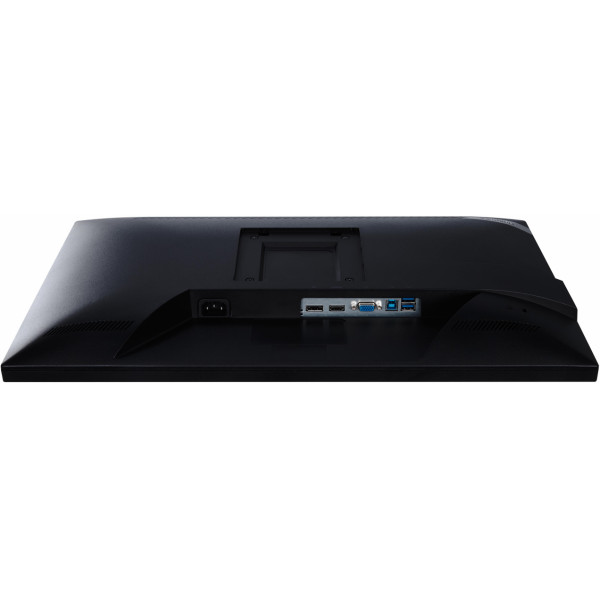

- HDMI、DisplayPort、VGA 端子搭載

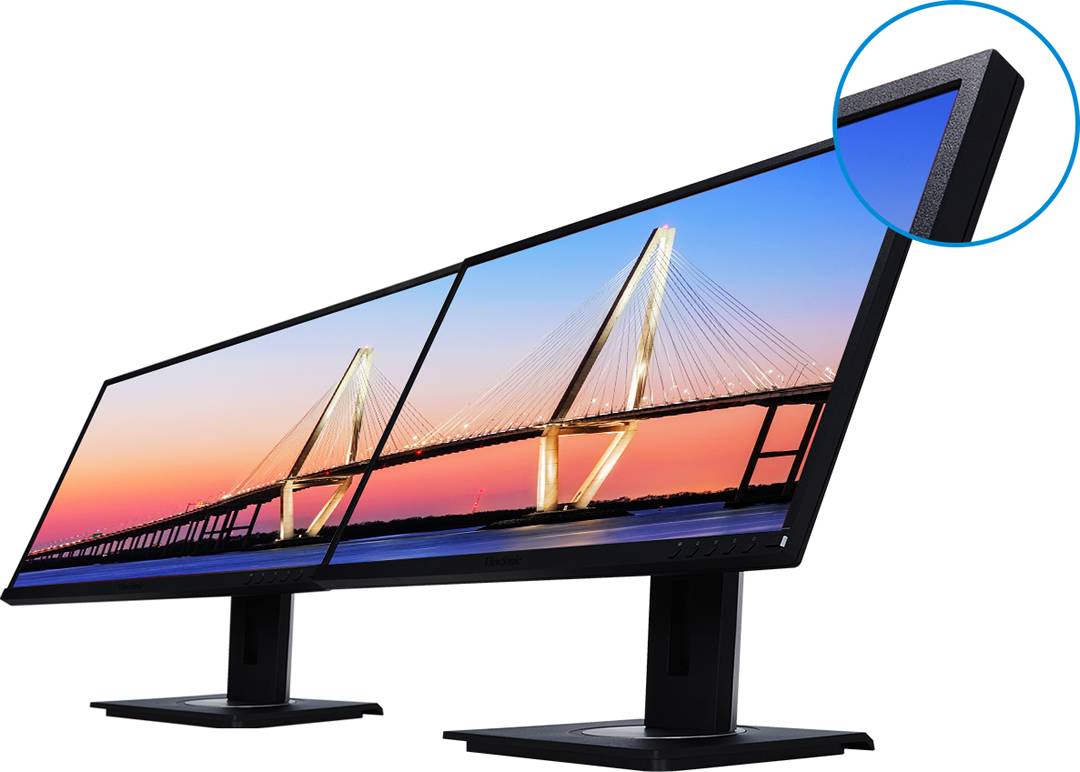

- スリムベゼルデザイン
- フリッカーフリー、ブルーライトフィルター技術搭載
OVERVIEW

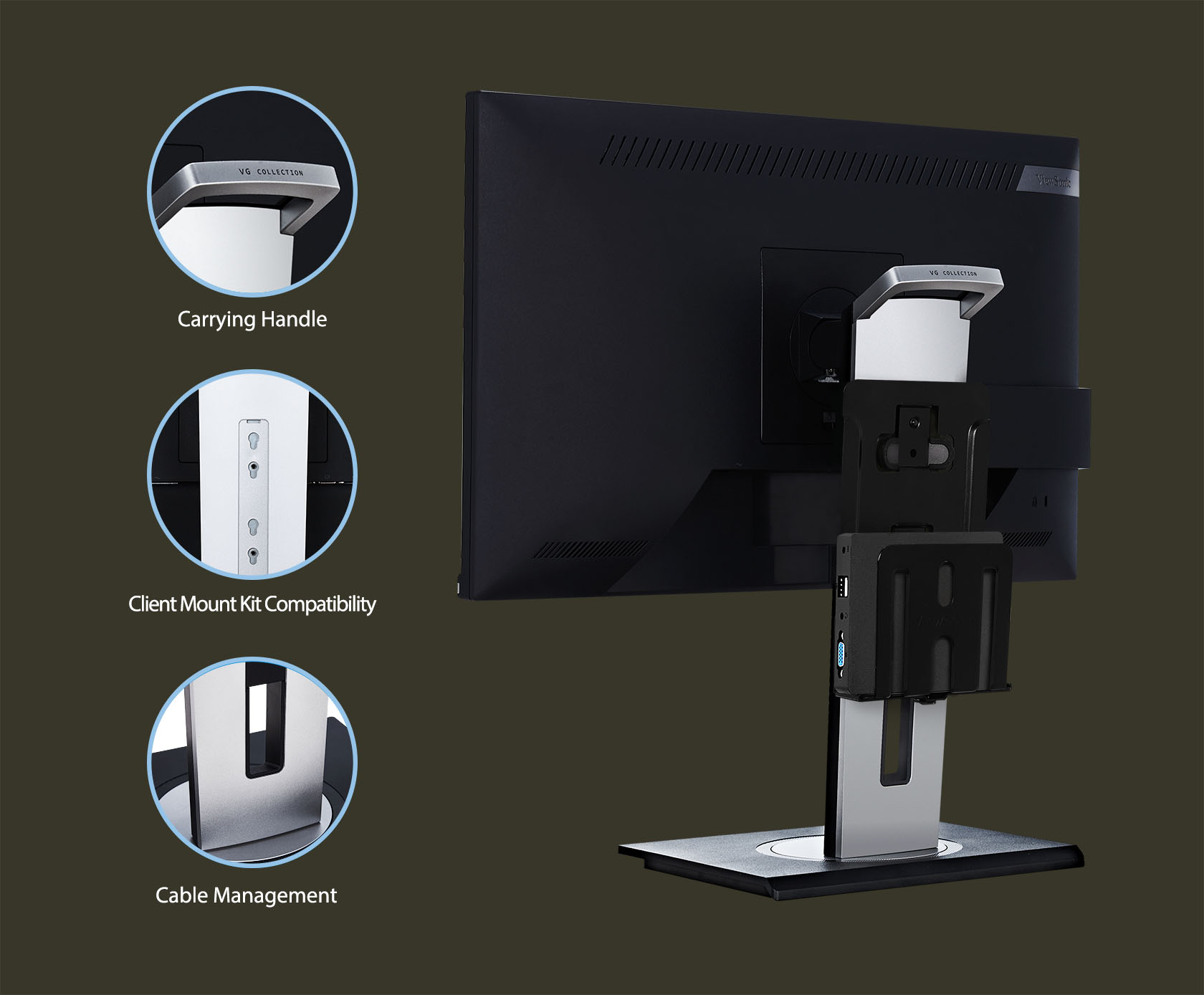

ViewSonic VG2448 is a 24” (23.8’’ viewable) 1080p monitor with productivity enhancing features including IPS technology and an advanced ergonomic design for the modern day office. Utilising SuperClear® IPS technology and 1080p resolution, VG2448 delivers a crisp, clear image from any viewing angle. An advanced ergonomic design offers the widest range of customisable adjustments currently available to provide maximum comfort, including dual direction pivot, swivel, height adjustment, and an impressive 40° tilt, which enables you to use the monitor while standing and to have strategic group discussions around the screen. VG2448 uses environmentally friendly packaging and offers quick and easy out-of-the-box set-up via the Quick Release stand. The cloud client mountable stand coupled with cable management design features, makes VG2448 perfect for deployment in cloud-based environments. Versatile connectivity options include HDMI, DisplayPort, VGA, and USB 3.2 inputs.Adapted to Every Angle of Your Work

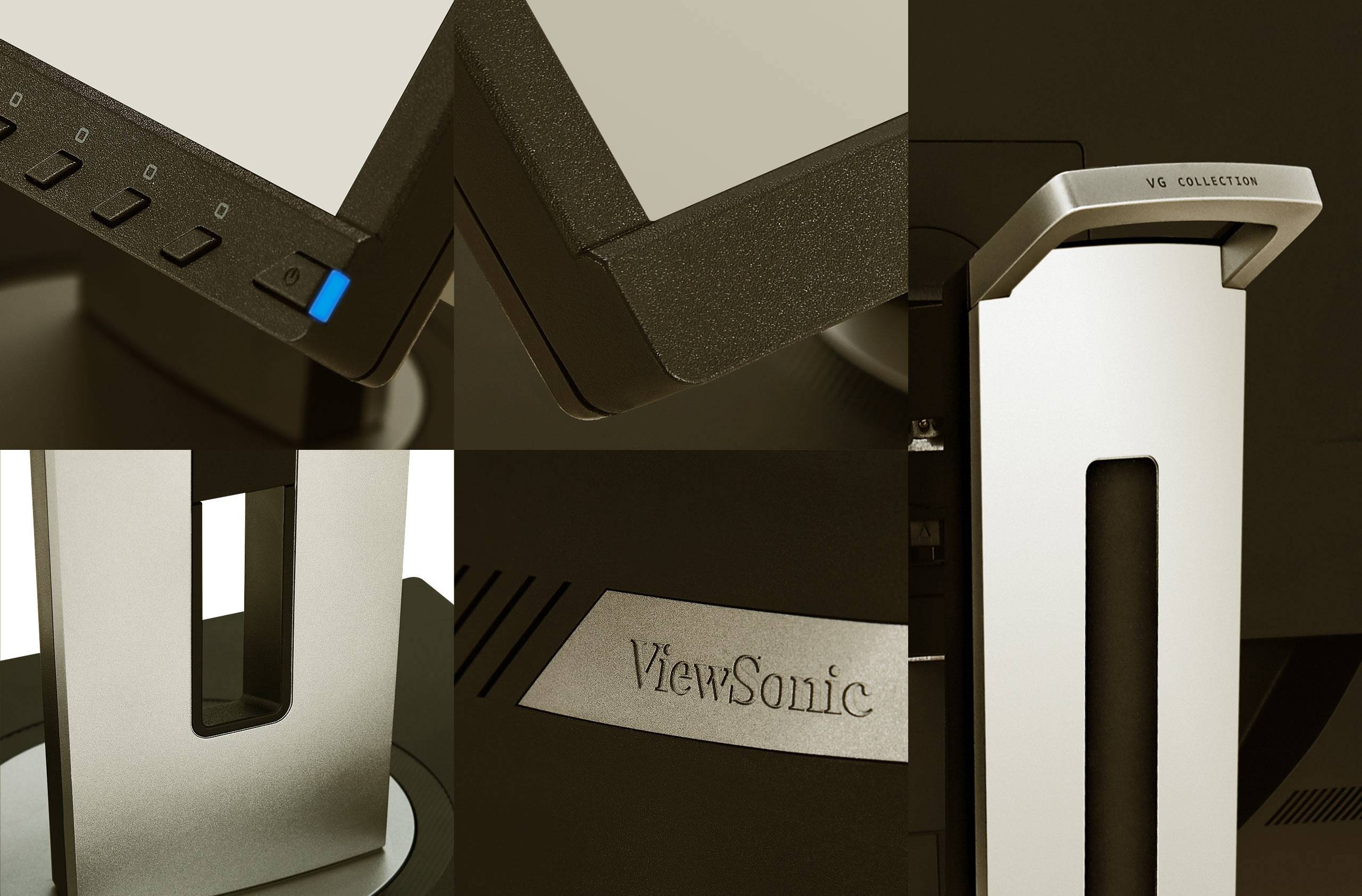

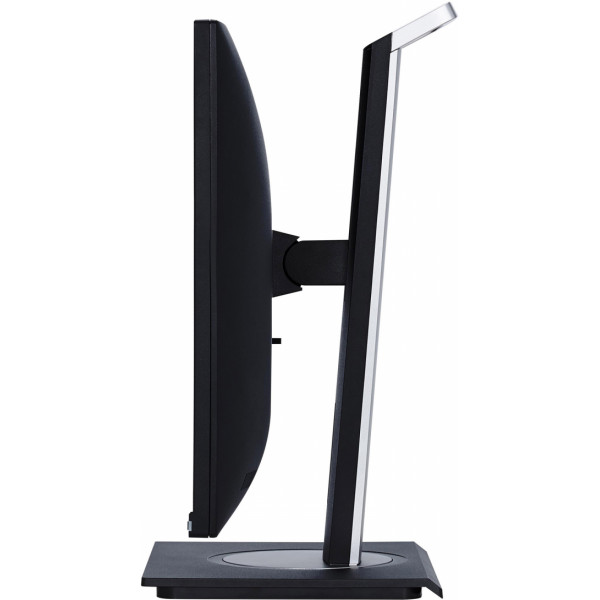

A New Angle on Workplace Ergonomics

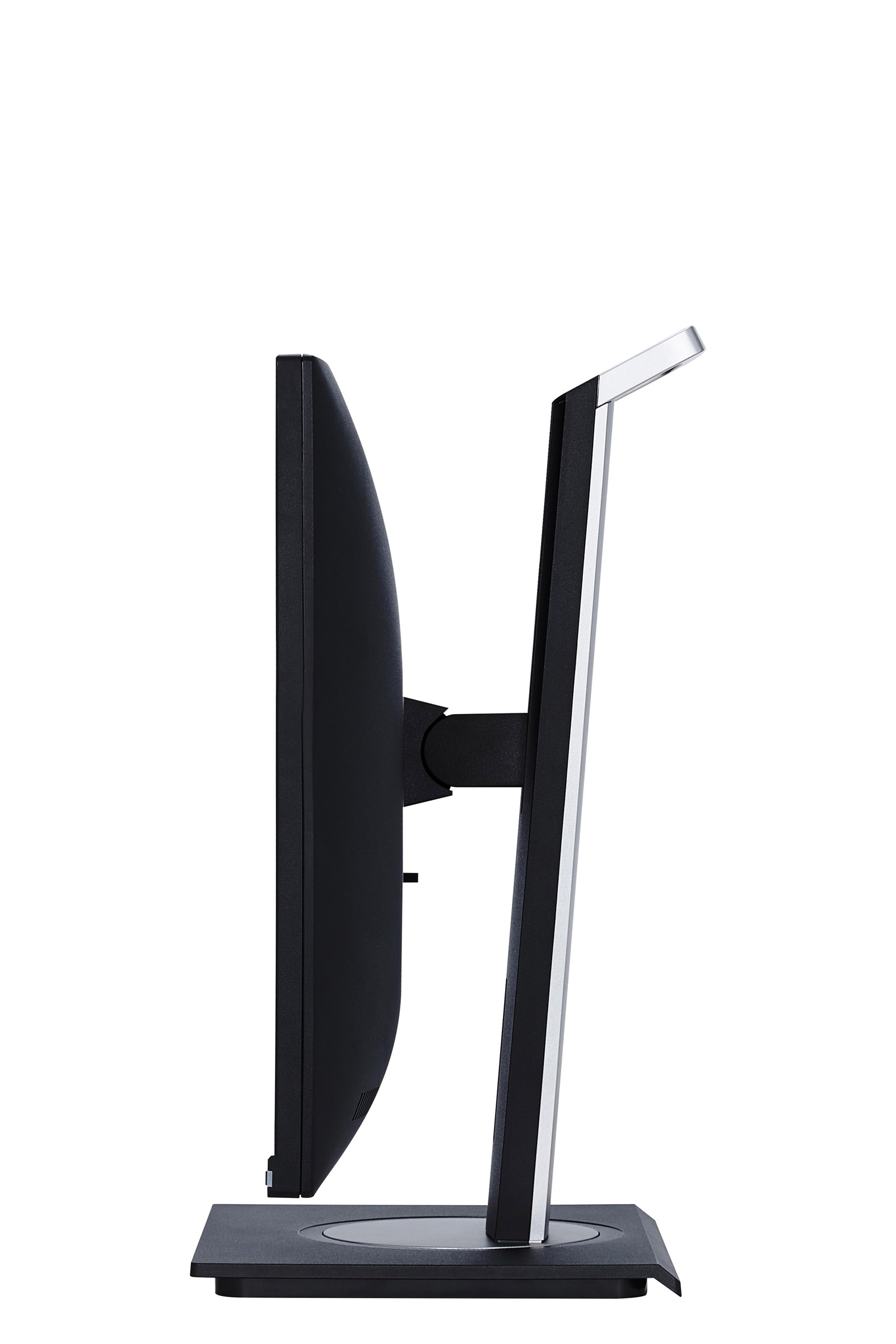

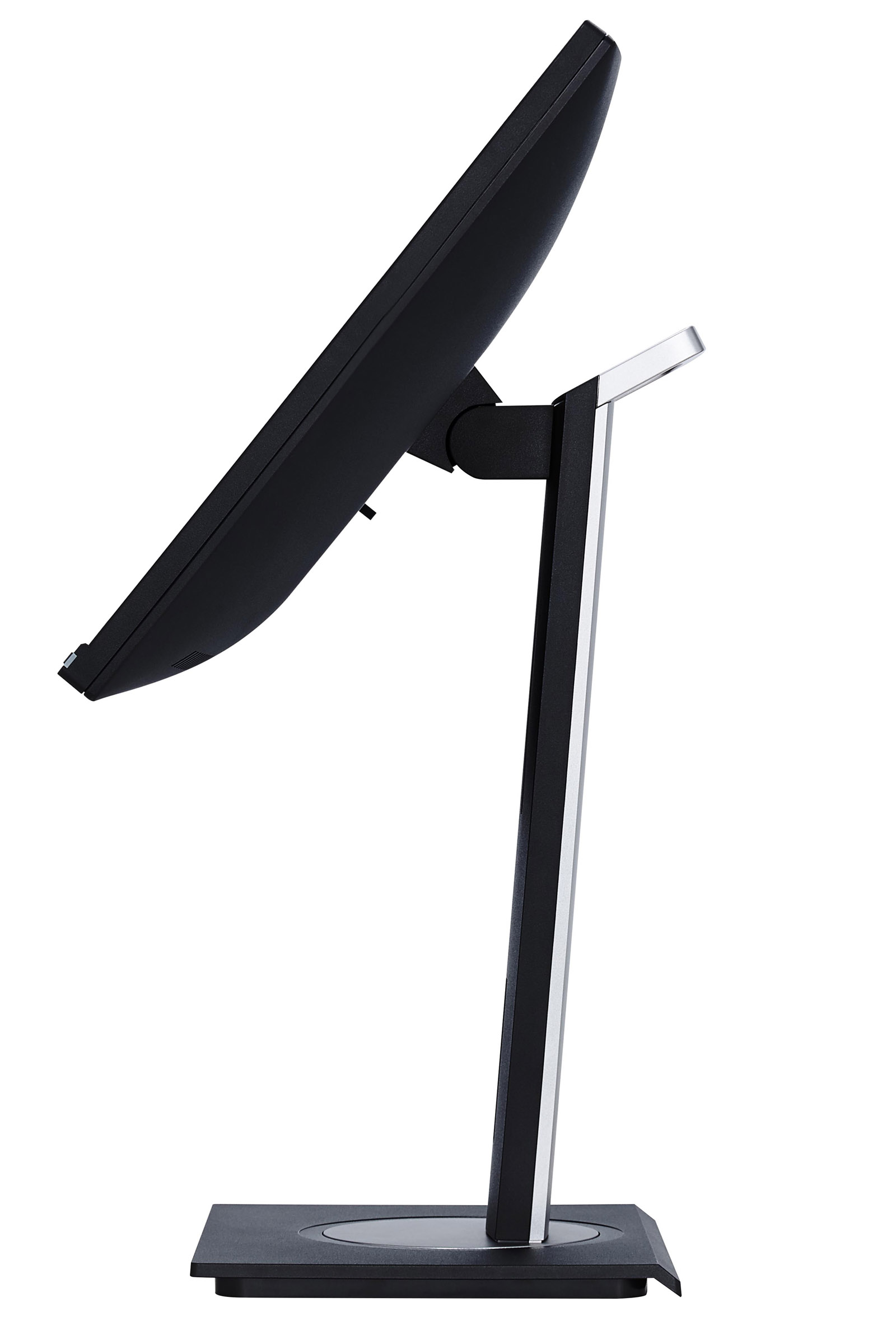

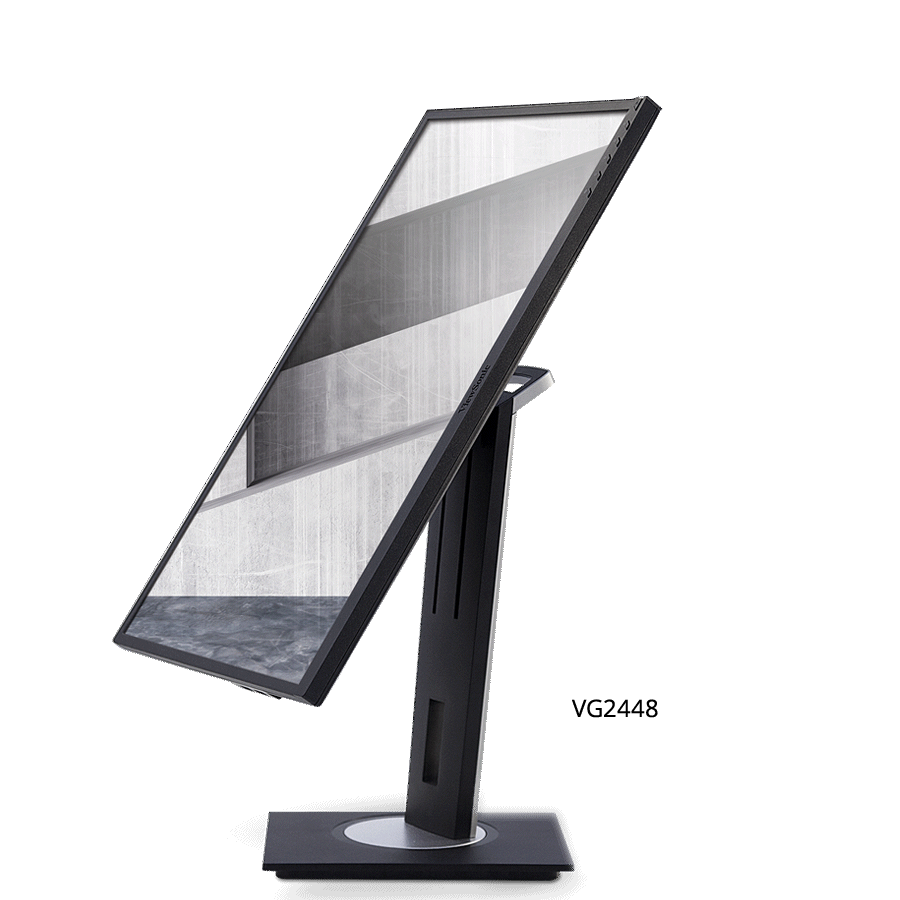

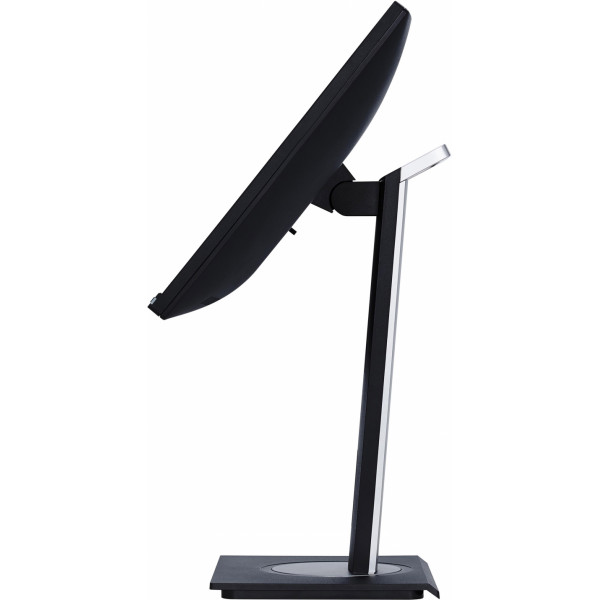

Enjoy every detail with advanced ergonomic include pivot, swivel, and height adjustment to provide a greater range of customizable adjustment for maximum comfort, VG2448 is the first monitor features a 40° ergonomic tilt angle, which enable you to use the monitor while standing or to have strategic group discussion around the screen.

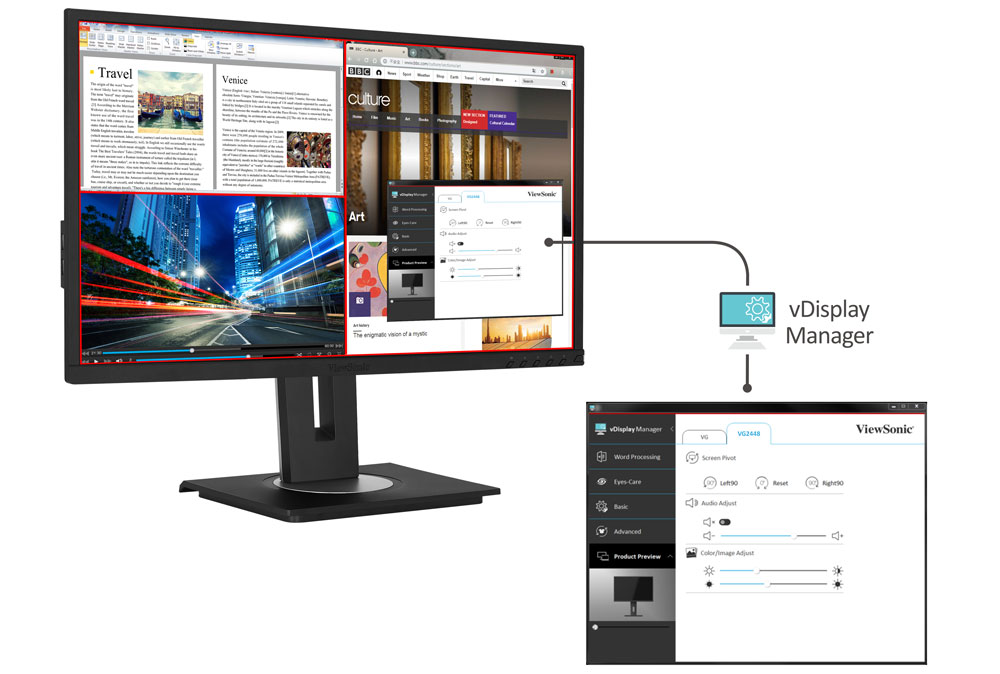

vDisplay Manager
ViewSonic’s proprietary vDisplay Manager software is available for free and allows users to organise and divide their screen into multiple segments. The software also enables users to adjust their monitor settings via the software directly for a more efficient workflow.
Clarity From Any Angle
Enjoy accurate and vivid colours with consistent levels of brightness no matter your vantage point. With SuperClear® IPS Panel Technology, VG2448 monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Imagery has been simulated for demonstration purposes.
4-step Assembly

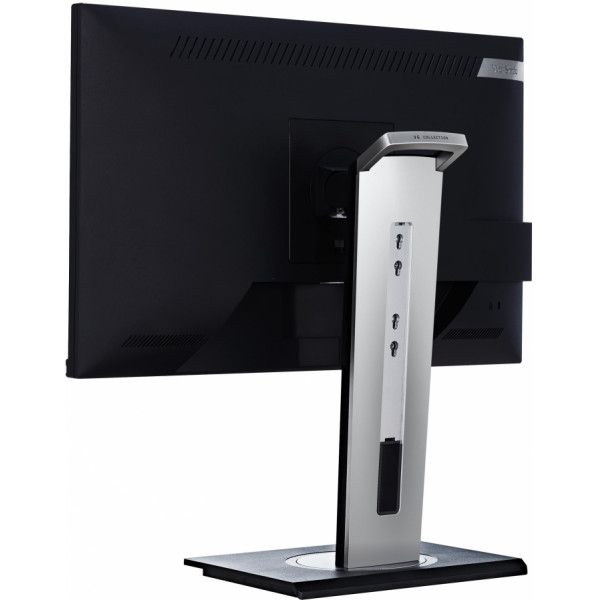

VG2448 utilizes a new quick release stand design which lets you attach/detach the panel with the push of a button. Can be assembled entirely by hand in four simple steps:

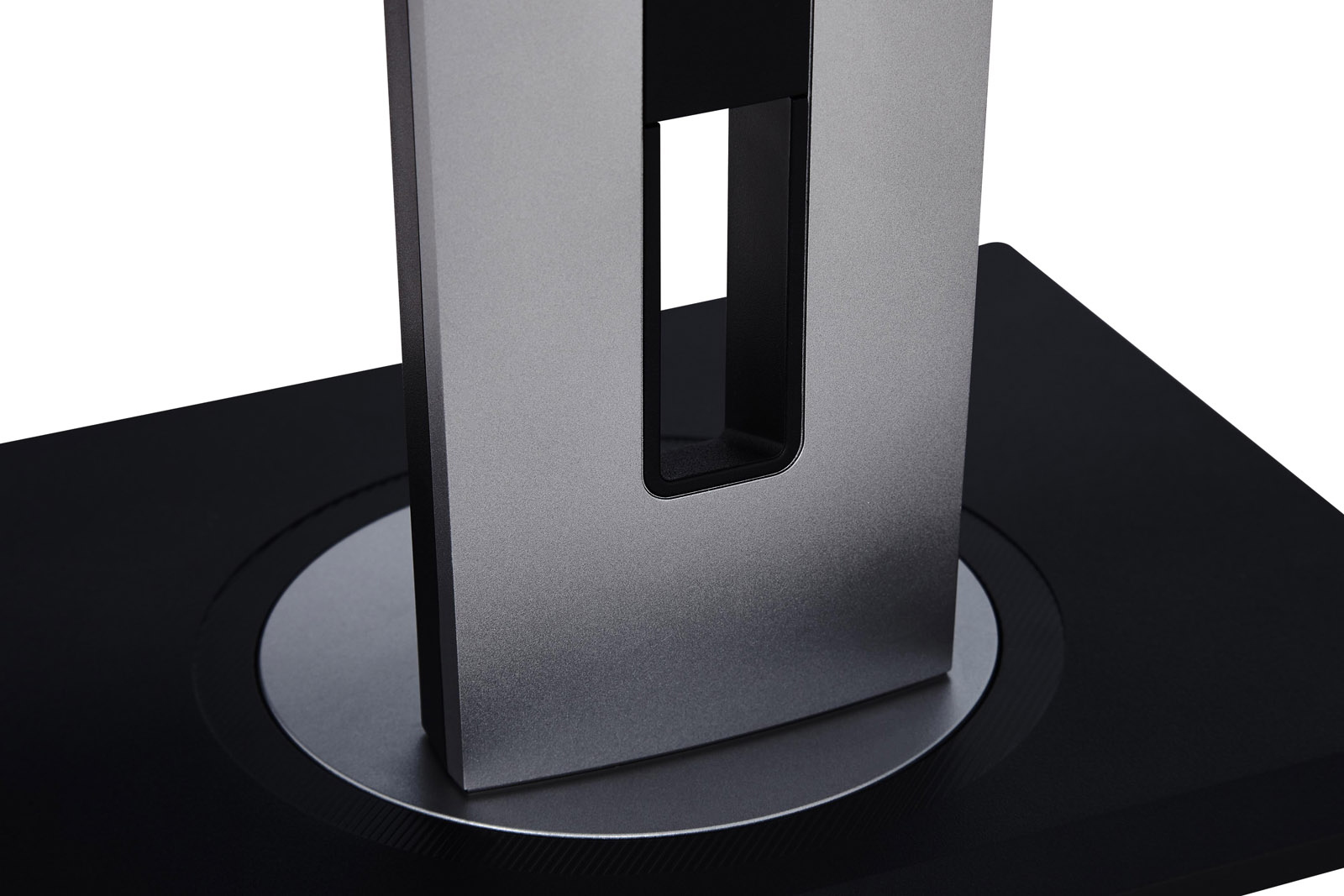

Quick Release Stand

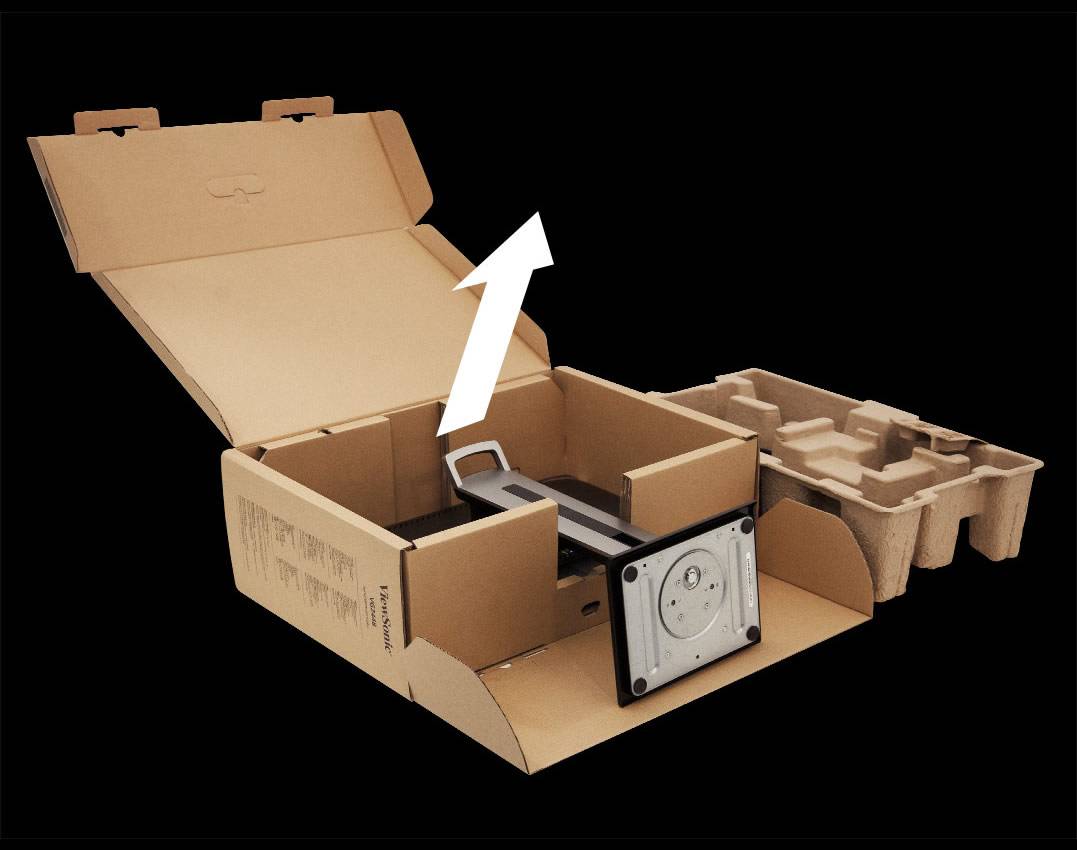

1.Open the box
2.Screw on the monitor base

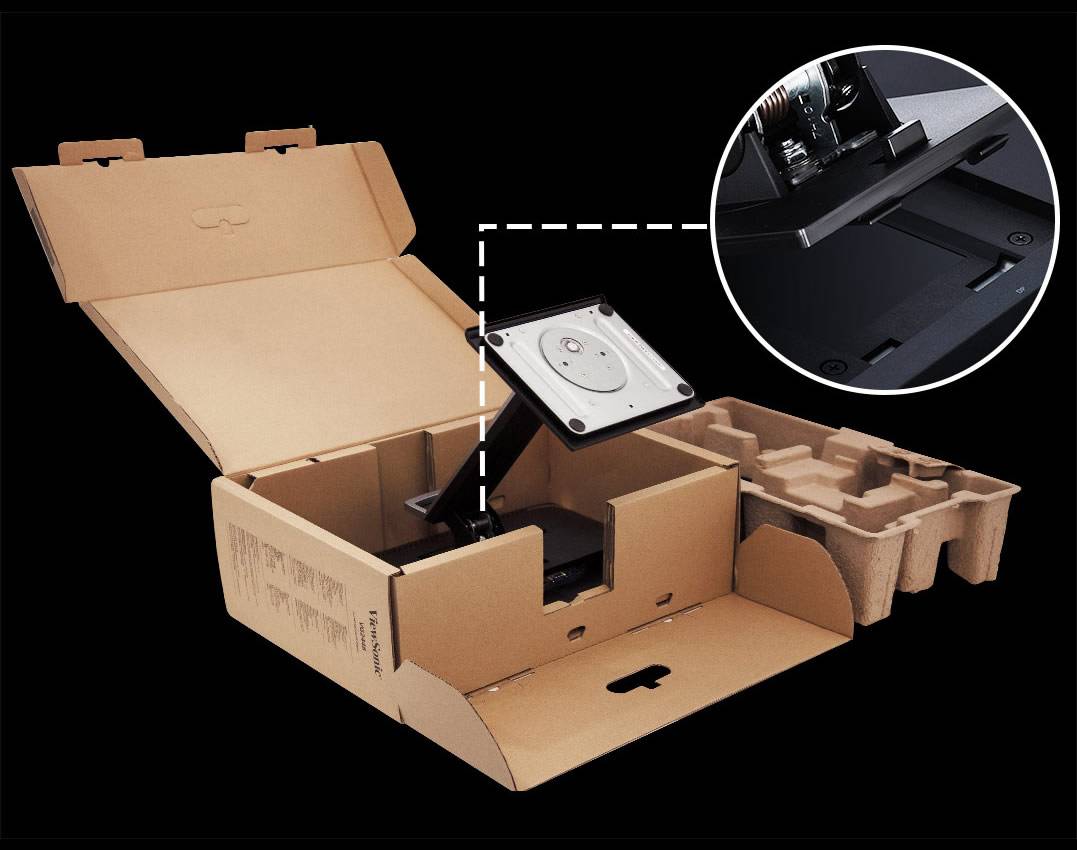

3.Clip the stand onto the panel with the quick release stand
4.Set it up anywhere - it’s ready to go!
Eco-conscious Construction

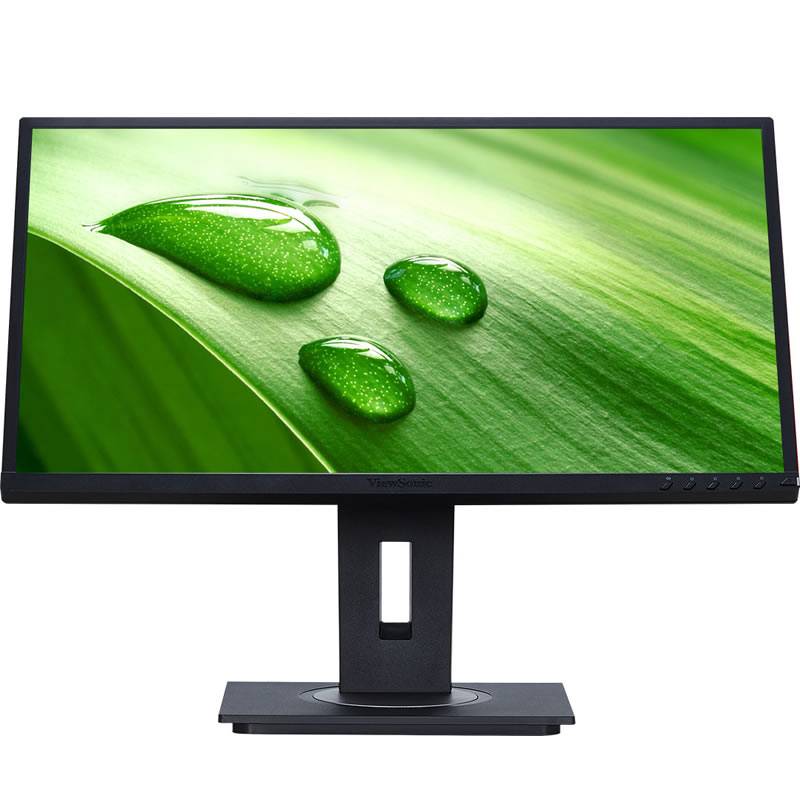

Low Energy Consumption
VG2448 has been designed with energy efficiency in mind. With certification from Energy Star and EPEAT, VG2448’s Eco Mode consumes less power, resulting in a smaller carbon footprint and reduced office overhead costs.

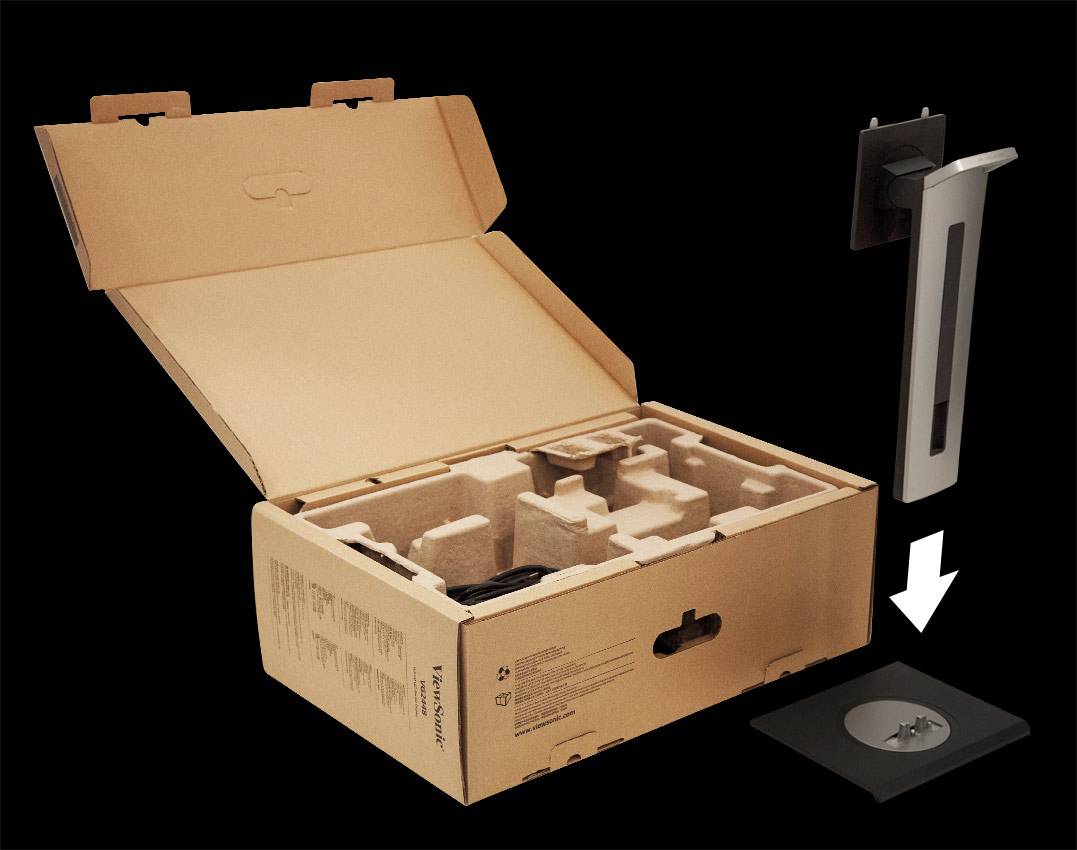

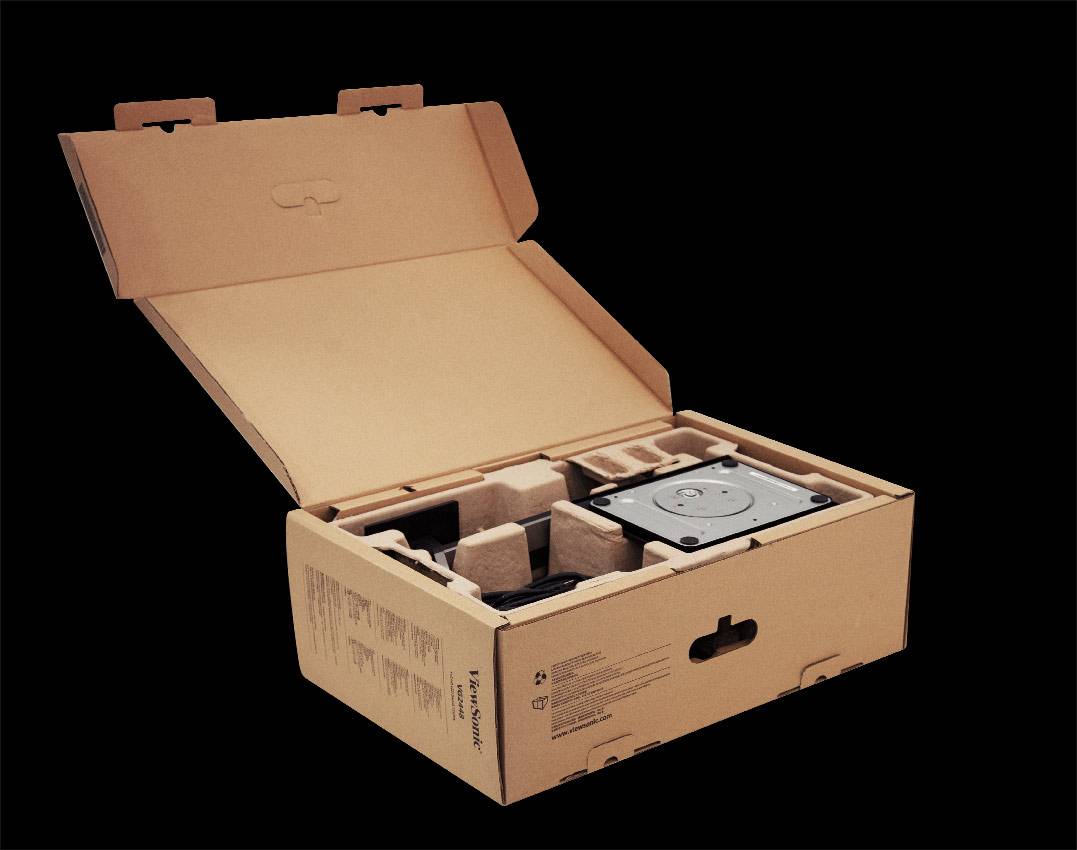

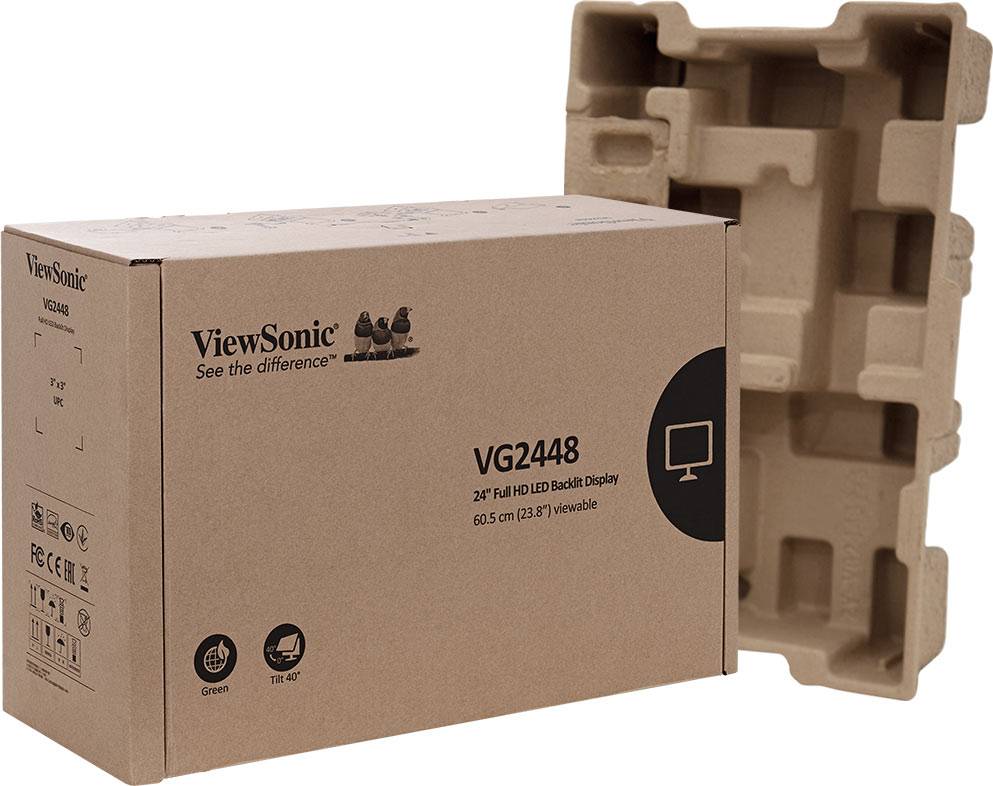

Environmentally Friendly Packaging
Designed with the environment in mind, the packaging for the VG48/VG55/VG55-2K series is made with up to 80% recyclable and paper based materials instead of hazardous EPS (polystyrene). Additional plastic materials, such as handles, have been replaced with hand holes and the exterior of the package uses mono color printing.

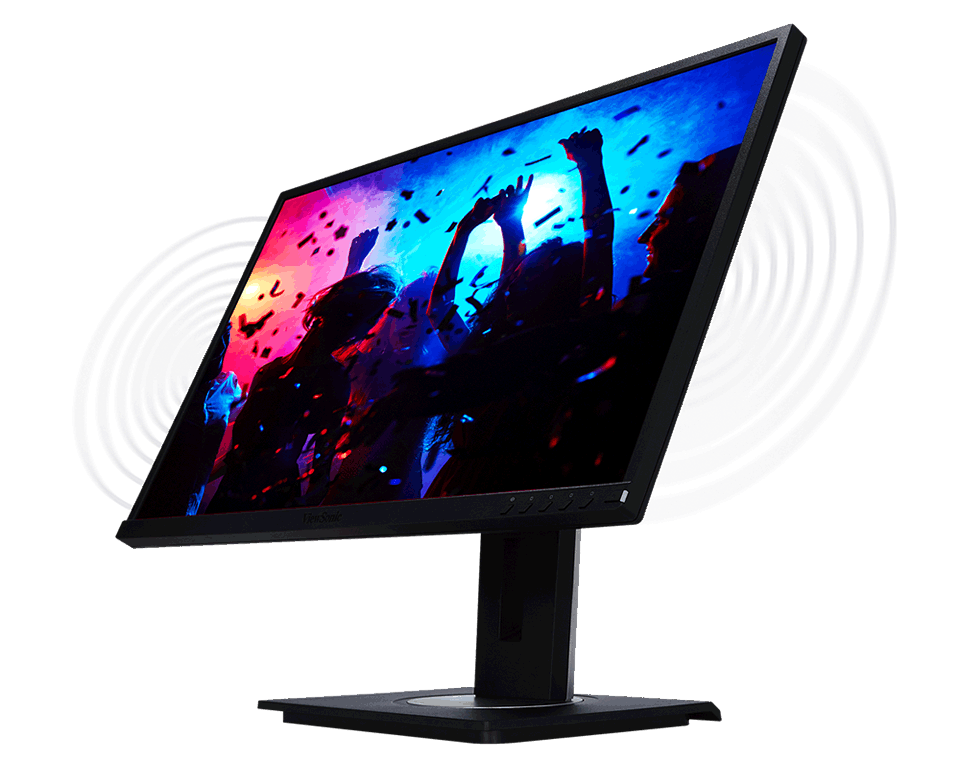

Audiovisual Experience
Advanced Eye Care Technology
Flicker-Free technology and a Blue Light Filter help eliminate eye strain caused by harmful light rays and periods of extended viewing.
Imagery has been simulated for demonstration purposes.
SPECIFICATIONS
- 液晶パネルサイズ: 23.8型ワイド(16:9)
パネルタイプ: IPS / ノングレア
解像度: 1920 x 1080 (Full HD)
表示面積: 527.04 x 296.46 mm
画素ピッチ: 0.2745 x 0.2745 mm
最大輝度: 250 cd/m2
視野角度(左右/上下): 178° / 178°
コントラスト比: 1000:1
ダイナミックコントラスト比: 50,000,000:1
応答速度: 5ms(GTG)*オーバードライブ時
リフレッシュレート(Hz): 60 - 走査周波数水平: 24 - 82KHz
垂直: 50 - 75Hz - 入出力端子デジタル: HDMI1.4 x1 / DisplayPort1.2 x1
アナログ: D-sub 15ピン x1
USB: USB3.0 x1(アップストリーム) USB3.0 x4(ダウンストリーム)
音声入力: －
音声出力: －
- スピーカー2W x 2
- 主な搭載技術/機能SuperClear®: 〇
フリッカーフリー: 〇
ブルーライトフィルター: 〇
ViewMode: 〇 - エルゴノミクスチルト: 40° ～ -4°
高さ調整: 130mm
ピボット: 90°
スウィーベル: 120° - VESA規格対応VESA®: 100 x 100mm
- 筐体色ブラック
- 電源電源: 内蔵
電圧: AC100-240V±10% 50/60Hz
消費電力: 57W(最大) / 21.8W(標準) / 15.8W(エコ)

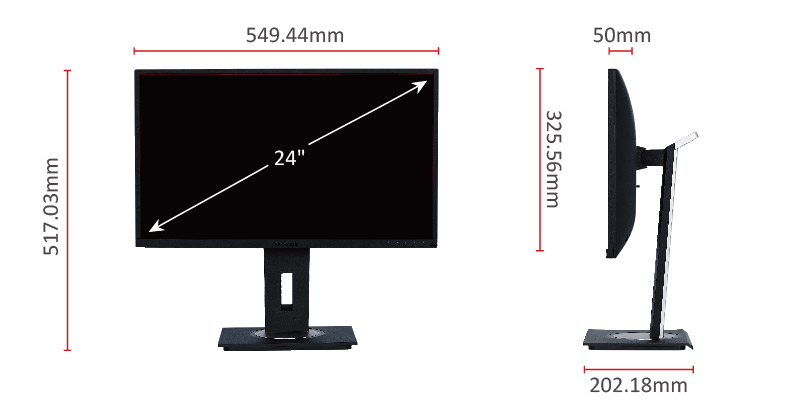

待機消費電力: 0.3W以下 - 外形寸法 (WxHxD)スタンドあり: 549.44 x 517.03 x 202.18 mm
スタンドなし: 549.44 x 325.56 x 50 mm
梱包時: 604 x 385 x 210 mm - 質量スタンドあり: 約5.82kg
スタンドなし: 約3.44kg
梱包時: 約8.71 kg - 使用動作条件使用温度条件: 0°C － 40°C
使用湿度条件: 20% － 90% (結露なきこと) - 適合規格cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE, BIS, CCC, China RoHS, China Energy Label
- 主な付属品電源ケーブル(約1.8m) x1
HDMIケーブル(約1.8m) x1
USB3.0ケーブル(約1.8m) x1
クイックスタートガイド x1
保証書 x1 - JANコード4589468730361
- 保証期間3年フル保証(液晶パネル・バックライト含む)
