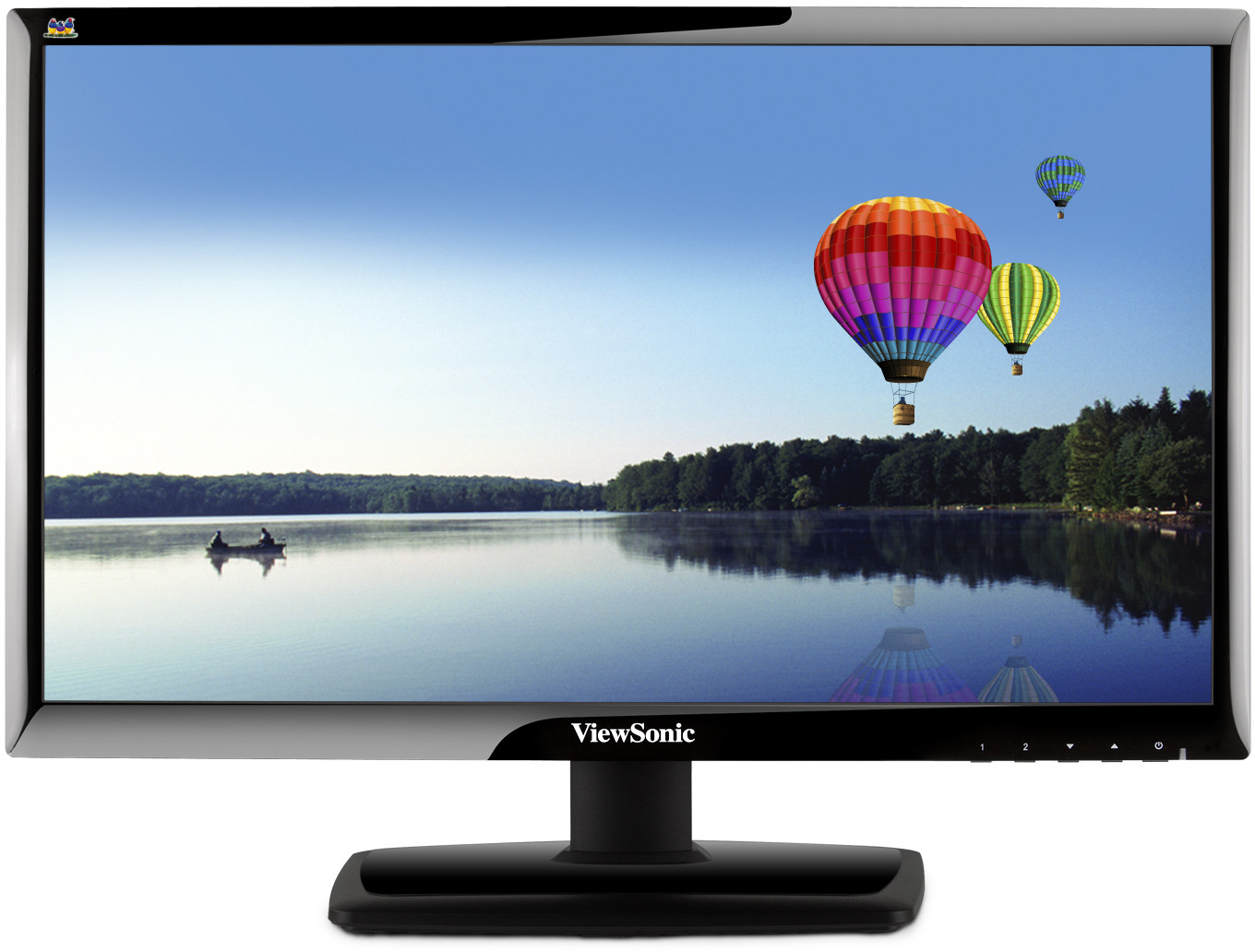

ViewSonic VX2210mh-LED 22" LED Multimedia Display

Key Features

Product Description

ViewSonic’s 22” VX2210mh-LED display features eco-friendly LED backlighting and power-saving modes for a green viewing experience. It’s equipped with our exclusive ClearMotiv® II video technology that enables vivid, smooth images without distortion or blur. The display automatically adjusts brightness levels and maximizes the greyscale and colour range to achieve an extreme 20,000,000:1 dynamic contrast ratio! Its Full HD 1080p video resolution and 16:9 aspect ratio deliver an exciting, widescreen viewing experience. And with a slim profile, the VX2210mh-LED saves space on your desk.

Visit Us

www.viewsonic.com

LCD

Contrast Ratio:	1,000 : 1 (typ.)
Viewing Angles:	170º / 160º (typ.)
Display Area:	55 cm (21.5”) Wide
Optimum Resolution:	1920 x 1080
Response Time:	5 ms
Panel Surface:	Anti-Glare type, Hardness (3H)
Pixel Pitch:	0.248 mm x 0.248 mm
Brightness:	250 cd/m²
Dynamic Contrast Ratio:	20,000,000 : 1
Backlight:	White-light LED
Backlight Life:	40,000 Hrs (Min.)

COMPATIBILITY

PC: VGA up to 1920 x 1080 (Non Interlaced)

Mac®: Power MAC (up to 1920 x 1080 )
DIMENSIONS

Physical Without Stand: 511.46 x 310.44 x 61.95

20.13” x 12.22” x 2.44”(inch)

Physical (mm): 511.46 x 371.25 x 163.86

Physical (in): 20.13” x 14.61” x 6.45” (inch)
INPUT

Sync: Separate Sync

Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)

Digital: DVI (TMDS, 100 ohms) / HDMI 1.4

Frequency: Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz
CONNECTOR

Digital: DVI- D *1 / HDMI *1

Audio: Mini Phone Jack Audio In *1 / Audio Out *1

Analog: 15-pin Mini D-sub *1

Power: Internal Power Board , 3-pin Plug (CEE22) *1
POWER

Voltage: AC 100 - 240V (Universal); 50 / 60 Hz

Consumption: 19W (typical)
OPERATING CONDITIONS

Temperature: 32° F to 104° F (0° C to 40° C)
VESA® MOUNT

100mm x 100mm
ERGONOMICS

Tilt: 15º ~ -5º
WEIGHT

Net With Stand: 3.54 Kg (7.80 lbs)

Net Without Stand: 3.23 Kg (7.12 lbs)
AUDIO I/O

Speakers: 2W x 2
REGULATIONS

CB, CE, GOST-R, Energy Star,

UkrSEPRO ErP, REACH SVHC List

WEEE, RoHS, Windows XP / Vista premium,

Window7, CCC, CEL Level 1

PC:	VGA up to 1920 x 1080 (Non Interlaced)
Mac®:	Power MAC (up to 1920 x 1080 )

Physical Without Stand:	511.46 x 310.44 x 61.95 20.13” x 12.22” x 2.44”(inch)
Physical (mm):	511.46 x 371.25 x 163.86
Physical (in):	20.13” x 14.61” x 6.45” (inch)

Sync:	Separate Sync
Analogue:	RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Digital:	DVI (TMDS, 100 ohms) / HDMI 1.4
Frequency:	Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz

Digital:	DVI- D 1 / HDMI 1
Audio:	Mini Phone Jack Audio In 1 / Audio Out 1
Analog:	15-pin Mini D-sub *1
Power:	Internal Power Board , 3-pin Plug (CEE22) *1

Voltage:	AC 100 - 240V (Universal); 50 / 60 Hz
Consumption:	19W (typical)

Net With Stand:	3.54 Kg (7.80 lbs)
Net Without Stand:	3.23 Kg (7.12 lbs)
