Key Features
  • Intuitivo Multi-Touch IR a 10 Punti
  • Touch Riconoscimento con guanti e Penna Touch
  • Supporto magnetico per Penna Touch
  • Ergonomico inclinabile fino a 40 gradi
  • Vetro resistente ai graffi durezza 7H

TD2423

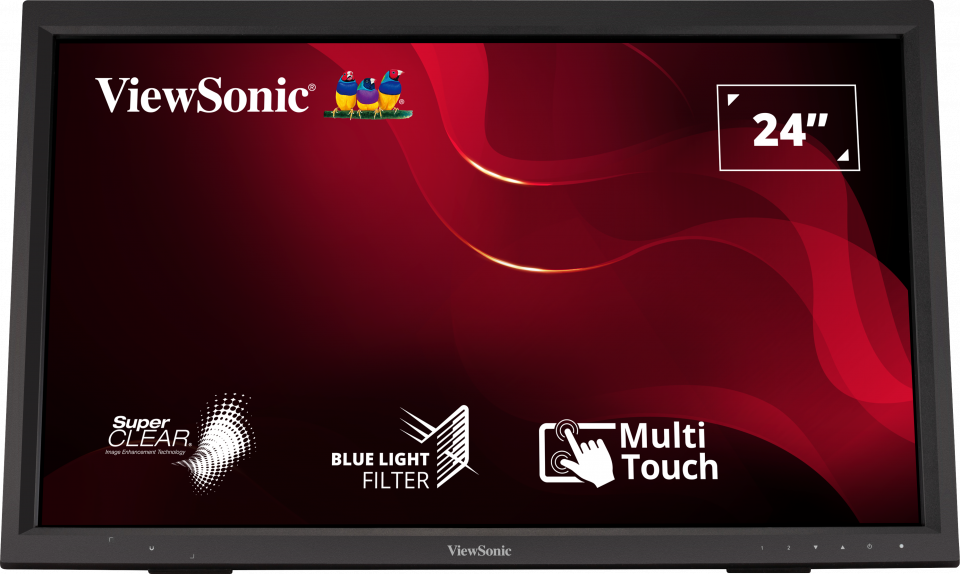

Product Description
TD2423 è un Display Touch a infrarossi (IR) da 24 pollici dotato di funzionalità Multi-Touch a 10 punti. Rispetto ai Touchscreen ottici, il monitor TD2423 può essere azionato anche quando si indossano guanti e da una penna Touch, questo gli permette di offrire un'esperienza tattile reattiva e precisa unita a una risposta rapida del display. Grazie al suo design ergonomico, TD2423 può essere inclinato fino a 40 gradi per assicurare sempre il massimo comfort e flessibilità nell’installazione. Questo monitor presenta una risoluzione full HD per un'incredibile resa dell’immagini sempre nitide e dettagliate in ogni condizione. ll Display Touch TD2423 è progettato con un vetro protettivo (grado di durezza 7H), per garantire una maggiore protezione dai graffi e un'esperienza Touch più sicura e duratura possibile. Per meglio supportare il tuo lavoro, il monitor è dotato di connettività VGA, HDMI, DVI e USB.

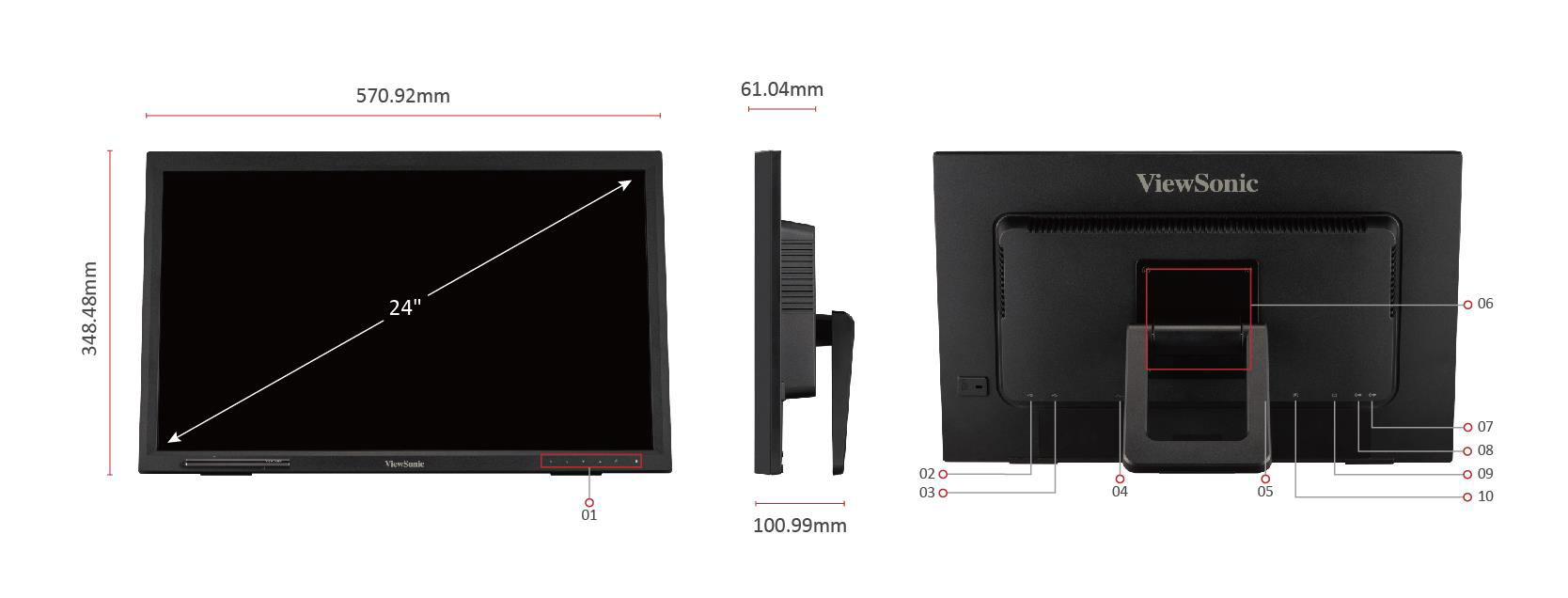

  1. Pannello di controllo del menu
  2. USB Down Stream x 2
  3. USB UP Stream
  4. Entrata AC
  5. HDMI
  6. VESAVESA100 x 100mm)
  7. Uscita cuffie
  8. Ingresso audio
  9. VGA
  10. DVI
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 23.6
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 3,000:1 (typ)
    Dynamic Contrast Ratio: 20M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 7ms
    Response Time (GTG w/OD): 7ms
    Response Time (Typical Tr+Tf): 25ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 40000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 75
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    Pixel Size: 0.272 mm (H) x 0.272 mm (V)
    Touch Screen: IR, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.85mm
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8.1/10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    USB 2.0 Type A: 2
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    DVI-D: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 11.5W
    Eco Mode (optimized): 13.5W
    Consumption (typical): 15.5W
    Consumption (max): 16.5W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
    Cable Organization: Yes
  • CONTROLS
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 24 ~ 82KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): 20º / 40º
  • WEIGHT (IMPERIAL)
    Net (lbs): 11.5
    Net Without Stand (lbs): 10.3
    Gross (lbs): 15.4
  • WEIGHT (METRIC)
    Net (kg): 5.2
    Net Without Stand (kg): 4.7
    Gross (kg): 7
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 25.4 x 16.6 x 6.5
    Physical (in.): 22.5 x 13.7 x 4
    Physical Without Stand (in.): 22.5 x 13.7 x 2.4
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 645 x 422 x 166
    Physical (mm): 571 x 348 x 101
    Physical Without Stand (mm): 571 x 348 x 61
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE, BIS
    PACKAGE CONTENTS: TD2423 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
