LCD Display
TD1630-3
Key Features
- Schermo touch capacitivo proiettato a 10 punti
- Supporto ergonomico avanzato
- Connettività versatile HDMI e VGA
- Compatibile Windows 7/8/10/11, Linux Kernel 4.X/3.X
- Schermo durevole e resistente ai graffi
- Doppi altoparlanti integrati
- Massimo comfort visivo
- Sistema di montaggio VESA
Product Description
ViewSonic TD1630-3 è un display da 16” (15,6” visualizzabile) dotato di funzionalità multi-touch a 10 punti. Grazie a un design ergonomico avanzato, TD1630-3 può essere inclinato o poggiato orizzontalmente su un piano, offrendo agli utenti il massimo comfort. Grazie alla versatilità del touchscreen, questo display offre un'incredibile flessibilità sia in contesti aziendali che commerciali, mentre gli ingressi VGA e HDMI assicurano un ampio ventaglio di connettività. La compatibilità con una vasta gamma di sistemi operativi, tra cui Windows 10/11 e alcune versioni di Linux, e i doppi altoparlanti integrati fanno di questo monitor un touchscreen intuitivo che offre un'esperienza tattile straordinariamente precisa e ultra reattiva, ideale per l'interattività in ambito commerciale o aziendale.
*Supporta Windows 7/8/10/11, Linux Kernel 4.X/3.X
*Supporta Windows 7/8/10/11, Linux Kernel 4.X/3.X
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 16 Viewable Area (in.): 15.6 Panel Type: TN Technology Resolution: 1366 x 768 Resolution Type: WXGA (Wide XGA) Static Contrast Ratio: 500:1 (typ) Dynamic Contrast Ratio: 10M:1 Light Source: LED Brightness: 190 cd/m² (typ) Colors: 262K Color Space Support: 6 bit true Aspect Ratio: 16:9 Response Time (Typical Tr+Tf): 12ms Viewing Angles: 90º horizontal, 60º vertical Backlight Life (Hours): 15000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Blue Light Filter: Yes Color Gamut: NTSC: 45% size (Typ) sRGB: 67% size (Typ) Pixel Size: 0.252 mm (H) x 0.252 mm (V) Touch Screen: Projected Capacitive, 10-point multi-touch Surface Treatment: Glossy, Hard Coating (7H) Cover Glass Thickness: 0.83mm -
COMPATIBILITY
PC Resolution (max): 1366x768 Mac® Resolution (max): 1366x768 PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1366x768 -
CONNECTOR
VGA: 1 USB 2.0 Type B: 1 3.5mm Audio In: 1 HDMI 1.4: 1 Power in: DC Socket (Center Positive) -
AUDIO
Internal Speakers: 1Watts x2 -
POWER
Eco Mode (Conserve): 4.3W Eco Mode (optimized): 4.9W Consumption (typical): 5.5W Consumption (max): 6W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: External Power Adaptor -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 75 x 75 mm -
INPUT SIGNAL
Frequency Horizontal: 30 ~ 61KHz Frequency Vertical: 56 ~ 75Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4) Analog Sync: Separate - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): 15º / 50º -
WEIGHT (IMPERIAL)
Net (lbs): 2.9 Net Without Stand (lbs): 2.9 Gross (lbs): 5.5 -
WEIGHT (METRIC)
Net (kg): 1.3 Net Without Stand (kg): 1.3 Gross (kg): 2.5 -

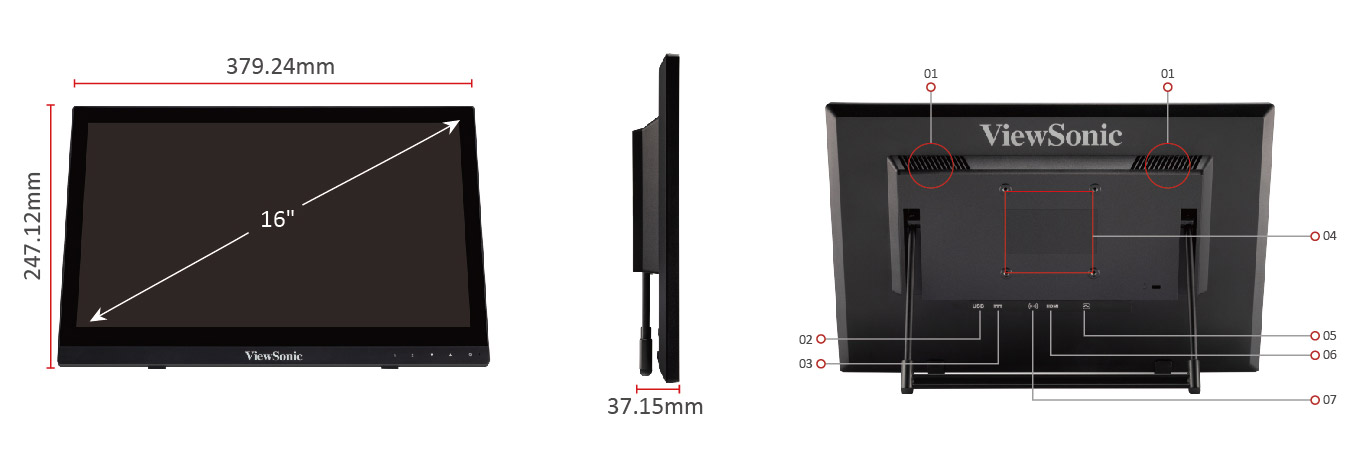

DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 17.8 x 15.3 x 3.4 Physical (in.): 14.9 x 9.7 x 1.5 Physical Without Stand (in.): 14.9 x 9.7 x 1.5 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 453 x 389 x 86 Physical (mm): 379 x 247 x 37 Physical Without Stand (mm): 379 x 247 x 37 -
GENERAL
Regulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS PACKAGE CONTENTS: TD1630-3 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market
