Key Features

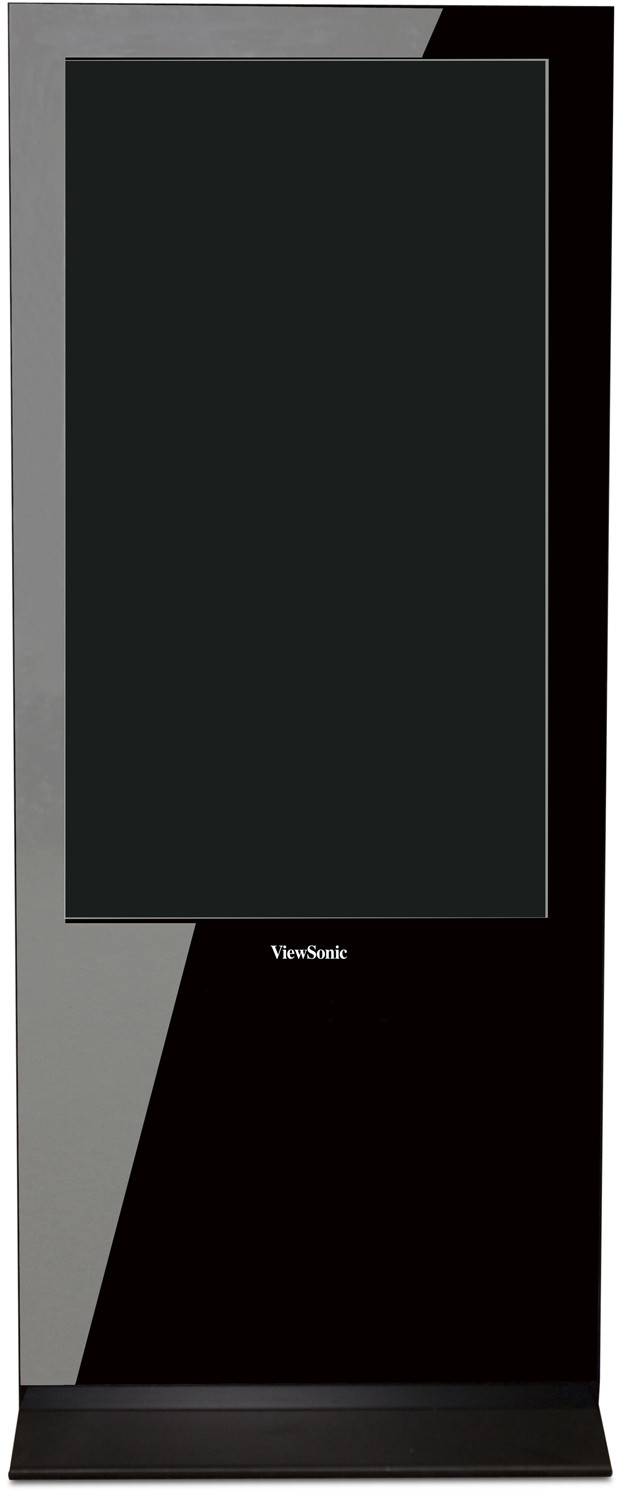

EP4610T
Product Description
In-store ” Way-Finding” is easy with ViewSonic’s new interactive ePoster display solution. With its drift free 4K x 4K touch interface and vivid screen resolution, retail messaging and image navigation is easy with the all-in-one EP4610T ePoster. Simply connect the output of your PC to the versatile input ports and common USB port for your touch interface and your application comes alive. ViewSonic’s ePoster display can easily connect to a corporate network by adding a network media player. Security is achieved through the locking back cover.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • COMPATIBILITY
    Photo Formats: JPEG
    Video Formats: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4
    Audio Formats: WMA, MP3, M4A (AA CC )
    Other: Clock and timer
  • DIMENSIONS
    Physical With Stand: 750mm x 1950mm x 450mm
  • REGULATIONS
    FCC, ICES 003, CE
  • PACKAGE CONTENTS
    ePoster, power cord, remote control with batteries, key, Quick Start
    Guide, User Manual and Software on CD
  • AUDIO
    Speaker: 5W (x2)
  • CONNECTOR
    Card Reader: 2GB Compact Flash
  • POWER
    Consumption: 260W (max)
    Save Mode (W): Off < 1W
    Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
  • DISPLAY
    Contrast Ratio: 4000:1 (typ)
    Brightness: 450 cd/m2 (typ)
    Type: Diagonal: 46" (116.84 cm)
    Resolution: 1920x1080 pixel resolution
    Color Depth: Over 16.7M color (depending on video card used)
    Response Time: 8ms (typ gray-to-gray)
    Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
    Touch: Touch Mode One point click, long press right click, double click, draw

    Resoltuion 4096x4096 dots

    Response Time 8ms

    Supports OS Windows® 7/2000/XP/Vista

    Interface USB 2.0 (full speed), USB 1.1 port HID compliant
  • WEIGHT
    Gross: 286.60 lbs. (130 kg)
    Net: 264.5 lbs. (120 kg)
  • OPERATING CONDITIONS
    Humidity: 20–90% (non-condensing)
    Temperature: 32–104º F (0–40º C)
  • WARRANTY
    1-year with extended options available
  • CONNECTORS
    HDMI, VGA, YPbPr, USB (x3), A/V, RJ45 Pigtail
  • STORAGE ENVIRONMENT
    Humidity: 10–90% (non-condensing)
    Temperature: -4–140º F (-20–60º C)
  • CONTENT MANAGEMENT
    Operating System: MS Windows
    Software: Signage Manager Express
  • MTBF
    50,000 hrs.
