Commercial Display

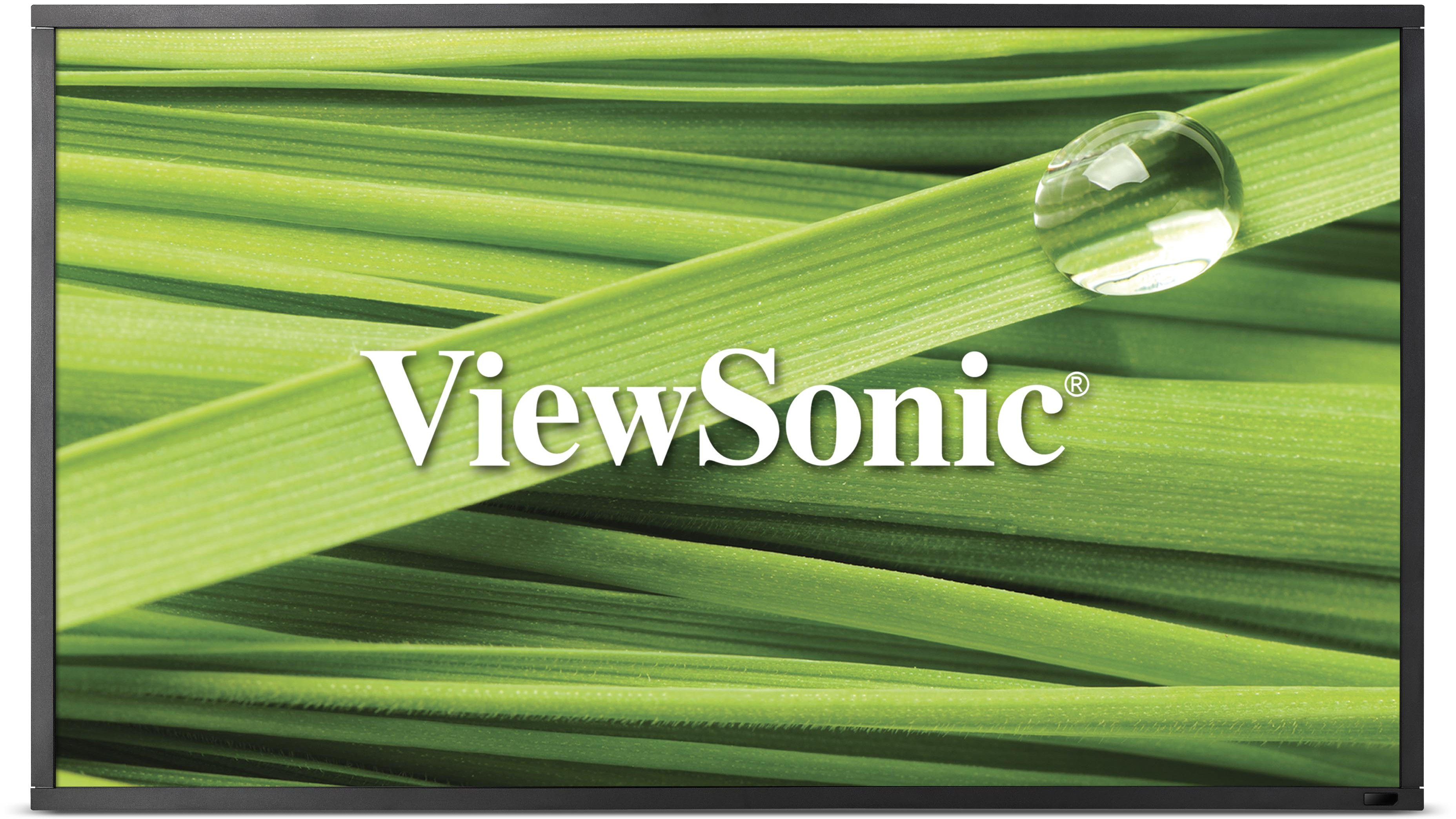

CDP4260-L
Key Features
Product Description
The ViewSonic CDP4260-L is a 42” (42’’ viewable) commercial LED display designed for use 24 hours a day, 7 days a week. The CDP4260-L is ideal for sharing public information in indoor areas such as high-traffic transportation settings, as well as in education, hospitality, and commercial venues. Featuring a slim 15.8mm narrow bezel design, Full HD 1080p resolution, 450-nit high brightness, SuperClear® image enhance technology with wide viewing angles, as well as dual 10W stereo speakers, the CDP4260-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. The CDP4260-L can display multimedia content in either landscape or portrait orientations for flexible installation. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Equipped with DVI-out, the CDP4260-L supports up to a 5x5 daisy chain installation. In addition, integrated RS232 input and output, with IR pass-through and a content scheduling function make the CDP4260-L an easy to-manage solution for 24/7 use.
Visit Us
- www.viewsonic.com
-
LCD
Type: TFT LED Module with LED Backlight Contrast Ratio: 1300:1 Viewing Angles: 178° horizontal, 178° vertical Display Area: 930.24(H) x 523.26 (V) (42” diagonal) Optimum Resolution: 1920 x 1080 Response Time: 12ms Panel Surface: hard coating (3H) Colour Support: 1073.7M colors Size: 42” Brightness: 450 cd/m2 Backlight: LED Backlight Life: 30,000 Hours Typ -
COMPATIBILITY
RGB PC / HDMI PC: Refer to timing table CVBS: 480i HDMI: 480i, 480p,720p,1080i,1080p DVI-D: 480i, 480p,720p,1080i,1080p YPbPr: 480i, 480p,720p,1080i,1080p DP: 480i, 480p,720p,1080i,1080p -
DIMENSIONS
Physical (WxHxD): 38.1 x 22 x 2.7 (inches) / 965.8 x 558.8 x 69 (mm) Packaging: 46.4 x 31.3 x 9.8 (inches)/ 1178 x 795 x 250 (mm) -
REGULATIONS
CE, CB, WEEE, C-tick, FCC, ICES003, UL/cUL, CE,CB, CU, Energy star 6.0, -
PACKAGE CONTENTS
1. CDP4260-L & CDP4262-L LCD Monitor
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
*Actual content may differ from market to market -
WARRANTY
3-year limited
**Warranty offered may differ from market to market -
CONNECTOR
Audio Out: x 1 HDMI (input): x 1 RS-232: x 1 RGB: x 1 Audio Input: x 1 DVI: x 1 Speaker: x 1 PC Audio Input: x 1 CVBS: x 1 IR Pass Through: x 1 DP: x 1 -
POWER
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz -
CONTROLS
Picture: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU Brightness, Contrast, Sharpness,Black Level, Tint, Color, Colour Temperature, Gamma Screen: Selection, Noise Reduction, Film Mode, Picture Reset Auto Setup, Auto Adjust, H Position, V Position, Clock, Clock Phase, Zoom Mode, Custom Zoom, Input Resolution, Screen Reset PIP: PIP Mode, PIP Size, PIP Audio, PIP H Position, PIP V Position, SUB Input, PIP Reset Configuration 1: Off Timer, Schedule, Data and Time, Configuration 1 Reset Configuration 2: Language, OSD Turn Off, OSD H Position, OSD V Position, Information OSD, Monitor Information, Monitor ID, IR Control, Tiling, Power on Delay, Closed Caption, Configuration 2 Reset Advanced Options: Input Change, Terminal Setting, Scan Conversion, Colour System, Scan Mode, Serial Control, Lan Setting, APM, Advanced Option Reset, Factory Reset Sound: Balance, Treble, Bass, Audio Reset Configuration 3: Power Save, Heat Status, Screen Saver, Side Border Color, Configuration 3 Reset -
VESA® MOUNT
400 x 200mm/ 200 x 200mm -
WEIGHT
Gross: 53.1 (lbs)/ 24.1 (kg) Net: 45.4 (lbs)/ 20.6 (kg) -
OPERATING CONDITIONS
Humidity: 20% ~ 80% non-condensing Temperature: 0°C to 40°C Altitude: 0 meter to 3,000 meters (9842ft) above sea level -
VIDEO I/O
YPbPr in: x 1 -
AUDIO I/O
Speakers: 10-watt x 2 -
PORT
RJ45: x 1
