OVERVIEW

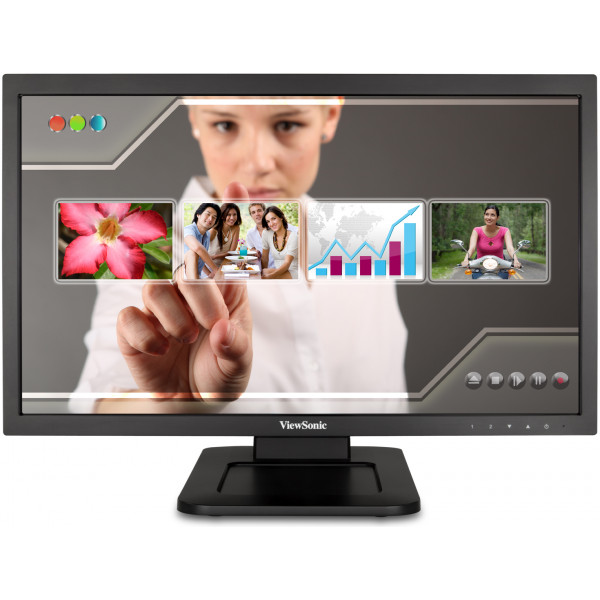

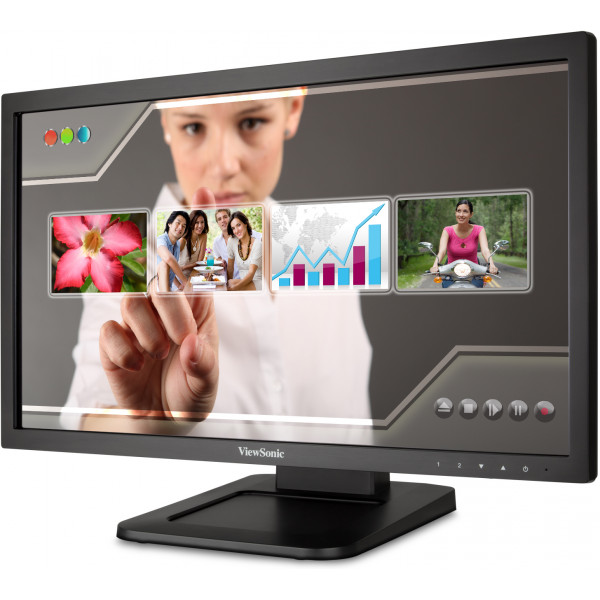

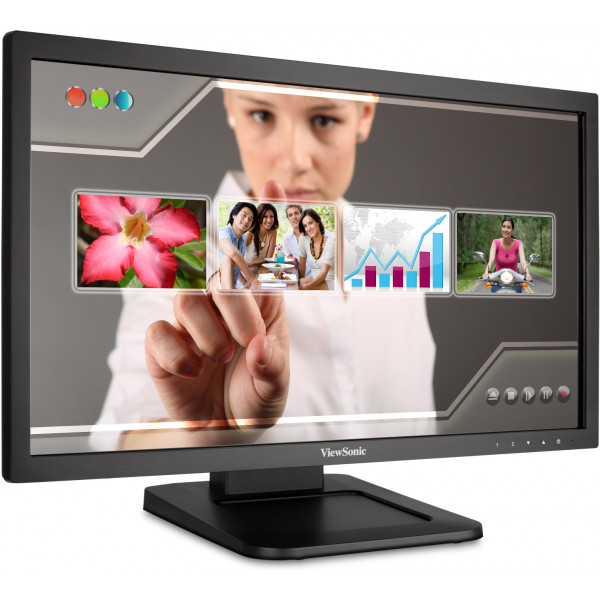

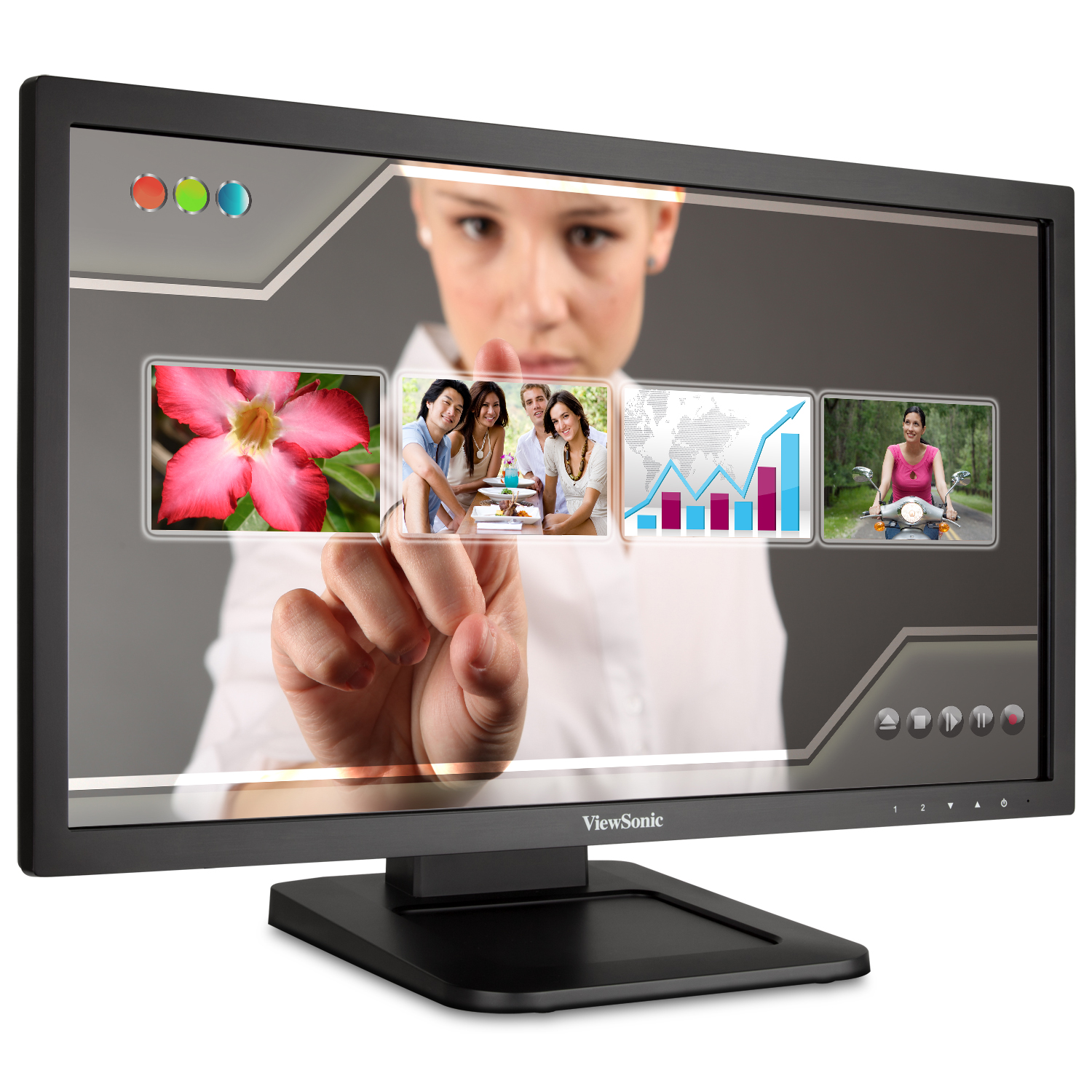

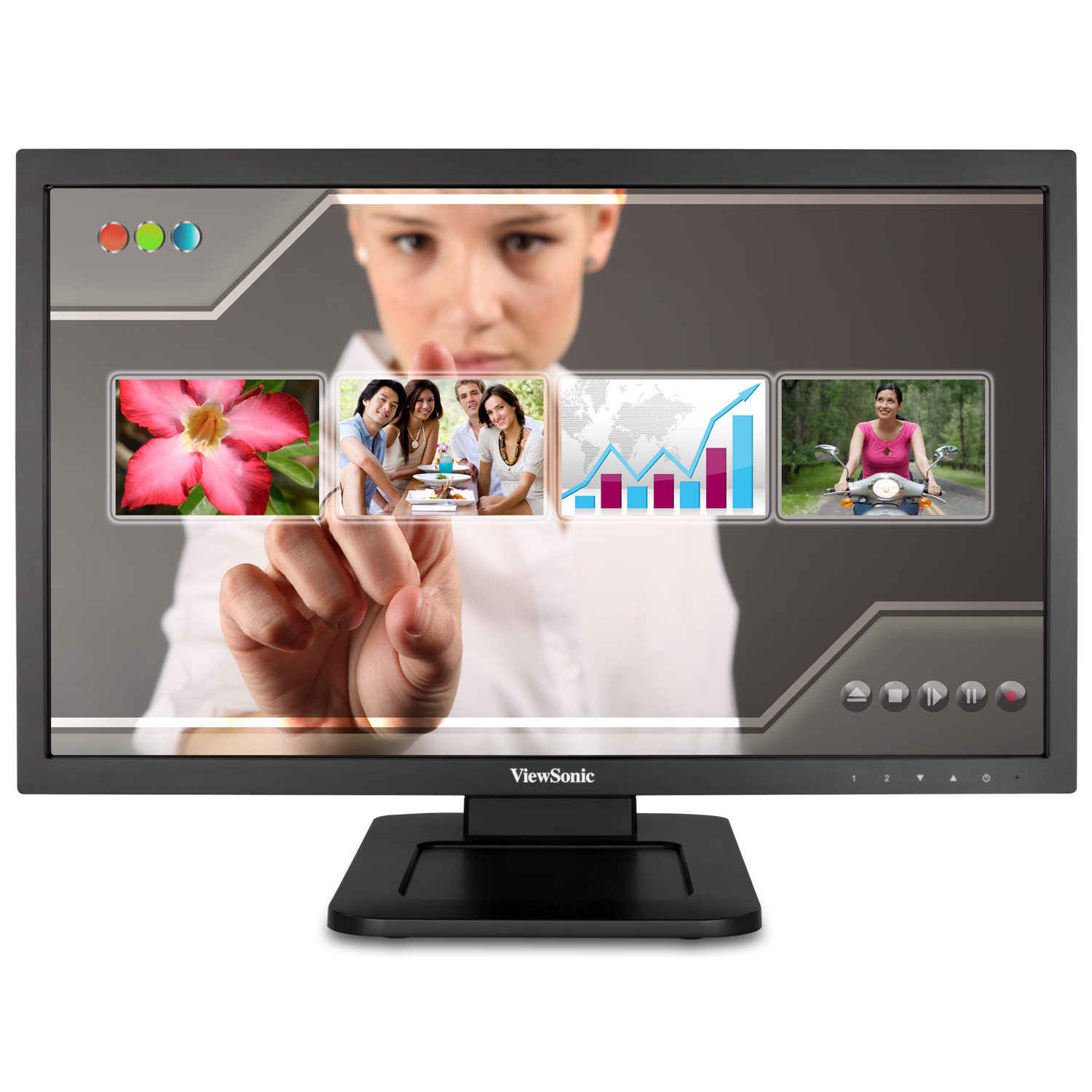

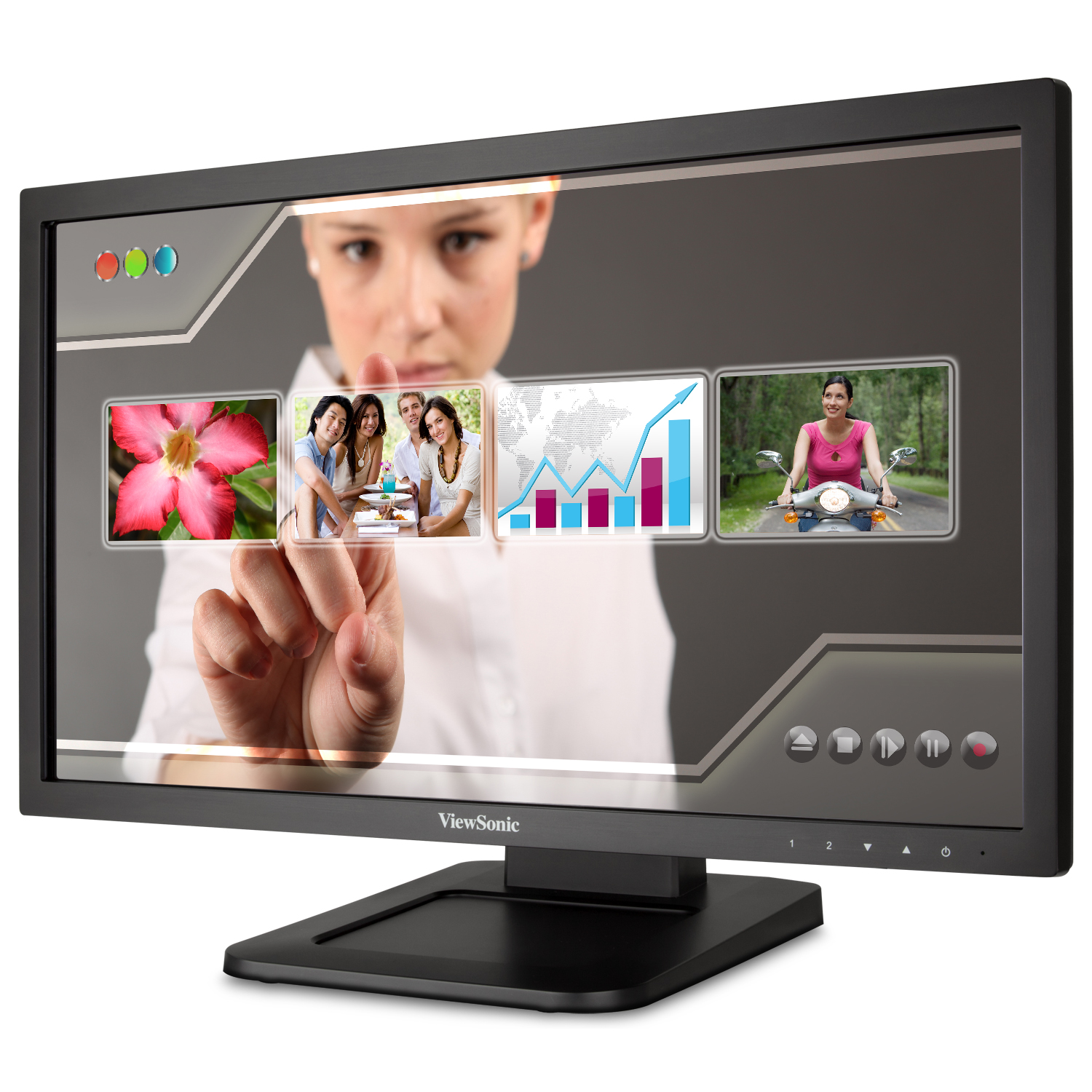

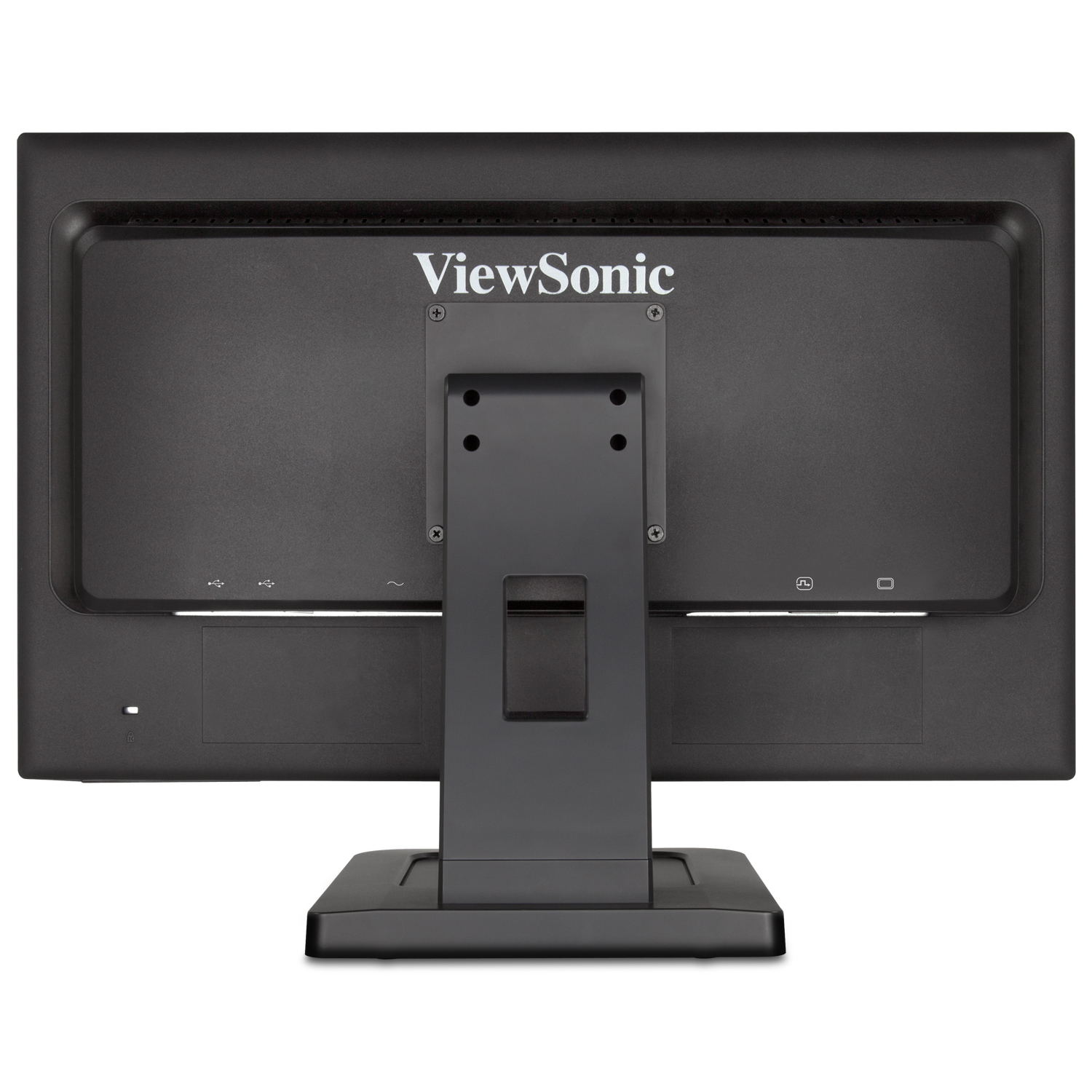

The 22" (21.5"/54.6cm viewable) ViewSonic® TD2220 is a multi-touch Full HD LED backlit monitor with 1920x1080 resolution, integrated speakers, DVI & VGA inputs and VESA mountable design. It has 20,000,000:1 MEGA Dynamic Contrast Ratio for sharp crisp images, SRS Premium Sound® for crystal clear sound and Eco-mode for up to 40%* energy savings come standard in the new 22" (21.5"/54.6cm viewable) offering. Perfect for both commercial and consumer applications, the TD2220 supports the USB HID Touch driver and supports Windows® 8. The TD2220 is a one-stop solution for your multi-touch monitor needs.

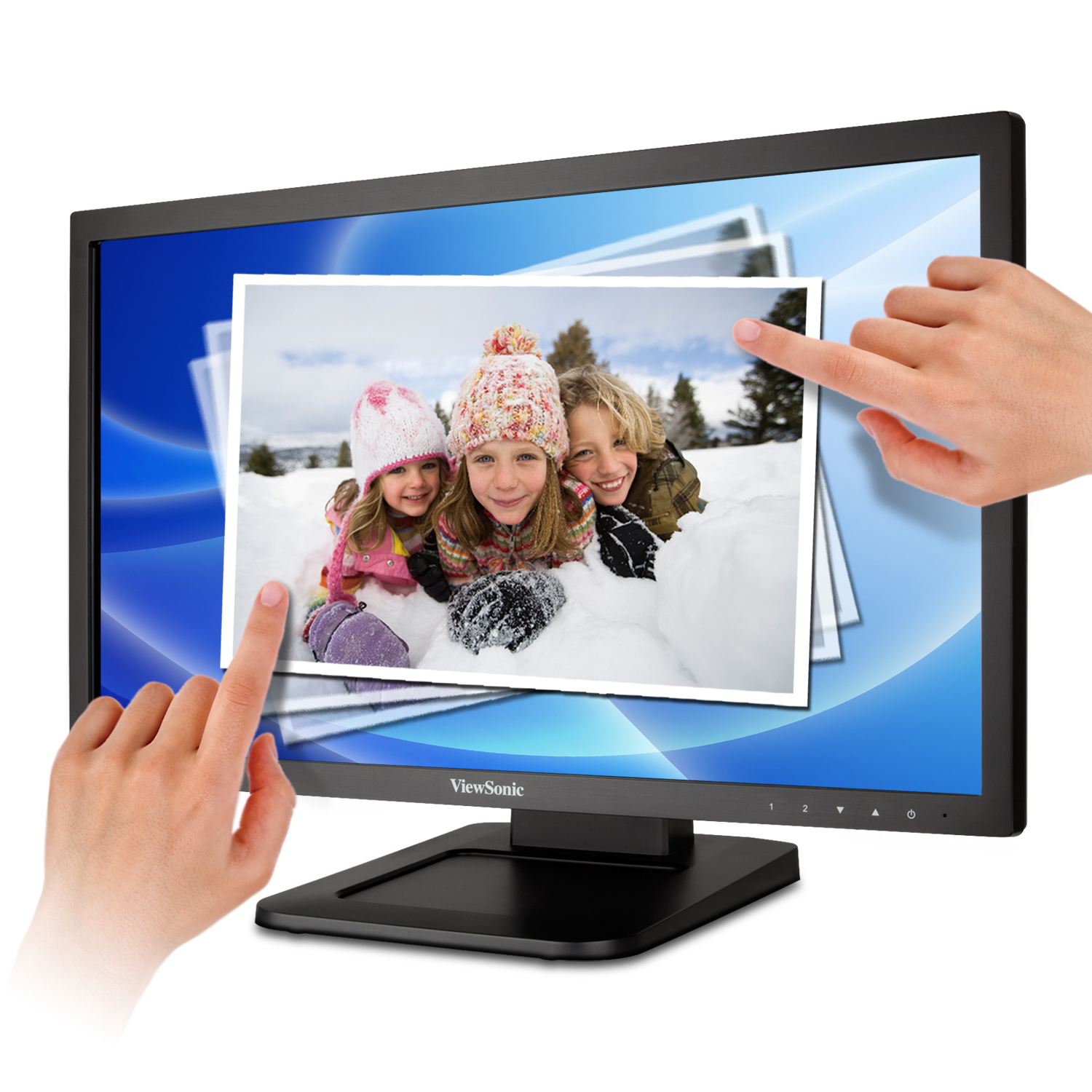

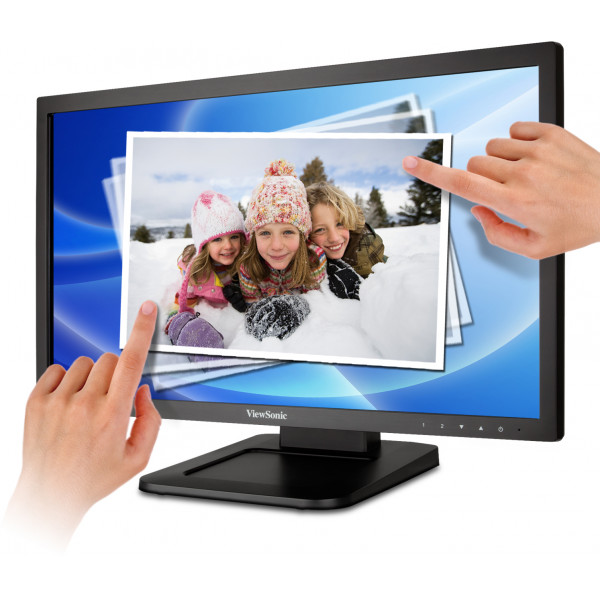

Multi-touch Screen with 8H Surface Hardness

Simply touch, drag, resize and manipulate, photos, documents or web pages, just like on your favourite mobile devices! 8H scratch resistant surface hardness ensures a consistent high quality touch experience and durability.

Full HD 1080p Display with 1920x1080 Resolution

The 22" (21.5"/54.6cm viewable) Full HD monitor supports imaging intensive commercial applications, video and image editing and entertainment. 20,000,000:1 MEGA Dynamic Contrast Ratio provides a crisp image with high level details.

OptiSync digital/analog inputs expand your connectivity

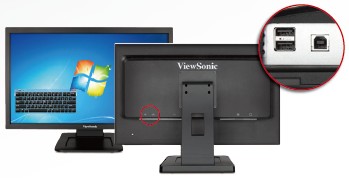

The TD2220 supports Windows® 8 touch function and boasts USB HID (Human Interface Device) for plug-and-play. The TD2220 can be connected through USB for instant two-point touch operation and for experiencing easy navigation through intuitive touch operation. Two USB ports for additional connectivity for peripherals and electronic devices. Multi-mode input technology supports both digital (DVI) and analog (VGA) signals for compatibility and configuration flexibility.

Integrated speakers with SRS Premium Sound®

The TD2220 monitor has two integrated speakers for enhanced multimedia performance with crystal clear stereo sound.

ENERGY STAR® and EPEAT Silver certified

The TD2220 is TCO Compliant and environmentally sound with Energy-saving LED backlight and Eco-mode. You can save up to 40%* in your energy cost comparing to a regular 22" monitor.

SPECIFICATIONS


  • Display
    Display Size (in.): 22
    Viewable Area (in.): 21.5
    Panel Type: TN Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 20M:1
    Light Source: LED
    Brightness: 200 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical Tr+Tf): 5ms
    Viewing Angles: 170º horizontal, 160º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 103% size (Typ)
    Pixel Size: 0.248 mm (H) x 0.248 mm (V)
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.88mm
  • Compatibility
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows XP/Vista/7 certified; macOS tested
    Mac® Resolution (min): 1920x1080

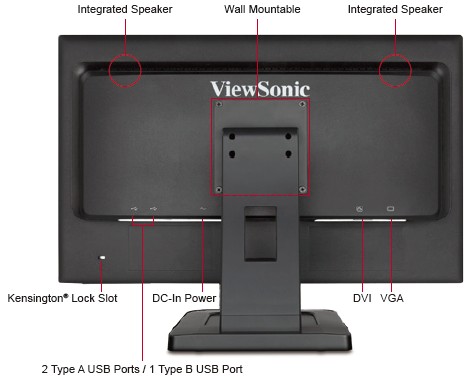

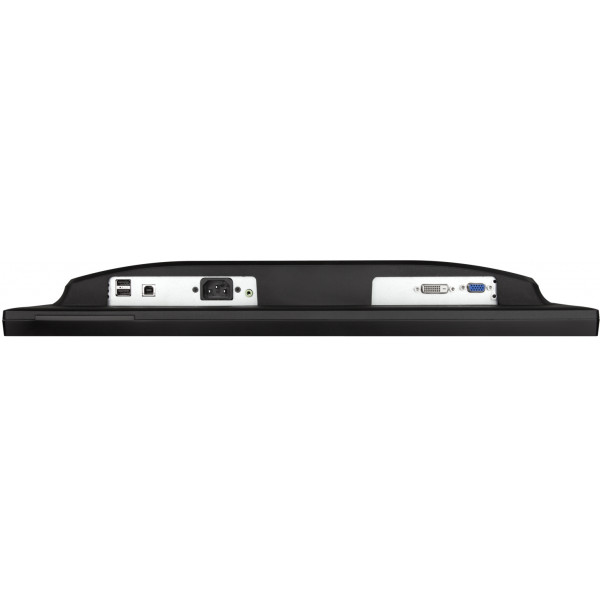

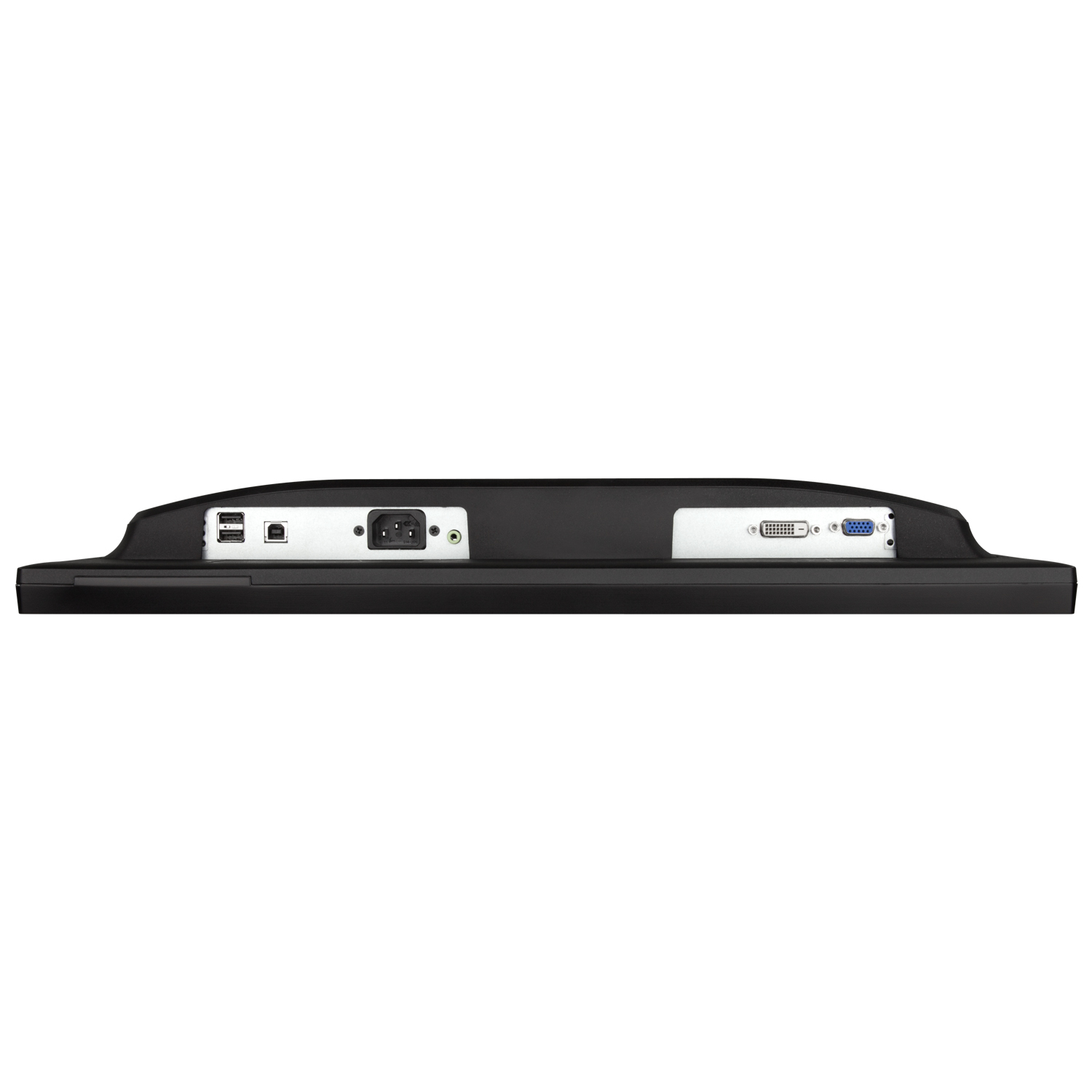

  • Connector
    VGA: 1
    USB 2.0 Type A: 2
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    DVI-D: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
