OVERVIEW

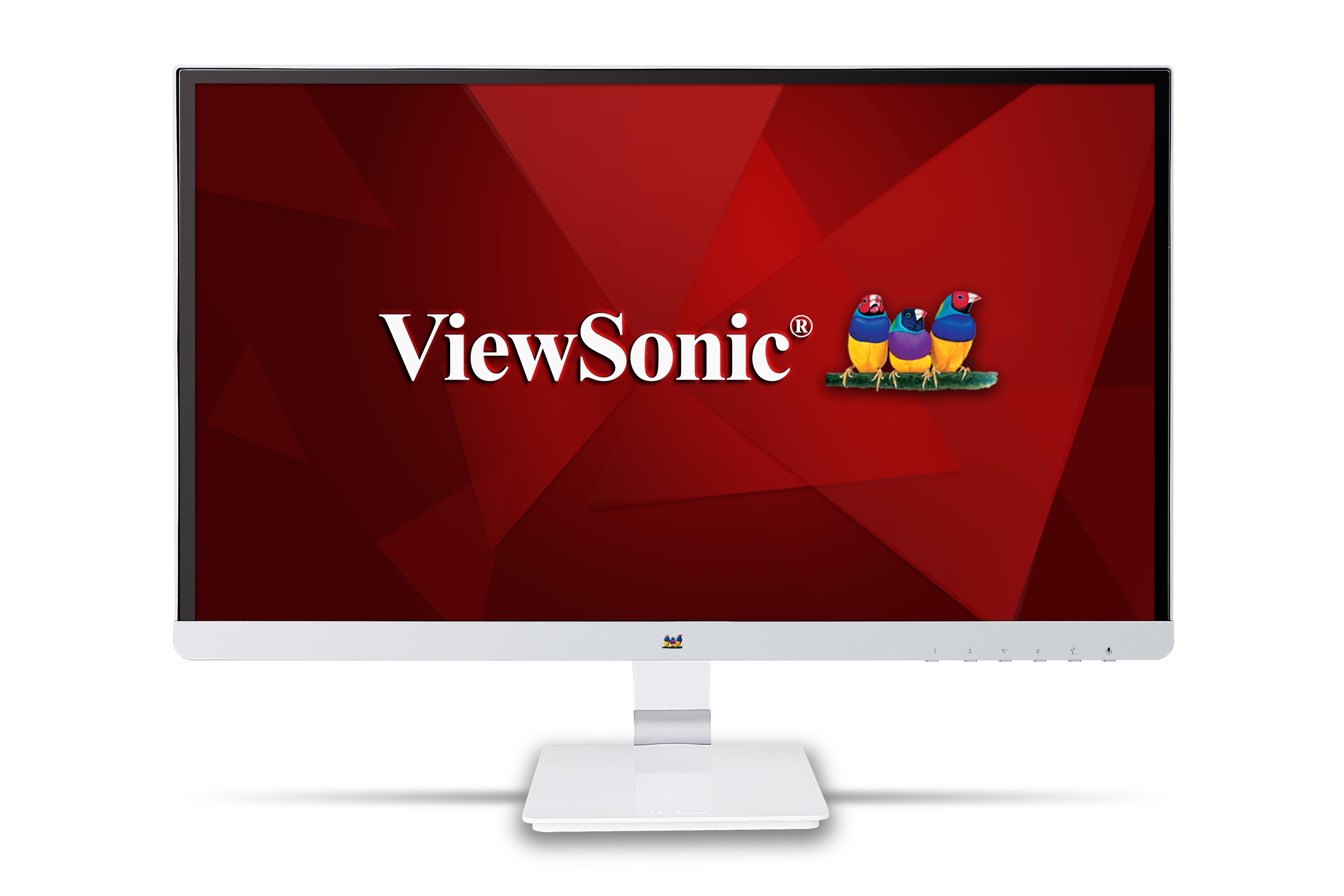

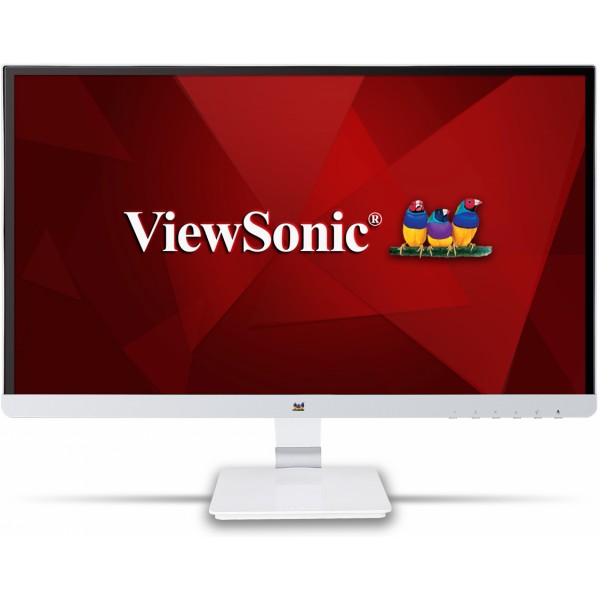

The ViewSonic VX2573-shw is a premium 25” Full HD multimedia display with a sleek, borderless design. A matte SuperClear IPS panel is enclosed in a silver and white, metallic look design. Ideal for the modern home, bedroom or office, the 1920 x 1080 resolution is suitable for viewing high definition media from games consoles, PCs and mobile devices. SuperClear IPS Technology offers great colour reproduction and 178/178 degrees viewing angle resulting in zero off axis colour shift. Flexible connectivity options include VGA for legacy devices and HDMI for current and future devices. ViewSonic Eye Care Technologies include 100% Flicker Free Backlight and an optional Blue Light Filter which can reduce the negative effects of blue light exposure by up to 87%. Finally, VX2573-shw also features Stereo Speakers, ViewMode Optimal Colour Settings and a VESA compatible chassis.

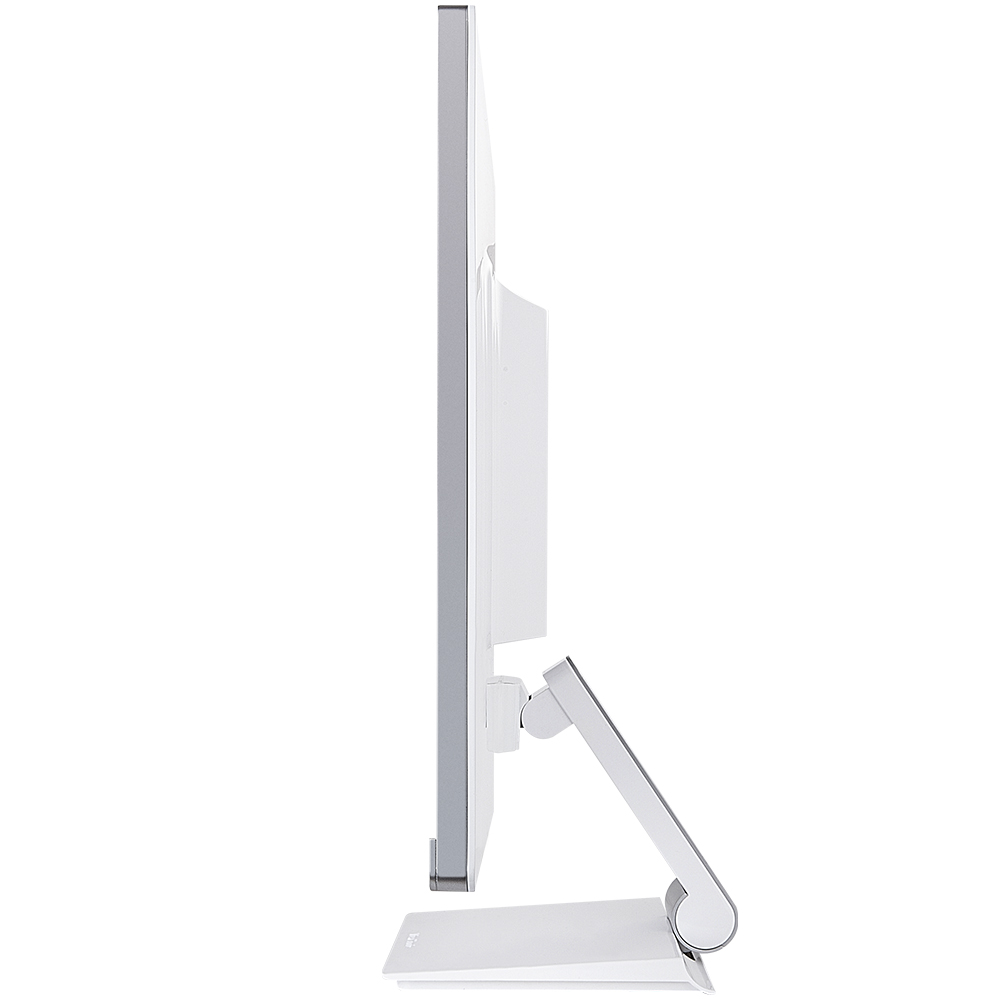

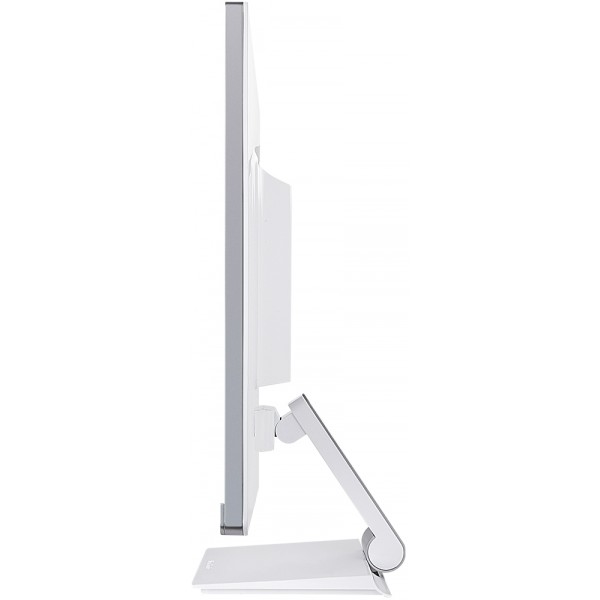

Ultra Slim Design
The VX2573-shw features an ultra slim design. At only 13mm thick, the VX2573-shw is one of ViewSonic’s thinnest monitors ever.

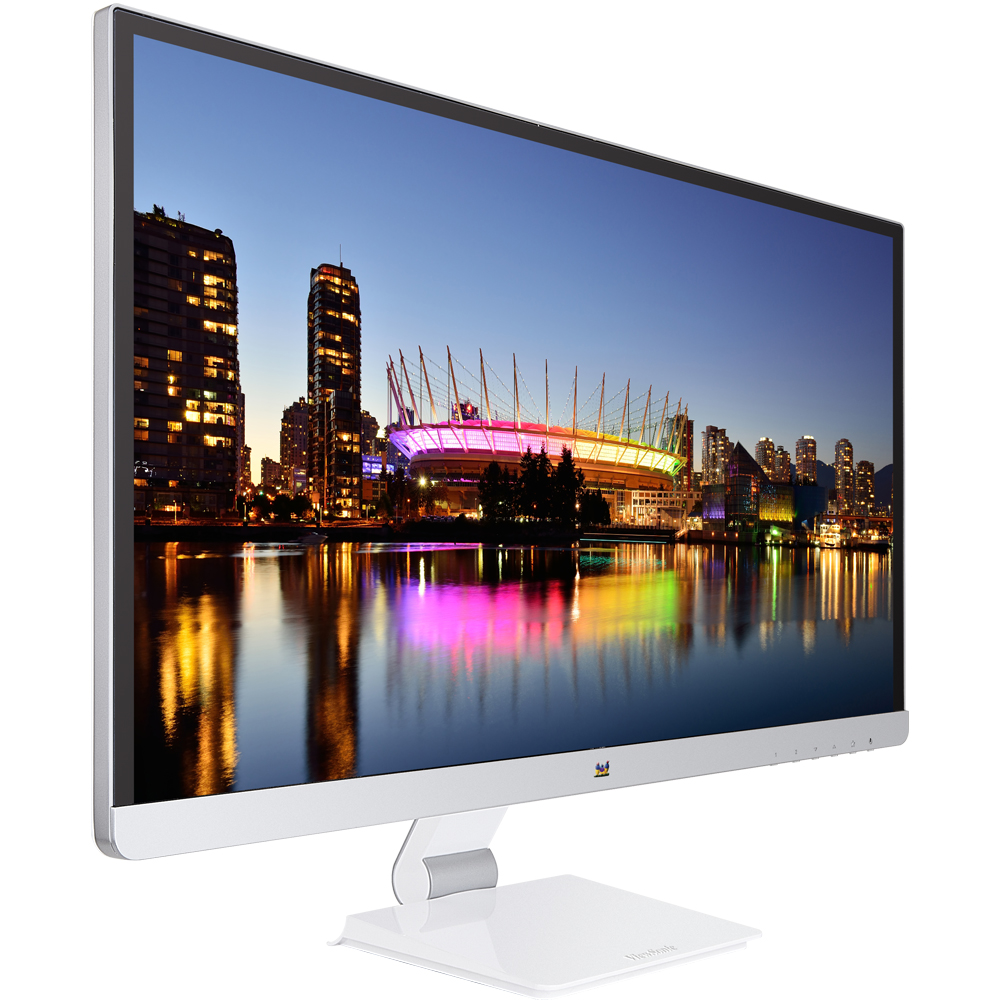

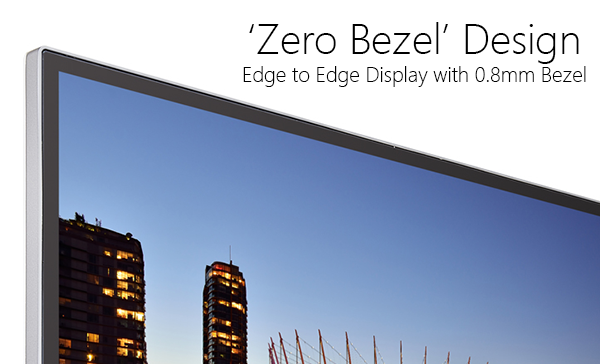

Zero Bezel Display
The VX2573-shw blends an edge to edge display with a zero bezel chassis. The visible silver bezel is just 0.8mm thin.

Full HD 1920 x 1080 Resolution
The VX2573-shw is built around a beautiful high definition 1920 x 1080 resolution IPS display, making it the perfect all-rounder for multimedia, office work and gaming.

SuperClear IPS: Beautiful Colour Performance and Wide Viewing Angles
Enjoy accurate and vivid colour reproduction with consistent levels of brightness from any angle. With SuperClear IPS panel technology, the VX2573-shw delivers better and deeper colour than TN and VA panel monitors.

Stereo Speakers
The VX2573-shw features stereo speakers but also features an audio out 3.5mm connector to connect to your favourite external speakers or headphones.

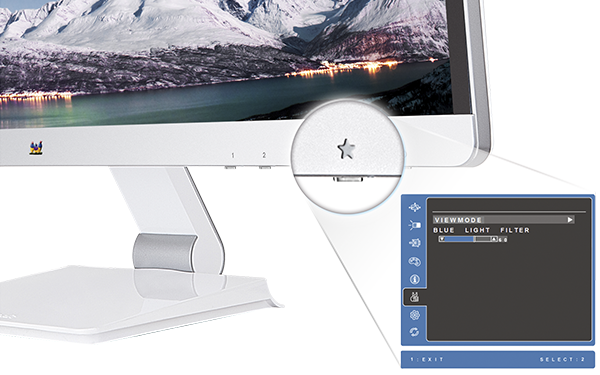

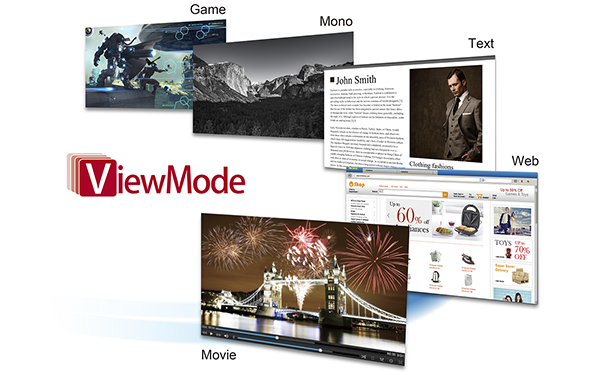

ViewMode and ViewSonic HotKey
ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimised viewing experience for different screen applications. Each preset is made easily available by the ViewSonic HotKey button.


Eye Care Technology
ViewSonic Flicker-Free backlight technology and a Blue Light Filter helps to eliminate eye strain from extended viewing periods.
Eco Warrior Friendly
LED backlighting not only enhances monitor performance, delivers an outstanding color range, and adjusts contrast ratios for remarkably detailed images, but it’s also eco-friendly, mercury-free, and uses less energy than other monitors.
Eco-mode adjusts brightness and improves visibility, while reducing eye fatigue and prolonging the monitor's lamp life. With Eco-mode, the lifespan of the LED backlighting is also greatly increased.

VESA

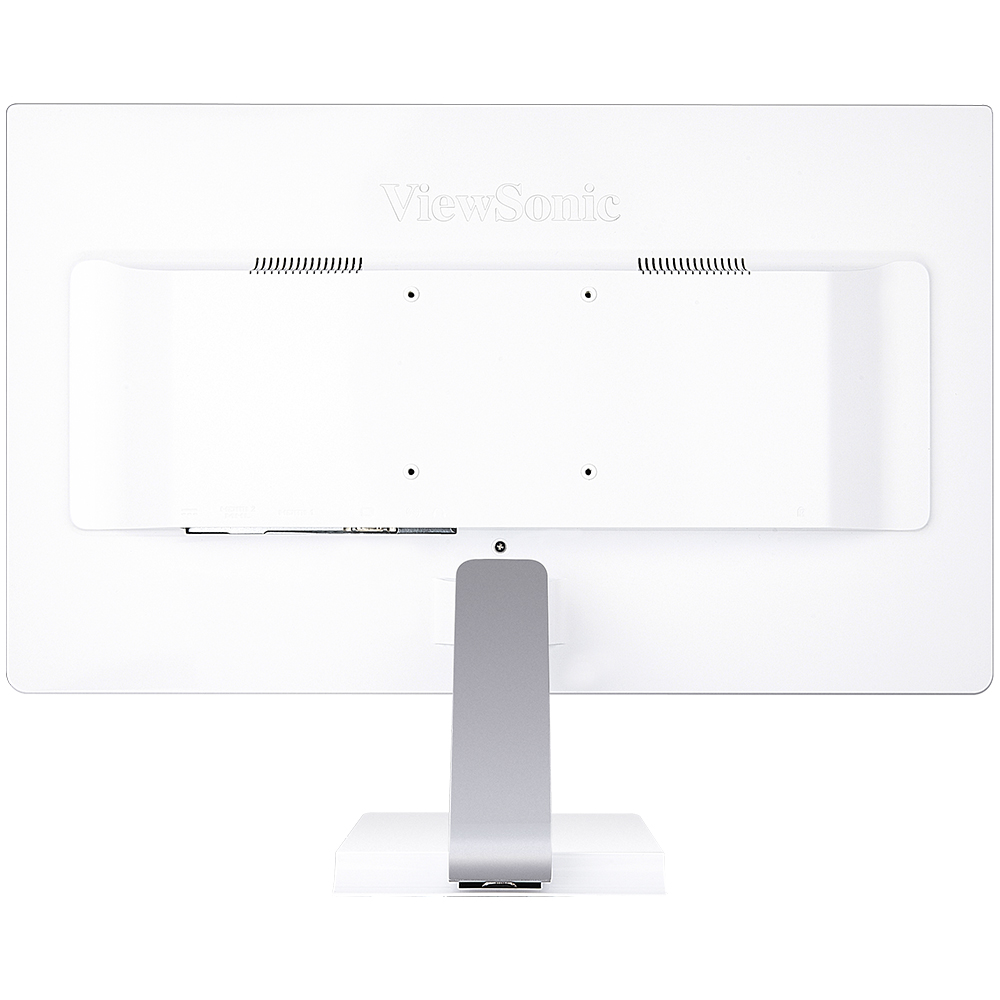

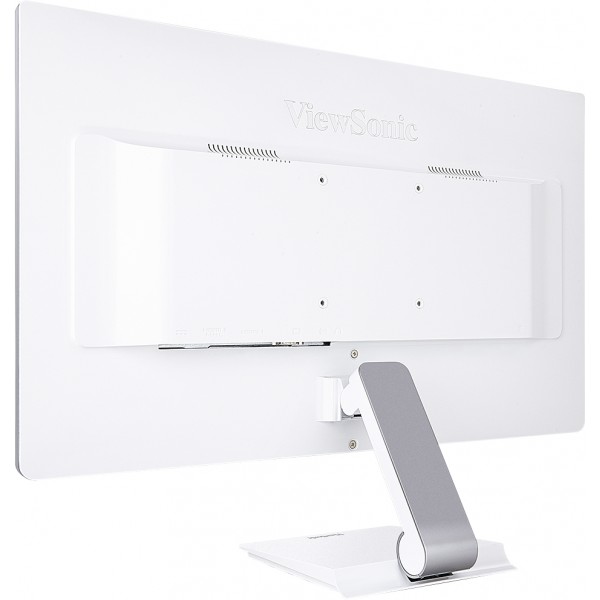

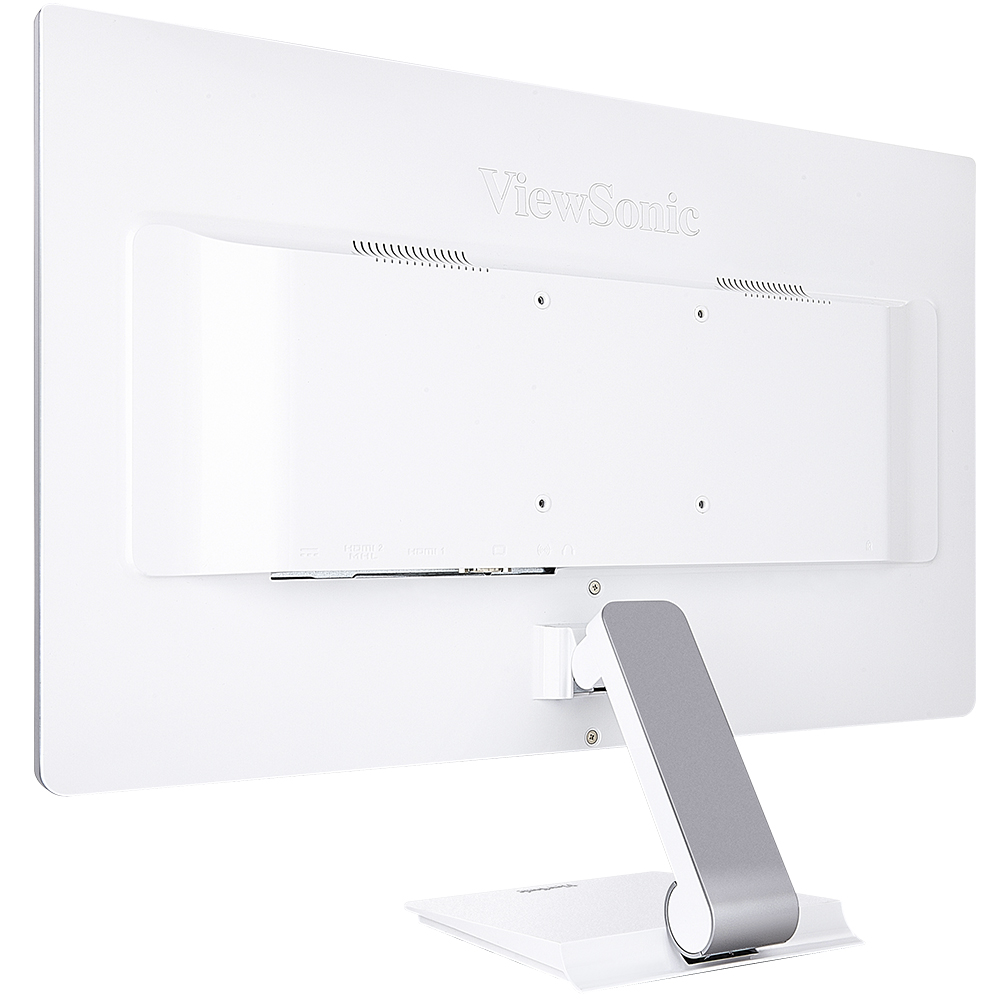

The VX2573-shw features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. You can easily detach the base by unscrewing four screws and then mounting the display on its new stand or wall mount.
SPECIFICATIONS
- DISPLAYType: 25” TFT LCD
Display Area: 552.96mm(H)x308.64mm(V)
Resolution: 1920 x 1080
Brightness: 250 cd/m²
Contrast Ratio: 1000 :1 (Typ.) 700:1(min)
Dynamic Contrast Ratio: 80M:1
Viewing Angles: 178°/178°
Response Time: 5ms (GTG)
Backlight: WLED light bar
Backlight Life: 40,000 Hrs (Min)
Colours: 16.7 M (6-bit+A-FRC)
Panel Surface: Anti-Glare type, Hard-coating (3H) - INPUT SIGNALFrequency: Fh = 24 ~82 kHz ; Fv = 50 ~75 Hz
Sync: Separate Sync
Composite Sync
Sync on Green - COMPATIBILITYPC: PC Compatibles (VGA up to 1920x1080 Non Interlaced)
Mac®: Power Mac (up to 1920x1080 )

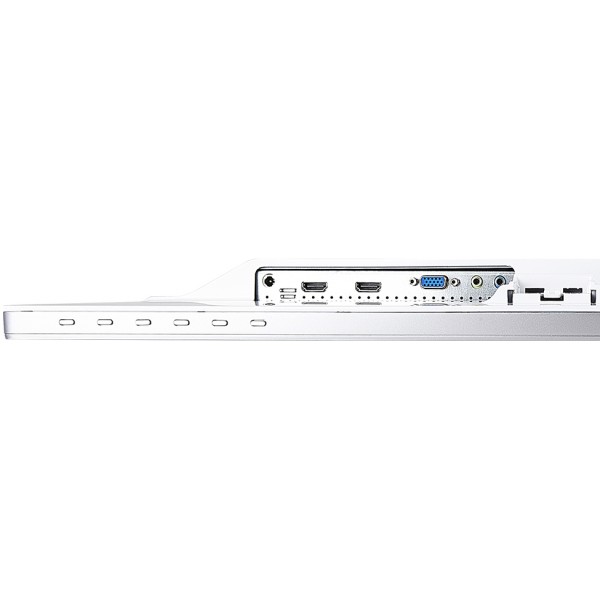

- CONNECTORDigital: HDMI x2 (v1.4 compatible)
Analog: DB-15 x1
Audio Out: Earphone out x1(3.5mm plug)
Audio In: Audio in x1(3.5mm plug) - SPEAKERS2Wx2
- POWERPower: External Power Adapter
Voltage: AC 100-240V (Universal); 50/60 Hz
Consumption: 24 W
Optimize: 20 W

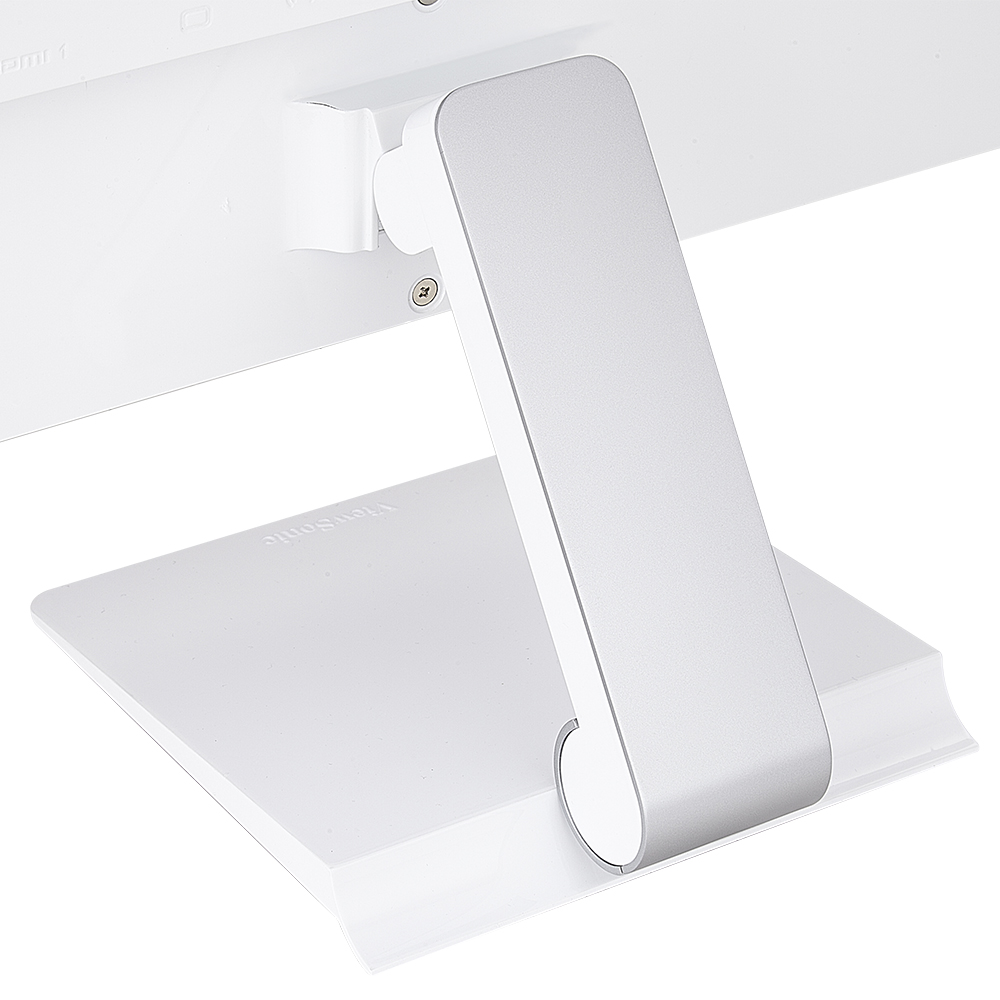

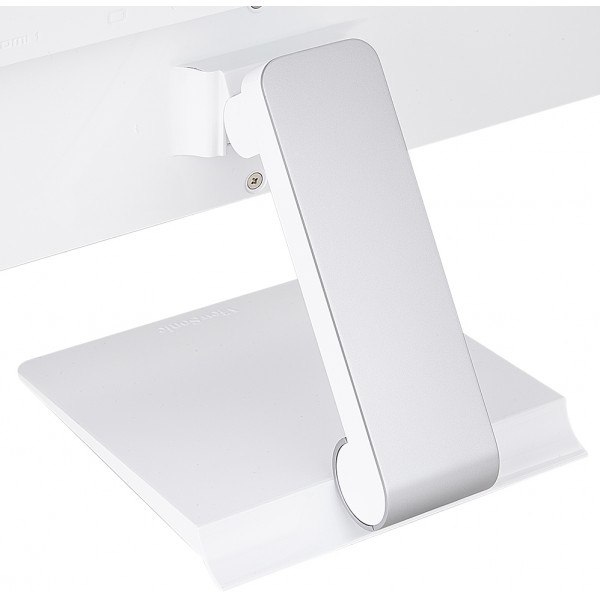

Conserve: 17 W - ERGONOMICSTilt: 15 ~ -5 degrees
- SPECIAL FEATURESEye-care, ViewMode
- WALL MOUNTVESA®: 100x100mm
- OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 10% to 90% (no condensation) - DIMENSIONS (W x H x D) (mm)Physical with stand (mm): 576.9mm (W) X 438.38 mm ( H ) X 190mm (D )
Physical without stand (mm): 576.9mm (W)x 344mm ( H )x 40.8mm(D )
Packaging (mm): 640mm(W)*420mm(H)*137mm(D) - WEIGHTNet with stand (kg): 4.0 kg
Gross (kg): 5.7 kg - REGULATIONSCE EMC,CB, RoHS Green BOM, ErP (2009/125/EC), REACH
SVHC List, Energy Efficiency Label (EEL), WEEE, BSMI, PSB, Ctick,
GEMS,EPEAT Silver, CCC,CEL Level 1,Windows8 - WARRANTY*Warranty offered may differ from market to market
- PACKAGE CONTENTSLCD Display
AC/ DC Adapter
Power Cable
Audio Cable(VX2573-shw,VX2573-shw-CN only)
VGA Cable
HDMI Cable(VX2573-shw,VX2573-shw-CN only)
Quick Start Guide
*Actual content may differ from market to market
