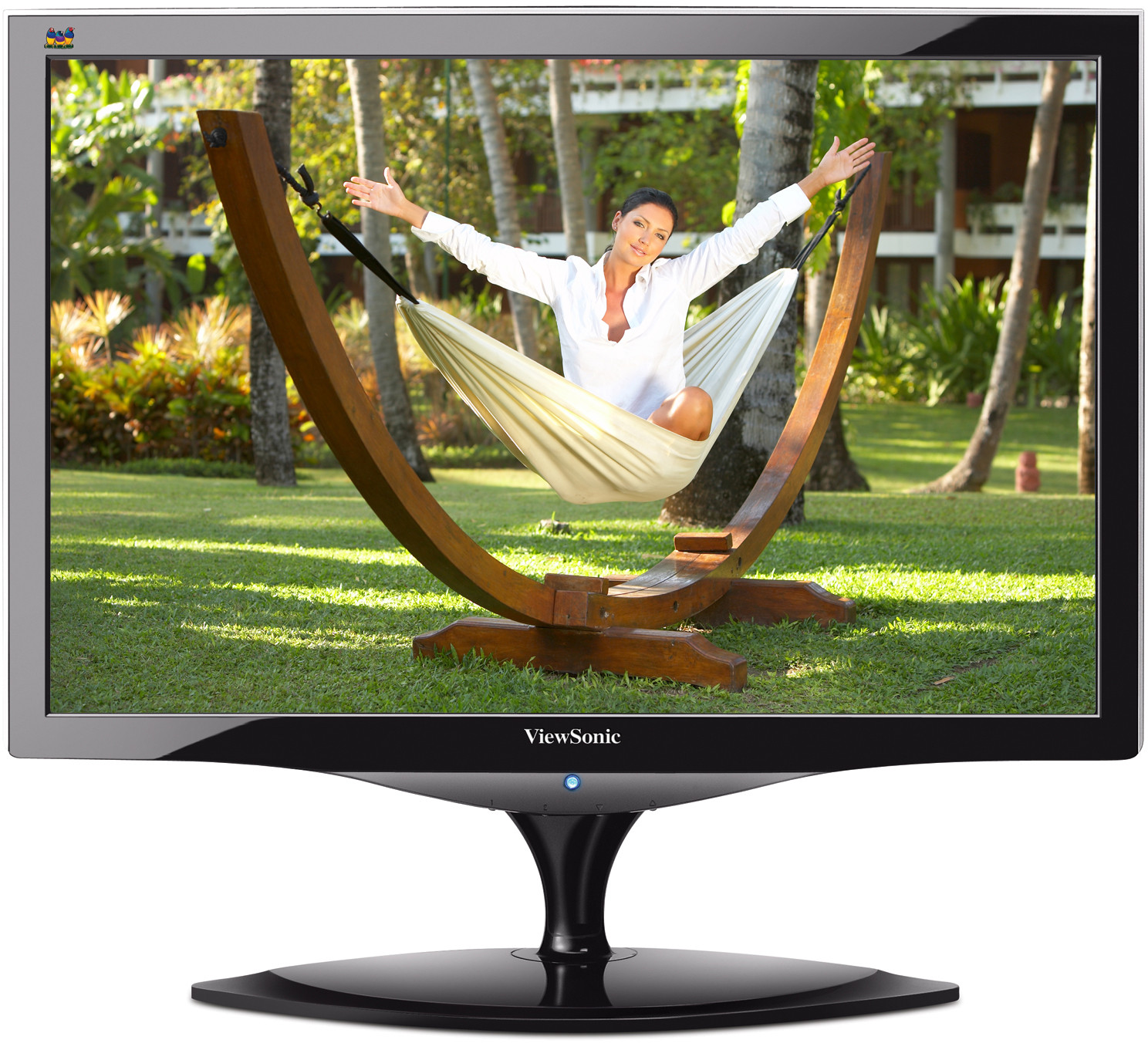

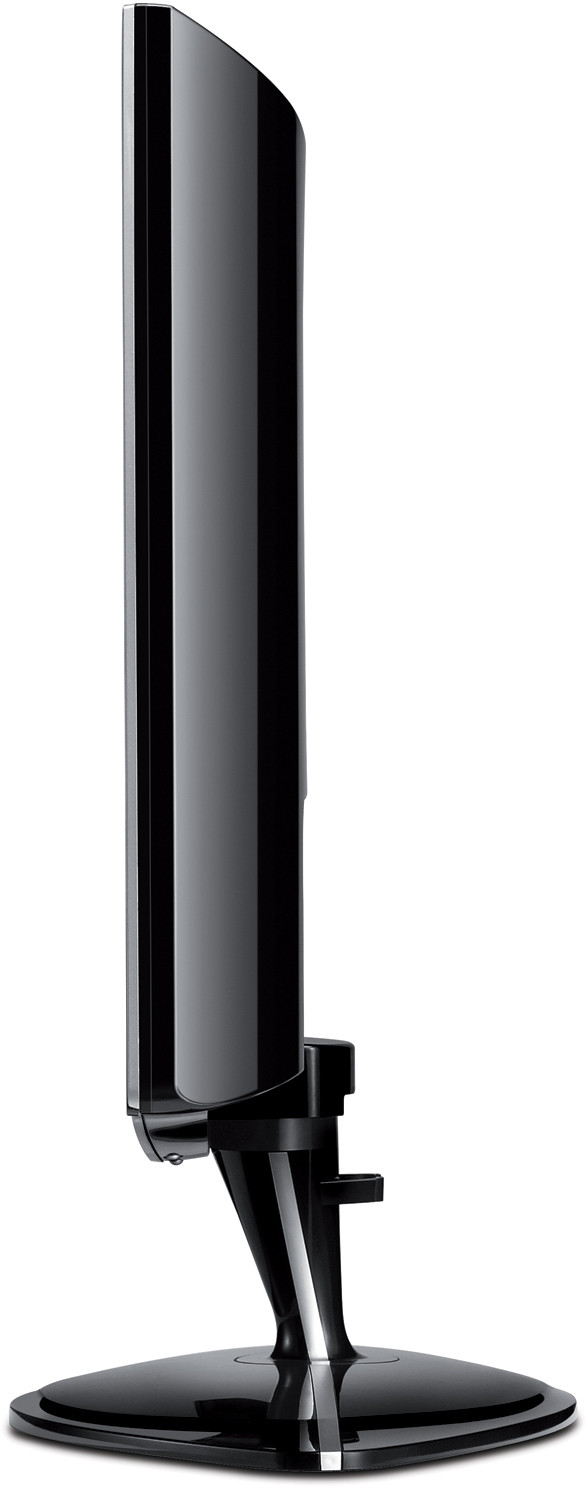

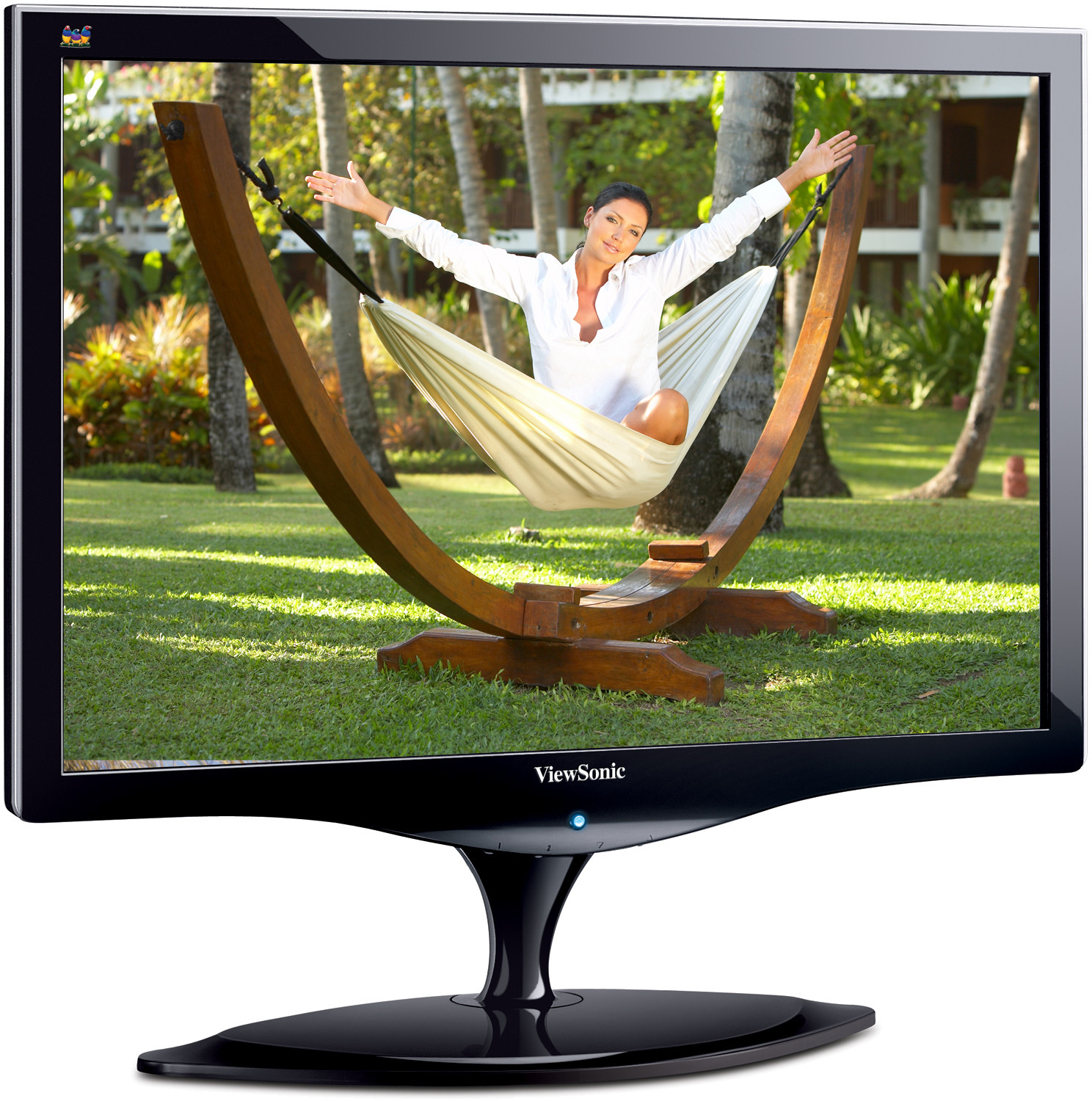

VX2262wm

22" WIDESCREEN LCD WITH 20,000:1 DYNAMIC CONTRAST

Sales Enquiry

GALLERY

OVERVIEW

ViewSonic’s 22" VX2262wm widescreen LCD offers the perfect balance of performance and style. With its elegant lines, the VX2262wm fits beautifully into your office décor and its high performance features BLEND EFFORTLESSLY INTO YOUR TECHNOLOGY LIFESTYLE. Images leap from the screen with 1680x1050 resolution, video response as fast as 2msand 20,000:1 DYNAMIC CONTRAST RATIO. Scrolling text, Internet pages and spreadsheet applications are Displayed in crisp, blur-free detail with precise color The SRS WOW HD sound* powerfully complements your games, movies and other multimedia applications. Demanding designers, professionals and gamers will love the sophisticated performance of the 22" VX2262wm.

High performance in a beautiful design

SPECIFICATIONS

COLORS
Black
LCD
Type: 56cm / 22" Wide Color TFT Active Matrix LCD
Contrast Ratio: 1000:1 static (typ), 20,000:1 dynamic
Viewing Angles: 170º horizontal, 160º vertical @ contrast ratio > 10:1

170° horizontal, 170° vertical @ contrast ratio > 5:1
Brightness: 300cd/m²
Display Area: 474mm x 296mm, 16.1" horizontal x 10.0" vertical; 22.0" diagonal
Optimum Resolution: 1680x1050
Response Time: up to 2ms (gray-to-gray); 5ms black-to-white (typ)
Light Source: Long life, 50,000 hrs. (typ)
Panel Surface: Anti-glare
COMPATIBILITY
PC: VGA up to 1680x1050 non-interlaced
Mac®: G3/G4/G5 up to 1680x1050

DIMENSIONS
Physical With Stand: 508mm x 440mm x 203mm (20.0" x 17.3" x 7.9")
Physical Without Stand: 508mm x 359mm x 64mm (20.2" x 14.1" x 2.5")
REGULATIONS
UL, cUL, FCC-B, CB, CE, ENERGY STAR®, NOM, WEEE TUV-S/IRAM/UL-AR S Mark), ICES-B, ISO 13406-2 & MPR II), GOST-R + 20 original copies hygienic, SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK, MIC, Green Mark, RoHS, EPEAT-Silver
PACKAGE CONTENTS
LCD display, power cable, 15-pin VGA video cable, DVI cable, audio cable, Quick Start Guide, ViewSonic Wizard CD
AUDIO
Speaker: 2x2-watt SRS WOW HD (Requires SRS Audio Sandbox Software to be installed.)
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
CONNECTOR
Power: 3-pin AC plug (CEE22)
Analogue/Digital: 15-pin mini D-sub/DVI-D
POWER
Voltage: AC 100-240V, 50-60Hz (auto switch)
Consumption: 45W (typ)
CONTROLS
Basic: Power, 1, down, up, 2
OnView®: Auto image adjust, brightness, contrast, input select (analog, digital), ViewMatch® color adjust (sRGB, 9300K, 7500K, 6500K-default, 5400K, user color-RGB), information (resolution, H. frequency, V. frequency, pixel clock, model number, serial number), manual image adjust (H. size, H. position, V. position, fine tune, sharpness, dynamic contrast comma aspect ratio, response time)), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall
OPERATING CONDITIONS
Temperature: 32-104°F (0-40°C)
Humidity: 10-90% (non-condensing)
WEIGHT
Net With Stand: 5.6 kg (12.2 lb.)
Net Without Stand: 4.5 kg (9.9 lb.)
Gross With Stand: 7.7 kg (16.9 lb.)
VIDEO INPUT
Analog/Digital: RGB analog (75 ohms, 0.7 Vp-p)/DVI-D (HDCP)
Frequency: Fh: 24~83kHz, Fv: 50~76Hz
Sync: H/V separated (TTL), composite, sync-on-green
POWER MANAGEMENT
Meets MPRII and ENERGY STAR® standards
ERGONOMICS
Tilt: -5/+20º
