Elegantly styled, fast wide-screen

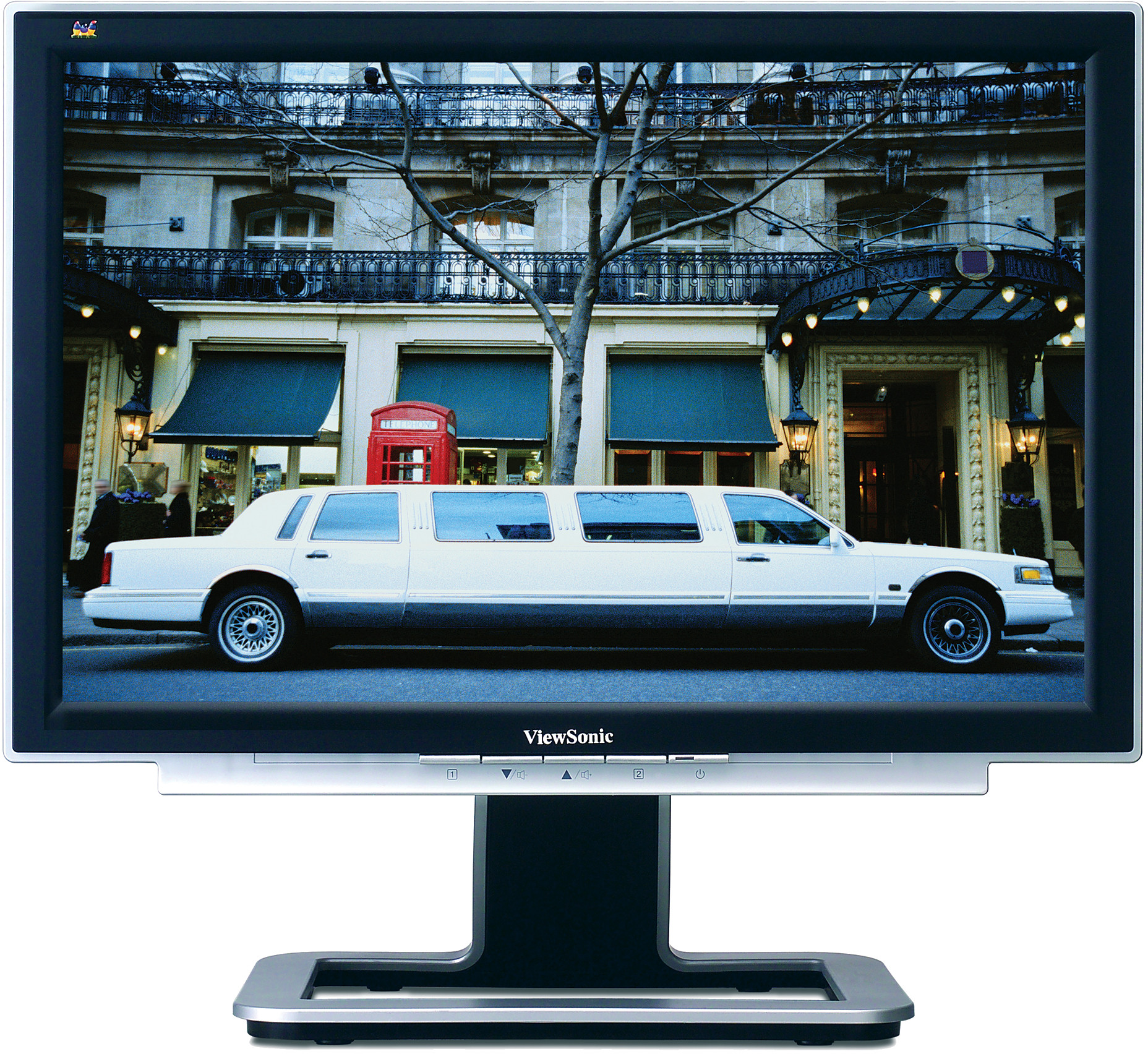

The ViewSonic VX2025wm 20.1" wide-screen LCD breaks barriers in style and video performance to enhance your work and play. The 16:10 wide-screen aspect ratio and 1680 x 1050 resolution provide greater screen area to allow multiple windows, wider spreadsheets or several pages to be displayed simultaneously. Then, take a break from work to enjoy games or movies in full wide-screen magnificence. 8ms response time ensures visual performance is free from blurs or ghosting – even if viewing fast-action video. High brightness and contrast levels with wide viewing angles generate bright, vivid, detailed images. Optisync® technology further enhances the display’s appeal with both analogue (VGA) and digital (DVI) inputs for the maximum connectivity and video performance. And the eye-catching slim bezel design means the VX2025wm is the ultimate combination of form and function. IT’S NOT JUST ANOTHER WIDE-SCREEN LCD. IT’S A VIEWSONIC.
SPECIFICATIONS
- LCDType: 20.1” Wide MVA colour TFT active matrix WSXGA+ LCD
Contrast Ratio: 800:1 (typ.)
Viewing Angles: 176° horizontal, 176° vertical (at 10:1)
Display Area: 43.3cm horizontal x 27.1cm vertical; 51.1cm diagonal
Optimum Resolution: 1680 x 1050
Response Time: 8ms (Grey-to-Grey) (typ.), 16ms (off-on-off) (typ.)
Light Source: Long life, 40000 hrs. (typ.)
Panel Surface: Anti-glare
Pixel Pitch: 0.258mm
Colour Support: 16.7M colours (8-bit)
Pixel Clock: 205MHz analogue, 165MHz digital
Brightness: 300cd/m² - COMPATIBILITYPC: VGA up to 1680 x 1050 non-interlaced (max. 60Hz)
Mac®: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced (max. 60Hz) - DIMENSIONSW x H x D mm: 485 x 441 x 201 (with stand)
485 x 340 x 67 (without stand)
- REGULATIONSTCO’99, CE, CB, NEMKO/GS2, NEMKO ERGO3, ISO13406-2 (pixel failure class II),
UL, cUL, ENERGY, FCC-B, NOM, GOST-R (+ 20 original copies hygienic), SASO,
PCBC, VCCI, BSMI, CCC, PSB, C-TICK, Argentina-S, Green Mark, RoHS - PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide,
ViewSonic Wizard CD-ROM (User Guide/drivers) - WARRANTYPlease see: www.viewsoniceurope.com/UK/Support/warranty.htm
- INPUTSync: H/V separate (TTL), composite, sync on green
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
Digital: DVI-D (TMDS, 100 ohm)
Frequency: Fh: 30 – 82kHz, Fv: 50 – 75Hz - CONNECTORAnalogue: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced (max. 60Hz)
Digital: 24-pin DVI-D (detachable cable)
Audio: 3.5mm stereo audio line-in
Power: 3-pin AC plug (CEE22) - POWERVoltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption: 35 watt (max.), <1 watt in power save mode - CONTROLSBasic: Down 5°, Up 20°
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch®
colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V
frequency, pixel clock, model number, serial number), manual image adjust (H/V
position, H size, fine tune, sharpness), setup menu (language, resolution notice,
OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C – 40°C
Humidity: 10% – 90% (non-condensation) - WEIGHTNet: 6.3kg (with stand)
- POWER MANAGEMENTMeets TCO’99 and ENERGY standards
- SECURITYKensington® security port
- VESA MOUNT COMPLIANTVESA® FPMPMI 100mm x 100mm
- ERGONOMICSTilt: Down 5°, Up 20°
- AUDIOSpeakers: Integrated invisible stereo speakers
