“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
OVERVIEW

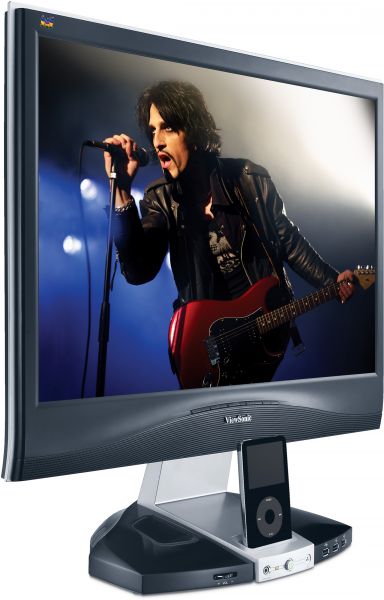

Stop, Dock and Rock – the ViewSonic 19” VX1945wm ViewDock™ LCD is the ultimate entertainment display. Dock your iPod® to access all your digital content. Boost your handheld photos and videos and view on the large widescreen display. Hear your digital content with built-in stereo speakers and additional subwoofer for unparalleled audio performance – or go silent with the headphone jack. Manage your digital media with the integrated 8-in-1 digital card reader for camera cards. Connect your digital devices through the 4 USB ports. Chat on-line using the built-in microphone. The super-fast 5ms response time screen lets you watch movies or play games free from blurs or ghosting. Your desktop experience will never be the same once you bring it all together with the VX1945wm ViewDock and iPod®.Digital media comes to life with the ViewDock™
REVIEWS
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Un monitor multimedia gama alto con multitud de funciones adicionales."”
“"It's not the cheapest screen available, but if you want strong looks, good image quality and excellent features, this stands apart."”
“The VX1945wm 19-inch ViewDock display received a 7.8-out-of-ten ranking, highlighting its excellent speaker quality, crisp color and iPod connectivity, stating "the VX1945wm is an excellent choice for multimedia enthusiasts."”
“"A Must Have for iPod users."”
“"Based on the performance, features and end-user pricing, our winner for this round-up is ViewSonic VX1945wm. In the allotted five LCD panels, the VX1945wm offers the best bang for each buck pent."”
“"Geht es um die Ausstattung, setzt ViewSonic in dieser Preisklasse eindeutig die Maßstäbe."”
“"The ViewSonic VX1945wm receives the best 'Entertainment LCD' award in Computer Shopper's Best Tech of 2007 roundup, highlighting its iPod dock, music applications, built-in speaker and subwoofer, four USB ports and memory-card reader."”
“The ViewSonic VX1945wm receives the best “Entertainment LCD” award in Computer Shopper's Best Tech of 2007 roundup, highlighting its iPod dock, music applications, built-in speaker and subwoofer, four USB ports and memory-card reader.”
SPECIFICATIONS
- COLORSBlack
- LCDType: 19” Wide TN colour TFT active matrix WXGA+ LCD
Contrast Ratio: 700:1 (typ.)
Viewing Angles: 140° horizontal, 140° vertical (at 10:1), 160° horizontal, 160° vertical (at 5:1)
Brightness: 300cd/m2
Display Area: 41.0cm horizontal x 25.6cm vertical, 48.3cm diagonal
Optimum Resolution: 1440 x 900@60Hz
Response Time: 5ms (off-on-off) (typ.)
Light Source: Long life, 40,000 hrs. (typ)
Panel Surface: Anti-glare
Pixel Pitch: 0.285mm
Colour Support: 16.2M colours (6-bit+2-bit FRC)
Pixel Clock: 140MHz - COMPATIBILITYPC: VGA up to 1440x900 non-interlaced
Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
- DIMENSIONSPhysical With Stand: 450 x 449 x 212
Physical Without Stand: 450 x 341 x 66
W x H x D mm: 545 x 520 x 260 - REGULATIONSCE, CB, ERGO, ISO13406-2 (pixel failure class II), GOST-R + 20 original copies hygienic, UL, cUL, FCC-B, ENERGY STAR®, NOM, MPR II, SASO, BSMI, CCC, PSB, C-TICK, WEEE, RoHS
- PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable,
USB cable, iPod® adapter, Quick Start Guide, ViewSonic Wizard CD-ROM
(User Guide/drivers) (multi-language) - WARRANTYThree-year limited warranty on LCD, parts and labor. Optional Express Exchange® service program available.
- AUDIOSpeaker: 2 x 2 watt integrated stereo speakers
Sub-woofer: 1 x 3 watt intergrated into base
Microphone: Integrated into base - RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
- CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Power: 3-pin plug
USB: USB 2.0 hub, 1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A)
Base: iPod dock, USB (A type)x4, USB (B type)x1, audio out stereo jack, 2-in-1 audio in, headphone jack
Audio: 1 x 3.5mm stereo audio line-in, 1 x 3.5mm stereo audio line-out
Headphone: 3.5mm mini stereo jack
ViewDock: iPod® dock (Made for iPod® certified)
Card Reader: 8-in-1 digital card reader - POWERVoltage: AC 100– 240V, 50/60Hz (auto switch), internal power supply (Display)
Consumption: 59 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2], mute, subwoofer volume up/down
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C – 40°C
Humidity: 20%–80% (non-condensation) - WEIGHTNet With Stand: 5.7kg
Net Without Stand: 4.7kg
Gross With Stand: 7.7kg - VIDEO INPUTAnalog/Digital: RGB analogue (0.7 Vp-p, 75 ohm)
Frequency: Fh: 30~82kHz, Fv: 50~85Hz
Sync: H/V separated (TTL), composite, sync-on-green
Digital: DVI-D (TMDS, 100 ohm) - POWER MANAGEMENTMeets MPR II and ENERGY STAR® standards
- SECURITYKensington® security port
- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm
- ERGONOMICSTilt: Down 5°, Up 20°
