VX1940w-4

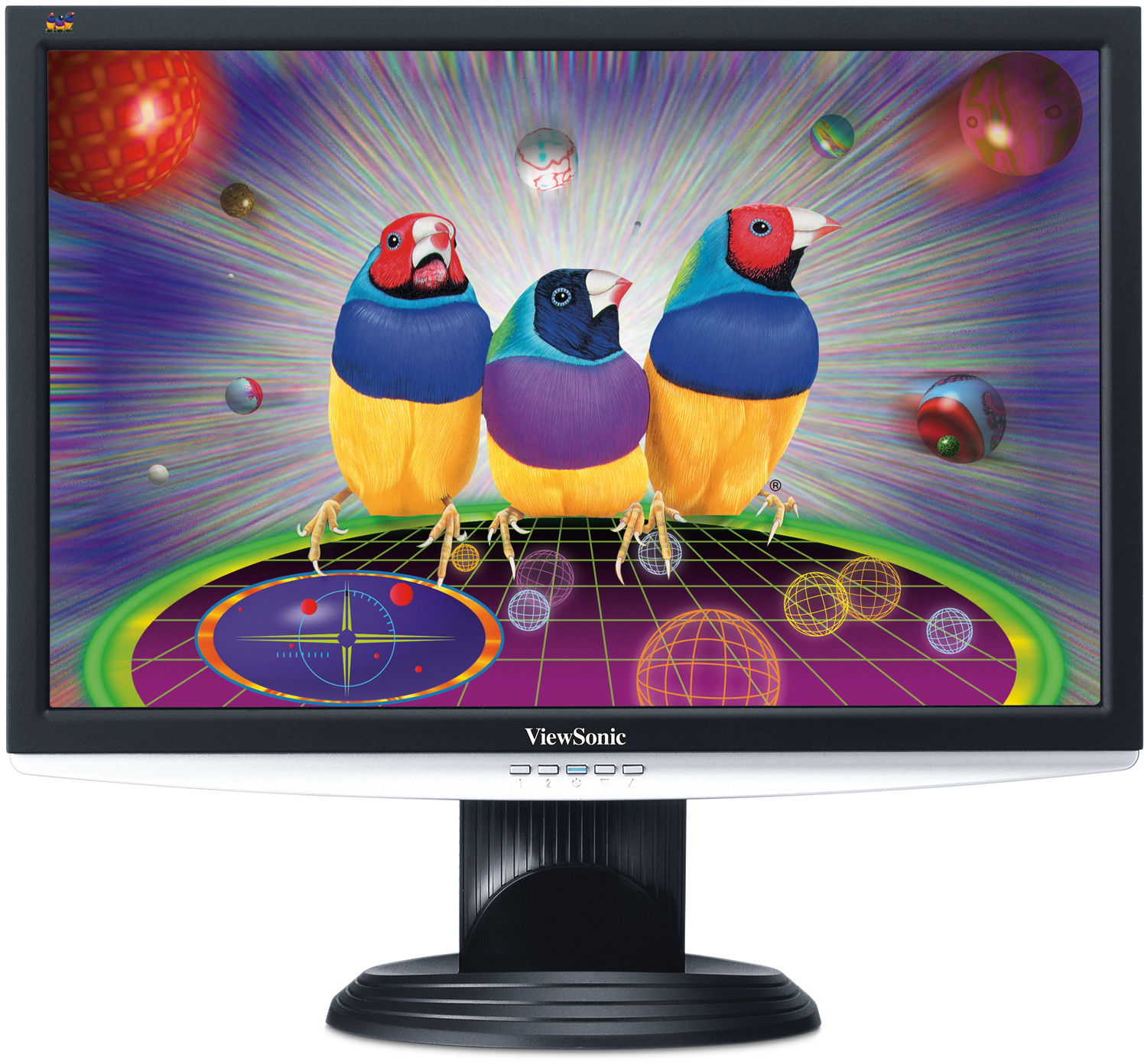

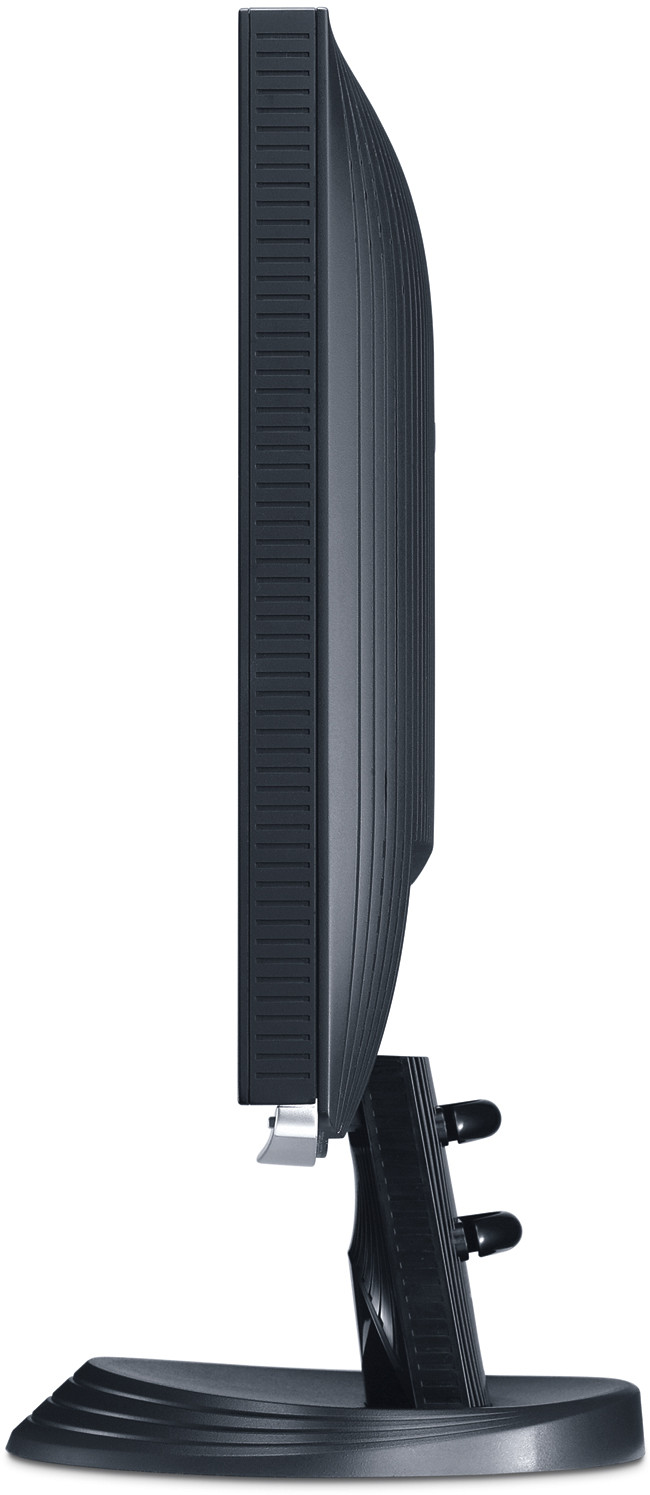

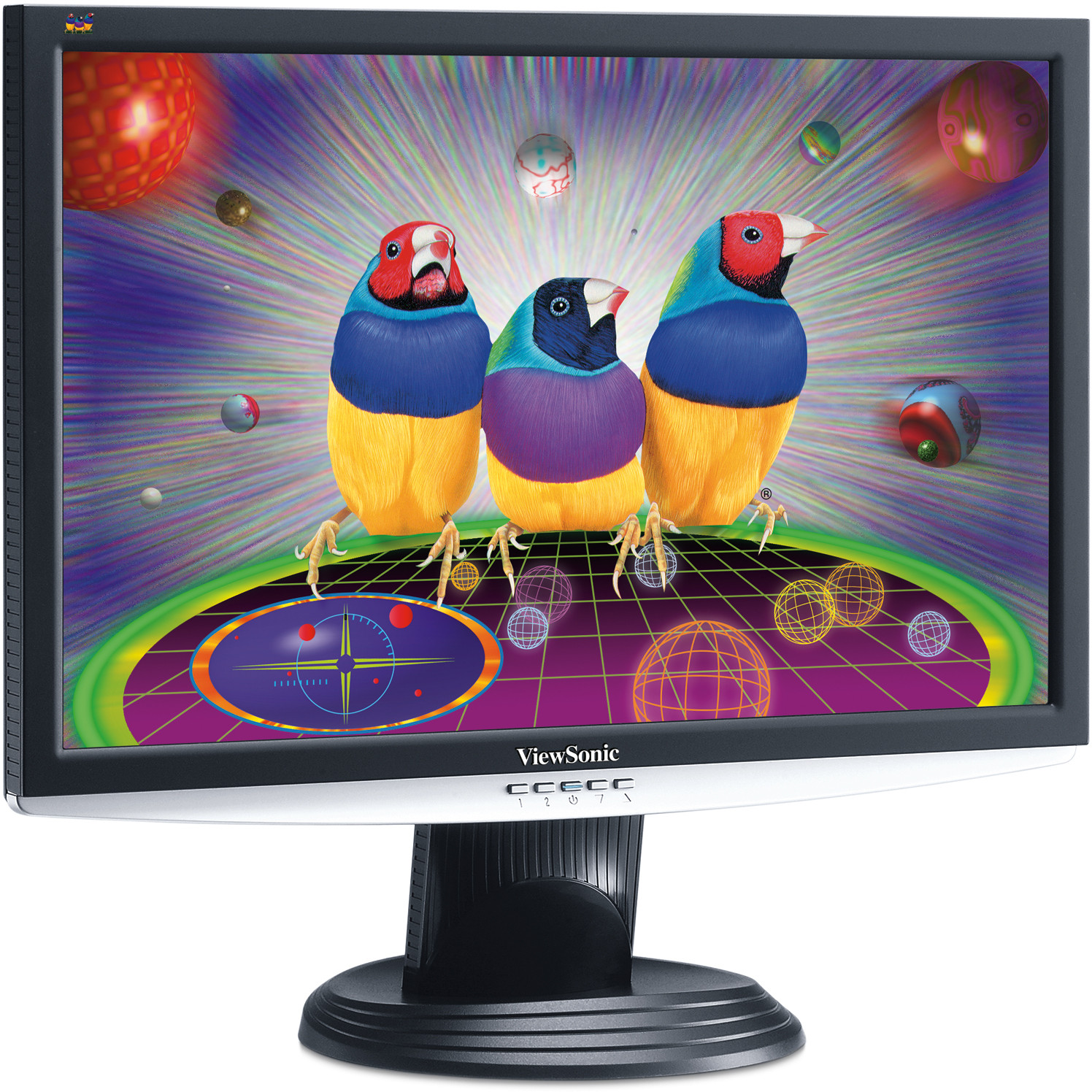

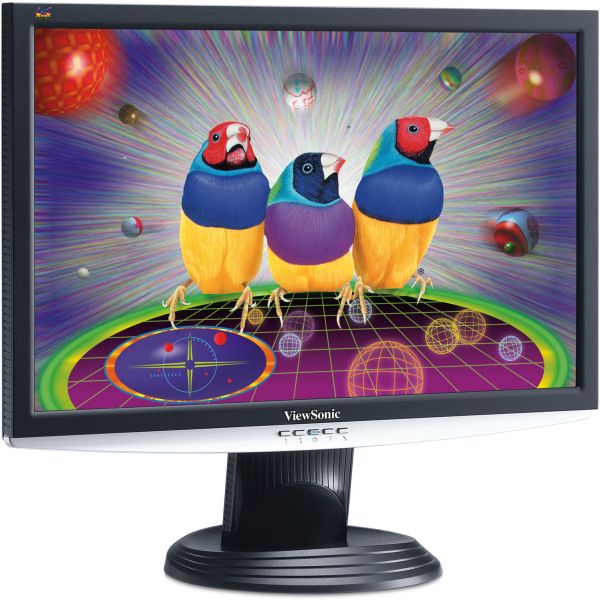

49 cm / 19" WIDESCREEN LCD MONITOR VX SERIES WITH 2MS RESPONSE TIME AND 3,000:1 DCR
OVERVIEW
ViewSonic’s 49 cm / 19"VX1940w widescreen LCD delivers unparalleled performance with video response as fast as 2ms, 3000:1 DYNAMIC CONTRAST RATIO (typ.) and SUPER-HD 1680 x 1050 RESOLUTION. Games, HD movies, videos and graphic-intensive applications have never looked better on your desktop. This Vista™ premium certified WIDESCREEN DISPLAY ENHANCES RODUCTIVITY by allowing you to view two documents side-by-side or work in two applications without toggling. Connect your game console, DVD player and other components through the DIGITAL (DVI-D HDCP) AND ANALOGUE INPUTS. The Kensington security port provides theft deterrence and the OSD and power lock prevent unauthorised changes to your optimal screen settings.Enjoy HD content on your desktop
It’s not just the ultimate HD gaming display. It’s a ViewSonic.
REVIEWS
SPECIFICATIONS
- COLORSBlack
- LCDType: 49 cm / 19" Wide TN colour TFT active matrix WSXGA+ LCD
Contrast Ratio: 1000:1 (typ.), 3000:1 DCR (typ.)
Viewing Angles: 170° horizontal, 160° vertical (at 0:1)
170° horizontal, 170° vertical (at 5:1)
Brightness: 300 cd/m2
Display Area: 41.0cm horizontal x 25.7cm vertical, 48.3cm diagonal
Optimum Resolution: 1680 x 1050@60Hz
Response Time: 2ms (grey-to-grey), 5ms (off-on-off) (typ.)
Light Source: Long life, 40000 hrs. (typ.)
Panel Surface: Anti-glare
Pixel Pitch: 0.243mm
Colour Support: 16.7M colours supported (6-bit+2-bit FRC)
Pixel Clock: 165MHz - COMPATIBILITYPC: VGA up to 1680 x 1050 non-interlaced
Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
- DIMENSIONSPhysical With Stand: 442 x 385 x 195
Physical Without Stand: 442 x 310 x 54
W x H x D mm: 520 x 469 x 145 - REGULATIONSTCO’03, GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R+Hygienic, UL, cUL, FCC-B, NOM, EPEAT, Ukraine, SASO, ENERGY, ENERGY STAR, C-Tick, MIC, BSMI, PSB, MPR II, TUV-S/IRAM/UL-AR S Mark, CCC, VCCI, Green Mark, WEEE, RoHS
- PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
Power: 3-pin AC plug (CEE22)certified) - POWERVoltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumption: 44 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness, aspect ratio [4:3, full screen], response time), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C – 40°C
Humidity: 10%–90% (non-condensation) - WEIGHTNet With Stand: 4.6kg
Net Without Stand: 3.8kg
Gross With Stand: 5.8kg - VIDEO INPUTFrequency: Fh: 24~82kHz, Fv: 50~85Hz
Sync: H/V separate (TTL), composite, sync on green
Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Digital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI) - POWER MANAGEMENTTCO’03 and ENERGY STAR standards
- SECURITYKensington® security port
- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm
- ERGONOMICSTilt: Down 5°, Up 20°
