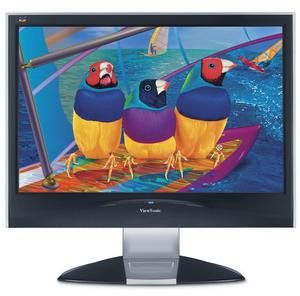

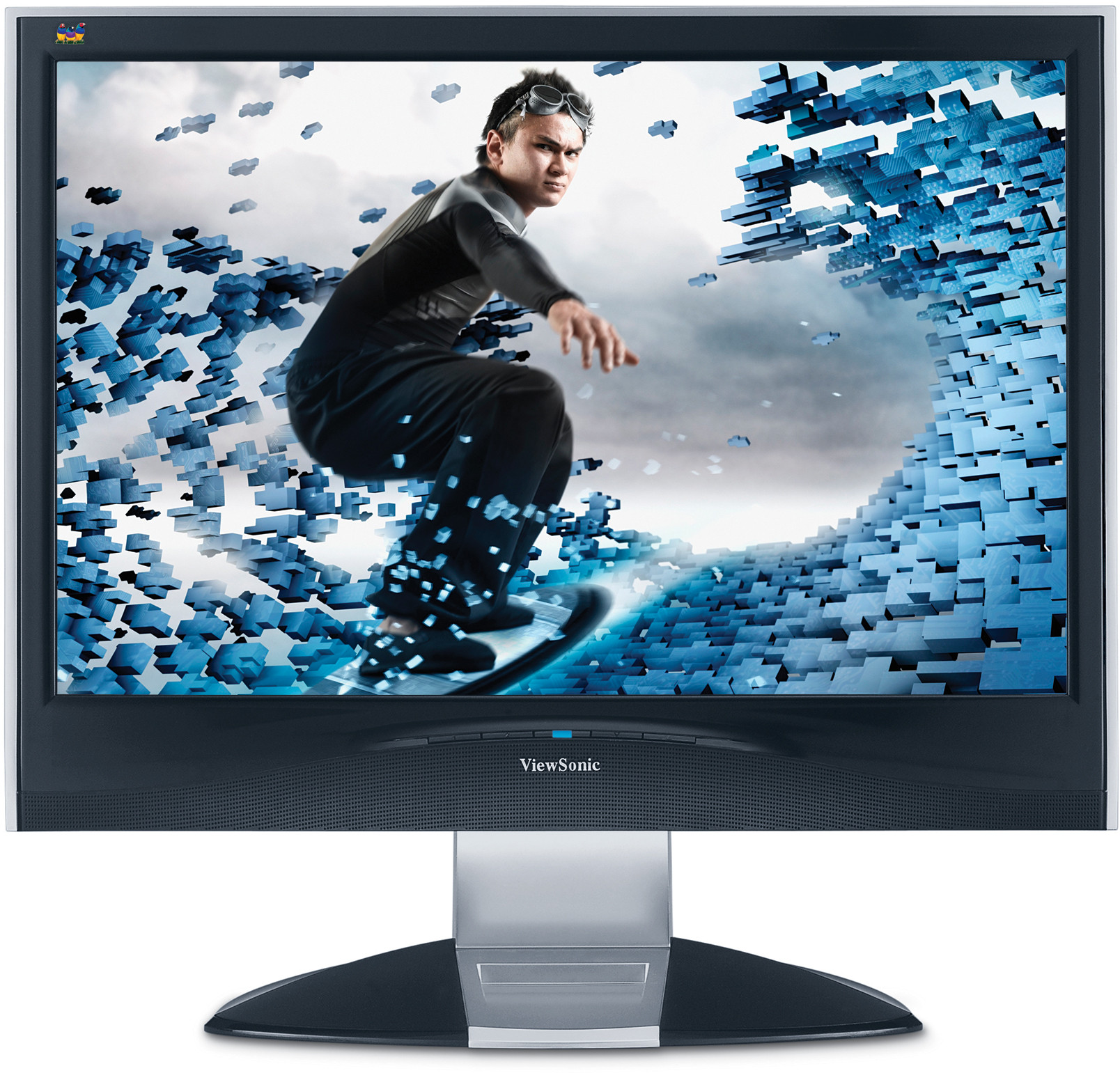

Elegantly-styled fast wide-screen
ViewSonic’s 19” VX1935wm wide-screen monitor sets new standards as an entertainment display. See the difference in gaming action with a super-fast 5ms response time to provide fluid images guaranteed to be free from ghosting or blurs. Marvel at the detail in movies with ultra-high brightness and contrast levels to provide rich, clear, detailed images. Connect with ease through both digital (DVI) and analogue inputs. Enjoy full multimedia entertainment with integrated stereo speakers. Plus the stylish glossy piano-black / matt-black finish ensures the VX1935wm looks great turned on or off. It’s not just a fast wide-screen LCD monitor. It’s a ViewSonic.
SPECIFICATIONS
- LCDType: 19” Wide TN colour TFT active matrix WXGA LCD
Contrast Ratio: 700:1 (typ.)
Viewing Angles: 130° horizontal, 120° vertical (at 10:1)
150° horizontal, 140° vertical (at 5:1)
Brightness: 300cd/m²
Display Area: 41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal
Optimum Resolution: 1440 x 900@60Hz
Response Time: 5ms (off-on-off) (typ.)
Light Source: Long life, 40000 hrs. (min.)
Panel Surface: Anti-glare (3H)
Pixel Pitch: 0.285mm
Colour Support: 16.2M colours (6-bit+2-bit FRC)v
Pixel Clock: 136.5MHz - COMPATIBILITYPC: VGA up to 1440 x 900 non-interlaced
Mac®: Power Mac™ up to 1440 x 900 non-interlaced - DIMENSIONSW x H x D mm: 450 x 434 x 210 (with stand)
450 x 341 x 76 (without stand)
545 x 515 x 162 (packaging)
- REGULATIONSCE, CB, ISO13406-2 (pixel failure class II), GOST-R+Hygienic, MPR II,
SASO, Energy Star, ENERGY, WEEE, RoHS - PACKAGE CONTENTSLCD Monitor, power cable, D-sub video cable, DVI cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) - WARRANTYPlease see: www.viewsoniceurope.com/UK/Support/warranty.htm
- AUDIOSpeaker: 2 x 1.5 watt integrated speakers
- INPUTSync: H/V separate (TTL), composite, sync on green
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
Digital: DVI-D (TMDS, 100 ohms)
Frequency: DVI-D (TMDS, 100 ohms) - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Audio: 3.5mm stereo audio line-in
Power: 3-pin AC plug (CEE22) - POWERVoltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumption: 35 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio
(volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K,
user RGB), information (resolution, H/V frequency, pixel clock, model number,
serial number, website), manual image adjust (H/V position, H size, fine tune,
sharpness), setup menu (language, resolution notice, OSD position, OSD timeout,
OSD background), OSD/power lock, memory recall - WEIGHTNet: 5.6kg (with stand)
4.7kg (without stand)
Gross: 5.6kg (with stand)
4.7kg (without stand) - POWER MANAGEMENTMeets MPR II and Energy Star® standards
- SECURITYKensington® security port
- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm
- ERGONOMICSTilt: 35 watt (typ.), <1 watt in power save mode
- OPERATING CONDITIONSHumidity: 20%–85% (non-condensation)
Temperature: 0°C–40°C
