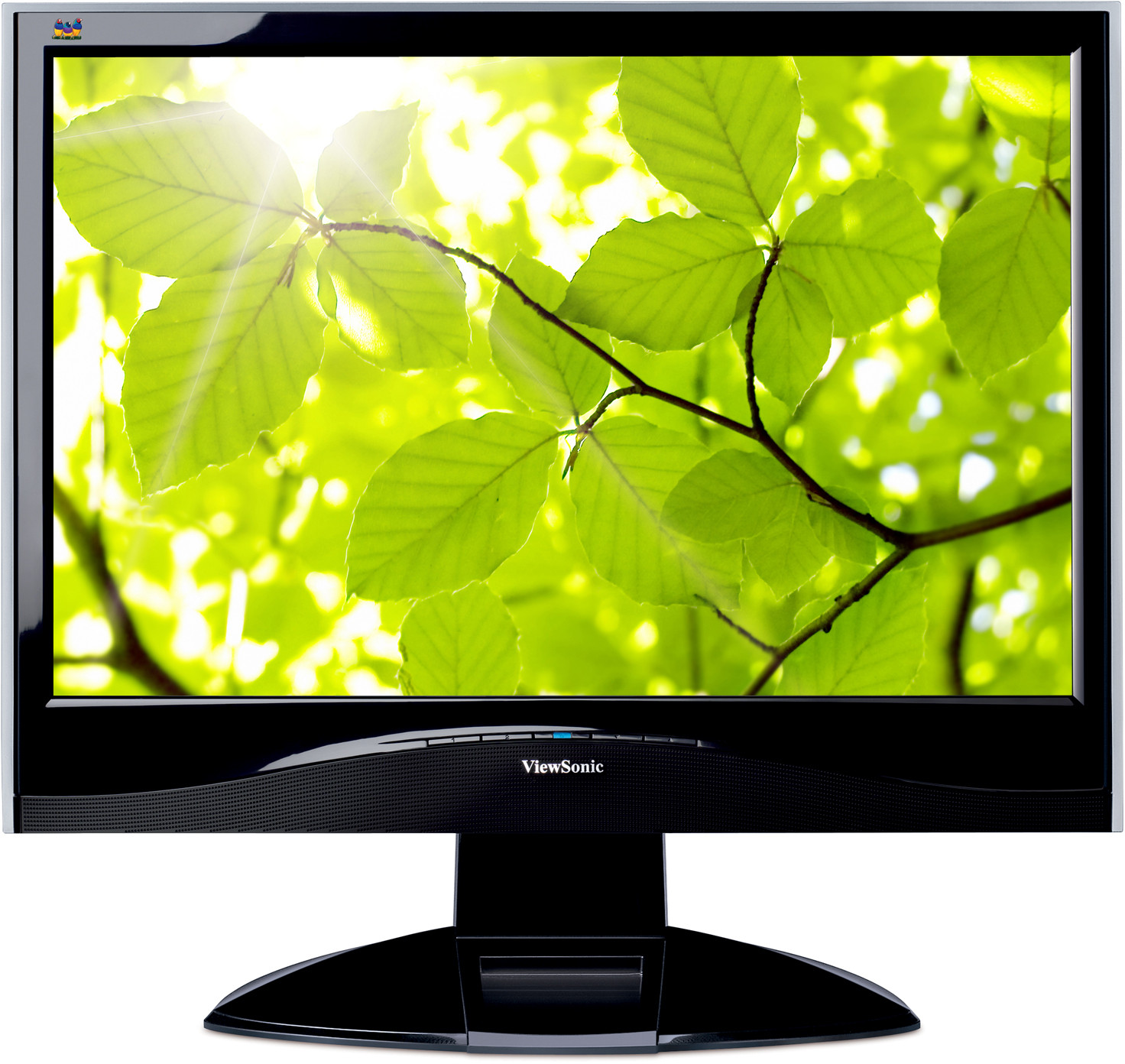

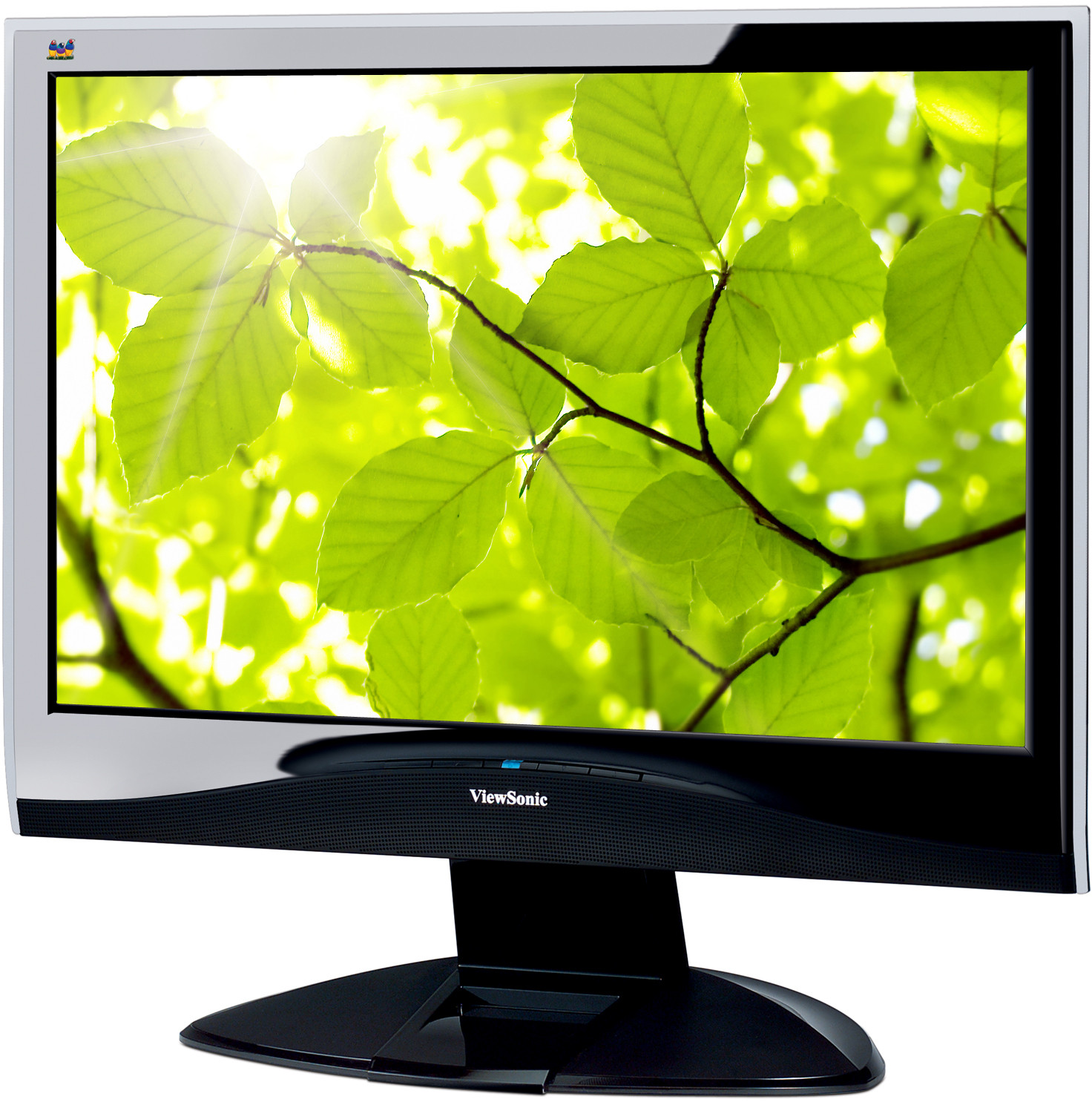

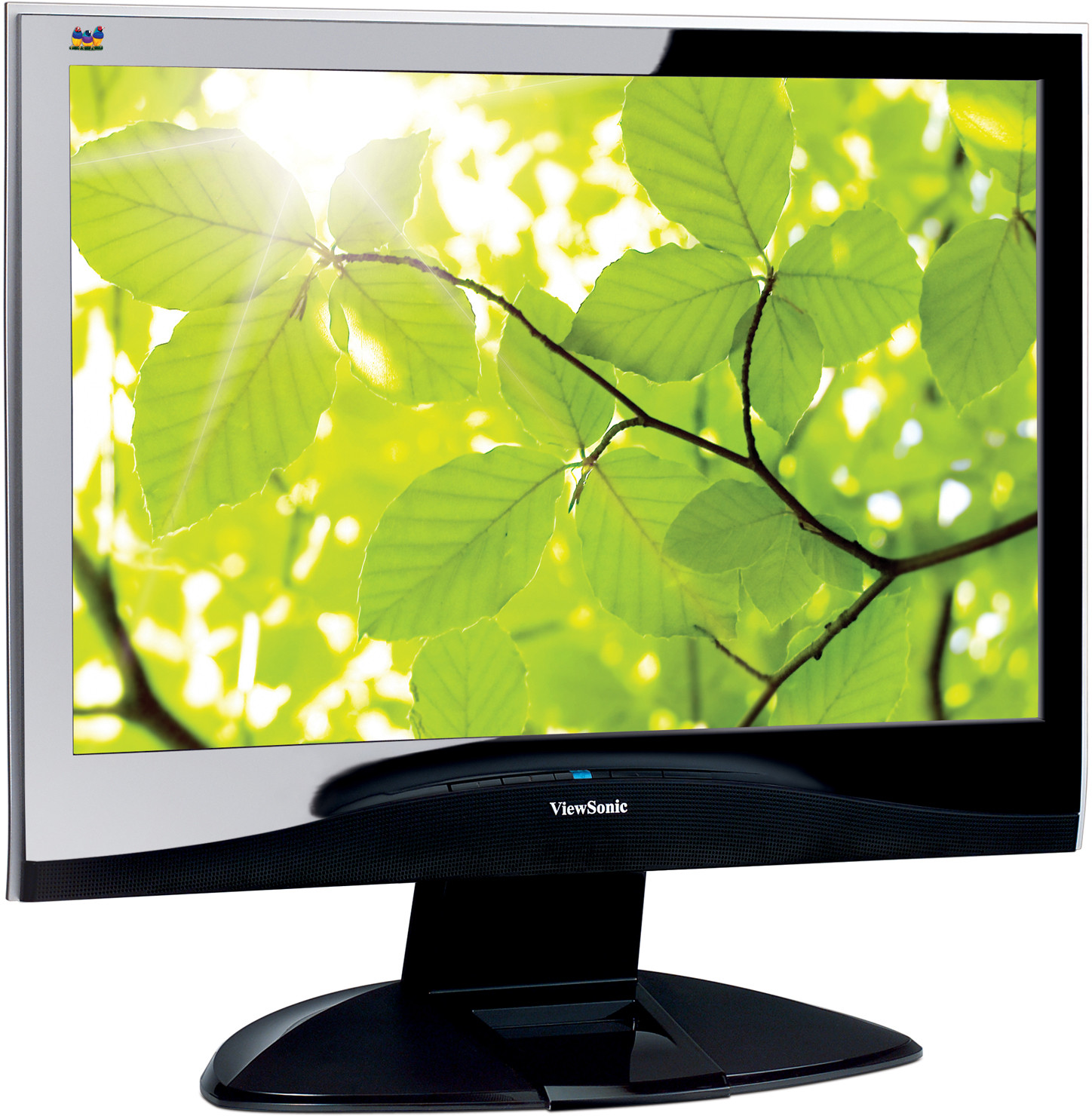

VX1932wm-LED
48cm / 19" VIEWABLE LED BACKLIGHT LCD WITH 10,000,000:1 DYNAMIC CONTRAST RATIO
Optimize Desktop Performance withWLED Backlight Technology
Dramatically improved picture quality can now be yours… with ViewSonic’sVX1932wm-LED monitor. DCR reaches mega values for true-to-life imagedepth and clarity and the LED backlight automatically detects the signallevel and intelligently controls backlight brightness – allowing blacks to betruly black and whites to be whiter in a bright environment. Grey levels arealso enhanced through the intelligent control circuits, yielding superb greyscale performance. Along with all of the image quality improvements, thepower consumption is reduced by as much as 50% with no compromiseson visual performance, and the LED backlight is eco-friendly with mercuryfree technology.
SPECIFICATIONS
- COLORSBlack
- LCDType: 49 cm / 19" wide Color TFT Active Matrix LCD
Contrast Ratio: 1000:1 (typical)
Viewing Angles: 170° (H), 160° (V) (CR≧10)
Display Area: 474mm(H)×296mm(V) / 18.6in(H)×11.6in(V)
Optimum Resolution: 1440 x 900
Response Time: 5 ms (G to G)
Light Source: 30,000 (typical) (White LED)
Panel Surface: Anti-glare
Pixel Pitch: 0.282 mm(H) x 0.282 mm(V)
Brightness: 250 cd/m² (typical)
Dynamic Contrast Ratio: >1,000,000:1 (Mega) - COMPATIBILITYPC: VGA up to 1440x900 Non Interlaced
Mac®: Mac OS (up to 1440x900 )
- DIMENSIONSPhysical (WxHxD): 450 mm x 434 mm x 209 mm (
17.7" x 17" x 8.2") - REGULATIONSEnergy Star 5.0, CCC, RoHS, China Energy, BSMI , CB, PSB, KCC (MIC) ,
SASO, CE, C-tick, TCO 5.0 - CONNECTORDigital: DVI-D x 1
Analog: 15 pin mini D-sub x 1 - POWERVoltage: 100-240VAC; 50/60 Hz
Consumption: 15.5 W (typical) / 19.5 W (maximum) - CONTROLSBasic: [1], [2], Soft power button, Up[▲], Down[▼]
Main Menu: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust (sRGB,
9300K, 6500K, 5400K, User Color [R, G, B]), Information,Manual Image
Adjust (Horizontal Size, H/V Position, Fine Tune, Sharpness, Aspect Ratio,
ECO Mode), Setup Menu (Language Select, Resolution Notice, OSD
Position, OSD Time Out, OSD), Background, Memory Recall - OPERATING CONDITIONSTemperature: 0°C - 40°C (32°F - 104°F)
Humidity: 20% to 80% (no condensation) - WEIGHTNet: 4.7 Kg (10.3 lbs)
- VIDEO INPUTFrequency: Fh: 24 – 82 kHz , Fv : 50 – 75 Hz
Sync: H/V Separated, Composite, Sync On Green(TTL)
Analogue: RGB Analogue (75 ohms, 0.7 Vp-p)
Digital: DVI-D (TMDS, 100 ohms) - VESA MOUNT COMPLIANTMeet VESA (100mm x 100mm) Standards

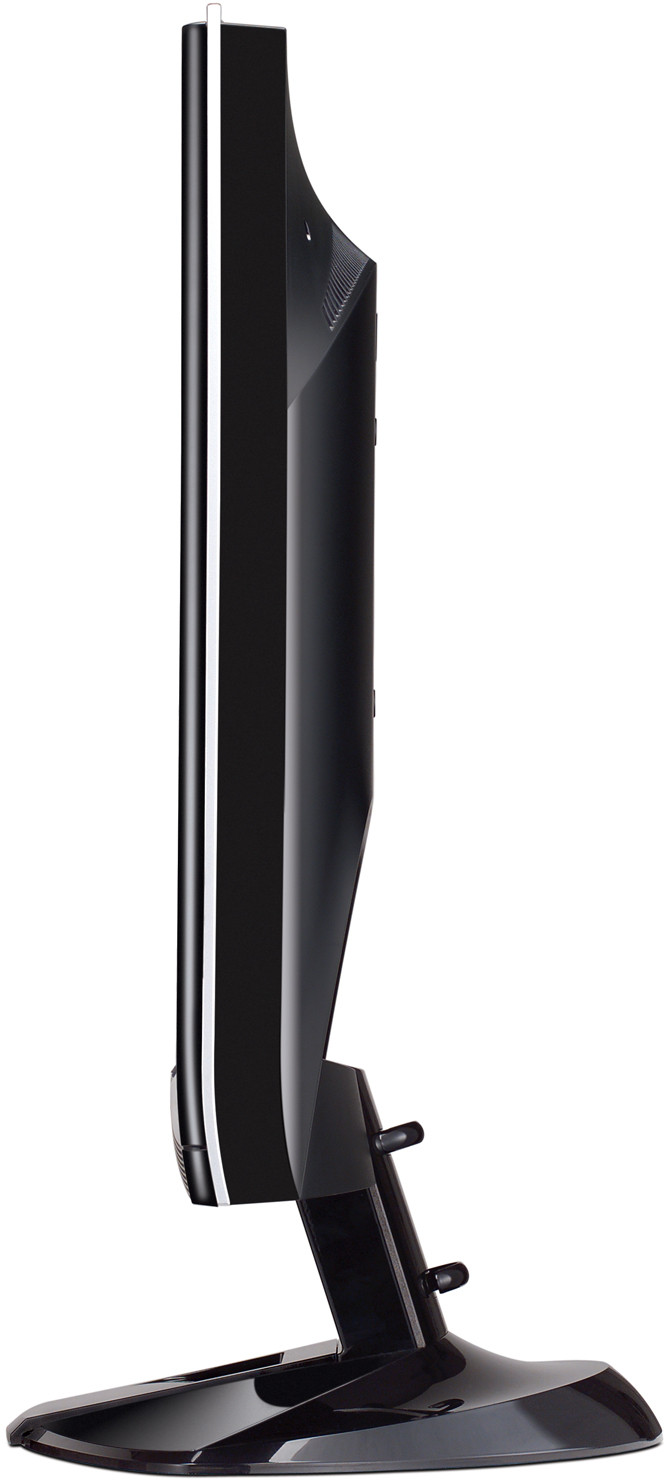

- ERGONOMICSTilt: 20 ~ -5 degrees
- AUDIOSpeakers: 2W x 2
