Rich features to boost productivity

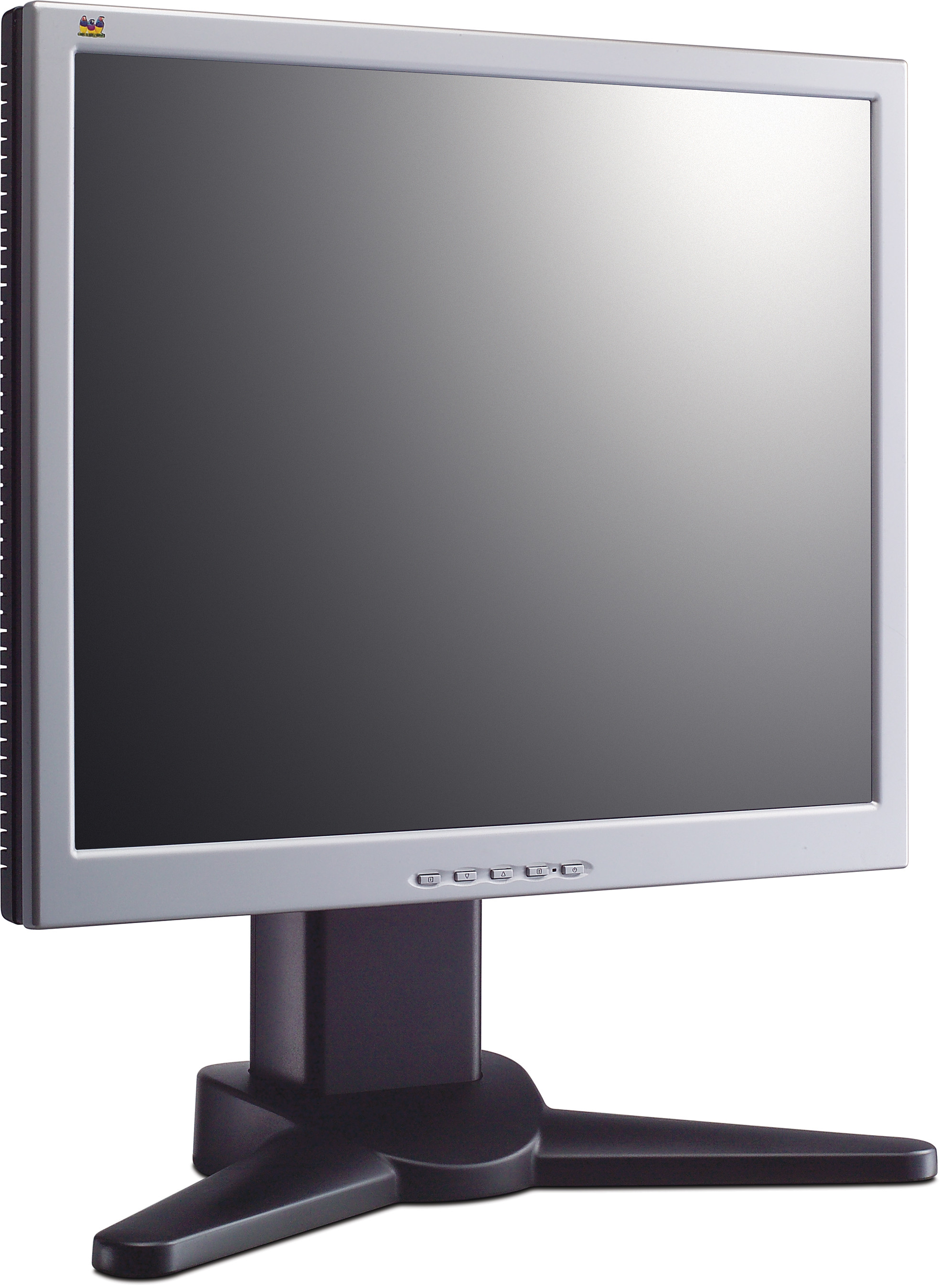

The 19” big-screen LCD monitor VP920 features HEIGHT, PIVOT AND SWIVEL adjustment for optimal ergonomic settings. Its ultra-slim bezel design enables multi-display configurations for enhanced productivity and fast decision-making by financial traders, corporate planners and engineers. ClearMotiv™ technology delivers an ULTRA-FAST 4MS VIDEO RESPONSE TIME that is perfect for working with intensive graphics applications or fast-paced video games. Additionally this LCD monitor includes analogue and digital inputs for VARIOUS CONNECTIVITY OPTIONS. The VP920 is also multimedia enhanced, including integrated speakers for maximum entertainment value. It's not just another professional LCD. It's a ViewSonic.
SPECIFICATIONS
- LCDType: 19” TN colour TFT active matrix SXGA LCD
Contrast Ratio: 500:1 (typ.)
Viewing Angles: 140° horizontal, 130° vertical (at 10:1)
160° horizontal, 140° vertical (at 5:1)
Brightness: 250cd/m² (typ.)
Display Area: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 4ms (Grey-to-Grey), 8ms (off-on-off) (typ.)
Panel Surface: Anti-glare
Pixel Pitch: 0.294mm
Bandwidth: 135MHz
Colour Support: 16.2M colours (6-bit+2-bit FRC) - COMPATIBILITYPC: VGA up to 1280 x 1024 non-interlaced (max. 60Hz)
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 60Hz) - DIMENSIONSW x H x D mm: 416 x 479 x 238 (with stand)
416 x 352 x 70 (without stand)
- REGULATIONSTCO’03, TÜV/GS, TÜV/ERGO, CE, CB, UL, cUL, FCC-B (ICES), ICES-003B,
ENERGY, Energy Star, NOM, ISO13406-2 (pixel failure class II), GOST-R
(+Hygienic), BSMI, CCC, PSB, C-TICK, TÜV-S, KTL/MIC, SASO, WEEE, RoHS - PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable,
Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) - WARRANTYPlease see:
www.viewsoniceurope.com/UK/Support/warranty.htm - INPUTSync: H/V separated (TTL), composite, sync on green
Digital: DVI-D (TMDS, 100 ohms)
Analogue: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Frequency: Fh: 24 - 82kHz, fv: 50 - 85Hz - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Audio: 3.5mm stereo audio line-in
Power: 3-pin (CEE22) - POWERVoltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption: <45 watt (max.), ≤1 watt in power save mode - CONTROLSBasic: Power on/off, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), Audio
adjust (volume, mute), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K,
5000K, user RGB), information (resolution, H/V frequency, pixel clock, model
number, serial number, website), manual image adjust (H/V position, H size,
fine tune, sharpness), setup menu (language, resolution notice, OSD
position, OSD timeout, OSD background), OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C - 40°C
Humidity: 10% - 90% (non-condensing) - WEIGHTNet: 6.3kg (with stand), 4.6kg (without stand)
- POWER MANAGEMENTMeets TCO’03, ENERGY and Energy Star standards
- SECURITYKensington® security port
- VESA MOUNT COMPLIANTVESA FPMPMI 100mm x 100mm
- ERGONOMICSTilt: Down 5°, Up 20°
Height Adjustment: 0~100mm
Pivot: 0°~90° - AUDIOSpeakers: 2 x 1 watt
