OVERVIEW

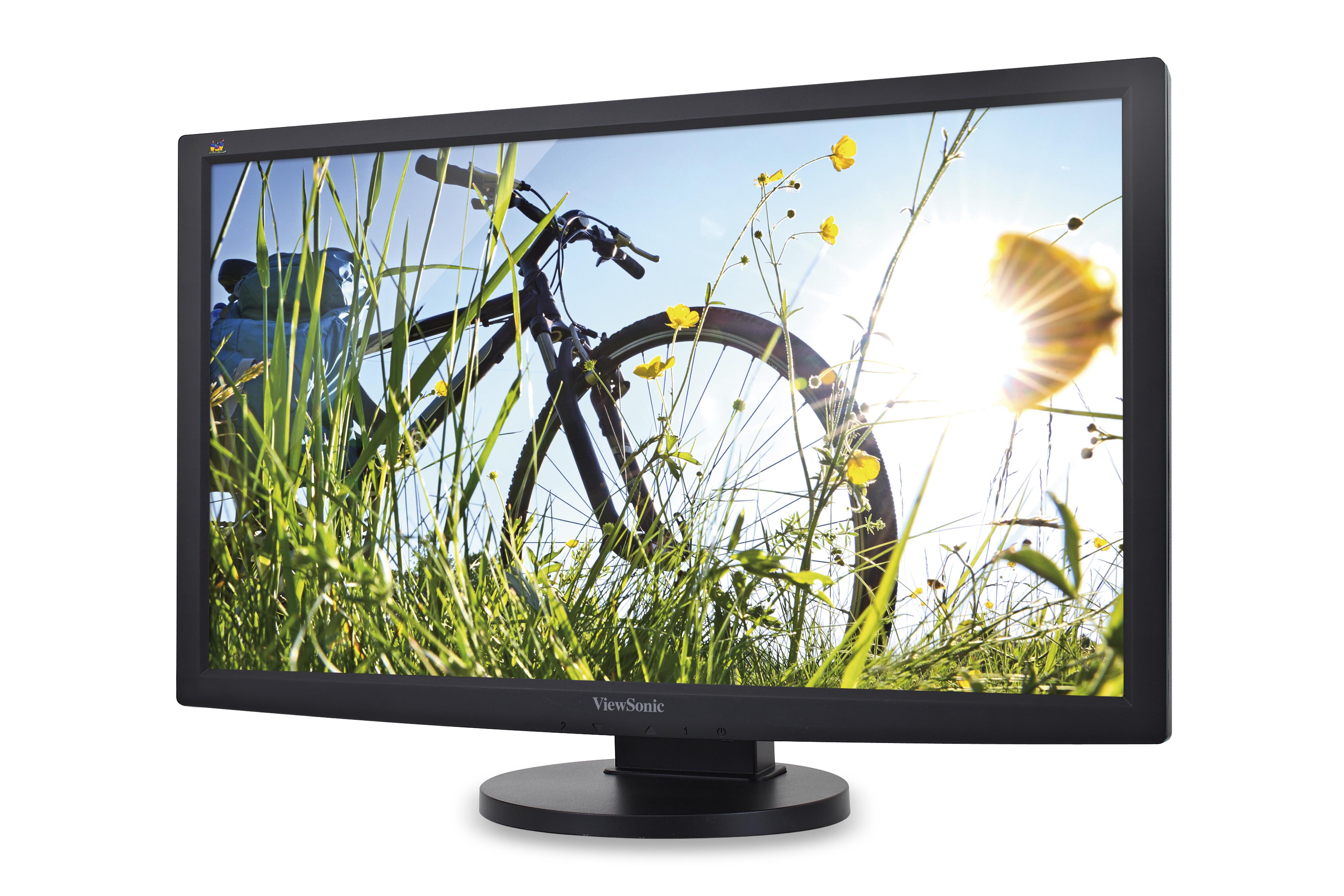

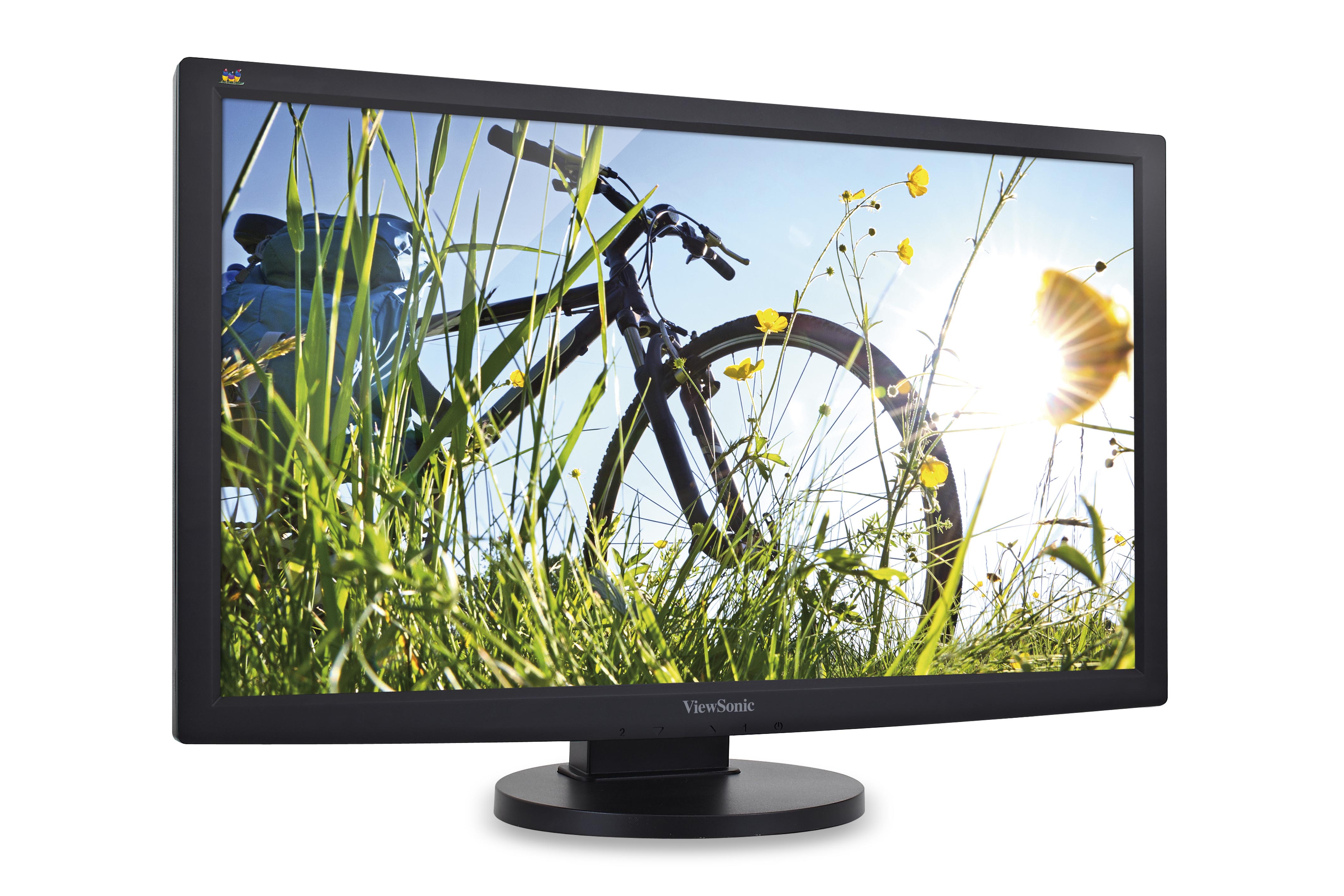

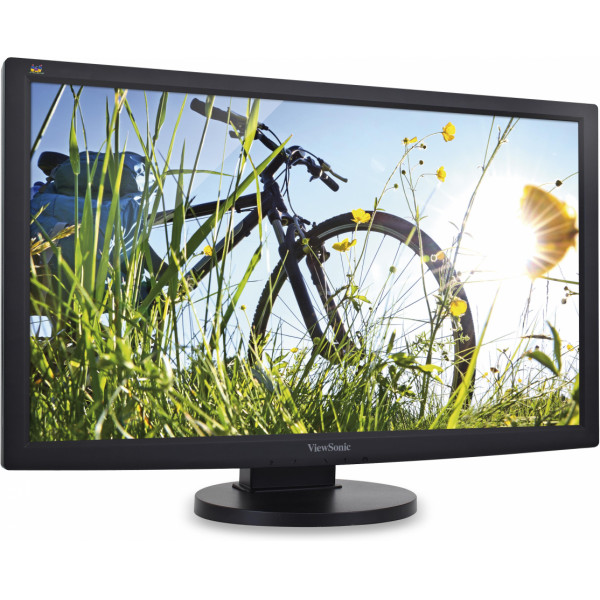

The ViewSonic VG2233Smh is a high-performance, ergonomic 22’’ (21.5’’ viewable) LED display that offers a cost-effective solution for corporations and SMBs, as well as educational and government institutions. Designed to offer a more efficient and comfortable working environment, it is fully ergonomic with 340° swivel, 90° pivot, -5° to 25° tilt, and 100mm height adjustment. Along with the SuperClear® image enhancement technology for lifelike colour performance and 178/178° wide viewing angles, the VG2233Smh boasts Full HD 1920 x 1080 resolution and colour management to deliver consistently brilliant colour performance at any angle. With HDMI, DVI and D-Sub inputs to connect high-definition devices, the display also integrates dual stereo 2W speakers to provide the total multimedia package. An integrated Eco-mode lets users optimize the backlight level, lowers power consumption and prolong the lamp life for a lower total cost of ownership – making the VG2233Smh the best choice for your organization.

Full HD 1080p for Superior Pixel Performance

The ViewSonic VG2233Smh features Full HD 1920 x 1080 resolution for excellent pixel-by-pixel image performance. Experience the most amazing clarity and detail whether it be while gaming or enjoying the latest in multimedia entertainment. A 16:9 widescreen ratio minimizes eye fatigue even after hours of playtime, and is perfectly compatible with multi-window viewing without toggling.

SuperClear® Image Enhancement Technology with wide viewing angles

SuperClear® Image Enhancement Technology delivers the best colour performance and 178 degrees viewing angle both horizontally and vertically. Experience accurate and vivid colours with consistent levels of brightness whether looking at the screen from above, below, the front, or the side—with no colour distortion or decay.

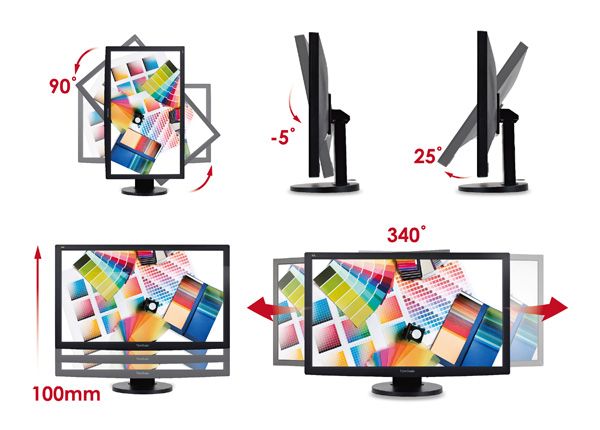

Ergonomic Designs Made for Comfort and Productivity

ViewSonic’s VG2233Smh is ergonomically designed to offer users the flexibility they need to increase their productivity – and comfort. Design features include 340° swivel, 90° pivot, 0-100mm height, and -5° to 25° tilt adjustments, allowing the screen a greater range of movement.

Energy-Saving LED Backlight

The VG2233Smh utilises an energy-saving LED backlight that consumes less power than conventional CCFL backlight displays, and has an extended lifespan of up to 30,000 hours. This provides for a lower overall cost of ownership, along with a higher ROI, making this display a great long-term investment.

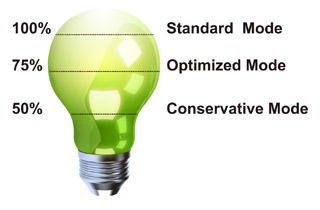

Eco-mode conserves more energy and cuts costs

ViewSonic’s proprietary Eco-mode energy-saving feature is built into all LED displays, offering "Optimize (75%)" or "Conserve (50%)" settings that save up to 50% in electricity costs and prolongs lamp life. In low ambient light, Eco-mode adjusts brightness and improves visibility, while reducing eye fatigue.

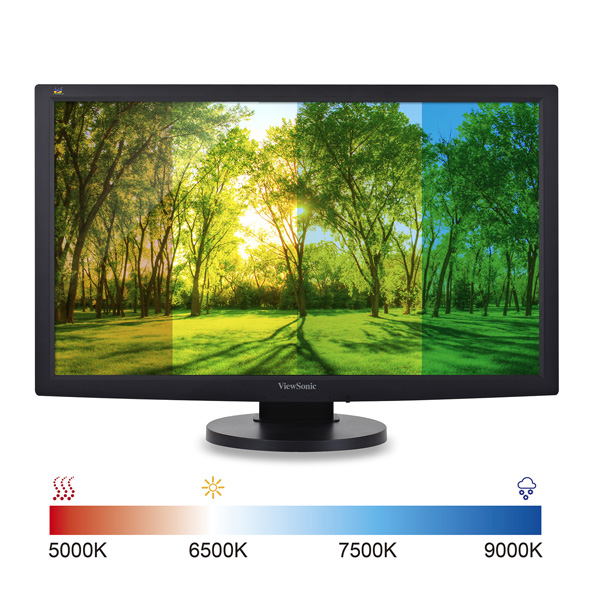

Better colour accuracy with colour management

ViewSonic’s built-in colour management system maintains strict standards for colour temperature and white balance correction to ensure the most accurate white level for image rendering. Different OSD colour settings (Bluish, Cool, Native, Warm) allow you to match different colour temperature settings. Calibrated to be 100% consistent from screen-to-screen, each monitor displays the exact same colours and sRGB settings as your original HD-device source images.

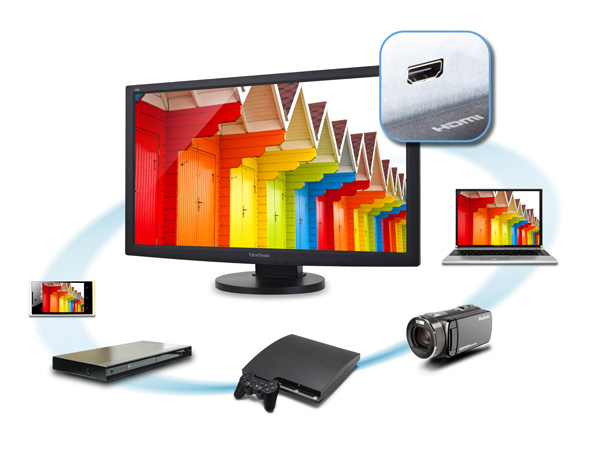

HDMI for Full HD Content Connectivity

ViewSonic VG2233Smh is equipped with HDMI input for high definition audio and video connectivity to PC, laptop and multimedia entertainment devices.

Dual integrated stereo speakers

The ViewSonic VG2233Smh has two integrated 2W stereo speakers for enhanced multimedia performance with crystal-clear stereo sound.

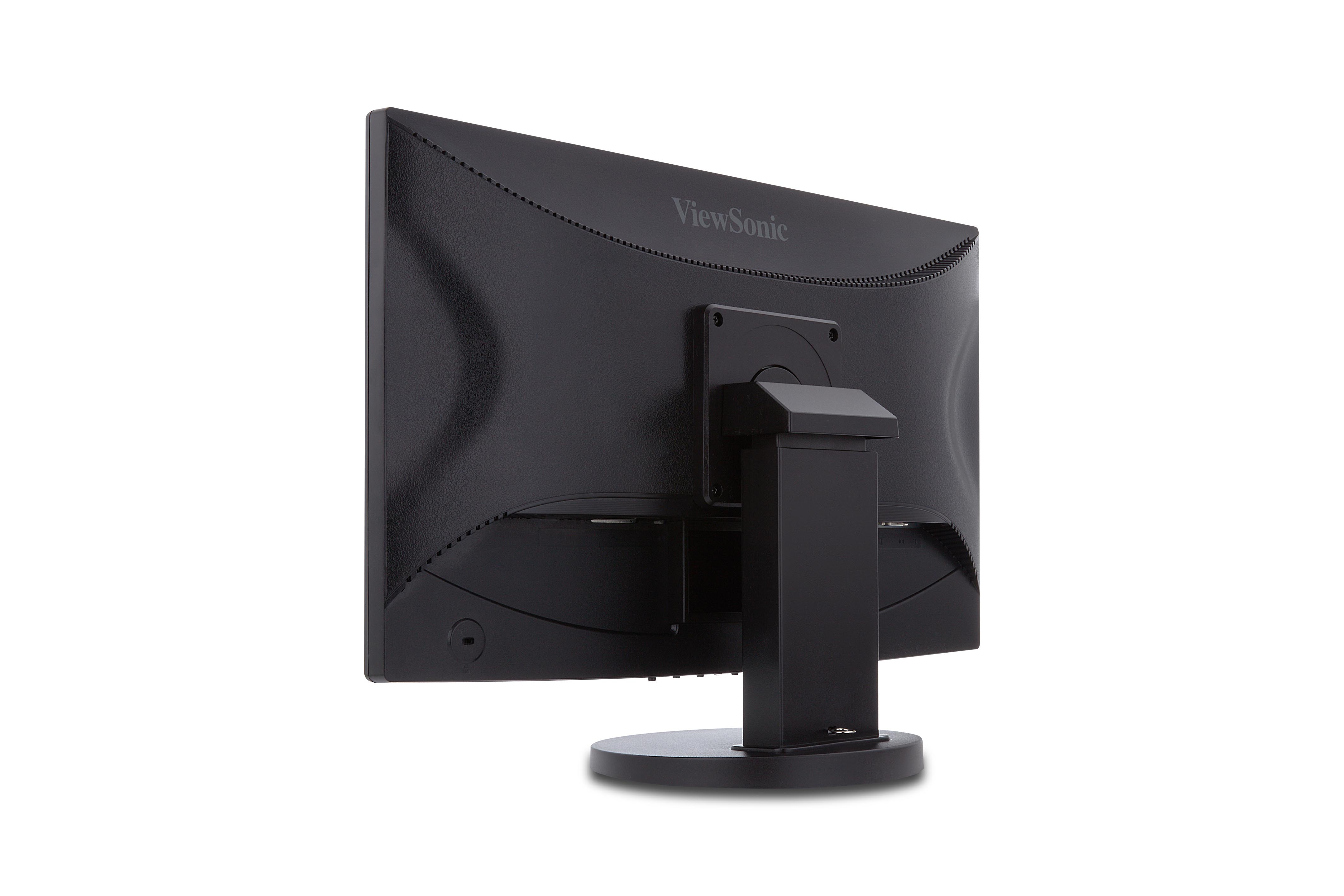

VESA-Mountable

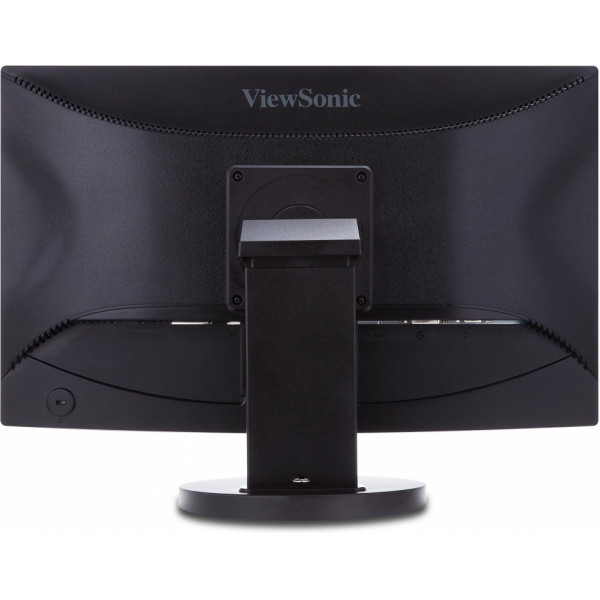

The ViewSonic VG2233Smh features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand, mounting bracket or on a wall.

Colour Adjust

ViewSonic’s built-in colour management system maintains strict standards for colour temperature and white balance correction to ensure the most accurate white level for image rendering. Different OSD colour settings (Bluish, Cool, Native, Warm) allow you to select preferred colour temperature on display.

ViewSonic Flicker-Free Viewing for Improved Eye Comfort

ViewSonic Flicker-Free displays deliver on the promise of more comfortable viewing. Rather than using Pulse Width Modulation that continuously turns the LED backlight on and off, ViewSonic flicker-free displays use DC modulation backlights that maintain a steady stream of direct current power—eliminating screen flickering at all brightness levels by providing a constant LED light source. This feature allows work to be carried out the computer, play games, or watch movies longer without eye fatigue.

Blue Light Filter for More Comfortable Viewing

Prolonged exposure to certain levels of blue light can cause eye discomfort. ViewSonic displays feature a Blue Light Filter setting that allows users to adjust the amount of blue light emitted from the screen, while maintaining a good colour balance and reducing eye discomfort for work and multimedia applications.

Pixel Performance
Guarantee and 3-Year Limited Warranty

One of the aspects that makes ViewSonic a market leader in displays is its dedication to quality. ViewSonic is committed to using the highest grade panels and offers the industry's leading pixel performance policy.
Pixel PerformanceLED Display
ISO9241-3:
2008 Standard
  • 2 Bright
    2 Dark
    5 Total
ViewSonic
Pixel Guarantee
  • 2 Bright
    2 Dark
    3 Total

SPECIFICATIONS


  • LCD
    Type: 22" 16:9 (21.5" vivewable) Colour a-Si TFT Active Matrix LCD (ADS)
    Optimum Resolution: 1920 x 1080
    Contrast Ratio: 1000:1 (typ)
    Viewing Angles: 178° / 178° (typ)

    Response Time: 4ms (GtG)
    Panel Surface: Anti-Glare
    Display Area: 476.64(H) X 268.11 (V)mm
    Colour Support: 16.7M
    Brightness: 250 cd/m²
    Dynamic Contrast Ratio: 20M:1
    Backlight: WLED light bar
    Backlight Life: 30,000 Hrs

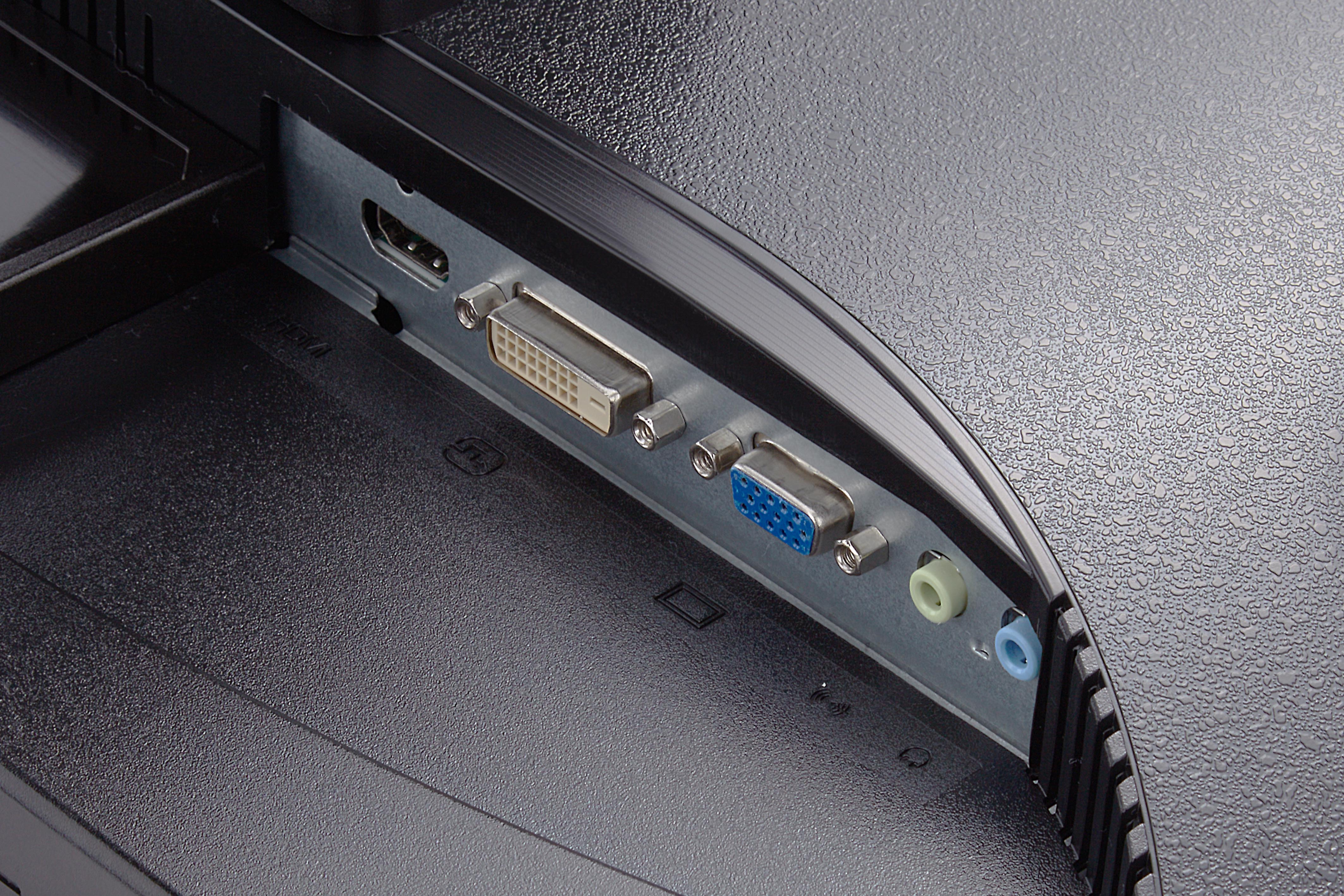

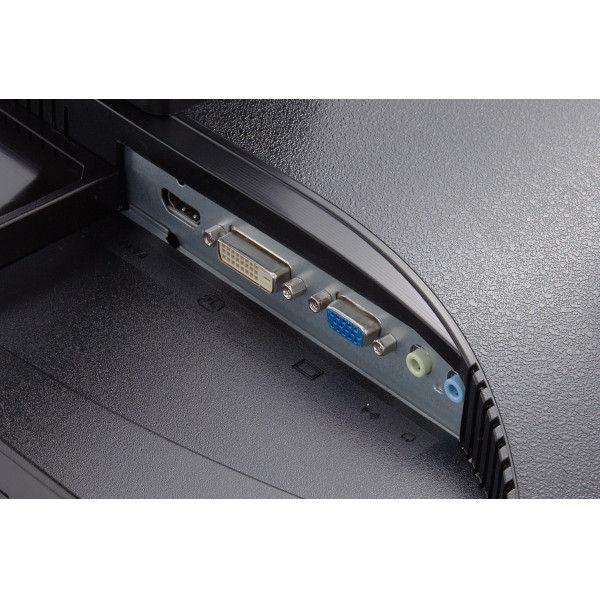

  • Connector
    Power: Internal Power Board, 3-pin plug (CEE22)
    Video: VGA x1, DVI x1, HDMI x1
    Audio Out: 3.5mm Headphone Out
    Audio Input: 3.5mm Connector
    Speaker: 2-Watt x 2
  • DIMENSIONS
    Physical With Stand: 505.6 x 361 x 204.3 mm
    Physical Without Stand: 505.6 x 311.6 x 51 mm
    Packaging: 624 x 393 x 167 mm
