- REGULATIONS
CB, TCO03, WEEE, ROHS, UL/cUL, FCC-B, IRAM, NOM, ENERGY
STAR, EPEAT, NEMKO/ERGO,CE, Ukraine, GOST-R+Hygienic ,
SASO, BSMI, PSB, C-TICK, MIC, VCCI, CCC
- PACKAGE CONTENTS
D-Sub Cable, DVI-D Cable, Power Cable, Audio cable, USB
cable
- INPUT
Sync: H/V Separated
Analogue: RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
Digital: DVI-D(TMDS, 100 ohms)
Frequency: Fh: 24-82kHz, Fv: 50-75Hz
- CONNECTOR
Analogue: 15 pin mini D-sub×1
Digital: DVI-D
Power: Built-in power Adapter, 3-Pin plug
USB: down stream x 2 / up stream x 1
Audio: 3.5 mm Audio in
- POWER
Voltage: AC 100-240V(Universal); 50/60Hz(Switch)
Consumption: 43W(Typical)
Eco Mode: optimize 31W(Typical)/conserve 25W(Typical)
Save Mode (W): ≤1W
- CONTROLS
Basic: Power, Mute,[1], Up[▲], Down[▼], [2]
OnView®: Auto image adjust, Contrast/Brightness, Audio adjust: Volume,
mute, Color adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user color
[R, G, B] Information, Manual image adjust: H/V position, Horizontal
size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco
mode, Setup menu: Language select, resolution notice, OSD
position, OSD timeout, OSD background, memory recall
- DISPLAY
Contrast Ratio : 1000:1(Typical) ; 20000:1 dynamic
Display size: 521mm (H) x 293mm (V)
Brightness: 300 cd/m² (Typical)
Size: 55cm/21.5" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Viewing Angle: 170o(H), 170o(V) at 5:1 c/r
Response Time (Typical): 5ms(Typical)
Panel Surface: Anti-Glare
Pixel Pitch: 0.248mm(H)×0.248mm(V)
Light Source: 50,000 hrs(Typical)
Color Support: 16.7 M(6-bits + Hi FRC)
- POWER MANAGEMENT
TCO'03, ENERGY STAR
- VESA MOUNT COMPLIANT
VESA 100mmx100mm
- ERGONOMICS
Tilt: 20˚~-5˚
Swivel: 360˚(180 ˚left / 180 ˚right)
Height Adjustment: 0~80mm
- AUDIO
Speakers: 2 x 2 watt
- WEIGHT
Gross: 6.73 kg
Net: 4.83 kg
- OPERATING CONDITIONS
Humidity: 10-90%(Non condensed)
Temperature: 0-40°C(32-104°F)

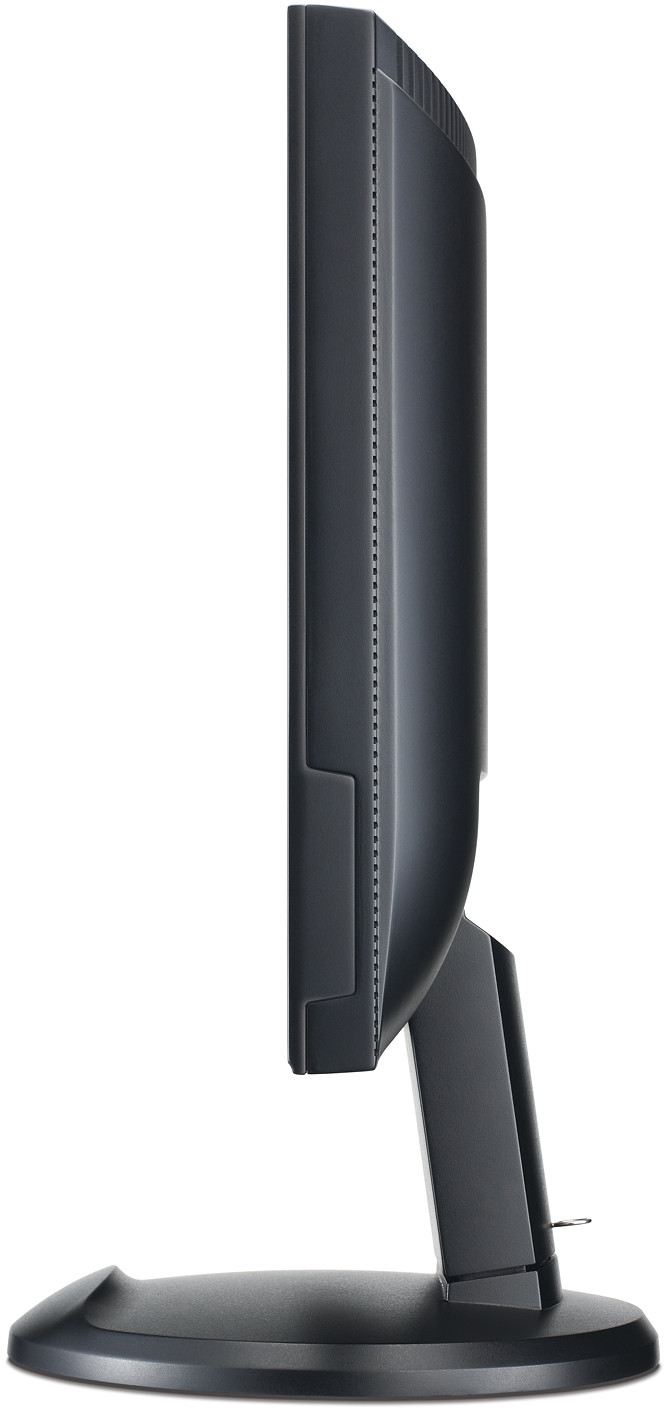

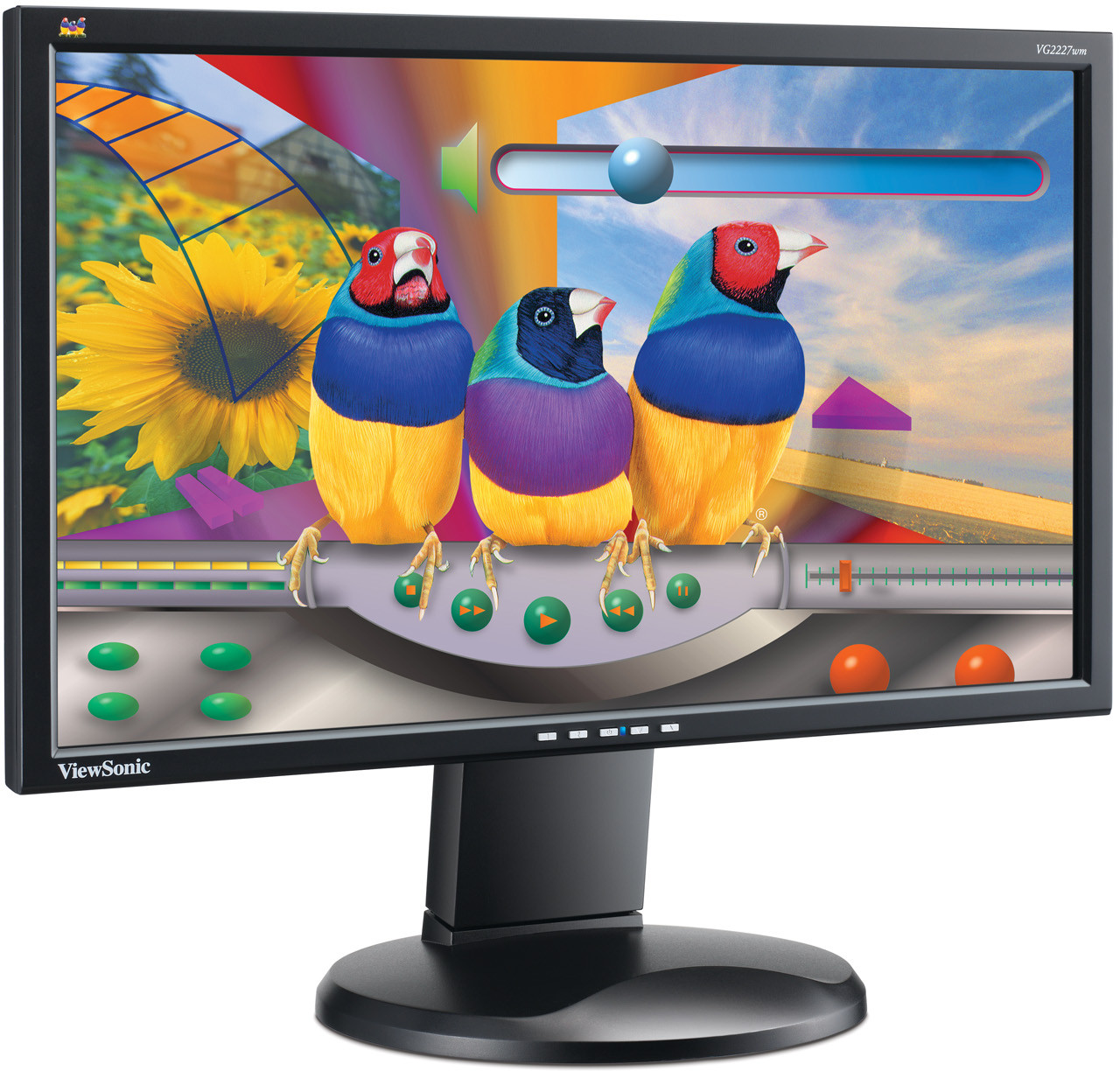

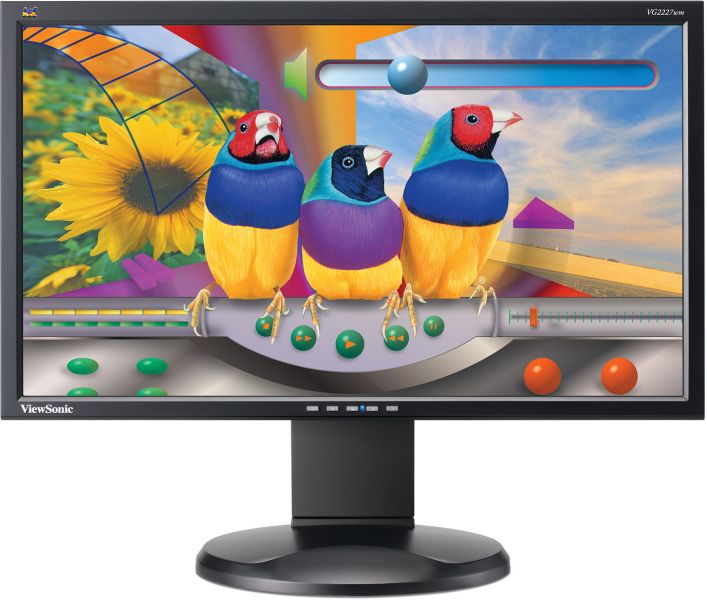

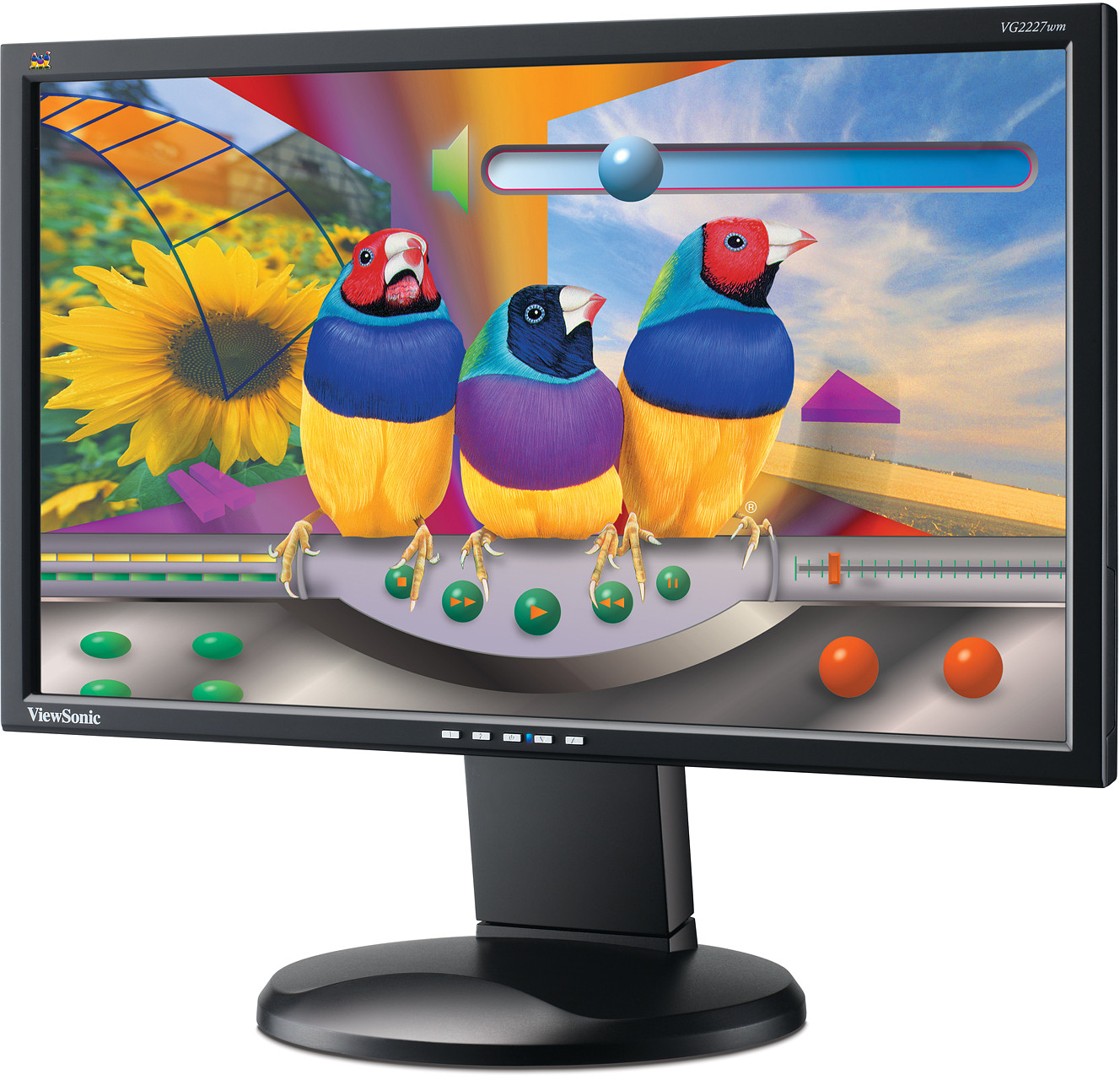

The 56cm/22” (55cm/21.5” viewable) VG2227wm LCD is the widescreen, multimedia solution for demanding business professionals. Featuring Full HD 1920 x 1080 resolution and 20,000 dynamic contrast ratio, the high performance display is ideal for graphics professionals, high-definition multimedia visuals and other digital content. The fully adjustable ergonomic base lets you work comfortably and suit to your enironment. The DVI-D connector ensures your content stays high-definition, while the USB ports expand your connectivity for multitasking. The slim bezel design saves space, while the eco-mode function conserves power and extends backlight life. The VG2227wm is a feature-packed, high-performance, widescreen monitor for business and home users who demand the best.
