Value-packed and stylish.

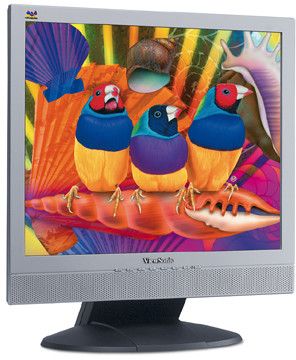

The 19" ViewSonic VA912 LCD display is the ALL-IN-ONE PRICE PERFORMANCE SOLUTION FOR MIXED DATA, AUDIO, GRAPHICS AND VIDEO CONTENT. This LCD is packed with features not normally found in a value display. CLEARMOTIV™ BROADCAST-QUALITY VIDEO, 8ms response, an ultra-high 600:1 (typ) contrast ratio and 160° viewing angles all ENSURE INTENSE VISUAL PERFORMANCE. Enjoy a true multimedia experience with less clutter and components on the desktop. Look to the VA912 LCD display for affordability without compromise for small/home office, corporate, government or education use.
The 19" ViewSonic VA912 LCD display is the ALL-IN-ONE PRICE PERFORMANCE SOLUTION FOR MIXED DATA, AUDIO, GRAPHICS AND VIDEO CONTENT. This LCD is packed with features not normally found in a value display. CLEARMOTIV™ BROADCAST-QUALITY VIDEO, 8ms response, an ultra-high 600:1 (typ) contrast ratio and 160° viewing angles all ENSURE INTENSE VISUAL PERFORMANCE. Enjoy a true multimedia experience with less clutter and components on the desktop. Look to the VA912 LCD display for affordability without compromise for small/home office, corporate, government or education use.
SPECIFICATIONS
- LCDType: 48cm / 19" colour TN TFT active matrix SXGA LCD
Contrast Ratio: 600:1 (typ)
Viewing Angles: 140° horizontal, 130° vertical (at 10:1)
150° horizontal, 160° vertical (at 5:1)
Brightness: 250cd/m² (typ)
Display Area: 376mm horizontal x 301mm vertical, 48.3cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (typ)
Panel Surface: Anti-glare
Pixel Pitch: 0,294mm
Colour Support: 16.2M colours (6-bit + 2-bit FRC) - COMPATIBILITYPC: VGA up to 1280 x 1024 (up to 75Hz)
Mac®: Power Mac™ G3/G4/G5 up to 1280 x 1024 @ 75 Hz - DIMENSIONSW x H x D mm: 424 x 442 x 186 (with stand)
- REGULATIONSCE, CB, GS, ERGO, ISO13406-2 (pixel failure class II), TCO'99, UL, cUL, FCC-B, ENERGY, NOM, TUV-S/IRAM/UL-AR S Mark, MPR II, GOST-R + 20 original copies hygienic, PCBC, VCCI, BSMI, CCC, PSB, C-TICK
- INPUT SIGNALFrequency: Fh: 30-82kHz,
Fv: 50-85Hz
Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
Digital: DVI-D (TMDS, 100 ohms)
Sync: H/V separated (TTL) - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Audio: Stereo mini audio line in - POWERVoltage: AC 100–240V (universal), 50–60Hz (auto switch), internal power supply
Consumption: < 60W (typ.); ≤ 3 watt in power save mode - CONTROLSOSD: Auto image adjust, brightness, contrast, input select (analogue, digital), colour adjust (sRGB, 9300K, 6800K, 6500K, user RGB), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall
Physical: Physical Power on/off, menu, up, down, select - OPERATING CONDITIONSTemperature: 0°C to 40°C
Humidity: 10% to 90% (no condensing) - WEIGHTNet: 5.5kg
- POWER MANAGEMENTMeets TCO'99 and ENERGY standards
- ERGONOMICSTilt: Down 5°, Up 20°
