Super Contrast Ratio Widescreen

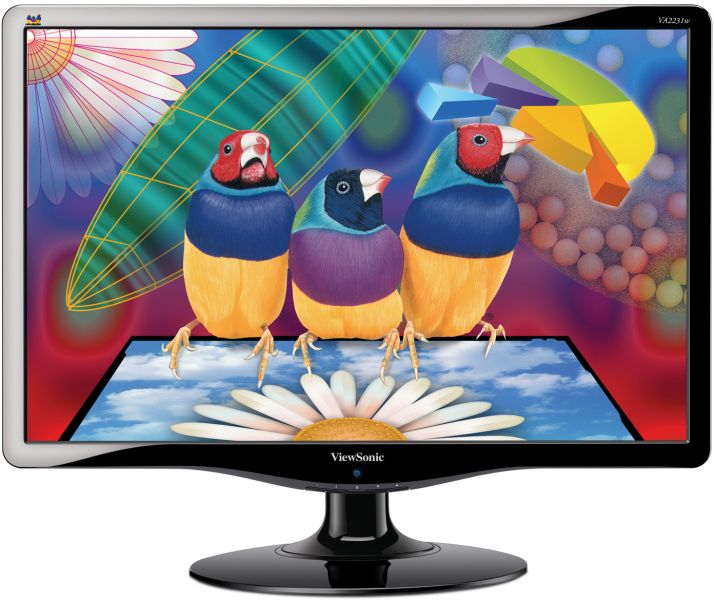

The ViewSonic® VA2231w LCD is ideal for both home and office with its fast response time and piano black finish VESA® mountable design. A true wide monitor with 1920x1080 resolution, 100,000:1 dynamic contrast ratio, digital and analog inputs and Eco-mode for power savings! It has an automatic aspect ratio adjustment so when your input is a 4:3 signal, the image will not be stretched but instead it will be positioned in the middle of the screen with side bars. Three-year warranty, industry’s best pixel performance policy, Windows 7 certification, Energy Star 5.0 and TCO 5.0 certified, make the VA2231w LCD the best choice for both corporate and education customers as well.
SPECIFICATIONS
- COLORSBlack
- LCDContrast Ratio: 1,000:1 (Typical)
Viewing Angles: 170° (H), 160° (V)
Optimum Resolution: 1920 × 1080
Response Time: 5ms Typical
Light Source: 50,000 hrs typical
Panel Surface: Anti-Glare, Hard coating(3H)
Pixel Pitch: 0.24825 (H) × 0.24825 (V) (mm)
Colour Support: 16.7 (Millions of colours)
Size: 55cm/21.5" Wide Color a-Si TFT Active Matrix LCD 16:9 aspect ratio
Brightness: 300 Typical
Dynamic Contrast Ratio: 100,000:1 - COMPATIBILITYPC: VGA up to 1920 × 1080 Non Interlaced
Mac®: 1920 × 1080 Non Interlaced
- DIMENSIONSPhysical (WxHxD): 513 × 389 × 196 (mm) / 20.2 × 15.3 × 7.7 (in)
- REGULATIONSCB, WEEE, RoHS, REACH SVHC List, EuP, TCO5.0, Windows XP/ Vista Premium,
Window® 7, CE, Ergo, GOST-R+Hygienic, UkrSEPRO, BSMI, PSB, C-TICK, KC, e-standby,
SASO, Epeat Silver, Energy Star 5.0 - INPUTSync: Separate
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: Fh = 24 – 82kHz; Fv = 50 –75 Hz, (VGA) - CONNECTORAnalogue: 1×15 pin mini D-sub
Digital: 1×DVD-D
Power: Built-in power Adapter, 3-Pin plug - POWERVoltage: AC 100-240V (Universal); 50/60Hz(Switch)
Consumption: 40W Typical
Save mode: <= 0.2W - CONTROLSBasic: [1], [2], Power, Down[▼], Up[▲]
On View (PC mode): Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 7500K, 6500K,
5000K, User Color [R, G, B]
Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness,
Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu, Language, Resolution
Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Memory Recall - VESA MOUNT COMPLIANT100mm × 100mm
- ERGONOMICSTilt: 20~-5 degrees
- WEIGHTNet: 3.8 kg / 8.4 lbs
- OPERATING CONDITIONSHumidity: 10 - 90 (%)
Temperature: 0 - 40 (°C) / 32 - 104 (°F)
