Budget-friendly, widescreen performance

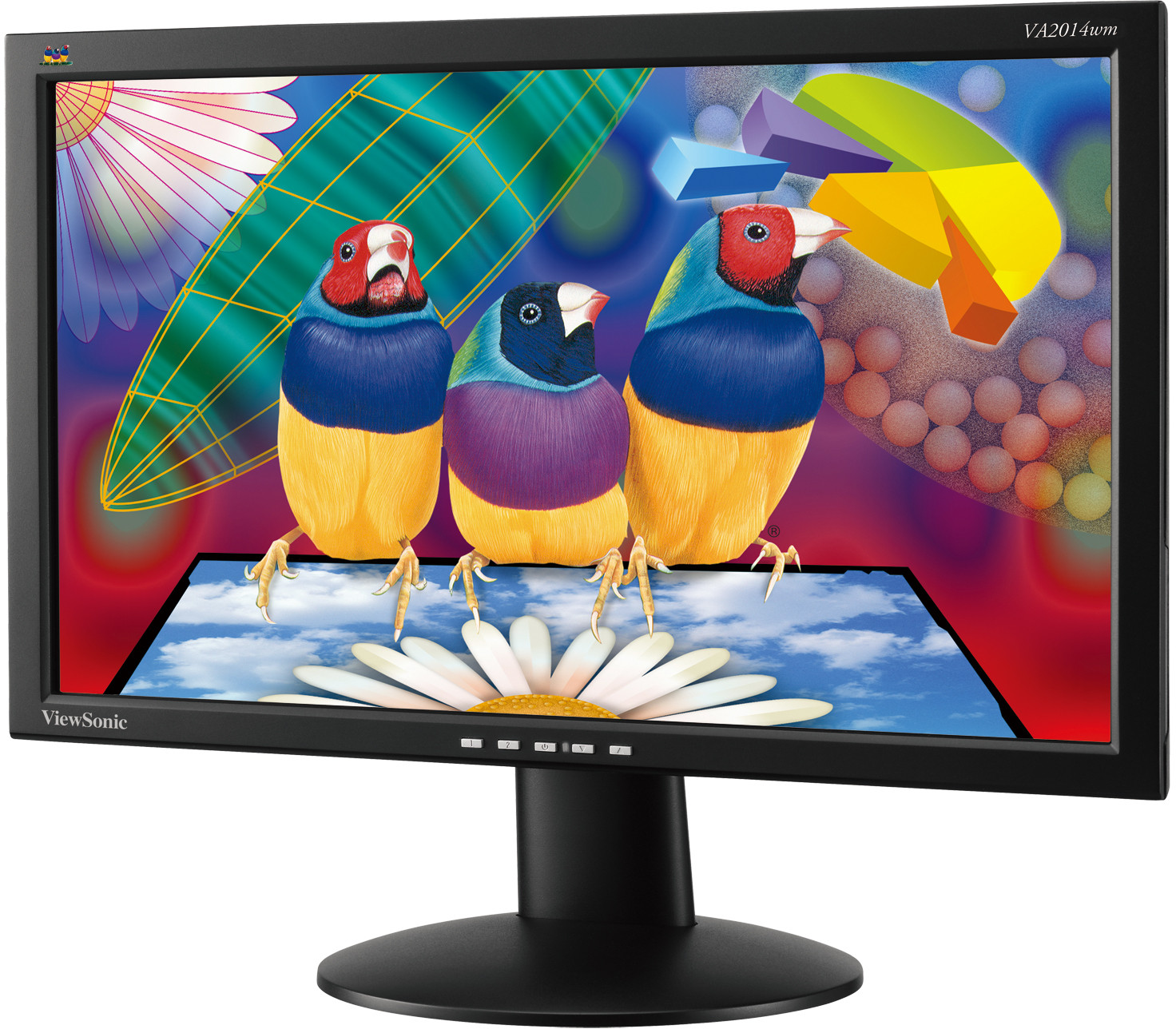

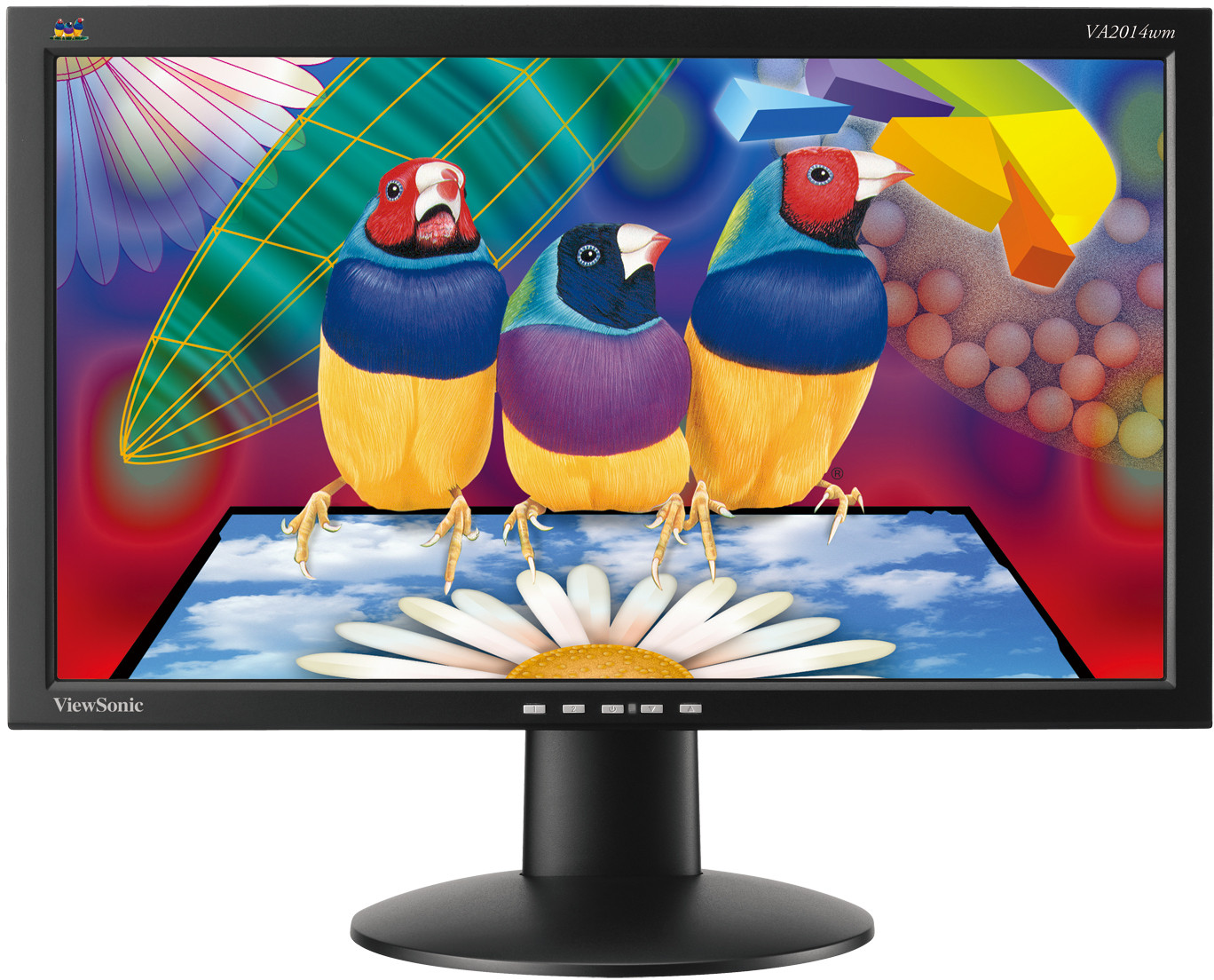

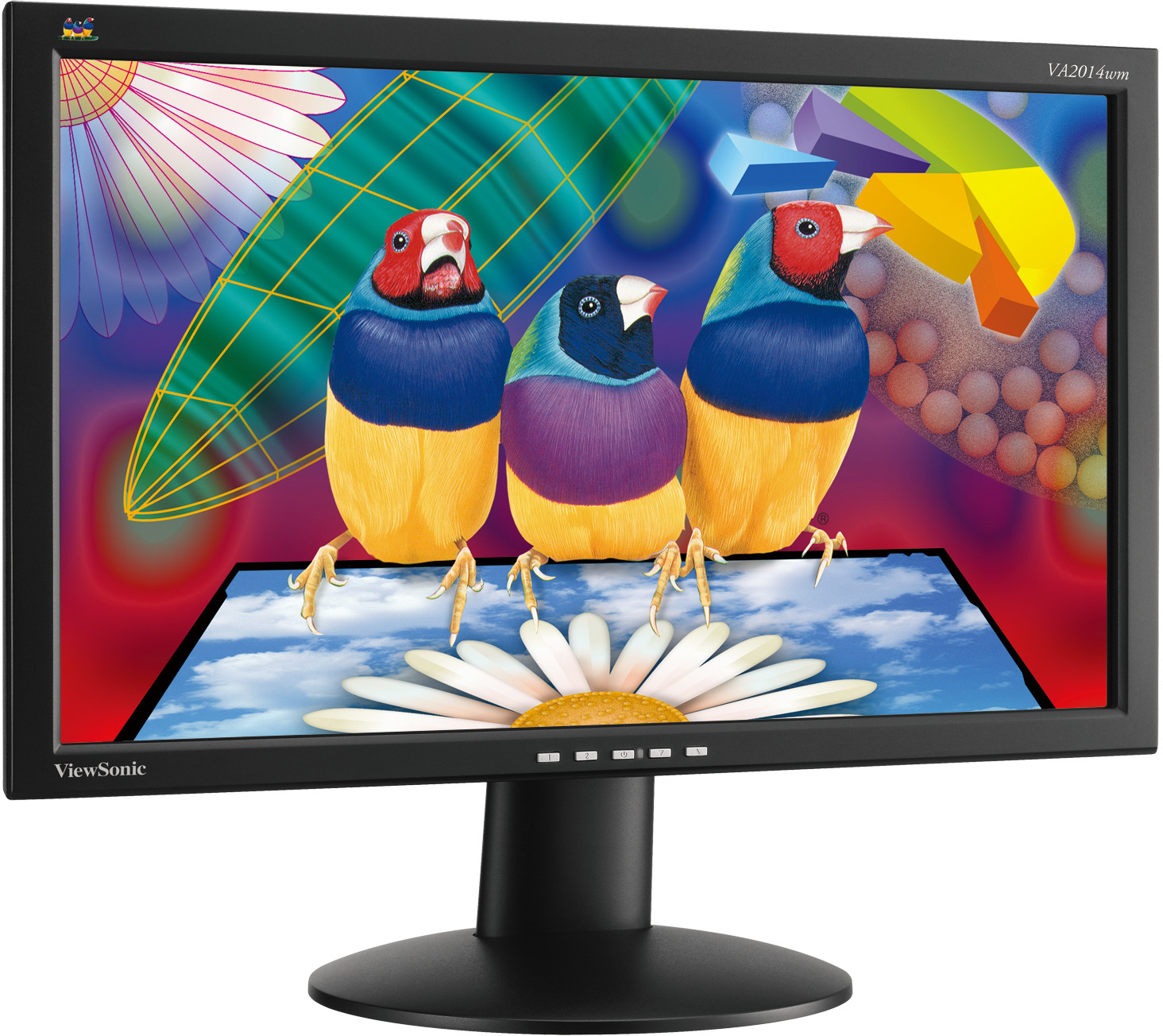

ViewSonic’s 50cm/20" VA2014wm LCD brings value to big, widescreen displays. This display doesn’t compromise on features with 1600x900 resolution for brilliant HD images. This stylish 50cm/20-inch LCD delivers extreme clarity, amazing colour with 20,000:1 dynamic contrast ratio and fast ClearMotiv® 5ms video response. Benefit from greater productivity with the ability to view two fullsize documents side-by-side or work in multiple applications simultaneously on the widescreen display. Integrated speakers in a stylish, slim-bezel design provide multimedia enjoyment. Eco-mode conserves power and can extend backlight life. VA2014wm fits seamlessly into anyoffice décor. It’s great fordesktop applications at home, school or in the office.
SPECIFICATIONS
- COLORSBlack
- LCDContrast Ratio: 1000:1 (Typical.) / 20000:1 dynamic
Viewing Angles: 170° (H), 160 ° (V) at 10:1 c/r, 170°(H) 170° (V) at 5:1 c/r
Optimum Resolution: 1600×900
Response Time: 5ms (Typical)
Light Source: 50,000 hrs (Typical)
Panel Surface: Anti-Glare, Hard coating (3H)
Pixel Pitch: 0.276mm(H) x 0.276mm(V)
Display: 443 x 249 (mm)
Colour Support: 16.7 M (6-bits + Hi FRC)
Size: 50CM/20" wide Color TFT Active Matrix LCD 16:9 aspect ratio
Brightness: 250 cd/m² (Typical) - COMPATIBILITYPC: VGA up to 1600×900 Non Interlaced
Mac®: Power Mac, up to 1600×900
- DIMENSIONSPhysical With Stand: 481 x 369 x 200 (mm), 18.94 x 14.51 x 7.86 (in)
Physical Without Stand: 481 x 288 x 64(mm), 18.94 x 11.32 x 2.52 (in) - REGULATIONSCB,WEEE,ROHS, EAEPT, UL/cUL, FCC-B, IRAM, NOM, Energy
Star, ERGO,CE, Ukraine, GOST-R+Hygienic ,SASO, BSMI, PSB,
C-TICK, KCC, CCC - PACKAGE CONTENTSLCD display, VGA cable, Power cable, Quick Start Guide,
ViewSonic ,Wizard CD - INPUTSync: Separate Sync
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: Fh: 24-82kHz, Fv: 50-75Hz - CONNECTORAnalogue: 1×15 pin mini D-sub
Audio: 1×3.5 mm Audio in
Power: Built-in power Adapter, 3-Pin plug - POWERVoltage: AC 100-240V (Universal); 50/60Hz(Switch)
Consumption: 25 (Typical)
Eco Mode: optimize 23W (Typical) / conserve 19W (Typical)
Save mode: <= 0.5W - CONTROLSBasic: [1], [2], Power, Down[▼], Up[▲]
OnView®: Auto Image Adjust
Contrast/Brightness
Audio adjust: Volume mute
Colour Adjust: sRGB, 9300K, 7500K, 6500K, 5000K
User Colour : [R, G, B]
Information
Manual Image Adjust: H/V position, horizontal size, fine tune, sharpness,
dynamic contrast, aspect ratio, Eco mode, setup menu, language
select, resolution notice, OSD Position, OSD Time Out, OSD Background,
memory recall. - POWER MANAGEMENTENERGY STAR
- VESA MOUNT COMPLIANTVESA 100mm x 100mm
- AUDIOSpeakers: 2W×2
- WEIGHTGross: 5.8 kg (12.8 lbs)
Net: 4 kg (8.8 lbs) - OPERATING CONDITIONSHumidity: 20 - 80% (Non condensed)
Temperature: 41°F - 95°F (5°C - 35°C)
