Tantalising visual experience

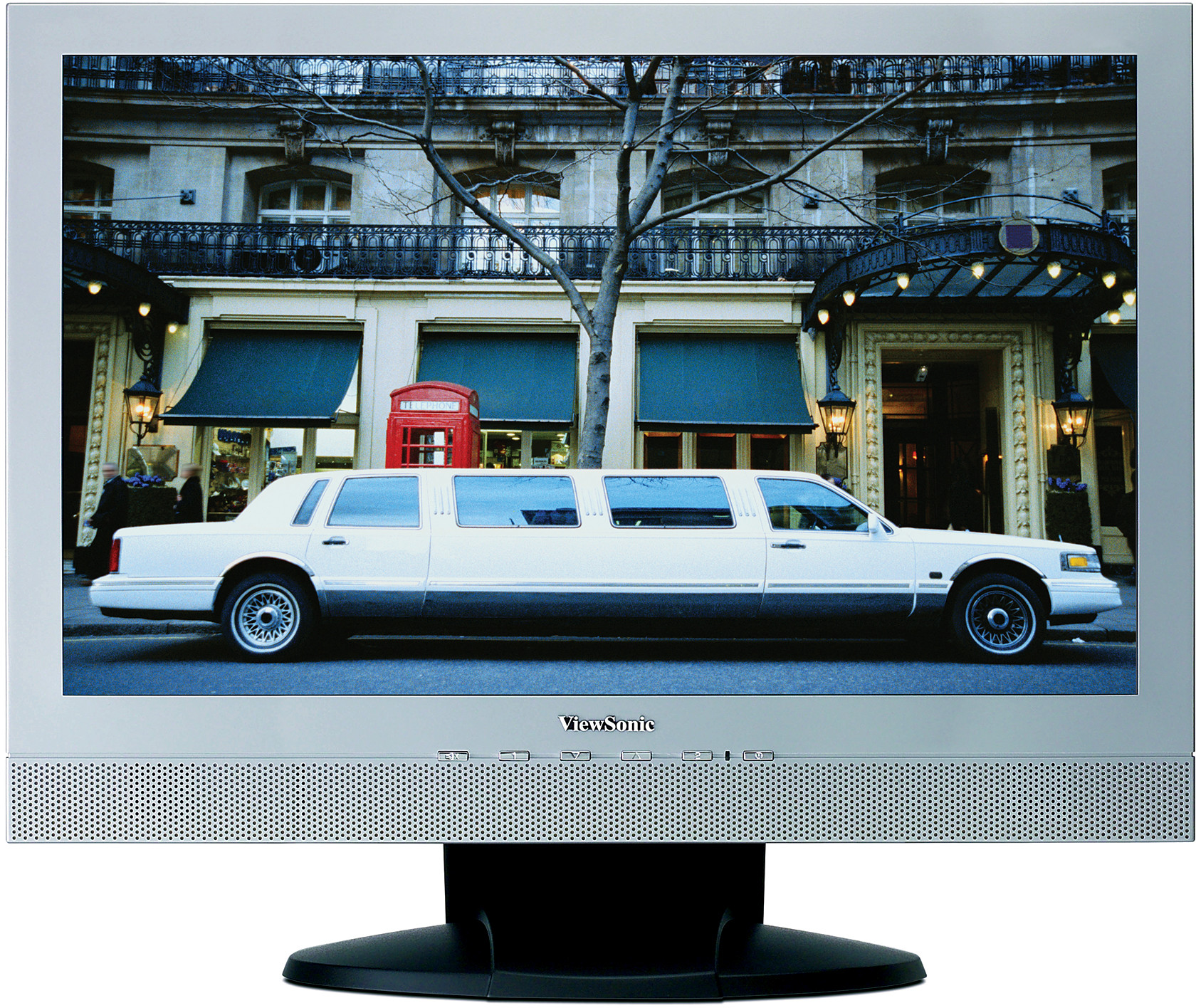

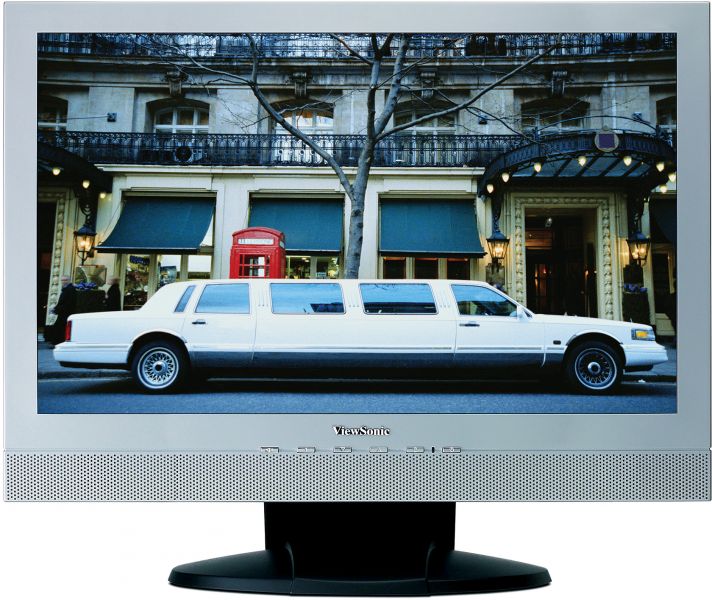

The ViewSonic VA2012w-2 20.1" LCD is packed with an IMPRESSIVE ARRAY OF FEATURES TO ENHANCE YOUR WORK AND PLAY – and the budget-friendly price makes it an even more tantalising package. The 16:10 wide-screen aspect ratio provides more productive space for multiple windows, HD-format video and immersive gaming action. This feature-rich display includes ViewSonic’s innovative Dynamic Structure™ technology and ClearMotiv™ 8ms video response for SMOOTH VIDEO AND INTENSE GRAPHICS. The 300cd/m2 of brightness, 600:1 contrast ratio as well as 1680 x 1050 optimum resolution ensure crystal-clear images and crisp text. It’s a stylish wide-screen LCD that upgrades your workspace while staying within your budget.SPECIFICATIONS
- LCDType: 51 cm / 20.1" TN colour TFT active matrix WSXGA+ LCD
Contrast Ratio: 600:1 (typ.)
Viewing Angles: 140° horizontal, 125º vertical (at 10:1)
160° horizontal, 145º vertical (at 5:1)
Brightness: 300 cd/m² (typ.)
Display Area: 43.3cm horizontal x 27.1cm vertical; 51.1cm diagonal
Optimum Resolution: 1680 x 1050
Response Time: 8ms (off-on-off) (typ.)
Light Source: Long life, 40000 hrs. (min. typ.)
Aspect Ratio: 16:10
Panel Surface: Anti-glare (3H)
Pixel Pitch: 0.258mm
Bandwidth: 205MHz analogue
Colour Support: 16.7M colours (8-bit) - COMPATIBILITYPC: VGA up to 1680 x 1050 non-interlaced (max. 60Hz)
Mac®: Power Mac™ up to 1680 x 1050 (max. 60Hz) - DIMENSIONSPhysical With Stand: 479 x 423 x 216 (w/ stand)
Physical Without Stand: 479 x 351 x 63 (w/o stand)
- REGULATIONSTCO‘99, TÜV/GS, TÜV/Ergo, ISO 13406-2 (pixel failure class II), TÜV-S, UL,
cUL, FCC-B, CB, CE, NOM, GOST-R (Hygienic), SASO, PCBC, BSMI, CCC,
Green Mark, Energy Star®, (PSB), (C-TICK), MIC - PACKAGE CONTENTSLCD display, power cable, 15-pin VGA cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD (User Guide/drivers) - AUDIOSpeaker: Integrated stereo speakers
- CONNECTORAnalogue: 15-pin mini D-sub (detachable cable)
Power: 3-pin AC plug (CEE22)
Audio In: 3.5mm stereo audio line-in - POWERVoltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption: 47 watt (typ.), <2 watt in power save mode - CONTROLSBasic: Power, menu [1], down, up, select [2], mute, volume up/down, main power
OSD: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB,
9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency,
pixel clock, model number, serial number, website), manual image adjust
(H. size, H/V position, fine tune, sharpness), setup menu (language,
resolution notice, OSD position, OSD timeout, OSD background),
OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C – 40°C
Humidity: 10% – 90% (non-condensing) - WEIGHTNet With Stand: 5.5kg (w/ stand)
Net Without Stand: 4.9kg (w/o stand) - VIDEO INPUTFrequency: Fh: 30 - 94kHz, Fv: 50 - 75Hz
Sync: H/V separated (TTL)
Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohms) - POWER MANAGEMENTMeets TCO’99 and Energy Star® standards
- ERGONOMICSDown 5°, up 20°
