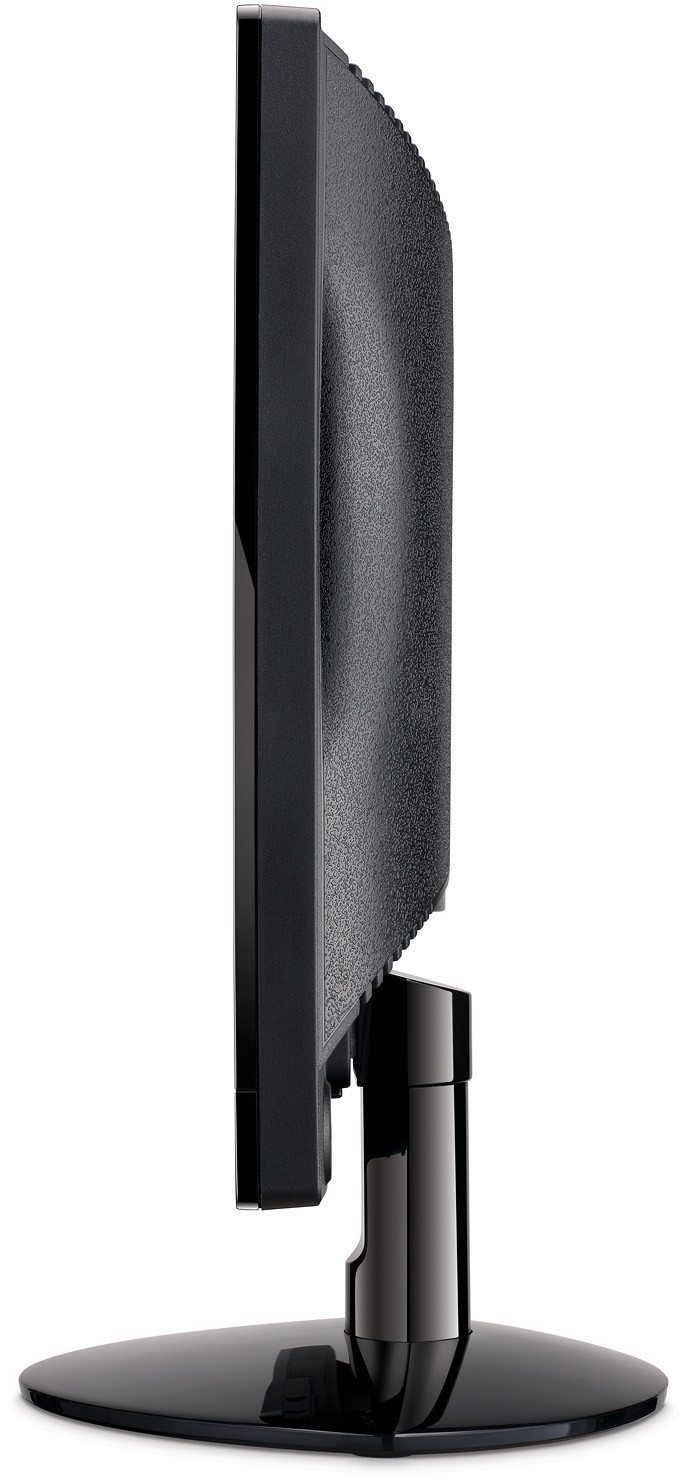

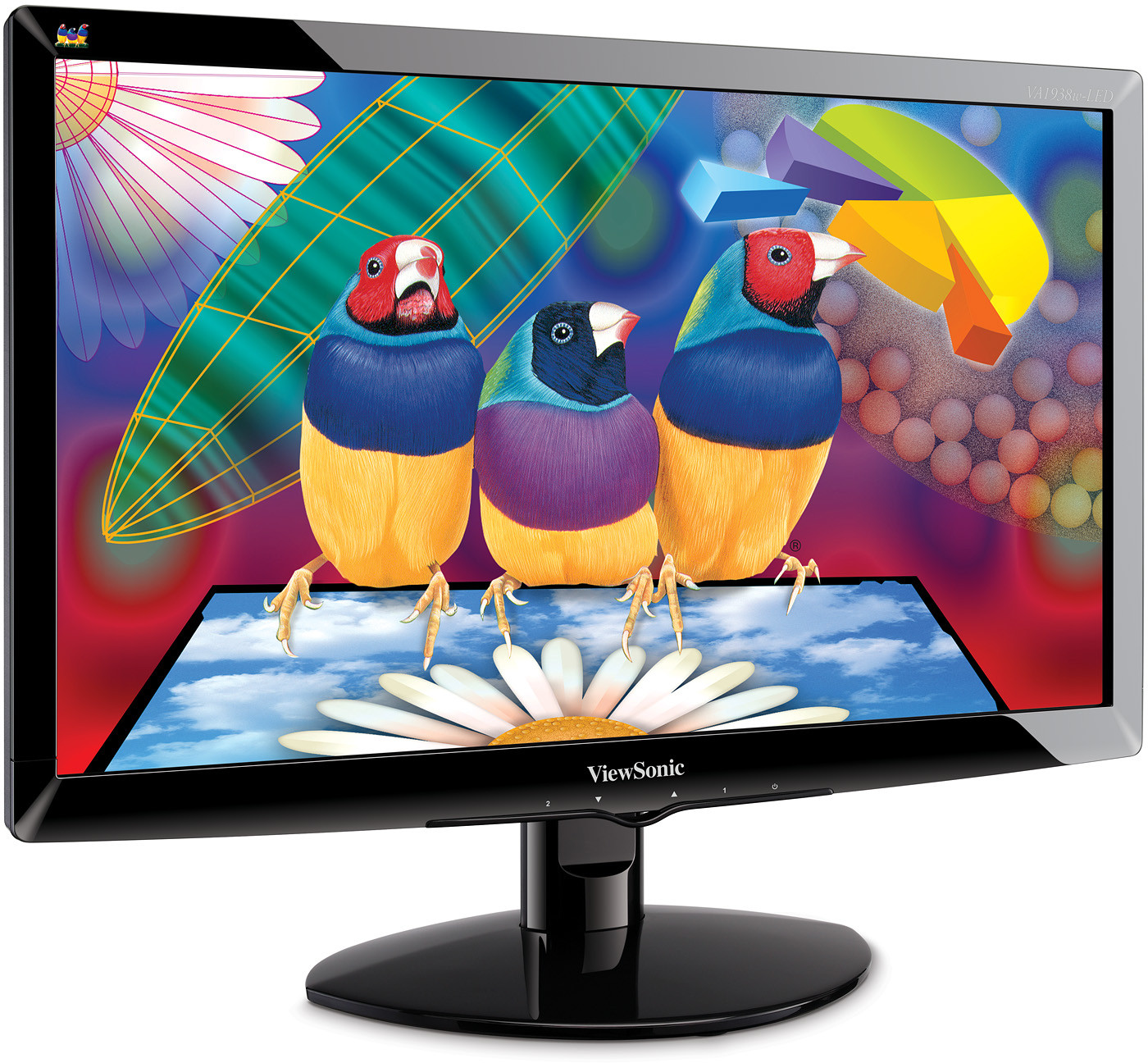

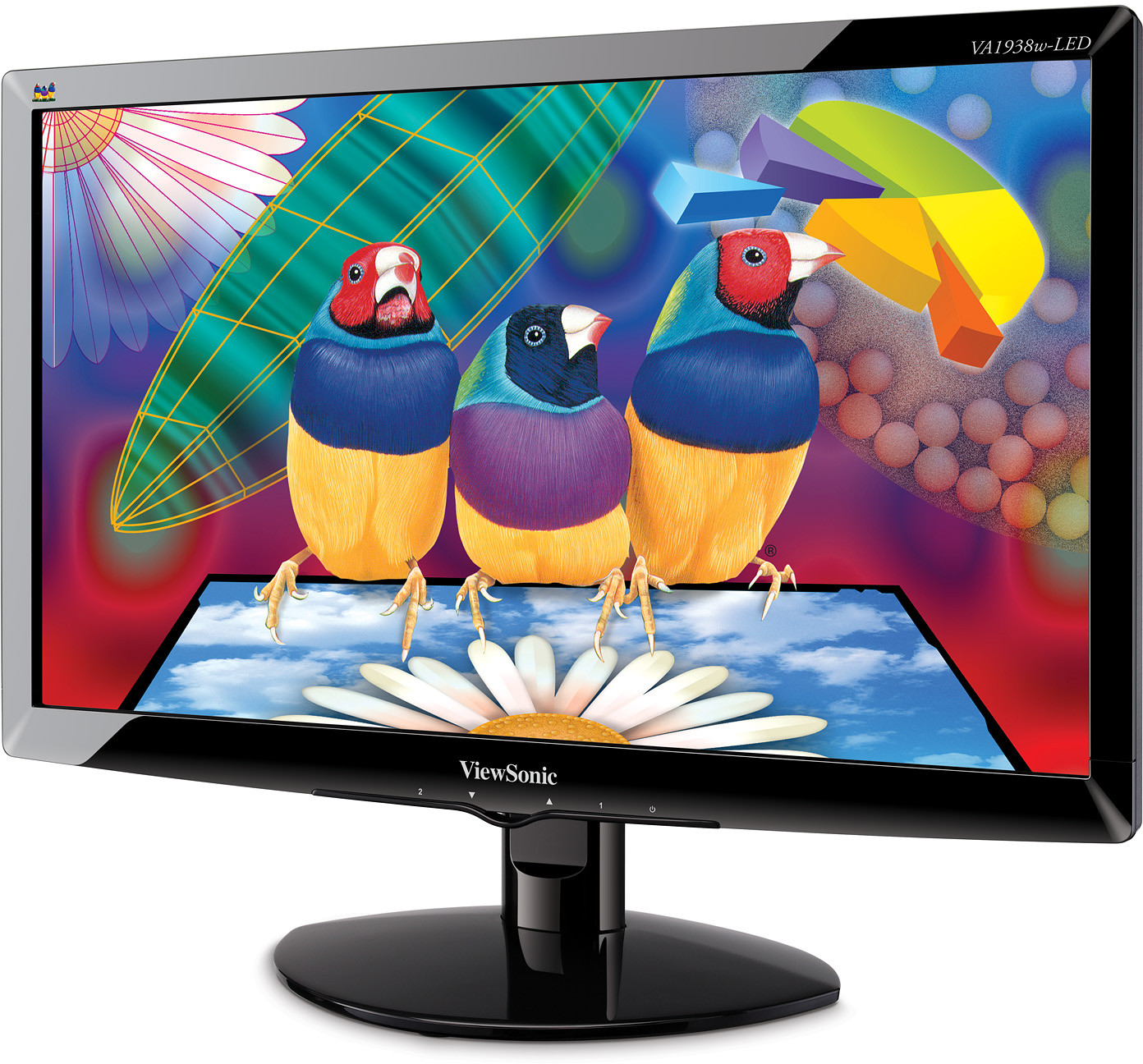

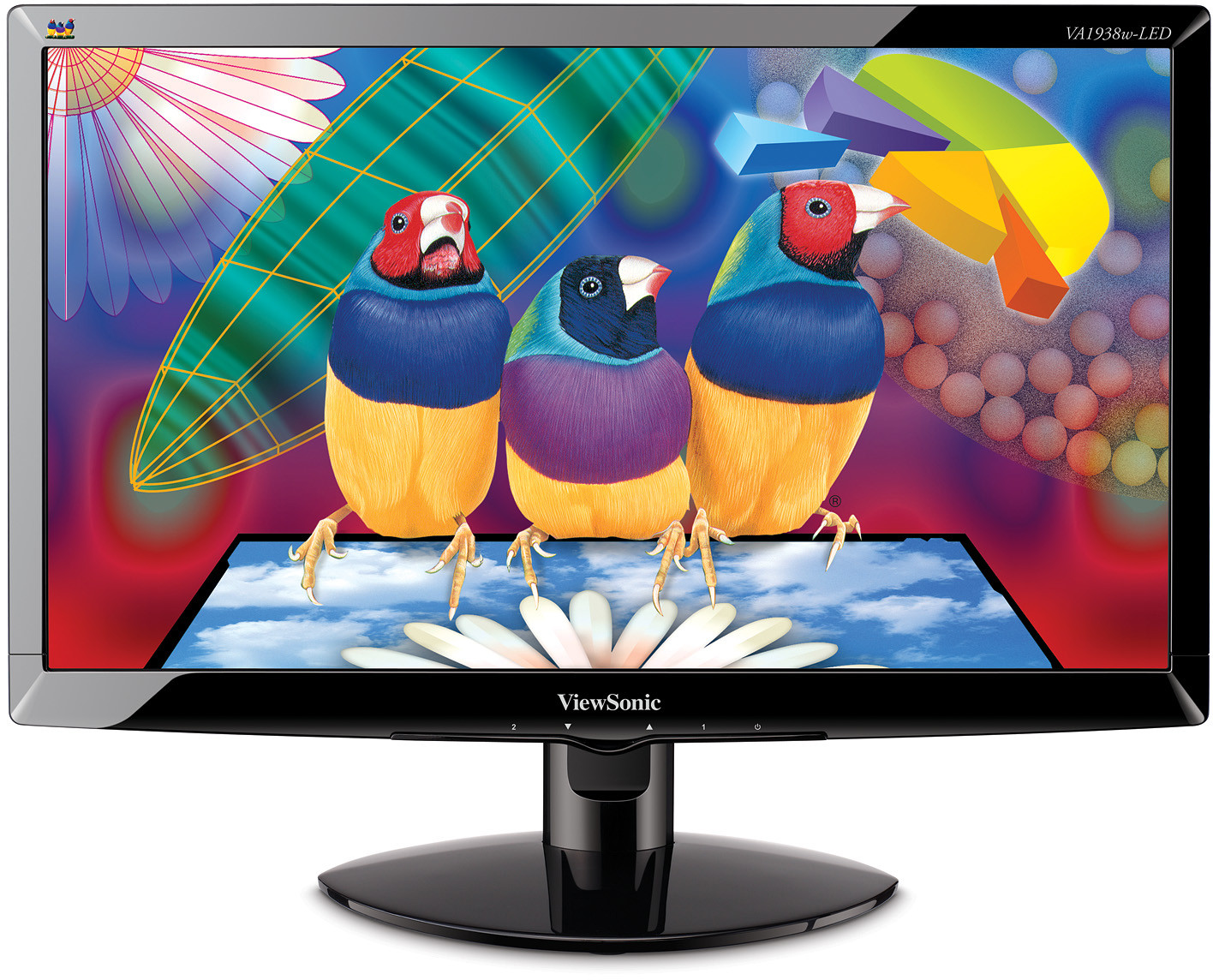

VA1938w-LED

47cm/18.5" LED DISPLAY

Sales Enquiry

COLORS
Black
LCD
Contrast Ratio: 1000:1 (Typical)
Viewing Angles: 170° (H), 160° (V)
Optimum Resolution: 1366×768
Response Time: 5 (typical)
Light Source: 30,000 (minimum)
Panel Surface: Anti-Glare, Hard coating (3H)
Pixel Pitch: 0.3 × 0.3 (mm)
Colour Support: 16.7 Millions
Size: 47cm 18.5" wide Color a-Si TFT Active Matrix LCD with 16:9 aspect ratio
Brightness: 250 (Typical)
Dynamic Contrast Ratio: 10,000,000:1
COMPATIBILITY
PC: VGA up to 1366×768 Non Interlaced
Mac®: 1366×768 Non Interlaced

DIMENSIONS
Physical (WxHxD): 440.37(W) x 340.8(H) x 179.9(D)mm
REGULATIONS
CB, WEEE, RoHS, REACH SVHC List, EuPWindows XP/ Vista premium, Window7CE,
Nemko ERGO, GOST-R+Hygienic, UkrSEPRO, TCO 5.0BSMI, PSB, C-TICK, SASO
INPUT
Sync: Separate Sync
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: 24–82kHz / 50–75Hz
CONNECTOR
Analogue: 1×15 pin mini D-sub
Digital: 1×DVI-D
Power: Internal Power Adapter, 3-pin plug (CEE22)
POWER
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 18 W (typical) /22W (maximum)
Save mode: ≦0.5W
CONTROLS
Basic: [1], [2], power button, Down[▼], Up[▲]
OSD: Auto Image Adjust Contrast/Brightness, Input Select, D-SUB, DVI, Color Adjust, sRGB,
9300K, 7500K, 6500K, 5000K, User Color [R, G, B],
Information Manual Image Adjust, H/VPosition, Horizontal Size, Fine Tune, Sharpness,
Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu, Language Select,
Resolution Notice, OSD Position, OSD Time out, OSD Background, Auto Power Off,
Memory Recall

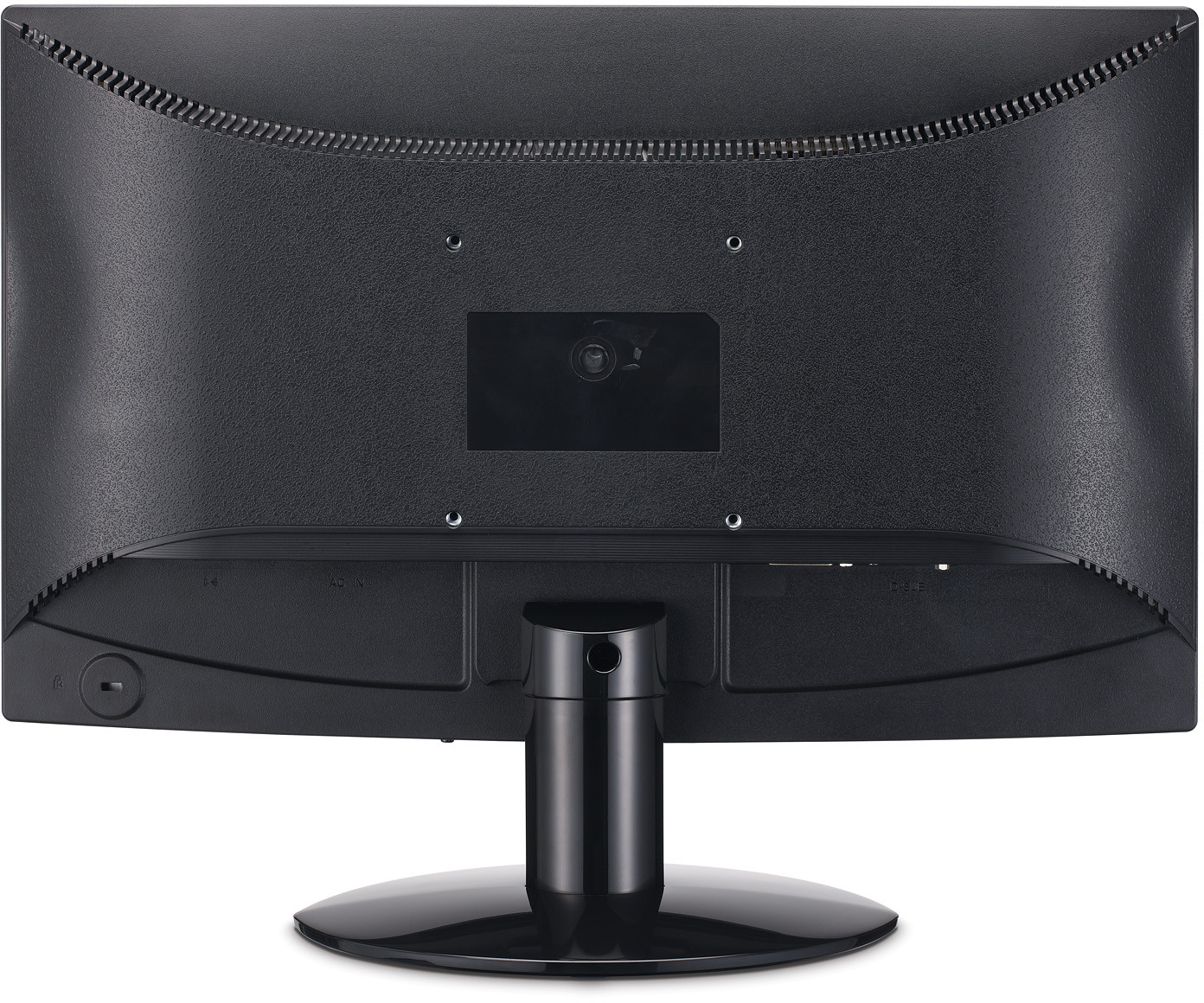

VESA MOUNT COMPLIANT
100 × 100
WEIGHT
Net: 2.7 kg (5.94 lbs
OPERATING CONDITIONS
Humidity: 10 - 90 (%)
Temperature: 0 - 40 (°C) / 32 - 104 (°F)
