Budget-friendly widescreen

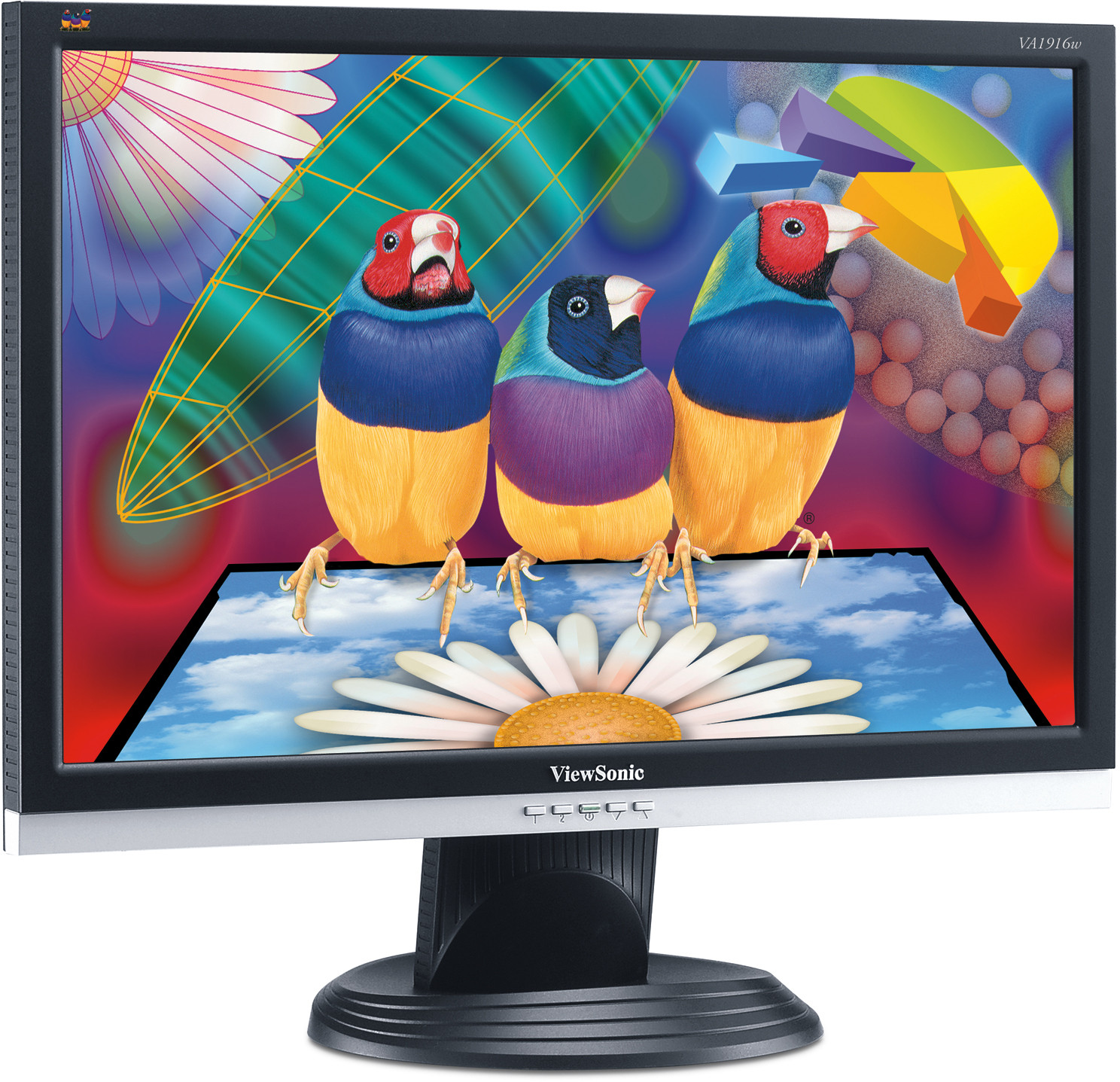

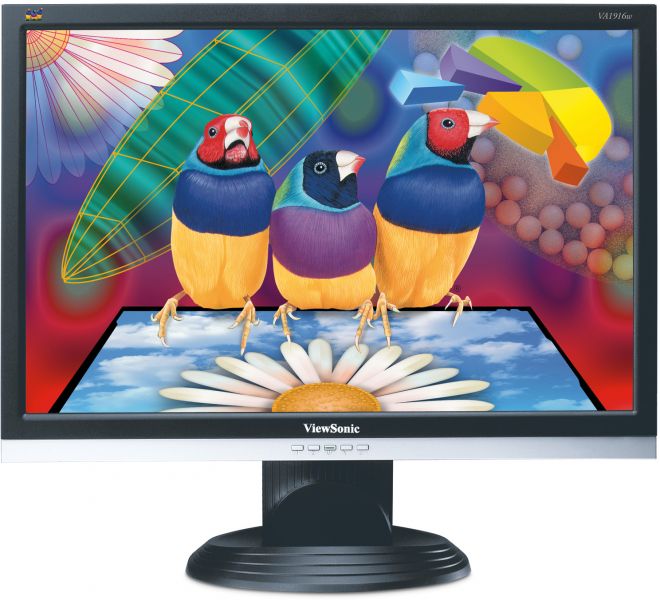

ViewSonic’s 48cm / 19" VA1916w LCD brings widescreen performance to budget-conscious users. The 16:10 aspect ratio and high 1440 x 900 resolution allow you to view two documents side-by-side or to WORK IN MULTIPLE APPLICATIONS SIMULTANEOUSLY. PC gamers will appreciate the immersive gaming action delivered by fast ClearMotiv® video response. You’ll be amazed by the EXTREME CLARITY AND BRILLIANT COLOURS of the VA1916w. This widescreen LCD continues ViewSonic’s tradition of brilliant image quality and reliable performance all at an appealing price point. It’s the easy choice for gamers, home/small office users and corporate professionals.
ViewSonic’s 48cm / 19" VA1916w LCD brings widescreen performance to budget-conscious users. The 16:10 aspect ratio and high 1440 x 900 resolution allow you to view two documents side-by-side or to WORK IN MULTIPLE APPLICATIONS SIMULTANEOUSLY. PC gamers will appreciate the immersive gaming action delivered by fast ClearMotiv® video response. You’ll be amazed by the EXTREME CLARITY AND BRILLIANT COLOURS of the VA1916w. This widescreen LCD continues ViewSonic’s tradition of brilliant image quality and reliable performance all at an appealing price point. It’s the easy choice for gamers, home/small office users and corporate professionals.
SPECIFICATIONS
- COLORSBlack
- LCDType: 48cm / 19" Wide TN colour TFT active matrix WXGA+ LCD
Contrast Ratio: 700:1 (typ.), 2000:1 (DCR)
Viewing Angles: 150° horizontal, 140° vertical (at 10:1)
170° horizontal, 160° vertical (at 5:1)
Brightness: 300 cd/m² (typ)
Display Area: 40.8cm horizontal x 25.5cm vertical, 48.3cm diagonal
Optimum Resolution: 1440 x 900@60Hz
Response Time: 5ms (off-on-off) (typ.)
Light Source: 300cd/m²
Panel Surface: Anti-glare (3H)
Pixel Pitch: 0.2835mm
Colour Support: 16.7M colours supported (6-bit + 2-bit FRC)
Pixel Clock: 140MHz - COMPATIBILITYPC: VGA up to 1440 x 900 non-interlaced
Mac®: Power Mac™ up to 1440 x 900 non-interlaced
- DIMENSIONSW x H x D mm: 440 x 383 x 195 (with stand)
440 x 304 x 62 (without stand)
520 x 460 x 142 (packaging) - REGULATIONSTCO’03, GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R, Hygienic (20 copies), UL, cUL, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, MPR II, TUV-S/IRAM/UL-AR S Mark, CCC, VCCI, WEEE, RoHS
- PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Power: 3-pin AC plug (CEE22) - POWERVoltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumption: 32 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, DCR on/off, OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C–40°C
Humidity: 20%–90% (non-condensation) - WEIGHTNet: 4.0kg (with stand)
Gross: 5.1kg - VIDEO INPUTFrequency: Fh: 24–82kHz,
Fv: 50–75 Hz
Sync: H/V separate (TTL)
Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm) - POWER MANAGEMENTTCO’03 and ENERGY STAR standards
- SECURITYKensington security port
- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm

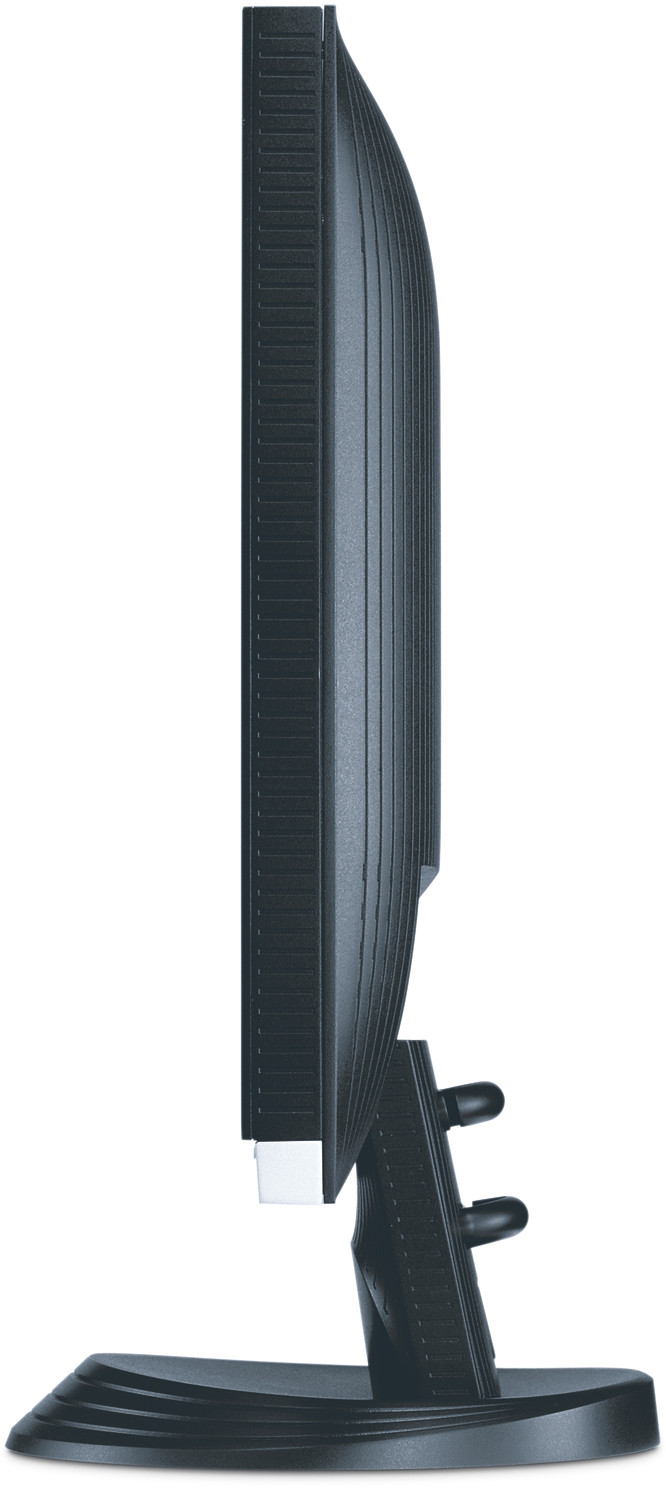

- ERGONOMICSTilt: Down 5°, Up 20°
