OVERVIEW

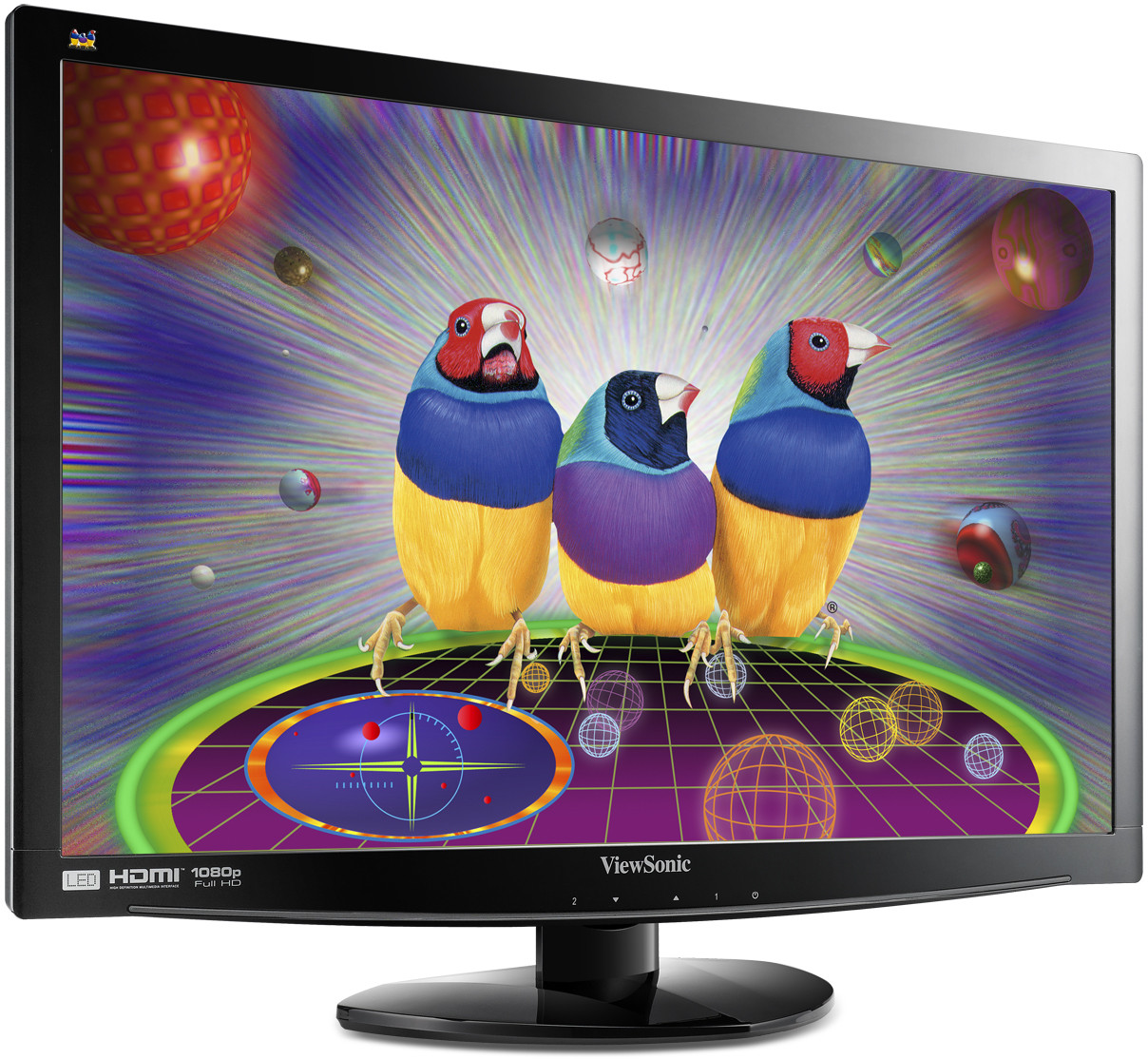

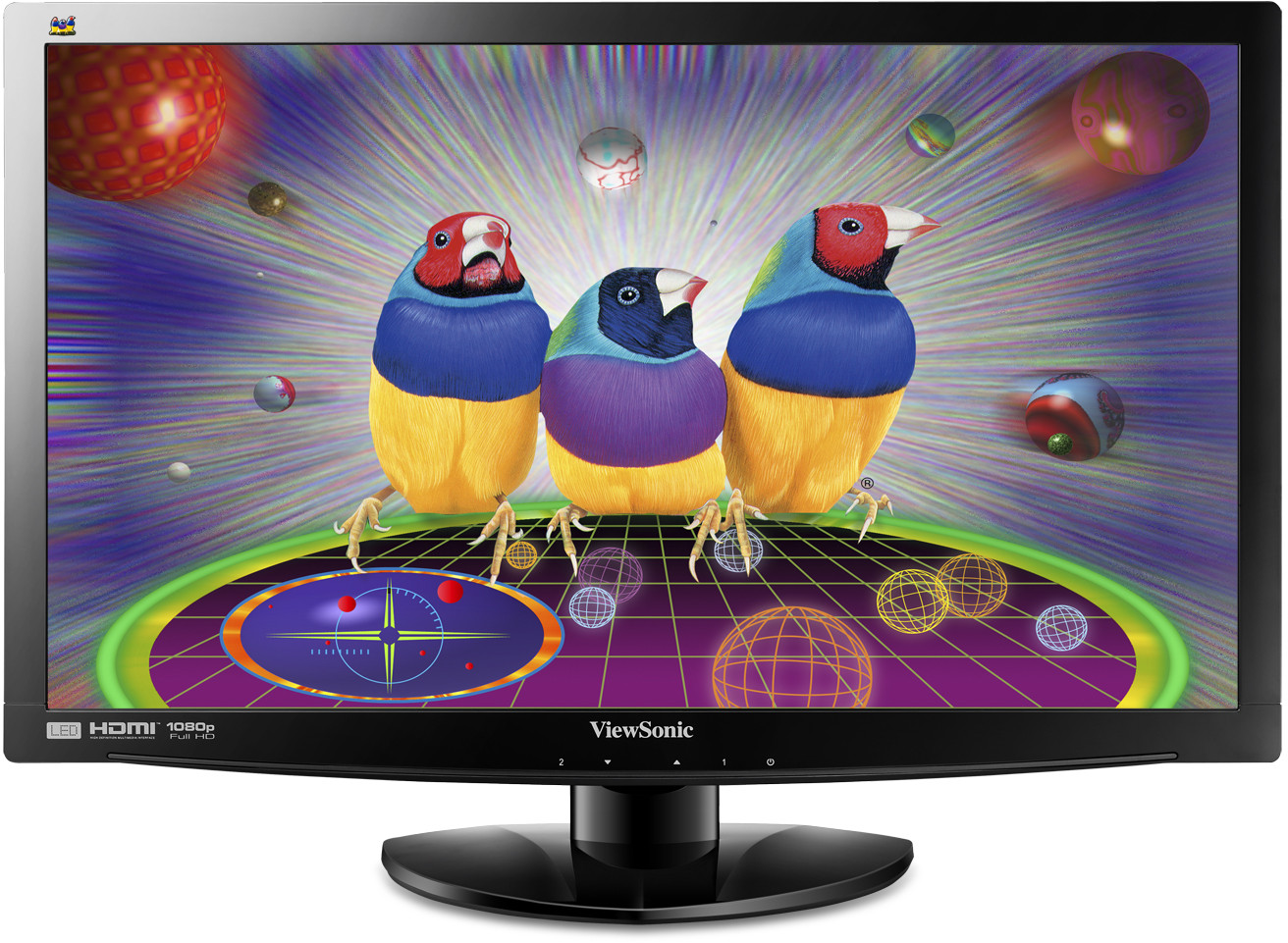

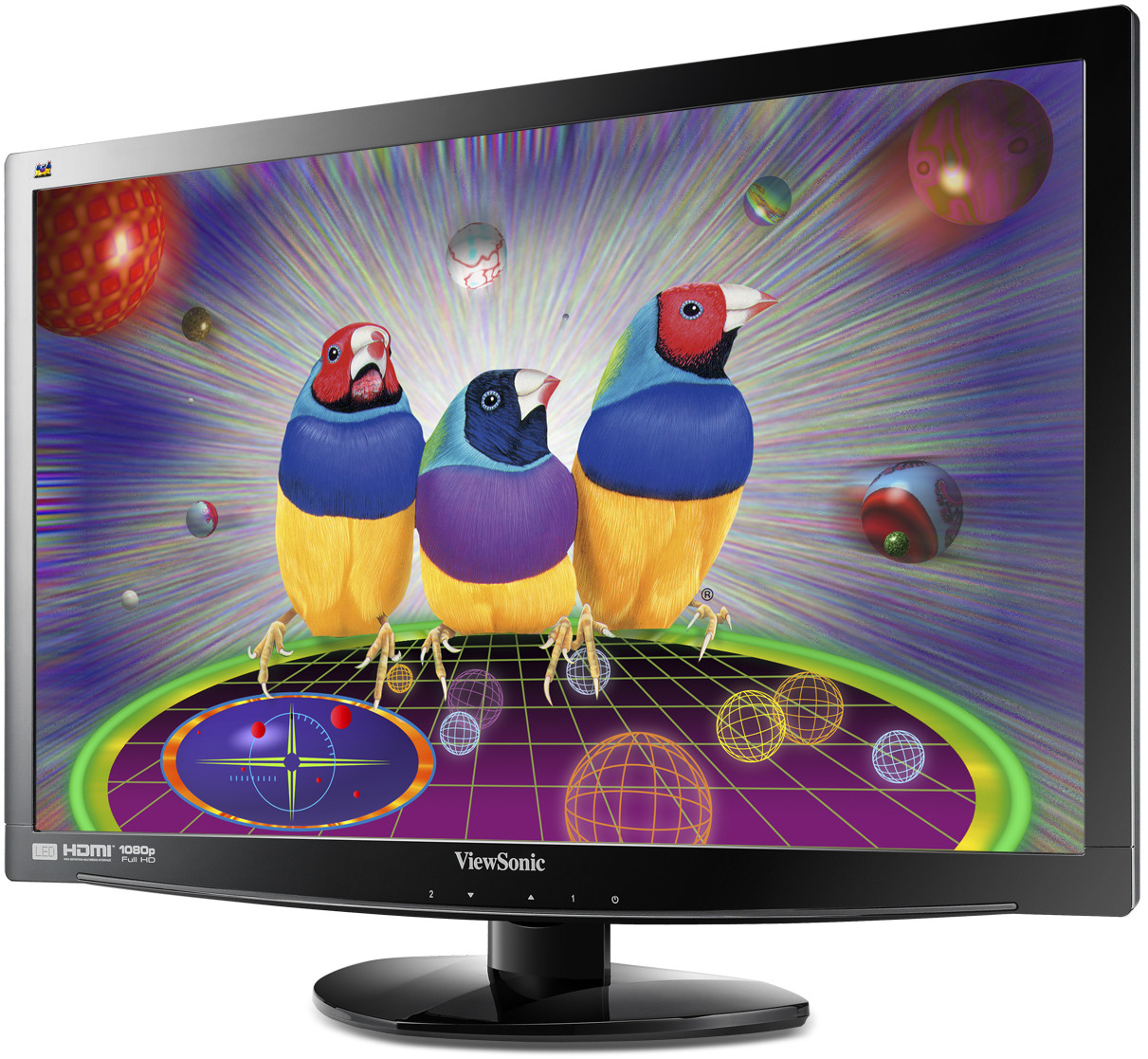

ViewSonic’s 23" V3D231 3D LED display features 2ms fast response time. It supports HDMI 1.4 and stereo 3D technology so users can enjoy stunning stereoscopic visuals using passive polarised glasses. V3D231 is simple plug and play to enjoy 3D experience by connecting to gaming console or blu-ray DVD via HDMI 1.4. The package includes TriDef software for easy 2D to 3D content conversion. In addition, integrated speakers powered by SRS Premium Sound® produces incredible audio effects, making the V3D231 more than just an LED display, but the ultimate audiovisual entertainment system.REVIEWS
SPECIFICATIONS
- LCDType: 23" LED panel
Resolution: 1920x1080
Contrast Ratio: 1000:1 (typ)
Viewing Angles: 170° horizontal, 160° vertical
Response Time: 2ms (GTG)
Brightness: 250 cd/m² (typ)
Dynamic Contrast Ratio: 20,000,000:1 - COMPATIBILITYMac®: Up to 1920x1080
PC: VGA up to 1920x1080 non-interlaced - DIMENSIONSPhysical (WxHxD): 548 x 388 x 190 (mm)
Packaging: 604 x 414 x 113 (mm)
- PACKAGE CONTENTSV3D231, 3D glasses, VGA cable, DVI, power adapter, power cable, audio cable, Quick Start Guide, ViewSonic Wizard DVD
- AUDIOSpeaker: 2W x 2 (SRS Premium Sound®)
- INPUTSync: Separate Sync/Composite Sync/SOG
Digital: DVI-D/HDMI (TMDS, 100 ohms)

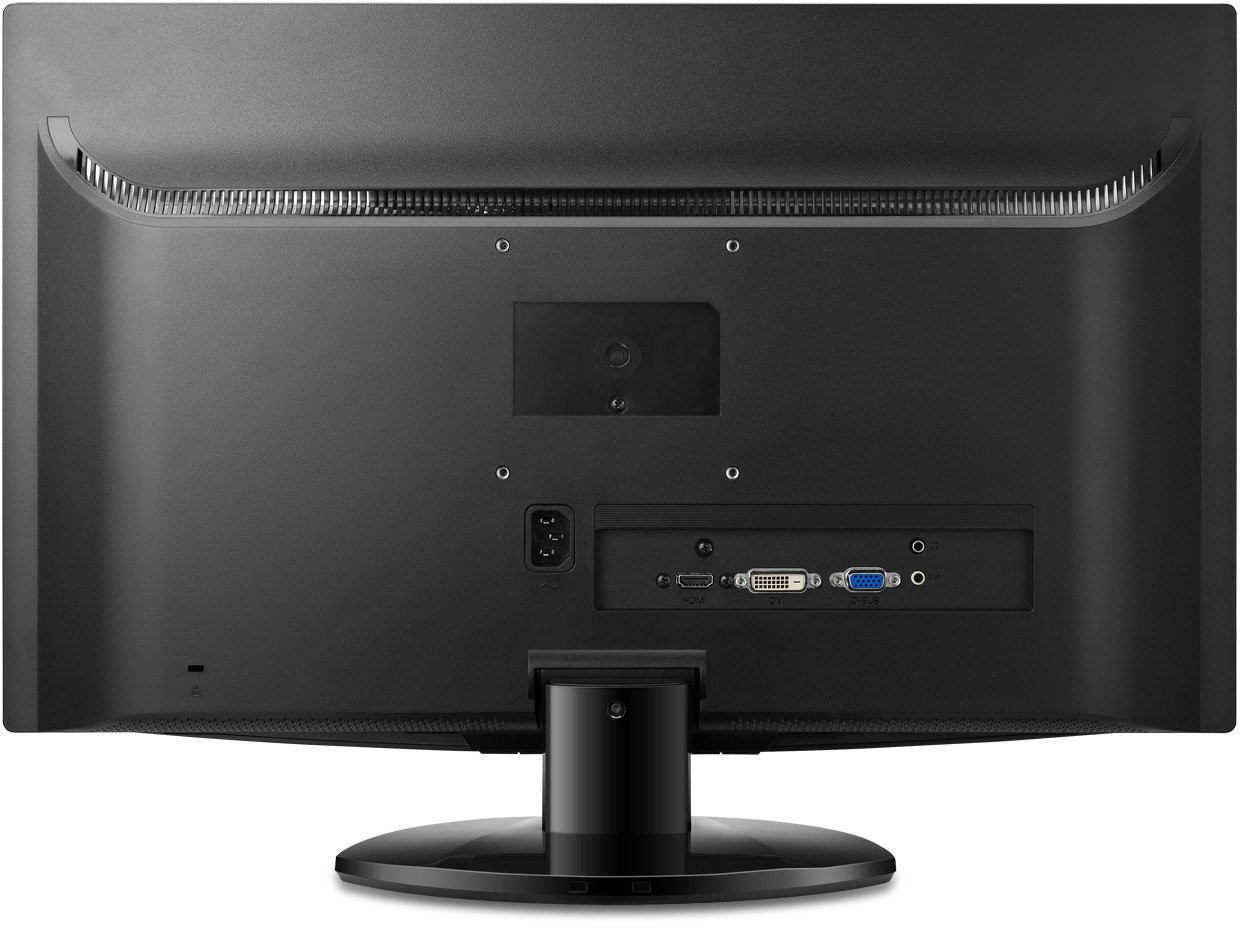

Analogue: RGB analog (0.7/1.0 Vp-p, 75 ohms) - CONNECTORAnalogue: D-Sub
Digital: DVI/HDMI 1.4
Power: AC adaptor, 3-pin plug (CEE22)
Audio (input/output): 3.5mm jack (blue/green) - POWERVoltage: AC 100–240V; 50/60Hz
Consumption: 36W
Eco Mode: 26W
Save mode: <1W - WEIGHTNet: 3.58 kg
- 3D GlassesHDMI: 1.4a 3D support for use with PS3 or Blu-ray 3D player
Type: Polerised glasses - System RequirementsTriDef Recommended: Recommended System Requirements: Intel® Core i5 or AMD PhenomTM II X4 CPU or better, 2GB RAM, NVIDIA® GeForce® GTS 450 or AMD RadeonTM HD5750 or better, 500MB free disk space, Windows® XP (SP3) (32 bit only)1, Windows® Vista (32 bit only) or Windows® 7 (32 or 64 bit), DirectX 9.0c & DirectX 9.0c compatible sound card, Network card, Internet connection, DVD-ROM drive
DDD TriDef software 2D to 3D Supported Format: Movies: .avi, .avs, .divx, .drv-ms, .hdmov, .m1v, .m2t, .m2ts, .m4p, .m2v, .m4v, .mkv, .mov, .mkv, .mpg, .mpeg, .ts, .wmv. Photos: .bmp, .jpg, .jpeg, .png, .tga, .tif, .tiff
DDD Website: http://www.tridef.com/ignition/3d-games.html
HDMI 3D: Supports: HDMI compatible PC, 3D Blu-ray player or PS3
(Source device must support HDMI 1.4a 3D)
