TD2340
23" FHD 10 Points Touch Flicker Free IPS LED with VGA, HDMI, DisplayPort, 2 USB, Speakers, Pivot and Height adjustment
OVERVIEW

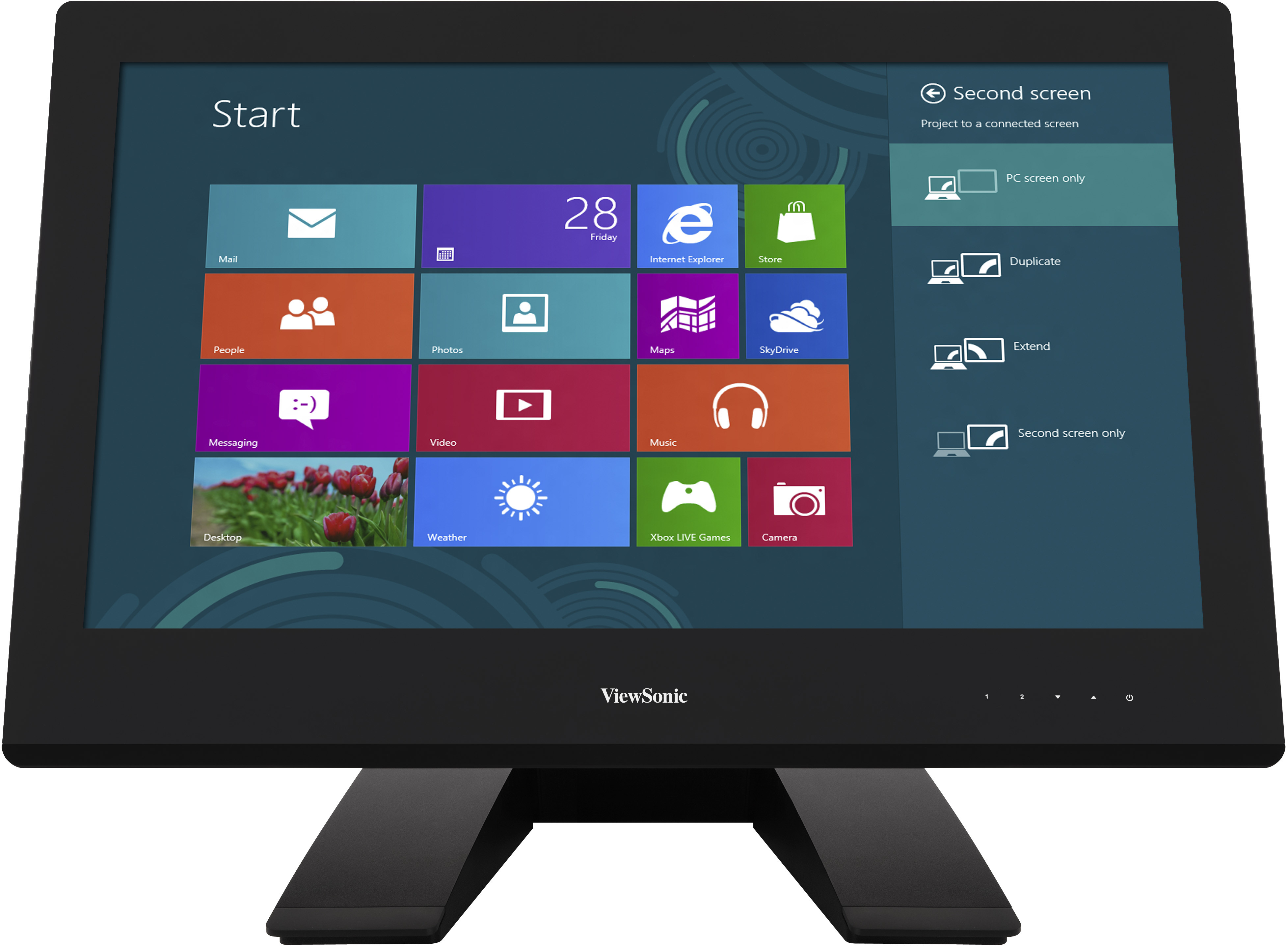

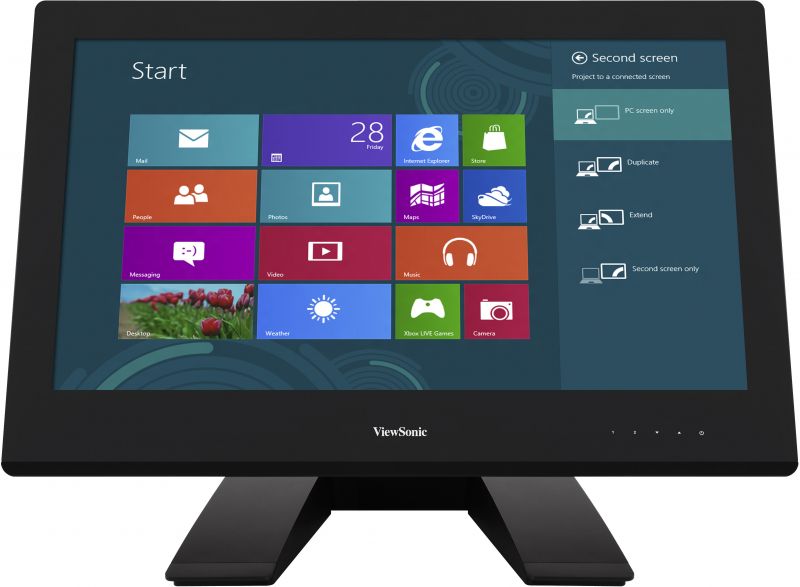

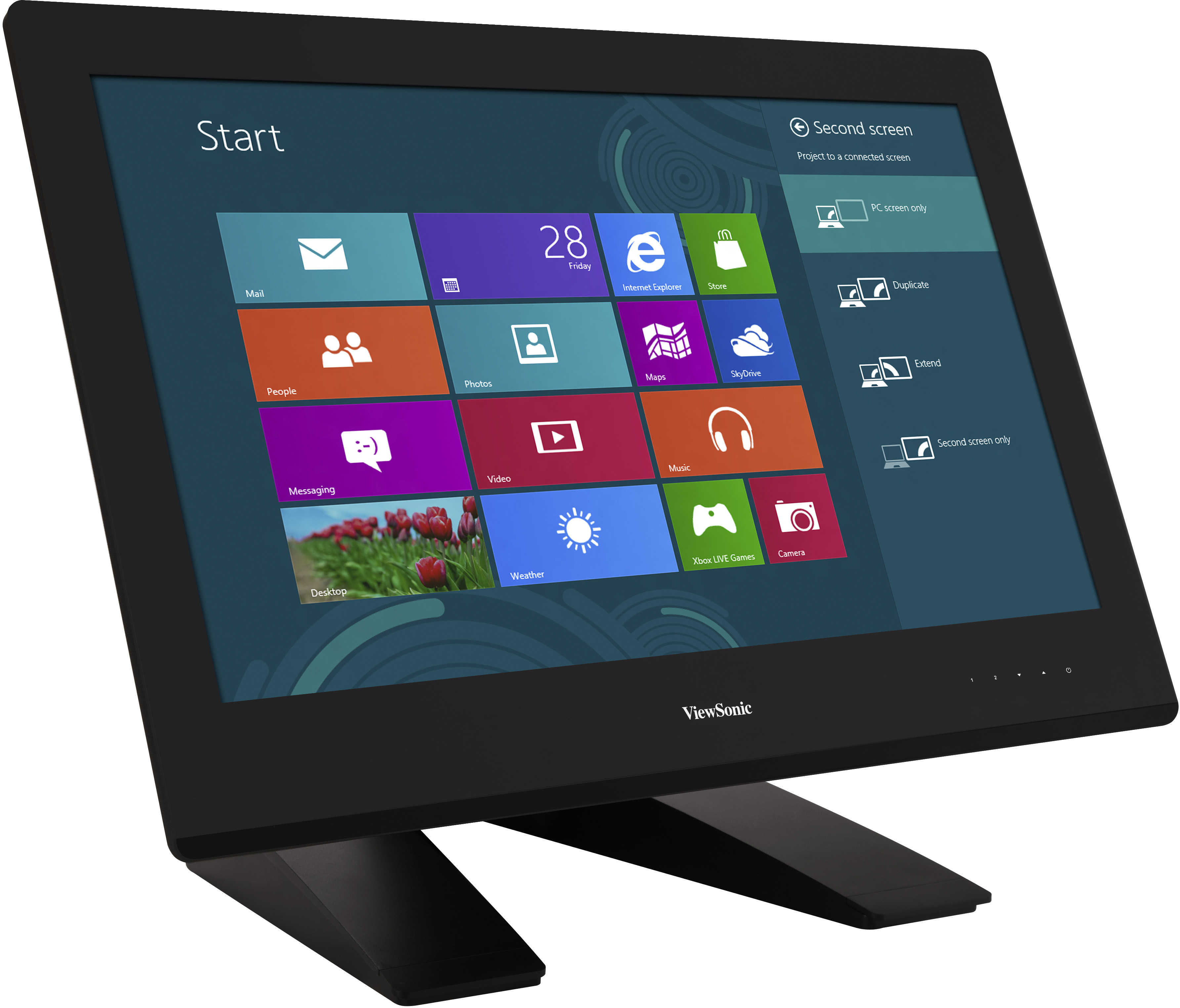

Exceptional interactivity comes standard in the ViewSonic® TD2340 Windows® 8 certified 23"" 10-point multi-touch IPS monitor. 1920x1080 Full HD resolution with projected capacitive touch technology delivers seamless and accurate touch experience. Stunning color performance with IPS technology and 20,000,000:1 MEGA Dynamic Contrast Ratio. Integrated speakers with SRS Premium Sound® complete the multimedia package. DisplayPort®, HDMI, VGA inputs provide flexible and convenient connectivity. Dual hinge stand design ensures outstanding ergonomic comfort and productivity. Even VESA mountable design for additional convenience. The TD2340 is fully USB HID compliant and certified with Windows 8. This is the gateway to the new world of interactivity.![]() | The New World of InteractivityWith the 10-point projected capacitive touch technology, TD2340 delivers lighting fast, responsiveness to deliver the best multi-touch experience possible. Partnered with the Windows 8 Touch Certification, TD2340 allows anyone to enjoy the best of the interactivity that Windows 8 or any other systems have to offer. |

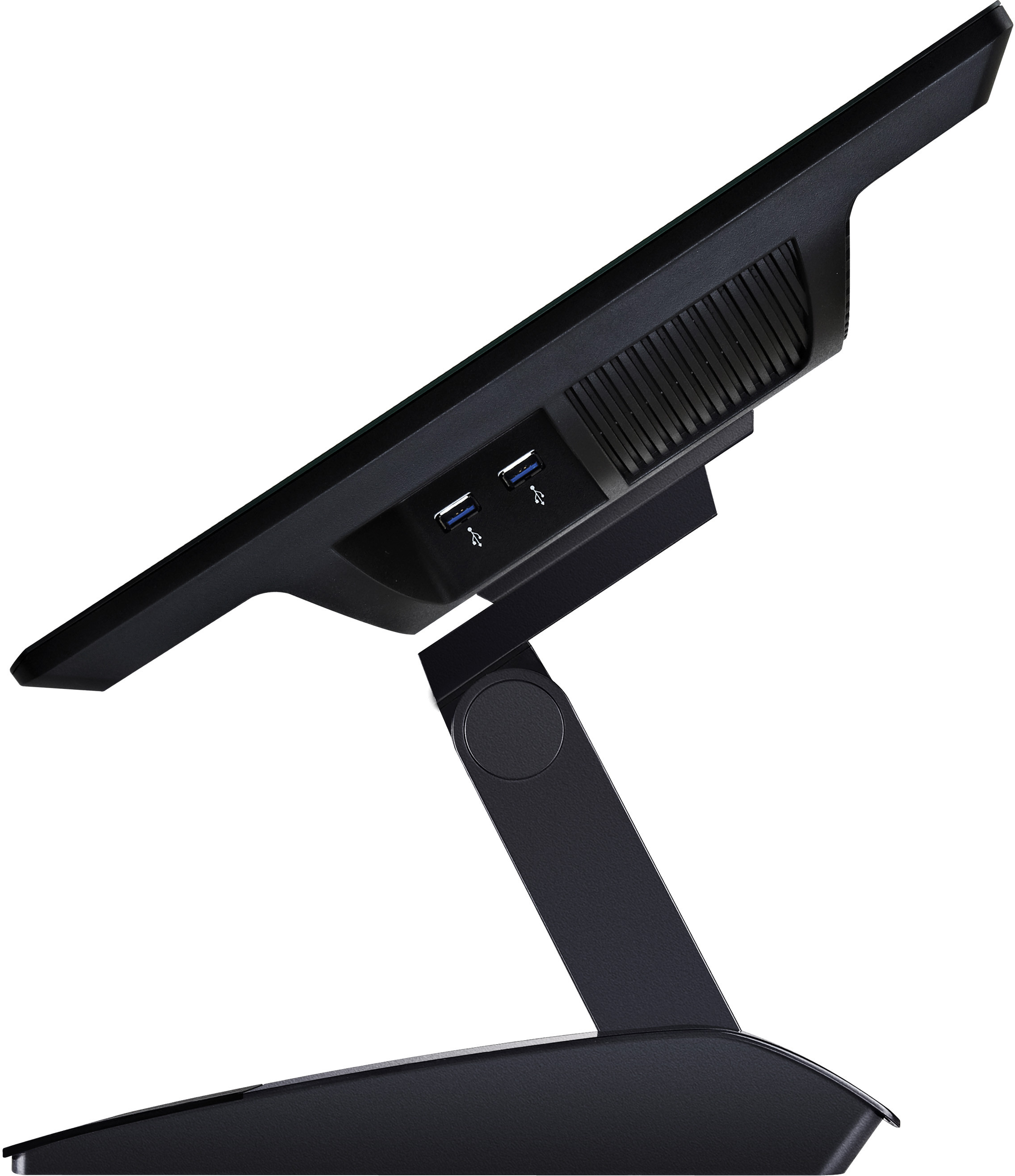

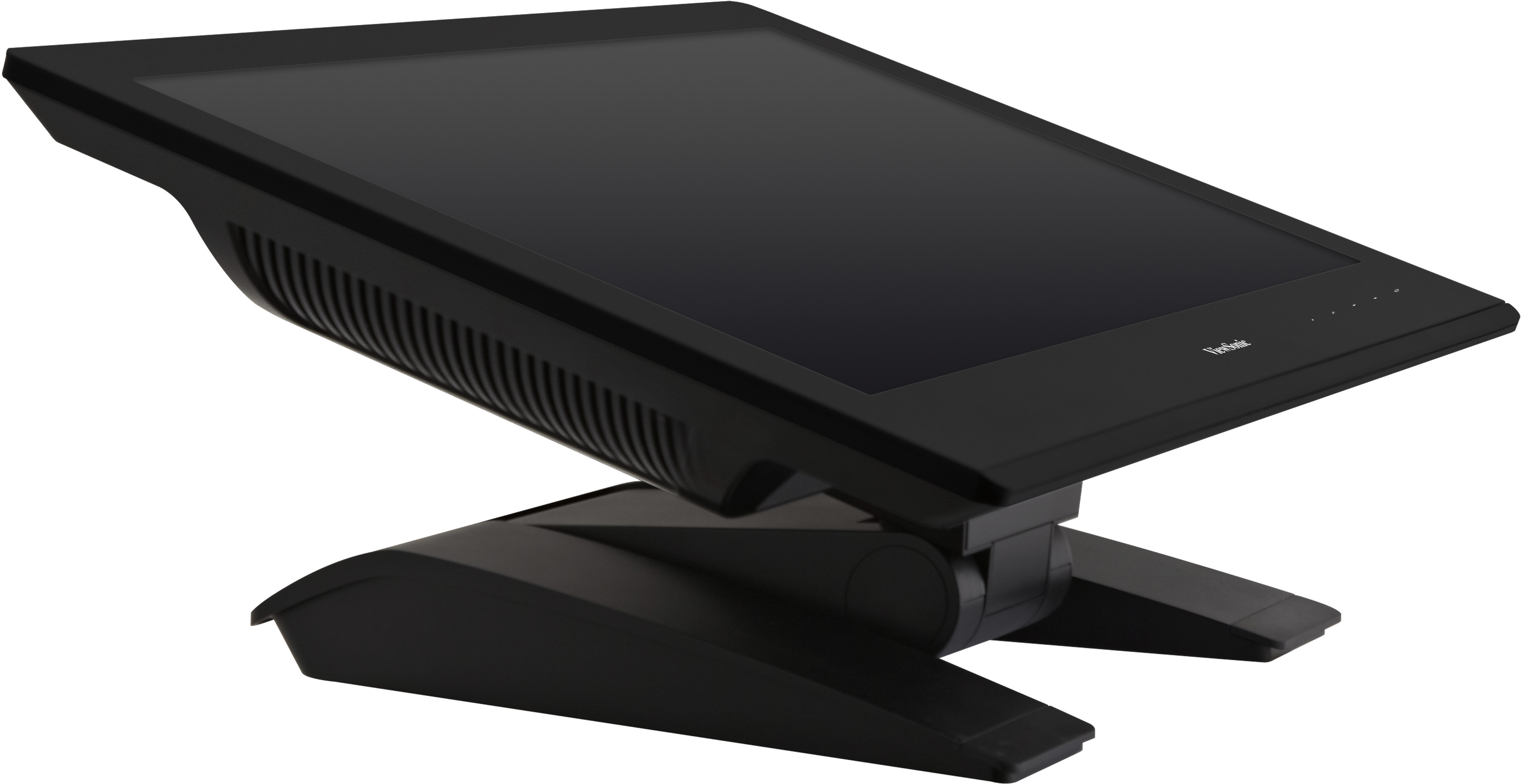

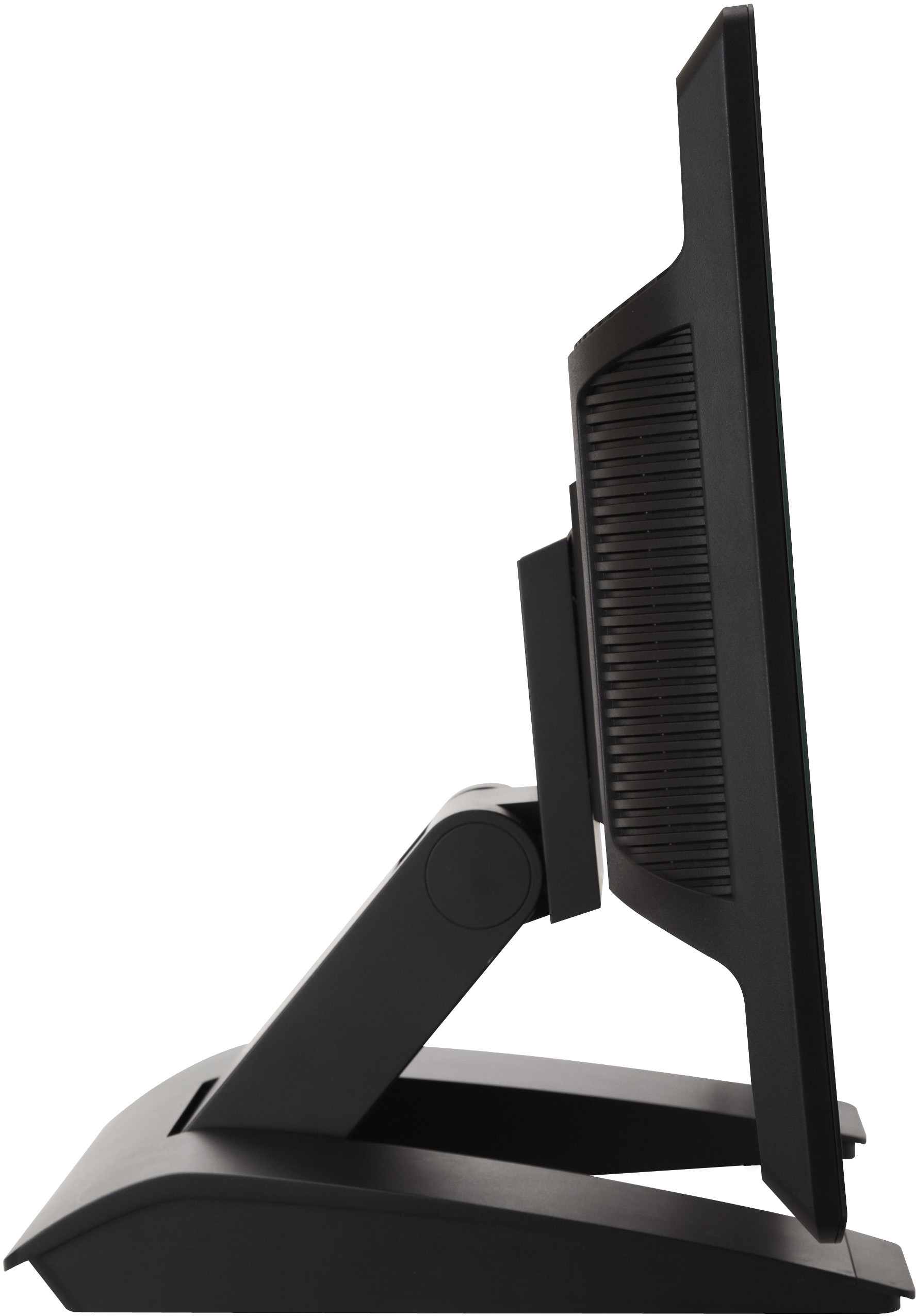

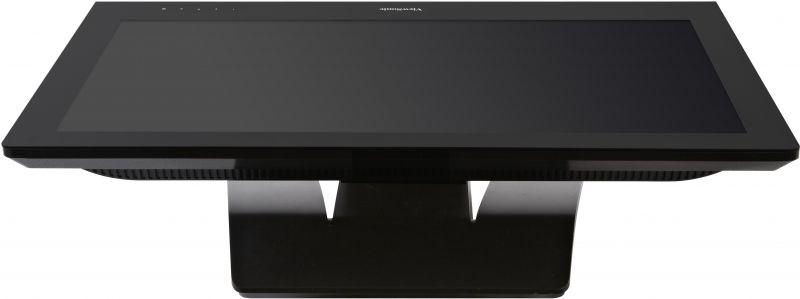

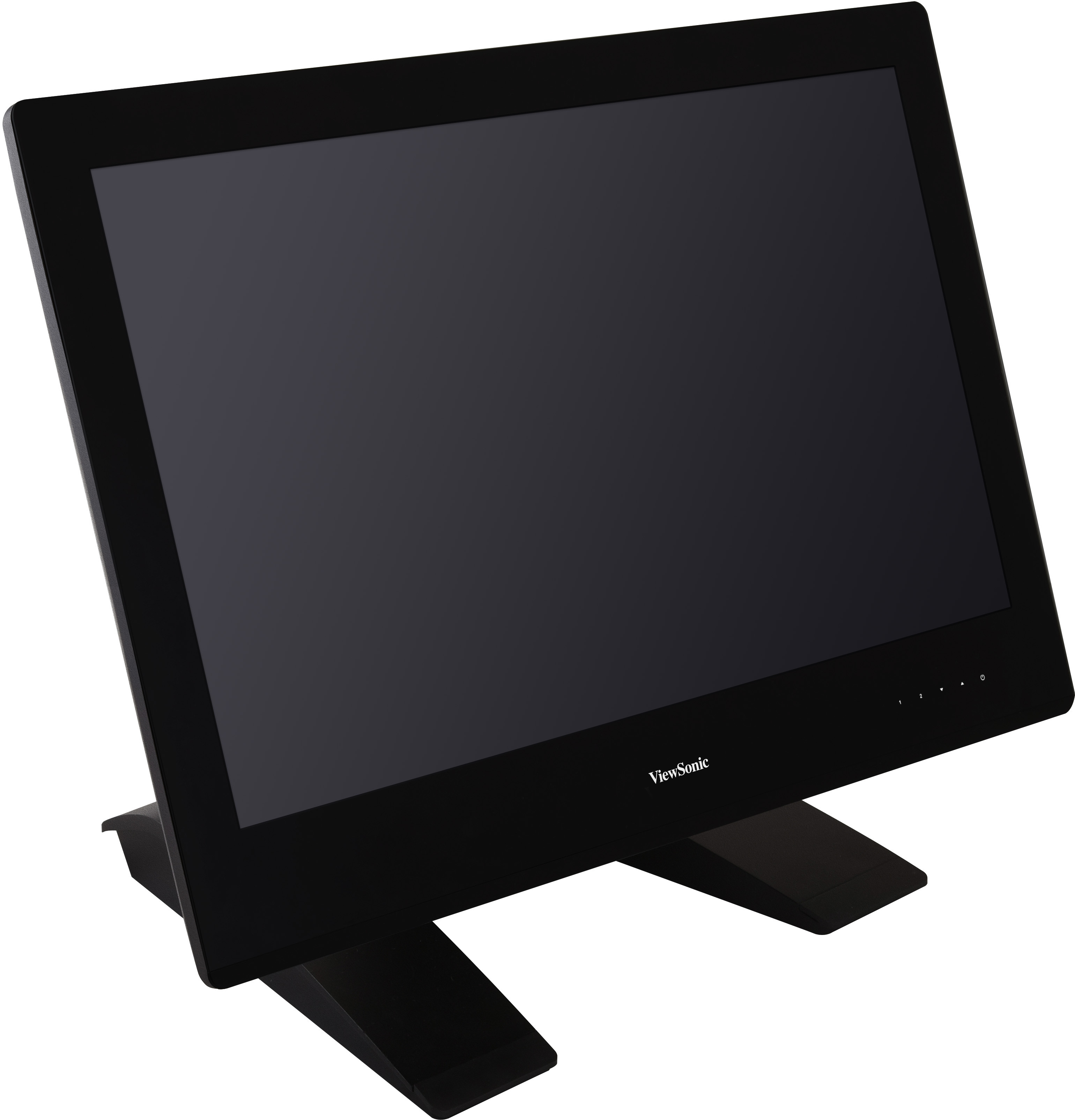

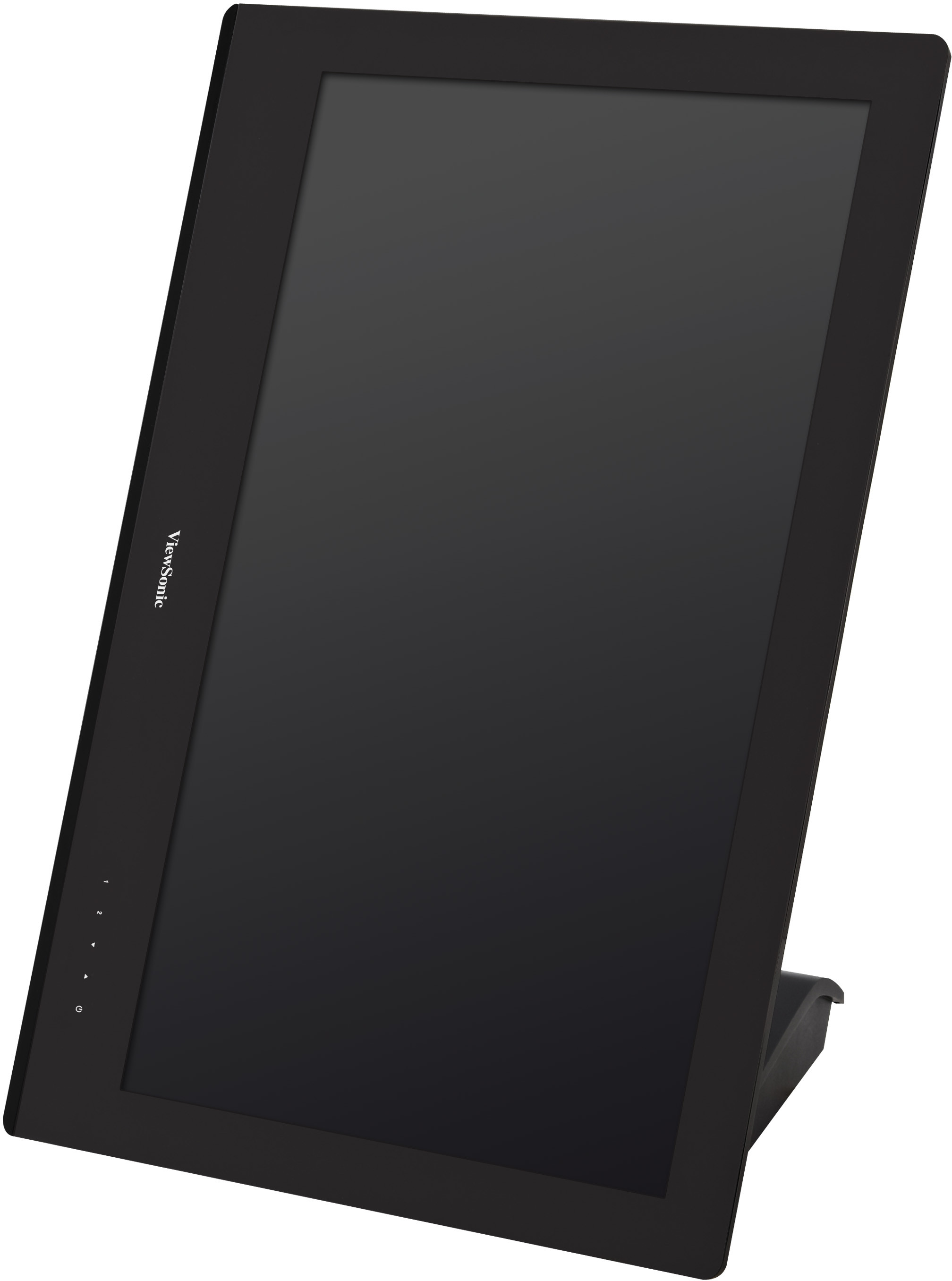

Comfort and Productivity Come StandardThe advanced ergonomic dual hinge stand makes the TD2340 the most flexible 10-point touch monitor in the market. Users can adjust the height, pivot or even lay the monitor flat, tailoring the touch experience to their preference. The TD2340 also comes with a VESA mountable design that allows for wall or display arm mounting options. | ![]() |

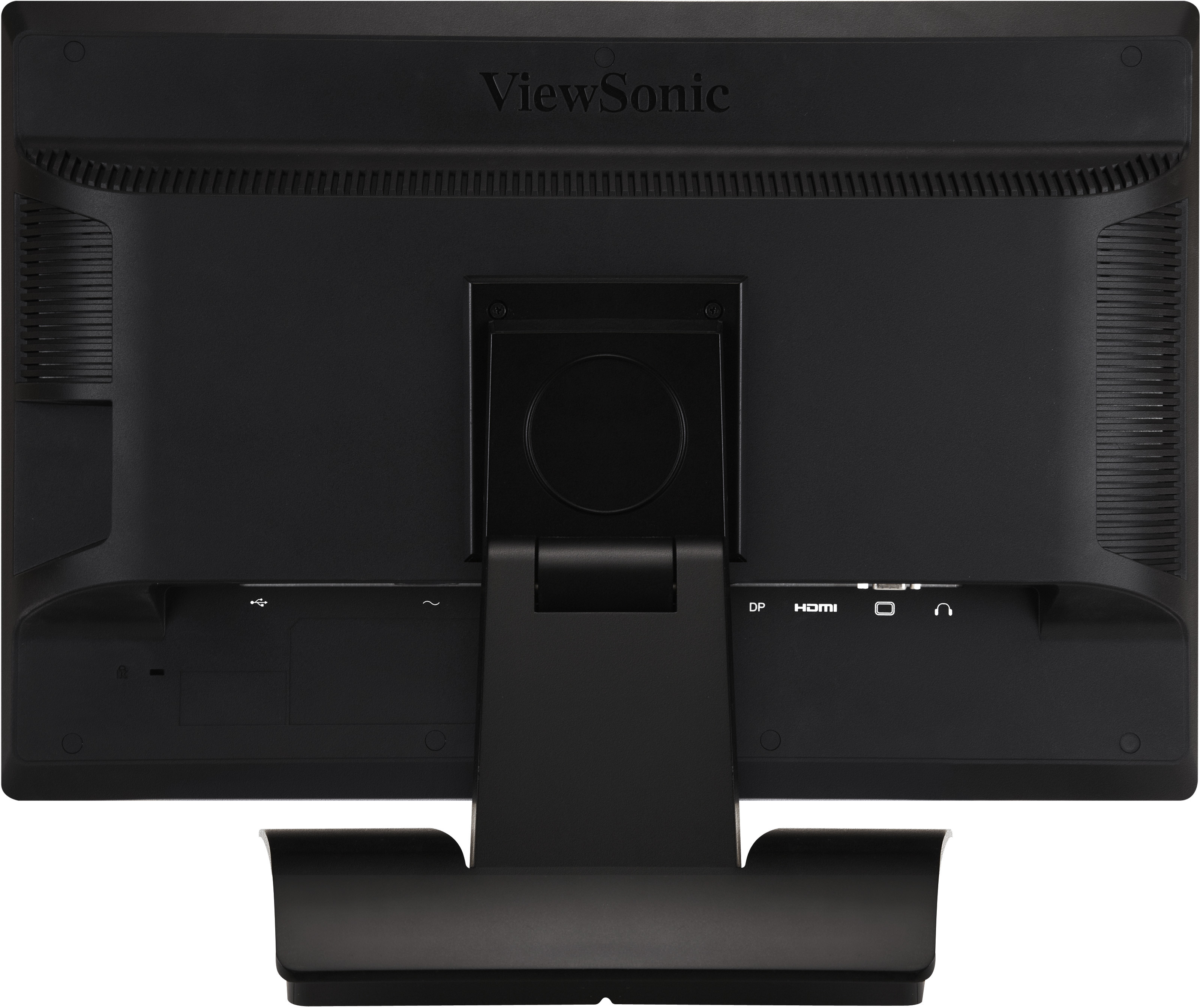

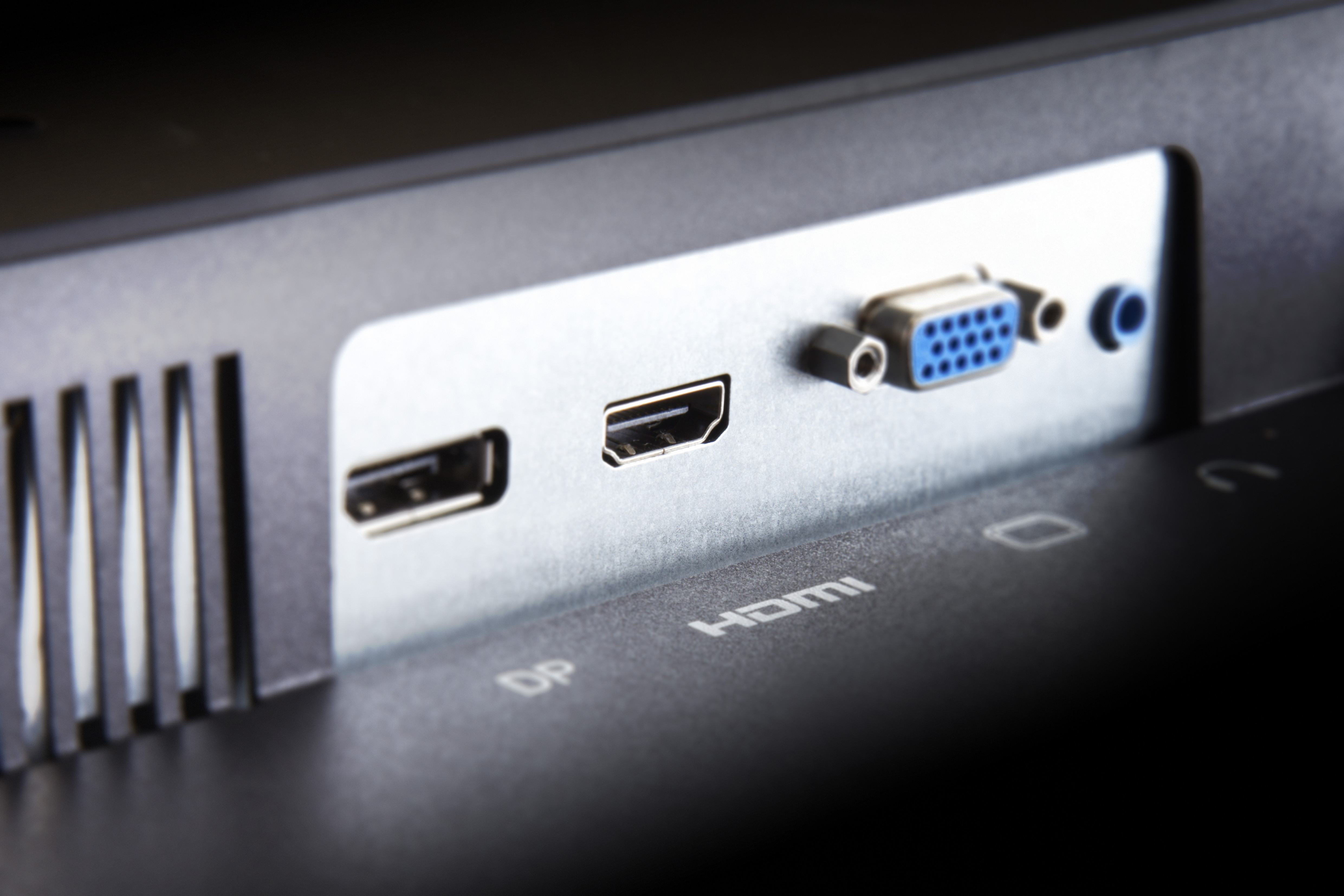

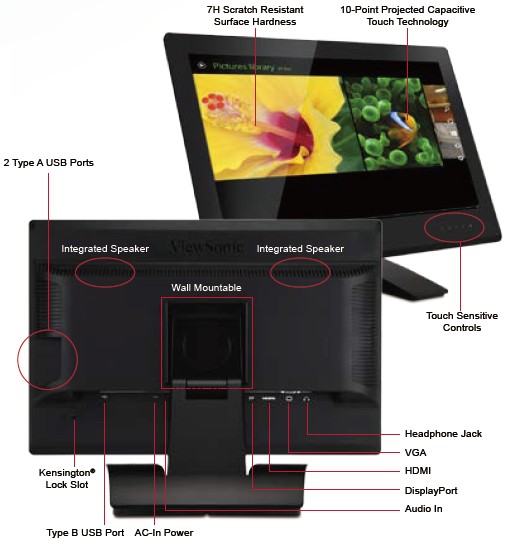

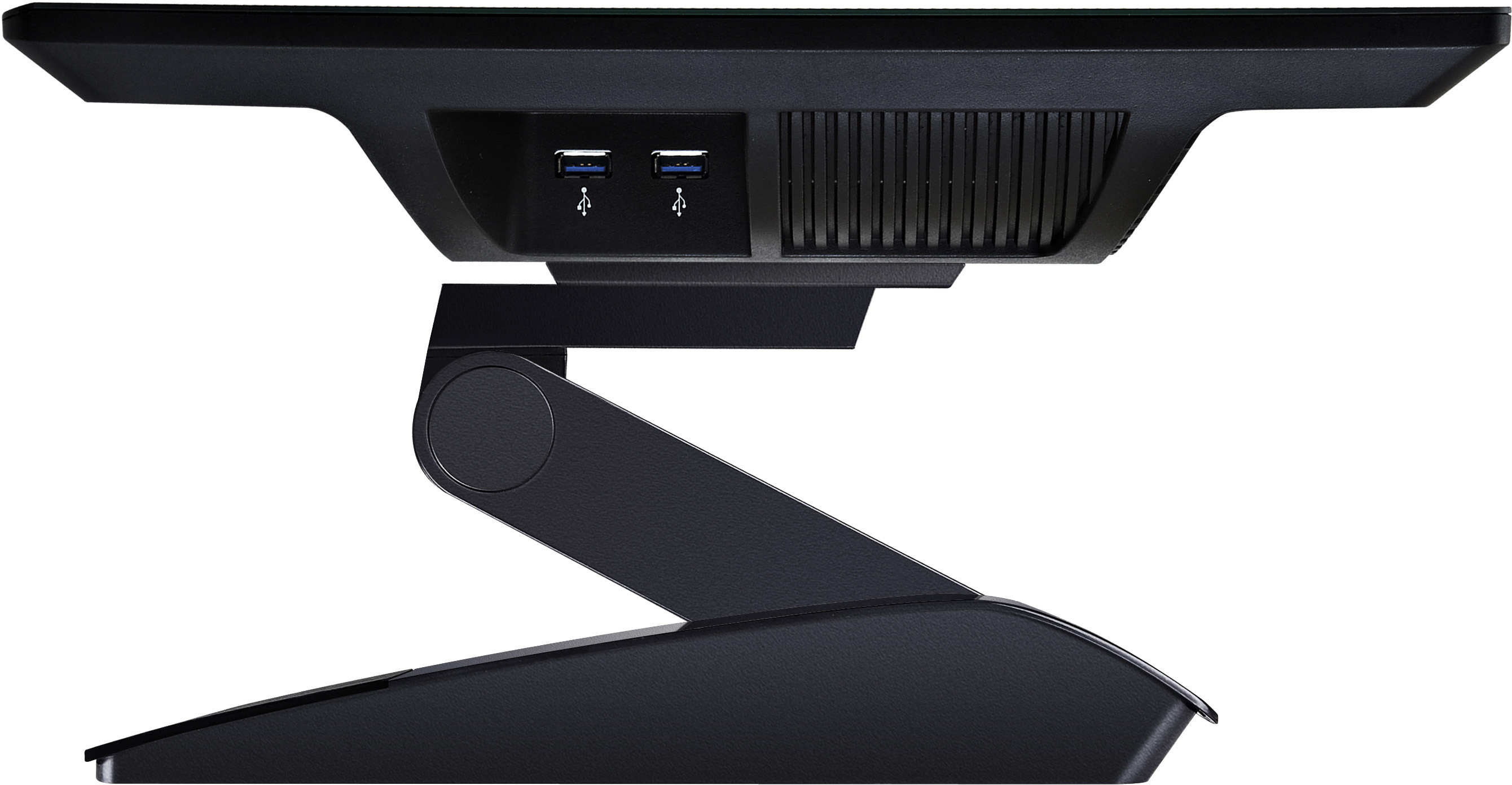

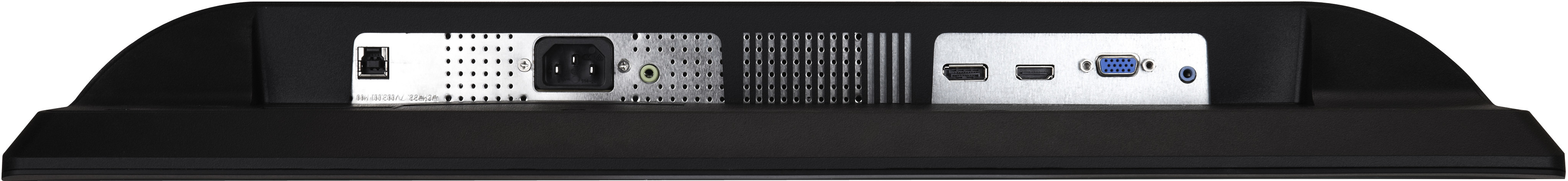

![]() | ![]() | Flexible ConnectivityViewSonic has built in all the connectivity users need. The TD2340 comes with advanced DisplayPort and HDMI connectivity, VGA is also provided for more traditional applications. 2 USB ports provide additional options to connect peripherals. |

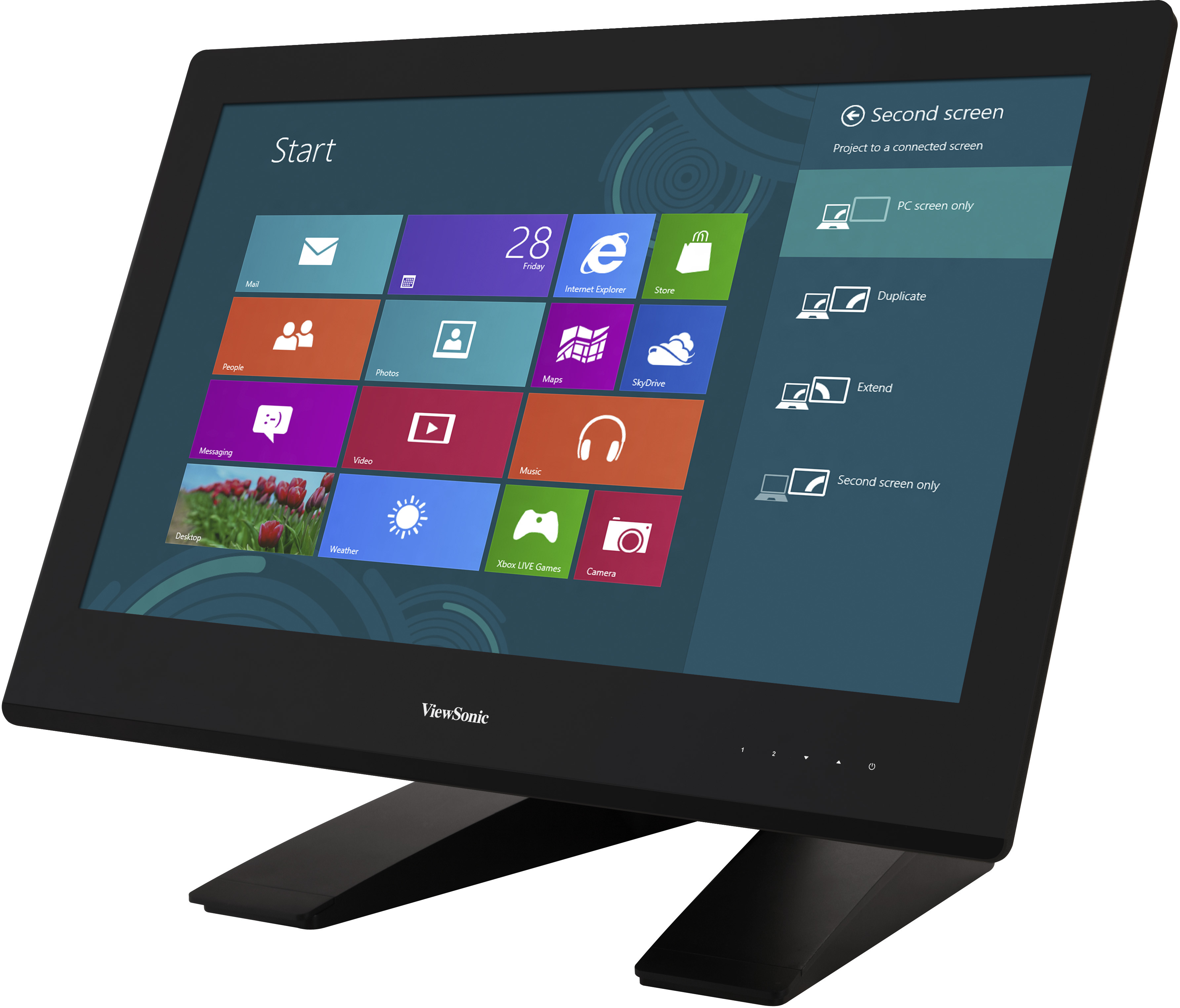

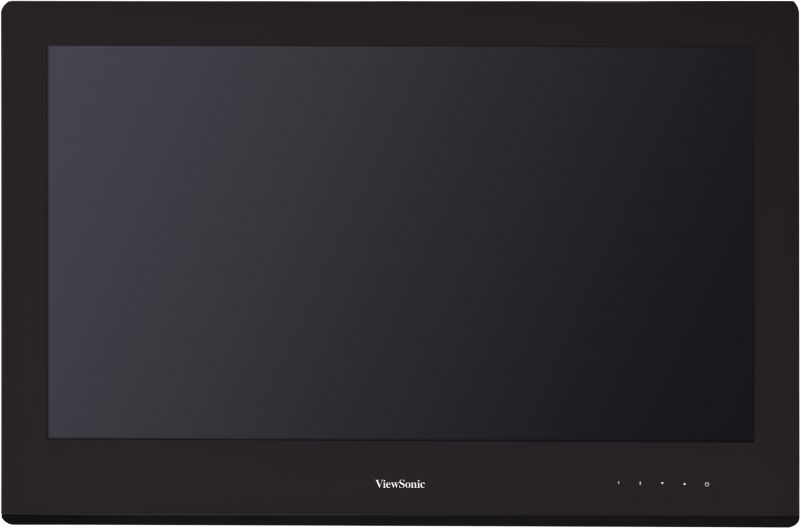

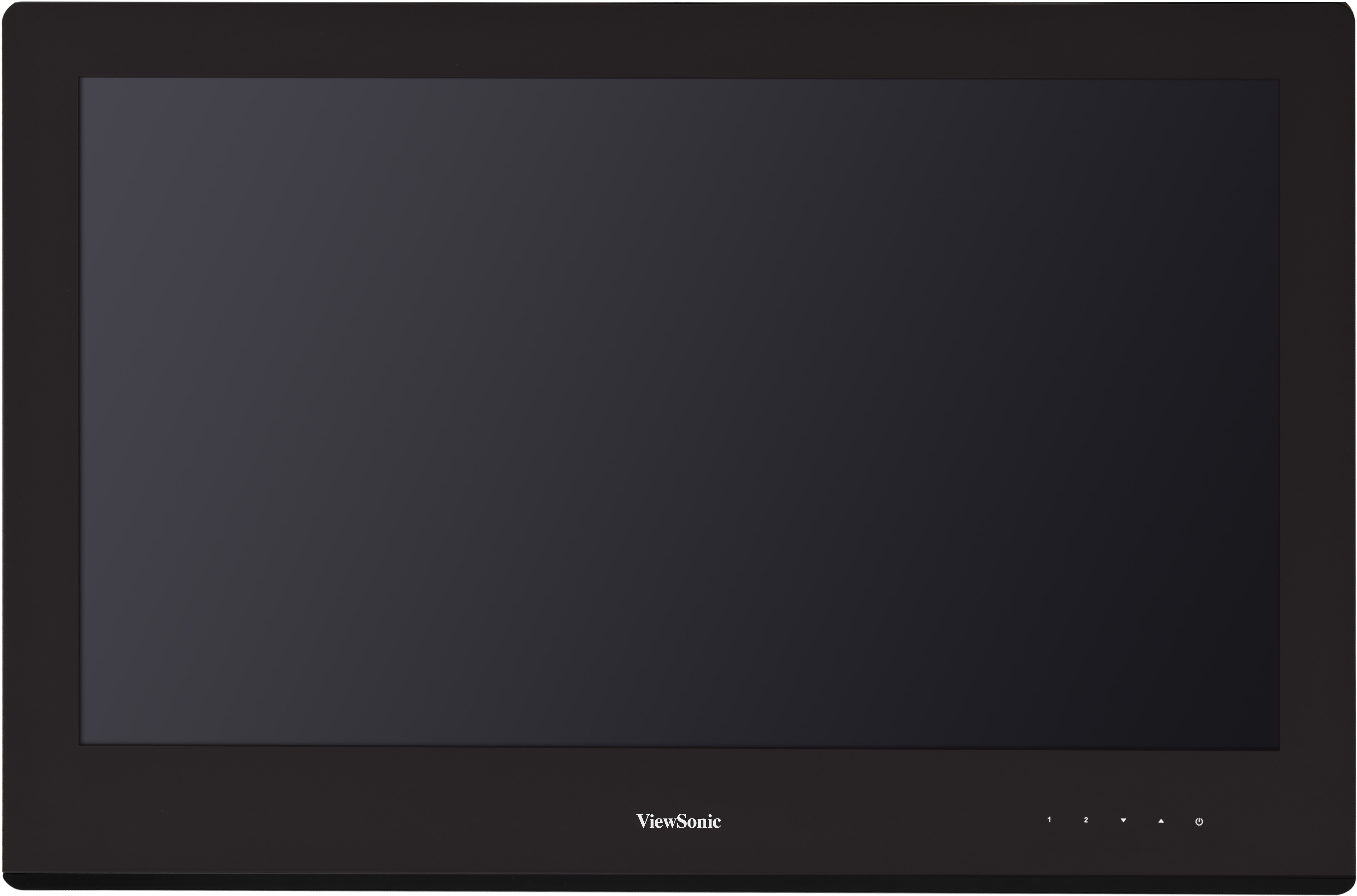

Stunning Color PerformanceEquipped with IPS technology panel, a 1920x1080 Full HD resolution and a 20,000,000:1 MEGA Dynamic Contrast Ratio, brilliant color performance is guaranteed. IPS technology allows super wide viewing angel and delivers accurate color reproduction. With the stunning 23" screen, TD2340 users will enjoy entertainment like never before. | ![]() |
![]() | ENERGY STAR® and EPEAT Gold CertifiedThe TD2340 is environmentally sound with energy-saving LED backlight and Eco-mode. You can save up to 40%* in your energy cost comparing to a regular 22" monitor. |
![]() ![]() | SuperClear™ IPS wide viewing angles for consistent color performanceGet the best view, wherever you are. Industry-leading SuperClear™ IPS technology delivers 178-degrees of vertical and horizontal viewing angles for TD2340. Experience accurate, vivid colors, and consistent brightness levels whether you’re looking at the screen from above, below, the front, or the side with no distortion or decay. |
Dual 2W integrated stereo speakers with SRS Premium Sound® delivers audiophile quality sound for anyone seeking a supreme audio performance and multimedia experience. SRS Premium Sound® produces deep rich bass and crisp highs with no requirement to connect external speakers, maximizing desk space to let the all-immersive audio journey begin. | ![]() |


REVIEWS
“The ViewSonic TD2340 belongs to a new generation of touch screen monitors, winning in the course of the proliferation of Windows 8 highly important. The held in a simple black 23 inch monitor in addition possesses a high-quality IPS panel with a resolution of 1,920 x 1,080 pixels and a capacitive multi-touch screen that can handle up to 10 finger input simultaneously.

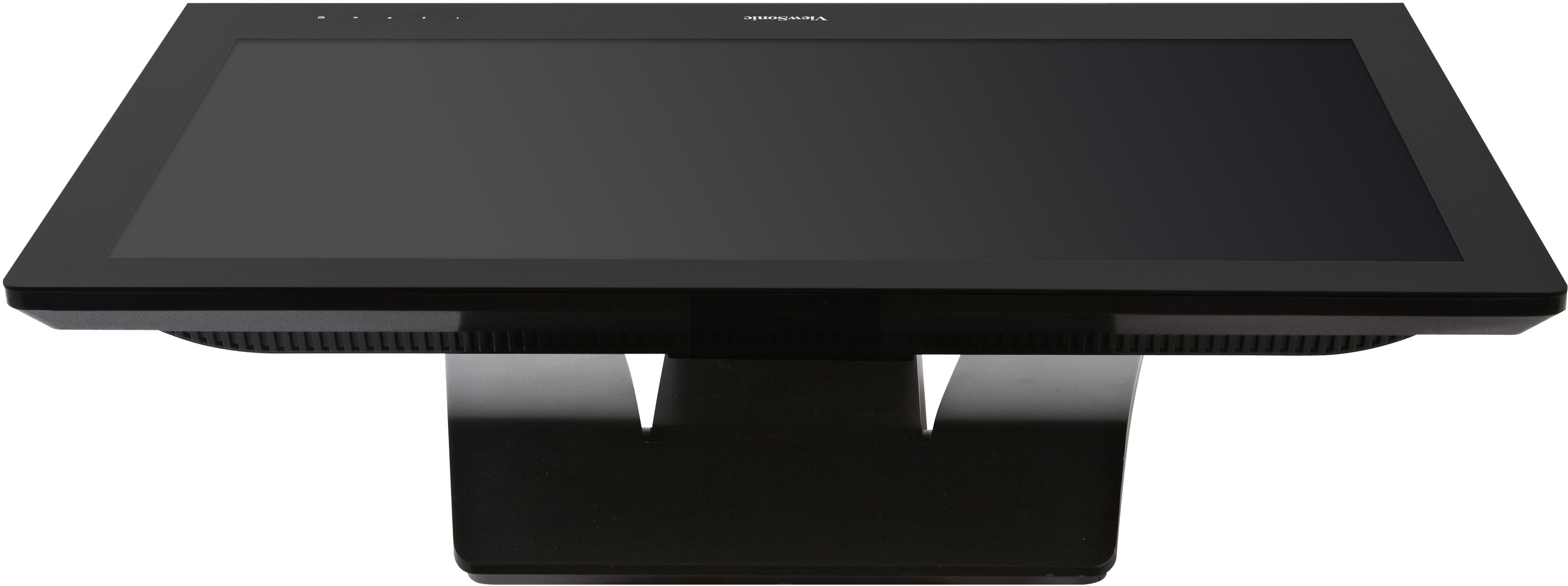

Striking is the flexible stand, which not only provides a pivot function, but also a completely horizontal orientation of the panels allows the monitor so that multiple users can also be used as a touch-screen table.
Even with the connections ViewSonic has not been stingy. In addition to the now somewhat in the aging VGA port, the TD2340 also has a HDMI and a DisplayPort connector. In addition, a 2-port USB 3.0 hub on board, the "SRS Premium Sound" speakers rounds out the package with the built.
The current street price of under 500 euros is to be regarded as favorable in comparison to the competition.
”
“Of the Windows 8 touchscreen monitors we’ve evaluated, the Viewsonic TD2340 is the most capable. Its wide viewing angle, its agile yet bulky stand, and numerous little touches such as the SRS speakers, multiple inputs, and easy-to-use menus combine to make the TD2340 a great choice for Windows 8 users. ”
“The ViewSonic TD2340 belongs to a new generation of touch screen monitors, winning in the course of the proliferation of Windows 8 highly important. The held in a simple black 23 inch monitor in addition possesses a high-quality IPS panel with a resolution of 1,920 x 1,080 pixels and a capacitive multi-touch screen that can handle up to 10 finger input simultaneously.
Striking is the flexible stand, which not only provides a pivot function, but also a completely horizontal orientation of the panels allows the monitor so that multiple users can also be used as a touch-screen table.
Even with the connections ViewSonic has not been stingy. In addition to the now somewhat in the aging VGA port, the TD2340 also has a HDMI and a DisplayPort connector. In addition, a 2-port USB 3.0 hub on board, the "SRS Premium Sound" speakers rounds out the package with the built.
The current street price of under 500 euros is to be regarded as favorable in comparison to the competition.
”
“ViewSonic 10 Parmak dokunmatik ekrana sahip monitörü ile bilgisayarınızı kullanma şeklinizi değiştirebilirsiniz. Özellikle Windows 8 kullanıyorsanız, masaüstü sisteminizi dokunarak kullanmaya başlayabilirsiniz. ”
“Of the Windows 8 touchscreen monitors we’ve evaluated, the Viewsonic TD2340 is the most capable. Its wide viewing angle, its agile yet bulky stand, and numerous little touches such as the SRS speakers, multiple inputs, and easy-to-use menus combine to make the TD2340 a great choice for Windows 8 users. ”
“The ViewSonic TD2340 belongs to a new generation of touch screen monitors, winning in the course of the proliferation of Windows 8 highly important. The held in a simple black 23 inch monitor in addition possesses a high-quality IPS panel with a resolution of 1,920 x 1,080 pixels and a capacitive multi-touch screen that can handle up to 10 finger input simultaneously.
Striking is the flexible stand, which not only provides a pivot function, but also a completely horizontal orientation of the panels allows the monitor so that multiple users can also be used as a touch-screen table.
Even with the connections ViewSonic has not been stingy. In addition to the now somewhat in the aging VGA port, the TD2340 also has a HDMI and a DisplayPort connector. In addition, a 2-port USB 3.0 hub on board, the "SRS Premium Sound" speakers rounds out the package with the built.
The current street price of under 500 euros is to be regarded as favorable in comparison to the competition.
”
SPECIFICATIONS
- LCDType: 23" Wide Color TFT Active Matrix LED
Optimum Resolution: 1920x1080
Contrast Ratio: 1000:1 (typ.)
Viewing Angles: 178º horizontal, 178º vertical
Response Time: 7ms (typ.)
Panel Surface: hard-coating (7H)
Display Area: 20.0" horizontal x 11.3" vertical; 23.0" diagonal
Brightness: 250 cd/m² (typ.)
Dynamic Contrast Ratio: 20,000,000:1
Backlight: White-light LED
Backlight Life: 30,000 hours (min.) - Video InputDigital: HDMI (TMDS, 100 ohms) / DisplayPort (PCI-E)
Frequency: Fh: 24~83kHz, Fv: 50~76Hz
Sync: Separate Sync
Analogue: RGB analog (0.7 / 1.0 Vp-p, 75 ohms) - CompatibilityPC: PC compatibles (VGA up to 1920 x 1080 Non-Interlaced)
Mac®: Power Mac (up to 1920 x 1080)
- ConnectorAnalog: 15-pin mini D-sub (VGA)
Audio: Audio In (3.5mm mini-jack)
Earphone Out (3.5mm mini-jack)
USB: USB x2, USB Upstream x1
Power: Internal power board, 3-pin plug (CEE22) - ControlsFront Panel: 1, 2, Down, Up, Power
- DIMENSIONSPhysical Without Stand: 22.7 x 17.9 x 2.6 in. / 576.6 x 453.8 x 66.5 mm
Packaging: 26.4 x 20.1 x 9.2 in. / 671 x 510 x 234 mm
Physical With Stand: 22.7 x 17.9 x 12.8 in. / 576.6 x 453.8 x 324.5 mm - WARRANTYThree-year limited warranty on parts, labor and backlight.
- RECYCLE/DISPOSALPlease dispose of in accordance with local, state or federal laws.
- POWERConsumption: w/o audio 22W (typ.) / w/ audio 45W (typ.)
Optimize: 23W (typ.)
Conserve: 18.5W (typ.)
Voltage: AC 100–240V (universal), 50 / 60Hz - VESA® MOUNT100mm x 100mm
- POWER MANAGEMENTENERGY STAR® standards / EPEAT Gold
- ERGONOMICSRotation: 90º
Tilt: 50º~-5º - WEIGHTNet With Stand: 20.4 lb. / 9.2 kg
Net Without Stand: 14.5 lb. / 6.6 kg
Gross: 26.9 lb. / 12.2 kg - OPERATING CONDITIONSTemperature: 32–104º F (0–40º C)
Humidity: 20–90% (non-condensing) - AUDIO OUTSpeakers: 2-watt (x2)
- PACKAGE CONTENTSTD2340 display, power cable, audio cable, VGA cable, HDMI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD (available in some countries only)
- REGULATIONSCE, CB, BSMI, PSB, SASO, C-tick, SASO, KC, UL/cUL, FCC-B (including ICES003), Mexico Energy, GOST-R, UkrSEPRO + DoC, TCO 5.2, Erp, CCC, CEL Level1, ENERGY STAR®, EPEAT Gold, WEEE, RoHS, REACH SVHC list & DoC, Windows 7 / Windows 8
