OVERVIEW
The ViewSonic® SD-Z245 24" (23.6" viewable) zero client monitor is based on Teradici™ Tera 2321, with hardware accelerated PCoIP™ support. The SD-Z245 zero client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in networks based on VMware ® technology. The SD-Z245 is a true zero client and features no local memory or moving parts for the ultimate in energy savings and reliability. The VMware certified design guarantees performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PCs.Advanced, high-performance Teradici processorViewSonic’s SD-Z245 is equipped with the most advanced Teradici Tera2321 processor designed for VMware based virtualization. This powerful processor delivers up to 5 times faster performance, up to 50% lower power consumption, and supports 2D/3D graphic intensive applications for a rich multimedia experience at full frame rates over gigabit Ethernet. ![]() | Flexibility for all your peripheralsVersatile connectivity includes all commonly used port formats for connecting today’s components for work related business or entertainment. This includes a video out (DVI-I) port, 4 USB ports for peripherals, mic and headphone ports, and a RJ45 Ethernet input for your 10/100/Gigabit network. ![]() ![]() | |||||
| ||||||

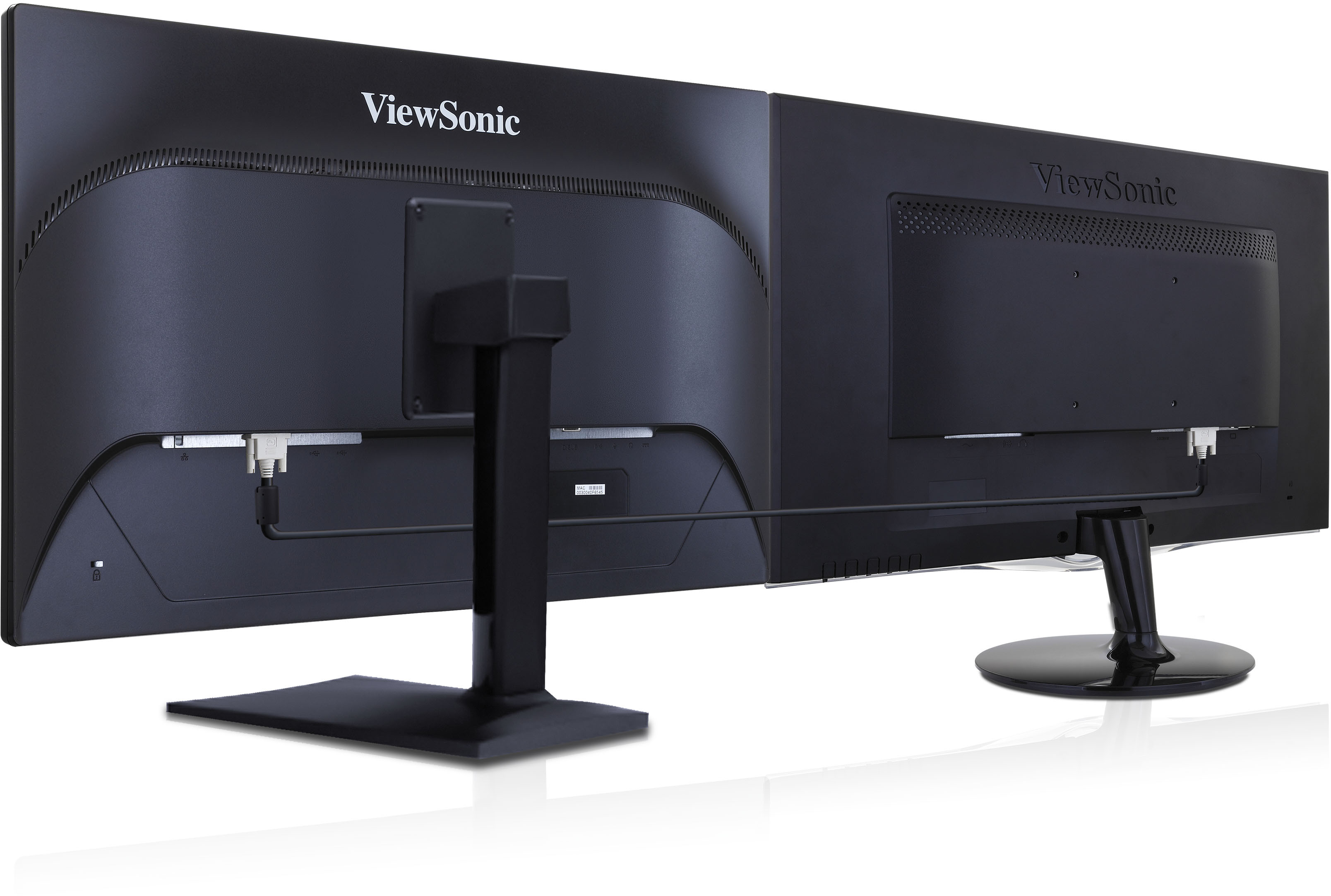

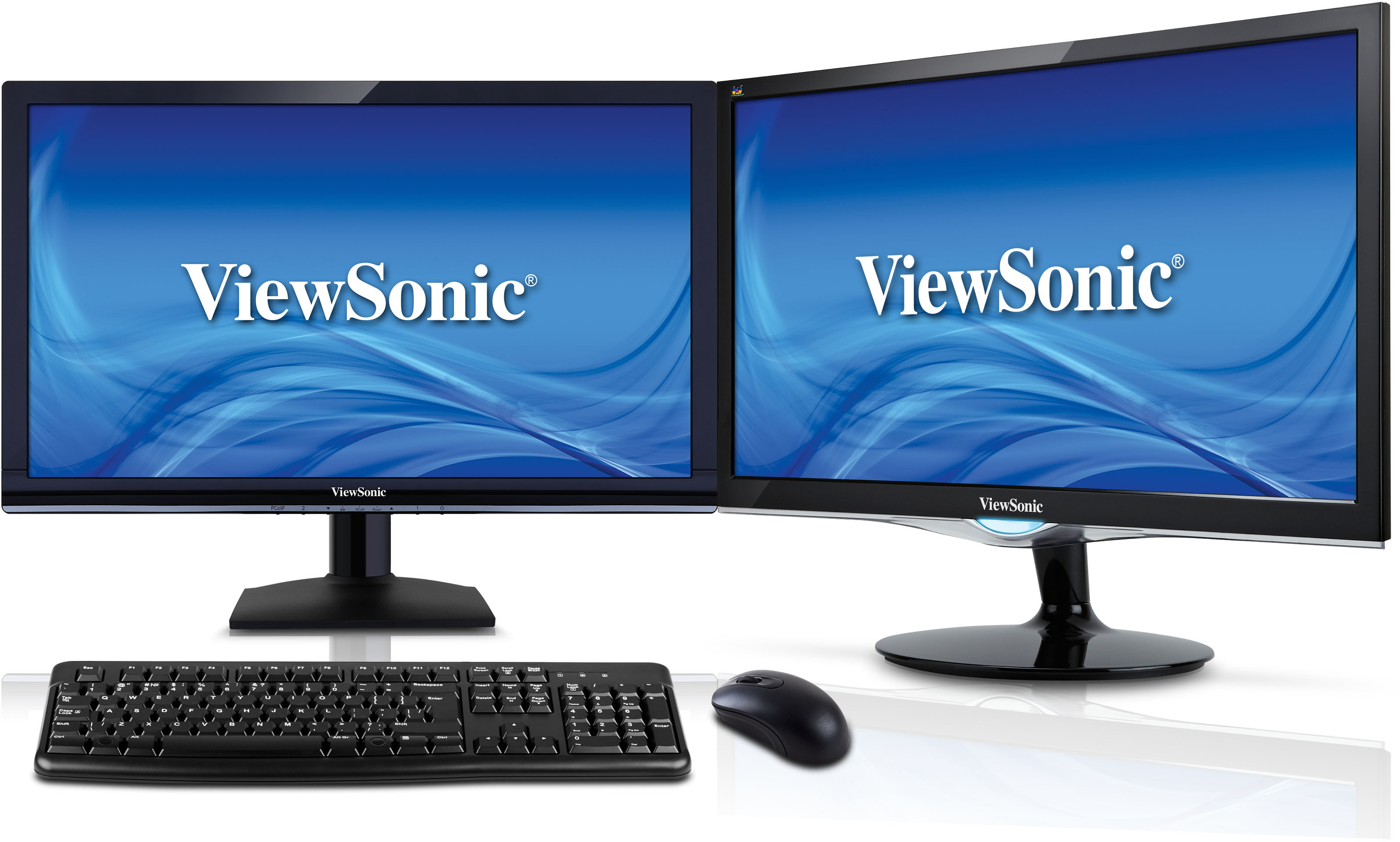

Having a PCoIP zero client configuration in your office doesn’t mean you have to compromise on performance or productivity. With its DVI-I digital or analog outputs, the SD-Z245 provides for dual-display productivity when connected to a secondary 1080p display. ![]() |
The Teradici PCoIP management console provides for simplified and secure centralised deployment and management. With web based access, administrators will be able to configure, update, manage, and even remotely control the power state of all their PCoIP based zero clients throughout the network. ![]() | |||||
| ||||||
Low total cost of ownershipAll of the benefits of a virtual desktop deployment can be realised with ViewSonic’s SD-Z245 Zero Client. Offering simple and quick deployment, enhanced security with no local HDD, increased reliability and higher productivity, the SD-Z245 is an efficient and low-cost choice for virtualizing desktops. ![]() | 3-year limited warrantyOne of the aspects that make ViewSonic a market leader is its dedication to quality. ViewSonic is committed to using the highest grade components. We also back our SD-Z245 Zero Client Monitor with a 3 year limited warranty for your peace of mind. ![]() | |||||
| ||||||

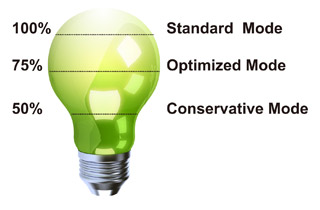

With its ultra low 24W typical power consumption in Eco-mode, the SD-Z245 Zero Client monitor is not only environmentally friendly, but will also help reduce user's energy consumption. Large install bases of this Zero Client monitor will translate into significant savings, compared with traditional PCs and monitors. ![]() |

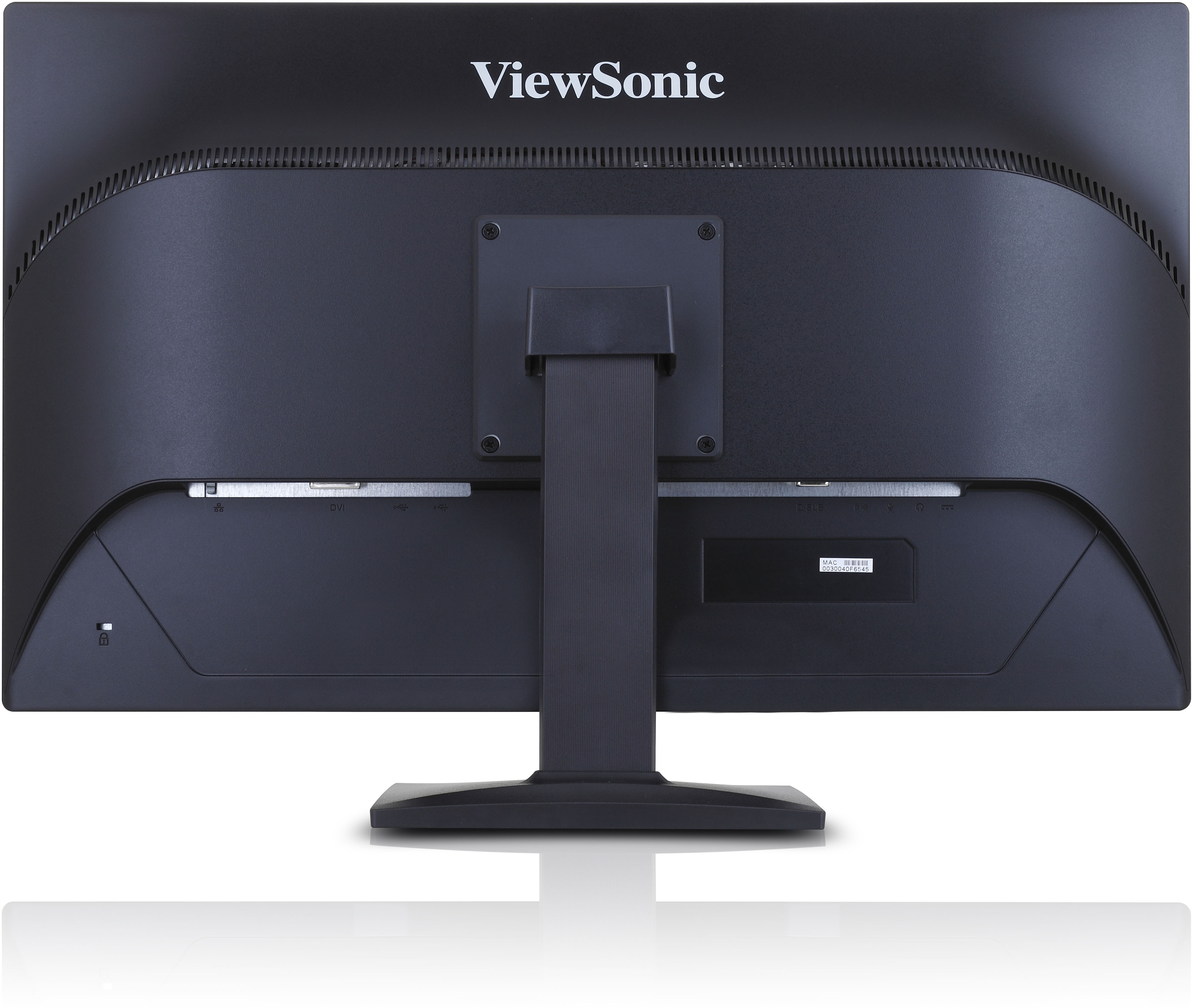

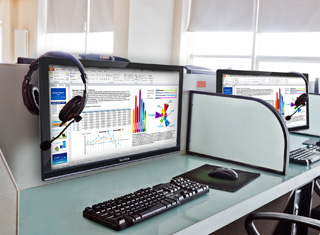

VESA mount compliance makes it possible to accommodate more flexible mounting options in any working environment. The SD-Z245 features a 100 x 100mm VESA-mountable design that allows for mounting on walls, standard VESA arms, or VESA display stands, depending on the specific needs of your installation. ![]() | |||||
| ||||||
![]() | ||||||
SPECIFICATIONS
- LCDType: 24" (23.6" viewable) Wide Colour TFT Active Matrix LED
Effective Viewing Area: 170º horizontal, 160º vertical
Contrast Ratio: 1000:1 (typ.)
Display Area: 20.5" horizontal x 11.5" vertical; 23.6" diagonal
Optimum Resolution: 1920 x 1080
Response Time: 5ms (typ.)
Panel Surface: Anti-glare, hard-coating (3H)
Brightness: 250 cd/m2 (typ.)
Dynamic Contrast Ratio: 20,000,000:1
Backlight: White-light LED
Backlight Life: 30,000 hours (min.) - COMPATIBILITYPC: PC compatibles (VGA up to 1920x1080 non-interlaced)
Mac®: Up to 1920x1080 - DIMENSIONSPhysical With Stand: 22.3 x 15.5 x 7.5 in. / 566.4 x 392.7 x 189.9 mm
Physical Without Stand: 22.3 x 13.6 x 1.9 in. / 566.4 x 345.4 x 48 mm
Packaging: 24.8 x 18.4 x 6.2 in. / 630 x 467 x 158 mm
- REGULATIONSFCC, CB, cTUVus, WEEE, RoHS Compliant, REACH Compliant
- PACKAGE CONTENTS1.SD-Z245 Zero Client Monitor
2.power cord
3.power adapter
4.VGA cable
5.Quick Start Guide

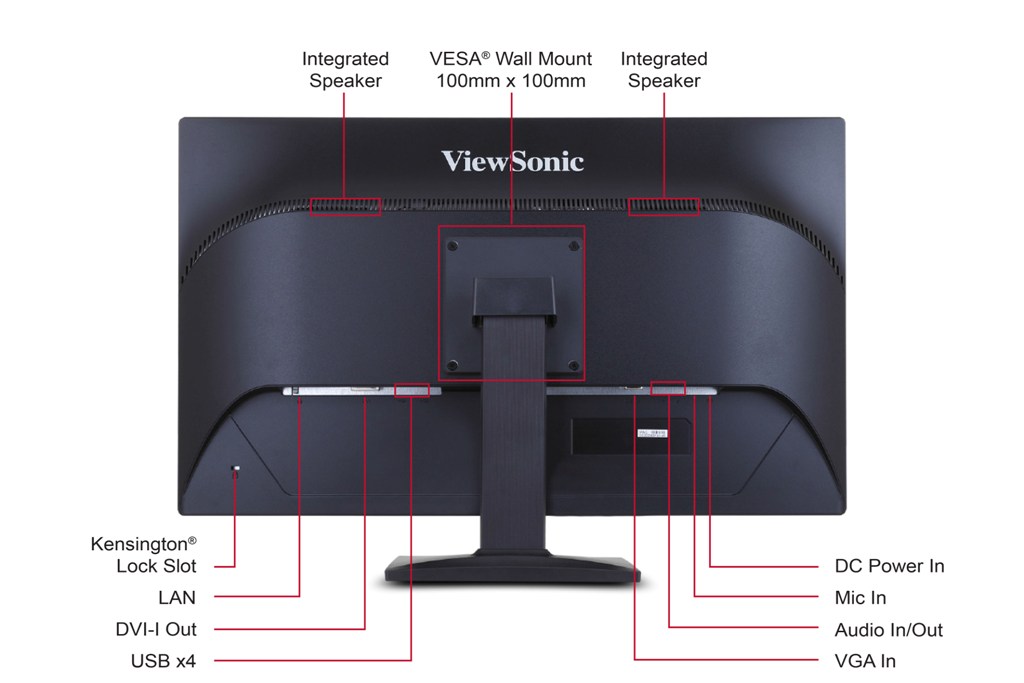

6.ViewSonic Wizard CD - CONNECTORPower: External power adapter
Video Input: 15-pin mini D-sub (VGA)
Video Output: DVI-I (x1)
USB: USB 2.0 (x4)
Headphone: 3.5mm mini jack (x1)
LAN: RJ45 (x1)
Audio line in: 3.5mm mini jack (x1)
Microphone in: 3.5mm mini jack (x1) - POWERVoltage: AC 100-240 V (universal), 50/60 Hz
Consumption: 28W (typ) - CONTROLSBasic: PCoIP, 2, Down, Up, 1, Power
OSD: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality) - OPERATING CONDITIONSTemperature: 32–95ºF (0–35ºC)
Humidity: 15–90% (non-condensing) - WEIGHTNet With Stand: 11.2 lb. / 5.1 kg
Net Without Stand: 8.6 lb. / 3.9 kg
Gross: 14.6 lb / 6.6 kg - VESA® MOUNT100mm x 100mm
- MEMORYSystem: DDR3 512MB @ 1066MHz
Storage: None - VIDEO INPUTAnalog/Digital: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Frequency: Fh: 24~82kHz, Fv: 50~75Hz
Sync: Separate Sync - ERGONOMICSTilt: Forward 5º / Back 20º
- CORECPU: Teradici Tera2321
Image Performance: 50Mpps (DVI out) - GRAPHICSChipset: None
Resolution: 1920 x 1200 (for single display) - COMMUNICATIONEthernet LAN: 10/100/1000 MB
- SOFTWAREProtocols: VMware PCoIP
- AUDIOSpeakers: 2-watt (x2)
