OVERVIEW

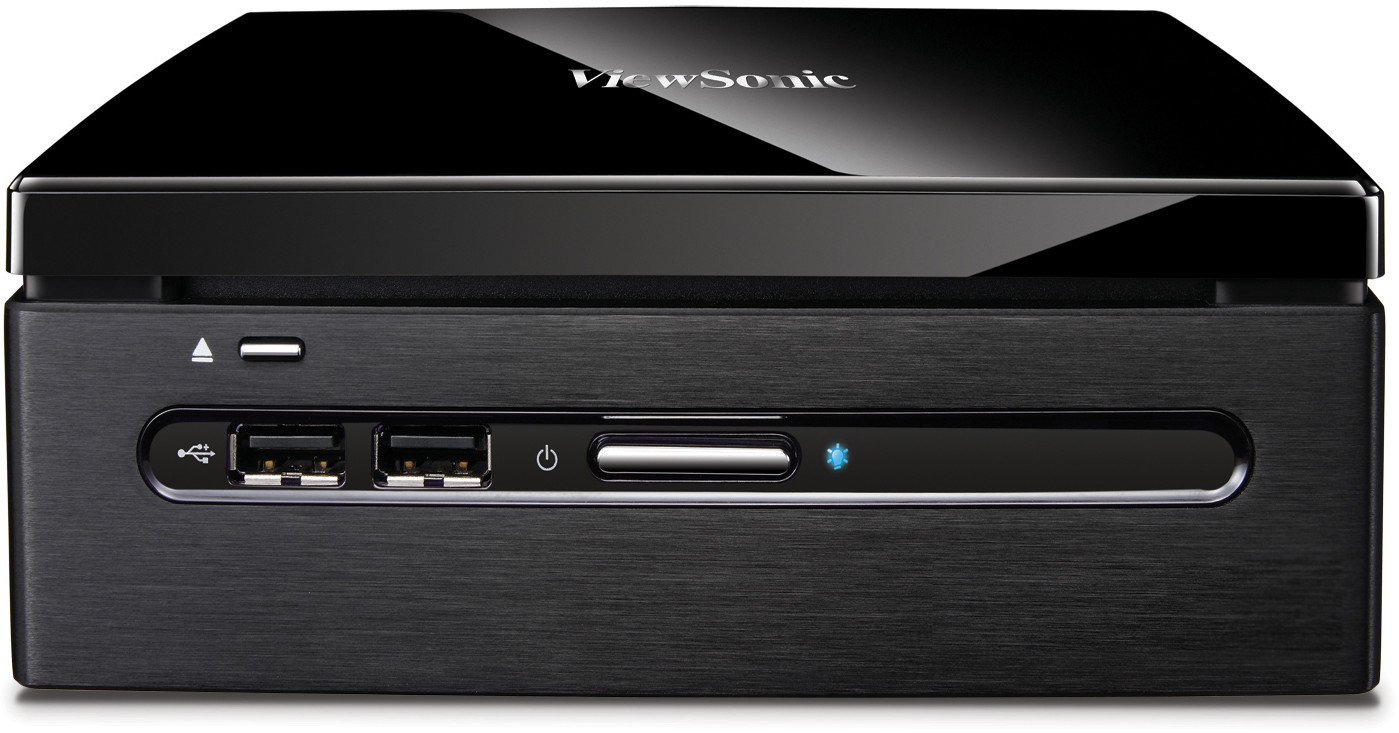

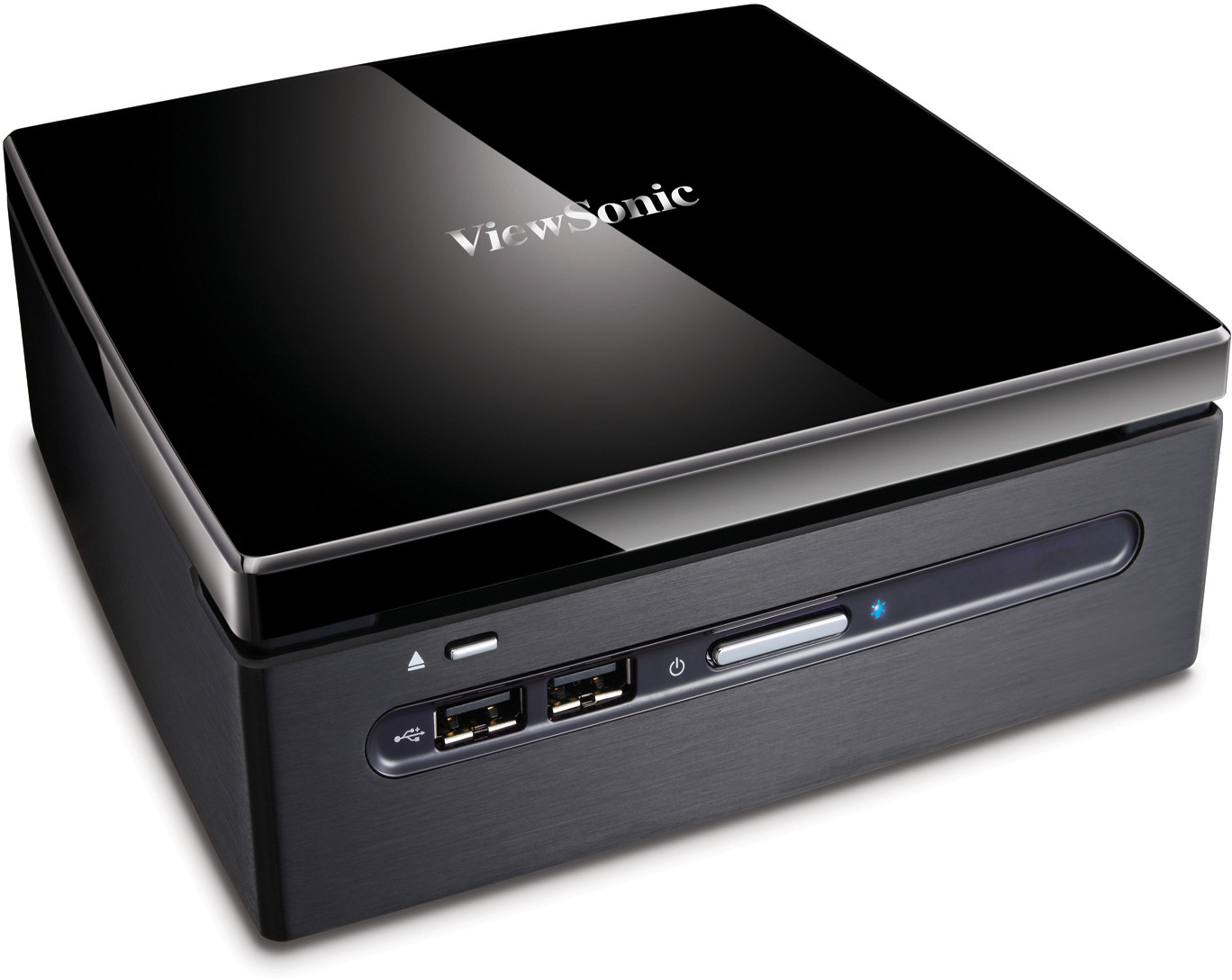

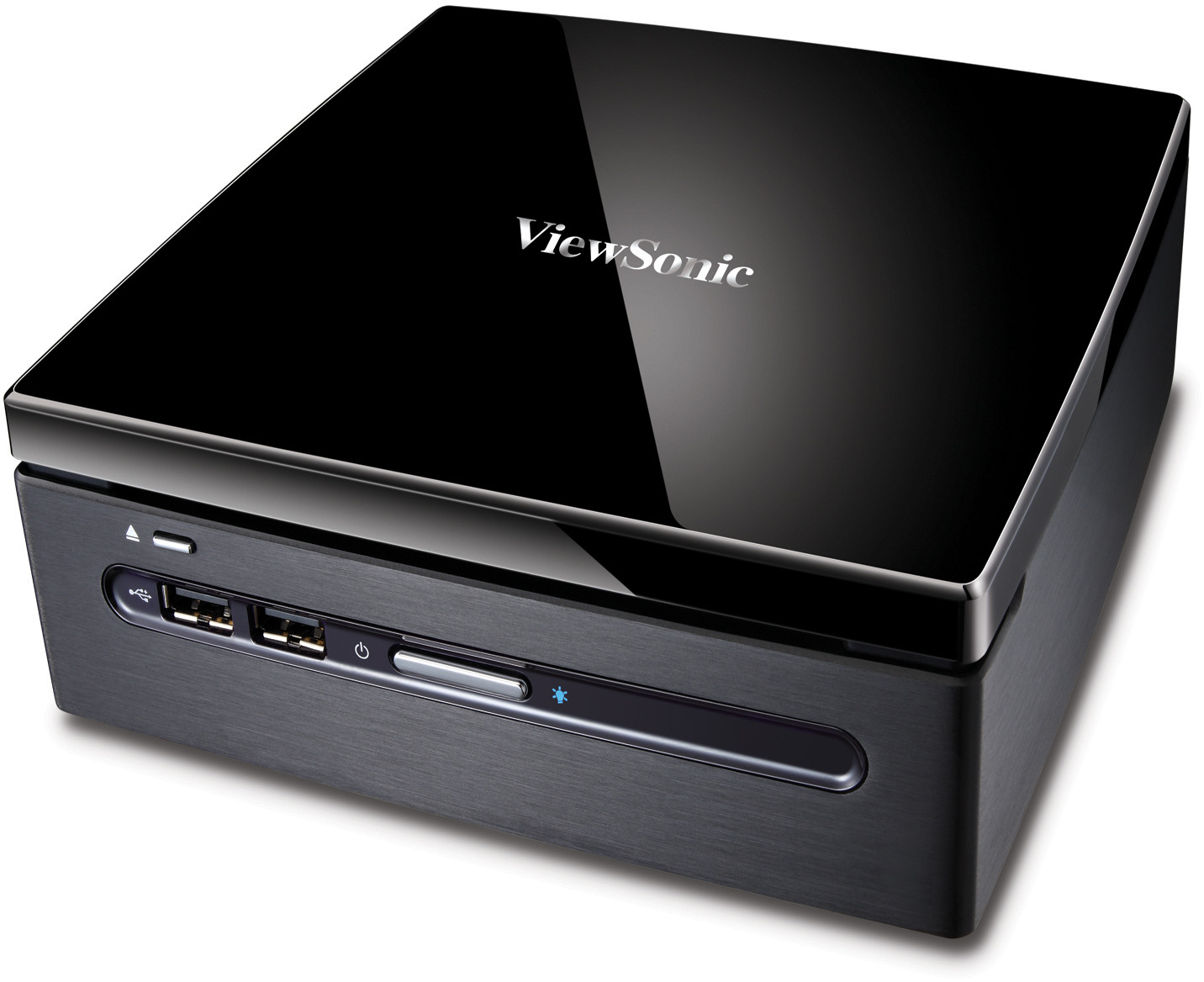

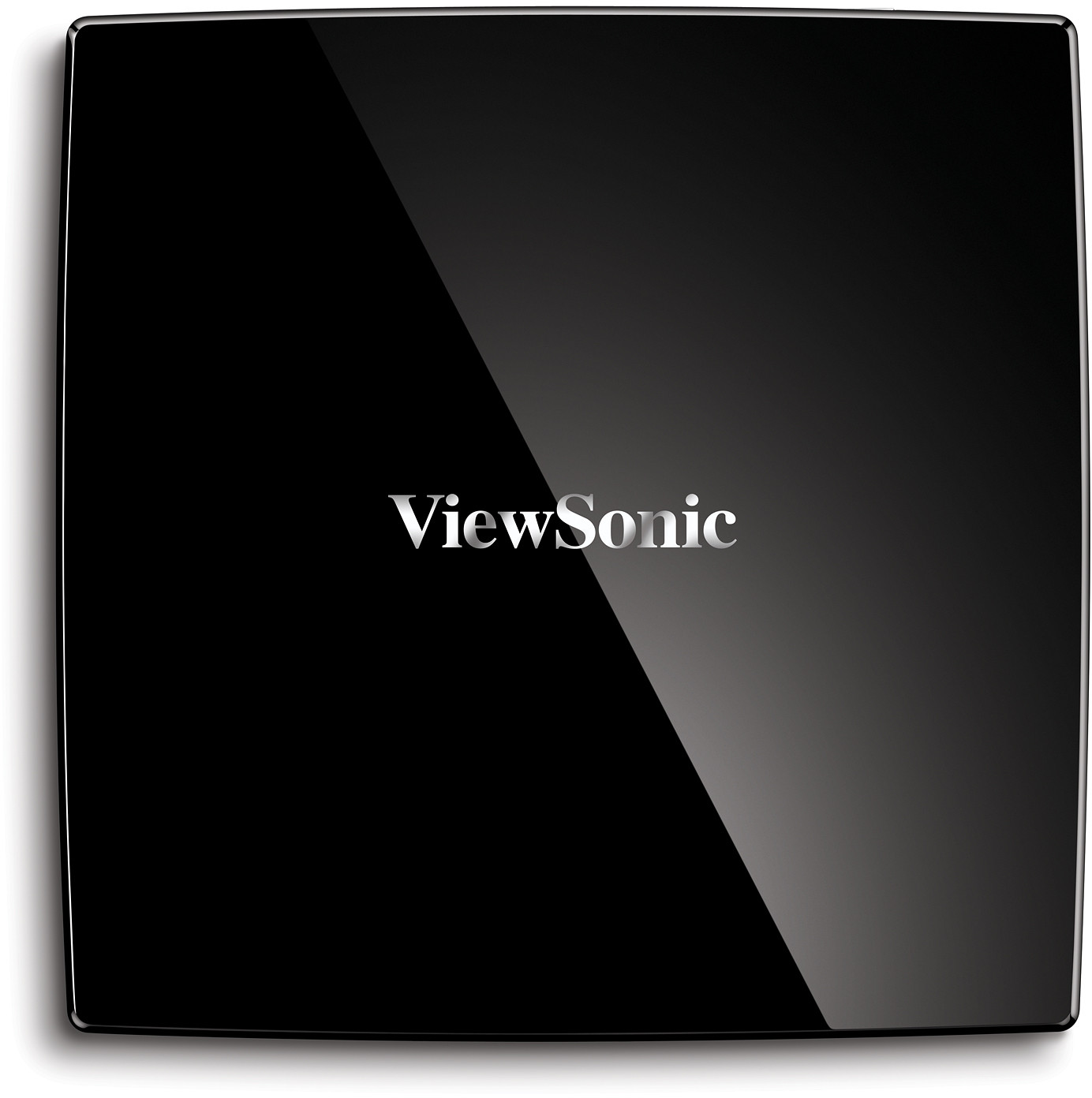

The ViewSonic PC mini 530 and PC mini 550 are ultra-small desktop PCs from the future. With the size similar to an external hard drive, they come in a cool, light yet sophisticated enclosure packing monstrous power comparable to large conventional models. With a volume as small as 1.36 liter, the PC mini 530/550 not only saves your precious desktop space, but also brings Internet, digital entertainments and file sharing to every corner in the house.SPECIFICATIONS
- COLORSBlack
- DIMENSIONSPhysical (WxHxD): 165mm X 50mm X 165mm
- PACKAGE CONTENTSViewSonic PC mini 530 Computer
Power adapter
Power cord
Quick start guide
System recovery and driver discs
User guide and software installation disc
- POWERVoltage: 100-240V AC universal, 20V DC
AC Adapter: ower adapter with 90W (maximum), 20V DC and 4.5A output - OPERATING CONDITIONSTemperature: 0°C - 40°C
Humidity: 15% - 80% (40°C, non-condensing)
Storage Temperature: -20°C - 60°C
Storage Humidity: 5% - 90% - WEIGHTNet: 1.4kg
- AUDIORealtek HD Audio Codec ALC888 audio processor
Supports S/PDIF digital audio output
Supports high-performance 7.1-channel audio output through S/PDIF - STORAGE/MEMORYHDD: 2.5" HDD (SATA) - 160GB
RAM: 2GB DDRII SDRAM
Built-in: One internal slot-loading DVD Super Multi drive with DVD±R/DL/DVD±RW/CD-RW disc reading and writing capabilities
Cache: On-chip 2MB level-2 cache memory - CORECPU: Intel Core 2 Duo T6600
Chipset: Support DX10 / Intel GM45 + ICH9M - GRAPHICSProcessor: Intel® GMA45 graphics processor with DDRII SDRAM shared with main memory
- COMMUNICATIONEthernet LAN: Built-in 10/100/100BASE-T Gigabit Ethernet networking (one RJ-45 connector)
Wireless LAN: Built-in IEEE 802.11b/g/n wireless networking - SOFTWAREOS: Genuine Microsoft® Windows® 7 Home Premium
Bundled software: Cyberlink PowerDVD 9.0 (5.1-channel version) - COLOURSBlack

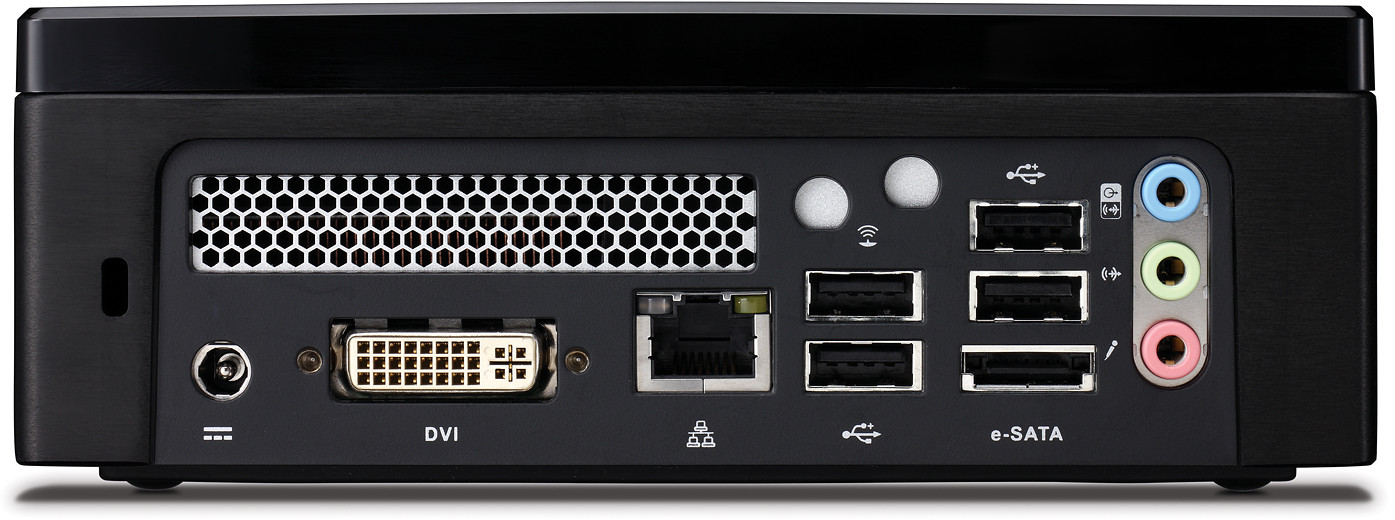

- CONNECTIONSPower
10/100/1000Base-T Gigabit Ethernet RJ-45 connector
Six 480Mbps USB 2.0 ports (two on the front panel and four on the back)
3.5mm mini-jack output for earphones or speakers
3.5mm mini-jack input for external microphones or CD players
S/PDIF 3.5mm digital audio output port
High-speed eSATA storage interface
DVI digital video output interface
Kensington® lock port
