Your LCD-TV, your desktop monitor

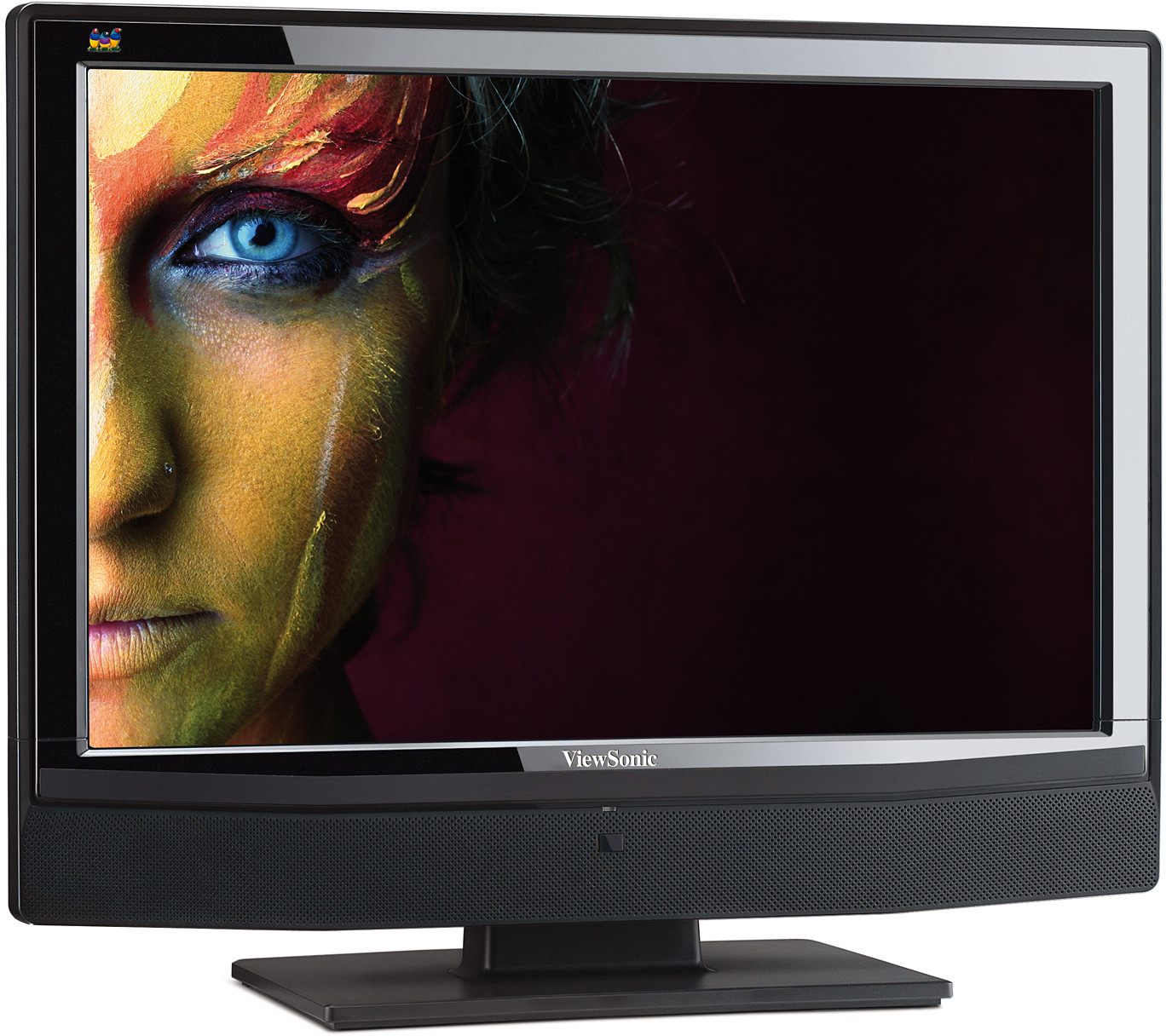

The ViewSonic NX1940w 19” HD ready widescreen is convincing asthe ideal all-in-one display. With a native 16:10 wide aspect ratio, it boasts a larger viewing area and allows for the displaying of movies in their native cinema format. Thanks to the built-in TV tuner and numerous analogue and digital inputs such as HDMI (with HDCP), SCART and PC-VGA, you can watch all your favourite TV channels or connect video sources such as DVD players, games consoles, set-topboxes or your PC system. Equipped with ClearPicture™ technology, the NX1940w astounds with crystal clear images and amazing life-likecolours. The integrated 4-watt audio system sees to a powerful sound experience. Choose the high-performance NX1940w to bring the high definition widescreen experience to any small room.
SPECIFICATIONS
- COLORSBlack
- LCDType: 48cm / 19" TN colour TFT active matrix WXGA+ LCD
Contrast Ratio: 800:1 (typ.)
Viewing Angles: 160° horizontal, 160° vertical (at 10:1)
Brightness: 300cd/m² (typ.)
Display Area: 41.0cm (horizontal) x 25.6cm (vertical), 48.3cm diagonal
Response Time: 5ms (off-on-off) (typ.)
Aspect Ratio: 16:10
Panel Surface: Anti-glare - COMPATIBILITYPC: Compatible from VGA up to 1440 x 900 @ 60Hz preferred
Mac®: Power Mac™ up to 1440 x 900 @ 60Hz preferred
- DIMENSIONSW x H x D mm: 478 x 406 x 209 (with base)
620 x 523 x 160 (packaging) - REGULATIONSCE, CB, GOST, SASO, WEEE, RoHS
- PACKAGE CONTENTSLCD TV, power cables (Europe [Schuko]/UK), 15-pin VGA to component adapter cable, AV cable, 3.5mm PC audio to RCA R/L audio adapter cable, remote control, batteries, quick start guide, user guide (multilanguage)
- WARRANTYPlease see: www.viewsoniceurope.com/UK/Support/warranty.htm
- AUDIOSpeaker: 2 x 2 Watt
- CONNECTORDigital: 1 x HDMI (HDCP)
Audio Input: 1 x RCA Audio set L/R for S-video/composite1 x 3.5mm mini stereo jack for component/PC
S-Video: 1 x 4-pin mini DIN jack
Headphone: 1 x 3.5mm mini stereo jack
SCART: 1 x SCART² (CVBS, RGB, Audio)
Tuner: 1 x Coax RF (PAL/SECAM)
PC: 1 x 15-pin mini D-sub
Power: 3-pin plug (CEE22)
Composite Video: 1 x RCA (CVBS)
Component Video: Via 15-pin mini D-sub to 3 x RCA component video adapter - POWERVoltage: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Consumption: <65 watt (max.) - CONTROLSBasic: Power, source, menu, channel up/down, volume up/down
OSD: Picture Menu (contrast, brightness, colour, sharpness, dynamic skin tone, colour temperature, user RGB, preset, phase, clock, auto adjust, info,reset), Audio Menu (volume, balance, bass, treble, AVL, loudness, preset, equalizer, reset), Function Menu (source OSD, language [Danish, English,Finnish, French, German, Italian, Norwegian, Russian, Spanish, Swedish], country, sleep timer, teletext language, reset), TV Setup Menu (autosearch, colour system, frequency, AFC, channel skip, channel name,channel select, reset) - OPERATING CONDITIONSTemperature: 32-104ºF (0-40ºC)
Humidity: 10% - 85% (non-condensation) - WEIGHTNet: 5.8kg (with base) 5.1kg (without base)
Gross: 8.1 kg - VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm (M4.0 x 10mm screws)
- TELETEXTYes (10 pages)
- VIDEO INPUTPAL, SECAM, NTSC³, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
