The ultimate widescreen-TV experience

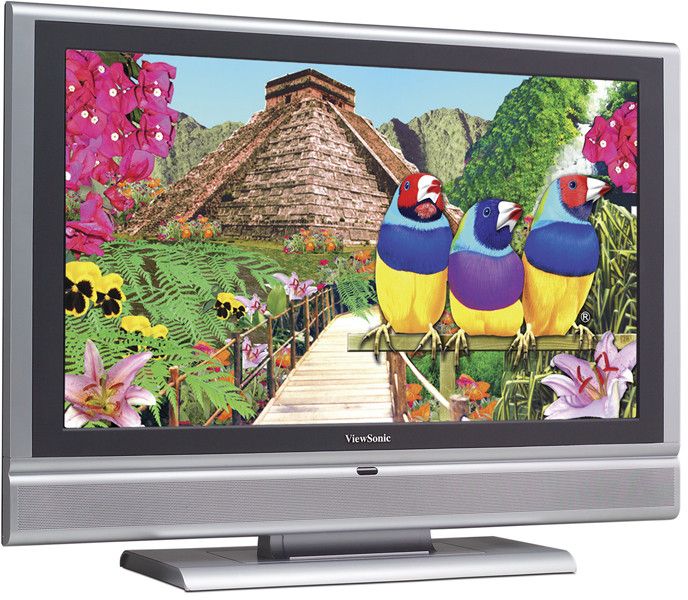

No matter if for thrilling video entertainment in the home or as a wide-screen entertainment and information display for public spaces, the 40” N4066w (102cm) with DVB-T digital TV receiving capability is an excellent choice. The stylish next generation high definition LCD TV with an HDMI (HDCP compliant) interface guarantees true digital connectivity for improved uncompressed digital video and audio quality. Equipped with ADVANCED DNX™ VIDEO SIGNAL PROCESSING it boasts an ultra-high contrast ratio and brightness value for sharper, brighter and richer images. Furthermore, the latest generation ULTRA FAST-RESPONSE time panel will provide a completely fluid viewing experience even when watching fast moving, high-speed images. The advanced integrated sound system will immerse you with impressive virtual surround sound.
No matter if for thrilling video entertainment in the home or as a wide-screen entertainment and information display for public spaces, the 40” N4066w (102cm) with DVB-T digital TV receiving capability is an excellent choice. The stylish next generation high definition LCD TV with an HDMI (HDCP compliant) interface guarantees true digital connectivity for improved uncompressed digital video and audio quality. Equipped with ADVANCED DNX™ VIDEO SIGNAL PROCESSING it boasts an ultra-high contrast ratio and brightness value for sharper, brighter and richer images. Furthermore, the latest generation ULTRA FAST-RESPONSE time panel will provide a completely fluid viewing experience even when watching fast moving, high-speed images. The advanced integrated sound system will immerse you with impressive virtual surround sound.
SPECIFICATIONS
- LCDType: 40” S-PVA colour TFT active matrix, wide 1366 x 768
Contrast Ratio: 1200:1 (typ.)
Viewing Angles: 178° horizontal, 178° vertical (at 10:1)
Brightness: 500cd/m² (typ.)
Display Area: 88.5cm (horizontal) x 49.8cm (vertical), 102cm diagonal
Response Time: 8ms (grey-to-grey)
Aspect Ratio: 16:9 native (4:3, 16:9 zoom, 14:9 switchable)
Panel Surface: Anti-glare 3H - COMPATIBILITYPC: Compatible from 640 x 480 up to 1360 x 768, 1280 x 1024 @ 60Hz preferred
Mac®: Power Mac™ up to 832 x 624 - PACKAGE CONTENTSLCD TV, 1.8m power cables (Europe [Schuko]/UK), 1.8m AV cable, 1.8m SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
- AUDIOSpeaker: 2 x 10 watts SRS WOW
- CONNECTORAudio Out: 1 x L/R RCA set
Composite Video Input: 1 x RCA (CVBS)
Audio Input: 1 x L/R RCA set (Composite/S-video)
1 x L/R RCA set (digital video)
1 x 3.5mm mini stereo jack (PC)
S-Video: 1 x 4-pin mini DIN jack
Headphone: 1 x 3.5mm mini stereo jack
SCART: 3 x SCART (CVBS In/Out, RGB In, S-Video In, Audio In/Out)
Power: 3-pin plug (CEE22)
Component Video: 1 x RCA set (YPbPr/YCbCr) - POWERVoltage: AC 100 – 240V, 50/60Hz (auto switch); internal, fanless power supply
Consumption: 260 watt (typ.) - CONTROLSBasic: Power, source, menu, channel up/down, volume up/down
Advanced Options: Input resolution, black level expansion, gamma selection, scan mode, scan conversion, film mode, IR control, monitor ID, tiling, date/time, schedule, DDC/CI, advanced option reset
OSD: Video Menu (picture mode, contrast, brightness, saturation, tint, sharpness, NR), Audio Menu (volume, balance, equaliser, treble, bass, sound mode, SRS, HDMI audio In), Screen Menu (display mode, H. size, H/V position, phase, default, auto sync, colour temperature), Setup Menu (tuning, programme table, auto search, DTV) Tuning Sub Menu (programme number, fine tuning, channel name, frequency, TV system, manual search, skip), Programme Table Sub menu (channel name), Auto Search Sub Menu (country, auto search), DTV Sub Menu (system setting, channel settings, channel list, parent control, time setting, software version), Options Menu (language, sleep timer, menu background, source info, reset, PC display), power lock - OPERATING CONDITIONSTemperature: 0°C – 40°C
Humidity: 10% – 80% (non condensation) - WEIGHTNet: 33kg (with base)
Gross: 40kg - VESA MOUNT COMPLIANTVESA FDMI 200mm x 100mm, 200mm x 130mm, 200mm x 200mm, M6 screws
- VIDEO INPUTPAL (B/G, D/K, I), SECAM (L), NTSC³ SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T
- TELETEXT/MHEG5Yes (1000 pages)/-
