Large enjoyment in HD quality

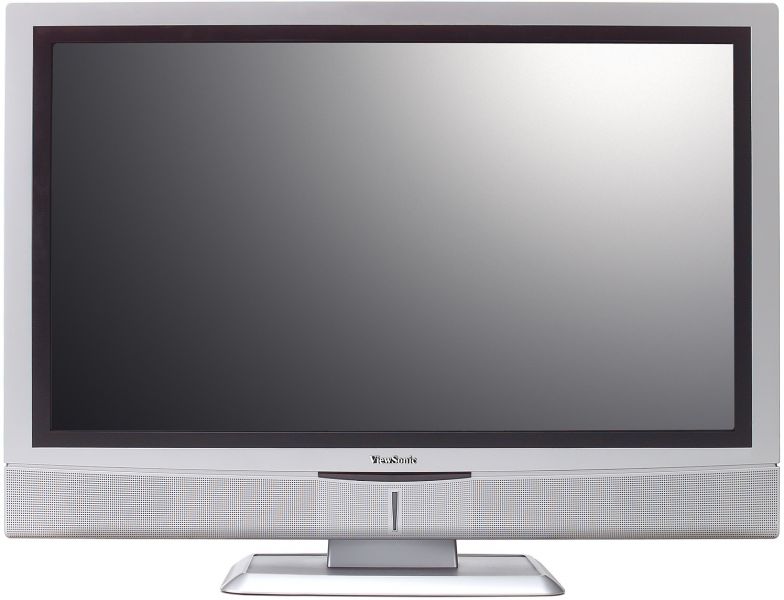

ViewSonic’s HD ready N3240w 32” widescreen LCD TV rewards you with cinema-style entertainment and optimal versatility. Toegther, its ClearPicture™ electronics, stunning brightness, and high-definition LCD panel with a contrast ratio of 1200:1 deliver smooth video with razor-sharp images in vibrant colours. Ensuring long-term compatibility, multiple video and audio connections allow you to connect game consoles, set top boxes, DVD recorders, media centre PCs and more. With picture-by-picture (PBP) and picture-in-picture (PIP) functions, the N3240w even lets you watch a movie while surfing the internet or tracking a second video source. The integrated 20-watt SRS WOW virtual surround sound system enhances your viewing experience with life-like audio quality. N3240w - Whether you're using it as a PC monitor or as the digital centrepiece of your home cinema system, enjoy high-definition video entertainment for the future.
SPECIFICATIONS
- LCDType: 32” VA extreme colour TFT active matrix, wide XGA 1366 x 768
Contrast Ratio: 1200:1 (typ.)
Viewing Angles: 176° horizontal, 176° vertical (at 20:1)
Brightness: 500cd/m² (typ.)
Glass Surface: Anti-glare 3H
Display Area: 70.9cm (horizontal) x 39.9cm (vertical), 81.3cm diagonal
Response Time: 8ms (grey-to-grey)
Aspect Ratio: 16:9 native - COMPATIBILITYPC: Compatible from 640 x 480 up to 1366 x 768, 1366 x 768 @ 60Hz preferred
Mac®: Power Mac™ up to 832 x 624 - DIMENSIONSW x H x D mm: 810 x 605 x 237 (with base)
810 x 556 x 116 (without base)
984 x 707 x 252 (packaging)
- REGULATIONSCE, CB, SASO, GOST, WEEE, RoHS
- PACKAGE CONTENTSLCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable, SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
- WARRANTYPlease see: www.viewsoniceurope.com/UK/Support/warranty.htm
- AUDIOSpeaker: 2 x 10 watts SRS WOW (virtual surround-sound)
- CONNECTORDigital: 1 x HDMI (HDCP)
Audio Out: 1 x L/R RCA set
Power: 3-pin plug (CEE22)
Composite Video Input: 2 x RCA
S-Video Input: 1 x 4-pin mini DIN jack
Audio Input: 1 x L/R RCA set (for composite1/component)
1 x L/R RCA set (for composite2/S-video)
1 x 3.5mm mini stereo jack (for PC)
Audio: Audio-In 1 x L/R RCA set (for composite1/component)
1 x L/R RCA set (for composite2/S-video)
1 x 3.5mm mini stereo jack (for PC)
Audio-Out 1 x L/R RCA set
SCART: 2 x SCART (SCART 1 [RGB In, CVBS In/Out, Audio In/Out],
SCART 2 [S-video In, CVBS In, Audio In])
Tuner: 1 x Coax RF (PAL/SECAM)
PC-VGA: 1 x 15-pin mini D-sub
Composite Video: 1 x RCA set (YPbPr/YCbCr) - POWERVoltage: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Consumption: 180 watt (max.) - CONTROLSBasic: Power, source, menu, channel up/down, volume up/down
OSD: Picture Menu (present, contrast, brightness, colour, sharpness, tint, reset), Sound Menu (balance, treble, bass, SRS WOW, reset), PIP Menu (dual mode, PIP position, PIP source, audio source select), Setup Menu (OSD language, OSD timeout, OSD background, sleep timer, blue screen, teletext language), power lock, OSD lock - OPERATING CONDITIONSTemperature: 0°C to 35°C
Humidity: 20% to 90% (non condensation) - WEIGHTNet: 15.6kg (with base), 14.1kg (without base)
Gross: 19.1kg - VESA MOUNT COMPLIANTVESA FDMI 200mm x 200mm, M6 screws
- VIDEO INPUTPAL, SECAM, NTSC³, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
- TELETEXT/MHEG5Yes (1000 pages)
