OVERVIEW

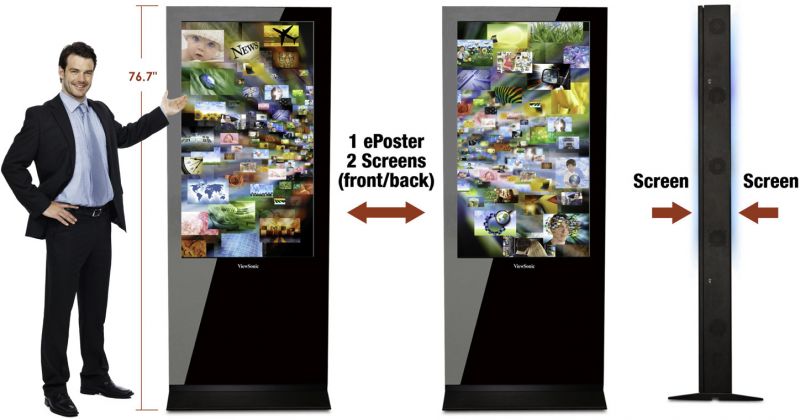

In-store digital signage is easy with ViewSonic’s new dual screen ePoster display solution. Vivid retail messaging is easy by connecting your PC or adding your network media player to the industry standard input connections: HDMI, VGA, YPbPr, USB or composite video (A/V). Each screen can be driven separately with its own content. ViewSonic’s ePoster display can easily be connected to a corporate network by adding a network media player. Security is achieved through the locking back cover. Compatible ViewSonic media players are available in both X86 and RISC (Linux) configurations.SPECIFICATIONS
- COLORSBlack
- COMPATIBILITYPhoto Formats: JPEG
Video Formats: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4
Audio Formats: WMA, MP3, M4A (AA CC ) - DIMENSIONSPhysical (WxHxD): 32.68" x 76.7" x 18.31" (830mm x 2000mm x 465mm)
- REGULATIONSFCC, ICES 003, CE
- PACKAGE CONTENTSePoster, power cord, remote control with batteries, key, Quick Start
Guide, User Manual and Software on CD - AUDIOSpeaker: 5W (x2)
- CONNECTORNetwork: Ethernet RJ-45 (10/100M)
USB: 2.0 (x1)
Card Reader : 2GB Compact Flash - POWERConsumption: 900W (max)
Save Mode (W): Off < 1W - DISPLAYContrast Ratio : 5000:1 (typ)
Brightness: 450 cd/m2 (typ)
Type: Diagonal: 55" (139.7 cm)
Resolution: 1920x1080 pixel resolution
Color Depth: Over 16.7M color (depending on video card used)
Response Time: 6.0ms (typ gray-to-gray)
Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10 - WEIGHTGross: 396.8 lbs. (180 kg)
Net: 352.7 lbs. (160 kg) - OPERATING CONDITIONSHumidity: 20–90% (non-condensing)
Temperature: 32–104º F (0–50º C) - CONNECTORSHDMI, VGA, YPbPr, USB, A/V, RJ45 Pigtail
- STORAGE ENVIRONMENTHumidity: 10–90% (non-condensing)
Temperature: -4–140º F (-20–40º C) - CONTENT MANAGEMENTOperating System: MS Windows
Software: Signage Manager Express
