OVERVIEW

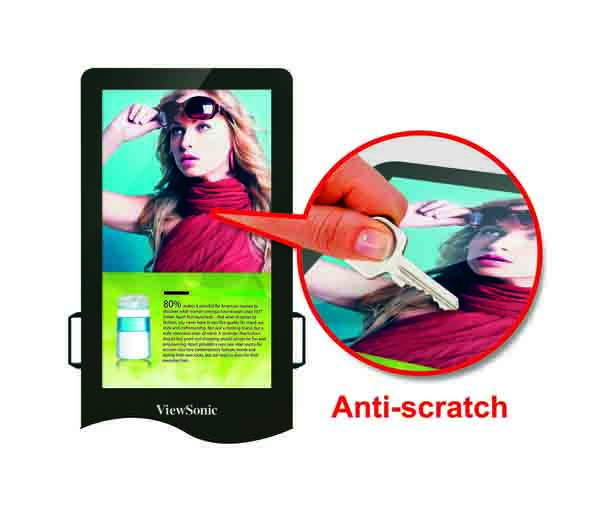

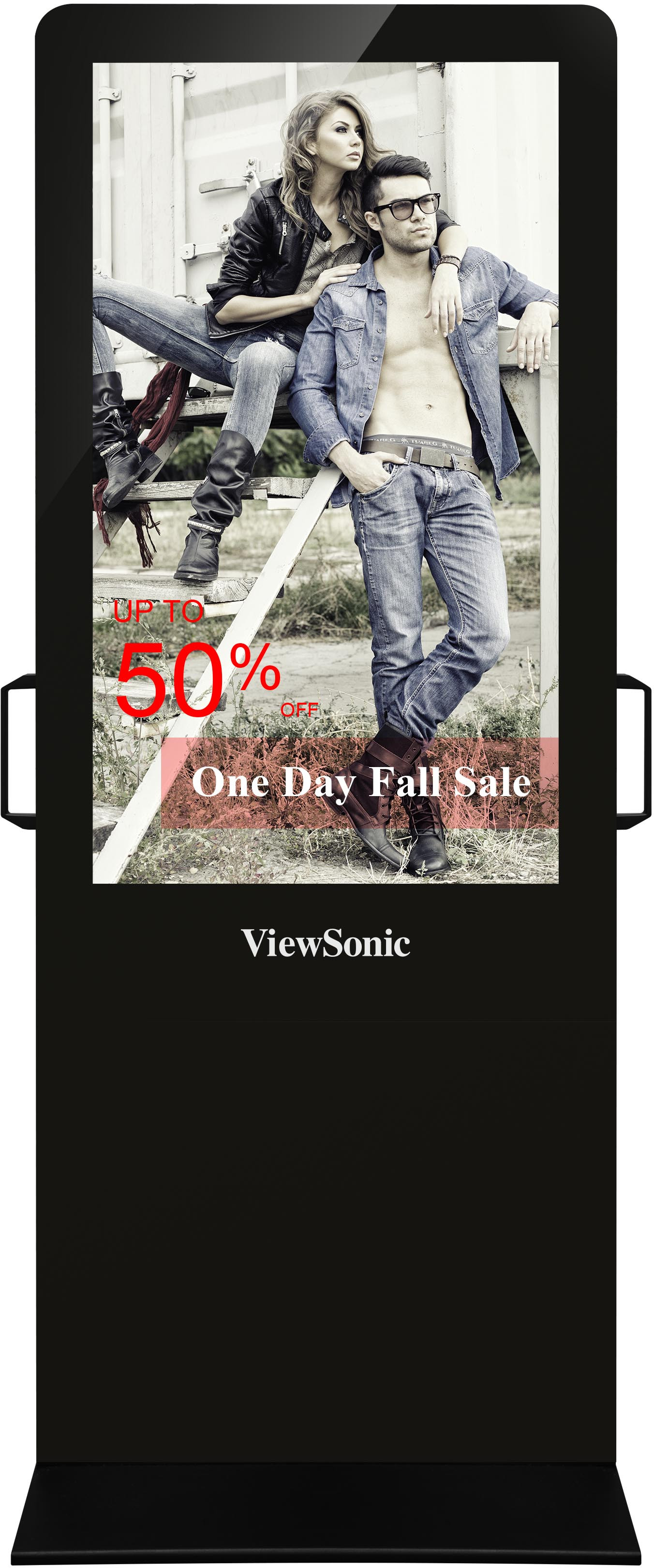

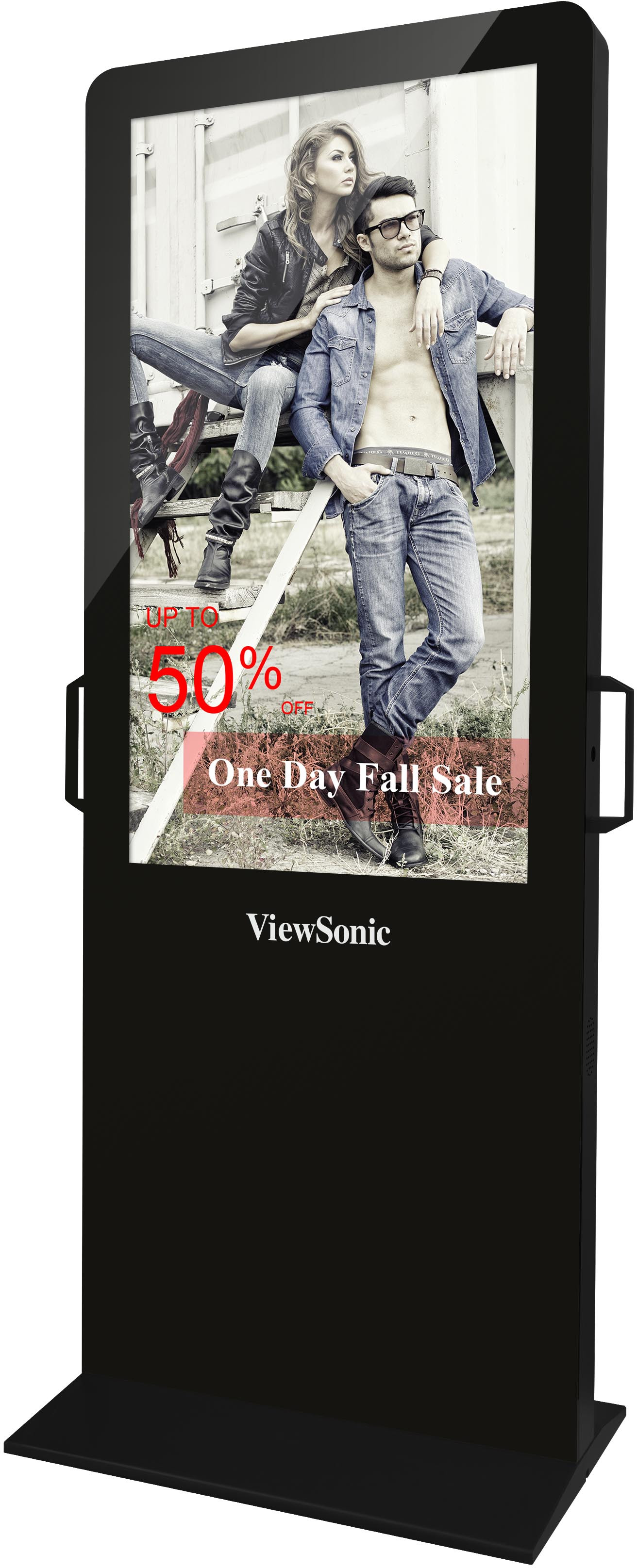

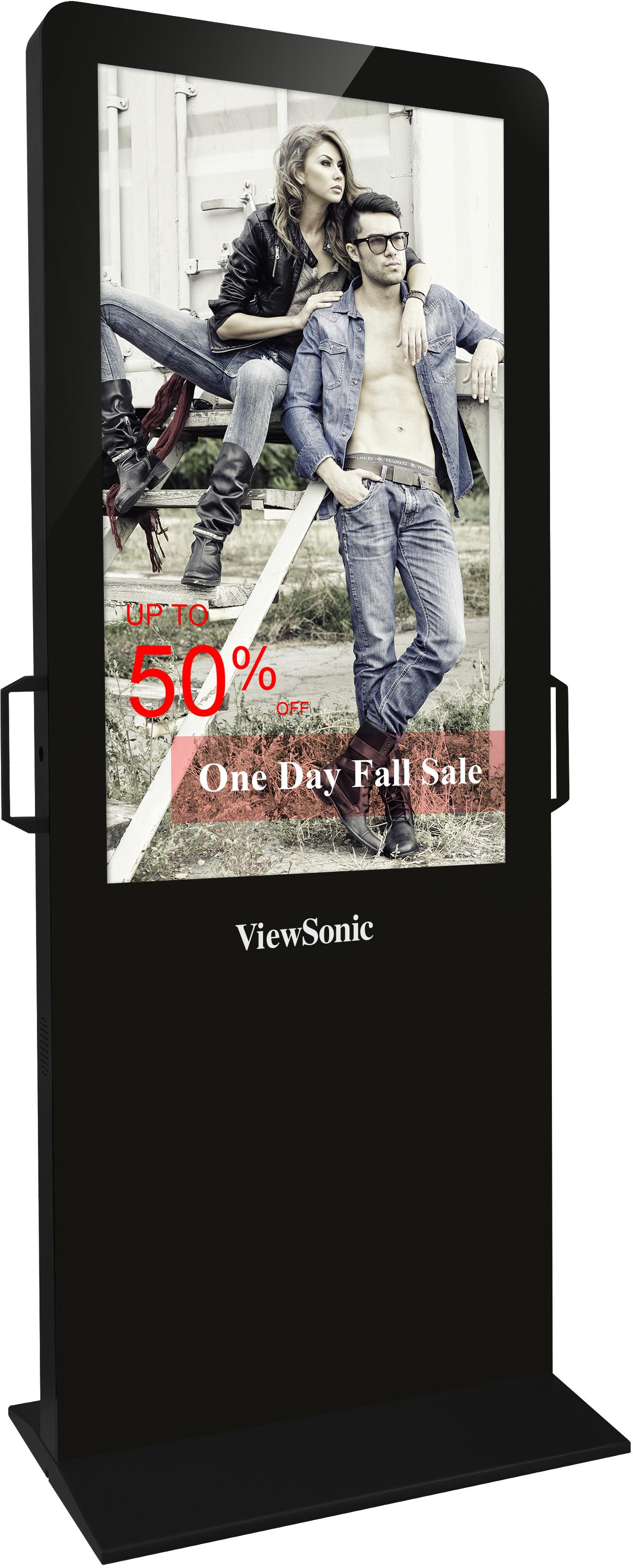

The ViewSonic EP4612-L is a 46" all-in-one digital ePoster kiosk with a sleek, free-standing design. It delivers high-impact messaging in a number of venues including shopping malls and retail stores, as well as office and school buildings. The EP4612-L comes with a scratch-proof tempered-glass faceplate for added durability. Featuring Full HD 1080p resolution, SuperClear image enhancement technology with wide viewing angles, 360-nit brightness, 1,200:1 contrast ratio, and dual 6W stereo speakers, the EP4612-L delivers customised multimedia messaging with vivid clarity. Photo and video files that are manually loaded can be played back using the integrated media player and 4GB of internal memory. Plus, the bundled ePoster Manager Express software makes the loading and scheduling of customized multimedia content easier than ever. Flexible HDMI, D-sub, USB (x2), and LAN connections also allow for content loading from a PC or networkable media player. The EP4612-L also provides auto on/off scheduling via an on-screen display, as well as a security lock design, making it a reliable and easy-to-maintain digital signage solution. Deliver Dynamic Messaging with Sleek, Free-standing Digital ePoster KiosksViewSonic’s EP4612-L all-in-one digital ePoster kiosk features a sleek and slim premium design, coupled with a free-standing form factor to deliver more dynamic, eye-catching messaging in high-traffic areas. It not only looks great, but it’s also durable, utilizing a tempered glass faceplate that offers scratch-proof protection to keep your ePoster looking like new year after year. ![]() | ||||||
The EP4612-L utilises an energy-saving LED backlight that consumes 35% less power than conventional CCFL backlight displays, and has an extended lifespan of up to 50,000 hours. This provides for a lower overall cost of ownership, along with a higher ROI, making this display a great long-term investment. ![]() |
The EP4612-L is equipped with a built-in media player that allows high-quality photos and high-definition 1080p video to be immediately broadcasted on-screen from the ePoster’s internal memory. Best of all, this reliable all-in-one e-poster effortlessly displays dynamic content with no crashes, freezes, or lost content. ![]() | |||||
The EP4612-L is capable of storing and playing hours and hours of high-definition multimedia content thanks to its 4GB of built-in, shock-resistant, solid-state memory. It also integrates 2 sets of USB hubs for greater accessibility. ![]() ![]() |

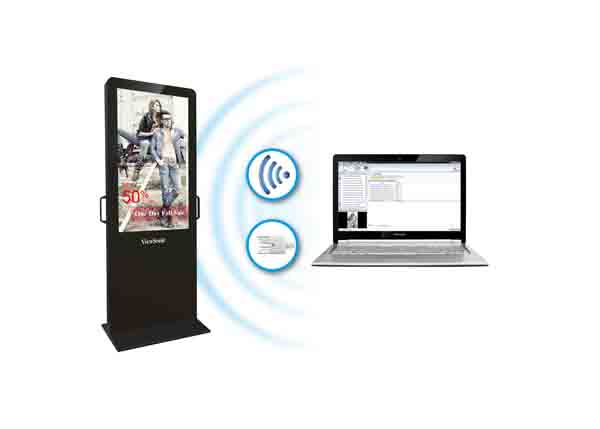

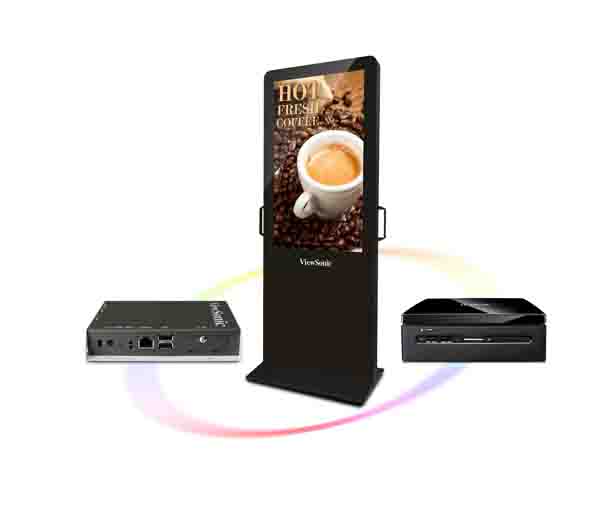

Great for all venues and scenarios, the included ePoster Manager Express Plus software lets users transfer multimedia content onto the EP4612-L from PCs and laptops. This software also makes it possible to schedule content and broadcasting cues, allowing you to effectively reach your target audience. Content can also be loaded onto the EP4612-L via LAN connection or USB hard drive. ![]() ![]() | |||||
ViewSonic’s EP4612-L display features Full HD 1920x1080 resolution to deliver superior pixel-by-pixel performance for a more realistic viewing experience. At this resolution you’ll experience greater image clarity and detail — qualities that will bring high-definition multimedia content to life. ![]() |
With a pair of integrated 6W speakers, the EP4612-L combines eye-catching multimedia content with high-quality sound effects — creating a lasting audio-visual impression on your target audience or demographic. ![]() | |||||

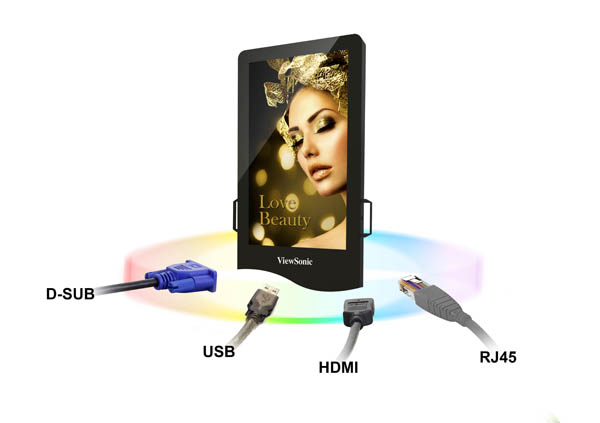

With a versatile selection of inputs, including HDMI, VGA, USB and RJ45, the EP4612-L enables you to easily connect a variety of devices and content sources, such as mini-PCs and media players, for straightforward content loading. ![]() |

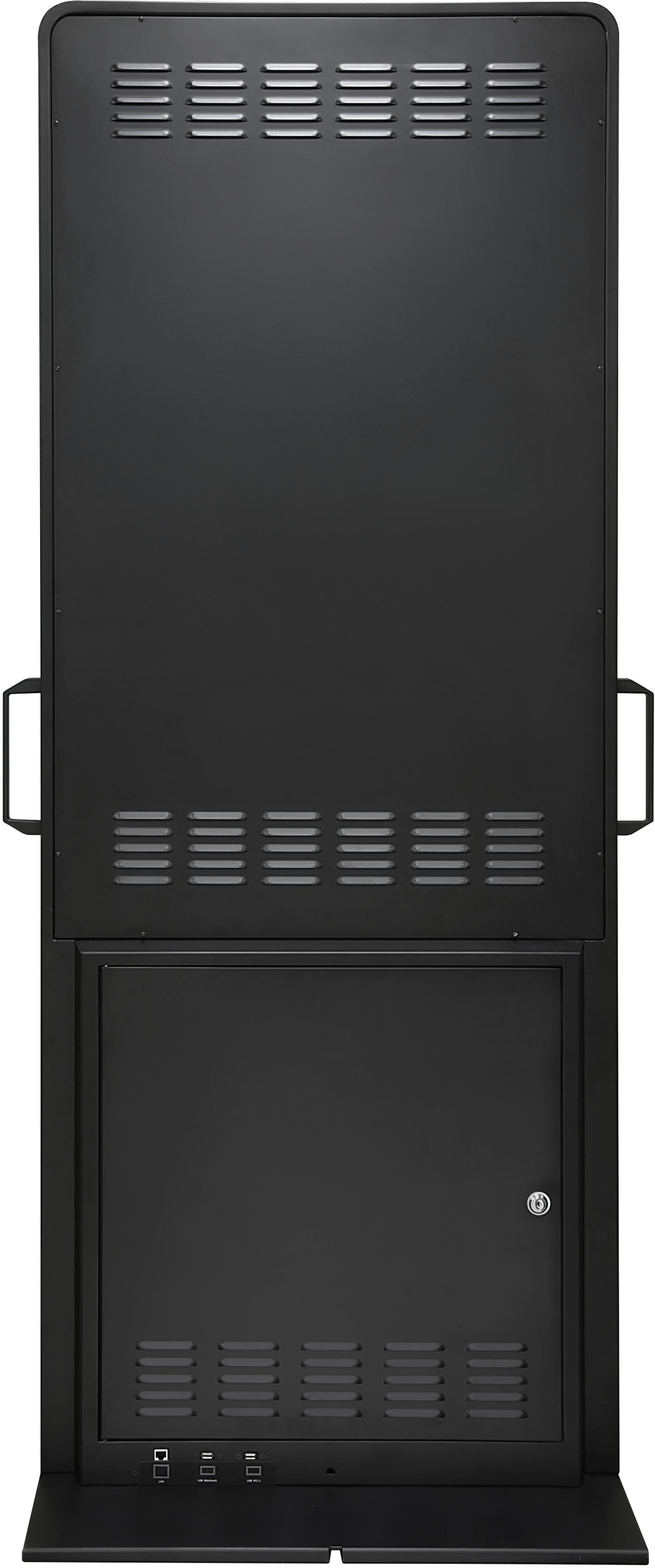

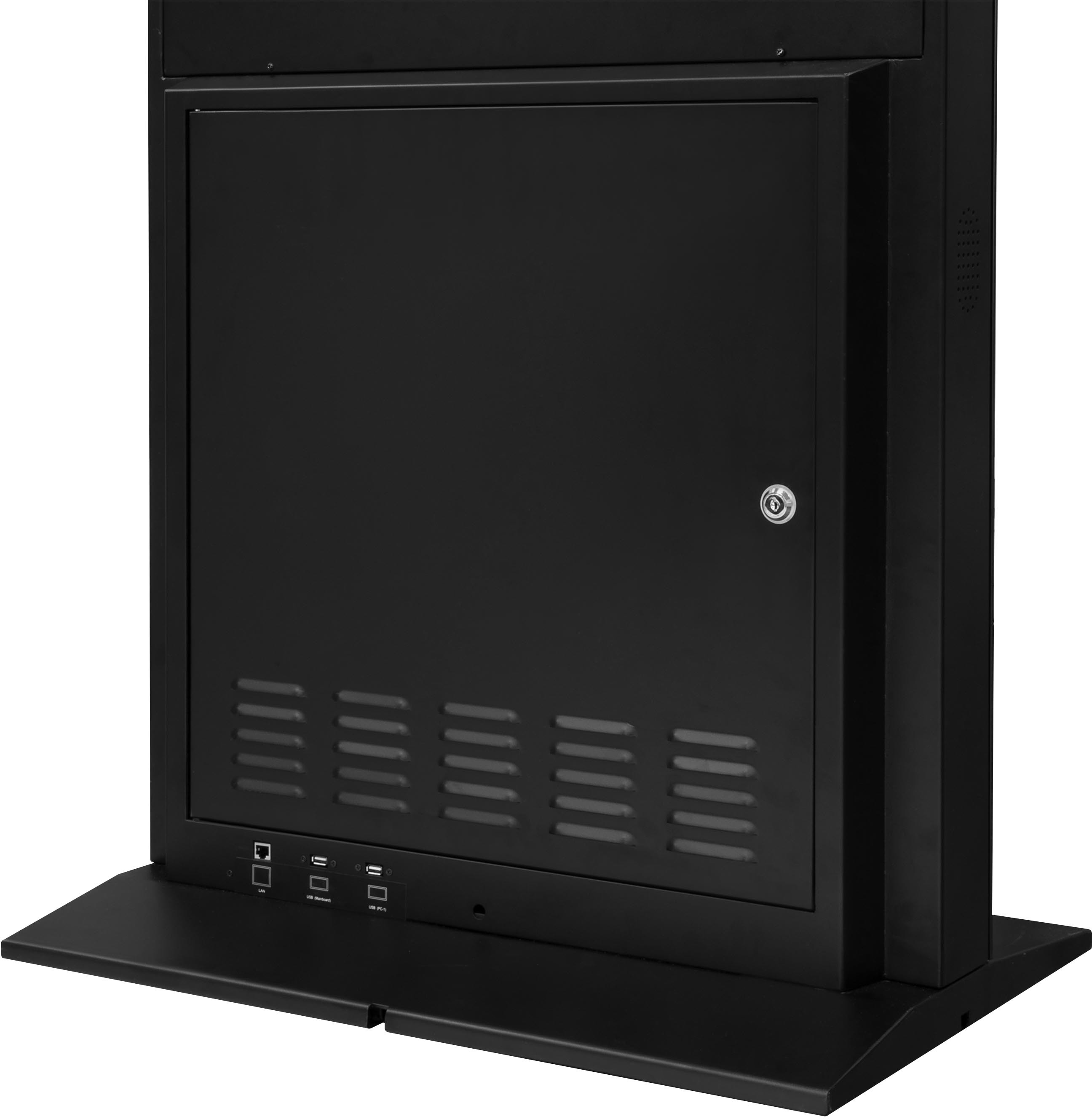

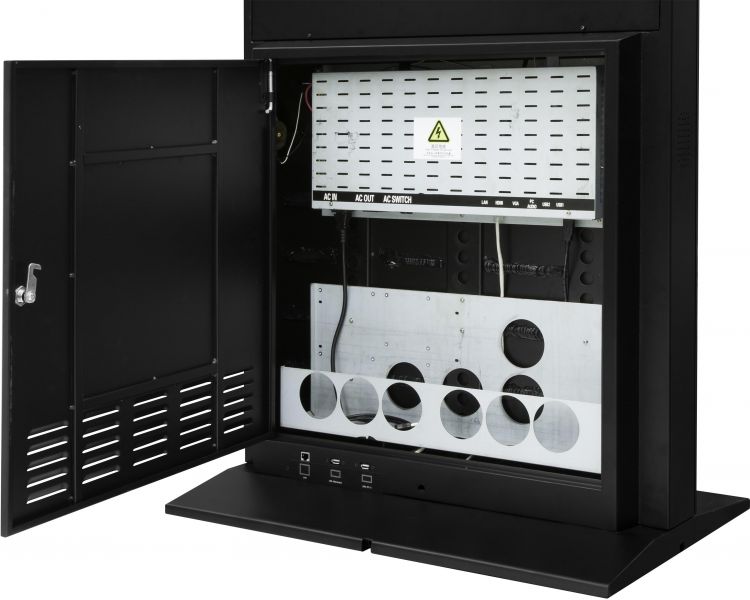

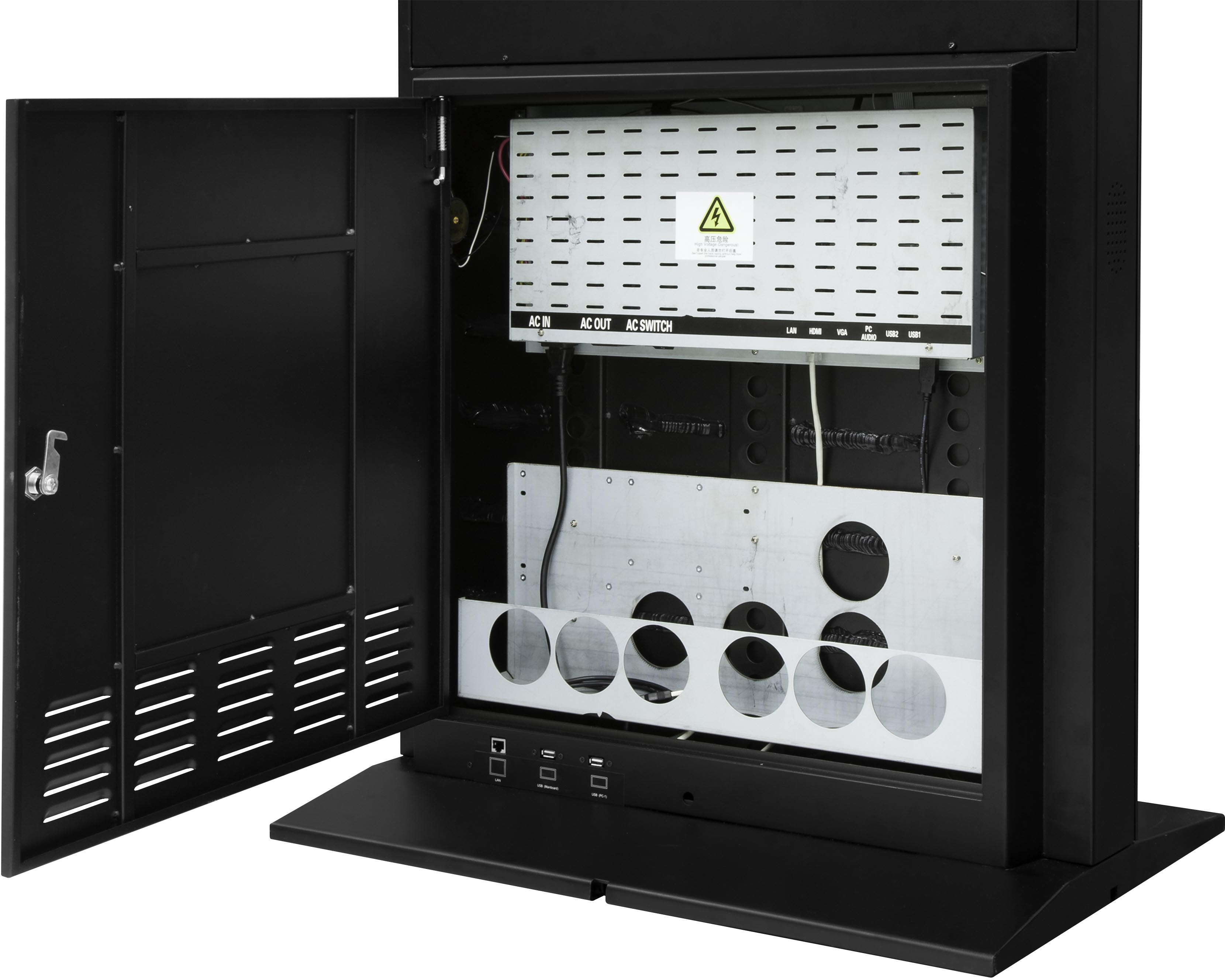

The EP4612-L features a convenient backdoor design with internal storage space that can accommodate a PC or an additional mounted media player, giving you additional flexibility when configuring multimedia content sources. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices. ![]() | |||||

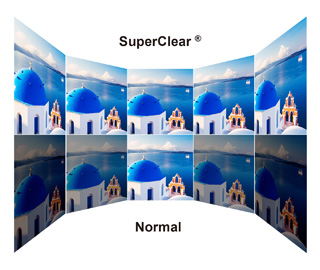

SuperClear® Technology for Consistent Color Performance and Wide Viewing AnglesSuperClear® image enhance technology delivers 178-degrees of vertical and horizontal viewing angles. Target audiences will experience accurate, vivid colors, and consistent brightness levels whether looking at the screen from above, below, the front, or the side—with no distortion or decay. ![]() | Efficient, User-Friendly Content Scheduling & SettingsThe ViewSonic EP4612-L commercial display provides an efficient, user-friendly scheduling interface via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that the EP4612-L runs smoothly and on time. ![]() | |||||
1-year Limited WarrantyOne of the aspects that make ViewSonic a market leader in displays is its dedication to quality. ViewSonic is committed to using the highest grade panels. We also back our displays with a 1-year limited warranty for your peace of mind. | ||||||
SPECIFICATIONS
- LCDType: TFT LCD Module with WLED
Contrast Ratio: 1200:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Display Area: 1018.08mm (H) x 572.67mm (V)
Optimum Resolution: 1920x1080
Response Time: 8ms
Aspect Ratio: 9:16
Panel Surface: Tempered glass on front cover
Size: 46" diagonal
Brightness: 360 cd/m2
Backlight Life: 50,000h (typ) - COMPATIBILITYPhoto Formats: JPEG, GIF, BMP, PNG
Video Formats: MPEG 1/2/3, H.264, Xvid 1.00-AVI, MP4
Audio Formats: WMA, MP3, M4A (AA CC) - DIMENSIONSPhysical (WxHxD): 705 x 1850 x 450 mm, 27.76 x 72.83 x 17.72 in
Packaging: 851.5 x 2010 x 574 mm, 33.52x79.13x22.6 in
- REGULATIONSCE, FCC
- PACKAGE CONTENTS-EP4612-L ePoster Digital Kiosk
-Power cable
-Y Power cable

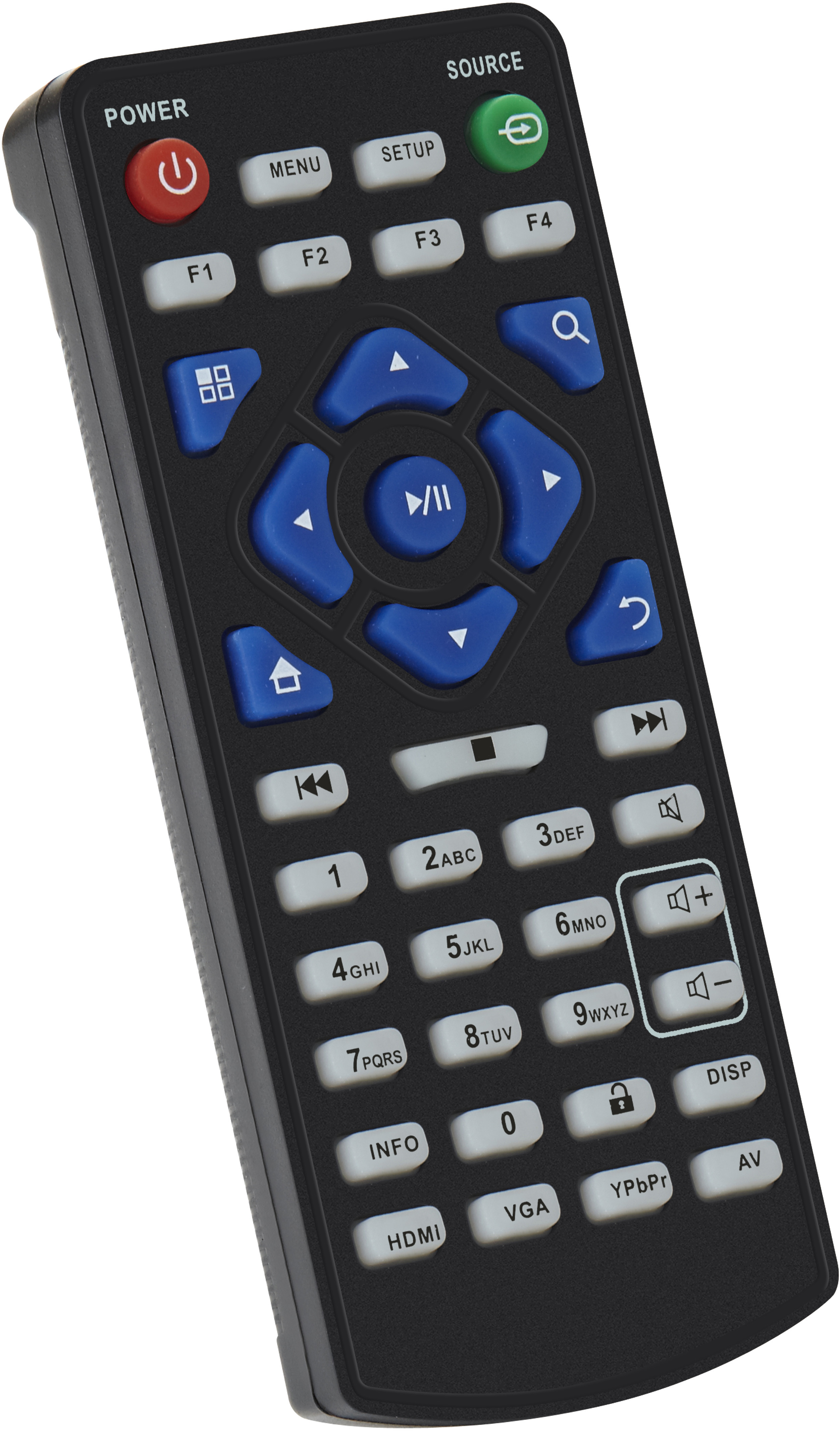

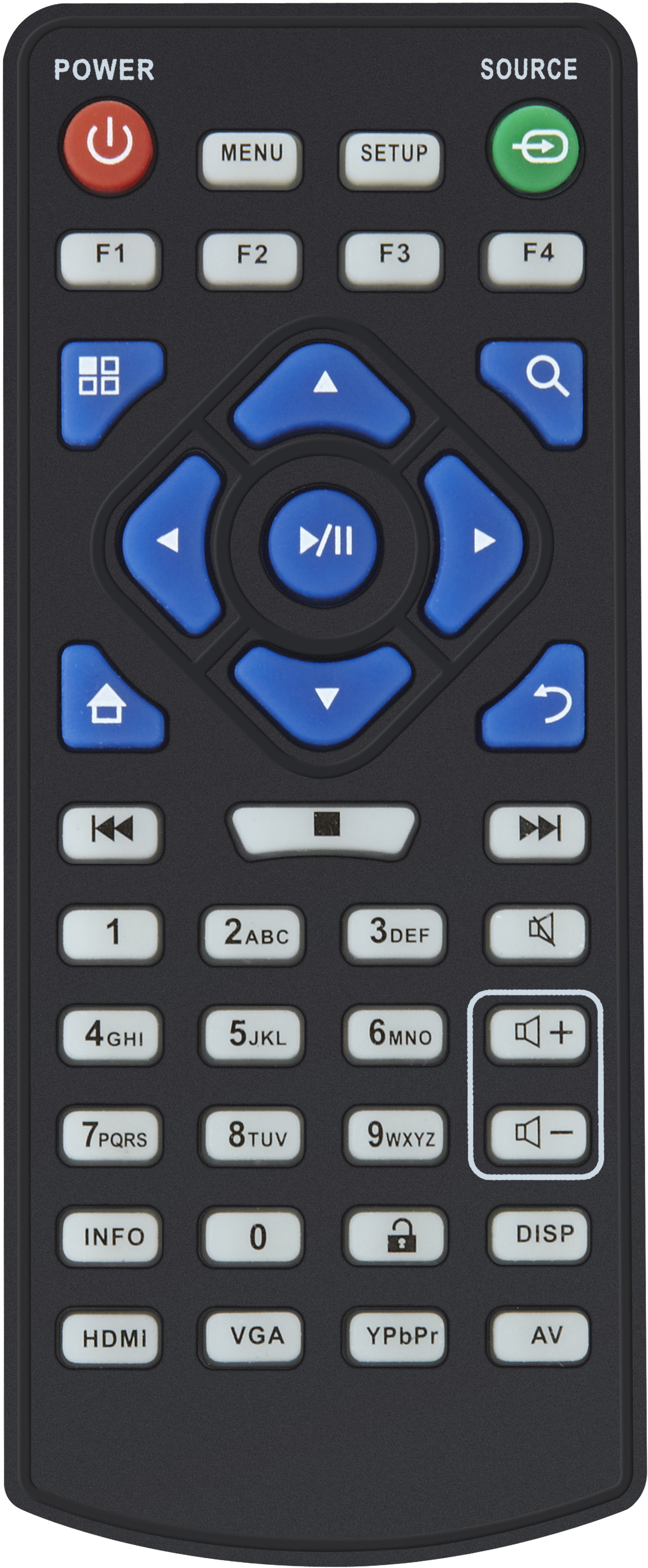

-Remote control with battery
-Quick Start Guide
-User Guide CD
-Key
-Hexagon wrench(to remove handles)
-Black labels(to cover holes after removing handles) - WARRANTY1-year limited
**Warranty offered may differ from market to market - CONNECTORVideo: 1x HDMI (Version 1.3), 1x RGB (D-SUB)
USB: 2x USB (2.0)
Audio: 1x PC audio in (3.5mm Jack)
Ethernet: 1x RJ45 (Ethernet)
Speaker: 2x Internal 6 Watt - POWERVoltage: AC 100-240V (universal), 50-60Hz
Consumption: 97.6W (typ) - CONTROLSBasic: Language, Clock Display, Scrolling Text, USB Port, Return To Factory Settings
Picture: Brightness, Contrast, Saturation, Colour Temperature
Set Up: OSD Language, Reset
On View (PC mode): Auto Adjust, H Position, V Position, Phase, Clock
Screen: Vertical, Horizontal, Save and Reboot
Configuration 1: Playback Control: Storage Priority, Playback Mode, Play Time
Local ID: ID, Save
Configuration 2: Date & Time: Year, Month, Day, Hour, Minute, Update Date & Time
On/Off Timer: Timer Mode, Daily, Sunday ~ Saturday
Configuration 3: File Management: Information, Format
Source: HDMI. VGA, Internal Storage - OPERATING CONDITIONSTemperature: 0-50ºC
Humidity: 20–90% (non-condensing) - WEIGHTGross: 95 kg / 209.44 lb
Net: 81 kg / 178.57 lb
