EP4610

Impactful High-Definition Digital Poster

Sales Enquiry

GALLERY

OVERVIEW

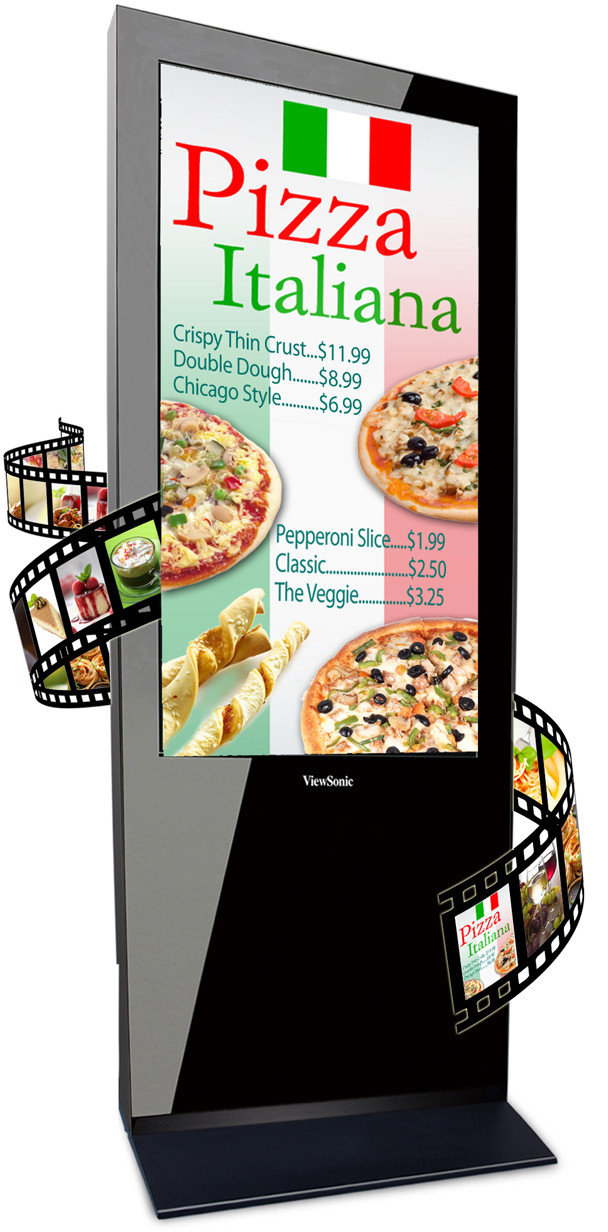

ViewSonic’s new ePoster products make it easy to replace those old backlit printed signs with new impactful video messaging on high definition digital posters. These sleek new displays feature versatile input connections for easy content uploading or adding your favorite media player. Information is disseminated through the ePoster’s video connectors via a media player or USB thumb drive. ViewSonic’s new ePoster products are available in various sizes and slim profiles fit in beautifully with their limited footprint. Great for announcing special promotions, computer-generated information or communicating multimedia with photos, audio, signage, and video.

46"" Full HD 1920x1080 display resolution

450 nits of brightness with 4,000:1 contrast ratio

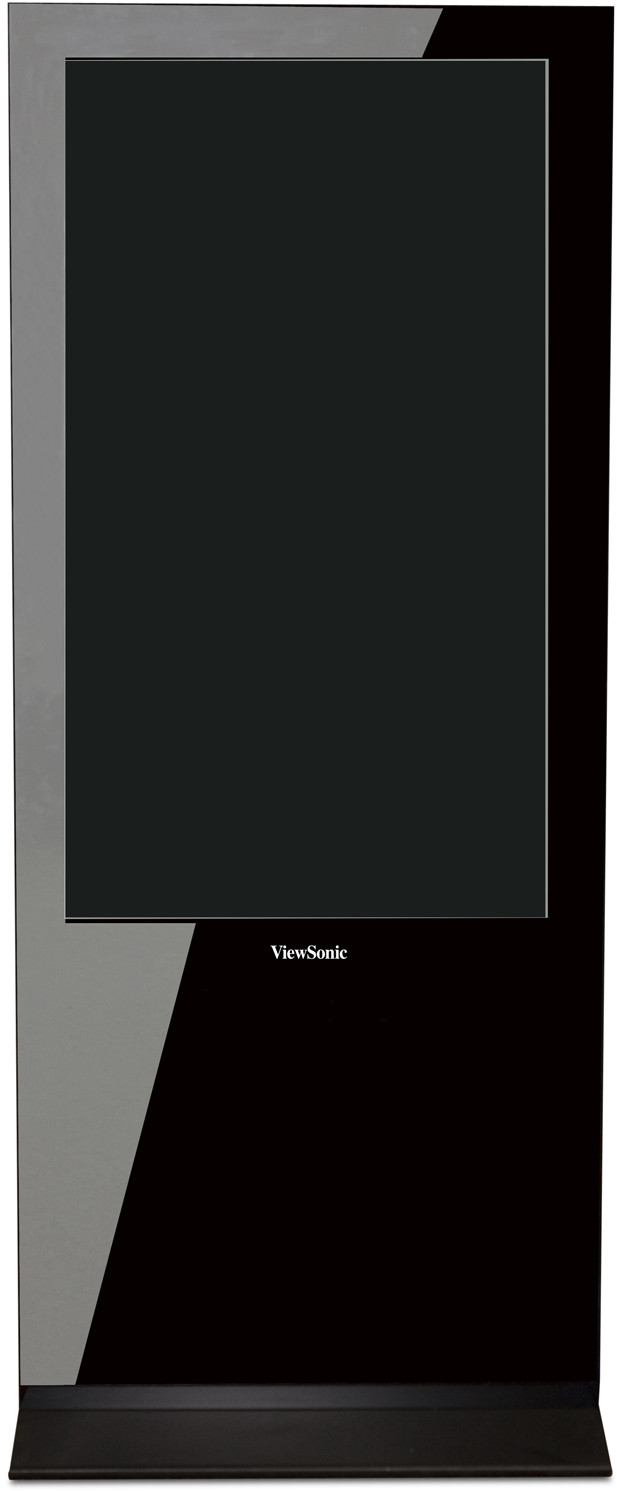

Sleek tempered glass faceplate

Versatile video inputs (HDMI, VGA, YPbPr, USB)

Internal VESA® compliant mounting and power supply for adding media players

Easy loading of content through USB thumb drive

Compatible with the ViewSonic NMP-570 (W) media player (Optional) Includes Signage Manager Express software

Audio 5wx2

Applications:

• Retail Advertising
• Transportation
• Hospitality
• Education

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
Card Reader: 2GB Compact Flash
DIMENSIONS

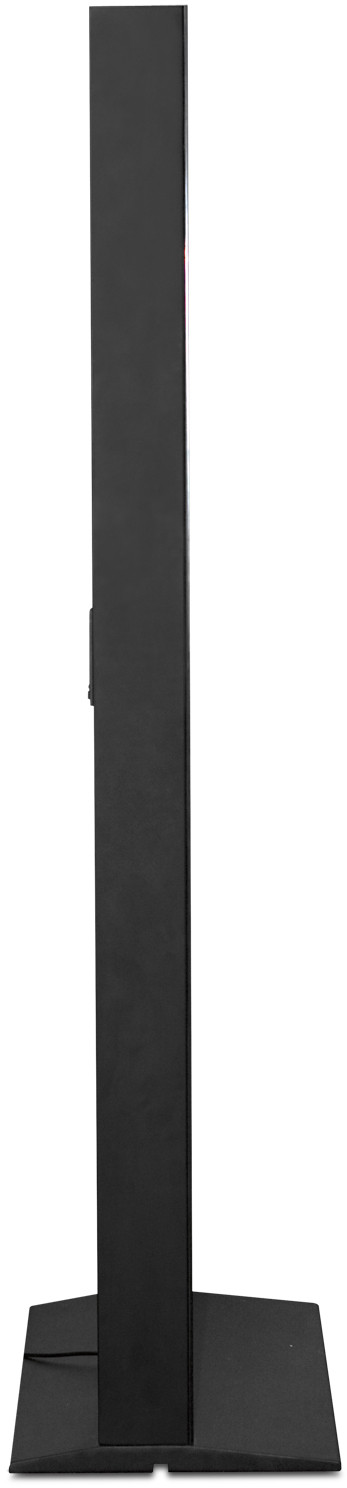

Physical With Stand: 750mm x 1950mm x 450mm

REGULATIONS
FCC, ICES 003, CE
PACKAGE CONTENTS

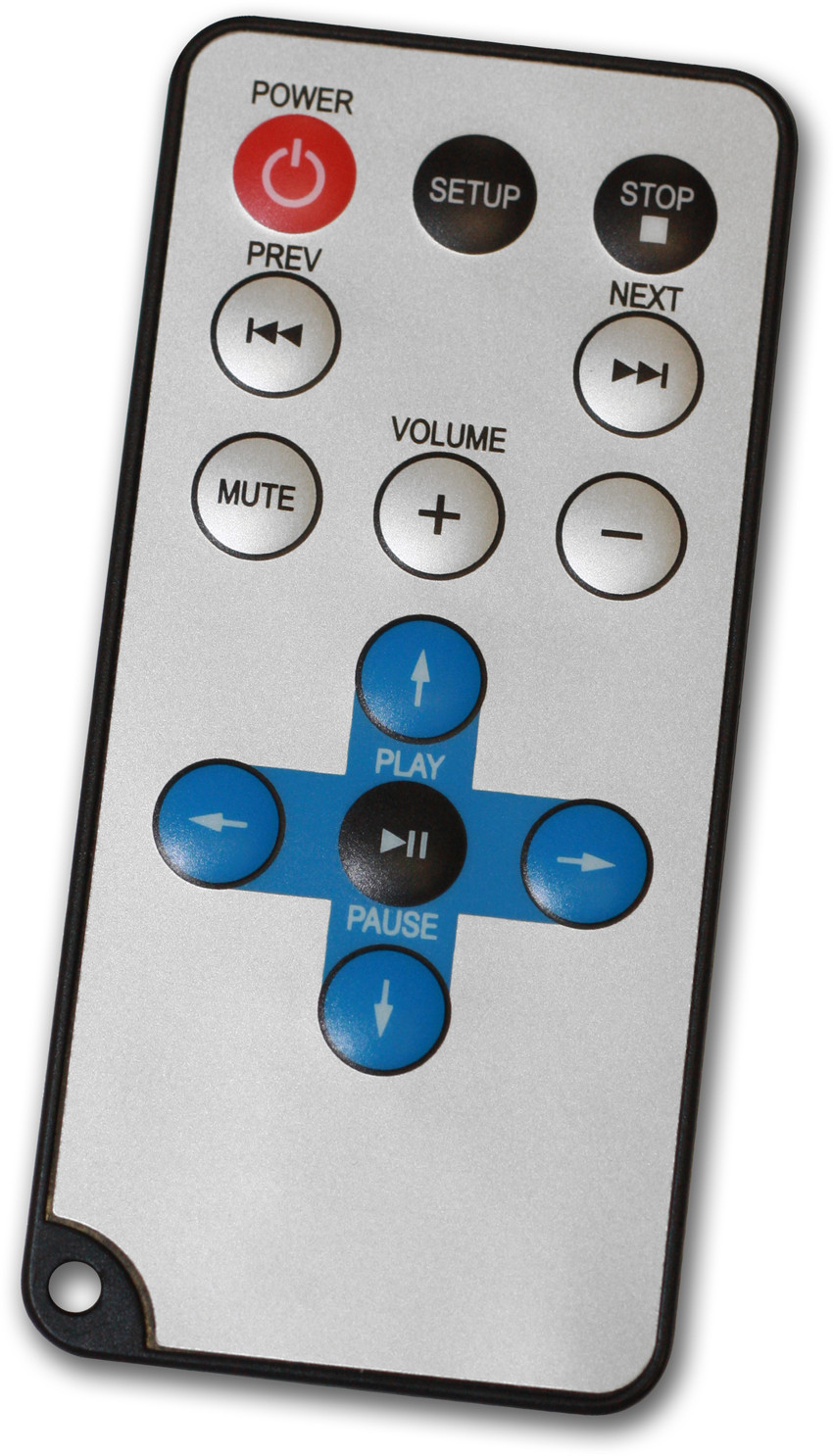

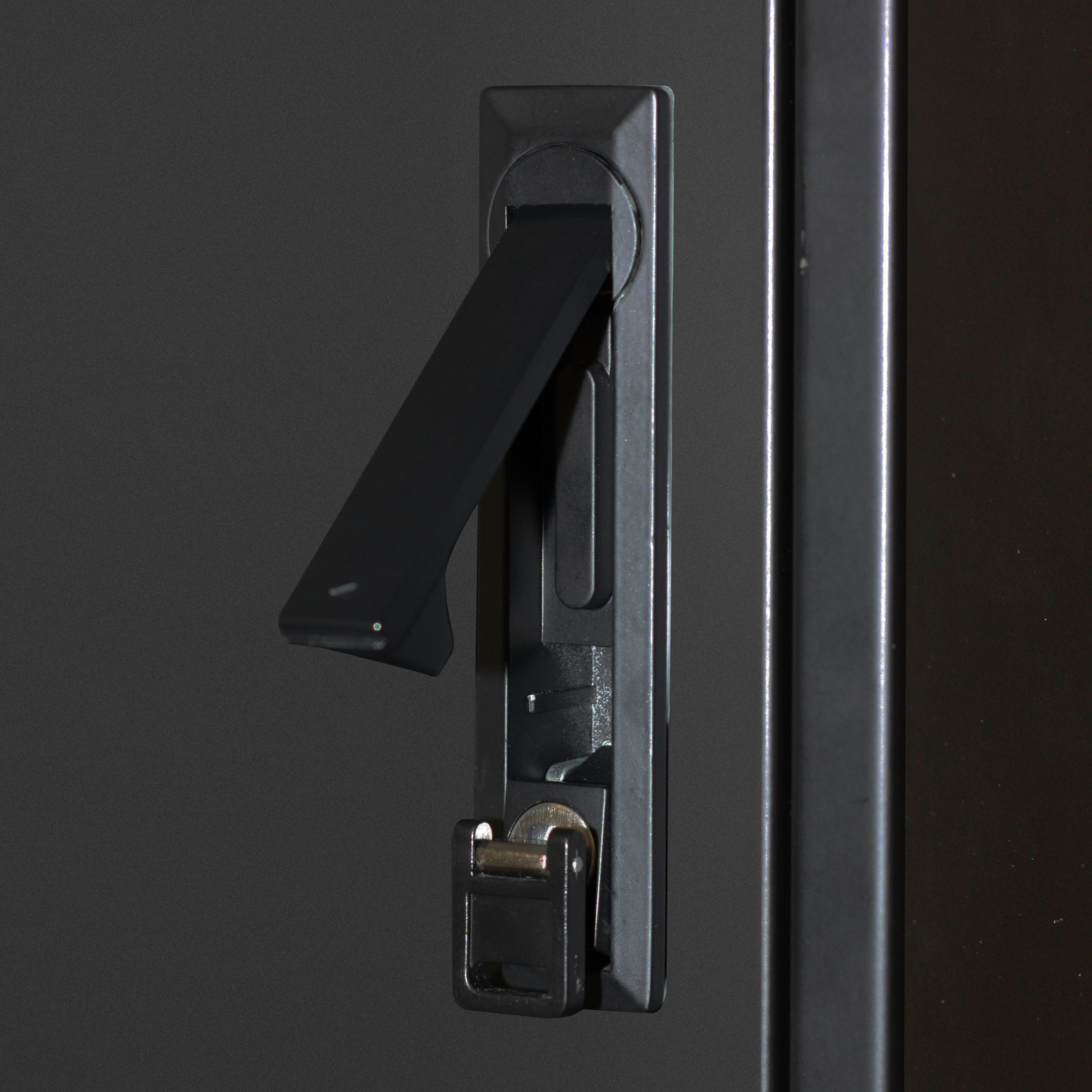

ePoster, power cord, remote control with batteries, key, Quick Start
Guide, User Manual and Software on CD
AUDIO
Speaker: 5W (x2)
POWER
Consumption: Max 240W
Save Mode (W): Off < 1W
Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
MEMORY
Internal: 2GB
DISPLAY
Contrast Ratio : 4000:1 (typ)
Display size: 46" (116.8 cm)
Resolution: 1920x1080 dots
Color Depth: Over 16.7M color (depending on video card used)
Response Time: 8ms (typ gray-to-gray)
Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
Brightness: 450 cd/m2 (typ)
WEIGHT
Gross: 286.60 lbs. (130 kg)
Net: 264.55 lbs. (120 kg)
OPERATING CONDITIONS
Humidity: 20–90% (non-condensing)
Temperature: 32–104º F (0–40º C)

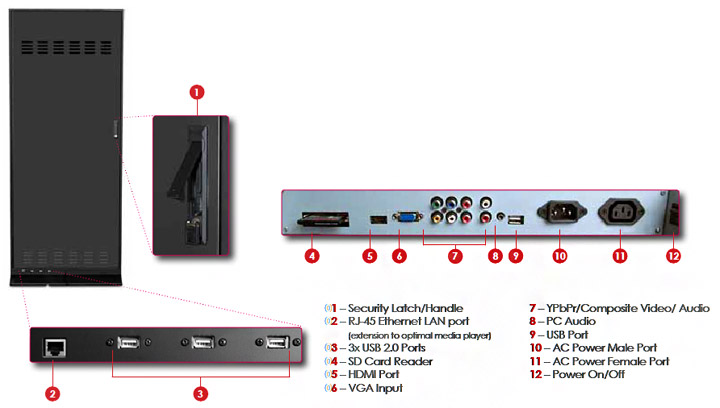

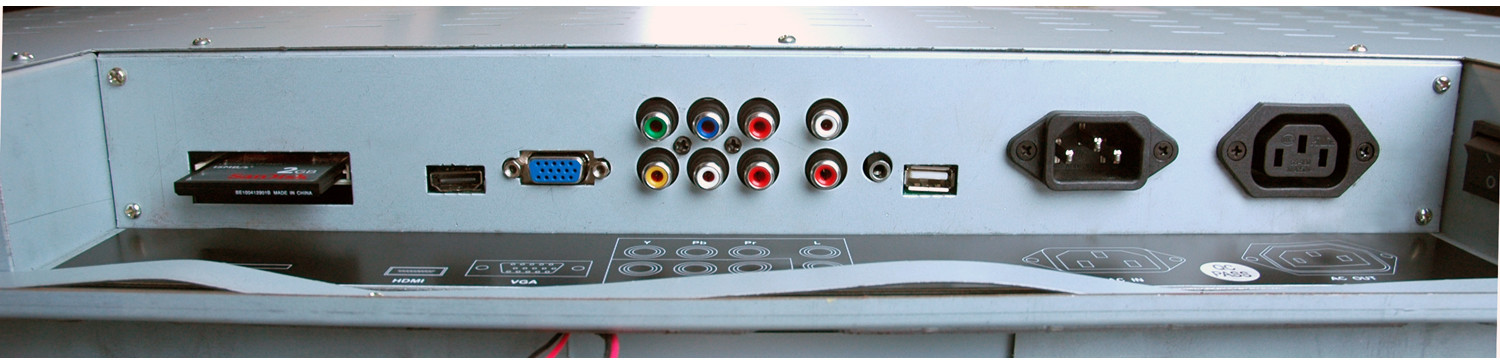

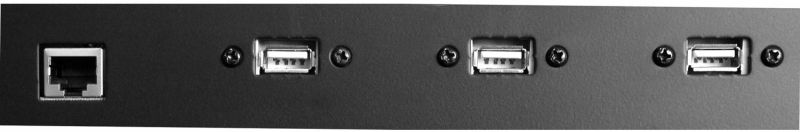

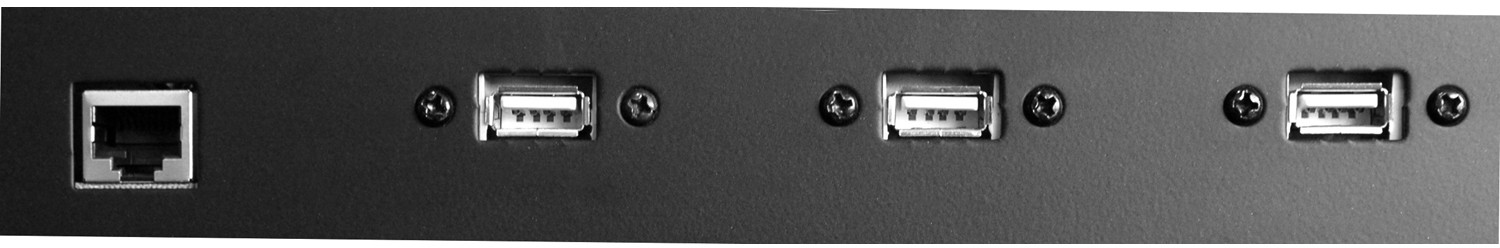

CONNECTORS
HDMI, VGA, yPbPr, USB
STORAGE ENVIRONMENT
Humidity: 10–90% (non-condensing)
Temperature: -4–140º F (-20–60º C)
CONTENT MANAGEMENT
Operating System: MS Windows
Software: Signage Manager Express
MTBF
50,000 hrs.
